Carrier 42QZL018DS series User manual

CONSOLE TYPE AIR CONDITIONER
OWNER’S MANUAL
G B
ENGLISH
OWNER’S MANUAL
I T
ITALIANO
MANUALE UTENTE
F
MANUEL D'UTILISATION
D E
BEDIENUNGSHANDBUCH
DEUTSCH
E
MANUALE UTENTE
N L
GEBRUIKSAANWIJZING
NEDERLANDS
FRANÇAIS
ESPAÑOL
P L
POLSKI
INSTRUKCJA UŻYTKOWNIKA

2
2
3
4
4
5
5
6
7
The manufacturer reserves the right to change any product specifications without notice.
This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC),
and the Electromagnetic Compatibility Directive (2004/108/EC)ofthe EuropeanUnion.
CorrectDisposal ofThis Product
(Waste Electrical & Electronic Equipment)
(Whenusingthis air conditioner inEuropeancountries, the followingguidance mustbe followed)
-This marking shown on the product or its literature, indicates that waste electrical and eletrical equipment (WEEE as in
directive 2002/96/EC) should not be mixed with general household waste.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
1. The municipality has established collection systems, where electronic waste can be disposed of at least free of charge to
the user.
2. When buying a new product, the retailer will take back the old product at least free of charge.
3. The manufacture will take back the old appliance for disposal at least free of charge to the user.
4. As old products contain valuable resources, they can be sold to scrap metal dealers.
Wild disposal of waste in forests and landscapes endangers your health when hazardous substances leak into the
ground-water and find their way into the food chain.
Indoor Unit Outdoor Unit Rated Voltage & Hz
42QZL018DS*
42QZL024DS*
42QZL036DS*
42QZL048DS*
42QZL060DS*
38QUS018DS*
38QUS024DS*
38QUS036DS*
38QUS048DT*
38QUS060DT*
220-240V ~ 50Hz
380-420V 3N~ 50Hz
GB-1
CONTENTS
1. READ BEFORE OPERATING ····················································································
1.1 Safety Percautions ·······························································································
1.2 Part Names ········································································································
2. OPERATION ···········································································································
2.1 Operating Conditions ···························································································
2.2 How It Works ······································································································
2.3 Hints For Economical Operation ·············································································
3. CARE AND MAINTENANCE ·····················································································
4. TROUBLE SHOOTING ···························································································

1. READ BEFORE OPERATING
1.1 SAFETY PRECAUTIONS
WARNING
This symbol indicates the possibility of personnel injury or loss of life.
Read this manual before using the product!
This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
The task of installing this product must only be performed by suitably qualified and experienced
persons.
ELECTRICAL work may only be performed by authorized personnel and in accordance with
national wiring standard. If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Do not use extension cord or share the same power outlet with other appliances.
Do not attempt to maintain, repair, move or modify your air conditioner. Seek professional help -
contact an authorized dealer.
Incomplete repair or maintenance may result in water leakage, elecric shock or fire.
Turn off the unit if unusual smells, sounds or vibrations are noticed. Contact authorized dealer.
Do not use flammable gas or combustibles such as gasoline, benzene, thinner, etc. in the
conditioned space.
This may result in a fire.
Do not use a heating appliance in the conditioned space.
Insufficient ventilation may cause accidents due to oxygen deficiency.
Operating with wet hands may result in electrical shock.
Prolonged exposure to drafts may lead to muscular discomfort and dry eyes.
This could affect your physical condition and cause health problems.
Do not touch the air outlet or louver while unit is in operation.
It may cause injury.
Do not operate the unit in a wet room such as bathroom or laundry room.
This may result in electric shock.
Do not inset hands or fingers or other objects into the air inlet or outlet at any time.
This may cause injury, as the internal fan rotates at high speed.
Do not place any object especially things containing water, like vases, on the unit.
This may cause electric shock.
Store the remote control out of reach of infants.
Failure to observe this may result in the batteries being swallowed or other accidents.
This appliance is only intended for use in household environment.
Appliance for household environment is appliance for typical housekeeping functions used in the household environment that
may also be used by non expert users, such as shops, offices and other similiar working environment, farm houses, hotels,
motels and other residential type environment.
7
GB-2

GB-3
CAUTION
This symbol indicates the possibility of property damage or serious consequences.

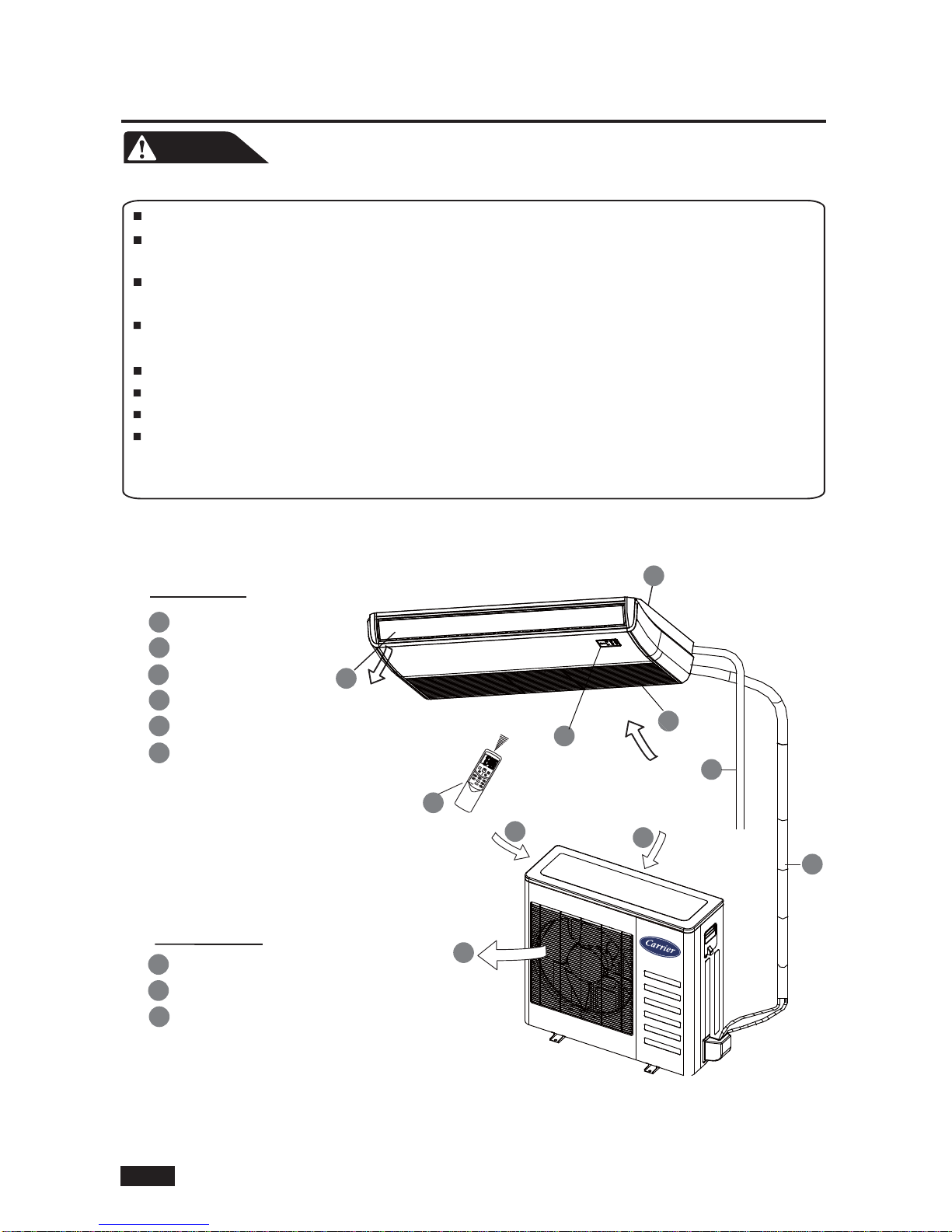

1.2 PART NAMES
This product is intended for human comfort ONLY.
Do not block air inlets or outlets. Poor performance, increased running costs and reduce product
life will result.
Do not control the system with main power switch.
It can cause fire or water leakage.
Do not touch the fins on the heat exchanger.
Metal parts may have sharp edges that casue injury.
Disconnect the unit when unused for long periods.
Disconnect BEFORE cleaning or servicing.
Never use strong detergents, solvents or abrasive polish on the product.
Regular high level maintenance of the indoor and outdoor units is essential.
Specialist MAINTENANCE is required to do deep-clean, lubricate and function check of all critical components. Contact a
qualified service personnel.
1. READ BEFORE OPERATING
Remote controller*
Louver
Display
Connecting pipe
Air inlet
Drain pipe
Air outlet
Air inlet (with filter)
INDOOR UNIT
OUTDOOR UNIT
1
3
9
1
5
7
8
2
4
6
Installation part
1
3
5
4
7
6
8
9
RESET
TIMEON
TIMEOFF
CLOCK
SWING
AIRDIRECTION
OK
ECO
SWING
MODE FAN
SPEED
M
LOCK
C/H
AUTO
COOL
DRY
HEAT
FAN
TEMP
SET
CLOCK
SET
HOUR
FANSPEED
3
3
2
8
[*] Remote controller or wired controller: model dependent.

7
GB-4
1. READ BEFORE OPERATING
2. OPEATION

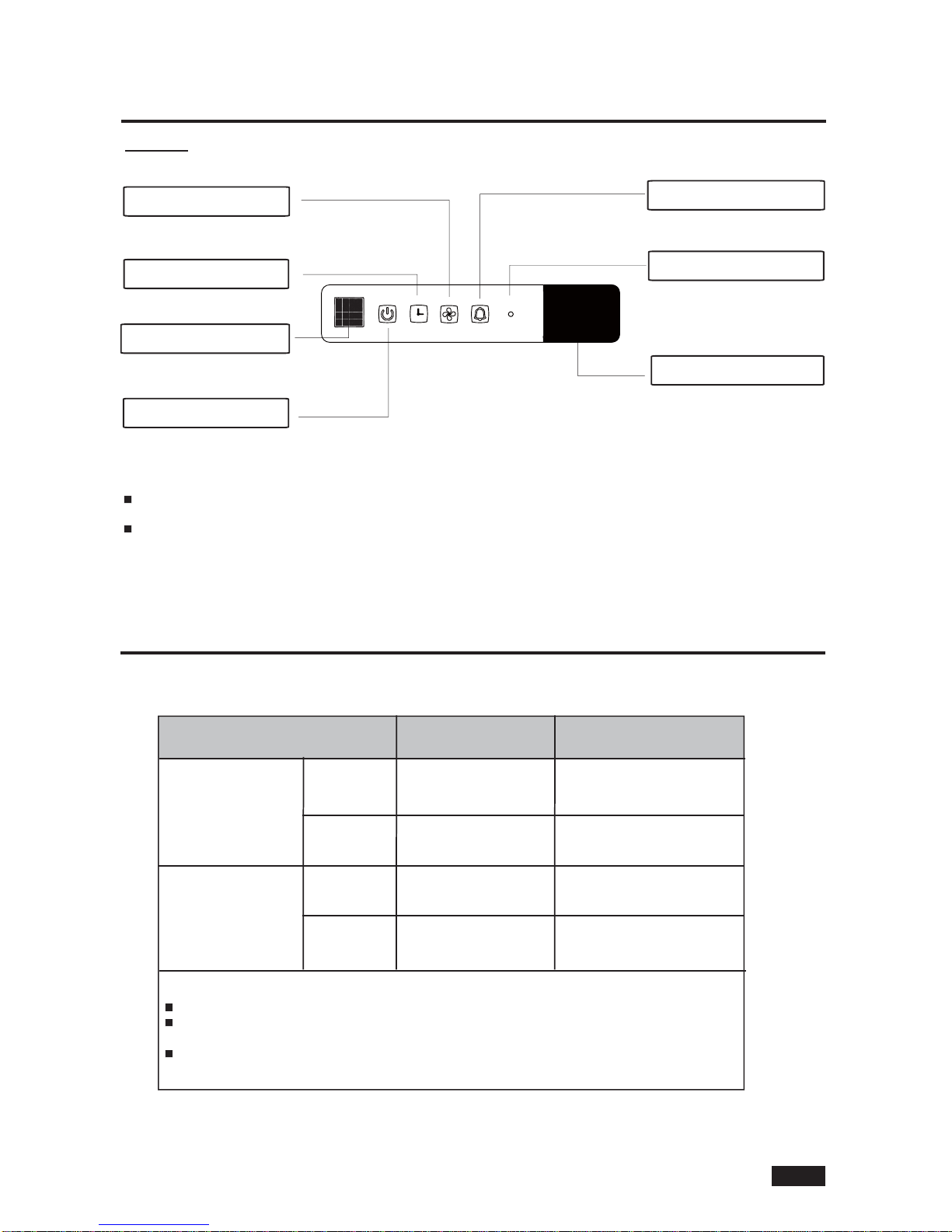

Function indicators on indoor unit display panel
Infrared signal receiver
Temperature indicator
Operation lamp
Timer lamp
Alarm lamp
Manual button
This switch is used for after-sales
service purpose only,the user
should not push it.
Illuminate during TIMER operation
Illuminate during DEFROST
operation
Receive the signal from remote
controller
Indicate the room temperature
Flash when unit in failure status
Illuminate during operation
DEF./FAN lamp
DISPLAY
All the pictures in this manual are for explanation purpose only. They may be slightly different from the air conditioner you
purchased (Model dependent).The actual shape shall prevail.
A guide on using the remote controller (or wired controller) is included in this literature packaged.
NOTE
2.1 OPEATING CONDITIONS
MANUAL
Lower limit
Opeating Conditions
Upper limit
Indoor Outdoor
46 °C DB
Upper limit
Heating Operation
Lower limit
Cooling Operation
Note: DB - Dry Bulb
18 °C DB
32 °C DB
27 °C DB
-10 °C DB
0 °C DB
24 °C DB
-15 °C DB
Optimum performance will be achieved within these operating temperatures.
When the unit operates above or below these conditions for a long time, system diagnostics may detect a
malfunction and the unit will not operate properly.
Room relative humidity - less than 80%. If the air conditioner operates outside this range, the surface of the
air conditioner may attract condensation.

72GB-5
2. OPEATION

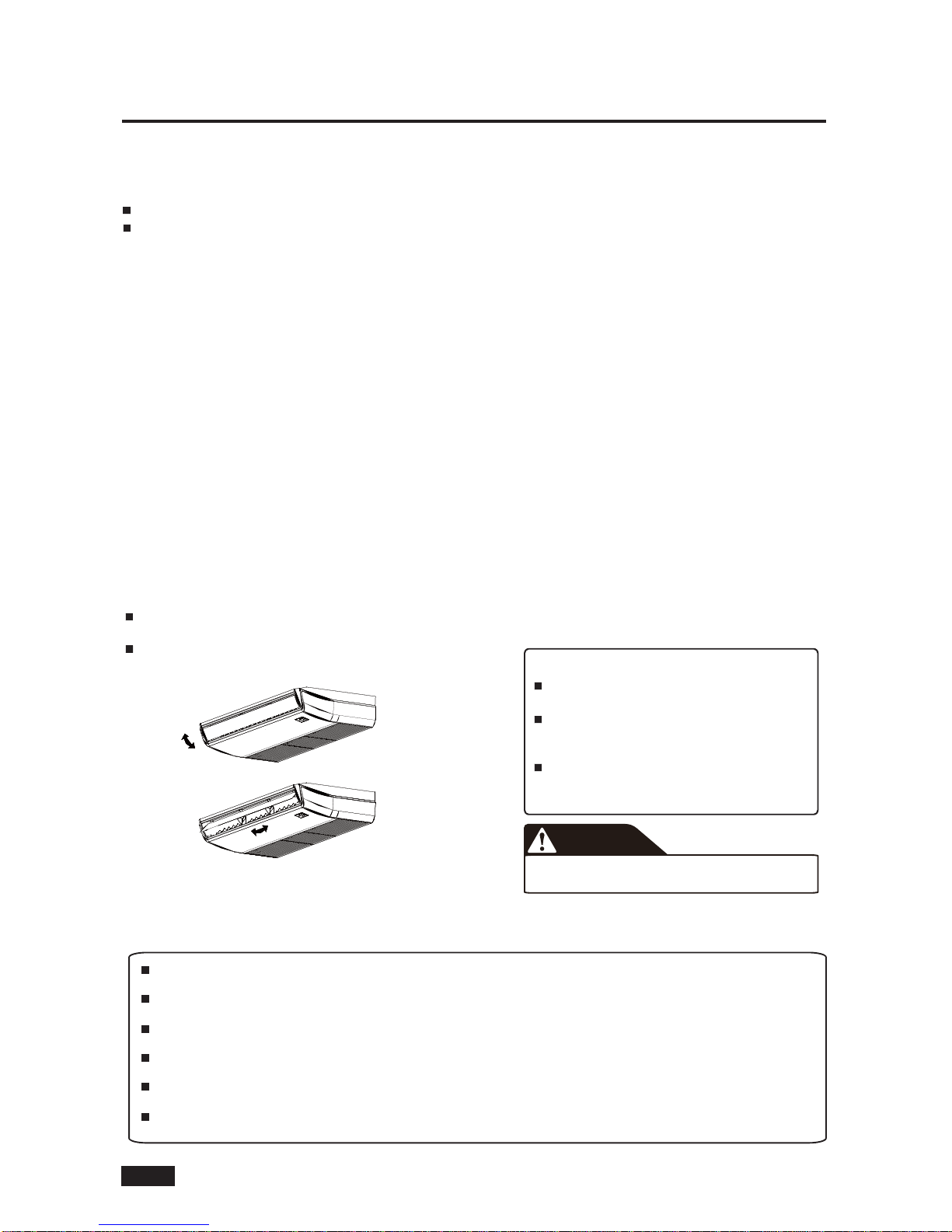

2.2 HOW IT WORKS
In this setting the system will automatically change modes and fan speed to the set temperature.
[In spring and autumn, closer temperature control may require COOL/HEAT mode changes.]
In this mode, priority is given to dehumidifying the air. Low fan speed and compressor cycling is used to achieve this and regulate room
temperature.
AUTO Mode
DRY Mode
Basic Operation Modes：AUTO / COOL / DRY / HEAT / FAN
At start-up, a time delay of 3 to 4 minutes protects the compressor.
Compressor Delay
To avoid uncomfortable drafts in heating mode, the indoor unit is preheated before the fan starts. This delay should only last a few
minutes.
Cold Draft Prevention
The unit will automatically restart after a power interruption. Previous user settings are all recovered.
Auto Restart*
When refrigerant leakage is detected, the unit will display “EC” code or flash LEDs.
Auto Leak Detection*
2.3 HINTS FOR ECONOMICAL OPERATION
Adjust the temperature to achieve moderate comfort levels. Excessively low or high temperatures waste energy.
Improve performance by keeping windows and doors closed.
Limit energy usage [run time] by using the TIMER function.
Do not block air inlets or outlets. Poor performance, increased running costs and reduced product life will result.
Inspect the air filters periodically, and clean them when needed.
Disconnect the power source if unit will not be used for a long period.
[*] Model dependent
Louver angle is memorised and will return to the position last selected by the user.
Louver Memory*
Press “AIR DIRECTION” on remote controller to adjust air flow direction. The louver position moves slightly each time the button is
pressed. Adjust the louver upwards in cooling mode while downwards in heating mode to achieve best comfort.
Press “SWING” to engage continous louver motion. Horizontal and
Vertical louver can be set respectively.
Adjusting Air Flow Direction
Please refer to the REMOTE CONTROLLER
MANUAL for details.
In cooling or dry mode, condensate may form and
drip from unit in high humidity condition if louver
position is in Maximum down.
Do not operater the unit with louver closed or
narrow opening. Restricted air flow reduced
performance and may cause condensate.
NOTE
CAUTION
Do not attempt to adjust the louver by hand.
Horizontal Louver Swing
Vertical Louver Swing
Ice develops on the outdoor unit in heating mode. To defrost this ice, the indoor fan stops for a few minutes before heating continues.
Auto Defrost

GB-6
DISCONNECT from power source BEFORE attempting to clean or service!
Use a soft damp cloth when cleaning the grille, casing and remote control.
Always contact a qualified service personnel to carry out repair or any
non-user serviceable maintenance, such as deep-cleaning, lubricate and
function check of critical component.
CAUTION
3. CARE AND MAINTENANCE
Cleaning the air filter
To maintain the good performance, regularly inspect air filters and clean them if required.
- Remove the screws to open the grille. - Take out the filter.
NOTE:
The air-in side should face up when using vacuum cleaner.
The air-in side should face down when using water.
- Clean the air filter
Vacuum cleaner or pure water may be used to clean the air filter. If the dust accumulation is too heavy , please use soft brush and
mild detergent to clean it and dry out in cool place. Re-install the air filter and air inlet grille in reverse order described above.
Storage Preparation [long idle periods]
1. Clean the air filters
2. In humid or damp climates, operate in Fan only mode until
the unit has dried out.
3. Turn the air conditioner off with the remote and remove the
batteries.
4. Disconnect from the power source.
Re-use After Storge
1. Check if anything block the air inlet and outlet.
2. Clean the air filters
3. Check the wires if any damaged or proper grounded.
4. Reconnect to the power source
5. Wait 24 hours when the ambient temperature is low.
6. Reinstall the batteries into the remote controller and turn
the unit on.
General Cleaning
Use a soft damp cloth when cleaning the grille, casing and remote controller.
- No chemicals e.g. detergents, solvents, abrasive polish, etc.
- No heat (over 40 °C)
Air filter

4. TROUBLE SHOOTING
7GB-7
Please carry out the following check before making a service call.
Guides, Tips and Casutions
CONCERN PLEASE FIRST CHECK!
• Is there a power failure?
• Are the batteries in the remoter control fresh?
• Are the clock and timer on the remote set correctly?
• Are the temperature and mode settings correct?
• Are the air filters clean?
• Are the windows and doors closed?
• Is air flow unrestricted in & out of indoor & outdoor units?
• Is fan speed on high and louvers allowing maximum flow?
Unit does not work at all
Poor cooling or heating
The following may occur during normal operation, and may not indicate malfunction.
A 3 minute delayprotects the compressor.
Automaticallyhappens in heating mode - prevents cold air blowing onto
occupants.
Frost removal on outdoor unit is in progress (5 – 10mins).
Mayoccur when unit temperature is low and room air is hot and humid.
“Hissing”: normal – gas pressure equalizing when compressor stops or starts.
"Squeaking": normal expansion and contraction of plastic and metal parts.
Rushing air – normal when louver resets its position.
Mayoccur when air conditioner is used for the first time or has not been used for
a long time.
Usuallycaused bychemicals, cigarette smoke, cooking etc. If not the case call your
suitable contractor.
Room temperature is the same as that selected with the remote. If not the case call a
suitable contractor.
Mayoccur when outdoor temperatures are close to or below zero degrees Celsius.
Normal when power is restored after a power failure.
Interference from cell phone towers and remote boosters maycause the unit to
malfunction.
Disconnect the power and then re-connect.
Press the ON/OFF button on the remote controller to restart operation.
If the problem is not resolved call a suitable contractor.
Case Explanation
Cooling or heating is delayed.
Fan speed changes – off , very slow and
then normal
The heating operation stops suddenly and
defrost-light blinks.
Mist coming out of the indoor unit
Dust discharges from the unit.
Emits a peculiar odour.
Changes to fan only while cooling or
heating.
Turns on automatically
Low volume sounds are emitted by
the air conditioner
Poor heating performance
Operation is erratic, unpredictable or
unresponsive.
• Has a switch been turned off, a circuit breaker tripped or a fuse blown?

4. TROUBLE SHOOTING
GB-8
CAUTION
DO NOT ATTEMPT TO CORRECT THESE ITEMS YOURSELF!
CONTACT A QUALIFIED SERVICE PERSONNEL!
In the case of ANY of the following, turn off the unit immediately!
Contact your dealer
- Power cord is damaged or abnormally warm.
- Burning odours are smelled.
- Loud or abnormal sounds are heard.
- A power fuse blows or a circuit breaker trips frequently.
- Water or other objects fall into or out of the unit.
- Indicators blink continuously.
- A self-diagnostic code is displayed e.g. E0, E1, E2 … or P0, P1, P2… etc.
• Record the product’s model number,
• Contact a suitable contractor,
• Share all observed details!
• Record the product’s model number,
• Contact a authorized dealer,
• Share all observed details!

BEIJER RET AB
Stortorget 8
Malmö
Sweden
