1
1. GENERAL NOTES TO INSTALLER
Ducted split air conditioner has been carefully designed and manufactured under strict Quality
Control conditions.
Therefore you are completely responsible for proper installation completion and operation of the
air conditioner.
Carefully read the manual carefully before proceeding with the installation to ensure correct
installation. This manual describes installation instructions to help ensure trouble free operation
and extended life of the air conditioner.
Make sure all accessory parts are with the system before beginning installation.
You will need the following tools for installation:
1.
Standard screwdriver
10.
Flaring tool set
2.
Phillips head screw driver
11.
Pipe bender
3.
Electric drill, Hole core drill
12.
Hexagonal wrench ( 4mm )
4.
Measure tape
13.
Torque wrench
5.
Water level gauge
14.
Vacuum pump matched with Air conditioner R410A
6.
Pipe clamp
15.
Gas leak detector for refrigerant R410A
7.
Pipe cutter
16.
Gauge manifold R410A
8.
Spanner ( half union )
17.
Thermometer
9.
Reamer
18.
Electrical multimeter
Important
•During the system installation make first refrigerant piping connections and then electrical
connections.
•If the system is uninstalled first disconnect electrical cables and then refrigerant piping
connections.
After completion of installation, perform a run test and give the customer full
instructions on the correct operation of the air conditioner including:
•Turning the unit on and off.
•Removal and cleaning of the air filters.
•Functions of the wired control.
•Re-installation of air filters after cleaning
Leave the owner manual with the customer so that it can to be used during operation of the air
conditioner.
Leave the installation manual with the customer so that it can be used for any service and
maintenance operations.
Advise the customer to the tips of energy saving while operating the air conditioner as
mentioned in the owner’s manual.
Warning
Disconnect the mains power supply switch before servicing the system or handling any internal parts
of the system.

2
2. PRECAUTIONS BEFORE INSTALLATION
SAFETY PRECAUTIONS
Installation and maintenance of air conditioning equipment can be hazardous due to system
pressures, electrical components and rotating parts.
The installation and maintenance of the air conditioner must be carried out by trained and
qualified technicians from Carrier or one of Carrier authorized dealers.
After unpacking, Please check carefully for possible damage the indoor and outdoor units
of the air conditioner.
Before undertaking any work on the indoor and outdoor units of the air conditioner, make sure
to disconnect the power supply.
WARNING
This installation manual describes the installation procedures of split room air conditioner
consisting of an outdoor unit and an indoor unit manufactured by Carrier.
The installation of air conditioner must be according to applicable national installation
standards.
During installation, Proceed first with refrigerant connections between indoor and outdoor
units, and only then make the electrical connections.
Similarly, when disassembling, disconnect the electrical wiring first and only then open
refrigerant connections.
What is not covered in our warranty?
1- Failure due to wrong electrical connections between the electrical power supply and
circuit breaker of air conditioner leading to fire due to short-circuiting. As these electrical
connections are owner’s responsibility.
2- Failure due to Misuse, Abusing, overloading, negligence of air filters cleaning and
negligence of instructions included in the owner’s manual.
3- Failure due to Accident / Weather Natural catastrophe, accident due to bad weather
(Hail Storm, Sand Storm, lightning, Flooding, Acid Rain and Air Borne fallout, etc).
4- Failure due to damages during transport done through the owner.
5- Failure due to any modifications in the product done through the owner.
6- Failure due to Installation or Service and Maintenance or repair works
done through the owner.
7- Product normal sound ( refrigerant –moving parts –plastic parts )
8- Inconvenience or commercial loss is not covered.
The decision of Carrier in ascertaining the same will be final. Any such repairs will be carried -
out at the expense of the owner ( purchaser ).

3

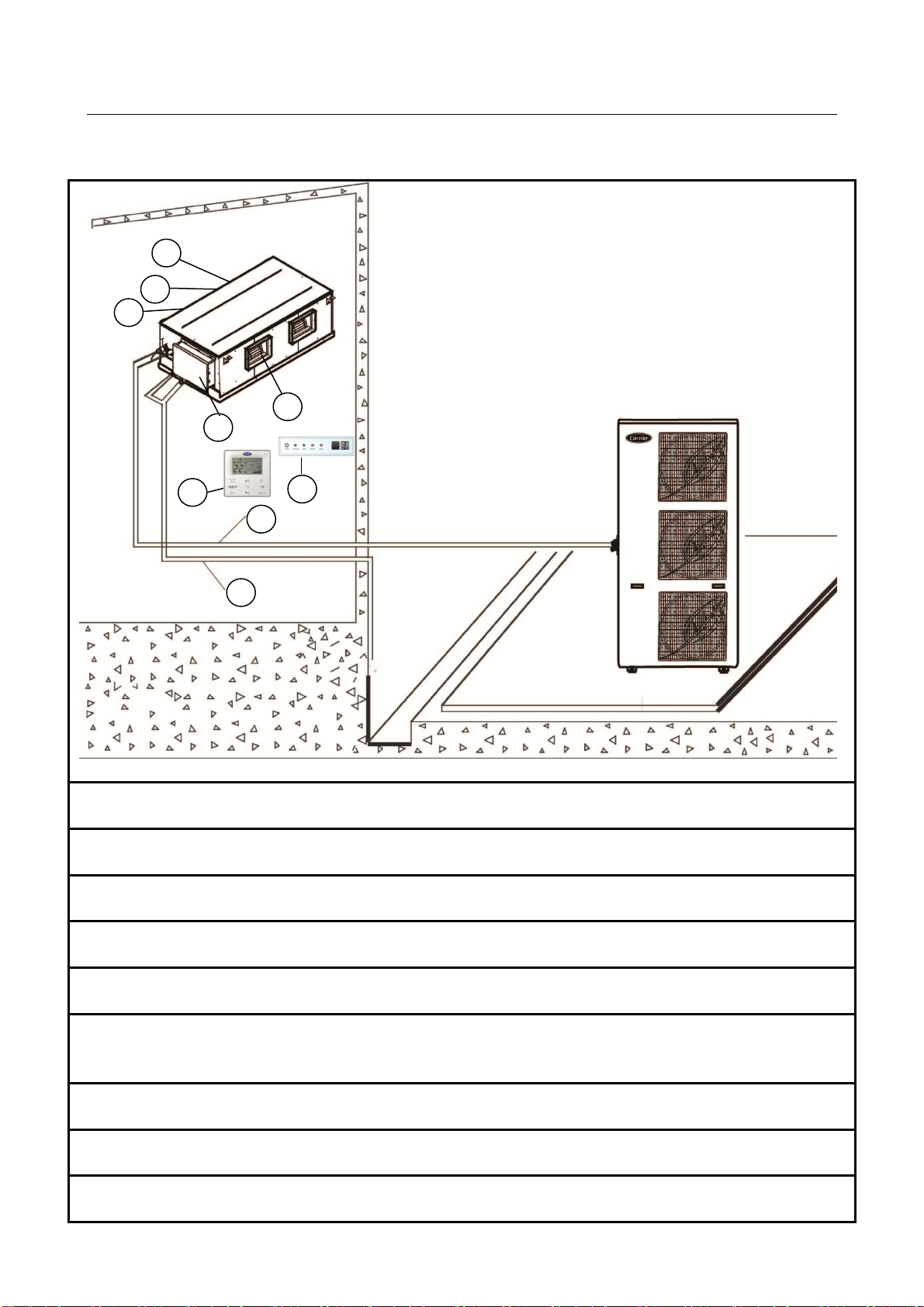

3. DUCTED SPLIT SYSTEM DESCRIPTION
Ducted Split System –High Static Pressure
1 : Air filter (s)
2 : Indoor Coil
3 : Return Air To Indoor Unit
4 : Supply Air From Indoor Unit
5 : Electrical Box
6 : Inter-connecting refrigerant piping lines and electrical cables
between outdoor and indoor units.
7 : Condensate Drain hose
8 : Wired control ( Standard )
9 : Display & Receiver Panel for optional wireless remote control
Side Discharge
Outdoor Unit
1
4
7
6
3
5
8
Indoor Unit
High Static Pressure
2
9

4
4. UNIT MODELS & IDENTIFICATION
Unit Models
System Model
Indoor Unit Model
Outdoor Unit Model
53KDHT60N-518
42KDHT60N-718
38KDHT60N-518
53KDHT72N-518
42KDHT72N-718
38KDHT72N-518
53KDHT84N-518
42KDHT84N-718
38KDHT84N-518
53KDHT90N-518
42KDHT90N-718
38KDHT90N-518
Identification :
53 = Split System
42 = Indoor Unit
38 = Outdoor Unit
K = Cool Only
D = Ducted
M = Medium Static Pressure
H = High Static Pressure
T = Tropical High Ambient
60 = System Size
N = R410A Green Refrigerant
7 = Power Supply 220-240V/1Ph/50Hz
5 = Power Supply 380-420V/3Ph/50Hz
1 = Wired Room Controller
8 = Manufactured by Miraco –Carrier
5. OPERATING LIMITS *
COOLING
Difference
Dry Bulb
Temp. C°
Wet Bulb
Temp. C°
Indoor temperature
Maximum
Minimum
32
21
23
15
Outdoor temperature
Maximum
Minimum
52
21
-
-
MAIN POWER SUPPLY
System
Model
Nominal Power Supply
V / PH / HZ
Minimum
Voltage
Maximum
Voltage
53KDHT60N-518
380-420 / 3 / 50
342
462
53KDHT72N-518
53KDHT84N-518
53KDHT90N-518
NOTE:
* When the ducted split systems is operated above or below these limits for a long time, system
diagnostics may detect a malfunction and the system will not operate properly.

5
6. DIMENSIONS AND WEIGHTS OF DUCTED INDOOR UNIT
Ducted Indoor Unit - High Static Pressure
- The refrigerant piping connections and electrical control box are located on the left hand side of
indoor unit when facing supply air flow of indoor unit.
- The indoor unit should be installed horizontally for horizontal discharge only.
Using the factory-provided holes located at the topside flanges of the indoor unit.
Weight
Model
Kg
42KDHT60N-718
83
42KDHT72N-718
83
42KDHT84N-718
83
42KDHT90N-718
83
Dimensions ( mm )
Pipe side view
Kg
795
1470
510
510
398
112
75
66
238
45
24

6

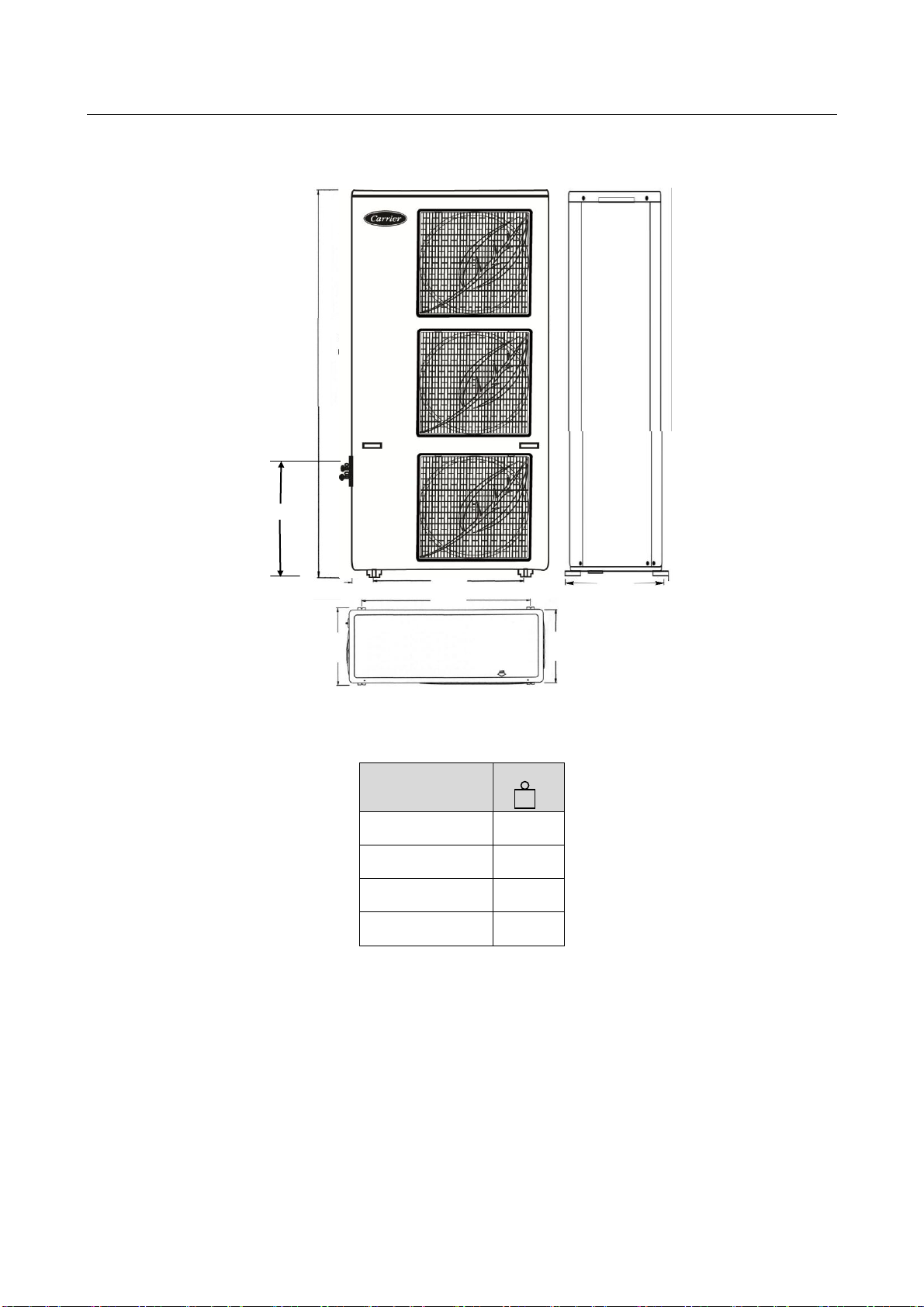

7. DIMENSIONS AND WEIGHTS OF OUTDOOR UNIT
Side Discharge Outdoor units
Model
Weight
38KDHT60N-518
110
38KDHT72N-518
119
38KDHT84N-518
119
38KDHT90N-518
120
1700
371
350
665
384
665
Kg
598

7
8. SELECTING INSTALLATION LOCATION OF INDOOR UNIT
8.1 CONSIDERATIONS OF SELECTING INSTALLATION LOCATION
For Ducted Indoor Unit - High Static Pressure

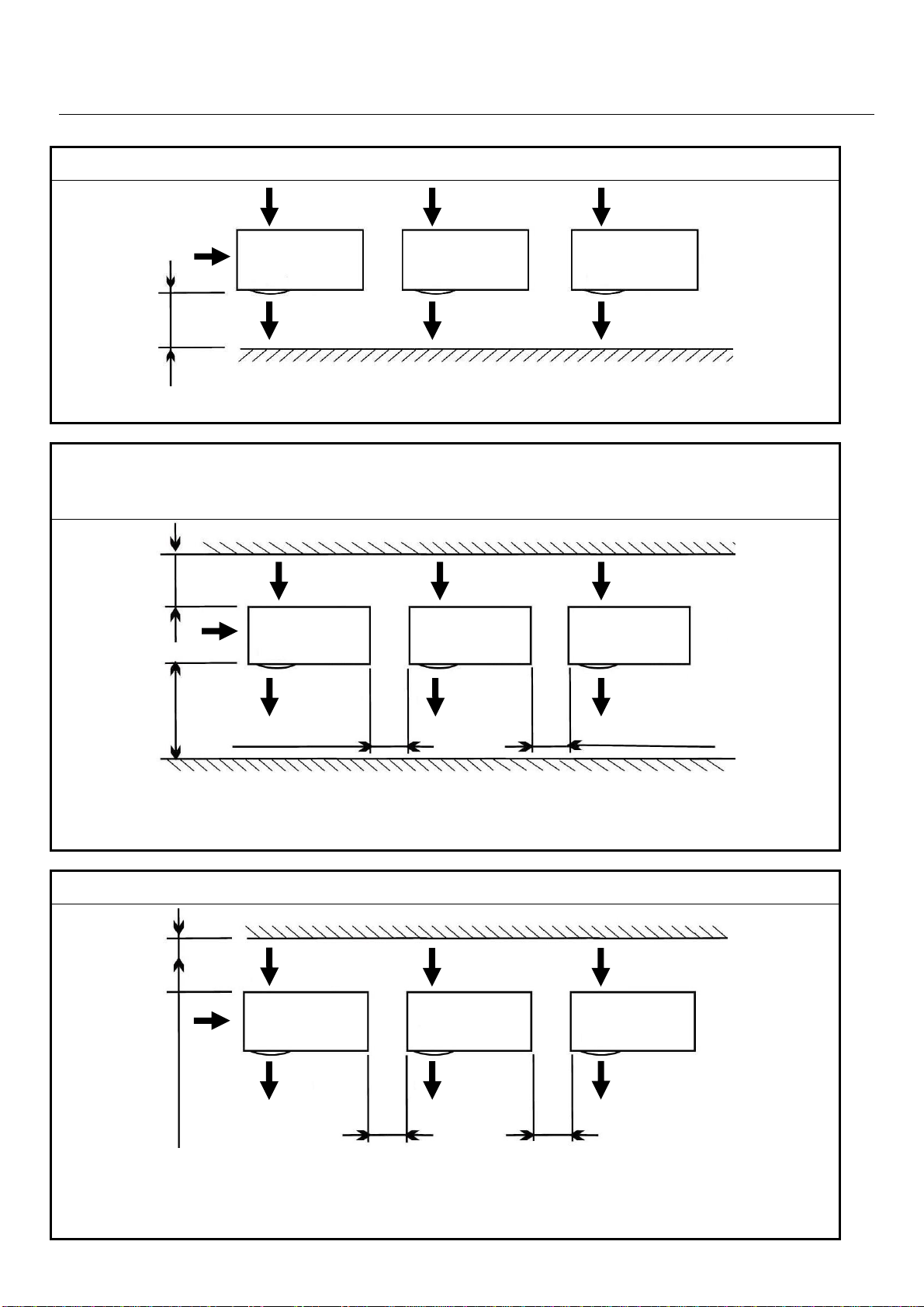

Select installation location which allows
minimum clearances for free air circulation
and easy accessibility for easy service and
maintenance.
Avoid installation location which can lead to
excessive length of refrigerant piping lines
between outdoor and indoor units
Avoid installation location which can lead to
excessive height difference between
outdoor and indoor units
Select Installation location which should be able to support indoor unit operating weight.
The ceiling should be horizontal
Select Installation location which should permit easy connection of refrigerant piping lines,
electrical cables and condensate drain line.

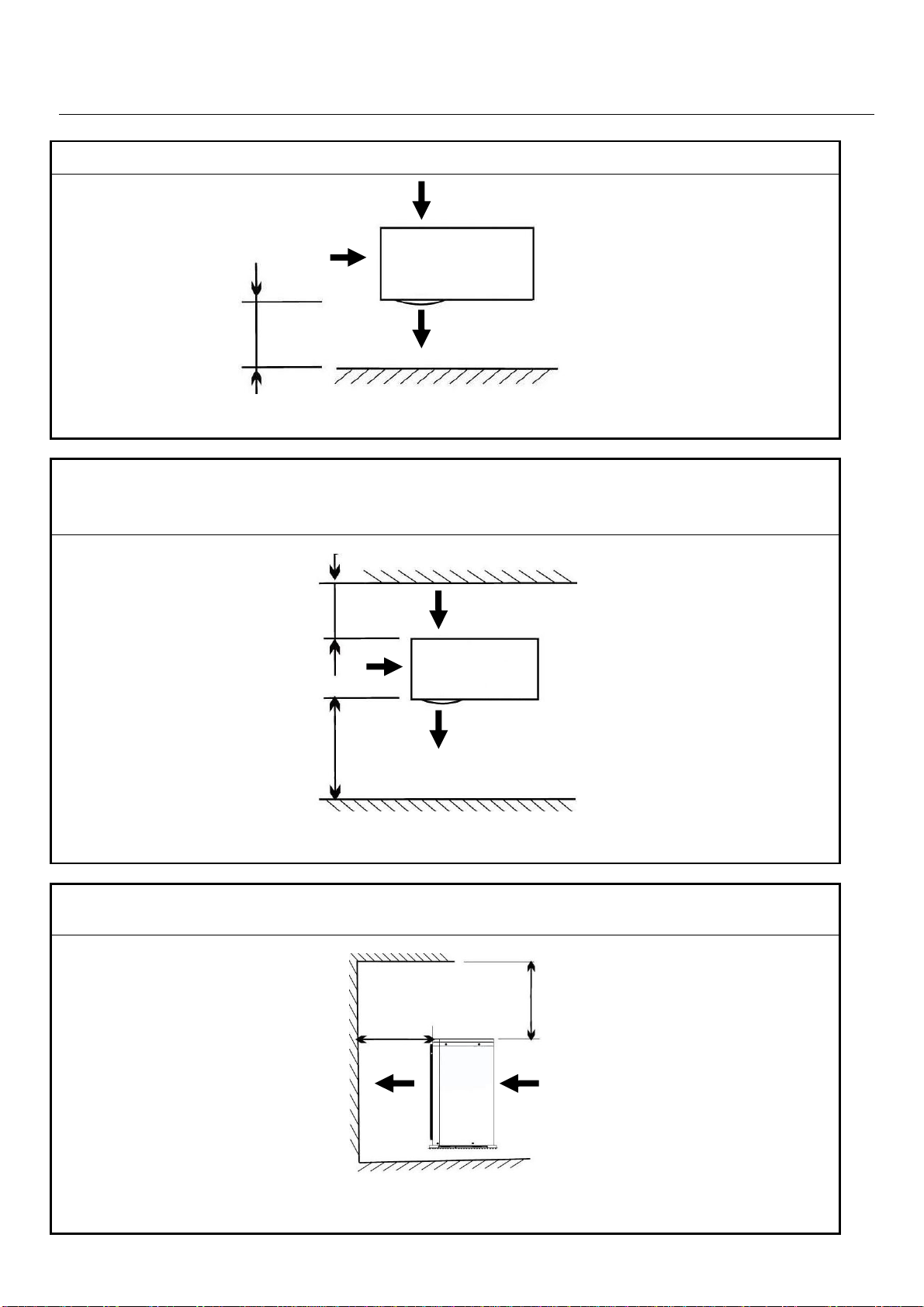

600mmX600mm
checking orifice
500 mm or more
Maintenance room age

8
9. SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
9.1 INSTALLATION LOCATIONS
The side discharge outdoor unit can be installed in any outside location, on a wall,
on a roof or on a ground level.
9.2 CONSIDERATIONS FOR SELECTING INSTALLATION LOCATIONS

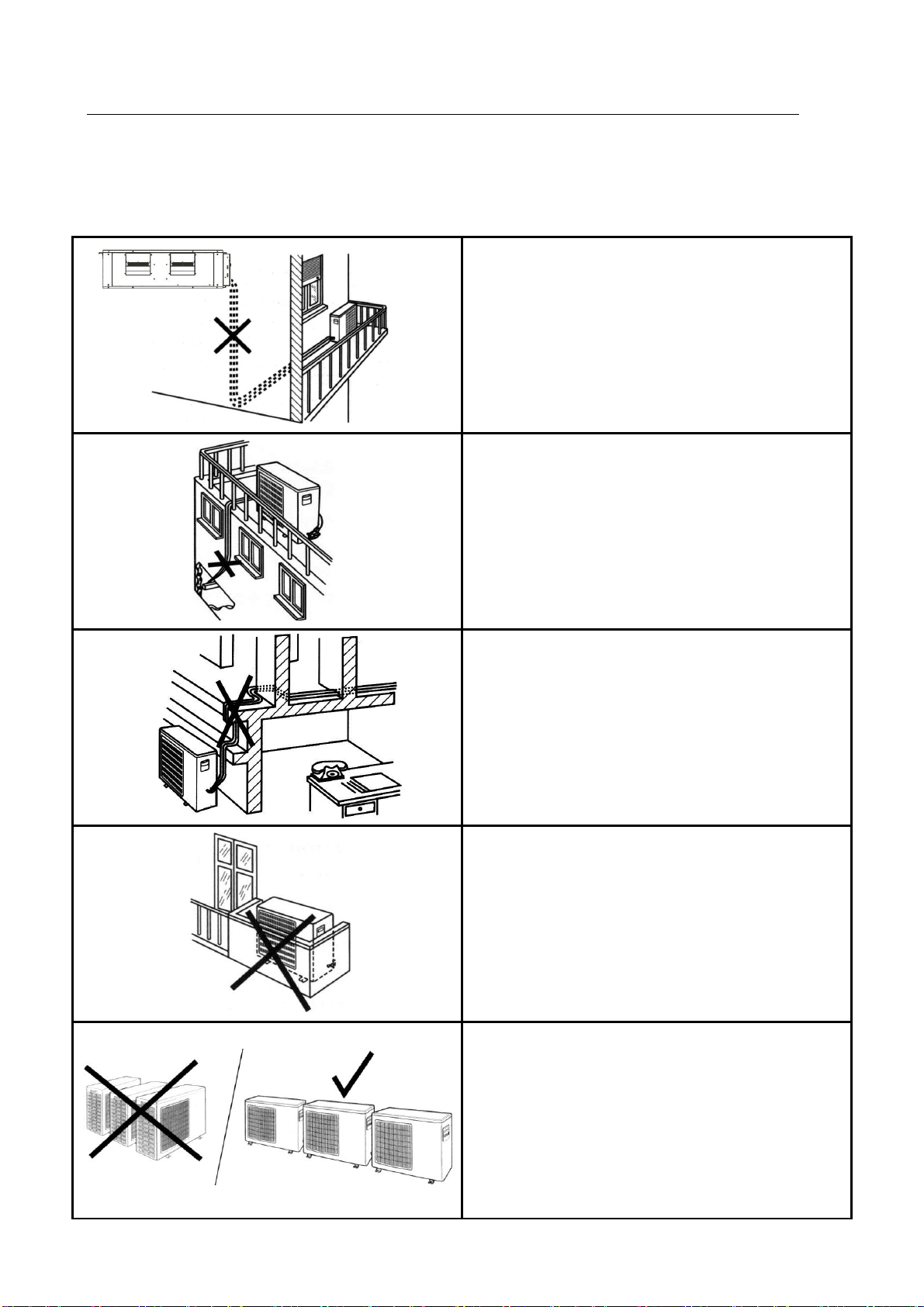

Avoid installation location which can lead
to excessive distance between outdoor
and indoor units to avoid alteration on
system cooling performance.
Avoid installation location which can lead
to excessive height difference between
outdoor and indoor units to avoid
alteration on system cooling performance.
Avoid installation location which can lead
to unnecessary turns and bends in the
refrigerant piping lines connecting
outdoor unit with indoor unit.
Avoid installation location where there are
obstacles near the air outlet or air inlet
that may affect air flow and performance
of the unit

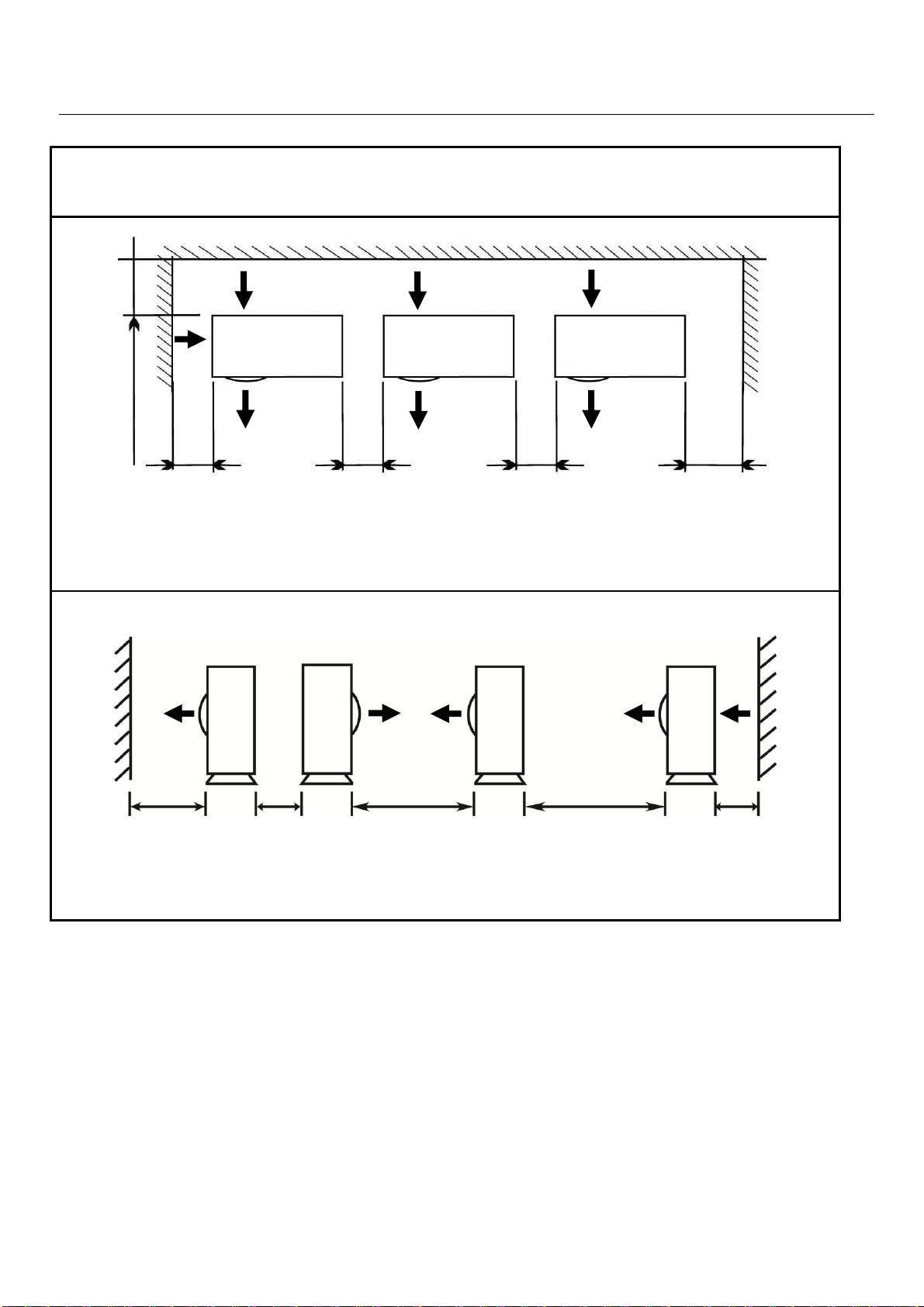

Avoid multiple unit installation with units
facing each other and blowing discharged
air into each other.

9

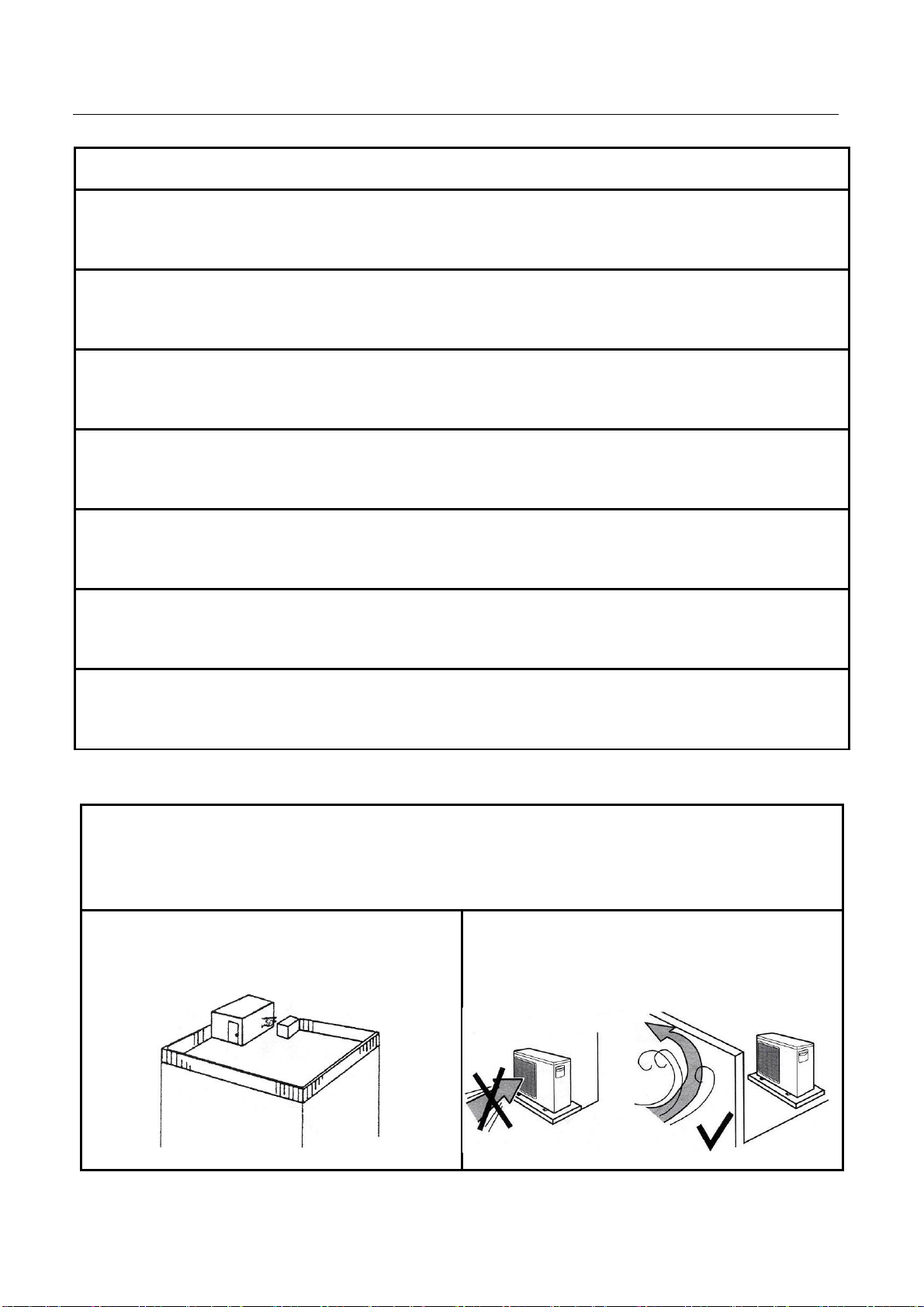

SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
CONSIDERATIONS FOR SELECTING INSTALLATION LOCATION
Select installation location which is close to the indoor unit.
Select the installation location of outdoor unit which is able to support operating weight
of outdoor unit, and not cause vibration.
Select the installation location of outdoor unit which is far away from the direct
sunlight.
Select the installation location of outdoor unit which is far away from heat sources,
steam or flammable gas.
Select the installation location of outdoor unit which is free of dust or any material,
which can cause clogging of condenser coil. When installing unit on the ground, select
a location not subjected to flooding.
Avoid installation location which is full of oil vapors which may result in malfunction.
Avoid installation location which is full of sulfuric gas which may result in malfunction.
Select installation location where the operation noise and discharged air are not
disruptive to your neighbors.
When the installation is made on the rooftop or other places subject to strong wind :
When the outdoor unit is to be installed on the rooftop or at the places where there are no other
buildings around. it is required to avoid the strong wind from blowing directly into the air outlet of the
outdoor unit so as to prevent the negative impacts on cooling performances due to insufficient airflow
of the outdoor unit heat exchanger and to prevent from faulty performances.
When there are walls in the vicinity, the air outlet
should face the wall and keep a space of 500mm
from the wall.
When the air outlet is affected by the strong wind,
the installation position should be changed so as
to make the air outlet at a straight angle from the
wind direction.

10
SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
9.3 Minimum Clearances When Selecting Installation Location for Single Outdoor Unit Installation
Minimum Clearances When Selecting Installation Location for Serial Installation
of More Than One Outdoor Unit
Select installation location which allows the minimum clearances shown in the figures for free
air circulation and easy accessibility for service and maintenance :
The front of outdoor unit ( air outlet )
should be away from any obstacle by 500 mm or more to ensure free air circulation.
The back of outdoor unit ( air inlet )
should be away from any obstacle by 160 mm or more. This distance is built in the design of wall support
to ensure free air circulation.
The left side of outdoor unit
should by away from any obstacle by 400 mm or more to ensure easy access to refrigerant and electrical
connections.
The right side of outdoor unit ( air inlet )
should be away from any obstacle by 250 mm or more to ensure free air circulation.
The top side of outdoor unit
should be away from any obstacle by 400 mm or more to ensure easy access to the electrical
components, motor and fan.

11
SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
Minimum Clearances When Selecting Installation Location for Single Outdoor Unit Installation
Obstacle at unit front ( air outlet )
No obstacle at back or top or right or left
Obstacle at unit front ( air outlet ) &
Obstacle at unit back ( air inlet )
Note: The height of Obstacle should be less than the height of outdoor unit
No obstacle at top or right or left
Obstacle at unit front ( air outlet ) &
Obstacle at unit top
No obstacle at back or right or left
100 cm
or more
16 cm
or more
50 cm
or more
Outdoor
Unit
Obstacle
Outdoor
Unit
Obstacle
Obstacle
100 cm
or more
100 cm
or more
Obstacle
Outdoor
Unit

12
SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
Minimum Clearances When Selecting Installation Location for Single Outdoor Unit Installation
Obstacle at unit back ( air inlet )
No obstacle at front or top or right or left
Obstacle at unit back ( air inlet ) &
Obstacle at unit top
No obstacle at front or right or left
Obstacle at unit back ( air inlet ) &
Obstacle at unit right and left sides
No obstacle at front or top
16 cm
or more
Outdoor
Unit
Obstacle
16 cm
or more
Obstacle
40 cm
or more
25 cm
or more
Obstacle
16 cm
or more
Outdoor
Unit
Obstacle
40 cm
or more
Outdoor
Unit

13
SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
Minimum Clearances When Selecting Installation Location for Serial Installation of More Than One Outdoor Unit
Obstacle at unit front ( air outlet )
No obstacle at back or top or right or left
Obstacle at unit front ( air outlet ) &
Obstacle at unit back ( air inlet )
Note: The height of obstacle should be less than the height of outdoor units
No obstruction at top or right or left
Obstacle at unit back ( air inlet )
No obstacle at front or top or right or left
100 cm
or more
16 cm
or more
40 cm
or more
100 cm
or more
Outdoor
Unit
Obstacle
Obstacle
Obstacle
16 cm
or more
Obstacle
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
40 cm
or more
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit
40 cm
or more
40 cm
or more

14
SELECTING INSTALLATION LOCATION OF SIDE DISCHARGE - OUTDOOR UNIT
Minimum Clearances When Selecting Installation Location for Serial Installation of More Than One Outdoor Unit
Obstacle at unit back ( air inlet ) &
Obstacle at right and left sides
No obstacle at front or top
No obstacle at front or top
16 cm
or more
Obstacle
100 cm
or more
40 cm
or more
200 cm
or more
150 cm
or more
16 cm
or more
40 cm
or more
40 cm
or more
Obstacle
40 cm
or more
25 cm
or more
Obstacle
Obstacle
Obstacle
Outdoor
Unit
Outdoor
Unit
Outdoor
Unit

15
10. INSTALLATION LOCATION CHECK LIST
(A) INDOOR UNIT
- The installation location is close to the outdoor unit
- The wall hole (required to pass refrigerant piping, electrical cables and drain line)
is on the unit right back
- The installation location permit the unit to deliver air to all of the space
to be air-conditioned
- The installation location avoid obstructions, which affect motion of supply and/or
return air to the unit
- The installation location permit free service space around the unit right, left, front
back and top
(B) OUTDOOR UNIT
- The electrical power supply is close to the outdoor unit
- The installation location is close to the indoor unit
- The installation location is able to support operating weight of outdoor unit
- The installation location is far away from any sunlight
- The installation location is free of dust or any material,
which can cause clogging of outdoor coil
- The installation location allow sufficient space
for air circulation around the unit
- The installation location allow sufficient space
for service and maintenance around the unit
- The installation location is selected so that the operation
noise and discharge air do not disturb the neighbors
(C) REFRIGERANT PIPING LINES BETWEEN INDOOR AND OUTDOOR UNITS
- The excessive length of refrigerant piping lines is avoided
- The excessive height between outdoor and indoor units is avoided
- The excessive number of turns and bends in the refrigerant piping lines is avoided

16
11. INSTALLATION ACCESSORIES
11.1 STANDARD INSTALLATION ACCESSORIES SUPPLIED FROM THE FACTORY
DESCREPTION
SHAPE
QTY
USE
Wired Room Controller
With Accessories
1
To operate the air conditioner
used with indoor unit
Display & Receiver Panel
For Optional Wireless Remote
Control
1
To display operation and error codes
Owner manual
1
To illustrate control functions
of operation
Installation Manual
1
To illustrate installation instructions.
11.2 OTHER INSTALLATION ACCESSORIES
Not supplied from the factory but must be used in the installation field to complete installation.
DESCREPTION
USAGE
Electrical Connection
Cables
To electrically connect the indoor unit, the outdoor unit and circuit
breaker
ـWall Sleeve
ـWall Cap
ـSealer putty
To fill the gap between the wall hole and the lump of refrigerant piping
lines, electrical connection cables and condensate drain line.
ـFinishing tape PVC film
To tie together the refrigerant piping lines, electrical connection cables
and condensate drain line.
ـVinyl tape
To stick pipe insulation.
ـDrain hose ID 25 mm
To remove condensate water, from the indoor unit to the outside.
ـRefrigerant piping lines
To connect refrigerant R410A between indoor and outdoor units
ـPipe insulation
To insulate suction and liquid refrigerant piping lines
- Refrigerant R410A
To adjust refrigerant charge for long refrigerant piping lines.
- Clamps or saddles
To secure the lump of refrigerant piping lines, electrical cables and
condensate drain line

17

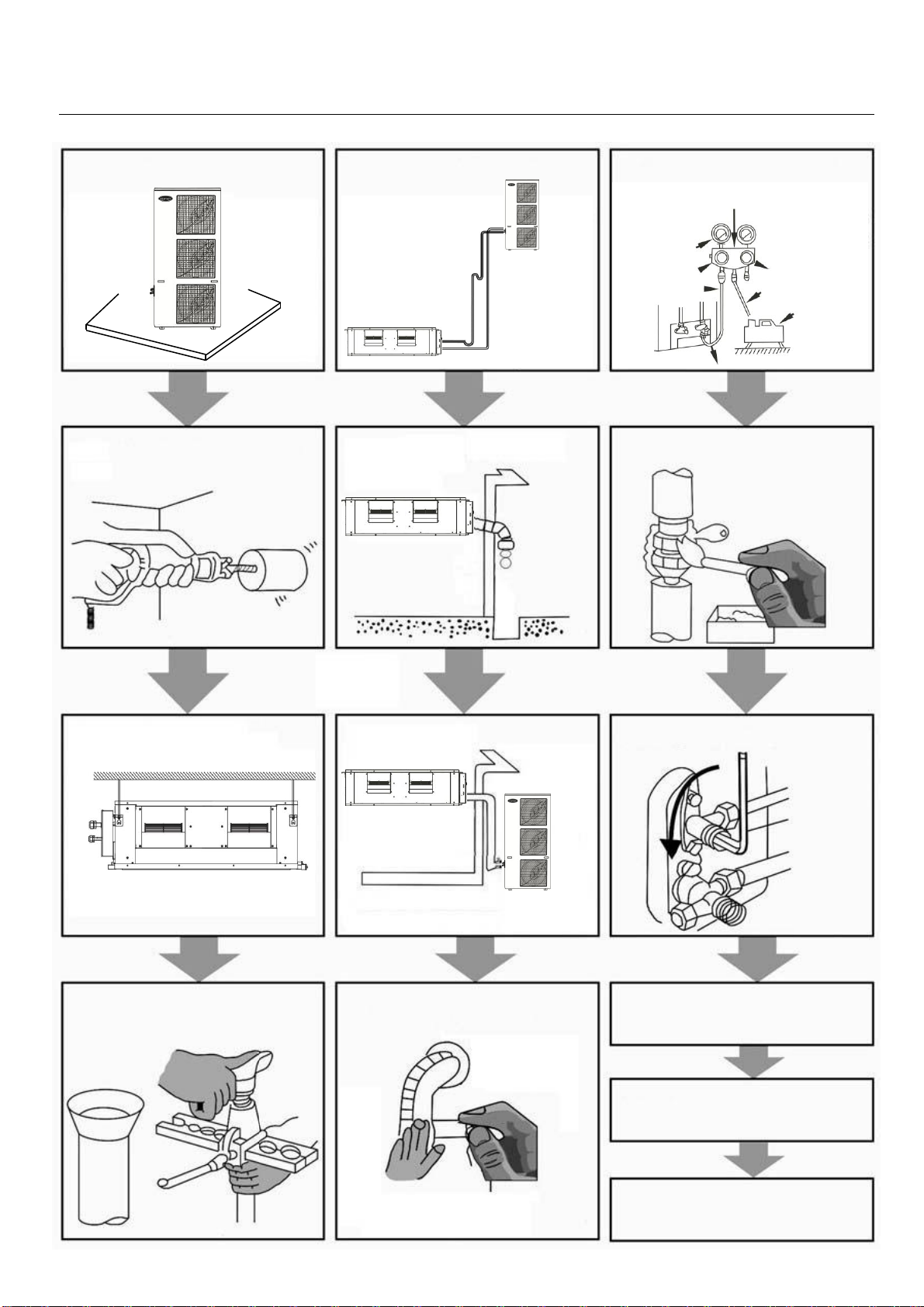

12. INSTALLATION CHART
Installation chart of Ducted Split System
1) Installing outdoor unit
5) Connecting refrigerant
piping lines
2) Drilling hole thru the
wall
6) Connecting condensate
drain line
10) Refrigerant leak test
3) Installing indoor unit
7) Connecting electrical
wiring
11) Opening service valves
4) Pipes flaring
8) Finishing outer pipe
covering
12) Finishing installation
13) Test Running
14) Description of operation
Outdoor
unit
9) Air purging with
a vacuum pump

18
13. INDOOR UNIT INSTALLATION
The indoor unit is factory standard supplied with right hand refrigerant and electrical connections
13.1 PREPARATION STEPS
STEP (1): MAKING WALL HOLE
PRECAUTIONS
Before making a hole, check carefully the following points :
No studs or pipes are directly run behind the spot to be cut.
No electrical wiring or conduits are located.
- Drill a hole of 80 mm to pass the refrigerant lines, drain hose
and electrical cables.
Decide the piping hole position according to the location of
piping direction. Mark the desired drilling point.
When making wall hole, make sure to drill outwards at a
downward angle, so that the height difference between the
entrance and exit of the hole is at least 5-10 mm.
Step (2): Cutting Sleeve For Wall Hole
•Measure the thickness of the wall from the inside edge to
the outside edge and cut PVC pipe at a slight angle 6mm
shorter than the thickness of the wall.
Step (3): Mounting Sleeve Into Wall Hole
•After making hole, a sleeve must be mounted into wall hole
and its width to be equal to wall thickness to pass
refrigerant lines, drain hose and electrical cables through it.
5-10 mm
Wall
Wall
Indoor
side
Outdoor
side
Cut Wall Sleeve
Indoor
side
Outdoor
Side
Wall
Sleeve
