Carrier LUVH025N User manual

LUVH025N
LUVH035N
LUVH045N
LUVH055N
LUVH065N
LUVH075N

1
CONTENTS
Contact an authorised service technician for repair or maintenance of this unit.
Contact the installer for installation of this unit.
The air conditioner is not intended for use by young children or invalids without supervision.
Young children should be supervised to ensure that they do not play with the air conditioner.
If the power cord is to be replaced, replacement work shall be performed by authorised personnel only.
Installation work must be performed in accordance with the national wiring standards by authorised
personnel only.
CAUTION
SOCIABLE REMARK
Sociable remark.................................................................................................................................2
SAFETY PRECAUTIONS
Warning ............................................................................................................................................3
Caution .............................................................................................................................................4
OPERATING INSTRUCTIONS
Parts names .....................................................................................................................................5
Operating temperature.......................................................................................................................7
Manual operation...............................................................................................................................7
Airflow direction control ....................................................................................................................8
How the air conditioner works ..........................................................................................................9
CARE AND MAINTENANCE
Care and maintenance ...................................................................................................................10
TROUBLESHOOTING TIPS
Troubleshooting tips .......................................................................................................................14
OPERATION TIPS
Operation tips ............ ....................................................................................................................12

2
SOCIABLE REMARK
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.

3
SAFETY PRECAUTIONS
3
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
WARNING
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
Connect with the power
properly.
Do not modify power cord
length or share the outlet
with other appliances
Always ensure effective
earthing.
Disconnect the power if
strange sounds, smell, or
smoke comes from it.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
No earthing may cause electric
shock.
It may cause fire and electric
shock.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It contains contaminants and
could make you sick.
It may cause fire and electric
shock.
It may cause electric shock or fire.
This could damage your health.
No installation may cause fire
and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by switching on or off
the power.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not drink water drained
from air conditioner.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!!
!
!
WARNING
Use the correctly rated
breaker or fuse.
There is risk of fire or electric
shock.
!

4
SAFETY PRECAUTIONS
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking
and installing. Sharp edges
could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Ventilate the room well
when used together
with a stove, etc.
An oxygen shortage
may occur.
Do not use this air cond-
itioner to preserve preci-
sion devices, food, pets,
plants, and art objects.
It may cause deterioration
of quality, etc.
It may cause failure of
product or fire.
Do not use for
special purposes.
Turn off the main power
switch when not using
the unit for a long time.
If water enters the
unit, turn the unit off
and disconnect the
power , contact a
qualified service
technician.
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong detergent
such as wax or thinner. Use
a soft cloth for cleaning.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and take care so that
the cord is not compressed.
Operation without filters
may cause failure.
Always insert the filters
securely. Clean filter
once every two weeks.
!
!
!

5

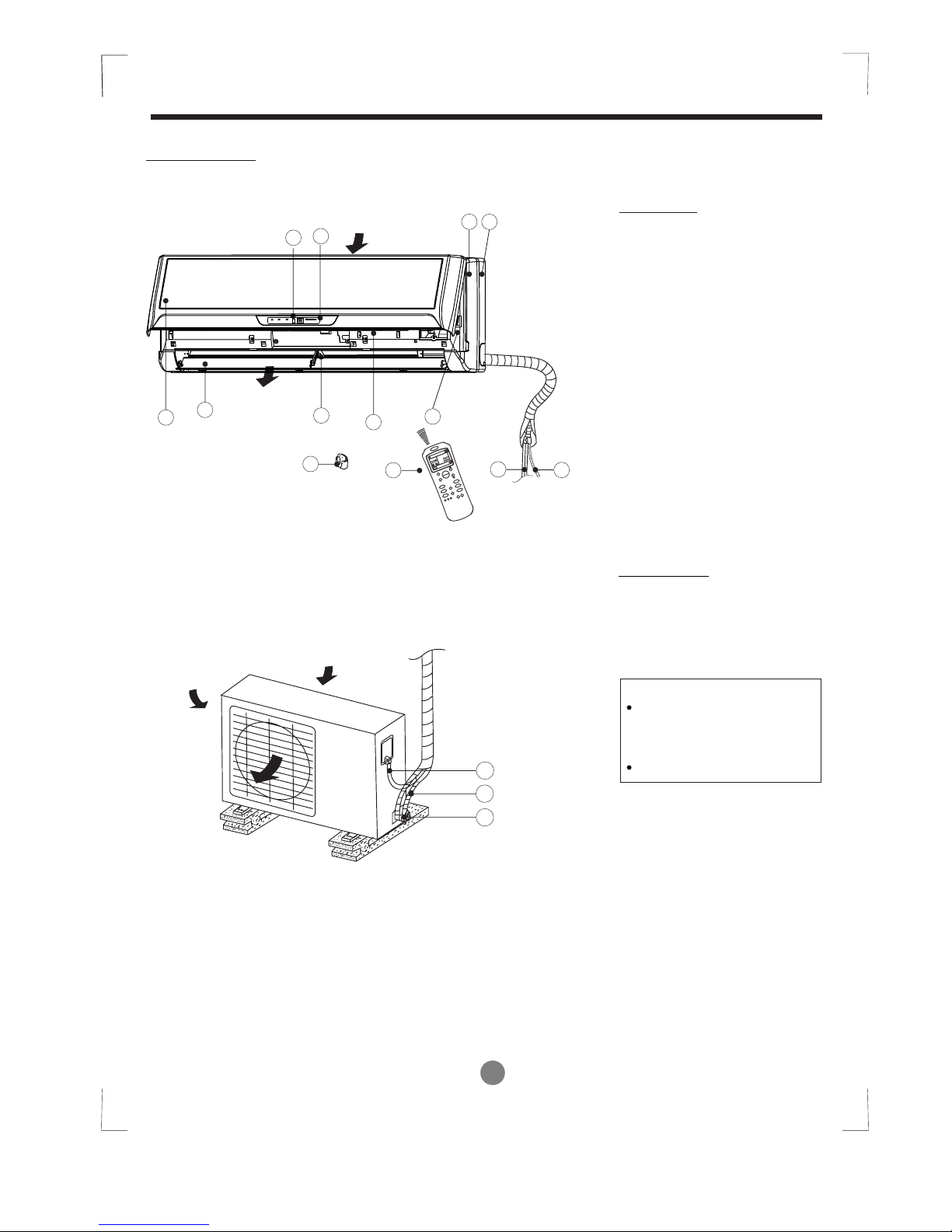

Parts names
Outdoor unit
OPERATING INSTRUCTIONS
Indoor unit
NOTE:
All the pictures in this manual
are for explanation purpose
only. Your air conditioner may
be slightly different.
The actual shape shall prevail.
1. Signal receptor
2. Display panel
3. Panel frame
4. Chassis
5. Front panel
6. Horizontal louver
7. Vertical louver
8. Air filter
9. Manual control button
10. Remote controller holder
11. Remote controller
12. Connecting pipe
13. Drain hose
14.
15. Connective pipe
16. Stop valve
Connecting cable
Indoor unit
Outdoor unit
6
5789
12
34
13
12
11
Air outlet
Air inlet
Air inlet(rear)
Air inlet(side)
Air outlet
15
16
14
10
Carri er
MODE
FAN SPEED
TEMP.
AIR DIRECT ION
SWING
LED
SLEEP
TURBO
CLOCK
TIMER
CANCE L
RESET F/C
AUTO COO L DRY HEAT FAN
SET TEMP.
CLOCK
TIMER ON
TIMER OFF
SPEED
AUTO LOW MED HIGH
ON
OFF
AUTO FR EQUE NCY TIME R DEFRO ST

OPERATING INSTRUCTIONS
6

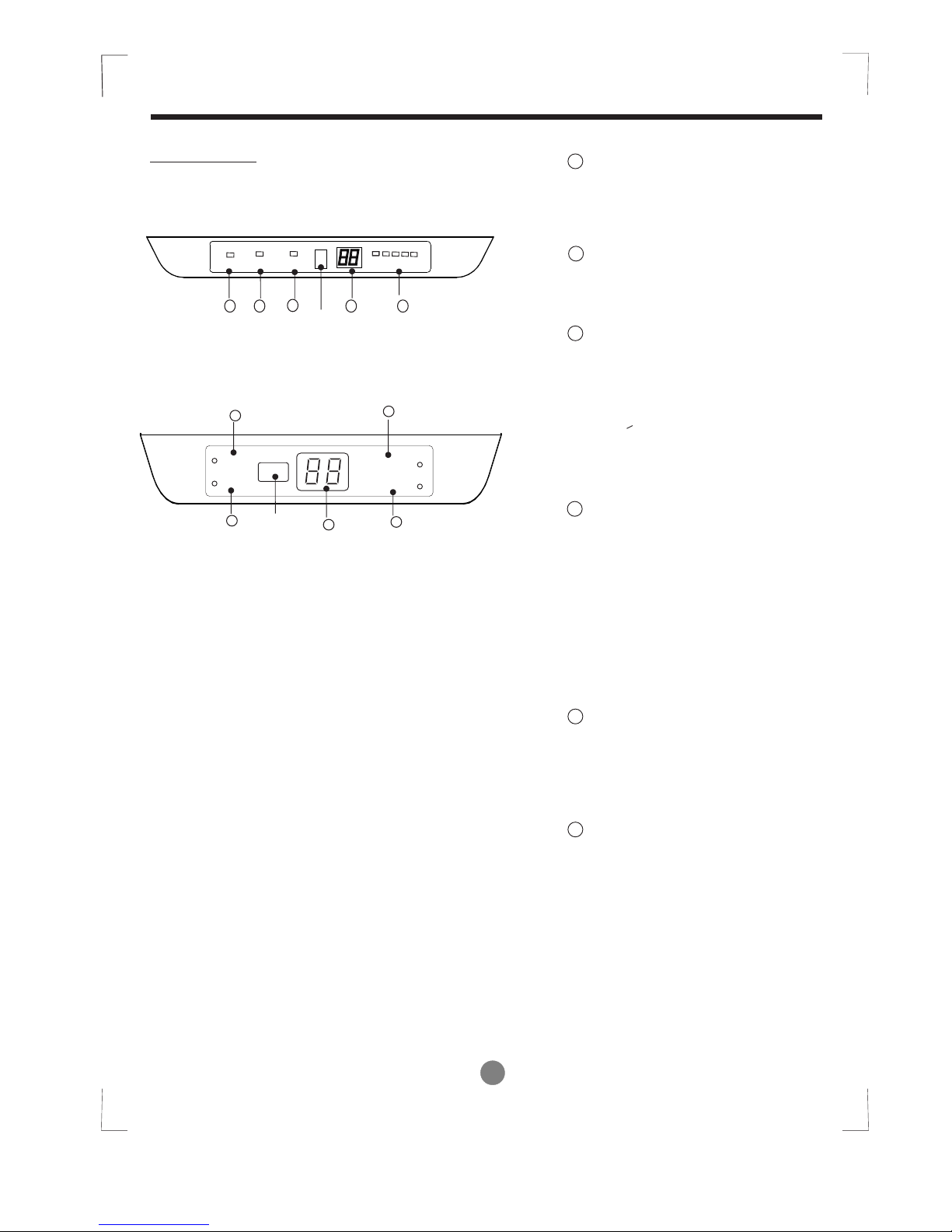

Display panel
AUTO FREQUENCY TIMER DEF.
Signal
receptor
Signal
receptor
1
1
2
2
3
3
4
4
5
6
AUTO indicator
This indicator illuminates when
the air conditioner is in AUTO
operation.
TIMER indicator
This indicator illuminates when
TIMER program is set ON/OFF.
DEF. indicator
(For Cooling & Heating models only)
This indicator illuminates when
the air conditioner starts
defrosting automatically or
when the warm air control
feature is activated in heating
operation.
1
22
3
4
A) Usually it displays the temperature
settings. When change the setting
temperature,this indicator begins
to flash, and stops 20 seconds later.
B) It displays the room temperature
when the air conditioner is in FAN
only operation.
C) Displays the malfunction code or
protection code.
FREQUENCY indicator
This indicator appears only when
the compressor is in operation and
indicates the current operating
frequency.
POWER indicator
This indicator illuminates when the
air conditioner is operational.
TEMPERATURE indicator
5
6
Timer
Power
Auto Defrost
The display panel of the air conditioner you
purchased may be look like one of the following:
(1)
(2)

7
Manul operation can be used temporarily in case the remote controller is disable or maintenance
necessary.
OPERATING INSTRUCTIONS
Manual operation
Manual control
button
Front panel
AUTO/COOL
NOTE: This manual does not include Remote Controller Operations, see the
<<Remote Controller Instruction>> packed with the unit for details.

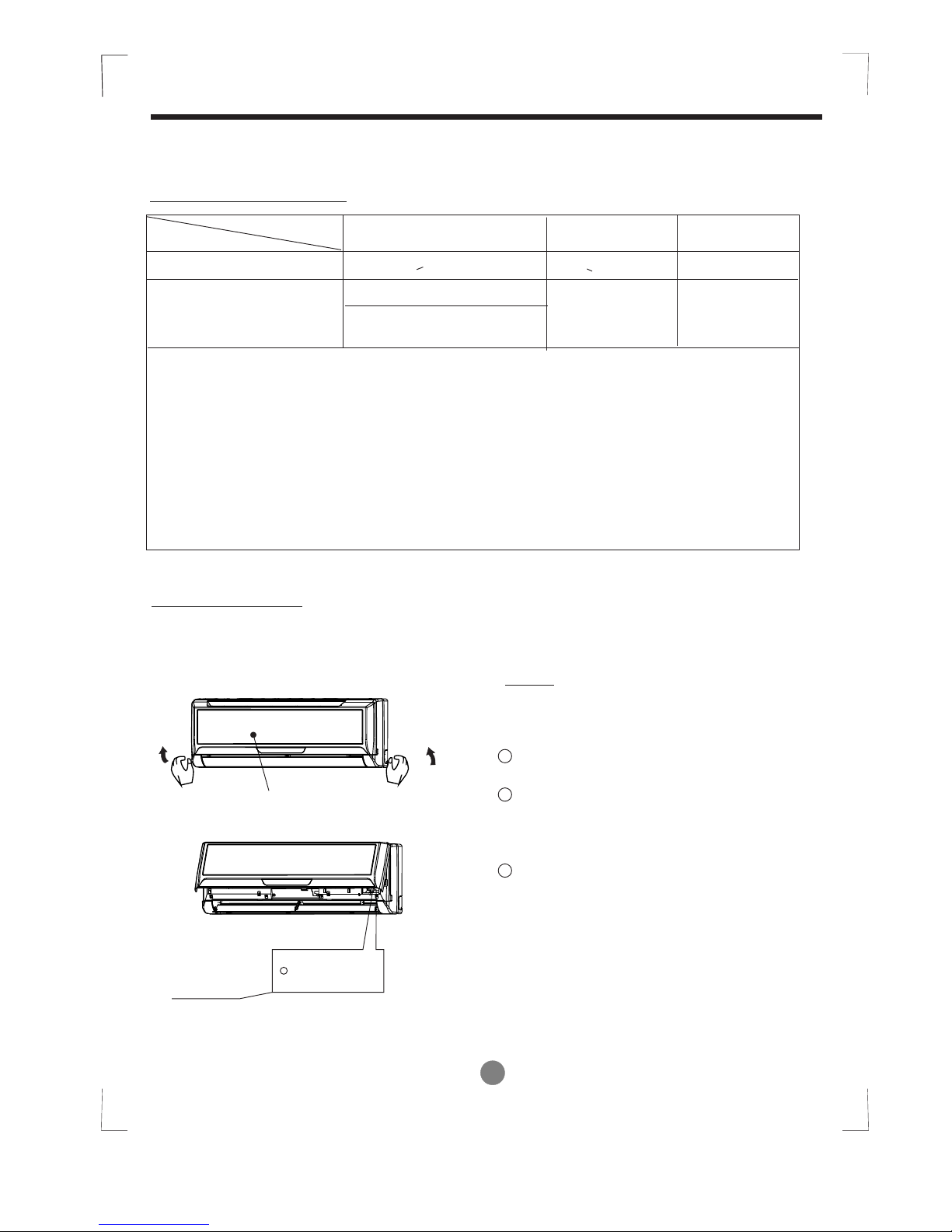

Operating temperature
Mode
Cooling operation
Heating operation
Drying operation
Temperature
1. If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
2. Room relative humidity less than 80%. If the air conditioner operates in excess of this
figure, the surface of the air conditioner may attract condensation. Please sets the vertical
air flow louver to its maximum angle (vertically to the floor), and set HIGH fan mode.
3. Optimum performance will be achieved within these operating temperature.
Suggestion: For the unit adopts an Electric Heater, when the outside ambient temperature is
O
below 0 C, we strongly recommend you to keep the machine plugged in order to guarantee it
running smoothly.
Room temperature
Outdoor temperature
。
>17 C
。 。
0 C 50 C
。
<30 C
。 。
-15 C 34 C 。 。
0 C 50 C
CAUTION:
~
~
~
。 。
( -15 C 50 C:For the models with
low temperature cooling system)
~
。
>10 C
Open and lift the front panel up to an angle
until it remains fixed with a clicking sound.
One press of the manual control button will
lead to the forced AUTO operation. If press
the button twice within five seconds, the unit
will operate under forced COOL operation.
Close the panel firmly to its original
position.
The forced cool mode is used for testing
purposes only. You had better not choose it.
To restore the remote controller operation,
use the remote controller directly.
CAUTION:
1
3
2
●
●
NOTE: The unit must be turned off before
operating the manual control button. If the
unit is operational, continue pressing the
manual control button until the unit is off.

8
OPERATING INSTRUCTIONS
Airflow direction control
Range
Range
Vertical
louver
(three places)
Adjust the air flow direction properly otherwise, it
might cause discomfort or cause uneven room
temperatures.
Adjust the horizontal louver using the remote
controller.
Adjust the vertical louver manually.
To set the vertical air flow(Up--Down) direction
Perform this function while the unit is in operation.
Use the remote controller to adjust the air flow
direction. The horizontal louver can be moved at
O
a range of 6 for each press, or swing up and down
automatically. Please refer to the REMOTE
CONTROLLER OPERATION MANUAL for details.
To set the horizontal air flow direction (left - right)
Move the vertical louver manually to adjust the air flow
in the direction you prefer.
IMPORTANT: Before adjusting the vertical louvers, the
supply power must be disconnected.
For some models, the vertical louver can be adjusted
by using the remote controller. Please refer to the
REMOTE CONTROLLER OPERATION MANUAL
for details.
Do not operate the air conditioner for long periods the
air flow direction set downward in cooling or dehumidifying
mode.
Otherwise, condensation may occur on the surface of the
horizontal louver causing moisture to drop on to the floor or
on furnishings.
Do not move the horizontal louver manually unless it is
necessary. Always use the remote controller.
When the air conditioner is started immediately after it was
stopped, the horizontal louver might not move for
approximately 10 seconds.
Open angle of the horizontal louver should not be set too
small, as COOLING or HEATING performance may be
impaired due to too restricted air flow area.
Do not operate unit with horizontal louver in closed position.
When the air conditioner is connected to power (initial
power), the horizontal louver may generate a sound for 10
seconds, this is a normal operation.
with
CAUTION
!
,,
,,
,,
,,

9
AUTO operation
When you set the air conditioner in AUTO mode, it will
automatically select cooling, heating(cooling/heating
models only), or fan only operation depending on what
temperature you have selected and the room temperature.
The air conditioner will control room temperature automatically
round the temperature point set by you.
If the AUTO mode is uncomfortable, you can select desired
conditions manually.
SLEEP operation
When you push SLEEP button on remote controller during
cooling, heating(cooling only type without), or AUTO operation ,
the air conditioner will automatically increase (cooling) or
decrease (heating) 1℃ per hour.
The set temperature will be steady 2 hours later. And the air
conditioner will be timer off in 7 hours. The fan speed will be
automatically controlled. This feature can maintain the most
comfortable temperature and save more energy for you.
DRYING operation
The fan speed will be automatically controlled under dry
operation.
During the dry operation, if the room temperature is lower
O
than 10 C, the compressor stops operation and restarts
O
until the room temperature is above 12 C.
To achieve optimal performance, please note the following:
Adjust the air flow direction correctly so that it is not directed
on people.
Adjust the temperature to achieve the highest comfort level. Do
not adjust the unit to excessive temperature levels.
Close doors and windows on COOL or HEAT modes, or perfor-
mance may be reduced.
Use TIMER ON button on the remote controller to select a time
you want to start your air conditioner.
Do not put any object near air inlet or air outlet, as the efficiency
of the air conditioner may be reduced and the air conditioner
may stop running.
Clean the air filter periodically, otherwise cooling or heating per-
formance may be reduced.
Do not operate unit with horizontal louvre in closed position.
1 hour
1 hour
Set
Temperature
Cooling
1℃
1℃
Heating
SLEEP operation
OPERATING INSTRUCTIONS
How the air conditioner works
Optimal operation
1℃
1℃
1 hour 1 hour
Set
Tempera tur e
SLEEP operation
7 hours timer off

10
Cleaning the Grille, Case and Remote Controller
A cloth dampened with cold water may be used
on the indoor unit if it is very dirty. Then wipe it
with a dry cloth.
Do not use a chemically treated cloth or duster to
clean the unit.
Do not use benzine, thinner, polishing powder, or
similar solvents for cleaning. These may cause
the plastic surface to crack or deform.
Never use water hotter than 40 C to clean the front
panel, it could cause deformation of discoloration.
CAUTIONS
CARE AND MAINTENANCE
Care and maintenance
Turn the system off before cleaning. To clean, wipe
with a soft, dry cloth. Do not use bleach or abrasives.
NOTE: Supply power must be disconnectd before
cleaning the indoor unit.
Filter Handle
A clogged air filter reduces the cooling efficiency of
this unit. Please clean the filter once every 2 weeks.
1. Lift the indoor unit front panel up to an angle until
it stops with a clicking sound.
2. Take hold of the handle of the air filter and lift it
up slightly to take it out from the filter holder,
then pull it downwards.
3. Remove the AIR FILTER from the indoor unit.
Clean the AIR FILTER once two weeks.
Clean the AIR FILTER with a vacuum cleaner
or water, then dry it up in cool place.
.
.
NOTE: Supply power must be disconnectd before
cleaning the indoor unit.
Cleaning the air filter

11
CARE AND MAINTENANCE
Maintenance
Checks before operation
If you plan to idle the unit for a long time, perform the
following:
(1) Operate the fan for about half a day to dry the
inside of the unit.
(2) Stop the air conditioner and disconnect power.
Remove the batteries from the remote controller.
(3) The outdoor unit requires periodic maintenance
and cleaning. Do not attempt to do this yourself.
Contact your dealer or servicer.
Check that the wiring is not broken off or disconnected.
Check that the air filter is installed.
Check if the air outlet or inlet is blocked after the
air conditioner has not been used for a long time.
Do not touch the metal parts of the unit when
removing the filter. Injuries can occur when
handling sharp metal edges.
Do not use water to clean inside the air conditioner.
Exposure to water can destroy the insulation,
leading to possible electric shock.
When cleaning the unit, first make sure that the
power and circuit breaker are turned off.
Caution
4. Remove the A
Plasma Dust Collector/Silver Ion filter /Bio filter / Vitamin C
filter/3M air purifier filter) from its support frame.
(The installation and removing method of the air freshening
filter is different depending on the models,see the pictures
marked and on the left.
Clean the air freshening filter at least once a month,
and replace it every 4-5 months.
Clean it with vacuum cleaner, then dry it in cool place.
5. Install the air freshening filter back into position.
6. Insert the upper portion of air filter back into the unit taking
care that the left and right edges line up correctly and place
filter into position.
ir Freshening Filter(Optional filter:
.
.12
Air freshening filter
Air freshening filter
1
2
Do not touch the Plasma Dust Collector Filter within
10 minutes after opening the front panel, it may
cause an electric shock.

12
OPERATION TIPS
The following events may occur during normal operation.
1. Protection of the air conditioner.
Compressor protection
The compressor can't restart for 3~4 minutes after it stops.
Anti-cold air (Cooling and heating models only)
The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in
one of the following three situations and the set temperature has not been reached.
A) When heating has just starting.
B) Defrosting.
C) Low temperature heating.
The indoor or outdoor fan stop running when defrosting (Cooling and heating models only).
Defrosting (Cooling and heating models only)
Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low
and humidity is high resulting in lower heating efficiency of the air conditioner.
During this condition air conditioner will stop heating operation and start defrosting automatically.
The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and
the amount of frost build up on the outdoor unit.
2. A white mist coming out from the indoor unit
A white mist may generate due to a large temperature difference between air inlet and air outlet
on COOL mode in an indoor environment that has a high relative humidity.
A white mist may generate due to moisture generated from defrosting process when the air
conditioner restarts in HEAT mode operation after defrosting.
3. Low noise of the air conditioner
You may hear a low hissing sound when the compressor is running or has just stopped running.
This sound is the sound of the refrigerant flowing or coming to a stop.
You can also hear a low "squeak" sound when the compressor is running or has just stopped
running. This is caused by heat expansion and cold contraction of the plastic parts in the unit
when the temperature is changing.
A noise may be heard due to louver restoring to its original position when power is first turned on.
4. Dust is blown out from the indoor unit.
This is a normal condition when the air conditioner has not been used for a long time or during first
use of the unit.
5. A peculiar smell comes out from the indoor unit.
This is caused by the indoor unit giving off smells permeated from building material, from furniture,
or smoke.
6. The air conditioner turns to FAN only mode from COOL or HEAT (For cooling and
heating models only) mode.
When indoor temperature reaches the temperature setting on air conditioner, the compressor will
stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again
when the indoor temperature rises on COOL mode or falls on HEAT mode (For cooling and heating
models only) to the set point.

7. Dripping water may generate on the surface of the indoor unit when cooling in a high
relatively humidity (relative humidity higher than 80%). Adjust the horizontal louver to
the maximum air outlet position and select HIGH fan speed.
8. Heating mode (For cooling and heating models only)
The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit
during heating operation. When the outdoor temperature falls, heat drawn in by the air
conditioner decreases accordingly. At the same time, heat loading of the air conditioner
increases due to larger difference between indoor and outdoor temperature. If a
comfortable temperature can't be achieved by the air conditioner, we suggest you use a
supplementary heating device.
9. Auto-restart function
Power failure during operation will stop the unit completely.
For the unit without Auto-restart feature, when the power restores, the OPERATION indicator
on the indoor unit starts flashing. To restart the operation, push the ON/OFF button on the
remote controller. For the unit with Auto-restart feature, when the power restores, the unit
restarts automatically with all the previous settings preserved by the memory function.
10. Lightning or a car wireless telephone operating nearby may cause the unit to malfunction.
Disconnect the unit with power and then re-connect the unit with power again. Push the
ON/OFF button on the remote controller to restart operation.
OPERATION TIPS
13

14
TROUBLESHOOTING TIPS
Troubleshooting Tips
Stop the air conditioner immediately if one of the following faults occur. Disconnect the
power and contact the nearest customer service center.
Fuse blows frequently or circuit breaker trips frequently.
Other objects or water penetrate the air conditioner.
The remote controller won't work or works abnormally.
Other abnormal situations.
Trouble
Malfunctions
Unit does not
start
Unit not cooling
or heating
(Cooling/ heating
models only)
room very well
while air flowing
out from the air
conditioner
Cause
Power cut
Unit may have become unplugged.
Fuse may have blown.
Battery in Remote controller may
have been exhausted.
The time you have set with timer
is incorrect.
Wait for power to be restored.
Check that plug is securely in wall
receptacle.
Replace the fuse.
Replace the battery.
Wait or cancel timer setting.
Set temperature correctly. For
detailed method please refer to
" "Using remote control section.
Clean the air filter.
Close the doors or windows.
Clear obstructions away first, then
restart the unit.
Wait.
Inappropriate temperature
setting.
Air filter is blocked.
Doors or Windows are open.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Compressor 4 minutes
protection has been activated.
If the trouble has not been corrected, please contact a local dealer or the nearest customer
service center. Be sure to inform them of the detailed malfunctions and unit model.
Notes: Do not attempt to repair the unit yourself.
Always consult an authorised service provider.
What should be done?
If the following code appears on the LED window, disconnect the power and contact
the service people: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4.

CS527-U
2020323A7020
The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
