Casablanca Bel Air Halo User manual

1
INTRODUCTION 1
MOUNTING RECOMMENDATIONS 2
FAN INSTALLATION 3
CONTROL FEATURES:
INTELI•TOUCH OPERATION 9
INTELI•TOUCH TROUBLESHOOTING 12
PRODUCT SPECIFICATIONS 13
CIRCUIT BREAKER
(TRIP BREAKER FOR THE
CIRCUIT YOU WILL BE
WORKING ON)
FUSE BOX
(REMOVE FUSE FOR THE
CIRCUIT YOU WILL BE
WORKING ON) 18
84″
70″
•The blades in each pack are matched for
equal weight to assure smooth fan operation.
If more than one fan is being installed, be
careful not to mix blades from different
cartons.
•Inspect the contents of your carton for
possible shipping or handling damage and
report any such damage directly to your
authorized Casablanca dealer.
•It is always a good idea to have an assistant
to help with the installation.
•When cleaning, painting, or working near
your fan, be very careful of the fan and
blades. Always turn the power OFF to the
ceiling fan before servicing it, working on
it, or replacing light bulbs.
•Never insert anything into the path of the
fan blades while the fan is in operation.
• Neverinstallafanoverapoolorspa.
•Never operate a fan that has been damaged in
any way. Contact Casablanca Fan Company by
calling toll free 1-888-227-2178, or contact
your local authorized Casablanca dealer for
assistance in obtaining service.
CONTENTS
READ AND SAVE THESE INSTRUCTIONS
SAFE USE
Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product
and proper installation; therefore, before attempting to install and operate your Casablanca fan, read this
owner’s manual completely and carefully. Retain this manual for future reference.
SAFETY FIRST
BEFORE YOU START
PN 3843010 AT0608
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off at
the circuit breaker or fuse box before attempting any installation procedure.
• CAUTION: RISK OF ELECTRICAL SHOCK! All wiring must be performed in accordance with national and local electrical
codes. If you are unfamiliar with the wiring codes, you should use a qualified electrician. To avoid overheating and
possible damage to other equipment, do not install control to a receptacle, fluorescent light fixture, motor operated
appliance, or transformer-supplied appliance..
• Thisfanisdesignedtobeinstalledonanexistingelectricaloutletbox.TheoutletboxmustbeULListedforceilingfan
installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling
installations.
• This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light
current is 2.8 amps or 340 watts of lighting.
•Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make
sure all wires are within the canopy and that no wires are being pinched.
For best performance and for your warranty to be valid, use only genuine Casablanca blades, light fixtures, and accessories.

2
Calculation of 32°
Use the tear-off Ceiling Angle Template card inserted in the
back of this manual, it provides you with a simple ‘go’ or
‘no-go’ for installing your fan on a sloped ceiling.
SLOPED CEILING INSTALLATIONS
MOUNTING RECOMMENDATIONS
7′MINIMUM
Pole Length
6″
12″
12″
18″
24″
36″
48″
Ceiling Height
9′
9′6″
10′
11′
12′
13′
14′
Suggested Extension Pole Lengths
When to Use Extension Poles
For best performance and best appearance,
an extension pole should be used with
your Casablanca fan when installing on
high (cathedral) ceilings or sloped ceil-
ings. Casablanca offers standard poles in
increments of 6″up to 5′. Custom poles
are available in lengths up to 9'9"′. See
your Authorized Casablanca Dealer for
details.
BLADES MUST BE
A MINIMUM OF 7′
ABOVE THE FLOOR
EXTENSION
POLE
MAXIMUM
HANG-TRU®
ANGLE 32º
Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation,
and fan size are all important factors to consider before installation.
Location
Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mount-
ing recommendations as you decide where to install your Casablanca fan.
• Forsafetyreasons,thefanbladesmustbeaminimumof7′above the floor.
• Donotlocatethefaninadoorwayoraboveaswingingdoor.
• Inanyinstallation,thetipsofthebladesmustbeatleast18″from the wall in order to provide suf-
ficient clearance for the blades.
• Inbedrooms,fansworkbestwhenmountedabovethefootofthebed.
• Overpooltables,besuretoprovideplentyofclearancetoavoiddamagefrom
pool cues.
• Inkitchensbesuretoallowforopencupboarddoorstoclearthefanblades.
• Donotinstallafancloseto,orover,apoolorspa.Highhumiditycombined
with corrosive gases will destroy the finish and warp the blades.
Fan Size
Variable fan speed capability permits the use of a full-size 52″fan even in smaller
rooms. For very large rooms, two fans may be needed.
EXAMPLE 1
This slope is less than 32˚.
It is OK to install your fan.
EXAMPLE 2
This slope is 32˚. This is the maximum
slope that will allow the fan to hang
straight down. It is OK to install your
fan.
EXAMPLE 3
This slope is more than 32˚.
Your fan will not hang straight down,
an adaptor is necessary. Contact your
local Authorized Casablanca Dealer in
regards to purchasing a “Slope Ceiling
Adaptor.”
Note: Fan may wobble or vibrate if
pole length is not long enough and
inside blade is too close to downslope
or side wall. Extending pole length
will usually solve problem.
Note: The miniumum ceiling height
to install the Bel Air Halo is 9’.

3
INSTALLATION INSTRUCTIONS
Unpacking: Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them
against the parts listed here. Before discarding packaging material, be certain that all parts have been removed.
FAN PREPARATION
GETTING STARTED
Installing a New Ceiling Fixture Outlet Box
If you do not have an existing fixture located where you wish
to place your Casablanca fan, an approved ceiling fixture
outlet box must be installed and wired.
Using Existing Ceiling Fixture Outlet Box
After turning the power OFF at its source (either circuit
breaker or fuse box), lower the old fixture and disconnect
the wiring. Check the ceiling fixture outlet box to be sure
that it is marked ‘Approved for ceiling fan mounting’. If it is
not, a new box must be installed.
Warning: To reduce the risk of fire, electrical shock,
or personal injury, mount to outlet box marked ac-
ceptable for ceiling fan support using the mounting
hardware provided with the outlet box.
PERMA•LOCK™ HARDWARE
Be l Ai r ®HA l o
IMPORTANT! To avoid possible damage to the Halogen bulb holder the fan must remain in the styrofoam packaging from
the box. After removing the upper half of the styrofoam with the glass, remove the plastic from the fan and place the
fan back on the styrofoam in the bottom of the box.
Dimensions: Weight:
Height 25.5 lbs
18 1/
2”
ALLEN SET SCREW
1⁄4-20 x 1⁄4”
(PRE-INSTALLED) 3mm
ALLEN WRENCH
Prepare for fan installation as follows:
Step A. Route the wires from the motor through the
Perma•Lock™ downrod and ball assembly.
Step B. Using the provided allen wrench, loosen the set screw
several turns to allow installation of the downrod. Thread the
downrod into the motor coupling until it stops turning, this
will take at least four and a half full turns.
Step C. Securely tighten the set screw with the provided allen
wrench to ensure safe operation of your fan.
Tip: The downrod has a tapered thread
that is designed to lock completely when
correctly installed.
CAUTION: Failure to fully lock in the down-
rod before securely tightening the allen set
screw may cause the fan to separate from
the downrod during normal operation! MOTOR
COUPLING
TAPERED
THREAD
MOTOR
WIRES
GROUND
WIRE
ALLEN
SET SCREW
DOWNROD
& BALL
ASSEMBLY
DOWNROD & BALL
ASSEMBLY
IMPORTANT SAFETY INFORMATION!
BEFORE STARTING THE INSTALLATION OF YOUR CEILING FAN, INSTALL THE
THREADED DOWNROD INTO THE MOTOR COUPLING AND LOCK THE ASSEMBLY

4
CROSSBAR MOUNTING BRACKET INSTALLATION
JOIST
CEILING
WIRING
CROSSBAR
MOUNTING
BRACKET
FLAT
WASHER
GREEN
GROUND
WIRE
CEILING FAN
APPROVED
WIRING BOX
RIDGE
SIDE
DOWN
APPROVED
OUTLET BOX
HARDWARE
Note: After removing the old fixture, check the outlet box
to insure that it is supported by a joist or beam across its
upper surface. If not, a 2” x 4” stud must be installed.
Step 1. Remove the knockout plug in the center of the out-
let box or drill a 1/2″hole for the lag screw to pass through.
Then drill a 1/4″guide hole into the joist or beam to a depth
of 3″.
Step 2. Route the outlet box wires through the keyhole slot of
the crossbar mounting bracket as shown. Attach the crossbar
mounting bracket to outlet box with screws provided, assuring
that the outlet box wires are not pinched by the washer.
CAUTION: To reduce the risk of personal injury,
use only the mounting hardware provided with
the approved outlet box to install the crossbar
mounting bracket.
CEILING HARDWARE
WIRE NUT (4)
ADDITIONAL HARDWARE
21/4” x 8-32 ROUNDED
HEAD SCREW (2)
FLAT WASHER (2)
1” x 8-32 ROUNDED
HEAD SCREW (2)
SUPPORT INSTALLATION PARTS
LAG SCREW
3/8” #7 X 5” (1)
LARGE
FLAT WASHER
3/8” (1)
WARNING!
SUPPORT DIRECTLY TO
BUILDING STRUCTURE ONLY.
CROSSBAR MOUNT-
ING BRACKET

5
CANOPY INSTALLATION
Step 4. Attach the canopy to the crossbar mounting bracket with three of
the 8-32 x 21/2” long canopy screws and lock washers provided with your
Casablanca fan. Hand tighten until snug against the ceiling.
CANOPY
SCREW
CANOPY
LOCK
WASHER
FEED OUTLET BOX
WIRES THROUGH
CANOPY OPENING
Note: On sloped ceilings, align the
canopy opening toward the top or
peak of the room.
CANOPY HARDWARE
CANOPY LOCK WASHER (4)
CANOPY SCREW (4)
Step 3. With the large washer attached, pass the lag screw
through the center hole of the crosbar mounting bracket
and screw into guide hole. Tighten until outlet box is firmly
mounted to beam. This box must be firmly secured to the
ceiling. We recommend that the ceiling fixture outlet box
be of sufficient capacity enabling it to support the weight
of fan and light fixture under any conditions.
LAG
SCREW
LAG SCREW INSTALLATION
LARGE
WASHER
CANOPY
HATCH
Be l Ai r ®HA l o
CANOPY

6
INSTALLING THE UPPER GLASS SHADE
UPPER
GLASS
SHADE
BRACKET
NOTE: Make a note of the
Fan Serial Number and
Model Type before install-
ing the top cover.
Step 5. Carefully place the upper
glass shade on the foam covered
brackets. Assure the glass sits
evenly on the bracets and is
centered.
Step 6. Take the three upper
glass shade brackets and place
them in the holders as shown.
Using the supplied screws, tight-
en a few turns on each bracket
until all three are in place. DO
NOT TIGHTEN COMPLETELY.
Step 7. Rotate the tightening of
the brackets until all are snug.
DO NOT OVERTIGHTEN.
IMPORTANT! To avoid possible damage to the
Halogen bulb holder the fan must be placed on
the bottom styrofoam packaging from the box.
After removing the top half of the styrofoam,
take the bottom half from the box and place it
on the floor. Take out all parts from the bottom
foam and place the fan back in the form fitted
recess.
FAN MOTOR
ASSEMBLY
UPPER AND LOWER GLASS PARTS
GLASS SHADE
HALOGEN BULB
100 WATT UPPER
GLASS
SHADE UPPER GLASS
SHADE BRACKET
(3)
UPPER
GLASS
SHADE
INCANDESCENT BULB
60-WATT (3)
FOAM
COVERED
BRACKET
INSTALLING THE UPPER GLASS SHADE
Step 8. Istall the three 60-Watt
frosted incandescent bulbs as
shown.
Note: Use 3 maximum 60-Watt B10
candelabra incandescent bulbs.
WARNING!
DO NOT USE AN ELECTRIC SCREWDRIVER AS
YOU MAY ACCIDENTALLY OVETIGHTEN THE
BRACKETS AND CAUSE THE GLASS TO BREAK.

7
TILT THE
FAN TO
INSTALL
LAST
CANOPY
SCREW
Step 11. Tuck the wires into the
canopy with the wire nuts pointed
upwards, so that the WHITE and BLACK
wires are on opposite sides of the
canopy and all wires are clear of the
canopy opening.
Step 13. Straighten the fan, then
check to ensure that there is no
movement between the canopy and
ceiling or Hang-Tru ball and top sup-
port shaft.
Step 12. Install canopy hatch with the
last canopy screw and lock washer. To
do this, tilt the fan body away from the
hatch opening.
CANOPY HATCH INSTALLATION
WIRE NUT
WHITE WIRES
(2)
GREEN WIRES
(3)
Step 10. Attach the fan wires to the
ceiling fixture outlet box wiring by
twisting the bare ends of the wires
together and then securing with a
wire nut.
Connect in this order:
• GREEN leads from mounting plate
and fan to GROUND conductor of
power source. Secure with wire
nut.
• WHITEwirefromfantowhiteNEU-
TRAL wire in ceiling fixture outlet
box. Secure with wire nut.
• BLACKwirefromfantoblack(orred)
POWER wire in ceiling fixture outlet
box. Secure with wire nut.
CANOPY ELECTRICAL CONNECTIONS
Step 9. To hang the fan body in the
canopy, hold the fan body firmly and insert
the ball into the canopy opening. Check
that no wires were pinched. Rotate the fan
body until the slot in the ball fits into the
pin opposite the canopy opening.
PIN
SLOT
BALL
BLACK WIRES
(2)
CANOPY
WASHER
CANOPY
SCREW
CANOPY
HATCH
Dimensions:
Weight: Height
32 lbs 18 1/
2”
HANGING THE FAN
Be l Ai r ®HA l o

8

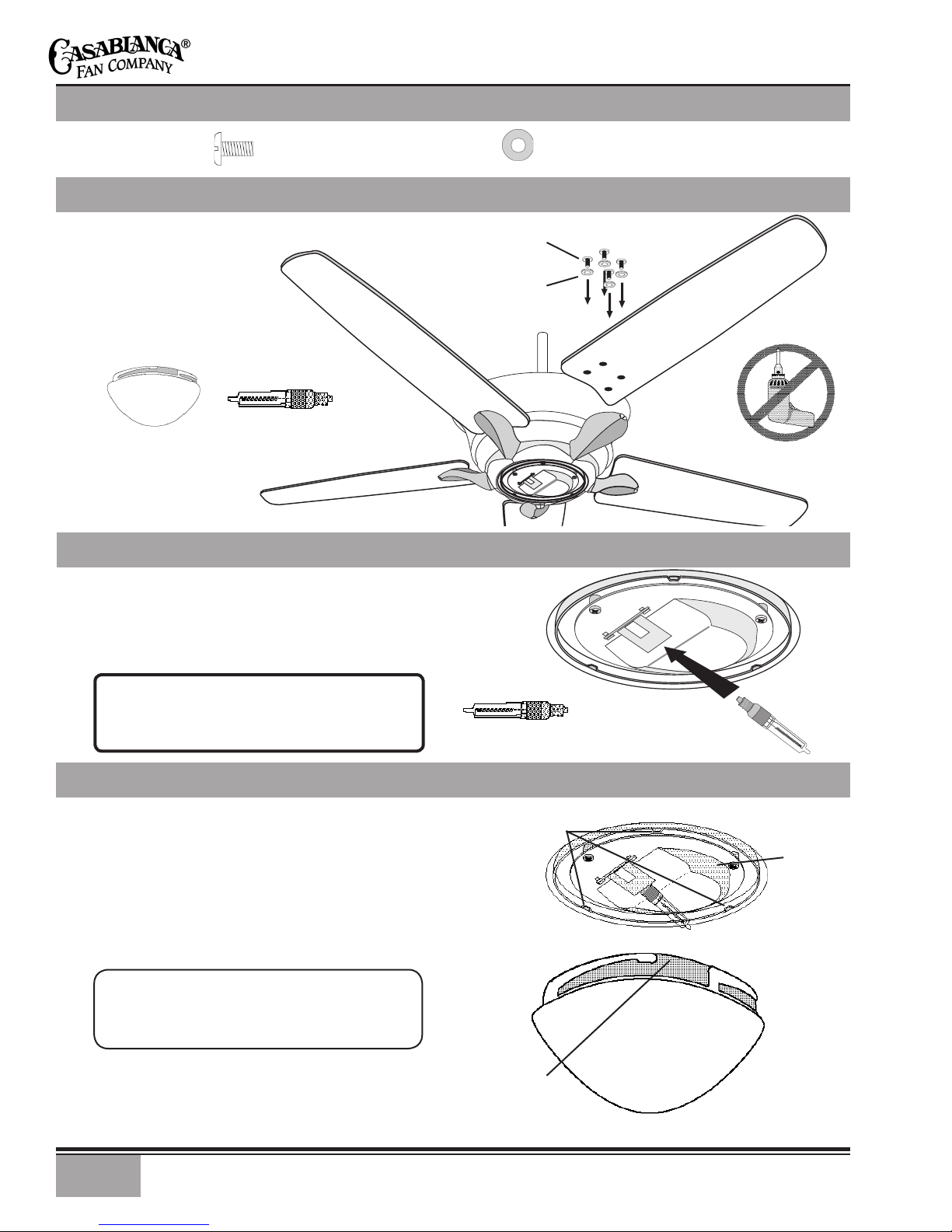

BLADE SCREW
(4 PER BLADE)
FLAT WASHER
(4 PER BLADE)
INSTALLING THE GLASS SHADE
INSTALLING THE HALOGEN BULB
Step 15. Screw the 100 Watt Halogen bulb into the socket.
Do not touch the glass bulb with your fingers–it is extremely
important that the glass be clean. If it is touched, or dirty,
clean carefully with a tissue. A dirty glass bulb will cause the
bulb to fail almost immediately.
Step 14. Blade Installation
Attach the blades to the
blade holders with four blade
screws and four steel washers
provided for each blade.
Hand tighten securely.
Step 16. Position the indentations in the outer rim of the
glass shade so that they line up with the tabs on the inside
surface of the fan light fixture rim.
Step 17. Carefully lift the glass shade up inside the light
fixture as far as it will go.
Step 18. Rotate the shade in a clockwise direction until it is
held tightly in place by the three tabs.
CENTER STYLE BLADE HOLDER & BLADE
LIGHT
FIXTURE
TABS
GLASS
SHADE
GLASS SHADE
INDENTATION
IMPORTANT! When installing the halogen bulb, care-
fully cut off the end of the plastic sleeve the bulb
comes in and hold the bulb by the plastic sleeve to
screw it into the socket.
BLADE HOLDER HARDWARE
BLADE SCREW
(4 PER BLADE)
FLAT WASHER
(4 PER BLADE)
HALOGEN BULB
100 WATT
TIP: At first the shade is a very loose fit in the fix-
ture and can be ‘wiggled’ a little from side to side.
It is a great help when rotating the glass shade to
‘wiggle’ it at the same time.
GLASS SHADE
HALOGEN BULB
100 WATT

9
The wall control installs in the same manner as an ordinary light switch, using an existing junction box and wiring. This
controller is designed to signal the fan microcomputer as well as perform normal switching operations. For this reason the
following precautions must be observed:
1. Use only the Casablanca W-32 wall control.
2. Do not use any additional control with your Inteli-Touch
fan (for example, dimmer, fan speed control, etc.).
3. Do not use more than one fan per wall control.
4. No other light fixtures or electrical appliances may be
connected on the circuit controlled by the W-32 wall
control.
W-32 is used to describe either white (-11) or ivory finish.
1. Remove the screws and switch plate from the existing switch box.
2. Remove the screws holding the switch in the switch box.
3. Pull the existing switch from the switch box to expose the wire con-
nections.
4. Remove the two wires from the switch.
5. Connect the two wires just removed from the switch to the W-32
wall control black wire and black/white stripe wire. Secure these
connections with wire nuts.
6. Connect the green ground wire coming from the back of the W-32
control to the ground wire in the switch box. Secure the splice with
a wire nut.
7. Install the W-32 in the wall box with the two long screws pro-
vided.
8. Install the wall plate with the two color matched screws.
To control the fan and lights from two locations (a three-way
circuit), use 2 W-32 wall controls.
1. Remove the screws and switch plate from the existing
switch box and the screws holding the switch in the
switch box.
2. Pull the existing switch from the switch box to expose
the wire connections.
3. Determine which wire is connected to the common ter-
minal of the 3-way switch. (The terminal will be marked
on switch).
4. Remove the wire from the common terminal of the 3-way
switch. Connect this wire to the remaining black/white
striped wire on the W-32 control. Secure this splice with
a wire nut.
5. Remove the two remaining wires from the 3-way switch.
Connect one of these wires to a black wire on the W-32
control. Secure the splice with a wire nut. The remaining
wire is to be connected to the other black wire on the
W-32. Secure the splice with a wire nut.
6. Connect the green ground wire coming from the back of
the W-32 control to the ground wire in the switch box.
Secure the splice with a wire nut.
7. Install the W-32 in the wall box with the two long screws
provided.
8. Install the wall plate with the two short color-matched
screws provided.
9. Installation of the second W-32 control is identical.
Repeat steps 1 through 7.
CAUTION! Ensure power is turned OFF at the breaker or fuse
panel before starting installation.
CAUTION! Ensure power is turned OFF at the breaker or fuse
panel before starting installation.
NOTE: If wall control operation is reversed (fan switch controls lights and
light switch controls fan) turn off the power at the breaker or fuse panel,
then swap the two W-32 black/white stripe wires.
N0TE: If wall control operation is reversed (fan switch controls lights
and light switch controls fan) turn off the power at the breaker or
fuse panel, then swap the two W-32 black/white stripe wires.
Inteli•Touch®
INTELI•TOUCH DUAL W-32 INSTALLATION
INTELI•TOUCH SINGLE W-32 INSTALLATION
INTELI•TOUCH INSTALLING THE W-32 WALL CONTROL
NOTE:This product has been evaluated and
is suitable for Solid State Speed Controls.

10
Inteli•Touch®
The POWE button is normally left in the on position. Always turn the power
off during cleaning or servicing the fan and during thunderstorms. It is also
used to exit or enter additional programs.
POWER must be left on to retain a previously set fan speed or light
level.
There are six individual speed settings for the fan; each speed is indicated
by an audible tone of increasing pitch.
To select the desired fan speed:
1. With fan off, press and hold the button labeled . The fan blades
will start rotating at the slowest speed, and will increase in steps.
2. Release the button when the desired speed is reached.
The fan speed is now in memory and will automatically come on at the same
speed each time the button is used. To maintain this level of speed,
turn the fan on by pressing less than one second. To lower speed,
turn fan off, then on by pressing and holding the button until the
desired speed is reached. When the fan is on, you may increase the speed by
pressing and holding the button until the desired speed is reached,
then release it.
The direction of airflow can be changed from downward to
upward or from upward to downward.
To reverse the airow:
1. Make sure the is on.
2. Press the button.
Note: A four-toned signal indi-
cates the command was accepted
by the fan. A few seconds later
the fan will slow to a stop and
then reverse direction.
FAN CONTROL
ON - OFF
A momentary press of
the FAN button
TO CHANGE SPEED
Press and hold FAN
button longer than one
second
INTELI•TOUCH OPERATION POWER
INTELI•TOUCH OPERATION SPEED CONTROL
INTELI•TOUCH • REVERSING AIRFLOW
FAN
FAN
FAN
FAN
FAN
FAN
FAN
REVERSE
INTELI•TOUCH OPERATION • LIGHT
LIGHT CONTROL
CYCLES THROUGH SE-
QUENCE:
1. Both lights come on
2. Down light only
3. Up light only
To turn the lights off and on, press and release the button for less
than one second.
The sequence is, when the power is on:
First touch of the light button—both lights come on
Second touch of the light button—down light only
Third touch of the light button—up light only
To vary the light brightness at each touch level:
Make sure where you are in the sequence to the right.
To dim both lights at the same time:
1. Make sure you have the uplight on.
2. Turn the light off, then press and hold the button. After one
second, both lights will come on at their lowest setting and gradually
become brighter.
3. Release the button when the desired brightness is reached.
To dim just the up light:
1. Make sure you have just the downlight on.
2. Turn the light off, then press and hold the button. After one
second, the up light will come on at the lowest setting and gradually
become brighter.
3. Release the button when the desired brightness is reached.
To dim just the down light:
1. Make sure you have both lights on.
2. Turn the light off, then press and hold the button. After one
second, the down light will come on at the lowest setting and gradually
become brighter.
3. Release the button when the desired brightness is reached.
POWER
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT
LIGHT

11
The Light-Minder program automatically turns OFF the fan mounted lights after
two hours.
To enter the Light-Minder Program:
1. Turn the POWEROFF for at least three seconds.
2. Turn the on.
3. Immediately operate the buttons in the following sequence:
+++
4. A series of tones indicates this command has been accepted.
The fan and light will operate normally using the buttons to turn them on and off.
But, if the lights are left on, they will automatically shut off after two hours. To
cancel the Light-Minder Program, turn the POWER off for three seconds.
Inteli•Touch®
The Safe-Exit Program gives you about thirty seconds of light when you turn
the lights off, enabling you to exit your home before the lights go out.
To enter the Safe-Exit Program:
1. Turn the POWE off for at least three seconds.
2. Turn the POWE on.
3. Immediately operate the buttons in the following sequence:
+++
After you hear the confirming audio
tones from the fan - immediately press
4. The lights will blink to indicate this command has been accepted.
The lights will stay on for twenty seconds and then begin to dim. After a total
of thirty seconds has elapsed, the lights will be off completely. To cancel the
Safe-Exit Program, turn the POWE off for three seconds.
The Home-Safe Program makes an unoccupied home appear occupied by turning
the lights on and off at random times.
To enter the Home-Safe Program:
1. Turn the POW off for at least three seconds.
2. Turn the POW on.
3. Immediately operate the buttons in the following sequence:
+++
4. A tone and flashing light indicate this command has been accepted.
This program overrides all manual control of lights and fan. The lights will now be
automatically cycled on and off in a controlled sequence as follows: On 1 hour, off
1/2hour, on 2 hours, off 1 hour, on 1/2hour then off 2 hours.
This seven hour pattern will repeat continuously so that a different pattern of
lighting is seen each day of the week.
To cancel the Home-Safe Program, turn the POWE off for three seconds.
The Fan-Minder feature will add to your comfort when used in the bedroom. The program reduces the
speed of the fan each two-hour interval to compensate for the cooling night air.
To enter the Fan-Minder Program:
1. Turn the POWE off for at least three seconds.
2. Turn the POWE on.
3. Immediately operate the buttons in the following sequence:
+++
4. The fan controller will respond with three descending tones. A timer is now initiated and the fan
will reduce one speed for each two-hour interval. The fan will not, however, descend below the
second lowest speed.
To cancel the Fan-Minder Program, turn the POWE off for three seconds. You may increase the fan
speed by pressing and holding the button until the desired speed is reached, then release
it. The fan will again reduce one speed for each 2 hour interval.
Note: Both Light-Minder and Safe-Exit
programs can run at the same time,
however the dimmer cannot be used,
the light may only be turned ON/OFF.
FAN

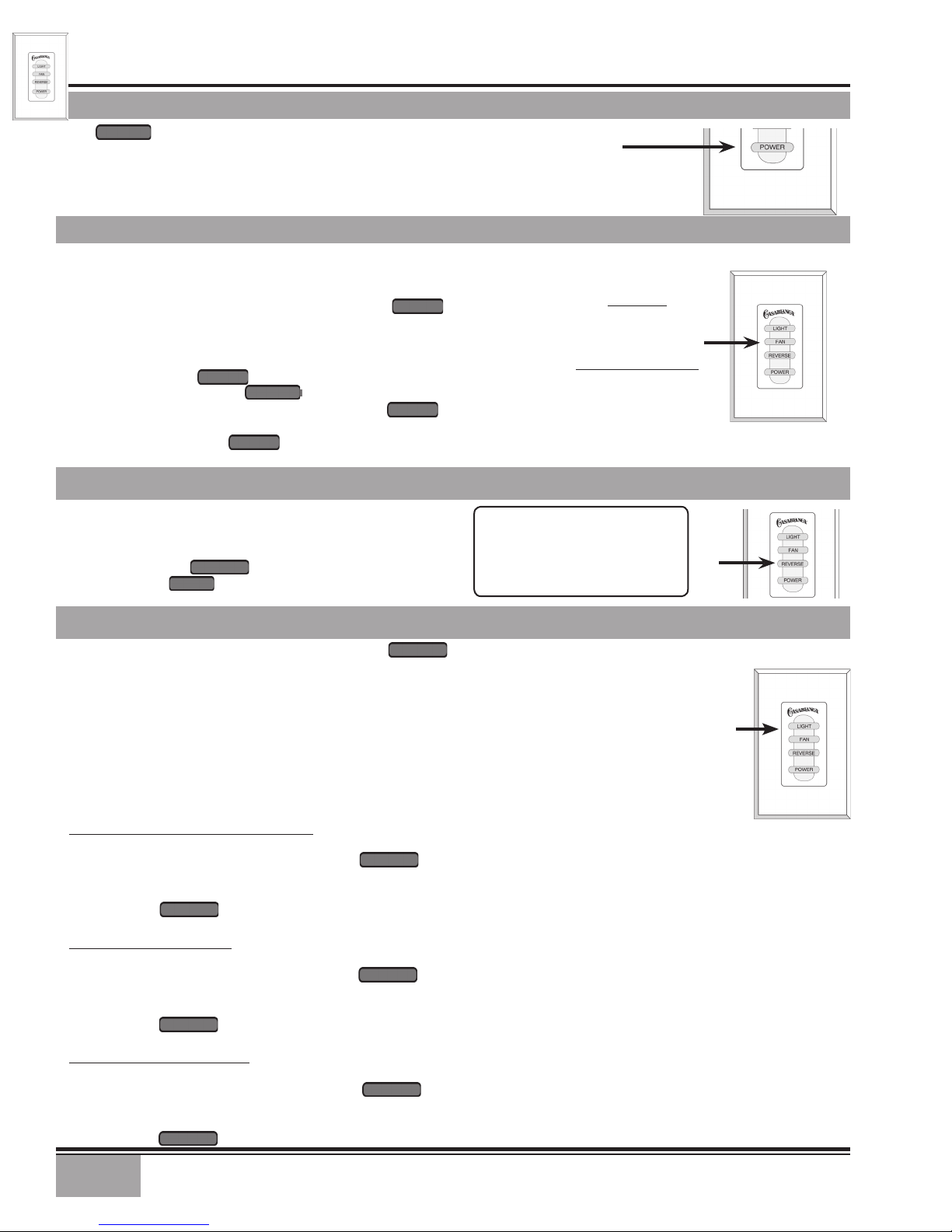

INTELI•TOUCH OPERATION LIGHT-MINDER PROGRAM
INTELI•TOUCH OPERATION SAFE-EXIT PROGRAM
INTELI•TOUCH OPERATION FAN-MINDER® PROGRAM
INTELI•TOUCH OPERATION HOME-SAFE® PROGRAM
POWER
FAN FAN LIGHT
LIGHT
POWER
POWER
FAN FAN LIGHTLIGHT
LIGHT
POWER
POWER
POWER
LIGHTLIGHT FAN
FAN
POWER
POWER
POWER
LIGHT
LIGHT FANFAN
FAN
POWER
POWER

12
Before Requesting Service: Please follow this troubleshooting guide be-
fore contacting your dealer for assistance.
Caring for Finishes: For cleaning, a soft brush or lint-free cloth
should be used to prevent scratching the finish. A vacuum cleaner
brush nozzle can remove heavier dust. Surface smudges or an ac-
cumulation of dirt and dust can easily be removed by using a mild
detergent and slightly dampened soft cloth. An antistatic agent
may be used, but never use abrasive cleaning agents. These will
damage the finish. Painted and high-gloss blades may be cleaned
in the same manner.
Blades: Wood finish blades should be cleaned with a furniture pol-
ishing cloth. Occasionally, a light coat of furniture polish may be
applied for added protection and beauty.
Never Lubricate this Fan!
The precision motor at the heart of your Casablanca fan features
sealed bearings that are lubricated for life. Do not attempt to oil
the motor.
Changing Light Bulbs
Be sure to turn power to the fan OFF at the wall switch or circuit
breaker before changing light bulbs. Replace bulbs with same type
as removed from the fixture. Each fan is rated for a maximum TOTAL
wattage of lighting.
Exceeding the rated maximum allowable wattage for the fan will
burn out the fan electronics module and void the warranty.
NO FAN OR LIGHT Check main circuit fuses, curcuit breakers, or wall switch position. Check all wire connections, making
sure the power is turned off during this inspection.
FAN WOBBLES OR SHAKES Be sure canopy pin is properly set into the slot on the ball
EXCESSIVELY Check the screws holding the blade holders to the fan motor. Tighten as necessary.
Check the angle of the blades to make sure that a blade holder has not been bent during installation.
FAN NOISY DURING Check and tighten light fixture retaining screws, glass shade screws and/or the light bulb(s).
OPERATION Tighten canopy screws and mounting plate assembly.
Tighten the blade to bladeholder screws and blade holders to flywheel.
Make sure all screws in the motor housing are snug, but not overly tight.
Check that the wire nuts inside the canopy and switch housing are not touching the metal parts or
have fallen off the wire splices. Tighten or adjust as necessary.
BREAK-IN PERIOD Let fan run at high speed for two (2) hours
DOES NOT RUN ON If new, “break-in” may be required - run at higher speed for several days
LOW SPEED
LIGHTS FLASH OR BLINK DURING OPERATION OF W-32 WALL CONTROLS/FAN MAY ROTATE OR MAKE AUDIBLE TONES
DURING OPERATION OF THE W-32 WALL CONTROLS: Normal operation.
WHEN AC POWER IS TURNED ON FOR THE FIRST TIME, THE LIGHTS OPERATE NORMALLY, BUT W-32 WALL CONTROL
OPERATION IS REVERSED: FAN BUTTON OPERATES THE LIGHTS; LIGHT BUTTON OPERATES THE FAN: Reverse the 2 black
and white striped wire connections.
FAN OR LIGHTS APPEAR TO OPERATE BY THEMSELVES (CHANGING SPEED OR INTENSITY), WALL CONTROL OPERATION
IS INTERMITTENT: Check AC supply for irregularities, (noise spikes, fluctuations, or failure); or circuit board assembly.
Inteli•Touch®
PROBLEM POSSIBLE REMEDIES
TROUBLESHOOTING
INTELI•TOUCH

13

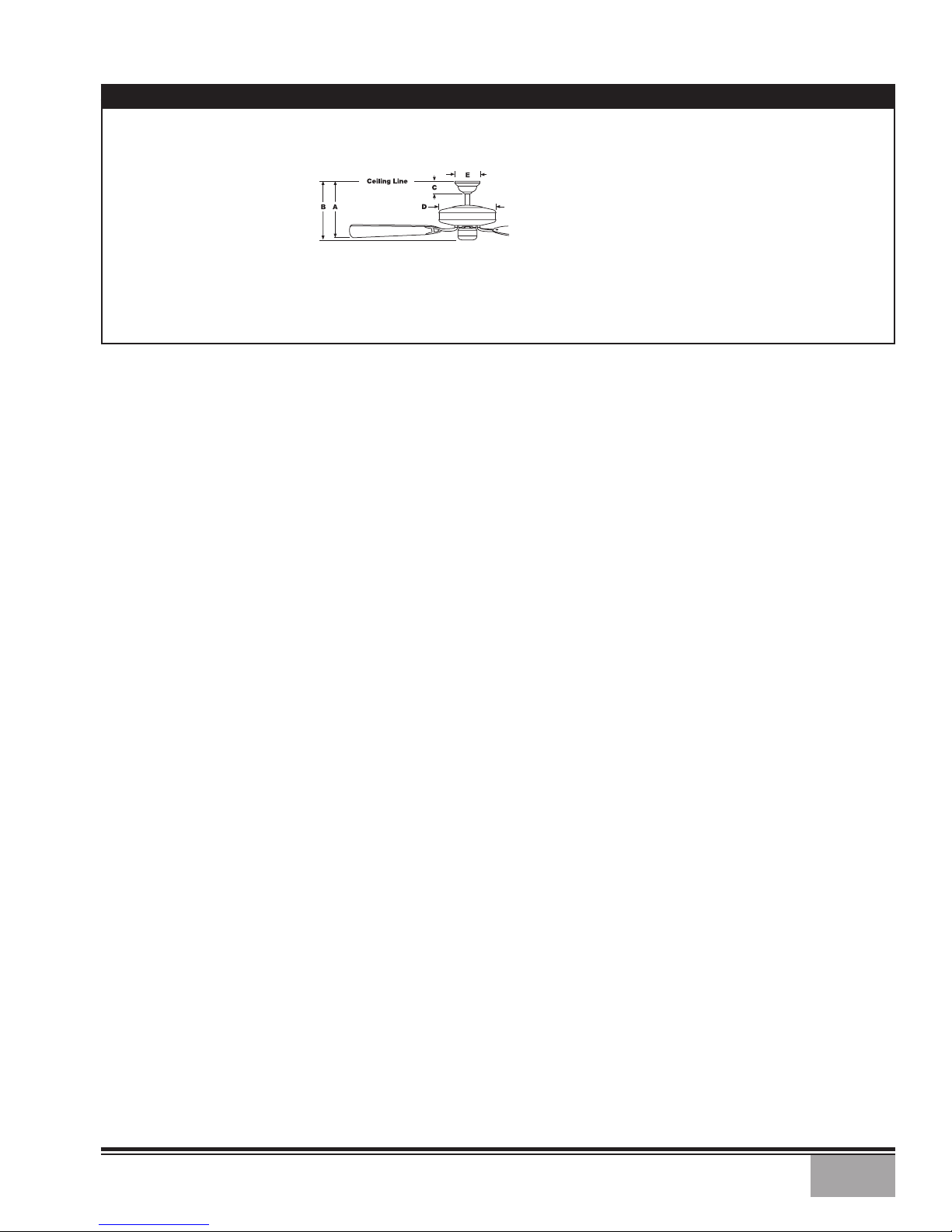

PRODUCT SPECIFICATIONS
Model Name: Bel Air®Halo
Model Number: 38DHxxT
Dimensions: A = 13.25"
B = 18.5"
C = 3"
D = 15.5"
E = 5.6"
Weight: 32 lbs.
Motor: XLP-2000®
Blade Span With: 55"
Blade Pitch: 14°
No. of Blades: 5
Technology: Inteli•Touch®W-32
Lightbulbs: 100-watthalogen(1)
 60-wattincandescent(3)
Airow: 7,174cfm
Electricity Use: 119 watts
Airow Efciency:60.5cfm/watt
