CIRCUIT BREAKER
(TRIP BREAKER FOR THE
CIRCUIT YOU WILL BE
WORKING ON)
FUSE BOX
(REMOVE FUSE FOR THE
CIRCUIT YOU WILL BE
WORKING ON)
• The blades in each pack are matched for
equal weight to assure smooth fan operation.
If more than one fan is being installed, be
careful not to mix blades from different
cartons.
• Inspect the contents of your carton for
possible shipping or handling damage and
report any such damage directly to your
authorized Casablanca dealer.
• It is always a good idea to have an assistant
to help with the installation.
• When cleaning, painting, or working near
your fan, be very careful of the fan and
blades. Always turn the power OFF to the
ceiling fan before servicing it, working on
it, or replacing light bulbs.
• Never insert anything into the path of the
fan blades while the fan is in operation.
• Never install a fan over a pool or spa.
• Never operate a fan that has been damaged in
any way. Contact Casablanca Fan Company by
calling 1-888-227-2178, or contact your local
authorized Casablanca dealer for assistance
in obtaining service.
CONTENTS
READ AND SAVE THESE INSTRUCTIONS
• All wiring must be in accordance with the National Electric Code ANSI/NFPA 70-1993 and the appropriate local electrical
codes. The National Electric Code requires proper grounding as a precaution against electrical shock. A qualified electrician
should be consulted if you are unsure.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan
installations, if it is not, a new box must be installed. Casablanca extension poles are available for sloped or high ceiling
installations.
• This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The maximum
current requirement for the fan with light fixture is 3.8 amps. The fan uses about 1 amp or 100 watts. Maximum light
current is 2.8 amps or 340 watts of lighting.
• Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy hatch, make
sure all wires are within the canopy and that no wires are being pinched.
For best performance and for your warranty to be valid,
use only genuine Casablanca blades, light fixtures, and accessories.
Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product
and proper installation; therefore, before attempting to install and operate your Casablanca fan, read this
owner’s manual completely and carefully. Retain this manual for future reference.
SAFETY FIRST
PN 9943001 RL1210
CAUTION: To avoid possible electrical shock, make certain that electricity is turned off at
the circuit breaker or fuse box before attempting any installation procedure.
18″
84″
70″
SAFE USE
BEFORE YOU START
INTRODUCTION 1
MOUNTINGRECOMMENDATIONS 2
FANINSTALLATION 3
CONTROLFEATURES:
 INTELI•TOUCHOPERATION 12
 WALLCONTROLPREPARATION 11
 OPERATION 15
 CHANGINGTRANSMITTERFREQUENCYSETTING 16
 BEZELREPLACEMENT 19

2
Calculation of 32°
Use the tear-off Ceiling Angle Template card inserted in the
back of this manual, it provides you with a simple ‘go’ or
‘no-go’ for installing your fan on a sloped ceiling.
7′ MINIMUM
Pole Length
Standard
18”
24”
36”
48”
Ceiling Height
10’
11’
12’
13’
14’
Suggested Extension Pole Lengths
When to Use Extension Poles
For best performance and best appearance,
an extension pole should be used with
your Casablanca fan when installing
on high (cathedral) ceilings or sloped
ceilings. Casablanca offers standard poles
in increments of 6″ up to 5′. Custom poles
are available in lengths up to 10′. See your
Authorized Casablanca Dealer for details.
BLADES MUST BE
A MINIMUM OF 7′
ABOVE THE FLOOR
EXTENSION
POLE
MAXIMUM
HANG-TRU®
ANGLE 32º
Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air circulation,
and fan size are all important factors to consider before installation.
Location
Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mounting
recommendations as you decide where to install your Casablanca fan.
• For safety reasons, the fan blades must be a minimum of 7′ above the floor.
• Do not locate the fan in a doorway or above a swinging door.
• In any installation, the tips of the blades must be at least 18″ from the wall in order to provide
sufficient clearance for the blades.
• In bedrooms, fans work best when mounted above the foot of the bed.
• Over pool tables, be sure to provide plenty of clearance to avoid damage from
pool cues.
• In kitchens be sure to allow for open cupboard doors to clear the fan blades.
• Do not install a fan close to, or over, a pool or spa. High humidity combined
with corrosive gases will destroy the finish and warp the blades.
Fan Size
Variable fan speed capability permits the use of a full-size 52″ fan even in
smaller rooms. For very large rooms, two fans may be needed.
EXAMPLE 1
This slope is less than 32˚.
It is OK to install your fan.
EXAMPLE 2
This slope is 32˚. This is the maximum
slope that will allow the fan to hang
straight down. It is OK to install your
fan.
EXAMPLE 3
This slope is more than 32˚.
Your fan will not hang straight down,
an adaptor is necessary. Contact your
local Authorized Casablanca Dealer in
regards to purchasing a “Slope Ceiling
Adaptor.”
Note: Fan may wobble or vibrate if
pole length is not long enough and
inside blade is too close to downslope
or side wall. Extending pole length
will usually solve problem.
Note: The canopy cover (Step 11) can
NOT be used on a sloped ceiling.
SLOPED CEILING INSTALLATIONS
MOUNTING RECOMMENDATIONS
EXAMPLE3
EXAMPLE2
EXAMPLE1

3
Unpacking: Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them
against the parts listed here. Before discarding packaging material, be certain that all parts have been removed.
DOWNROD COVER
DOWNROD & BALL
ASSEMBLY
GETTING STARTED
Carton Contents
The fan carton contains the fan body, warranty card, owner’s
manual, and all the parts necessary to assemble and install
your Casablanca ceiling fan. These parts are shown at the
start of each installation section. Before you start, go through
this Owner’s Manual and confirm that you have all the parts
shown in each section.
Be sure to use only genuine Casablanca blades. The blade
shrink wrap holds 4 blades of matched weight. If more than
one fan is being installed, be sure not to mix blade sets.
CAUTION: When removing the shrink wrap,
be careful not to scratch the blades.
METAL DOWNROD
GASKET
RUBBER DOWNROD
GASKET
Prepare the downrod as follows:
Step A. Insert the small lip of the rubber gasket into the
downrod cover.
Step B. Slide the downrod cover, rubber gasket first, onto the
downrod by using a twisting motion. Continue until the rubber
gasket is flush with the downrod ball.
Step C. Attach the metal gasket onto the downrod assembly
as shown. Using the provided screw, secure the metal gasket.
Tighten the screw by hand only.
CAUTION: Do not attach the cover onto the
downrod by pounding the downrod into the
floor. This will damage the hanging mecha-
nism and may cause the fan to fall.
19th Century™
PREPARATION INSTRUCTIONS
PERMA•LOCK™ HARDWARE
ATTACH COVER TO DOWNROD
INSTALL RUBBER GASKET
INSTALL METAL GASKET

4
MOTOR
COUPLING
TAPERED
THREAD
MOTOR
WIRES
GROUND
WIRE
Step E. Using the provided allen wrench, loosen the allen set screw.
Thread the downrod into the motor coupling until it stops turning,
this will take at least four and a half full turns.
Step F. Securely tighten the allen set screw with the provided allen
wrench to ensure safe operation of your fan.
CAUTION: Failure to fully lock in the
downrod before securely tightening the
locking bolt may cause the fan to fall during
normal operation!
IMPORTANT SAFETY INFORMATION!
BEFORE STARTING THE INSTALLATION OF YOUR CEILING FAN,
INSTALL THE THREADED DOWNROD INTO THE MOTOR COUPLING AND
LOCK THE ASSEMBLY
ALLEN
SET SCREW
DOWNROD
&
BALL
ASSEMBLY
Prepare for fan installation as follows:

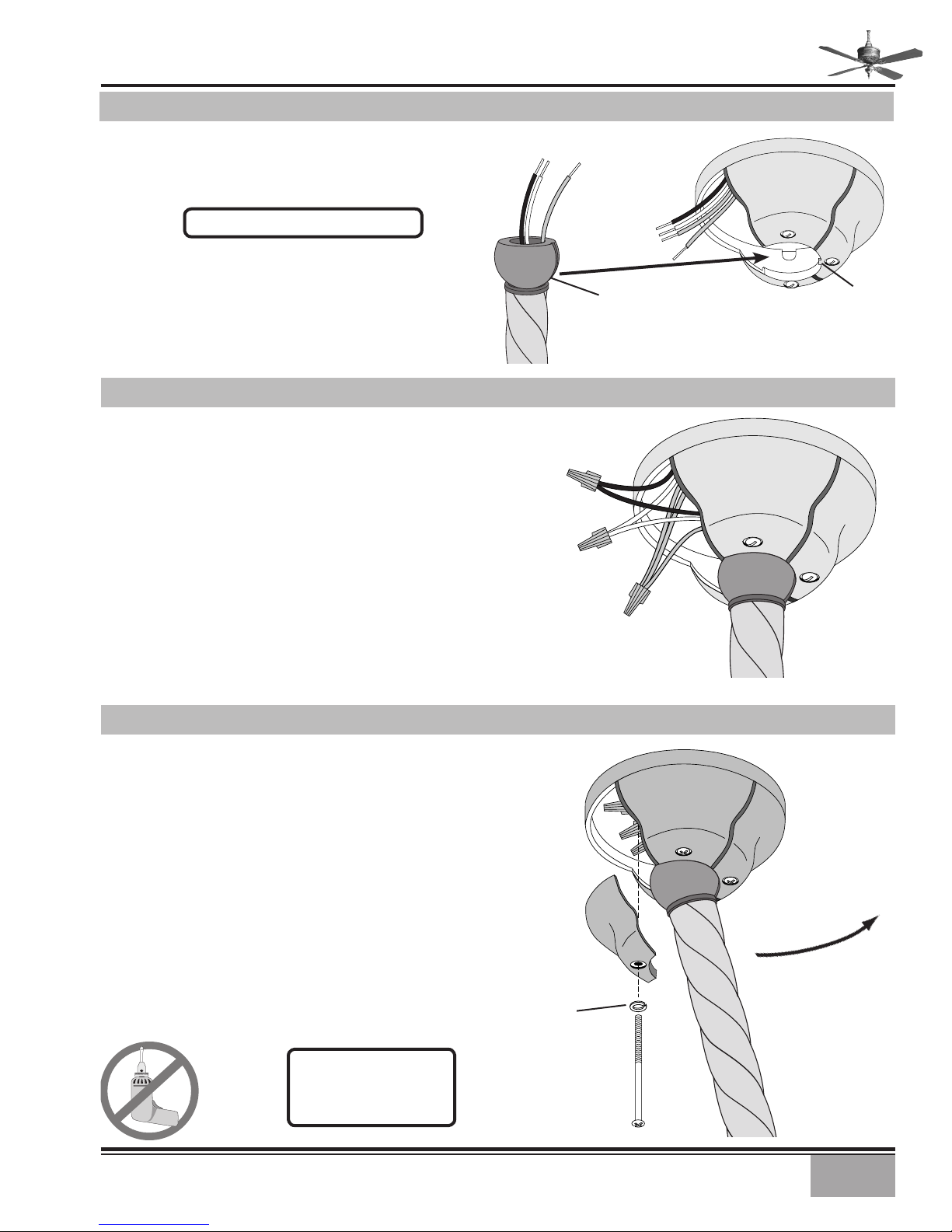

Step D. Route the wires from the motor through the
Perma•Lock™ downrod and ball assembly, keeping the wires
to one side of the cross pin.
Installing a New Ceiling Fixture Outlet Box
If you do not have an existing fixture located where you wish
to place your Casablanca fan, an approved ceiling fixture
outlet box must be installed and wired.
Using Existing Ceiling Fixture Outlet Box
After turning the power OFF at its source (either circuit
breaker or fuse box), lower the old fixture and disconnect
the wiring. Check the ceiling fixture outlet box to be sure
that it is marked ‘Approved for ceiling fan mounting’. If it is
not, a new box must be installed.
Warning: To reduce the risk of fire, electrical shock,
or personal injury, mount to outlet box marked
acceptable for ceiling fan support using the mounting
hardware provided with the outlet box. NOTE: The fan weight is 35 pounds.
NOTE: The downrod has a tapered thread
that is designed to lock completely when
correctly installed.
ALLEN SET SCREW
1⁄4-20 x 1⁄4”
(PRE-INSTALLED)
3mm
ALLEN WRENCH
FAN PREPARATION
GETTING STARTED

5
ADDITIONAL HARDWARE
21/4” x 8-32 ROUNDED
HEAD SCREW (2)
FLAT WASHER (2)
1” x 8-32 ROUNDED
HEAD SCREW (2)
JOIST
CEILING
WIRING
CROSSBAR
MOUNTING
BRACKET
FLAT
WASHER
GREEN
GROUND
WIRE
CEILING FAN
APPROVED
WIRING BOX
RIDGE
SIDE
DOWN
APPROVED
OUTLET BOX
HARDWARE
Note: After removing the old fixture, check the outlet box
to insure that it is supported by a joist or beam across its
upper surface. If not, a 2” x 4” stud must be installed.
Step 1. Remove the knockout plug in the center of the outlet
box or drill a 1/2″ hole for the lag screw to pass through. Then
drill a 1/4″ guide hole into the joist or beam to a depth of 3″.
Step 2. Route the outlet box wires through the keyhole slot of
the crossbar mounting bracket as shown. Attach the crossbar
mounting bracket to outlet box with screws provided, assuring
that the outlet box wires are not pinched by the washer.
CAUTION: To reduce the risk of personal injury,
use only the mounting hardware provided with
the approved outlet box to install the crossbar
mounting bracket.
WIRE NUT (4)
LAG SCREW
3/8” #7 X 5” (1)
LARGE
FLAT WASHER
3/8” (1)
WARNING!
SUPPORT DIRECTLY TO
BUILDING STRUCTURE ONLY.
19th Century™
CEILING HARDWARE
CROSSBAR MOUNTING BRACKET INSTALLATION
SUPPORT INSTALLATION PARTS
CROSSBAR
MOUNTING
BRACKET

6
Step 4. Attach the canopy to the crossbar mounting bracket with three of
the 8-32 x 21/2” long canopy screws and lock washers provided with your
Casablanca fan. Hand tighten until snug against the ceiling.
CANOPY
SCREW
CANOPY
LOCK
WASHER
FEED OUTLET BOX
WIRES THROUGH
CANOPY OPENING
Note: On sloped ceilings, align the
canopy opening toward the top or
peak of the room.
CANOPY LOCK WASHER (4)
CANOPY SCREW (4)
Step 3. With the large washer attached, pass the lag screw
through the center hole of the crosbar mounting bracket
and screw into guide hole. Tighten until outlet box is firmly
mounted to beam. This box must be firmly secured to the
ceiling. We recommend that the ceiling fixture outlet box
be of sufficient capacity enabling it to support the weight
of fan and light fixture under any conditions.
LAG
SCREW
LARGE
WASHER
CANOPY
HATCH
CANOPY INSTALLATION
CANOPY HARDWARE
LAG SCREWW INSATALLATION
CANOPY

7
Step 5. To hang the fan body in the canopy, hold the fan
body firmly and insert the nylon ball into the canopy opening.
Rotate fan body until slot on nylon ball fits into pin opposite
canopy opening.
CANOPY
BALL
SLOT PIN
2 WHITE WIRES
2 BLACK WIRES
3 GREEN WIRES
Step 7. Tuck the wires into the canopy
with the wire nuts pointed upwards, so
that the WHITE and BLACK wires are on
opposite sides of the canopy and all wires
are clear of the canopy opening.
Step 8. Install canopy hatch with the
last canopy screw and lock washer. To
do this, tilt the fan body away from the
hatch opening.
Tighten the screws firmly by hand only,
TILT THE FAN
TO INSTALL
LAST CANOPY
SCREW
CANOPY
HATCH
CANOPY
SCREW
LOCK
WASHER
Step 9. Straighten the fan, then check
to ensure that there is no movement
between the canopy and ceiling or Hang-
Tru ball and top support shaft.
Note: Write down the
Serial Number and the
model number for future
reference.
Step 6. Connect the fan wires to the outlet box
wiring by placing the bare ends of the wires
together and then securing with a wire nut.
Connect in this order:
• GREEN leads from mounting plate and fan to
GROUND conductor of power source. Secure
with wire nut.
• WHITE wire from fan to white NEUTRAL wire
in ceiling fixture outlet box.
Secure with wire nut.
• BLACK wire from fan to black POWER wire
in ceiling fixture outlet box.
Secure with wire nut.
Inspect each wire nut and ensure that no bare
wire is visible; pull on each wire to test the
connection is mechanically sound.
NOTE: The fan weight is 35 pounds.
19th Century™
HANGING THE FAN
CANOPY HATCH INSTALLATION
CANOPY ELECTRICAL CONNECTIONS

8
CANOPY
COVER
Step 11. Take the two pieces of the
canopy cover and assemble them around
the downrod as shown. Using the four
screws removed in Step 10, assemble the
canopy cover.
Slide the canopy cover to the ceiling and
secure to the downrod using the two
provided screws. Tighten by hand only.
Step 12. Take the two pieces of the
motor cover and assemble them around
the downrod as shown. Using the two
screws removed in Step 10, assemble the
motor cover.
Slide the motor cover down onto the top
of the fan and secure to the downrod
using the two provided screws.
Using the screwdriver, tighten securely
by hand only.
Step 10. Remove the screws from the canopy cover and
the motor cover and set aside for later use. MOTOR
COVER
CAUTION: The canopy cover can NOT be used
on sloped ceilings.
CANOPY
COVER
SCREWS FROM
STEP 10
PROVIDED
SCREWS
SCREWS FROM
STEP 10
PROVIDED
SCREWS
INSTALL MOTOR COVER
INSTALL CANOPY COVER
DISASSEMBLE CANOPY AND MOTOR COVERS

9
Step 13. Attach the blades to the blade holders by aligning
the screw holes of the holder with the holes of the blade.
Attach the blade holder using the four blade screws and
blade washers provided for each blade.
Using the screwdriver, tighten securely by hand only.
BLADE
SCREW
BLADE
WASHER BLADE
HOLDER
BLADE
BLADE
SCREW
BLADE
WASHER
Step 14. Remove the blade holder screw from the fan.
Slide the blade assembly into the cross bar, assuring that
the alignment holes line up.
Reinstall the blade holder screw, making sure that the blade
assembly is secure and does not rotate when turned.
Using a wrench or pliers, tighten securely by hand only.
BLADE HOLDER
SCREW
ALIGNMENT
PIN
BLADE
ASSEMBLY
BLADE HOLD-
ER SCREW
ALIGNMENT
HOLES
19th Century™
BLADE HARDWARE
ATTACH BLADE HOLDERS
INSTALL BLADE ASSEMBLY

10
Step 15. Slide the switch housing cup
over the threaded pipe from the switch
housing. Assure that no wires are
pinched.
Secure the cup to the fan with the
finial.
Tighten securely by hand only.
FINIAL
THREADED
PIPE
SWITCH HOUSING
CUP
SWITCH HOUSING CUP INSTALLATION
Note: If you have purchased the exclusive accessory
light fixture for this fan, please go to Step 16. If
not please continue with Step 15.

11
® 3

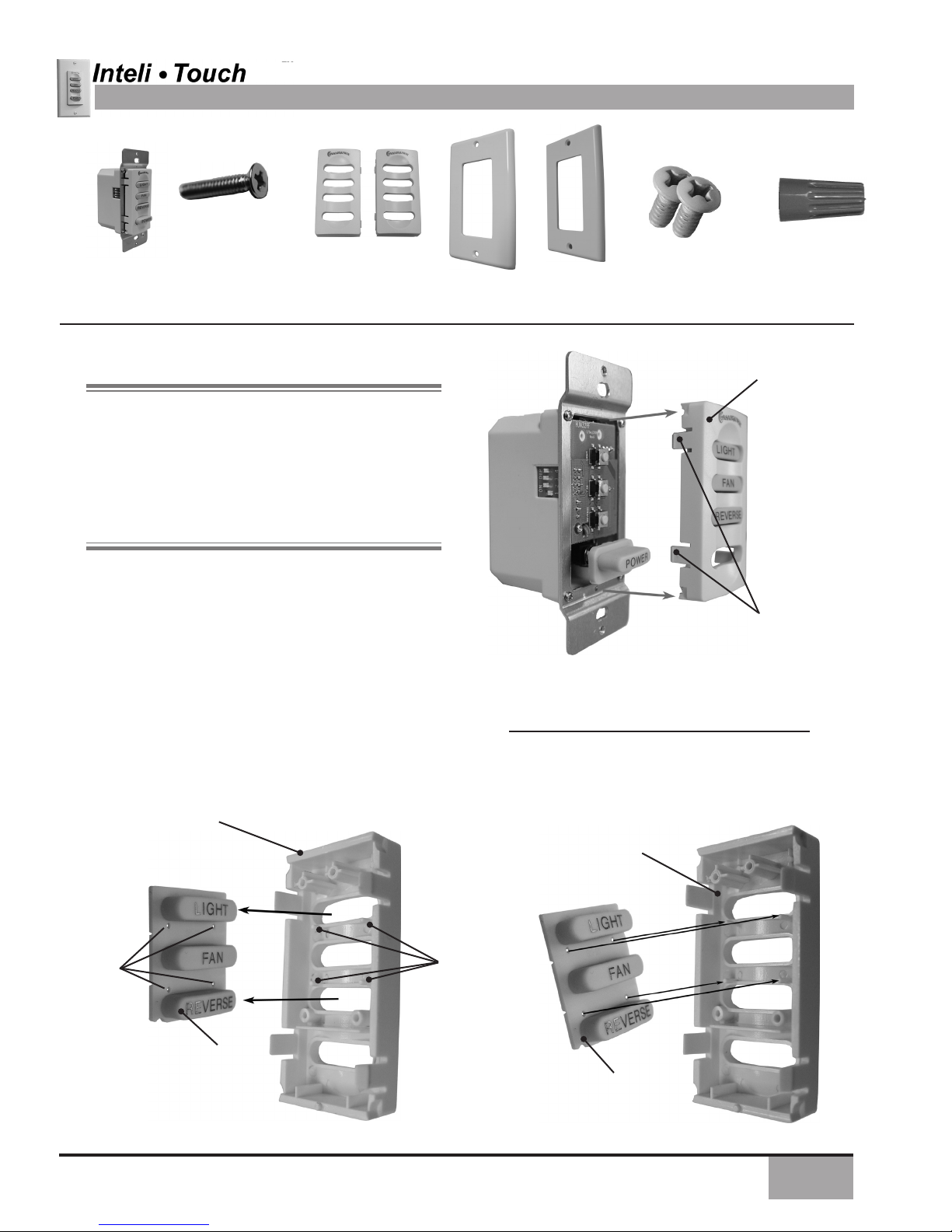

W-84 WALL CONTROL PREPARATION
WALL CONTROL AND HARDWARE (not to scale)
Switch Mounting
Screws (2)
Wall Plate
Screws
(2) White
(2) Almond
White Wall
Plate (1)
Figure #3
W-84
Wall Control
Prepare for W-84 Wall Control Bezel replacement
as follows:
Before installing the W-84 wall control you will need to
check and see if you will need to change the bezel on
the front of the wall control from WHITE to ALMOND.
If you are going to use white, skip these steps and go
to wall control installation starting on page 24. If you
are going to use the ALMOND bezel and wall plate
you will rst need to change the bezel on the front of
the switch before installing the switch in to the wall.
Step 1a. Locate the four (4) tabs holding the bezel to
the front of the switch, then press in on each tab one
at a time, removing the bezel as shown in Figure #1.
Step 1b. Locate the rubber key pad attached to the
four (4) locating pins as shown in Figure #2 and
remove rubber key pad from the WHITE bezel, also
as shown in Figure #2.
Step 1c. Reinstall the rubber key pad on to the four
(4) locating pins located on the almond bezel as
shown in Figure #3.
Switch Bezels
(1) White
(pre-installed)
(1) Almond
Figure #1
Figure #2
Almond Wall
Plate (1)
BEZEL
BEZEL
TABS
WHITE
BEZEL ALMOND
BEZEL
RUBBER KEY
PAD RUBBER KEY
PAD
LOCATING
PINS (4)
LOCATING
PINS
HOLES(4)
(4) Wire Cap

12
® 3
Figure #5
ALMOND
BEZEL
RUBBER KEY
PAD
Figure #6
ALMOND
BEZEL
Figure #4
BEZEL
TABS
ALMOND
BEZEL
Prepare for W-84 Wall Control installation -
Continued
Step 1d. Before attaching the bezel back on to the
front of the switch, make sure that the rubber key
pad is attached to the locating pins on the bezel as
shown in Figure #4.
Step 1e. To attach the bezel back onto the front of the
switch you will need to align the four (4) tabs on the
bezel with the front of the wall control.Gently press
on both top and button of the bezel at the same time,
snap the bezel back on to the front of the switch as
shown in both gures #5 and #6.
Step 1f. Check your work by pressing on the light,
fan, reverse and power buttons, making sure that the
buttons do not stick and that each switch functions
properly.
LOCATING
PINS
(4)
BEZEL
TABS
BEZEL
ALIGNMENT
PIN AND HOLE

13
® 3

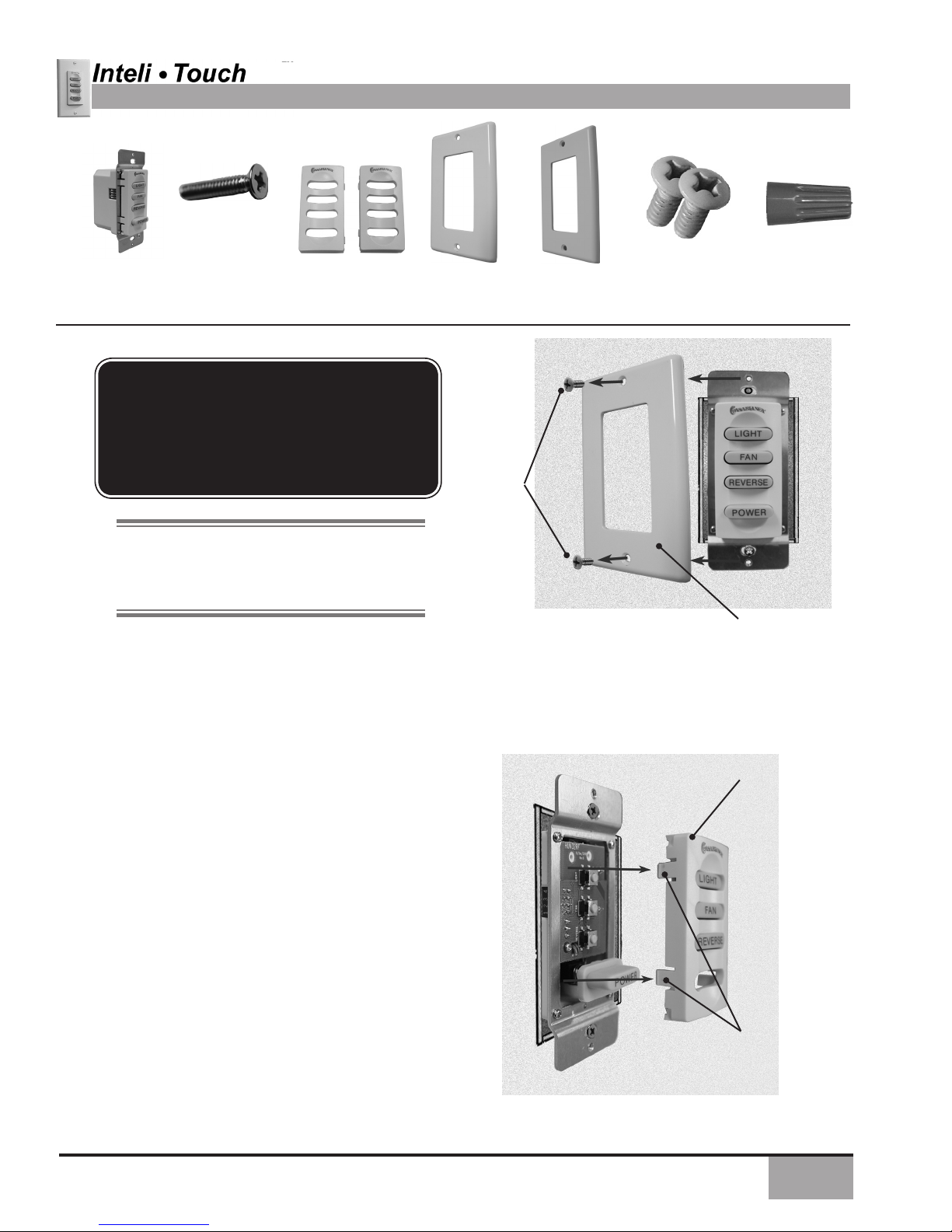

INSTALLING THE W-84 WALL CONTROL
W-84 CONTROL INSTALLATION
1. Use only the Casablanca W-84 wall control.
2. Do not use any additional control with your Inteli-
Touch 3 fan (for example, dimmer, or fan speed
control).
3. Do not use more than one fan per wall control.
4. No other light xtures or electrical appliances
may be connected on the circuit controlled by
the W-84 wall control.
W-84 is used to describe either white (-11) or almond nish.
If you have multiple Inteli-Touch® 3 fans, refer to the section
"Changing Frequency Setting" on page 6.
1. Remove the screws and switch plate from the existing
switch box.
2. Remove the screws holding the switch in the switch box.
3. Pull the existing switch from the switch box to expose
the wire connections.
4. Remove the two wires from the switch.
5. Connect the BLACK wire from the POWER SOURCE
that you just removed from the switch to the BLACK/
WHITE STRIP wire on the W-84 wall control. Secure
this connection with a wire nut.
6. Connect the second BLACK wire that you just removed
from the switch to the second BLACK wire on the
located on the back of the W-84 wall control. Secure
this connection with a wire nut.
7. Connect the green ground wire coming from the back
of the W-84 control to the ground wire in the switch box.
Secure the splice with a wire nut.
The wall control installs in the same manner as an ordinary light switch, using an existing wall box and wiring. This
controller is designed to signal the fan microcomputer as well as perform normal switching operations. For this
reason the following precautions must be observed:
CAUTION!
Ensure power is turned OFF at the breaker or fuse panel before starting installation.
BLACK AND WHITE
STRIPED WIRE
W-84
Wall Control
2 BLACK
WIRES
RED WIRE
NOT USED
NOTE: The RED wire is not used in this
application. DO NOT remove the crimped cap
from the wire.
(FIGURE #2)
(FIGURE #1)
NOTE: W-84 Wall Control should only be installed on Casablanca's Inteli-Touch® 3 fans with UPLIGHTS ONLY
or both an UPLIGHT and a DOWNLIGHT on the fan.
8. Check your work by using the wiring
diagrams as shown in Figures # 1 and #2.
9. Install the W-84 in the wall box with the
two long screws provided.
10. Install the wall plate with the two color-
matched screws.
SINGLE W-84 INSTALLATION

14
® 3
To control the fan and lights from two
locations (a three-way circuit), use two
W-84 wall controls.
1. Remove the screws and switch plate from the existing
switch box and the screws holding the switch in the switch
box.
2. Pull the existing switch from the switch box to expose the
wire connections.
3. Determine which wire is connected to the common
terminal from the power source (120V AC) of the three-
way switch. (The terminal will be marked on switch).
CAUTION!
Ensure power is turned OFF at the breaker or fuse panel before starting installation.
DUAL W-84 INSTALLATION

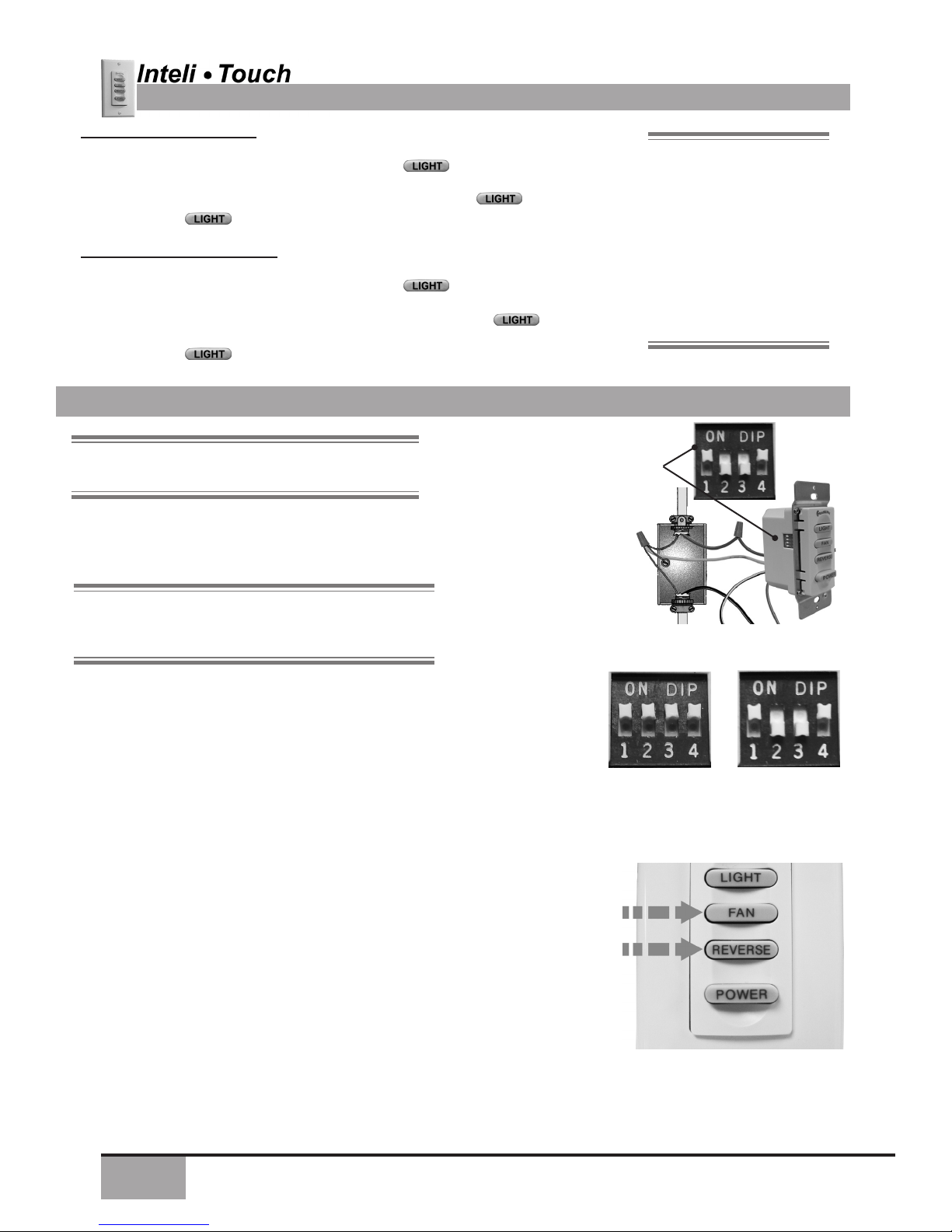

To control the fan and lights from two locations (a three-way circuit), use two
W-84 wall controls as shown in the wiring diagram in Figure #1. Before
installing the two switches into the wall, place both switches side by
side, then locate the 4 dip switches on the side of the two switches as
shown in Figure #2. Then make sure that the dip switches are set to the
same address on both switches as shown in Figure #2. When setting
these dip switches you are setting the channel number that is required
to control both your fan and lights from both sides of the room. If you are
installing other Inteli-Touch® 3 fans within your home you may need to
reset the dip switches on these other fans to a different channel before
installing your W-84 wall control into the wall. Please review the section
on channel changing within this part of the operation manual as shown
on page #27.
(FIGURE #1)
DIP SWITCHES
(FIGURE #2)
W-84
Wall Control
BLACK AND WHITE
STRIPED WIRE
2 RED WIRES
2 BLACK
WIRES
(FIGURE #3)
4. Remove the wire from the common terminal of the three-way switch.
Connect this wire to the remaining black/white striped wire on the
W-84 control. Secure this splice with a wire nut.
5. Remove the two remaining wires from the three-way switch.
Connect the black wire of these wires to a black wire on the
W-84 control. Secure the splice with a wire nut. The remaining
red wire is to be connected to the other red wire on the
W-84. Secure the splice with a wire nut.
6. Connect the green ground wire coming from the back of the W-84
control to the ground wire in the switch box. Secure the splice with
a wire nut.
7. Check your work by using the wiring diagrams as shown in Figures
# 1 and #3 on this page.
8. Install the W-84 in the wall box with the two long screws provided.
9.Install the wall plate with the two short color-matched screws
provided.
10.Installation of the second W-84 control is identical. Repeat steps
1 through 7.

15
® 3
OPERATION POWER
The button is normally left in the on position. Always turn the power off
during cleaning or servicing the fan and during thunderstorms. It is also used to
exit or enter additional programs.
The button must be left on to retain a previously set fan speed or light level.
OPERATION SPEED CONTROL
FAN CONTROL
ON - OFF:
A momentary
press of the FAN
button
CHANGE
SPEED:
Press and hold
FAN button
longer than one
second
There are six individual speed settings for the fan; each speed is indicated
by an audible tone of increasing pitch.
To select the desired fan speed:
1. With fan off, press and hold the button labeled . The fan blades
will start rotating at the slowest speed, and will increase in steps.
2. Release the button when the desired speed is reached.
The fan speed is now in memory and will automatically come on at the
same speed each time the button is used. To maintain this level
of speed, turn the fan on by pressing less than one second. To
lower speed, turn fan off, then on by pressing and holding the
button until the desired speed is reached. When the fan is on, you may
increase the speed by pressing and holding the button until the
desired speed is reached, then release it.
OPERATION REVERSING AIRFLOW
The direction of airow can be changed from down-
ward to upward or from upward to downward.
To reverse the airow:
1. Make sure the is on and blades are Turn-
ing.
2. Press the button.
Note: A four-toned signal
indicates the command was
accepted by the fan. A few
seconds later the fan will slow
to a stop and then reverse
direction.
LIGHT CONTROL
ON - OFF:
A momentary press of the
LIGHT button
CHANGE BRIGHTNESS:
PRESS AND HOLD
LIGHT BUTTON
LONGER THAN ONE
SECOND
To turn the lights off and on, press and release the button for less than
one second.
1. First press/release of the button- Both lights shall turn ON.
2. Second press/release of the button- Both lights shall turn OFF.
3. Third press/release of the button – Downlight turns ON only.
4. Fourth press/release of the button – Downlight turns OFF.
5. Fifth press/release of the button – Uplights turns ON only.
6. Sixth press/release of the button - Uplights turns OFF only.
To vary the light brightness at each touch level:
Make sure where you are in the sequence to the right.
To dim both lights at the same time:
1. Make sure you have the uplight on.
2. Turn the light off, then press and hold the button. After one second, both
lights will come on at their lowest setting and gradually become brighter or dim-
mest level if you continue holding the button.
3. Release the button when the desired brightness is reached.
OPERATION LIGHTS

16
® 3
CHANGING FREQUENCY SETTING
NOTE: All fans leave the factory set to
“1111”
You will only have to change the dip switch settings in the remote if you
are using more than one fan in the same area and want to control them
separately.
DIP SWITCHES
SET TO ‘1111’
(Factory Setting)
DIP SWITCHES
SET TO ‘1001’
NOTE: DO NOT set dip switch setting in the remote
to ‘0000’, this may cause frequency interference from
other Casablanca Products.
Step 1. Turn power OFF at the circuit breaker or fuse box and at the toggle
switch, for the fan you want to change.
Step 2. Remove the screws and switch plate from the existing switch box.
Step 3. Remove the screws holding the switch in the switch box.
Step 4. Pull the existing W-84 switch from the switch box to expose the dip
switches located on the side of the control as shown in Figure #1.
Step 5. Change the dip switch settings, assuring that they are different from
the previously installed Inteli-Touch® 3 fan.
Step 6. Mount the W-84 Wall Control unit back into the wall electrical box.
Step 7. At the circuit breaker or fuse box and at the toggle switch, turn the
power off for the fan whose frequency you are changing.
Step 8. Within 20 seconds of restoring power to the ceiling fan and the W-84
Wall Control press and hold both the “FAN” and “REVERSE” buttons as
shown in Figure #2. For 3 seconds, you will hear one tone from the Piezo
Buzzer indicating the command has been accepted.
DIP
SWITCHES
(Figure 1)
(Figure 2)
NOTE: Light Operation -
the light varies from “bright”
to “dim” over approximately
8 seconds. This sequence
will reverse the light when
it reaches the brightest
or dimmest level if you
continue to hold the LIGHT
button. Release the button
when the desired level is
reached.
OPERATION LIGHTS
To dim just the up light:
1. Make sure you have just the downlight on.
2. Turn the light off, then press and hold the button. After one
second, the up light will come on at their lowest setting and gradually be-
come brighter or dimmest level if you continue holding the button.
3. Release the button when the desired brightness is reached.
To dim just the down light:
1. Make sure you have both lights on.
2. Turn the light off, then press and hold the button. After one
second, down light will come on at their lowest setting and gradually
become brighter or dimmest level if you continue holding the but-
ton.
3. Release the button when the desired brightness is reached.

17
® 3

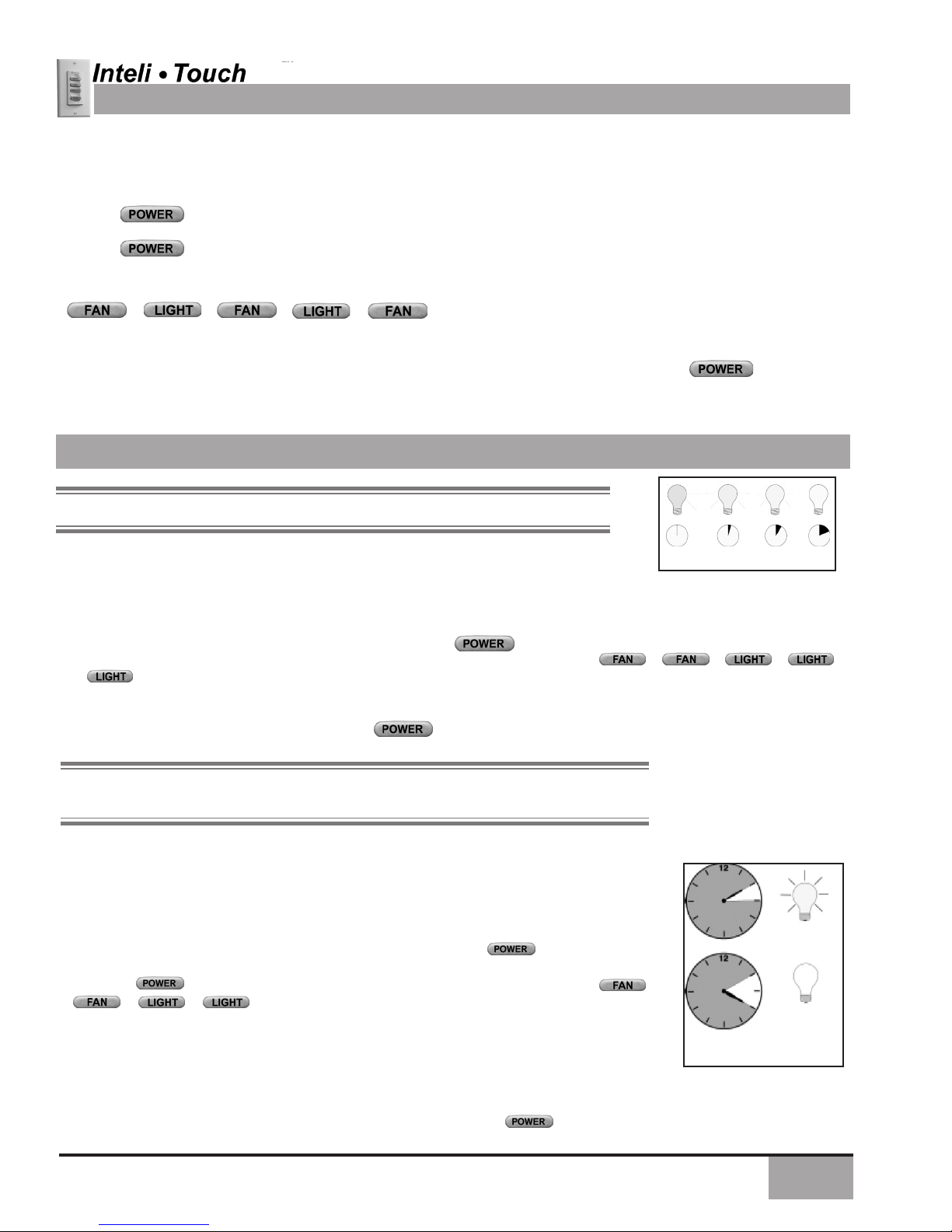

AUTOMATIC DEMONSTRATION PROGRAM
A multi-tone signal will verify the start of the test pro-
gram which proceeds as follows:
• Lights slowly increase to full intensity.
• Fan accelerates to speed three with audio tones.
• Light dims to half intensity.
• Fan accelerates to full speed with audio tones.
• Fan reverses at full speed with audio tones.
• Fan operates at full speed.
• Fan turns off with audio tones (blades coast for a
short time).
• Lights turn off.
The complete cycle lasts slightly over one minute. It
will continue to repeat until the is turned off
for more than ve seconds, cancelling the program.
Programmed into every Inteli-Touch® Series fan is an
Automatic Demonstration Program. It can be used to
fully demonstrate and test the operation of the fan.
To enter the demonstration program:
1. Turn off for at least 5 seconds. This will
clear the fan memory ready for programming.
2. Turn on.
3. Immediately operate the buttons in the following
sequence:
+++ +
OPERATION SAFE-EXIT® AND LIGHT-MINDER® PROGRAM
NOTE: Both Light-Minder and Safe-Exit programs will always run at the same time.
The Light-Minder Program automatically turns OFF the fan mounted lights after two
hours.
To enter the Light-Minder Program:
1) To operate the lights for Light Minder Program – Press the button off for at
least 5 seconds.
2) Turn the on. Immediately press the buttons in the following sequence:
+ + + . A series of tones will be heard through the piezo-buzzer
indicating the command has been accepted. Once the lights turn on, they will auto-
matically turn off after 2 hours.
3) Light operation still remains normal, if you leave the room and turn OFF the lights
will blink to indicate this Safe-Exit command has been accepted. The lights will stay
on for 30 seconds and then begin to dim. After thirty seconds have elapsed, the lights
will turn completely off.
4) To cancel the Light-Minder and Safe-Exit Programs, press the button.
The Safe-Exit Program gives you about thirty seconds of light when you turn the lights off, enabling you to exit your
home before the lights go out. To enter the Safe-Exit Program:
1) To operate the lights for Safe-Exit Program – Press the button off for at least ve seconds.
2) Turn the Power on. Immediately press the buttons in the following sequence: + + + .
The Button should be immediately press after an audio tone is heard from the fan controller. The lights shall
blink to indicate this command has been accepted. The lights shall stay on for 30 seconds and then begin to dim.
After thirty seconds have elapsed, the lights shall be completely off.
3) To cancel the Safe-Exit Program, press the button off for ve seconds.
NOTE: If the lights are left on in the room, the lights will automatically turn OFF after 2
hours. ( this is Light-Minder)
Light-Minder
Safe-Exit

18
® 3
OPERATION HOME-SAFE® PROGRAM
The Home-Safe Program makes an unoccupied home appear occupied by turning
the lights on and off at random times.
To enter the Home-Safe Program:
1) To operate the lights and fan for Home Safe Program – Press the But-
ton off for a least 5 seconds.
2) Turn the on. Immediately press the buttons in the following sequence:
+ + + . A series of tones will be heard through the
piezo-buzzer and ashing lights indicating the command has been accepted will
follow. This program overrides all manual control of lights and fan. Once the lights
turn on, they will automatically turn off after 2 hours.
3) The lights will automatically cycled on and off in a controlled sequence as fol-
lows: ON 1 hour, OFF ½ hour, ON 2 hours, OFF 1 hour, ON ½ hour then OFF 2
hours. This seven hour pattern will repeat continuously so that a different pattern
of lighting is seen each day of the week.
4) To cancel the Home-Safe Program, press the Button OFF for ve
seconds.
OPERATION FAN-MINDER™ PROGRAM
The Fan-Minder feature will add to your comfort when used in the bedroom. The program
reduces the speed of the fan each two-hour interval to compensate for cooling night air.
To enter the Fan-Minder Program:
1. Turn the OFF for at least 5 seconds.
2. Turn the ON.
3. Immediately operate the buttons in the following sequence:
+ + +
4. The fan will respond with three descending tones. A timer is now initiated and the fan will
reduce one speed for each two-hour interval. The fan will not, however, descend below
the rst or the lowest speed.
5. You may increase the fan speed by pressing and holding the button until the
desired speed is reached, then release it. The fan will again reduce one speed for each
2 hour interval.
5. To cancel the Fan-Minder Program, turn the OFF for three seconds.

19
® 3
IN THE WALL BEZEL REPLACEMENT
WALL CONTROL AND HARDWARE (not to scale)
Switch Mounting
Screws (2)
Wall Plate
Screws
(2) White
(2) Almond
White Wall
Plate(1)
W-84
Wall Control
W-84 Wall Control Bezel Replacement installation
as follows - (In the Wall Replacement):
Step 1a. Locate the two (2) screws holding the switch
plate to the wall control and remove the cover plate
as shown in Figure #1.
Step 1a. Locate the four (4) tabs holding the bezel to
the front of the switch, then press in on each tab one
at a time, removing the bezel as shown in Figure #2.
Step 1b. Locate the rubber key pad attached to the
four (4) locating pins as shown in Figure #2 and
remove rubber key pad from the WHITE bezel, also
as shown in Figure #2.
Switch Bezels
(1) White
(1) Almond
Figure #1
Almond Wall
Plate(1)
SCREWS
(2)
WARNING!
To avoid possible electrical shock, make cer-
tain that electricity is turned off at the circuit
breaker or fuse box before attempting any in-
stallation or repair procedure
CAUTION! NOT turning the power OFF at the
circuit breaker or fuse box may cause damage
to the electronics within the wall control and/
or the PC board on the fan.
Figure #2
BEZEL
BEZEL
TABS
White Wall
(4) Wire Cap

20
Figure #4
Figure #3
WHITE
BEZEL
ALMOND
BEZEL
RUBBER KEY
PAD
RUBBER KEY
PAD
LOCATING
PINS (4)
LOCATING
PINS
HOLES(4)
W-84 Wall Control Bezel replacement: -
CONTINUED
Step 1c. Locate the rubber key pad attached to the
four (4) locating pins and remove rubber key pad
from the WHITE bezel, also as shown in Figure #3.
Step 1d. Reinstall the rubber key pad on to the
four (4) locating pins located on the almond bezel
as shown in Figure #4.
Step 1e. Before attaching the bezel back onto the
front of the switch, make sure that the rubber key
pad is attached to the locating pins on the bezel as
shown in Figure #5.
RUBBER KEY
PAD
ALMOND
BEZEL
Figure #5
LOCATING
PINS
(4)
