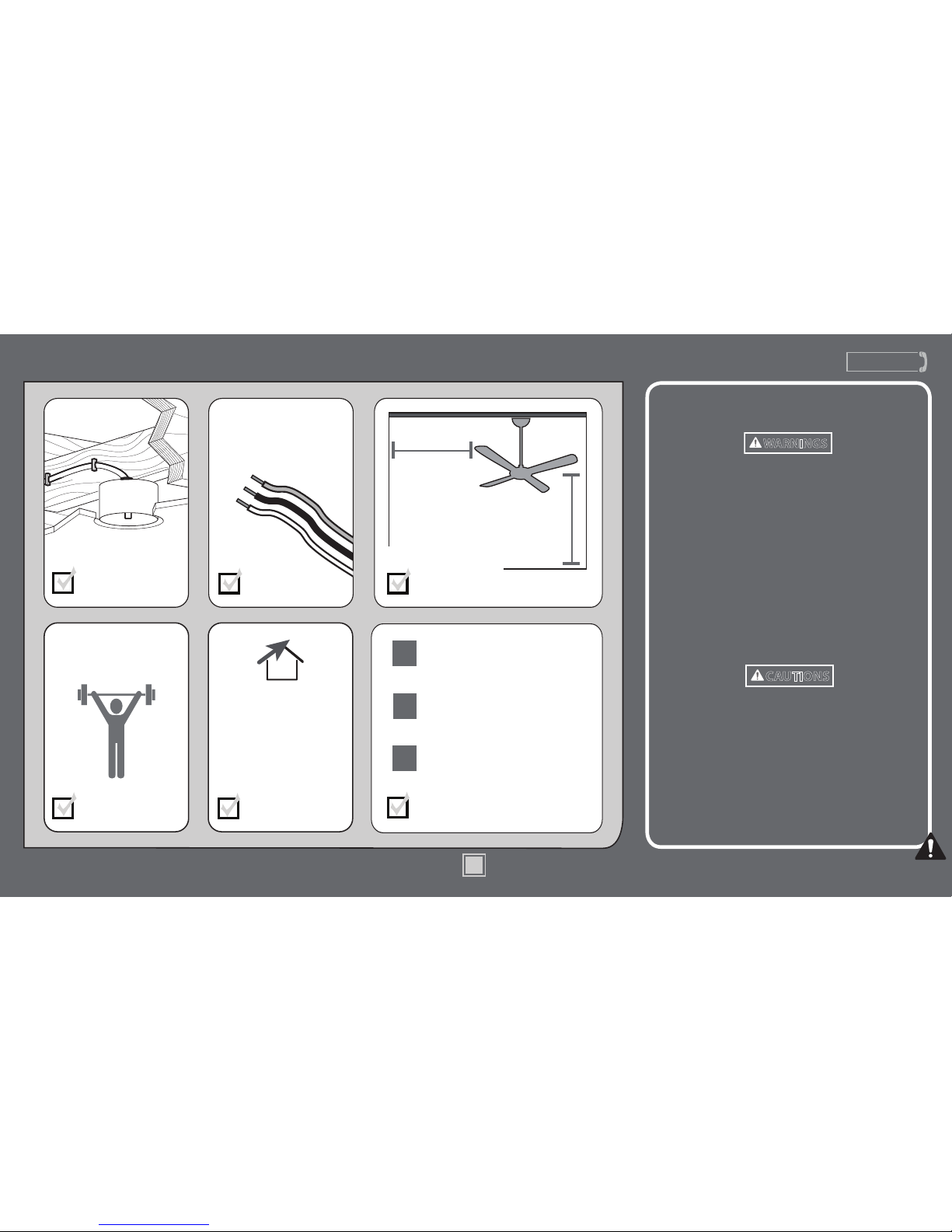

What to Expect with Your Installation
Know your wiring
If you are unfamiliar
with wiring, use a
qualied electrician.
You may need a
friend to help you.
Check box to see
fan weight
Assess location
30 inches
from blade tip to
nearest wall or
obstruction 7 feet
from bottom
edge of blade
to the oor
Select a downrod length
w.1 - To reduce the risk of re, electrical shock, or personal
injury, mount fan directly from building structure and/or an
outlet box marked acceptable for fan support of 70 lbs (31.8 kg)
and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or
servicing your fan, disconnect the power by turning off the
circuit breakers to the outlet box and associated wall switch
location. If you cannot lock the circuit breakers in the off
position, securely fasten a prominent warning device, such as a
tag, to the service panel.
w.3 - To reduce the risk of re, electrical shock, or motor damage,
use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade
brackets when installing the blade brackets, balancing the blades,
or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
c.1 - All wiring must be in accordance with national and local
electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring,
use a qualied electrician.
c.2 - Use only Casablanca replacement parts.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications.
Assess ceiling angle
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
CAUTIONS
Must be able to
secure the fan to
building structure or
fan-rated outlet box
1
2
3
Standard Downrod
for ceilings 8-10 feet high
Shorter Downrod
for fans installed close to ceiling
Longer Downrod
for ceilings 10 feet or higher
Ceiling angles greater
than 34° will require an
Angled Mounting Kit.
See page 4 for details.
2
M8515-01 • 11/11/13 • © Casablanca Fan Company
2

www.CasablancaFanCo.com 1.888.227.2178
3
M8515-01 • 11/11/13 • © Casablanca Fan Company

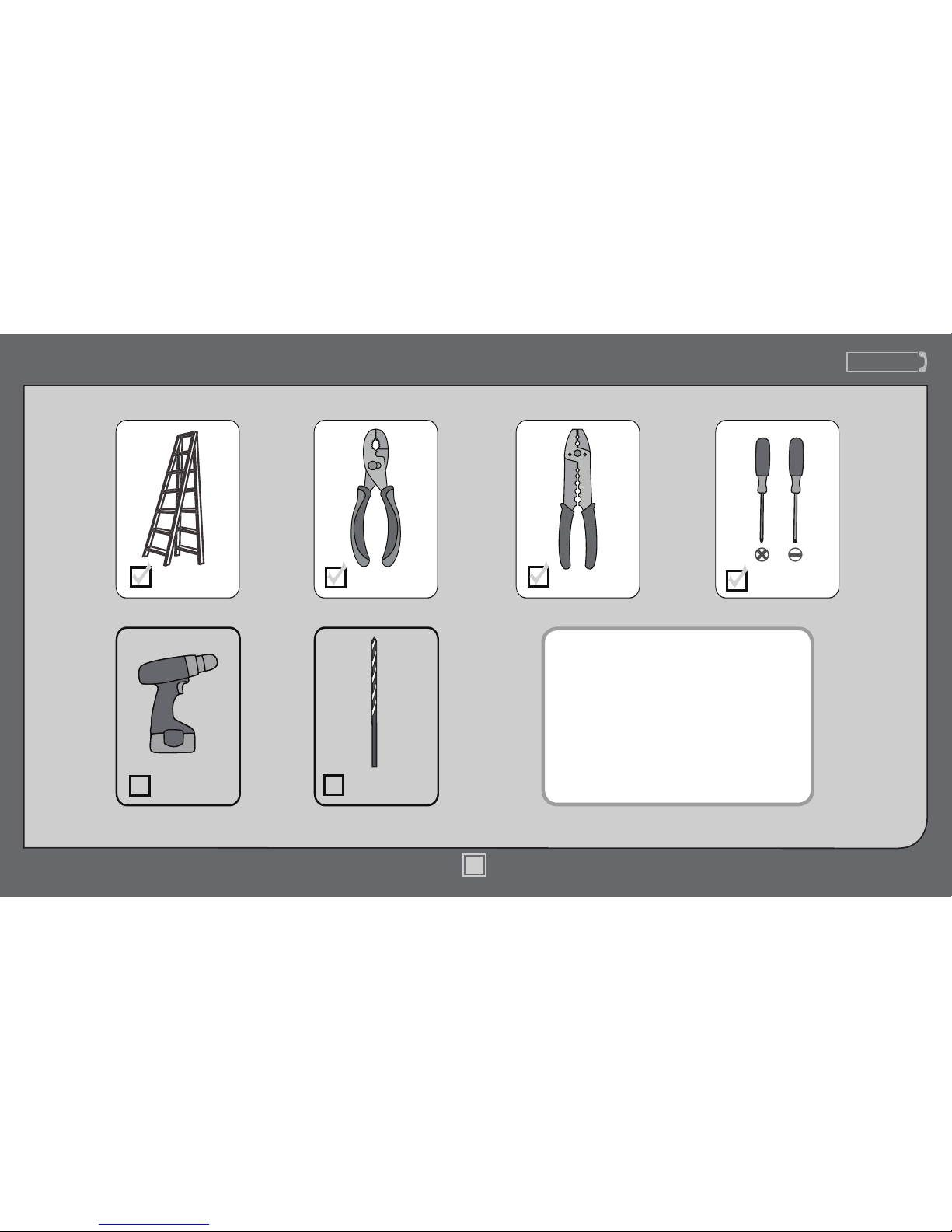

Tools Needed
Ladder Screwdrivers
Pliers Wire Strippers
Power Drill
(optional)
9/64” Drill Bit
(optional)
If mounting to a support structure, you will also need these tools.
If you are installing multiple remote-controlled
fans on the same circuit breaker,
you may need to perform a few extra steps to
prevent interference or faulty operation of your
remote controls.
Go to www.CasablancaFanco.com/FAQs and click
“How do I properly install multiple remote-
controlled fans?” for more information.

www.CasablancaFanCo.com 1.888.227.2178
4
M8515-01 • 11/11/13 • © Casablanca Fan Company
If you have an angled ceiling:
1. You will need a longer downrod (sold separately).
2. If your ceiling angle is greater than 34°, you will
also need an Angled Mounting Kit (sold separately).
Guide Touches
BOTH Ceiling & Wall
S
I
T
U
A
T
I
O
N
1
Guide Touches Wall
but NOT Ceiling
S
I
T
U
A
T
I
O
N
2
You need BOTH
a Longer
Downrod &
an Angled
Mounting Kit
You need ONLY
a Longer
Downrod
*most common
If you have a at ceiling:
Hang your fan by a standard downrod (included).
Mounting Options
Support
Structure
Ceiling
Outlet Box
(required)
Angled
Mounting
Style
Standard
Mounting
Style
Support
Structure
Ceiling
Outlet Box
(required)
Use Standard Mounting
or Low-Prole Mounting
to hang the fan from a at ceiling.
Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.
4
34OCEILING
WALL
OPTION
1
Standard
Mounting
OPTION 2
Angled
Mounting
2 3
SLIDE
toward ceiling
PLACE
against wall
1
FOLD
on dotted line
34°
Use the three steps below to determine if your ceiling angle is greater than 34°
1.888.227.2178
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.21781.888.227.2178 www.CasablancaFanCo.com
Ceiling Bracket
Refer to warning w.1 on pg. 2
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
For angled ceilings, point
opening toward peak.
If you are unable to do this,
call Technical Support at
1-888-277-2178.
Make sure all four bumpers are
still attached.
Use wood screws
(included) when securing
to support structure with
approved electrical outlet
box. Drill 9/64” pilot holes
in support structure to aid
in securing ceiling bracket
with hardware found in
the hardware bag.
Use machine screws
(provided with outlet
box) when securing to
existing ceiling fan-rated
outlet box. Make sure
it is securely installed
and is acceptable for fan
support of 31.8 kg (70 lbs)
or less.
OFF
Turn Power
5
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Downrod
Slide
Slide
1 2 3 4 5
678910
Sold Separately
Included
Longer
Downrod
for angled
ceilings or
ceilings 10’ or
higher
Shorter
Downrod
for fans installed
close to ceiling
Standard
Downrod
for ceilings 8-10’ high
Option 1Option 2
Option 3
skip to next page
If you need a different downrod length follow these steps:
Steps 1-5 to remove standard downrod pipe
Steps 6-10 to reassemble with new pipe
Included (pre-assembled)
6
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
KEEP!
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
Remove the pre-installed
setscrew so that the downrod
can be inserted.
Hand tighten the downrod (at
least 4-5 full turns) until it stops.
The wires can be cut, but
leave at least 8” extending
from the top of the downrod.
Downrod (continued)
8” 3/8”
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
If the setscrew is not tightened
securely, the fan may fall.
K
E
E
P
!
7
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
8
M8515-01 • 11/11/13 • © Casablanca Fan Company
Downrod (continued)

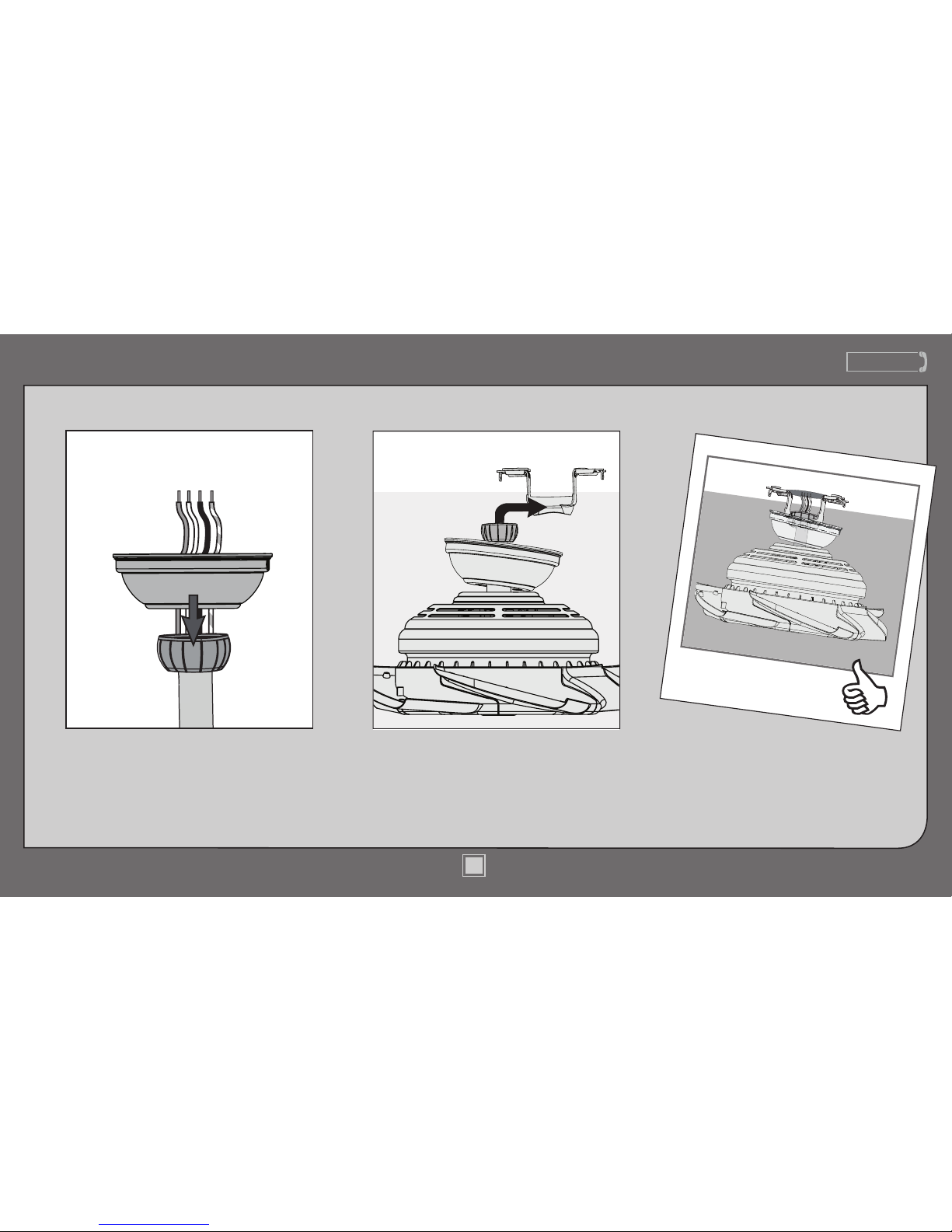

DO NOT PICK THE FAN UP BY THE
CANOPY OR WIRES. Place the downrod
ball into the slot in the ceiling bracket.
Put the wires and downrod through the canopy.
Let the canopy sit loosely on top of the fan.

www.CasablancaFanCo.com 1.888.227.2178
Wiring
F
R
O
M
R
E
C
E
I
V
E
R
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T

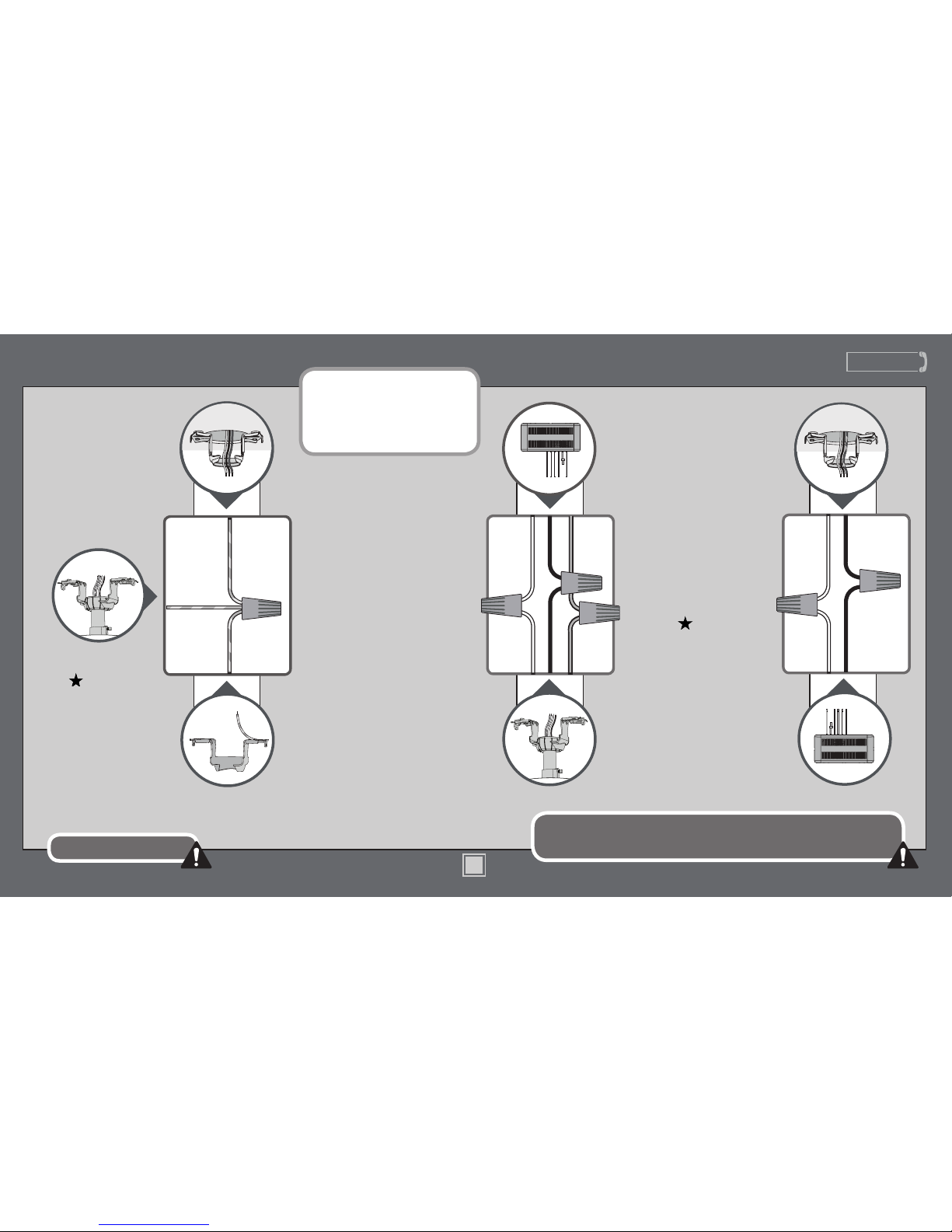

Using an orange wire
connector from
the hardware bag,
connect the 3 grounding
wires (green, green/
yellow stripe, or bare
copper) coming from the
ceiling, downrod, and
hanging bracket.
green/yellow stripe (grounding)
green/yellow stripe
green/yellow stripe
white black
blue
white (common out) black (fan out) blue (light out)
Turn the splices upward and push them carefully back through the hanger bracket
into the outlet box. Spread the wires apart, with the grounded wires on one side of
the outlet box and the ungrounded wires on the other side of the outlet box.
Note: To connect the wires,
hold the bare metal leads
together and place a wire
connector over them, then twist
clockwise until tight.
Using the blue wire
connectors from the remote
control hardware bag,
connect the white wire
from the receiver (marked
“common out”) to the white
wire from fan. Connect the
black wire from the receiver
(marked “fan out”) to the
black wire from the fan.
Connect the blue wire from
the receiver (marked ”light
out”) to the blue wire from
the fan. The red wire from
the receiver will not be used,
it has a pre-installed wire
terminator.
F
R
O
M
F
A
N
F
R
O
M
F
A
N
Refer to CAUTION c.1 on pg. 2
F
R
O
M
R
E
C
E
I
V
E
R
Using an orange wire
connector from
the hardware bag,
connect the black wire
(ungrounded) from the
ceiling to the black wire
from the receiver (marked
“live in”). Connect the
white wire (grounded)
from the ceiling to
the white wire from
the receiver (marked
“neutral in” or
“common in”).
F
R
O
M
C
E
I
L
I
N
G
black (ungrounded) white (grounded) white (neutral in)
black (live in)
9
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
10
M8515-01 • 11/11/13 • © Casablanca Fan Company

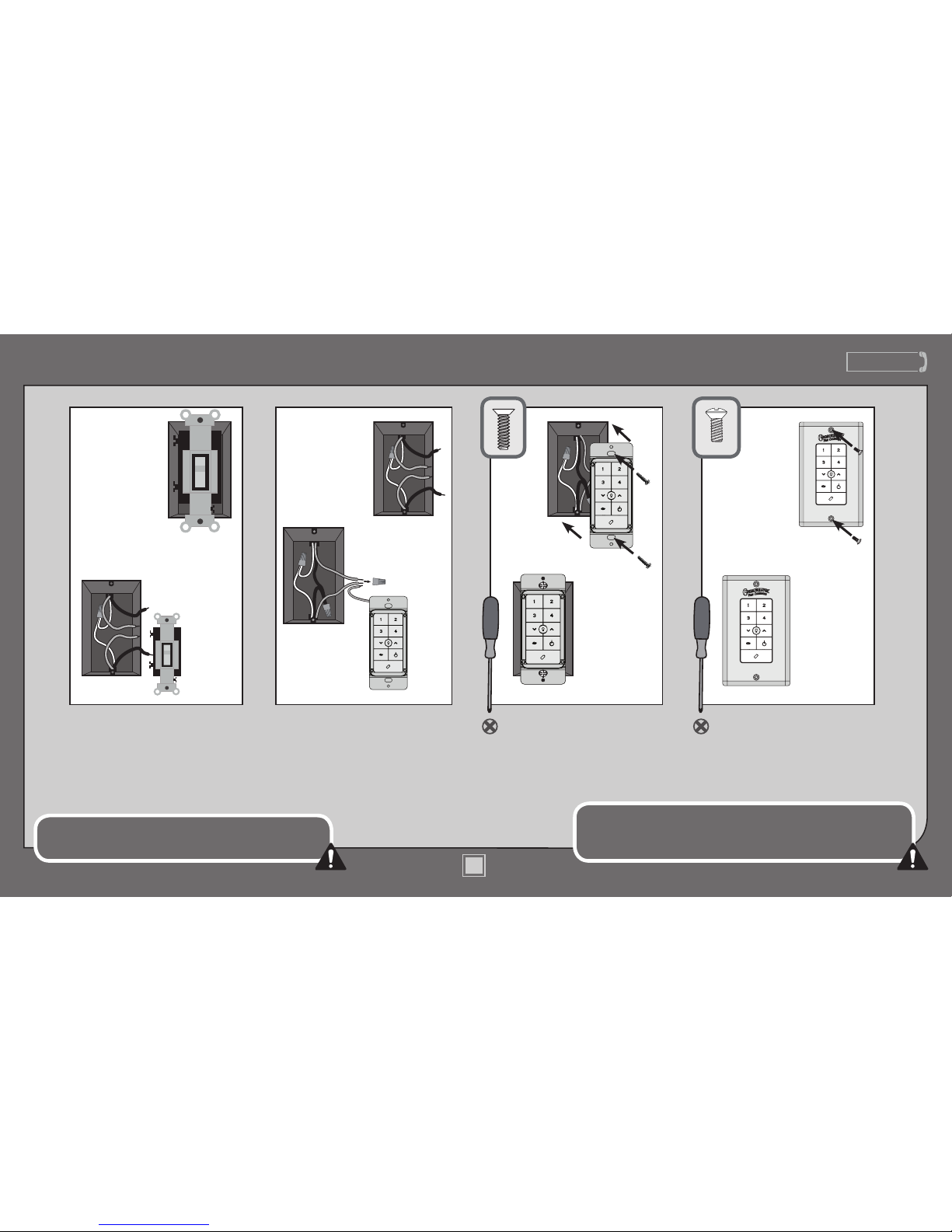

Using orange wire connectors,
connect the two black wires
(ungrounded) from the outlet
box. Also connect the two green
or bare wires (grounding) from
the outlet box with the grounding
wire from the wall control.
After removing the switch plate
cover, remove all wiring from
the switch.
Insert the wall control into
the outlet box and secure the
two screws using a Phillips
head screwdriver.
Install the cover plate using a
Phillips Head screwdriver to
secure the two cover plate screws.
Wiring (continued)
Push all connections to the back of the switch box. Spread the
wires apart, with the grounded wires on one side of the switch box
and the ungrounded wires on the other side of the switch box.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Before BeforeBefore Before
After After After After

www.CasablancaFanCo.com 1.888.227.2178
11
M8515-01 • 11/11/13 • © Casablanca Fan Company
Canopy
Note: Fan style may vary.
Lift the canopy into place so that
the screw holes are aligned.
Position the canopy so that, when
lifted into place, the canopy ts into
the hanging bracket as shown.
Screw
Holes
Insert the two canopy screws
found in the hardware bag.

www.CasablancaFanCo.com 1.888.227.2178
M8515-01 • 11/11/13 • © Casablanca Fan Company

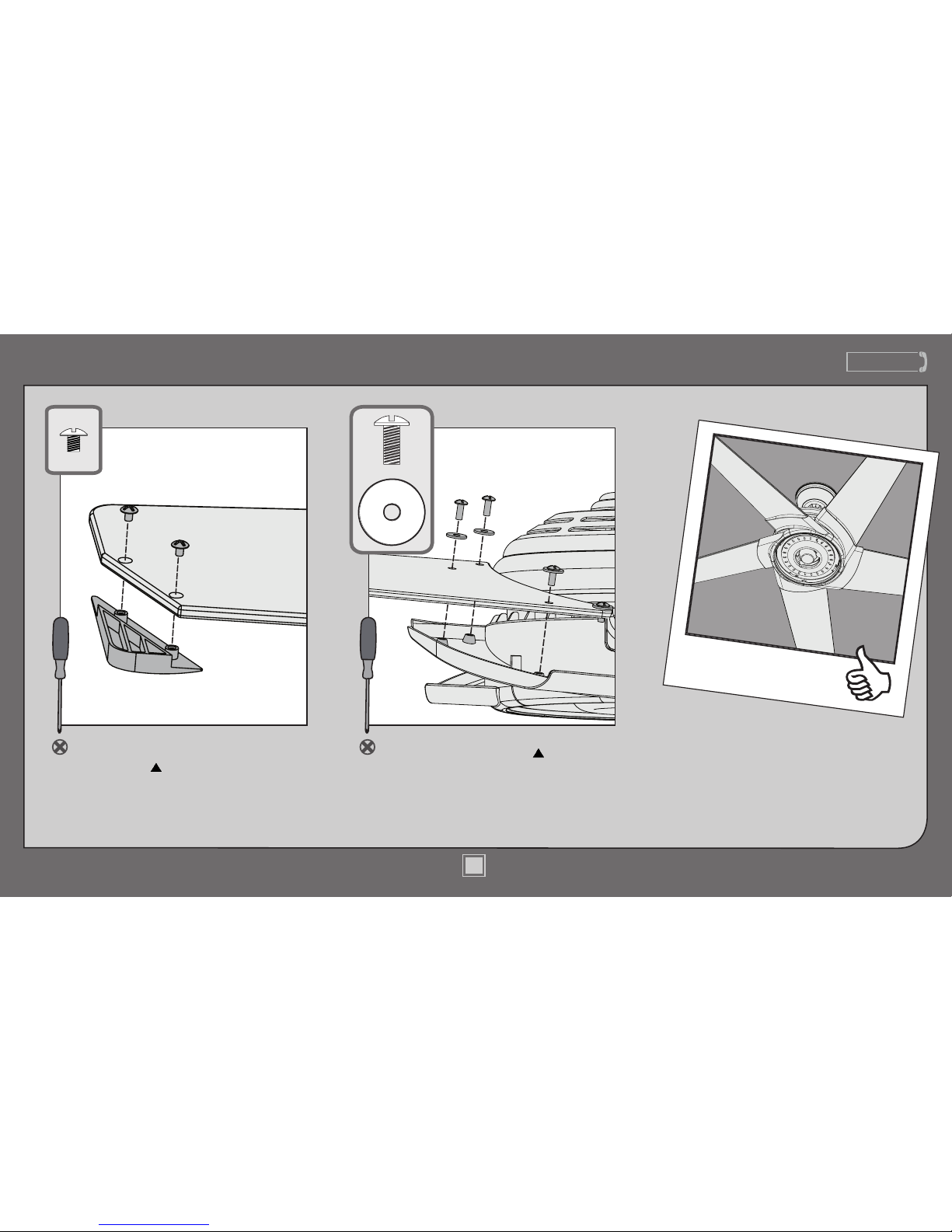

Blades
12
Attach a blade tip to each blade using
two blade tip screws, found in
the hardware bag.
Insert four blade assembly screws and four
blade washers, found in the hardware
bag, into each blade as shown. Install the
screws into the posts in each blade arm.

www.CasablancaFanCo.com 1.888.227.2178
Globe
CONGRATULATIONS!
YOU’RE DONE!
See next page for fan
operation instructions.
Position the notches in the outer rim of
the globe so they line up with the tabs on the
inside of the rim on the light kit.
Globe
Carefully lift the globe up inside the light
kit as far as it will go, then rotate the globe
clockwise until it is held tightly in place by
the four tabs.
Notch
Tab
M8515-01 • 11/11/13 • © Casablanca Fan Company
13

www.CasablancaFanCo.com 1.888.227.2178
M8515-01 • 11/11/13 • © Casablanca Fan Company
14
Operation
Fan
Power
4
Before operating the wall control, press on the
battery door to eject it. Unscrew the battery
holder. Insert the battery, found in the control
hardware bag, with the positive (+) side facing
downward. Reinstall the battery holder and
reinsert the battery door into the wall control.
Battery
Battery
Holder
Battery
Door
ON
Turn Power
Note: The remote must be paired before
the fan will operate.
Within 3 minutes of restoring power to the
fan, press both the Fan Off button and the
4 button for at least four seconds. Your fan
will turn on at the lowest speed to indicate
successful syncing. If it does not, turn off
power to your fan, wait one minute then try
again. If using the transmitter with multiple
fans, repeat this process for each fan.
If you are installing multiple remote-controlled fans on
the same circuit breaker, you may need to perform a few
extra steps to prevent interference or faulty operation of
your remote controls.
Go to www.CasablancaFanCo.com/FAQs and click
“How do I properly install multiple remote-controlled fans?”
for more information.

M8515-01 • 11/11/13 • © Casablanca Fan Company
www.CasablancaFanCo.com 1.888.227.2178
15
Operation (continued)

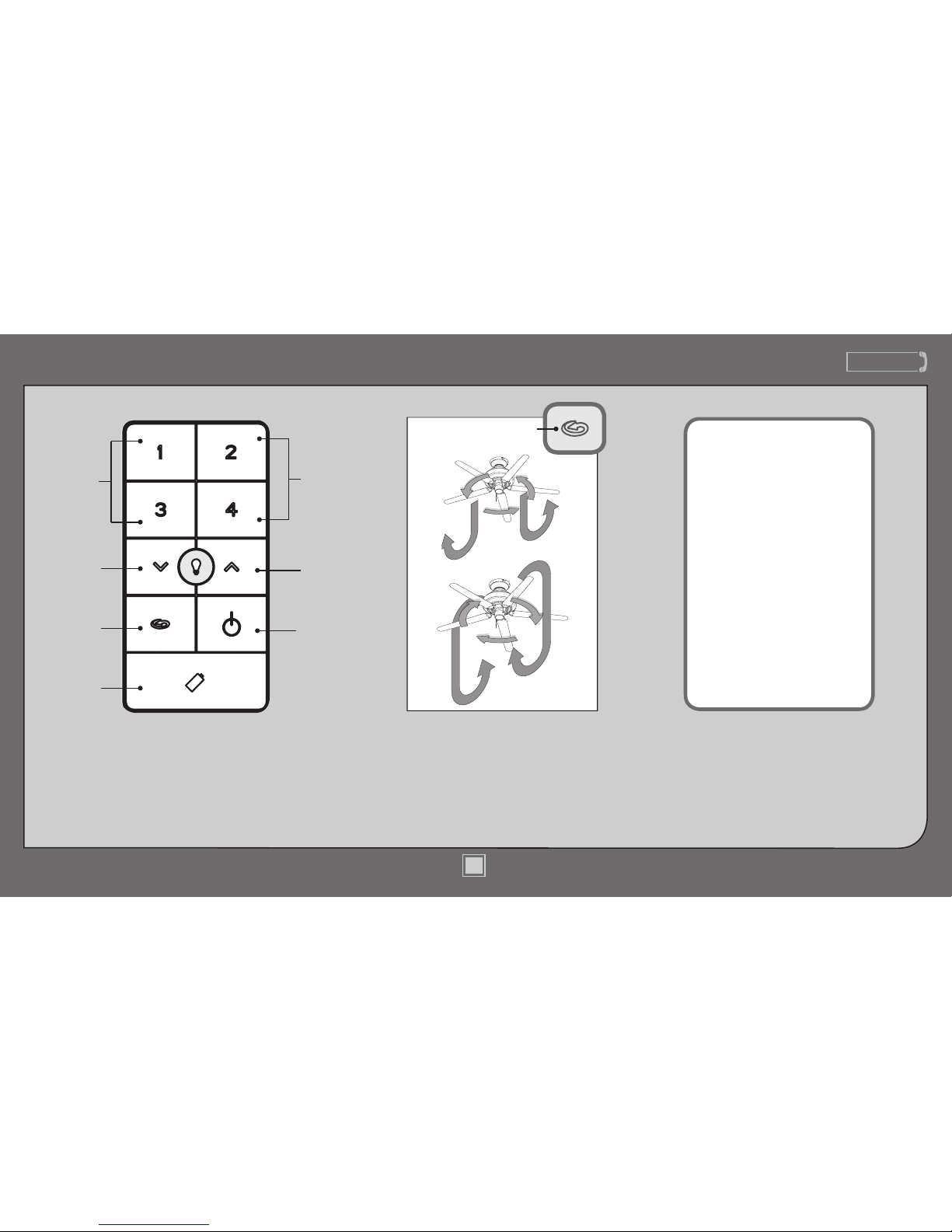

Quickly press the up or down arrow
to turn the lights off and on. Hold
the up or down arrow to raise or
dim the light level. The reverse
button changes the direction that
the blades turn. The power button
turns the fan off and on.
Lights
Down
Fan
Speed
Reverse
Battery
Holder
Fan
Power
Lights
Up
Fan
Speed
(Low)
(High)
The reverse button on the wall
control changes the air ow
pattern. In warm weather, use
(a) downward air ow pattern.
In cold weather, use (b) upward
air ow pattern.
(a)
(b)
Reverse
Button
• Press the fan power button
off for at least three seconds to
initiate the Safe-Exit Mode.
• The lights will ash for visual
conrmation.
• The lights will stay on 50%
brightness for 20 seconds and
then begin to dim. After a total
of 30 seconds, the lights will be
completely off.
Note: For CFL lighting, the lights
will stay on 100% brightness
for 30 seconds. After a total of
30 seconds, the lights will be
completely off.
The Safe-Exit Program gives
you about thirty seconds of
light when you turn the lights
off to exit the room before the
lights go out.To use Safe-Exit:
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
Maintenance & Cleaning
Hunter fans have the power to cut your cooling costs up
to 40%.
Beat the High Cost of Cooling
The air movement created by a Hunter ceiling fan
lets you set your thermostat higher and still stay
comfortable. Every degree you raise the thermostat
saves up to 7% on energy costs. So, you can cut back on
expensive air conditioning ... and save up to 40%* on
cooling. In winter, your Hunter fan recirculates warm air
and saves up to 10%* on heating bills.
* On average at low speed settings. Your savings may
vary based on climate, building type and thermostat
setting.
Save Energy and Money While Protecting
the Environment
Congratulations! You’re saving energy and money while
protecting the environment by purchasing this ENERGY
STAR qualied Hunter ceiling fan! With this purchase, you
are doing your part to protect the environment. In 2010,
ENERGY STAR qualied ceiling fans are projected to cut
air pollution by more than 500 million pounds!
Your new ceiling fan has earned the ENERGY STAR label
because it meets high energy efciency specications
set by the Environmental Protection Agency (EPA).
ENERGY STAR labeled ceiling fans save energy because
they have more efcient fan motors and air delivery due
to more aerodynamic blade congurations. Ceiling fan
models bearing the ENERGY STAR label move air 14 -
20% more efciently than typical ceiling fan models.
For more information on ENERGY STAR visit
www.energystar.gov.

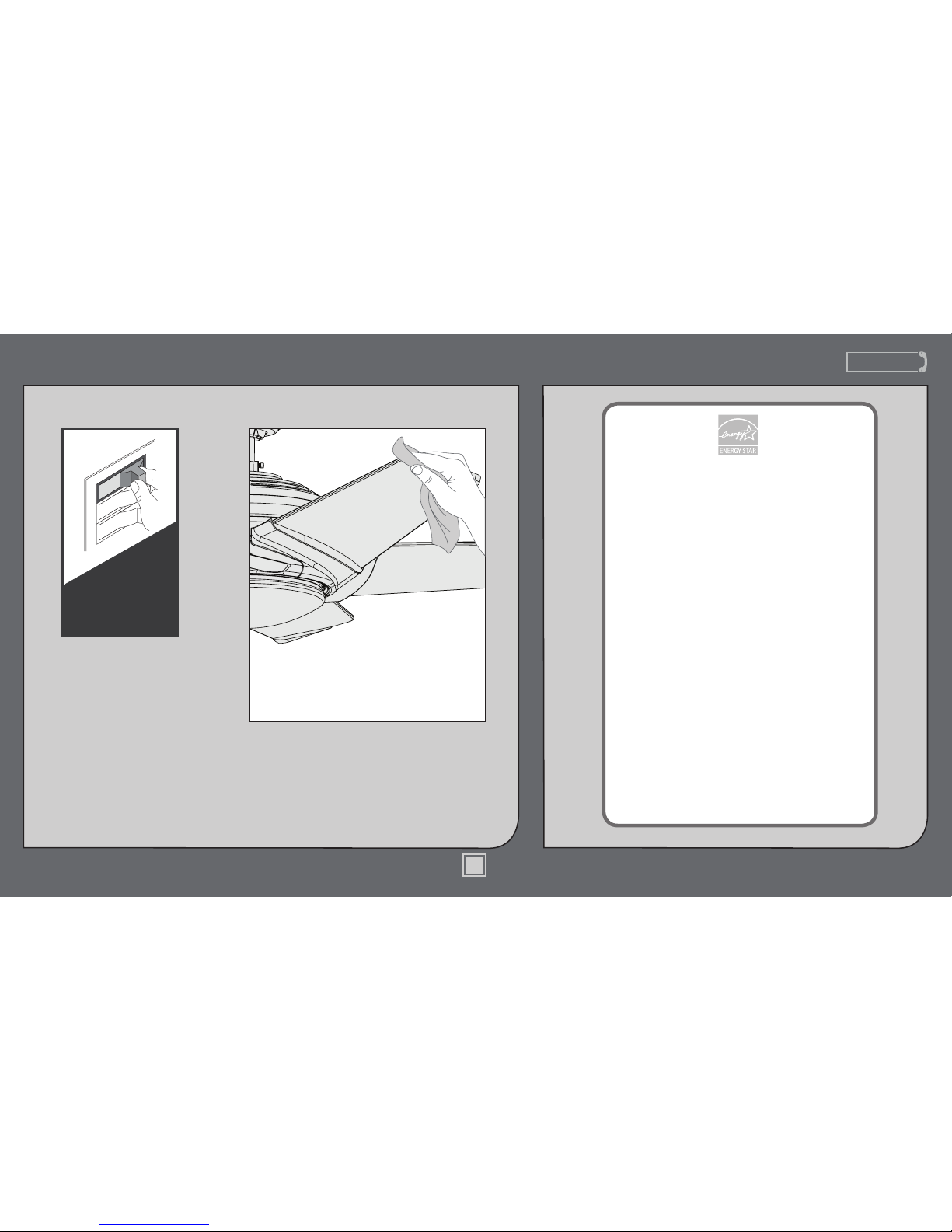

Cleaning the fan - use soft brushes or cloths
to prevent scratching. Cleaning products may
damage the nishes.
Be sure to turn off
power to the fan
before performing
any maintenance or
relamping.
OFF
Turn Power
16
M8515-01 • 11/11/13 • © Casablanca Fan Company

www.CasablancaFanCo.com 1.888.227.2178
17
M8515-01 • 11/11/13 • © Casablanca Fan Company
Troubleshooting
Excessive wobbling
• Tighten all of the blade screws
until they are snug.
• Turn the power off, support
the fan carefully, and check
that the hanger ball is
properly seated.
• Use the provided balancing
kit and instructions to balance
the fan.
Noisy Operation
• Tighten the blade and blade
iron screws until they are snug.
• Check to see if any of the
blades are cracked. If so, replace
all of the blades.
Fan doesn’t work
• Press a fan speed button (1-4).
• Check the circuit breaker to
ensure the power is turned on.
• Check the wall control battery.
• Make sure that you have paired
the wall control.
• Make sure the blades spin freely.
• Turn off power from the circuit
breaker, then loosen the canopy
and check all the connections
according to the wiring diagram
on pages 9-10.
Remote doesn’t work
• Install a fresh battery in the wall
control.
• Make sure you have paired the
remote.
AUTHORIZED SERVICE
CENTERS
For the most updated list of
Casablanca Authorized Service
Centers, visit
www.CasablancaFanCo.com or
call toll free 1-888-227-2178.
If you have multiple remotes or
multiple remote-controlled fans
installed on the same circuit
breaker and you are experiencing
interference or faulty operation of
your remote controls, please go to
www.CasablancaFanCo.com/FAQs
and click “How do I properly install
multiple remote-controlled fans?” for
information on how to correct this
issue.
