Safety and the proper operation of your Casablanca fan both require a thorough knowledge of the product and
proper installation. Therefore, before attempting to install and operate your Casablanca fan, read this Owner’s
Manual completely and carefully. Retain this manual and other included documentation for future reference.
Isotope
CONTENTS
INTRODUCTION ................................................................................4
Before You Start ...........................................................................4
Safe Use .................................................................................4
MOUNTING RECOMMENDATIONS .............................................................5
General Guidelines ........................................................................5
Getting Started ...........................................................................5
FAN INSTALLATION .............................................................................6
Ceiling Mounting PLATE Installation .........................................................6
MOTOR HOUSING INSTALLATION .............................................................7
Blade Installation .........................................................................11
Light bulb and GLASS Installation ...........................................................12
W74 CONTROL INSTALLATION ................................................................13
W74 OPERATION ...............................................................................15
TROUBLESHOOTING TIPS .....................................................................19
CARE RECOMMENDATIONS ...................................................................20
PRODUCT SPECIFICATIONS ...................................................................20
2

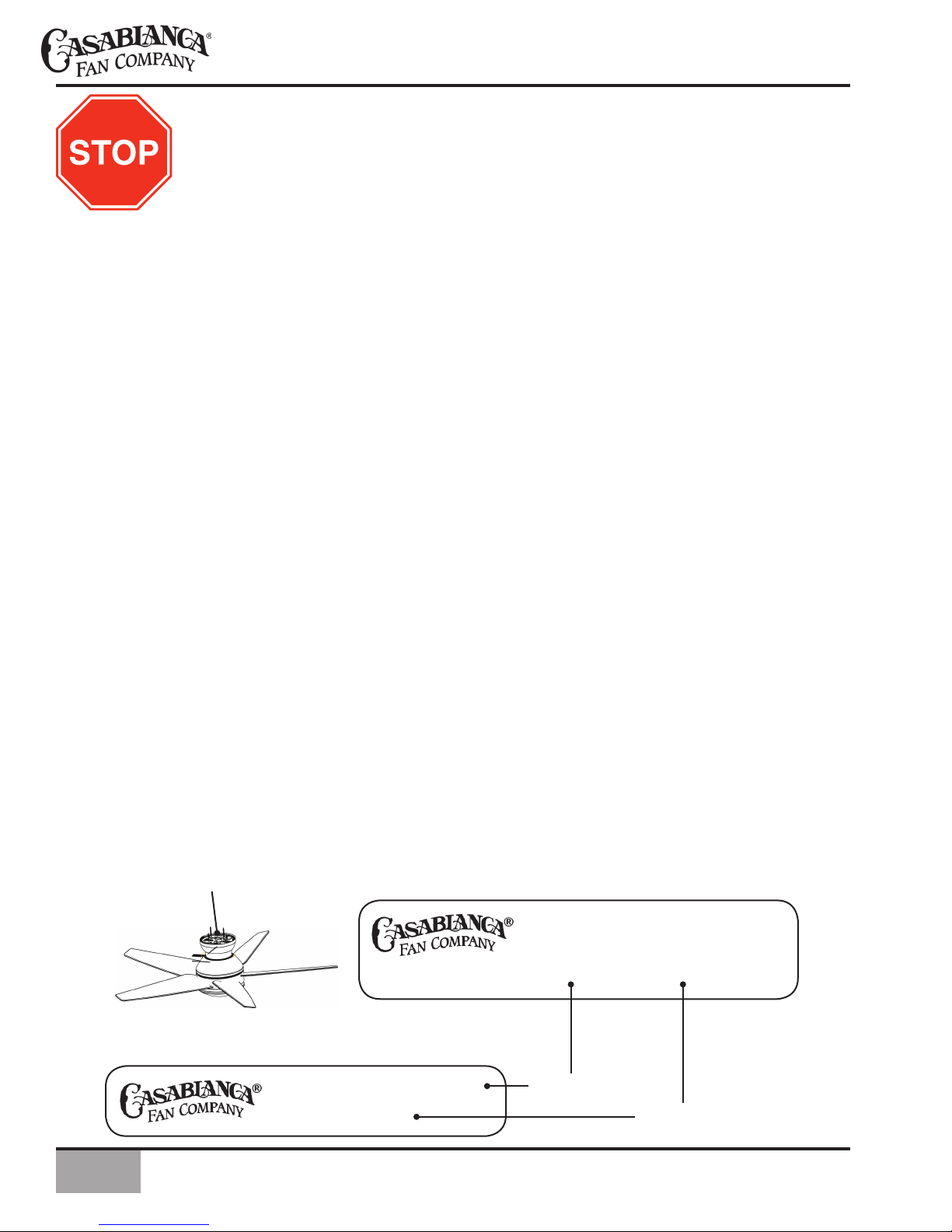

RECORD MODEL AND SERIAL NUMBERS BEFORE INSTALLATION!
Please take a moment to locate the model number and serial number from your fan (see below) and record this information on
the Warranty page inside the front cover of your Owner’s Manual if it does not appear there already. ese numbers are found on
the motor identication plate axed to the fan motor in the location shown below:
PLEASE INSPECT ALL PACKAGING PRIOR TO DISCARDING!
Your Casablanca fan was crafted with pride and care and inspected thoroughly prior to shipment. Before
you begin to assemble and install your Casablanca fan, remove all parts from the carton and check them
against the Parts Guide in this manual.
Make sure all parts are included in the box
using the Parts Guide on the following pages.
If there are missing or broken parts:
Call 1-888-227-2178 Monday through Friday, 7a.m. to 4 p.m.
PST. Your request will be handled immediately. Replacement
parts will be sent to you via Federal Express.
Proper Parts Handling
Do not remove lightbulbs from their packaging until you are
ready to install them.
Before discarding packaging materials, be certain that all parts
have been removed.
Use a clean, dry paintbrush to remove small Styrofoam pieces
that may remain after unpacking.
Do not brush Styrofoam into wiring cavities.
e blades in each pack are matched for equal weight to assure
smooth fan operation. If more than one fan is being installed,
do not mix blades from dierent cartons.
When cleaning, painting, or working near your fan, be cautious
of the fan and blades.
Always turn power to the ceiling fan OFF before replacing
lightbulbs or working on your fan.
Never insert anything into the path of the fan blades while
the fan is in operation.
Never install a fan over a pool or spa.
Never operate a fan that has been damaged in any way.
Install the fan according to the instructions in
this manual.
If the fan does not work:
Refer to the Troubleshooting Tips in this Owner’s Manual.
Call Technical Support at 1-888-227-2178.
Contact your local Authorized Service Center.
Our Web site at www.casablancafanco.com contains additional
information on Casablanca products, troubleshooting, and
Authorized Dealer or Service Centers. Please do not return
this product to the store.
Serial Number
®
DJ01 1151 MODEL #C30G45L
DJ06 2237
C30G45L
Motor Identication Plate
Model Number
3
Parts Guide
Item # Description Picture (not to scale) Quantity
1. Motor Housing 1
2. Ceiling Mounting Plate 1
3. Phillips Screwdriver 1
4. 1" x 8-32 Roundhead screws and Washers 2 EA
5. 11/2" Wood Screws and Washers 2 EA
6. 3" Wood Screws and Washers 2 EA
7. Fan Mounting Screws 4
8. Blades 5
9. Blade Screws and Washers 16 EA
10. Glass Shade 1
11. 50-watt Halogen Bulbs 2
12. Direct•Touch W-74SL Remote Control and Hardware 1
4
SafE USE
INTrOdUCTION
BEfOrE YOU STarT
from bottom
edge of blade
to oor
from wall to
end of blade
Dimensions indicated are the minimum
allowable for proper installation.
•CAUTION: RISK OF ELECTRICAL SHOCK! Installation is to be in accordance with the National Electrical Code,
ANSI/NFPA 70-1999, and local codes. If you are unfamiliar with the wiring codes, you should use a qualied
electrician. To avoid overheating and possible damage to other equipment, do not install control to a receptacle,
uorescent light xture, motor-operated appliance, or transformer-supplied appliance.
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for
ceiling fan installations. If it is not, a new box must be installed.
This ceiling fan requires a grounded electrical supply of 120 VAC, 60 Hz and a minimum 15 amp circuit. The
maximum current requirement for the fan with light xture is 1.67 amps. The fan uses about .83 amp or 100
watts. Maximum light current is about .83 amps or 100 watts of lighting.
Where wire nuts are employed, be sure all bare wires are within the connectors. When installing the canopy,
make sure all wires are within the canopy and that no wires are being pinched.
WARNING: Do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the
fan. Do not insert foreign objects in between the rotating fan blades.
Before assembling and installing your ceiling fan, remove all parts from the shipping cartons and check them
against the parts listed in the Parts Guide. Before discarding packaging materials, be certain that all parts have
been removed.
The blades in each pack are matched for equal weight
to assure smooth fan operation. If more than one fan
is being installed, be careful not to mix blades from
different cartons.
Inspect the contents of your carton for possible
shipping or handling damage. If parts are missing or
damaged, call 1-888-227-2178.
It is always a good idea to have an assistant to help
with the installation.
When cleaning, painting, or working near your fan,
be very careful of the fan and blades. Always turn the
power OFF to the ceiling fan before working on it or
replacing lightbulbs.
Never insert anything into the path of the fan blades
while the fan is in operation.
• Never install a fan over a pool or spa.
Never operate a fan that has been damaged
in any way. For assistance in obtaining
service, call Casablanca Fan Company at
1-888-227-2178 or contact your local authorized
Casablanca dealer.
from wall to
center of fan
5
Isotope ®
Before mounting your Casablanca fan, read the following helpful recommendations. The location of the fan, air
circulation, and fan size are all important factors to consider before installation.
Ceiling fans have practical uses in almost every room in your home. We suggest
you follow these mounting recommendations as you decide where to install
your Casablanca fan.
• This fan is not suitable for installation on a sloped ceiling.
• For safety reasons, the fan blades must be a minimum of 7' above the
oor.
• Do not locate the fan in a doorway or above a swinging door.
• In any installation, the tips of the blades must be at least 18" from the wall in order to provide sufcient clearance
for the blades.
• In bedrooms, fans work best when mounted above the foot
of the bed.
• Over pool tables, be sure to provide plenty of clearance to
avoid damage from pool cues.
• In kitchens be sure to allow for open cupboard doors to
clear the fan blades.
• Do not install a fan close to, or over, a pool or spa. High
humidity combined with corrosive gases will destroy the
nish and warp the blades.
Variable fan speed capability permits the use of a full-size 52"
fan even in smaller rooms. For very large rooms, two fans
may be needed.
Note: The weight of this fan is 28 pounds.
After turning the power OFF at its source (either the
circuit breaker or fuse box), lower the old xture and
disconnect the wiring. Check the ceiling xture outlet
box to be sure it is marked “Approved for Ceiling Fan
Mounting.” If it is not, a new box must be installed.
If you do not have an existing xture located where
you wish to place your Casablanca fan, an approved
ceiling xture outlet box must be installed and wired.
6
faN INSTallaTION
(not to scale)
CEIlINg MOUNTINg PlaTE INSTallaTION

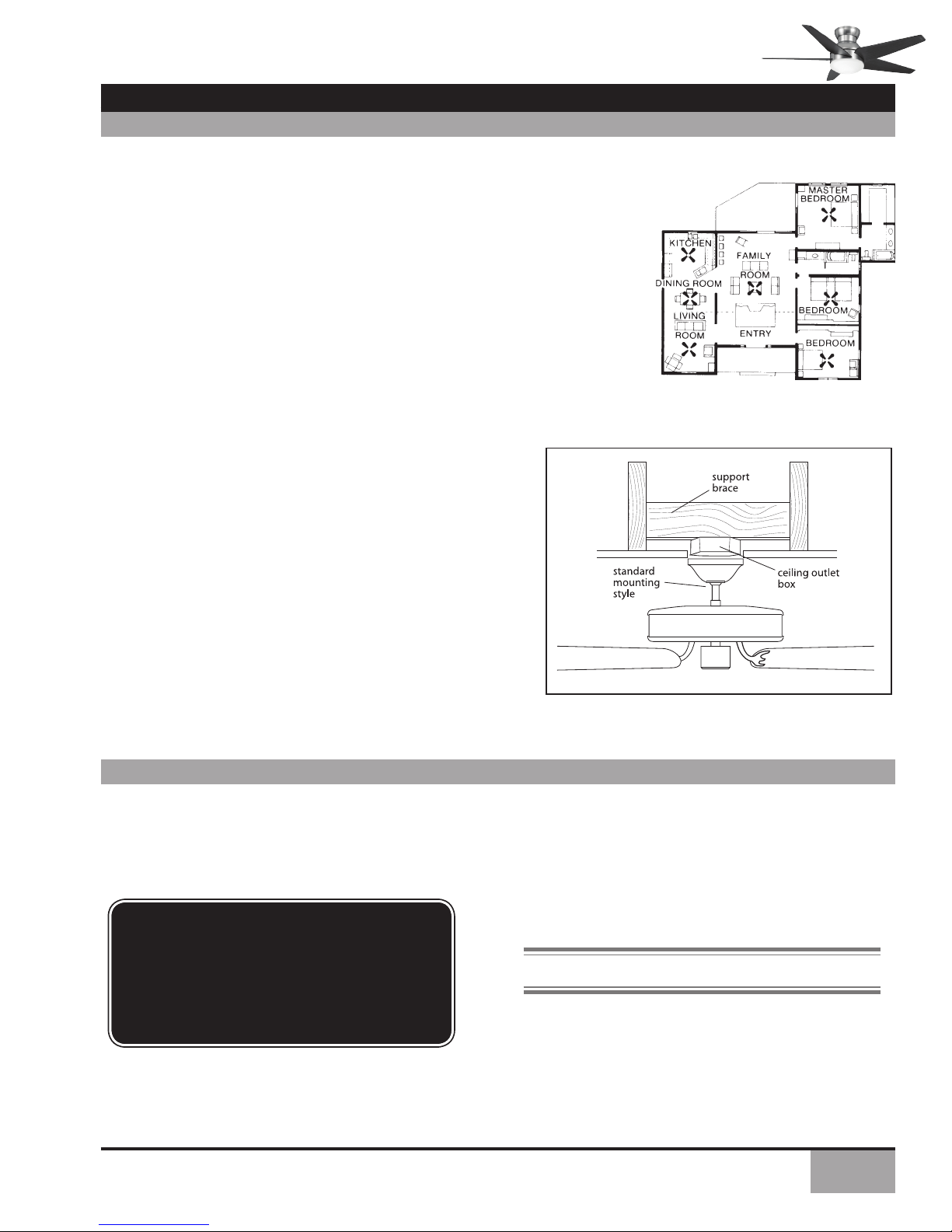

After removing the old xture, check the outlet
box to ensure that it is supported by a joist or beam
across its upper surface. If not, a 2 x 4 stud must be
installed.
Carefully feed the ceiling wires through
the center hole of the ceiling mounting plate. Attach
the plate, as shown with ground wire down, to the
ceiling xture outlet box with the screws provided.
Ensure that the outlet box wires are not pinched by
the washers or between the mounting plate and the
ceiling.
.
½
7
Isotope ®
Use the hanging hole on the body of the fan
to hang the fan on the hook of the ceiling mounting
plate. This will help you in making the electrical
connections as shown in Figure #3 and Figure #4.

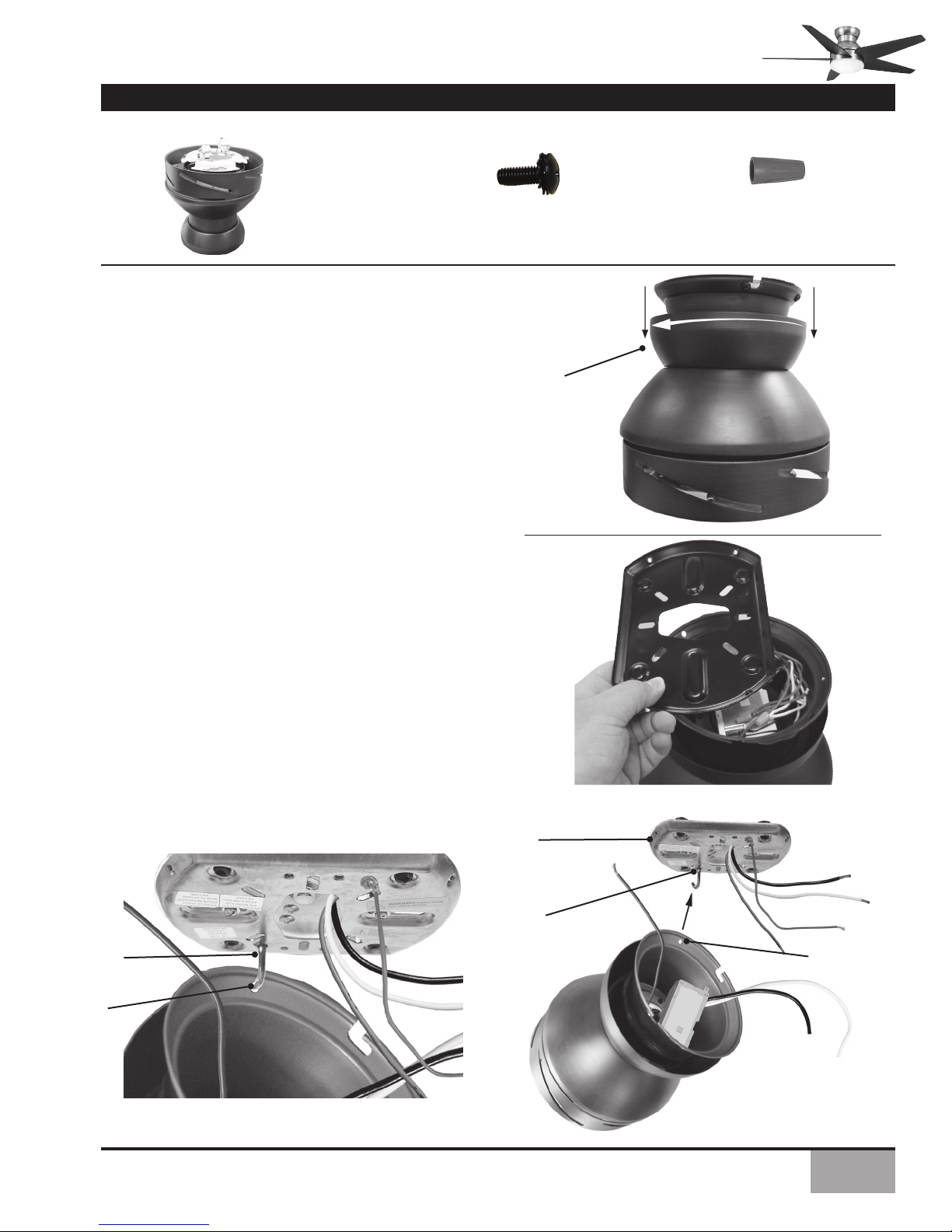

Unlock the canopy cover from the canopy
ring tabs to loosen and bring down to fan body as
shown in Figure #1.
Remove the fan mounting screws from the
fan body and set aside. You will use these later.
Remove the shipping plate from the top of
the canopy. Figure #2.
(not to scale)
8
Attach the fan remote wires to the ceiling
bracket wiring by placing the bare end of the wires
side by side and then securing with a wire nut. Test
that the connection is secure by pulling on the wire
nut. Connect in this order:
• GREEN leads from ceiling bracket and motor to
GROUND conductor of power source. Secure with
wire nut as shown in Figure #4.
• WHITE wire from receiver to the WHITE NEUTRAL
conductor wire from the power source. Secure with
wire nut as shown in Figure #4.
• BLACK wire from receiver to the BLACK conductor
wire from the power source. Secure with wire nut
as shown in Figure #4.
After making the wire connections, the wires
should be tucked in to the body of the fan as shown
in Figure #5. The wires should be spread apart, with
the three grounded conductor wires being placed on
one side of the fan body and the power conductor
wires being placed onto the other side of the fan body
separating the connections.
Install 2 fan mounting screws on the left side
of each side of the mounting plate #6.
9
Isotope ®
Using both hands, lift the fan body from the
hook and position the hanging slots on both sides
of the fan body, using the two fan mounting screws
located on the ceiling mounting plate. Slide the two
slots on both sides of the fan body between the head
of the screws and rotate the fan body clockwise into
the elongated slots as shown in Figure #7.
Install the other two fan mounting screws by
holding the fan body cover to the ceiling mounting
plate as shown in Figure #8. Tighten all four screws
until hand tight.
Before going to the next step, locate the two
sets of canopy ring tabs that are on the top edge of
the canopy as shown in Figure #9. Now locate the
two sets of canopy tab holders found at the top of
the fan body near the ceiling as shown in Figure #10.
10
To install the canopy ring you will need to lift
straight up on the canopy ring. Lock the
and the by rotating
the canopy cover clockwise as shown in Figure # 11,
locking the canopy ring in to place.
Check your work by making sure the canopy
cover has an even gap between the ceiling and canopy
ring as shown in Figure #12.
11
Isotope ®
BladE INSTallaTION
(not to scale)
Slide the end of the blade with the three
holes into the slot located on the blade ring. (The
blades will only t properly over the screws holes
one way. If the holes do not line up, remove the
blade and turn it over). Using three blade screws
and washers, attach the blade to the blade ring,
as shown in Figure #1. Install three screws and
washer one by one using the provided screwdriver.
Tighten securely by hand only. Repeat until all ve
blades have been installed on to the fan as shown
in Figure #2.
12
lIghT BUlB aNd glaSS INSTallaTION
Screw the two bulbs into the light xture as
shown in Figure #1.
When replacing the bulbs, be sure to use only
50-watt maximum.
(not to scale)
Align the glass shade up with the bottom of
the fan as shown in Figure #2 and locate the three
glass holding slots. Then locate the three glass hold-
ing tabs, located on the light xture plate.
Carefully lift the glass globe up inside the
light xture as far as it will go. Rotate the shade in a
counter clockwise direction as shown in Figure #3,
until the glass globe is held tightly in place by the
three tabs.
1313
W-74
Wall Control
W-74 Wall control PreParation
Wall Plate
Screws (2)
Switch
Mounting
Screws (2) (4) Wire Cap
WARNING! To avoid possible electrical shock,
make certain that electricity is turned off at the
circuit breaker or fuse box before attempting any
installation or repair procedure
CAUTION! NOT turning the power OFF at the circuit breaker or fuse
box may cause damage to the electronics within the wall control and or
the PC board on the fan.
W-74 Wall control PreParation
Cover Plate
installing the W-74 Wall control
The wall control installs in the same manner as an ordinary light switch, using an existing wall box and
wiring. This controller is designed to signal the fan microcomputer as well as perform normal switching
operations. For this reason the following precautions must be observed:
single W-74 installation
NOTE: W-74 Wall Control should only be installed on Casablanca's Direct-TouchTM Fans.
1. Use only the Casablanca W-74 wall control.
2. Do not use any additional control with your
Direct-TouchTM fan (for example, dimmer, or fan
speed control).
3. Do not use more than one fan per wall control.
4. No other light xtures or electrical appliances may
be connected on the circuit controlled by the W-74
wall control.
W-74
Red
White
Blue
1. If you have multiple Direct-TouchTM fans, refer to the
section "changing frequency setting" on page 20.
2. Remove the screws and switch plate from the existing
switch box.
3. Remove the screws holding the switch in the switch box.
4. Pull the existing switch from the switch box to expose
the wire connections.
5. Remove the two wires from the switch.
6. Connect the BLACK wire from the POWER SOURCE
that you just removed from the switch to the BLACK/
WHITE STRIP wire on the W-74 wall control. Secure this
connection with a wire nut.
7. Connect the second BLACK wire that you just removed
from the switch to the second BLACK wire on the
located on the back of the W-74 wall control. Secure this
connection with a wire nut. Figure 1
14
1. To control the fan and lights from two
locations (a three-way circuit), use two W-74
wall controls.
2. Remove the screws and switch plate from the
existing switch box and the screws holding
the switch in the switch box. Figure #5
3. Pull the existing switch from the switch box to
expose the wire connections.
4. Determine which wire is connected to the
common terminal from the power source
(120V AC) of the three-way switch. (The
terminal will be marked on switch).
5. Remove the wire from the common terminal
of the three-way switch. Connect this wire to
the remaining black/white striped wire on the
W-74 control. Secure this splice with a wire
nut. Figure 4
CAUTION!

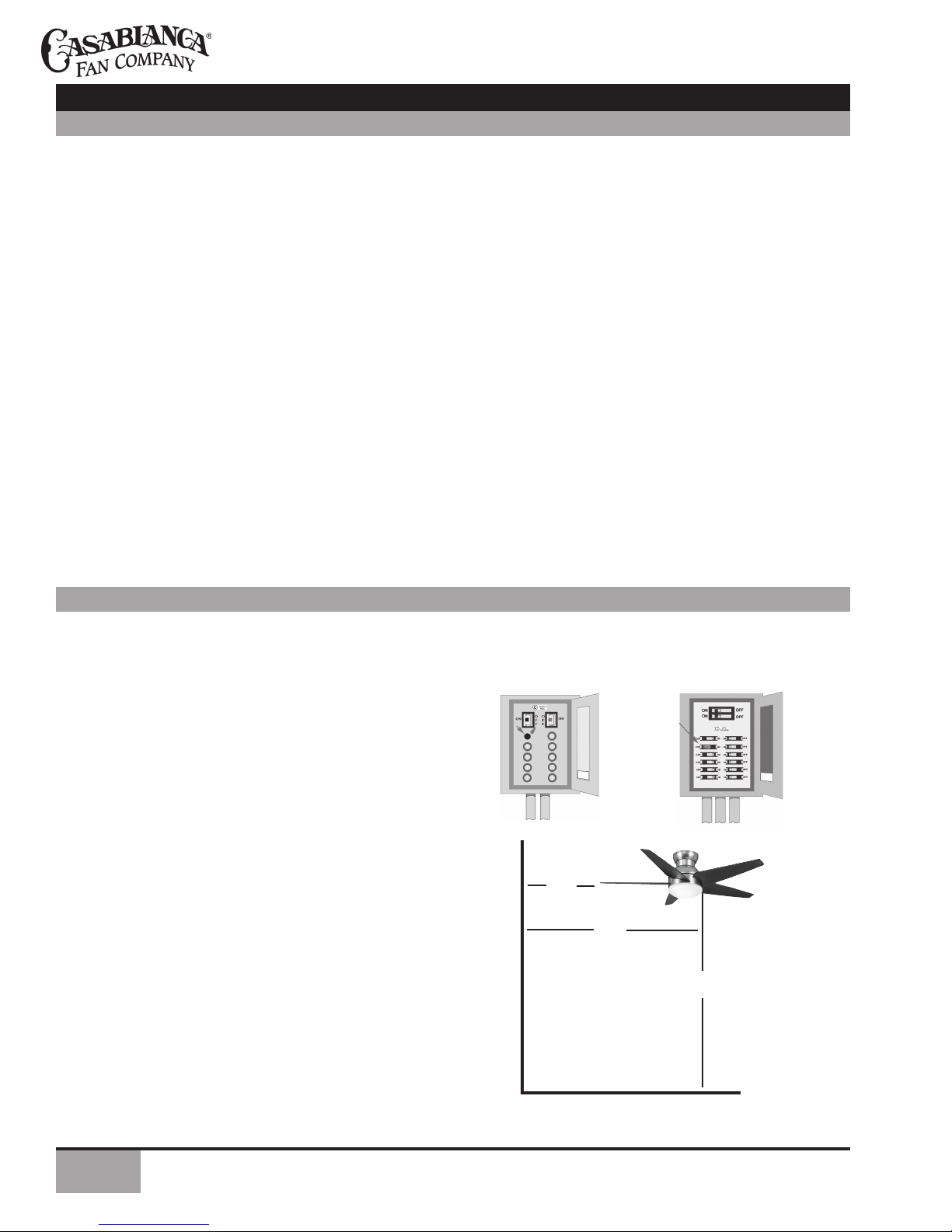

Ensure power is turned OFF at the breaker or fuse panel before starting installation.
Dual W-74 installation
BLACK
BLACK
RED
GREEN
120V AC
BLACK
BLACK WITH
WHITE STRIPE
W-74
RED RED
RED
BLACK WITH
WHITE STRIPE
GREEN
W-74
BLACK
BLACK
BLACK
BLACK
BLACK
NEUTRAL
WHITE
GREEN
To control the fan and lights from two locations (a three-way
circuit), use two W-74 wall controls as shown in the wiring diagram
in Figure #4. Before installing the two switches into the wall, place
both switches side by side, then locate the 6 dip switches on the
side of the two switches as shown in Figure #3. Then make sure that
the dip switches are set to the same address on both switches as
shown in Figure #3. When setting these dip switches you are setting
the channel number that is required to control both your fan and
lights from both sides of the room. If you are installing other Direct-
TouchTM 3 fans within your home you may need to reset the dip
switches on these other fans to a different channel before installing
your W-74 wall control into the wall. Please review the section on
channel changing within this part of the operation manual as shown
on page #22.
DIP SWITCHES
Figure 3
Figure 4
NOTE: e RED wire is not used in this application.
DO NOT remove the crimped cap from the wire.
W-74
Wall Control
RED WIRE
NOT USED
1. Connect the green ground wire coming
from the back of the W-74 control to the
ground wire in the switch box. Secure
the splice with a wire nut.
2. Check your work by using the wiring
diagrams as shown in Figures # 1 and #2.
3. Install the W-74 in the wall box with the
two long screws provided.
4. Install the wall plate with the two white
screws.
Figure 2
BLACK AND WHITE
STRIPED WIRE
2 BLACK
WIRES
NEUTRAL
15
W-74
Wall Control
BLACK AND WHITE
STRIPED WIRE
2 BLACK
WIRES

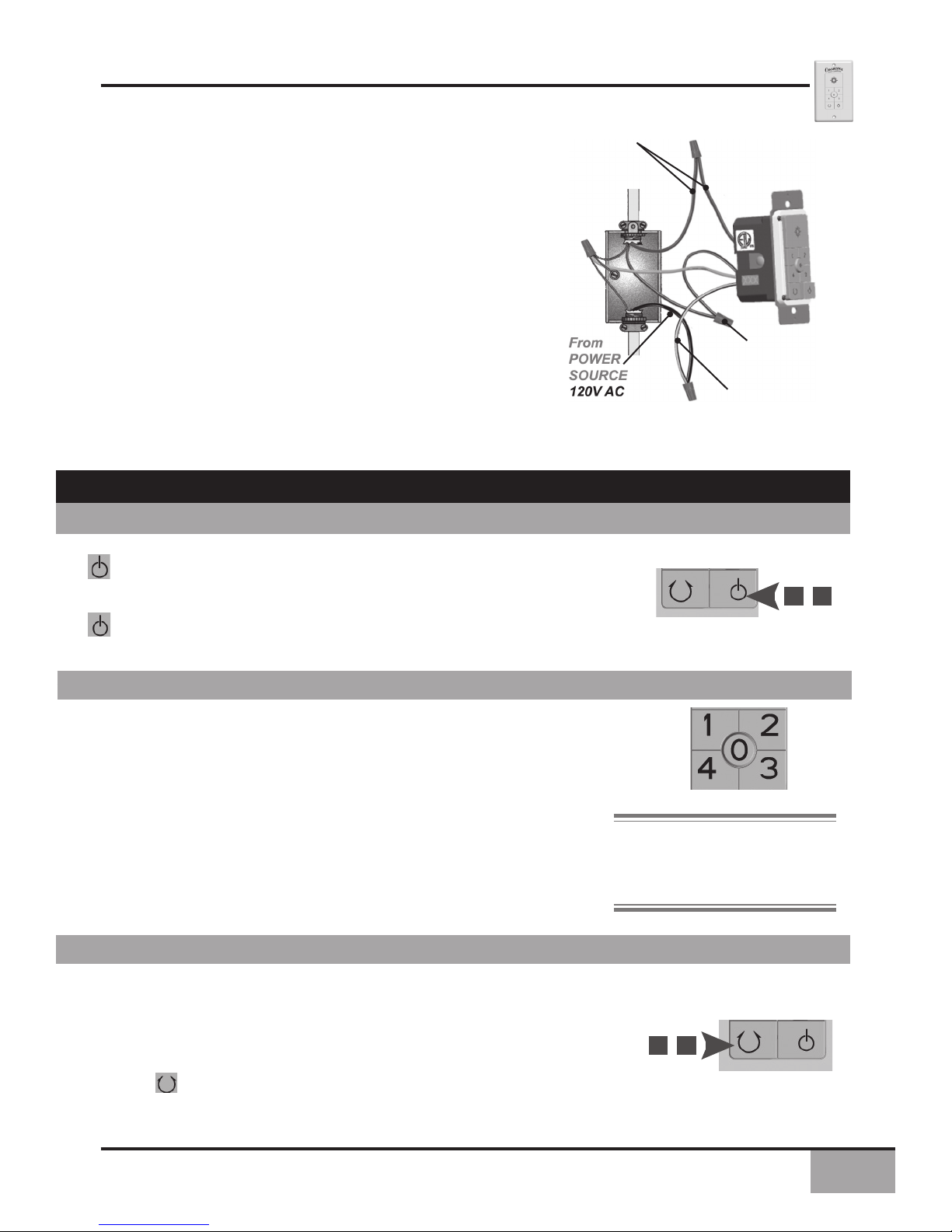

6. Remove the two remaining wires from the three-way
switch. Connect one black wire of these wires to the black
wire on the W-74 control. Secure the splice with a wire nut.
7. The remaining wire is to be connected to the red wire on
the W-74. Secure the splice with a wire nut. Note: Cut and
strip the red wire to remove the crimped connector.
8. Connect the green ground wire coming from the back of
the W-74 control to the ground wire in the switch box.
Secure the splice with a wire nut.
9. Check your work by using the wiring diagrams as shown in
Figures # 4 and #5 on this page.
10. Install the W-74 in the wall box with the two long screws
provided.
11. Install the wall plate with the two short color-matched
screws provided.
12. Installation of the second W-74 control is identical. Repeat
steps 1 through 7.
oPeration PoWer
The power button is normally left in the on position. Always turn the
power off during cleaning or servicing the fan and during thunderstorms. It is
also used to exit or enter additional programs.
The power button must be left on to retain a previously set fan speed or
light level.
oPeration sPeeD control
There are ve individual speed settings for the fan. Each speed is
indicated by the number on the controller and an audible tone for
each speed.
To select the desired fan speed:
Press the number on the controller corresponding to the speed
desired. 4 is high, 3 medium, 2 low, 1 ultra-low, and 0 is off.
oPeration reversing airfloW
The direction of airow can be changed from downward to upward
or from upward to downward.
To reverse the airow:
1. Make sure the fan is on and blades are turning.
2. Press the reverse button. You will hear a series of clicks from
the fan as it speeds up before coming to a stop and changing
direction.
Note: It is normal for the fan to start
in the "High" position from "O"
before changing to the selected
speed.
Figure 5
16
changing frequency setting
You will only have to change the dip switch settings in the
remote if you are using more than one fan in the same
area and want to control them separately.
NOTE: DO NOT set dip switch setting in the remote
to ‘000000’, this may cause frequency interference from
other Casablanca Products. All fans leave the factory set to
“111111”
DIP
SWITCHES

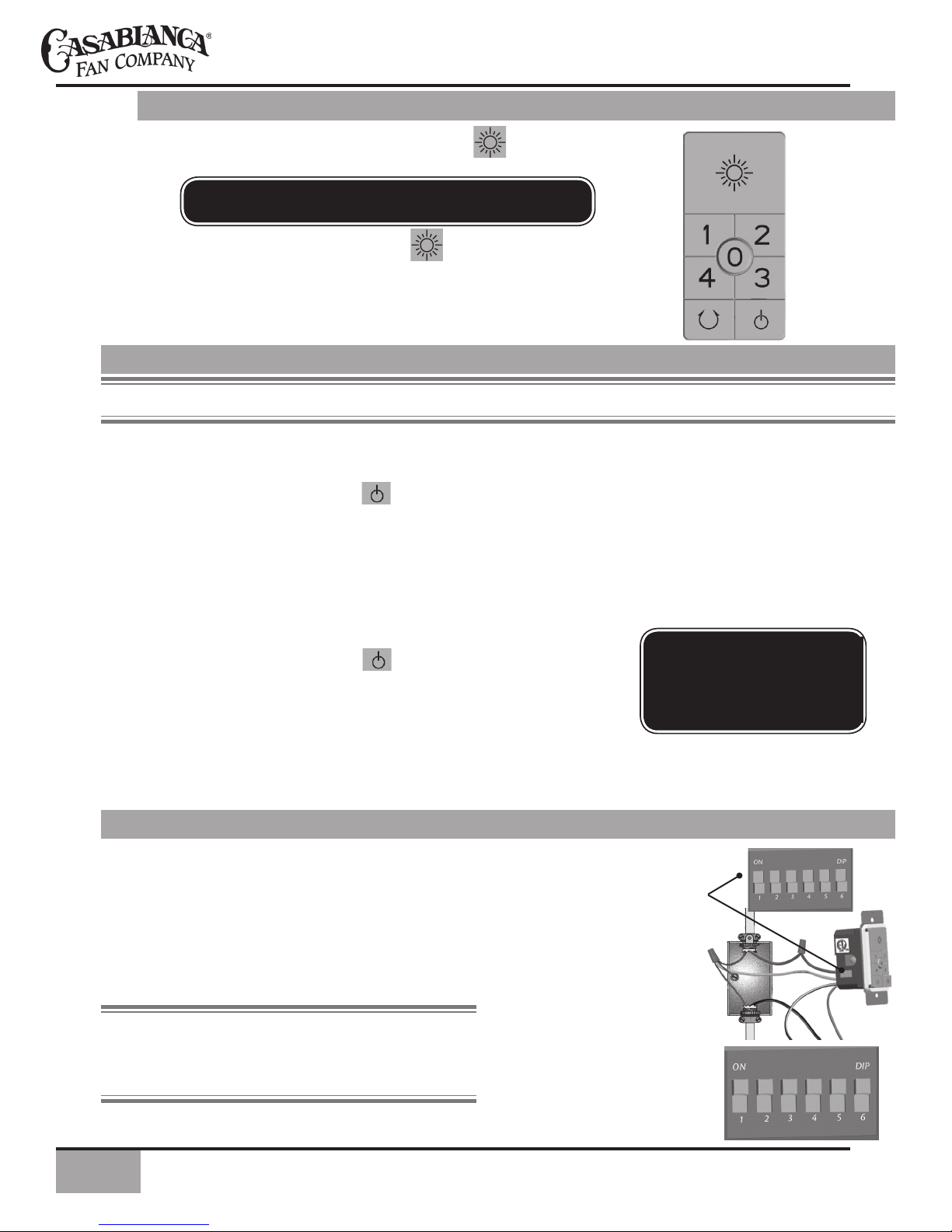

oPeration cfl MoDe
Note: e control with this fan has been shipped with CFL mode active.
Your fan has the ability to disable the dimming feature to allow the use of CFL bulbs.
To activate CFL mode:
1. Turn the fan off by pressing the power button.
2. Allow the fan to remain off for at least 5 seconds.
3. Press the power button again to restore power to the fan.
4. Immediately press and hold the "1" and "3" buttons for at least 5 seconds. The fans lights will go to 100%
brightness and the dimming function will be disabled.
To cancel CFL mode:
5. Turn the fan off by pressing the power button.
6. Allow the fan to remain off for at least 5 seconds.
7. Press the power button again to restore power to the fan.
8. Immediately press and hold the "2" and "4" buttons for at least 5
seconds. The fans lights will dim to 50% brightness and the dimming function will be enabled. Press
and hold the light buttons until the desired dimmer setting is reached.
Caution: CFL bulbs will not
function properly when
dimmed, which may result
in ickering or reduced bulb
life.
To turn the lights off and on, press and release the button for less than
one second.
To dim the down light, Press and hold the button for more than 1 second.
The light will come on at the last brightness setting and increase in brightness
until full power is reached, then start dimming until the lowest setting is
reached. This cycle will repeat until you release the light button.
oPeration lights
Down Light
Note: With CFL mode active, the lights will not dim.
17

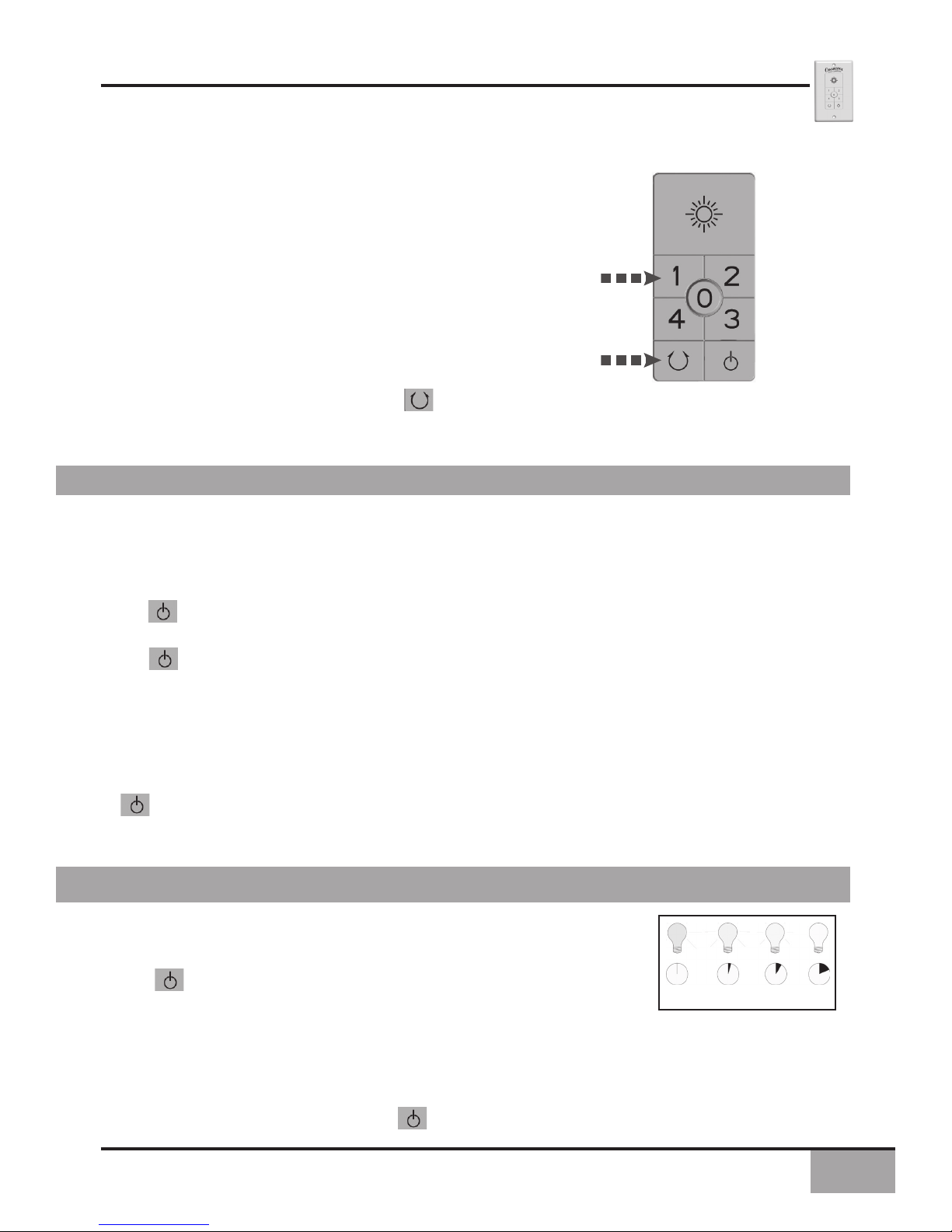

To change frequency:
1. Turn power OFF at the circuit breaker or fuse box and at the toggle
switch, for the fan you want to change.
2. Remove the screws and switch plate from the existing switch box.
3. Remove the screws holding the switch in the switch box.
4. Pull the existing W-74 switch from the switch box to expose the dip
switches located on the side of the control as shown in Figure #1.
5. Change the dip switch settings, assuring that they are different from
the previously installed Direct-Touch fan.
6. Mount the W-74 Wall Control unit back into the wall electrical box.
7. At the circuit breaker or fuse box and at the toggle switch, turn the
power on for the fan whose frequency you are changing.
8. Within 20 seconds of restoring power to the ceiling fan and the W-74
Wall Control press and hold both the “1” and reverse buttons
as shown in Figure #2. For 3 seconds, you will hear an audible tone
indicating the command has been accepted. The Fan and Lights will
be off. The frequency is now changed.
autoMatic DeMonstration PrograM
Programmed into every Direct-Touch fan is an Automatic Demonstration
Program. It can be used to fully demonstrate and test the operation of the
fan.
To enter the demonstration program:
1. Turn the power button off for at least 5 seconds. This will clear the
fan memory making it ready for programming.
2. Turn the power button on.
3. Immediately hold the "0" button for at least 5 seconds.
A multi-tone signal will verify the start of the test program. The fan and
lights will go through a series of changing fan speeds, reversing the fan
operation mode, turning off/on, and dimming the lights.
The complete cycle lasts slightly over one minute. It will continue to repeat
until the is turned off for more than ve seconds, cancelling the
program.
oPeration safe-exit®
The Safe-Exit Program gives you about thirty seconds of light when you turn the
lights off, enabling you to exit your home before the lights go out. To enter the Safe-
Exit Program:
1. Press the power button off for at least ve seconds.
2. Turn the Power on. Immediately press and hold the "4" button for 5 seconds.
When a light button is pressed, an audio tone and series of lights blinking will indicate the program
is active. When CFL mode is disabled, the Lights will stay on at 50% brightness for 20 seconds then
decrease in intensity for 30 seconds then turn off.
3. With CFL mode active, the lights will turn off after 30 seconds.
4. To cancel the Safe-Exit Program, press the power button and leave off for ve seconds.
Safe-Exit
1818
oPeration hoMe-safe® PrograM
oPeration fan-MinDer™ PrograM
To operate the Home-Safe Program:
1. Turn the power button off for at least 5 seconds.
2. Turn the on. Immediately press and hold the "3" button for 5 seconds.
A series of tones will be heard indicating the command has been
accepted.
Note: is program overrides all manual control of lights and fan.
3. The lights will automatically cycled on and off in a controlled sequence as
follows: ON 1 hour, OFF ½ hour, ON 2 hours, OFF 1 hour, ON ½ hour then
OFF 2 hours. This seven hour pattern will repeat continuously so that a
different pattern of lighting is seen each day of the week.
4. To cancel the Home-Safe Program, press the Button OFF for ve
seconds.
The Fan-Minder feature will add to your comfort when used in the bedroom. The program
reduces the speed of the fan each two-hour interval to compensate for cooling night air.
1. To operate the lights for Light Minder Program – Turn the power button off for
at least 5 seconds.
2. Turn the on. Immediately press and hold the "2" button for 5 seconds. A
series of tones will be heard indicating the command has been accepted. Once
the lights turn on, they will automatically turn off after 2 hours.
3. The fan will respond with three descending tones. A timer is now initiated and the fan
will reduce one speed for each two-hour interval. The fan will not, however, descend
below the rst or the lowest speed.
4. You may increase the fan speed by pressing and holding any of the fan speed buttons until the desired
speed is reached, then release it. The fan will again reduce one speed for each 2 hour interval.
5. To cancel the Fan-Minder Program, turn the OFF for 5 seconds.
The Light-Minder Program automatically turns OFF the fan mounted lights after two
hours.
To activate the Light-Minder Program:
1. Turn the power button off for at least 5 seconds.
2. Turn the on. Immediately press and hold the "1" button for 5 seconds. A
series of tones will be heard indicating the command has been accepted. Once
the lights turn on, they will automatically turn off after 2 hours.
3. Light operation still remains normal, if you leave the room and turn OFF the
lights, the lights will blink to indicate the Light Minder command has been
accepted. The lights will stay on for 2 hours and then begin to dim. After thirty
seconds have elapsed, the lights will turn completely off. In CFL Mode, the lights will not dim, but shut
off after 2 hours.
4. To cancel the Light Minder Program, press the power button and leave off for ve seconds.
light-MinDer® PrograM
Light-Minder
19
Please refer to this troubleshooting guide before requesting service or contacting your dealer for assistance.
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient
or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the
equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or
an experienced radio/TV technician for help. Note: Any changes or modications to the transmitter or receiver not
expressly approved by Casablanca Fan Company may void one’s authority to operate this remote control.
Fan will not start
• Check the main circuit fuses, circuit breakers, and wall switch position. Check all wire connections.
Make sure the power is turned off during this inspection.
• Pin connectors are not making good contact. Check all connections.
• The fan receiver is defective. Replace the fan receiver.
• Reset the frequency setting: See Page 20-21.
Fan wobbles or shakes excessively
• Be sure the canopy pin is set properly into the slot on the ball.
• Check that the blade holders have not been bent during installation and the blades are balanced.
• The hanger bracket and/or the ceiling outlet are attached too loosely. Make sure the hanger bracket is
attached tightly to the ceiling outlet box and the downrod assembly is secured rmly.
• The downrod is attached to the downrod base too loosely. Make sure all the screws are securely
tightened.
• A balancing kit is supplied with the fan to remedy slight wobble problems. Check all previous steps
before using this kit.
Fan is noisy during operation
• When changing fan speeds or reversing the fan, you may hear several audible clicks. This is normal
operation.
• Check and tighten the light xture retaining screws, glass shade screws, and/or light bulb(s).
• Tighten the canopy screws and mounting plate assembly. Make sure the wire nuts inside the canopy
and switch housing are not touching the metal parts and that they have not fallen off the wire splices.
Tighten as necessary.
• Tighten the blade holders to the ywheel (or Direct Drive motor) and the blades to the bladeholder
screws.
• Make sure all the screws in the motor housing are snug but not overly tight.
Fan does not run on low speed
• If fan is new, it may need to be “broken in.” Run at high speed for several days.
Light is too dim
• Make sure the dimmer setting is at the desired level.Hold the light button to activate
the dimmer of the fan. Release the button when the desired luminosity is reached.
20
• For cleaning, a soft brush or lint-free cloth should be used to prevent scratching the nish.
• A vacuum cleaner brush nozzle can remove heavier dust.
• Surface smudges or an accumulation of dirt and dust can be removed easily using a mild detergent and slightly dampened
soft cloth. An antistatic agent may be used, but never use abrasive cleaning agents as these will damage the nish.
• Wood-nish blades should be cleaned with a furniture polishing cloth. Occasionally, a light coat of furniture polish may be
applied for added protection and luster.
• For painted and high-gloss blades, surface smudges or an accumulation of dirt and dust can be removed easily using a
mild detergent and slightly dampened soft cloth. An antistatic agent may be used, but never use abrasive cleaning agents
as these will damage the nish.
• Warning: To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the
blades, or cleaning the fan. Do not insert foreign objects in betweeen rotating fan blades.
• Never lubricate this fan! The precision motor at the heart of your Casablanca fan features sealed bearings that are lubricated
for life.
• Do not attempt to oil the motor.
• Be sure to turn the power to OFF at the wall switch or circuit breaker before changing lightbulbs.
• Replace bulbs with the same type as you removed from the light xture.
• The maximum wattage rating for this fan’s light kit is 100 watts for the light.
This device complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.
1. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including interference that may cause undesired operation.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures: Reorient or relocate the receiving antenna, Increase the separation between the equipment and receiver, Connect the equipment into an outlet
on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Note: Any changes or
modications to the transmitter or receiver not expressly approved by Casablanca Fan Company may void one’s authority to operate this remote control.
Isotope®
C35GxxL (44")
C30GxxL (52")
A = 9.5"
B = 12.8"
C = N/A"
D = 10.2"
E = 7.7"
28 lbs.
188mm x 20mm Direct Drive™
44" And 52"
14°
5
Direct Touch® W-74SL
(2) 50-watt halogen
3,135 cfm
71 watts
43.8 cfm/watt
* Performance data is for fan only. No lighting wattage is included.
Measurements taken with 52" model.
NOTE: Dimension B
includes light xture
and glass.
Other manuals for Isotope
3
Table of contents
Other Casablanca Fan manuals
Casablanca
Casablanca M8517-01 User manual
Casablanca
Casablanca Panama 59510 Instruction manual
Casablanca
Casablanca Axial Instruction manual
Casablanca
Casablanca WHITMAN User manual
Casablanca
Casablanca utopia 54040 User manual
Casablanca
Casablanca Ainsworth Instruction manual
Casablanca
Casablanca 54022 User manual
Casablanca
Casablanca Correne 51741 Instruction manual
Casablanca
Casablanca 59360 Instruction manual
Casablanca
Casablanca 59021A Manual
Casablanca
Casablanca Heritage 59527 User manual
Casablanca
Casablanca Antion C39G199L User manual
Casablanca
Casablanca 59021A Manual
Casablanca
Casablanca Capistrano User manual
Casablanca
Casablanca 19 Century User manual
Casablanca
Casablanca Tribeca Instruction manual
Casablanca
Casablanca 55082 User manual
Casablanca
Casablanca MA038-01 User manual
Casablanca
Casablanca panama 55022 User manual
Casablanca
Casablanca Paume Instruction manual
Popular Fan manuals by other brands
Chore-Time
Chore-Time 50576 Installation and Operators Instruction Manual
Wolf
Wolf 807614 Guide
Bimar
Bimar VSM11 Instruction booklet
ProKlima
ProKlima FN-108451.2 instruction manual
Ruck Ventilatoren
Ruck Ventilatoren R Series Assembly instruction
ClimaRad
ClimaRad Sensa Horizontal 2015 Maintenance Instruction
Perel
Perel CFANUSBD2 user manual
Kendal Lighting
Kendal Lighting AC-19242 installation instructions
Quilo
Quilo QE1S user manual
Home Decorators Collection
Home Decorators Collection HERITAGE POINT AM909-CB manual
STIEBEL ELTRON
STIEBEL ELTRON LWA 252 Operation and installation
Carrier
Carrier XCT7 40VH A-7G Series Installation and owner's manual
Today's Design House
Today's Design House HUGGER SERIES Z442 installation instructions
Savoy
Savoy 52-EUP-5RV-WH owner's manual
Humidex
Humidex GVS-SD2 owner's manual
COOK
COOK GI Installation, operation and maintenance manual
HOMCOM
HOMCOM 824-032V70 Assembly & instruction manual
TJERNLUND
TJERNLUND DC BAROMETRIC DRAFT CONTROL LIT 8500490 REV B... manual
