Casablanca Tribeca Instruction manual

TribecaTribecaTribeca
English
Owner’s Guide and Installation Manual
Form# M6001-01
20120416
©2012 Casablanca Fan Co.

2
M6001-01 • 04/16/12 • Casablanca Fan Company
Welcome
© 2012 Casablanca Fan Company
Table Of Contents
Preparing the Fan Site .................3
1 • Getting Ready......................6
2 • Installing the Ceiling Bracket........7
3 • Assembling and Hanging the Fan ...8
4 • Wiring Your Ceiling Fan.............9
5 • Installing the Canopy ...............10
6 • Assembling the Blades..............11
7 • Installing the Switch Housing .......12
8 • Operating and Cleaning Your Ceiling
Fan ...............................13
9 • Troubleshooting....................14
Your new Casablanca® ceiling fan is an addition to your home or
oce that will provide comfort and performance for many years. is
installation and operation manual gives you complete instructions for
installing and operating your fan.
We are proud of our work. We appreciate the opportunity to supply
you with the best ceiling fan available anywhere in the world.
Before installing your fan, for your records and warranty assistance,
record information from the carton and Casablanca nameplate label
(located on the top of the fan motor housing).
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Casablanca replacement parts.
• To reduce the risk of personal injury, attach the fan directly to the
support structure of the building according to these instructions,
and use only the hardware supplied.
• To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the
outlet box and associated wall switch location. If you cannot lock
the circuit breakers in the o position, securely fasten a prominent
warning device, such as a tag, to the service panel.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
• To reduce the risk of personal injury, do not bend the blade
attachment system when installing, balancing, or cleaning the fan.
Never insert foreign objects between rotating fan blades.
• To reduce the risk of re, electrical shock, or motor damage, do not
use a solid-state speed control with this fan. Use only Casablanca
speed controls.
• is product conforms to UL STD 507 and is certied to STD C22.2
No. 113.
• Wash your hands after your fan installation is complete.

3
M6001-01 • 04/16/12 • Casablanca Fan Company
7’ Minimum
Blades to
Floor
9’ Minimum
Ceiling
Height
30” From
Wall or
Nearest
Obstruction
Step 1 - Choose the Fan Site
Proper ceiling fan location and attachment to the building
structure are essential for safety, reliable operation, maximum
eciency, and energy savings.
Choose a fan site where:
• No object can come in contact with the rotating fan blades during
normal operation.
• e fan blades are at least 7 feet above the oor and the ceiling is
at least 9 feet high.
• e fan blades have no obstructions to airow, such as walls or
posts, within 30 inches of the fan blade tips.
• e fan is directly below a joist or support brace that will hold the
outlet box and the full weight of the fan.
Checklist for Existing Fan Site
If you want to use an existing fan site, complete the following checklist to
determine if the site is acceptable and safe for your new Casablanca fan.
If you cannot check o every item, prepare a new fan site as described on
this page.
Fan Support System
• Fan attaches directly to building structure.
• Fan support system will hold full weight of the fan and light kit.
Ceiling Hole
• e outlet box clearance hole is directly below the joist or support brace.
Outlet Box
• e outlet box is an UL-approved octagonal 4” x 1-1/2” outlet box (or as
specied by the support brace manufacturer).
• e outlet box is secured to the joist or support brace by wood screws
and washers through the inner holes of outlet box.
• e outer holes of the outlet box are aligned with joist or support brace.
• e bottom of the outlet box is recessed a minimum of 1/16” into
ceiling.
Wiring
• e electrical cable is secured to outlet box by an approved connector.
• Six inches of lead wires extend from outlet box.
If your existing fan site is suitable, skip ahead to Section 2 • Installing the
Ceiling Bracket.
Suitable Existing Fan Site
Fan Support
System
Fan Support
System Wiring
Outlet Box
Preparing the Fan Site

4
M6001-01 • 04/16/12 • Casablanca Fan Company
Preparing the Fan Site (continued)
CAUTION: All wiring must be in
accordance with national and local
electrical codes and ANSI/NFPA 70. If
you are unfamiliar with wiring, use a
qualied electrician.
Steps 2 – 3
Step 4
Step 5

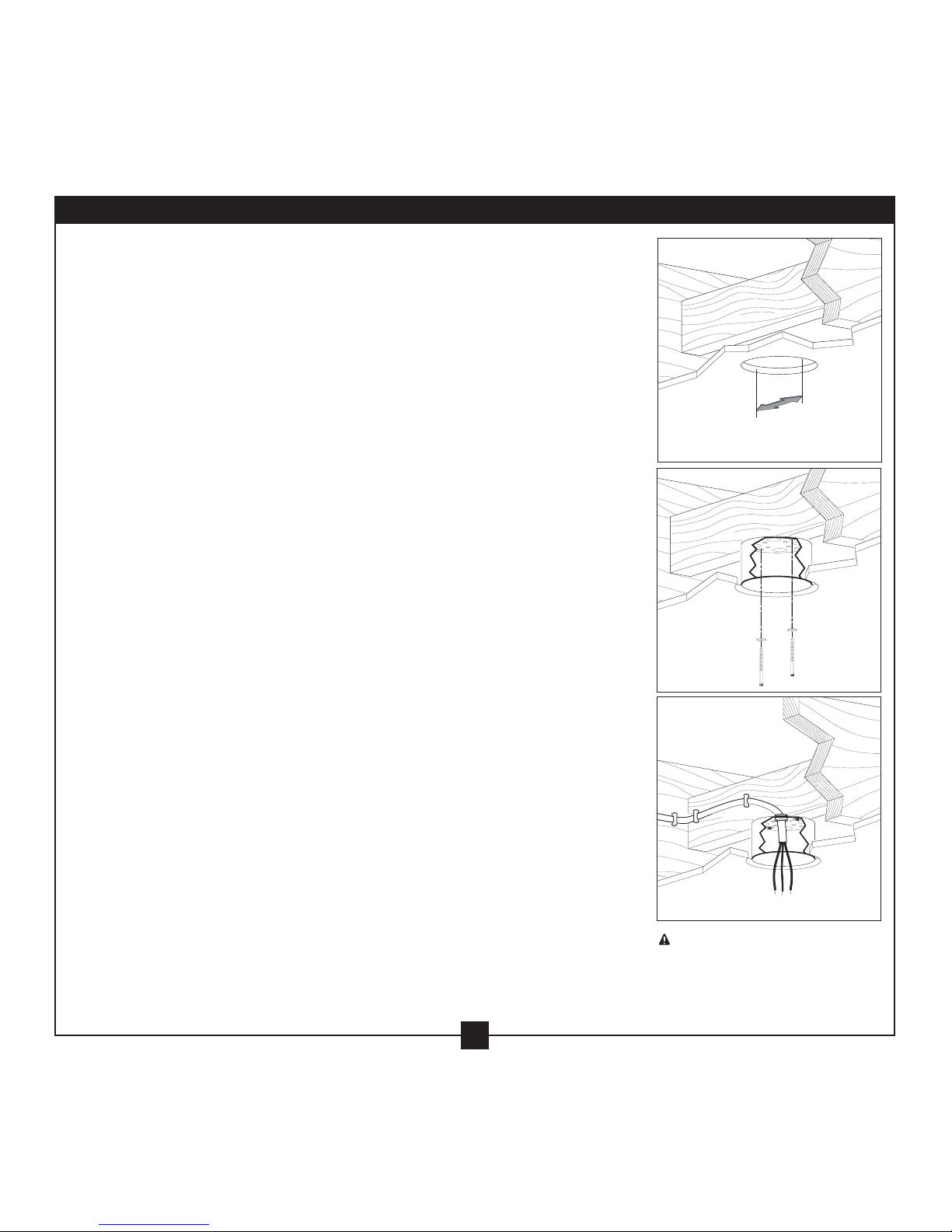

Step 2 - Cut the Ceiling Hole
2-1. Locate the site for the ceiling hole directly below the joist or support brace that
will hold the outlet box and fan.
2-2. Cut a 4” diameter hole through the drywall or plaster of the ceiling. You will use
the hole to install the support brace and outlet box.
Step 3 - Install a Support Brace, If Necessary
Determine if there is a ceiling joist directly above the ceiling hole. If the joist is there,
determine if it is positioned to allow you to recess the outlet box a minimum of
1/16” into the ceiling. If NOT, install a support brace as follows:
3-1. Attach a 2” x 4” support brace between two joists. Position it to allow you to
recess the bottom of the outlet box a minimum of 1/16” into the ceiling.
3-2. Check the support brace to ensure it will support the full weight of the fan and
light kit.
Step 4 - Install the Outlet Box
4-1. Obtain a UL-approved octagonal 4” x 1-1/2” outlet box, plus two #8 x 1-1/2”
wood screws and washers, available from any hardware store or electrical supply
house.
4-2. Orient the outlet box so that both the inner and outer holes in the box align
with the joist or support brace.
4-3. Drill pilot holes no larger than the minor diameter of the wood screws (5/64”)
through the inner holes of the outlet box.
4-4. Attach the outlet box directly to the support brace or joist with two #8 x 1-1/2”
wood screws and washers.  e bottom of the outlet box must be recessed a
minimum of 1/16” into the ceiling.
Step 5 - Prepare the Wiring
5-1. Make sure the circuit breakers to the fan supply line leads and associated wall
switch location are turned o . If you cannot lock the circuit breakers in the
o position, securely fasten a prominent warning device, such as a tag, to the
service panel.
5-2. read the fan supply line through the outlet box so that the fan supply line
extends at least 6” beyond the box.
5-3. Attach the fan supply line to the outlet box with an approved connector,
available at any hardware store or electrical supply house.
5-4. Make certain the wiring meets all national and local standards and ANSI/NFPA 70.
You have now successfully prepared your ceiling fan site. For instructions to install
your ceiling fan, go to your fan manual and continue with Section 2 • Installing the
Ceiling Bracket.

Installer’s Choice and Optional Accessories

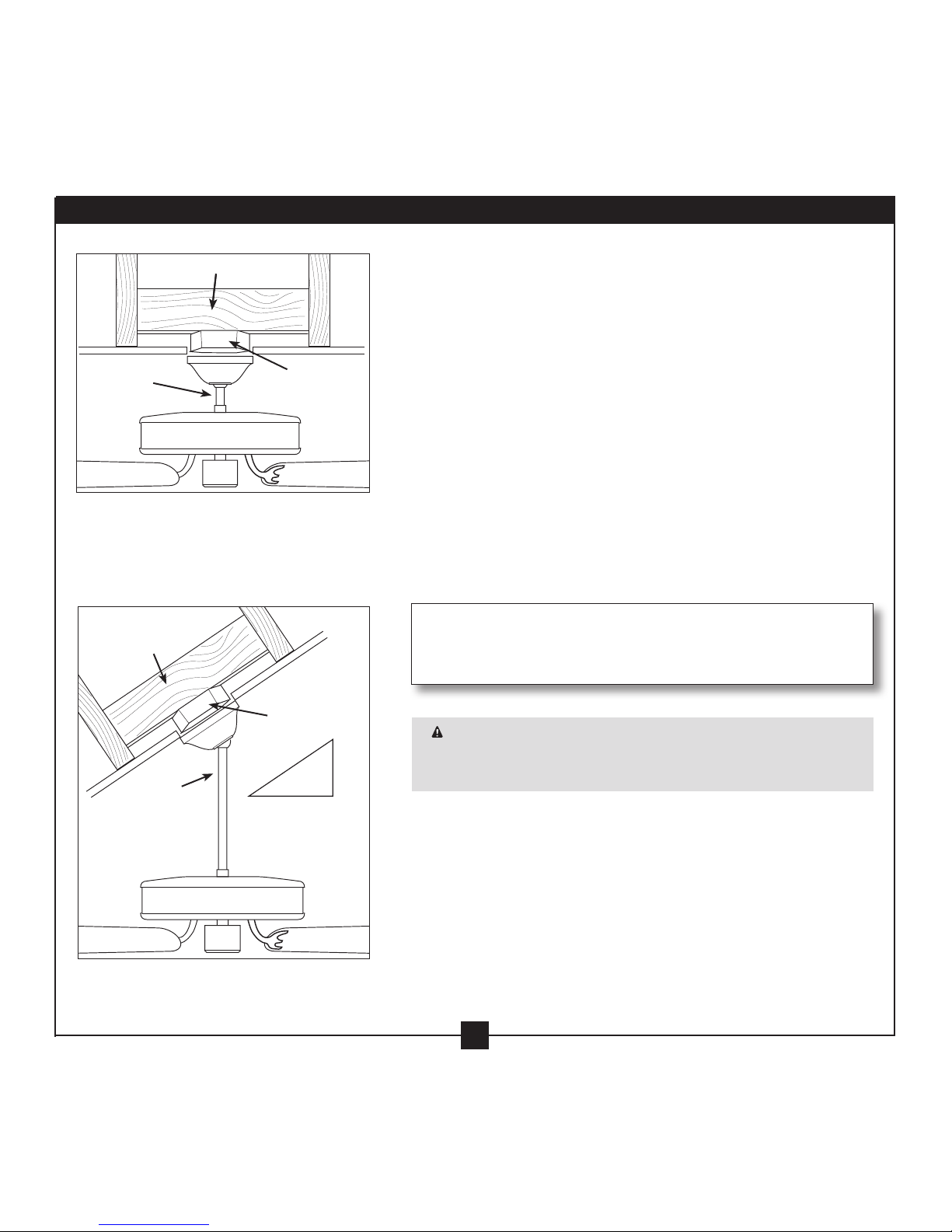

Standard Mounting hangs from the
ceiling by a downrod (included).
Support Brace
Standard
Mounting
Style
Ceiling
Outlet Box
Angled
Mounting
Style
5
M6001-01 • 04/16/12 • Casablanca Fan Company
Installer’s Choice and Optional Accessories
Support Brace
Support Brace
Ceiling
Outlet Box
8
12
Angled Mounting recommended for a
vaulted or angled ceiling.
For ceilings higher than 9 feet, you can purchase Casablanca
extension downrods. All Casablanca fans use sturdy 3/4” diameter
pipe to assure stability and wobble-free performance.
CAUTION: To reduce the risk of personal injury, attach the
fan directly to the support structure of the building according
to these instructions, and use only the hardware supplied.
Understanding Mounting and Installer’s Choice
Casablanca’s 2-position mounting system provides you maximum
installation exibility and ease. You can install your fan in one
of two ways, depending on ceiling height and your preference:
standard or angled mounting. e steps in this manual include
instructions for both mounting methods.
Considering Optional Accessories
Consider using Hunter’s optional accessories, including a
wall-mounted or remote speed control. To install and use the
accessories, follow the instructions included with each product.
For quiet and optimum performance of your Hunter fan, use only
Hunter speed controls.

6
M6001-01 • 04/16/12 • Casablanca Fan Company
Installing Multiple Fans?
If you are installing more than
one fan, keep the fan blades and
blade irons (if applicable) in sets,
as they were shipped.
To install a ceiling fan, be sure you can do the following:
• Locate the ceiling joist or other suitable support in ceiling.
• Drill holes for and install wood screws.
• Identify and connect electrical wires.
• Lift 40 pounds.
If you need help installing the fan, your Casablanca fan dealer can
direct you to a licensed installer or electrician.
Gathering the Tools
You will need the following tools for installing the fan:
• Electric drill with 9/64” bit
• Standard screwdriver (magnetic tip recommended)
• Phillips-head screwdriver (magnetic tip recommended)
• Wrench or pliers
• Ladder (height dependent upon installation site)
Checking Your Fan Parts
Carefully unpack your fan to avoid damage to the fan parts. Refer
to the included Parts Guide. Check for any shipping damage to the
motor or fan blades. If any parts are missing or damaged, contact your
Casablanca dealer or call Casablanca Technical Support Department at
888-227-2178 (In Canada, call 1-866-268-1936).
Preparing the Fan Site
Before you begin installing the fan, follow all the instructions in
“Preparing the Fan Site.” Proper ceiling fan location and attachment
to the building structure are essential for safety, reliable operation,
maximum eciency, and energy savings.
1 • Getting Ready
WARNING! To avoid possible electrical shock, make certain
that electricity is turned off at the circuit breaker or fuse box
before attempting any installation or repair procedure.

7
M6001-01 • 04/16/12 • Casablanca Fan Company
CAUTION: To avoid possible electrical shock, before installing your fan,
disconnect the power by turning o the circuit breakers to the outlet box
and associated wall switch location. If you cannot lock the circuit breakers
in the o position, securely fasten a prominent warning device, such as a
tag, to the service panel.

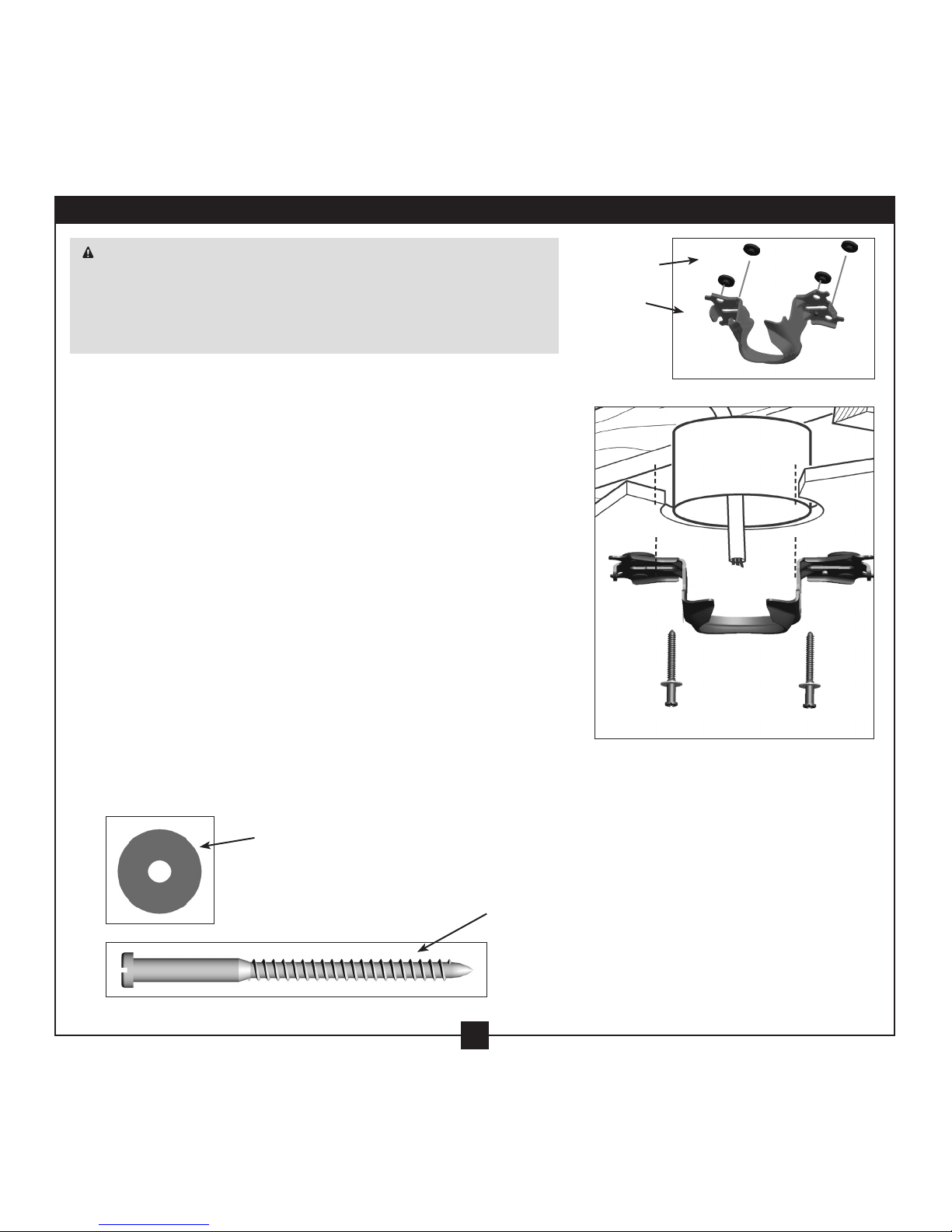

2-1. Note: e ceiling bracket may be mounted to an existing ceiling-
-fan-rated outlet box. If the outlet box is not ceiling-fan-rated,
Drill two pilot holes into the wood support structure.
e pilot holes should be 9/64” in diameter and through the
outermost holes in the outlet box.
2-2. Your fan comes with four neoprene noise isolators. Position the
isolators between the ceiling bracket and the ceiling by inserting
the raised areas on each isolator into the holes in the ceiling
bracket.
2-3. Align the slotted holes in the ceiling bracket with the pilot holes
you drilled in the wood support structure. Note: e isolators
should be ush against the ceiling.
2-4. Place a at washer on each of the two 3” wood screws and pass
the screws through the slotted holes in the ceiling bracket into the
pilot holes you drilled.
Tighten the screws into the 9/64” pilot holes; do not use lubricants
on the screws. Do not over tighten.
Flat Washer
3” Wood
Screw
Steps 2-3 – 2-5
2 • Installing the Ceiling Bracket
Step 2-2
Ceiling
Bracket
Isolator

8
M6001-01 • 04/16/12 • Casablanca Fan Company
WARNING: Fan may fall if not assembled as directed in these
installation instructions.
You can assemble your fan for standard or angled mounting as
shown in steps below.
3-1. Unbundle the wires from the fan.
3-2. Feed the wires from the fan through the downrod.
Note: Make sure all the wires are on the same side of the metal
dowel pin inside the downrod.
3-3. Loosen the square head setscrew on the adapter in order to
install the downrod.
3-4. Insert the downrod into the adapter. Tighten by turning the
downrod assembly at least 4-5 full turns until it stops. Note:
When the downrod assembly is fully installed, 2-3 threads
on the pipe will still be visible; this is normal. Securely
retighten the setscrew with a wrench or pliers.
WARNING: If the setscrew is not tightened securely, the fan
may fall.
3-5. (Optional) - e wires can be cut (shortened), but leave at
least 8” extending from the top of the downrod.
3-6. Raise the fan and place the downrod ball into the ceiling bracket.
Steps 3-1 – 3-4
Step 3-6
Downrod
Ball
Ceiling
Bracket
3 • Assembling and Hanging the Fan
For angled ceilings, point
opening toward peak
Downrod
Canopy
Setscrew Adapter

9
M6001-01 • 04/16/12 • Casablanca Fan Company

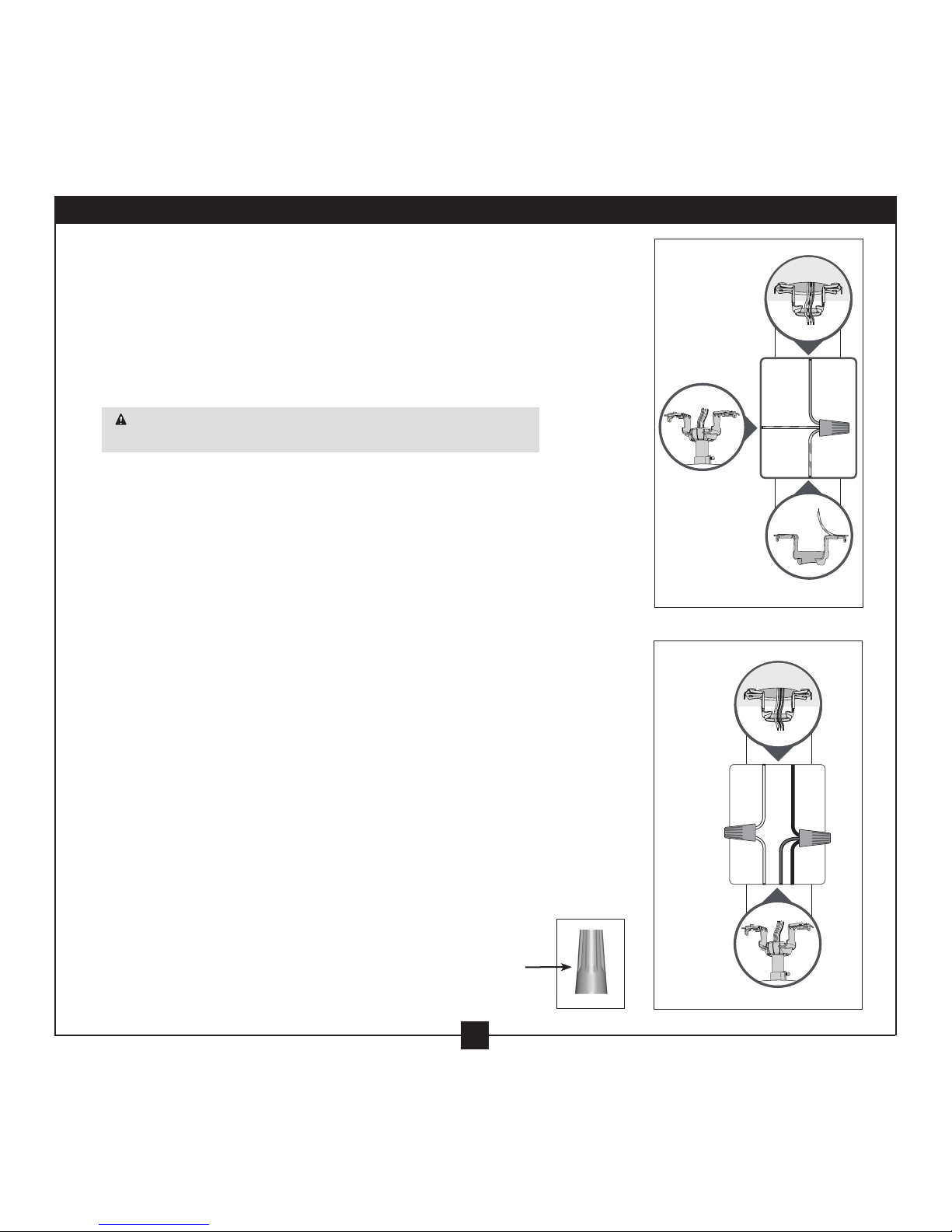

4 • Wiring Your Ceiling Fan
All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualified electrician.
4-1. Make sure the power is still o at the breaker box.
4-2. To connect the wires, hold the bare metal leads together and place a
wire connector over them, then twist clockwise until tight. For all wire
connections use the wire connector provided.
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
Note: For dual switch wiring, skip steps 4-3 through 4-6. Continue on
next page; performing steps 4-7 through 4-11.
Single Switch Wiring:
4-3. Connect the green or bare wire (grounding) wire from the ceiling
to the green wire with yellow stripe (grounding) from the ceiling
bracket and to the green wire with yellow stripe (grounding) from
the fan.
4-4. Connect the white wire (grounded) from the ceiling to the white wire
from the fan.
4-5. Connect the black wire (ungrounded) from the ceiling to the black
wire and the blue wire from the fan.
4-6. After all connections are made, turn wire connectors upward and
push them up into the outlet box. Be sure to separate the grounded
wires from the ungrounded wires inside the outlet box.
F
R
O
M
C
E
I
L
I
N
G
B
R
A
C
K
E
T
F
R
O
M
F
A
N
F
R
O
M
C
E
I
L
I
N
G
F
R
O
M
F
A
N
white
black (ungrounded) black
blue
white (grounded)
green or bare (grounding)
green wire
with yellow
stripe
green wire with yellow stripe
Wire
Connector
F
R
O
M
C
E
I
L
I
N
G
Step 4-3 and 5-3
Steps 4-4 -4-5

10
M6001-01 • 04/16/12 • Casablanca Fan Company
5-1. Raise the canopy over the ceiling bracket and
align the two holes of the canopy and the
ceiling bracket.
5-2. Insert and tighten the canopy screws securely.
Step 5-1
Steps 4-8 - 4-10
Canopy Screw
Canopy
Hanger
Bracket
5 • Installing the Canopy
4 • Wiring Your Ceiling Fan (continued)
F
R
O
M
F
A
N
white
black/white (ungrounded)
black blue
white (grounded)
F
R
O
M
C
E
I
L
I
N
G
CAUTION: Be sure no bare wire or wire strands are visible after
making connections.
Dual Switch Wiring:
4-7. Connect the green or bare wire (grounding) from the ceiling to the
green wire with yellow stripe (grounding) from the ceiling bracket
to the green wire with yellow stripe (grounding) from the fan. See
image on previous page.
4-8. Connect the white wire (grounded) from the ceiling to the white wire
from the fan.
4-9. Connect the black wire (ungrounded) from the ceiling to the black
wire from the fan.
4-10. Connect the blue wire from the fan to the black wire with white
stripe (ungrounded) from the wall switch.
4-11. After all connections are made, turn wire connectors upward and
push them up into the outlet box. Be sure to separate the grounded
wires from the ungrounded wires inside the outlet box.
black (ungrounded)
Steps 5-2
Canopy
Screw

11
M6001-01 • 04/16/12 • Casablanca Fan Company
6 • Assembling the Blades
Blade Iron Barrel Nut
Decorative
Screw
Step 6-1
6-1. Using the provided Allen wrench, attach each blade to the
blade iron using three barrel nuts and three decorative
screws as shown.
Note: You may place the decorative screws and barrel nuts
facing up or down.
6-2. Remove the two orange shipping rings from motor by lifting
up on the edge of the rings.
6-3. Align the ve holes in the blade iron ring and the decorative
ring with the ve holes in the bottom of the motor and
partially install the ve blade mounting screws.
6-4. Once all ve of the screws are partially installed, tighten
them securely.
Blade
Mounting
Screw
Decorative
Ring
Blade Iron
Ring
Step 6-2
Allen Wrench
Steps 6-3 - 6-4
Shipping
Ring

12
M6001-01 • 04/16/12 • Casablanca Fan Company
7-1. To attach the upper switch housing, partially install two housing
assembly screws into the switch housing mounting plate.
7-2. Feed the upper plug connector through the center opening of
the housing.
7-3. Align the keyhole slots in the housing with the housing
assembly screws.
7-4. Turn the housing counterclockwise until the housing assembly
screws are rmly situated in the narrow end of the keyhole
slots. Install the remaining screw into the housing. Tighten all
three screws rmly.
CAUTION: Make sure the upper switch housing is securely
attached to the switch housing mounting plate. Failure to properly
attach and tighten all three assembly screws could result in the
switch housing xture falling.
7-5. To attach the lower switch housing, connect the upper plug
connector from the motor to the lower plug connector in the
lower switch housing.
Note: Both plug connectors are polarized and will only t
together one way. Make sure the connectors are properly
aligned before connecting them. Incorrect connection could
cause improper operation and damage the product.
7-6. Place the lower switch housing assembly over the upper
switch housing. Align the side screw holes in the upper and
lower switch housings. Attach the lower switch housing to the
upper switch housing with three housing assembly screws.
Note: You can customize your Casablanca fan with a number
of accessory light kits. To install an optional light kit, remove
the logo cap by removing the two screws located on the inside
of the lower switch housing.
7-7. Use the optional switch housing cap to attach light kits
that mount using a center stem attachment. Follow the
instructions included with the light kit for the wiring,
mounting, and assembly.
Steps 7-1 – 7-4
Housing
Assembly
Screw
Housing
Assembly
Screw
Upper
Switch
Housing
Lower
Switch
Housing
Steps 7-5 – 7-6
Step 7-7
7 • Installing the Switch Housing

13
M6001-01 • 04/16/12 • Casablanca Fan Company
8 • Operating and Cleaning Your Ceiling Fan
In warm weather, use
downward air ow pattern
In cold weather, use upward
air ow pattern
8-1. Turn on electrical power to the fan.
8-2. e fan pull chain controls power to the fan. e pull chain has
ve settings in sequence: High, Medium, Low, Extra Low and O.
• Pull the chain slowly to change settings.
• Release slowly to prevent the chain from recoiling into the blades.
• e chain uses a breakaway connector that separates if the
chain is jerked. If this happens, simply reinsert the chain into
the connector.
8-3. e light pull chain controls the power to the light xture. e
chain has two settings: ON and OFF.
8-4. Ceiling fans work best by blowing air downward (counterclockwise
blade rotation) in warm weather to cool the room with a direct
breeze. In winter, having the fan draw air upward (clockwise blade
rotation) will distribute the warmer air trapped at the ceiling
around the room without causing a draft.
8-5. For cleaning nishes, use a soft brush or lint-free cloth to prevent
scratching. A vacuum cleaner brush nozzle can remove heavier
dust. Remove surface smudges or accumulated dirt and dust using
a mild detergent and a slightly dampened cloth. You may use
an artistic agent, but never abrasive cleaning agents as they will
damage the nish.
8-6. Clean wood nish blades with a furniture polishing cloth.
Occasionally, apply a light coat of furniture polish for added
protection and beauty. Clean painted and high-gloss blades in the
same manner as the fan nish.
To Change Airflow Direction
Turn the fan o and let it come to a complete
stop. Slide the reversing switch on the fan to the
opposite position. Restart fan.
Reversing
Switch

14
M6001-01 • 04/16/12 • Casablanca Fan Company
Problem: Nothing happens; fan does not move.
1. Turn power on, replace fuse, or reset breaker.
2. Loosen canopy, check all connections according to the wiring the
fan section.
3. Remove the shipping bumpers.
4. Make sure the wall control is paired. (See Pairing the Wall Control
on page 14.)
Problem: Noisy operation.
1. Tighten the blade assembly screws and blade iron armature screws
until snug.
2. Check to see if the blade is cracked. If so, replace all the blades.
Problem: Excessive wobbling.
1. If your fan wobbles when operating, use the enclosed balancing kit
and instructions to balance the fan.
2. Tighten all blade iron screws.
3. Turn power o, support fan very carefully, and check that the
hanger ball is properly seated.
If you need parts or service assistance, please call
888-830-1326 (In Canada, call 1-888-227-2178) or
visit us at our website at
http://www.CasablancaFanCo.com.
Casablanca Fan Company
7130 Goodlett Farms Pkwy. #400
Memphis, Tennessee 38016
9 • Troubleshooting
AUTHORIZED SERVICE CENTERS
For the most updated listing of Casablanca Authorized Service Centers,
visit www.CasablancaFanCo.com/servicecenters or call toll free 1-888-227-2178.
