Casals PL82-650 User manual

650W Electric Planer
PLEASE READ ALL INSTRUCTIONS BEFORE USE
Model:
PL82-650
COMPLIES WITH
INTERNATIONAL
IEC60745
SAFETY SPECIFICATIONS 650W
PL82-650- Planer.indd 1 2017/05/04 10:52:03 AM

fied plugs and matching outlets will reduce risk of
electric shock
1.6. Avoid body contact with earthed or grounded
surfaces such as tubes, radiators and refrigerators.
There is an increased risk of electric shock if your body
is earthed or grounded. (If applicable)
1.7. Do not expose the planer to rain or wet condi-
tions. Water entering the planer will increase the risk of
electric shock.
1.8. Do not modify or change the cord. Never use the
cord for carrying, pulling or unplugging the power tool.
Keep the cord away from heat, oil and sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
1.9. When operating this planer outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric
shock.
1.10. Stay alert. Watch what you are doing and use
common sense when operating the planer.
1.11. Do not operate the planer when you are tired or
under the influence of drugs, alcohol or medication.
1.12. Use safety equipment. Always wear eye protec-
tion. Safety equipment such as dust mask, non-skid
safety shoes, hardhat, or hearing protection used for
appropriate conditions will reduce personal injuries.
1.13. Remove any adjusting key or wrench before turn-
ing the planer on. A wrench or a key left attached to a
rotating part of the planer may result in personal injury.
1.14. Do not over reach. Keep proper footing and
balance at all times. This enables better control of the
planer in unexpected situations.
1.15. Dress properly. Do not wear loose clothing or
jewellery; Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
1.16. Do not force the planer.
1.17. Do not use the planer if the switch does not turn
it on and off. If the planer cannot be controlled by the
ON/OFF switch, disconnect from power source and
return to your nearest service center for repairs.
1.18. Disconnect the plug from the power source
before making any adjustments, changing accessories,
or storing the planer. Such preventive safety measures
reduce the risk of starting the planer accidentally.
1.19. Store out of the reach of children and do not al-
low persons unfamiliar with the planer or these instruc-
tions to operate the planer. The planer is dangerous in
the hands of untrained users.
1.20. Use the planer in accordance with these instruc-
tions and in the manner intended for the planer, taking
into account the working conditions and the work to be
performed.
IMPORTANT:
Thank you for purchasing a Casals Electric Planer
(hereinafter referred to as the “planer”).
This manual will assist you in operating and maintain-
ing your planer. This manual is the latest version.
With the continuous improvement and upgrading of
this product, the manufacturer reserves the right to
modify this manual without notice. The manufacturer
shall assume no liability for incorrect information
contained in this manual.
This manual is an integral part of the planer. When the
planer is transferred to others, this manual should be
handed over to the new owner.
Some important information in this manual will be
indicated in the following way (please see below). The
users should pay special attention to these instruc-
tions.
The range of CASALS POWER TOOLS is safe and re-
liable, but incorrect use of these products may cause
personal injury and or damage to your machine.
Please read this manual thoroughly before operation
as this product is required to operate strictly in ac-
cordance with this manual.
IMPORTANT NOTICES:
WARNING: When using the planer, basic safety
precautions including the following safety instruc-
tions should always be followed to reduce the risk of
fire, electric shock and personal injury. Read all these
instructions before operating this product and retain
these instructions for future reference.
1. GENERAL SAFETY PRECAUTIONS:
1.1. This planer is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the planer by a person
responsible for their safety.
1.2. The planer may only be operated observing the
regulations of the operation documentation and under
permanent supervision.
1.3. Do not operate this product in an explosive
atmosphere, such as in the presence of flammable
liquids, gases or dust.
1.4. Keep children and bystanders away while operat-
ing the planer. Distractions can cause you to lose
control.
1.5. The planer’s plug must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools. Unmodi-
PL82-650- Planer.indd 2 2017/05/04 10:52:03 AM

1.21. Use of the planer for operations different from
intended could result in a hazardous situation.
1.22. Have your planer serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the planer is maintained.
2. SAFETY STICKERS AND EXPLANATIONS:
A Class II or double insulated electrical appliance is one
which has been designed in such a way that it does not
require a safety connection to electrical earth. The basic
requirement is that no single failure can result in danger-
ous voltage becoming exposed so that it might cause an
electric shock and that this is achieved without relying
on an earthed metal casing. This is usually achieved at
least in part by having two layers of insulating material
surrounding live parts or by using reinforced insulation
Read instruction manual before operating or attempting
any maintenance work.
Switch off and remove the plug from the mains before
cleaning or maintenance.
DO NOT leave or use this appliance in the rain.
Wear hearing and eye protection.
Keep Bystanders away.
3. COMPONENTS:
1. On/Off Switch
2. Lock Button
3. Planing depth adjustment knob
4. Scale
5. Planing Base
4. Use and care:
4.1 BEFORE USE
WARNING: MAKE SURE THAT THE PLANER IS
SWITCHED OFF AND UNPLUGGED FROM THE MAINS
SUPPLY BEFORE FITTING OR REMOVING ANY ACCES-
SORIES.

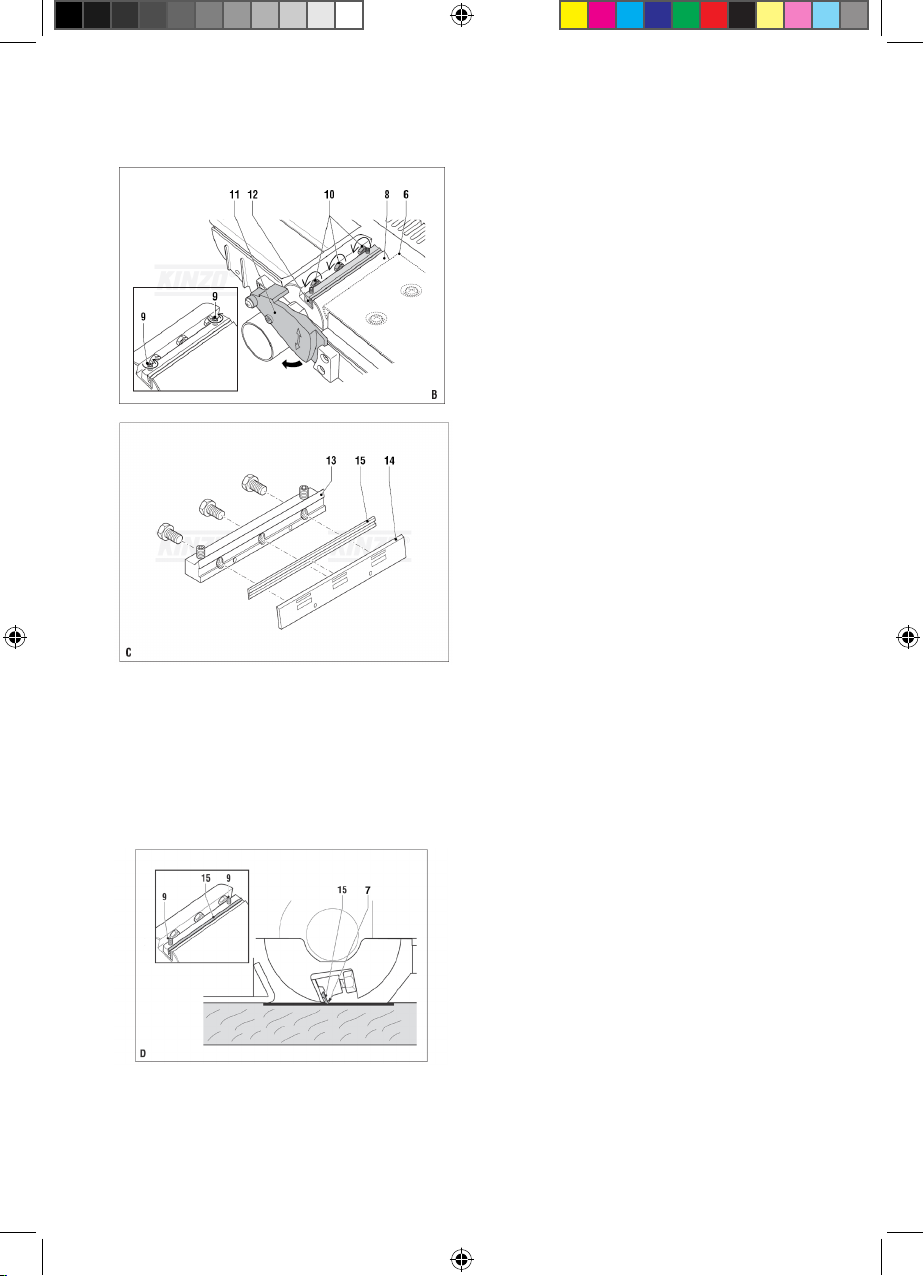

4.1.1. Replacing the blades:
•Place the tool on a table with the planning base (6)
pointing towards you.
• Rotate the cylinder (8) until the first blade is visible.
• Loosen the screws (9) a few turns, into the direction
as shown.
• Loosen the bolts (10) a few turns, into the direction
as shown.
• Keep the screening (11) pressed and remove the
holder (12) with the blade from the cylinder, into the
direction as shown.
•Disassemble the parts of the holder (13 & 14) so that
the blade (15) comes loose.
• The blade has two cutting edges. When both cutting
edges are worn, the blade must be replaced.
•Turn the blade so that the new cutting edge is facing
upwards or take a new blade.
•Place the blade between the parts of the holder.
•Keep the screening pressed and place the holder with
the blade in the cylinder.
•Re-adjust the blade. Fix the blade by fastening the
bolts, opposed to the direction as shown.
1
4
5
3
2
PL82-650- Planer.indd 3 2017/05/04 10:52:04 AM

•To replace the other blade, rotate the cylinder 180° and
repeat the steps described above.
4.1.2. Adjusting the blade:
•Set the planing depth to 0.
•Turn the screws (9) in or out to determine the correct
adjustment.
•The blade (15) is properly adjusted when the cutting
edge (7) touches the surface to be planed.
4.1.3. Setting the planing depth:
•Turn the adjustment knob (4) until the desired planing
depth is reached.
•The depth setting can be read from the scale (5).
4.2. USING YOUR PLANER:
4.2.1. Make sure the area that are planing in is stable
and does not move when planing
4.2.2. Make sure that the blades reached full speed be-
fore you start planing.
4.2.3. Guide the planer at a constant speed across
the material to be worked on. Do not guide the planer
across the surface to be planed too fast. Allow the
planer enough time to plane the surface.
4.2.4. Hold the planer with both hands using both grips.
This ensures optimum control over the machine.
4.3. SWITCHING ON AND OFF:
4.3.1. To switch the planer on, keep the lock button (2)
depressed and press the on/off switch (1).
4.3.2. To switch the planer off, release the on/off switch
(1).
5. CLEANING AND MAINTENANCE:
The machine does not require any special maintenance.
Regularly clean the ventilation slots and cylinder and
blade area.
PL82-650- Planer.indd 4 2017/05/04 10:52:04 AM

2 YEAR WARRANTY
Casals guarantees that this product has been thoroughly inspected and tested before being dispatched and is
free from mechanical and electrical defects and complies with the applicable safety standards. However, should
defects due to faulty material or workmanship develop, under normal domestic use, within 6 months from the
date of purchase please return the product to the store from where it was purchased for a full refund or replace-
ment.
The following conditions apply:
1. Please ensure you retain your receipt as this must be presented when making a claim under the terms of the
warranty. It is impossible to determine the warranty period without proof of purchase, so please keep this in
a safe place.
2. If a refund or exchange is required the product must be complete with all accessories, parts and packaging.
3. Missing parts will render the warranty void.
4. Upon receipt of your appliance check it for any transport damage to ensure it is safe for use. Return it to the
store as soon as possible for exchange if damaged. The warranty is void if products are damaged after use,
so please do not use the damaged product.
5. Your product is designed for normal domestic household use. Failure to read and comply with the instruc-
tions for use, cleaning and maintenance will render your warranty void, so please read these instructions
carefully to ensure your safety, and get the most effective use from the product.
6. Any abuse, negligent, improper use will render the warranty void and Creative Housewares (Pty) Ltd
will not be liable for any loss or damage.
7. This Guarantee will not apply if this tool is damaged by accident or from normal wear and tear.
8. Any attempted repair, or replacement of unauthorised parts will render the warranty void, so please contact
an authorised service centre or agent for any service or repair requirements.
9. Accessories such as bits, blades, sanding disc, cutting lines, etc are excluded from this guarantee.
10. Normal consumables parts, such as carbon brushes, bearings, chucks, cord assembly’s, spark plugs,
recoil pulleys and bump head assembly’s are specifically excluded from this guarantee.
Extended 24 Month Limited Warranty
Casals takes pride in their product quality and therefore offer an extended 24 month limited warranty from the
original date of purchase to offer the consumer peace of mind on their purchase.
• Should defects due to faulty material or workmanship develop, under normal domestic use, within 24 months
from the original date of purchase, please return the product to the store from where it was purchased for
repair free of charge.
• Casals will however replace a product, if the cost of the repair is not commercially viable or if their ability to
conduct repair effectively cannot be guaranteed.
• NB: The warranty on replaced products will be from the original date of purchase.
• All repairs carry a 3 month warranty even if this falls outside of the 2 year warranty period. Casals will attempt
to conduct repairs within reasonable industry standards but cannot be held responsible or liable for any cir-
cumstances not under their control.
Before returning your product, check for the following:
1. Your household mains supply socket is working and switched on.
2. The mains supply circuit is not overloaded (White trip switch on your DB board is off).
3. You have read the trouble shooting guide in your Instructions for Use.
4. All accessories and parts are present.
If service or repair becomes necessary outside the guarantee period, this service is still available however all
transport/postage, spares and labour costs will be paid by the consumer. All chargeable repairs will require the
consumers’ approval in writing once the quote is accepted. Once the go-ahead has been received Casals will
undertake to conduct the repair within a reasonable time and maintain the condition of the product as received.
For any assistance, service, queries and complaints please contact our Customer Care on 086 111 5006 or e-mail help@
creativehousewares.co.za.
Cape Town
20 Tekstiel Street, Parow, Cape Town,
7493, South Africa •P.O. Box 6156 Parow
East, 7501, South Africa Tel: [phone]
8117
Fax: [phone]
Durban
35 Adrain Road, Windermere, Durban,
South Africa, 4001
Tel: [phone]
Fax: [phone]
Johannesburg
Unit 25 & 26 San Croy Office park
Die Agora Road, Croydon, 1619
Tel: [phone]
Fax: [phone]
PL82-650- Planer.indd 5 2017/05/04 10:52:04 AM

HELPLINE
086 111 5006
1200EA
PL82-650
PL82-650- Planer.indd 6 2017/05/04 10:52:10 AM
