Case 480C User manual

480C
Loader Backhoe
Operators Manual
9-3224
Reprinted 

This symbol means ATTENTJON! BECOME ALERT! YOUR
6 SAFETY IS INVOLVED. The message that follows tf/e symbol
contains important information about your safety. Carefully read
the message. Make sure you fully understand the causes of
possible injury or death.
ssoo1
IF THIS MACHINE IS USED BY AN EMPLOYEE, IS LOANED-;OR IS RENTED,
MAKE SURE THAT THE OPERATOR UNDERSTANDS THE TWO
INSTRUCTIONS BELOW.
BEFORE THE OPERATOR STARTS THE ENGINE:
1. GIVE INSTRUCTIONS TO THE OPERATOR ON SAFE AND CORRECT
USE OF THE MACHINE.
2. MAKE SURE THE OPERATOR READS AND UNDERSTANDS THE
OPERATOR'S MANUAL FOR THIS MACHINE.
A
WARNING
IMPROPER OPERATION OFTHIS MACHINE CANCAUSE INJURYOR DEATH.
BEFORE STARTING THE ENGINE, DO THE FOLLOWING:
1. READ THE OPERATOR'S MANUAL.
2. READ ALL SAFETY DECALS ON THE MACHINE.
3. CLEAR THE AREA OF OTHER PERSONS.
LEARN AND PRACTICE SAFE USE OF MACHINE CONTROLS IN A SAFE,
CLEAR AREA BEFORE YOU OPERATE THIS MACHINE ON A JOB SITE.
It isyour responsibility to observe pertinent laws and regulations and to follow
manufacturer's instructions on machine operation and maintenance.
Seeyour Authorized Case dealer for additional operator's manuals, partscat-
alogs, and service manuals.
© 1995 Case Corporation
CASE and IH are registered trade marks of Case Corporation
Find manuals at https://best-manuals.com

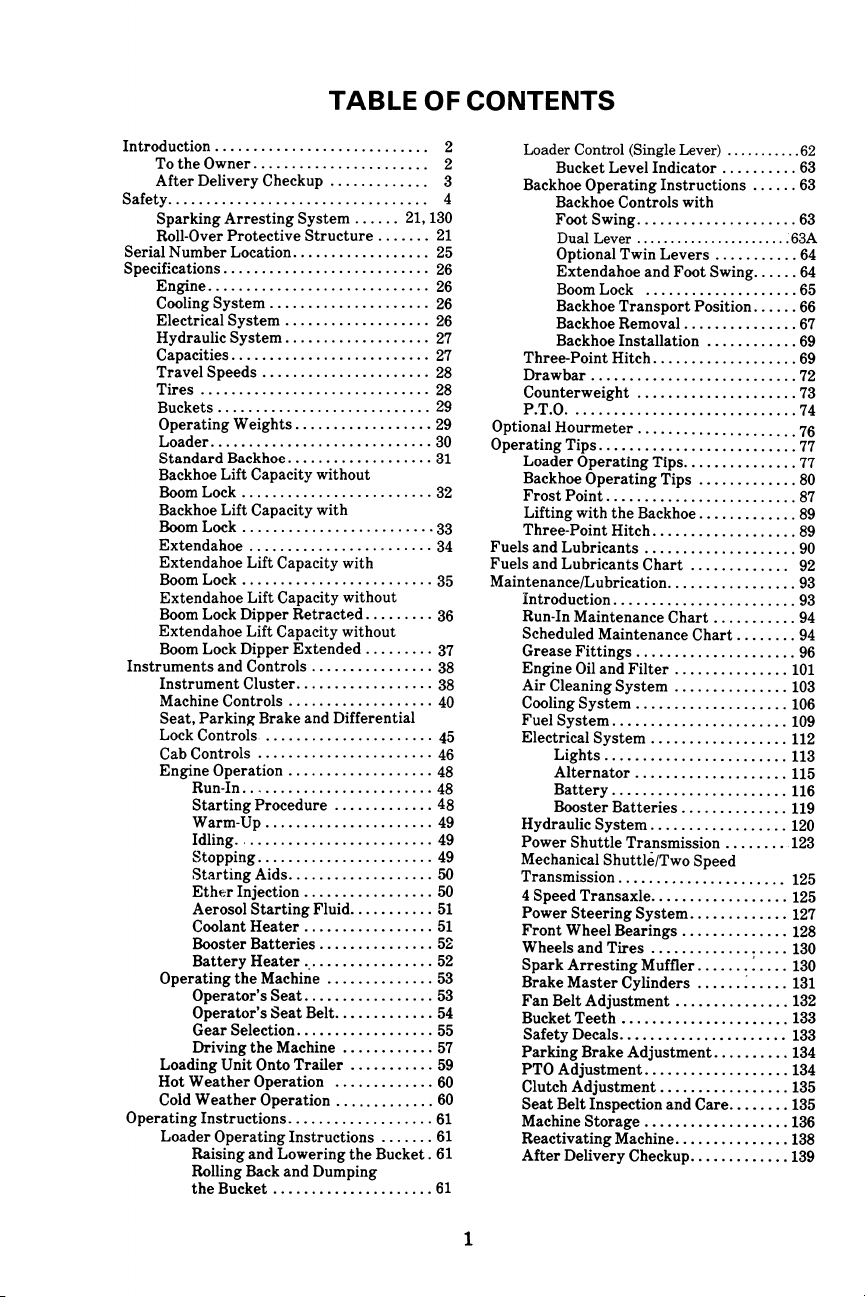

TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
To the Owner. . . . . . . . . . . . . . . . . . . . . . . 2
After Delivery Checkup . . . . . . . . . . . . . 3
Safety.................................. 4
Sparking Arresting System ...... 21,130
Roll-OverProtective Structure ....... 21
Serial Number Location.................. 25
Specifications ........................... 26
Engine ............................. 26
CoolingSystem ..................... 26
Electrical System ................... 26
Hydraulic System ................... 27
Capacities. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Travel Speeds ...................... 28
Tires .............................. 28
Buckets ............................ 29
Operating Weights .................. 29
Loader ............................. 30
Standard Backhoe................... 31
Backhoe Lift Capacity without
BoomLock ......................... 32
Backhoe Lift Capacity with
BoomLock ..................... ••••33
Extendahoe ........................ 34
Extendahoe Lift Capacity with
BoomLock ......................... 35
Extendahoe Lift Capacity without
BoomLock Dipper Retracted ......... 36
Extendahoe Lift Capacity without
BoomLock Dipper Extended ......... 37
Instruments and Controls ................ 38
Instrument Cluster .................. 38
Machine Controls ................... 40
Seat, Parking Brake and Differential
Lock Controls ..................... • 45
Cab Controls .............. •••. ••••• 46
Engine Operation ................... 48
Run-In ......................... 48
Starting Procedure ............. 48
Warm-Up ...................... 49
Idling.......................... 49
Stopping ....................... 49
Starting Aids................... 50
Ether Injection ................. 50
Aerosol Starting Fluid........... 51
Coolant Heater ................. 51
Booster Batteries ............... 52
Battery Heater._ ................ 52
Operating the Machine .............. 53
Operator's Seat ................. 53
Operator's Seat Belt............. 54
Gear Selection .................. 55
Driving the Machine ............ 57
Loading Unit Onto Trailer ........... 59
Hot Weather Operation ............. 60
ColdWeather Operation ............. 60
Operating Instructions ................... 61
Loader Operating Instructions ....... 61
Raising and Lowering the Bucket. 61
Rolling Backand Dumping
the Bucket ..................... 61
1
Loader Control (SingleLever) ........... 62
Bucket Level Indicator .......... 63
Backhoe Operating Instructions ...... 63
Backhoe Controls with
Foot Swing..................... 63
Dual Lever ....................... 63A
Optional Twin Levers ........... 64
Extendahoe and Foot Swing...... 64
BoomLock .................... 65
Backhoe Transport Position ...... 66
Backhoe Removal ............... 67
Backhoe Installation ............ 69
Three-Point Hitch ................... 69
Drawbar ........................... 72
Counterweight ..................... 73
P.T.O.............................. 74
Optional Hourmeter ..................... 76
Operating Tips .......................... 77
Loader Operating Tips............... 77
Backhoe Operating Tips ............. 80
Frost Point ......................... 87
Lifting with the Backhoe............. 89
Three-Point Hitch ................... 89
Fuels and Lubricants .................... 90
Fuels and Lubricants Chart . . . . . . . . . . . . . 92
Maintenance/Lubrication ................. 93
Introduction ........................ 93
Run-In Maintenance Chart ........... 94
Scheduled Maintenance Chart ........ 94
Grease Fittings ..................... 96
Engine Oiland Filter ............... 101
Air Cleaning System ............... 103
CoolingSystem .................... 106
Fuel System ....................... 109
Electrical System .................. 112
Lights ........................ 113
Alternator .................... 115
Battery ....................... 116
Booster Batteries .............. 119
Hydraulic System .................. 120
Power Shuttle Transmission . . . . . . . . 123
Mechanical Shuttle/Two Speed
Transmission . . . . . . . . . . . . . . . . . . . . . . 125
4 Speed Transaxle .................. 125
Power Steering System ............. 127
Front Wheel Bearings .............. 128
Wheels and Tires .................. 130
Spark Arresting Muffler ....... '..... 130
Brake Master Cylinders ...... :..... 131
Fan Belt Adjustment ............... 132
Bucket Teeth ...................... 133
Safety Decals...................... 133
Parking Brake Adjustment .......... 134
PTO Adjustment ................... 134
Clutch Adjustment ................. 135
Seat Belt Inspection and Care........ 135
Machine Storage ................... 136
Reactivating Machine............... 138
After Delivery Checkup............. 139
Find manuals at https://best-manuals.com

INTRODUCTION
TO THE OWNER
This manual is your guide to safe, productive operation. Read it carefully.
It will help to reduce trial and error learning. It should also minimize damage
and downtime caused by improper maintenance.
2
Find manuals at https://best-manuals.com

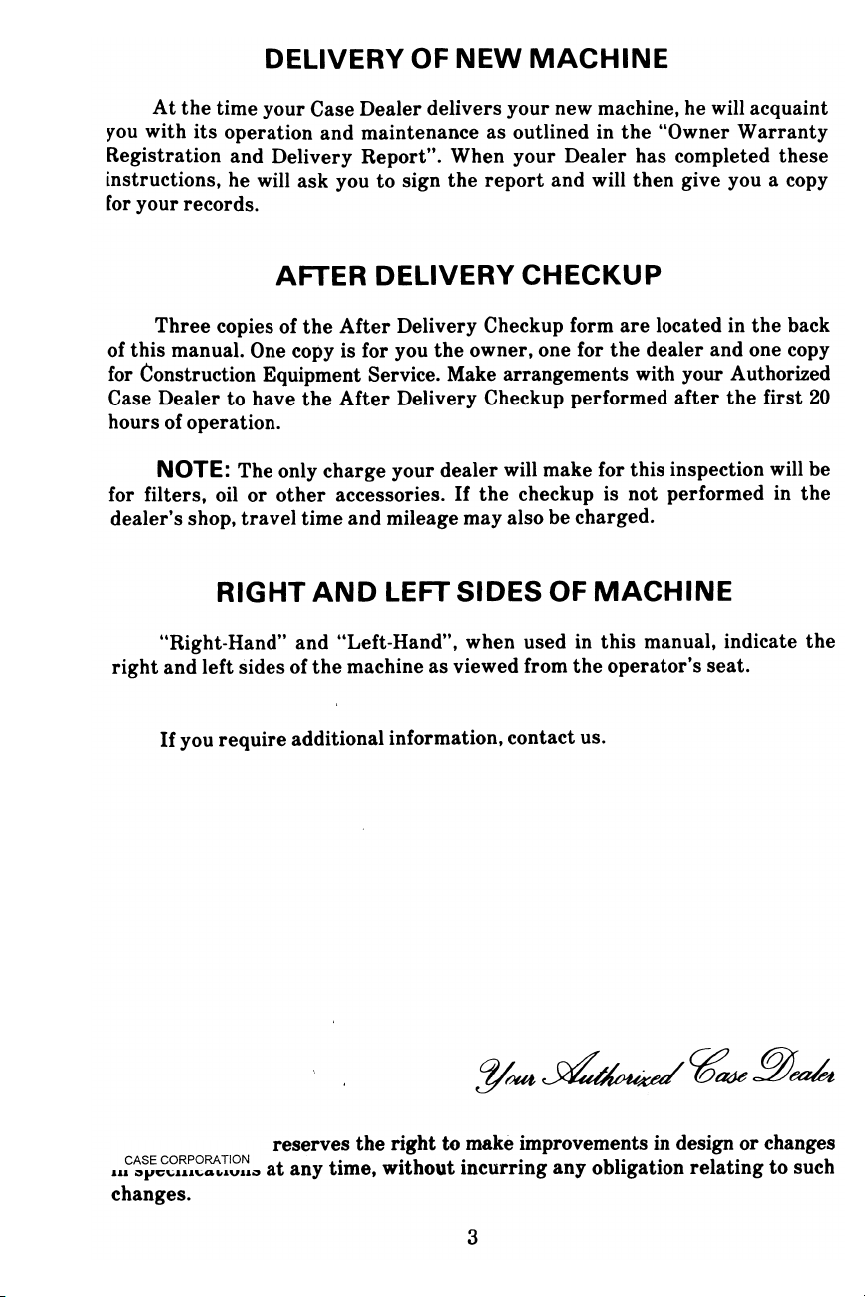

DELIVERY OF NEW MACHINE
At the time your Case Dealer delivers your new machine, he will acquaint
you with its operation and maintenance as outlined in the "Owner Warranty
Registration and Delivery Report". When your Dealer has completed these
instructions, he will ask you to sign the report and will then give you a copy
£oryour records.
AFTER DELIVERY CHECKUP
Three copies of the After Delivery Checkup form are located in the back
of this manual. One copy is for you the owner, one for the dealer and one copy
for Construction Equipment Service. Make arrangements with your Authorized
Case Dealer to have the After Delivery Checkup performed after the first 20
hours of operation.
NOTE:
The only charge your dealer will make for this inspection will be
for filters, oil or other accessories.
If
the checkup is not performed in the
dealer's shop, travel time and mileage may also be charged.
RIGHT AND LEFTSIDES OF MACHINE
"Right-Hand" and "Left-Hand", when used in this manual, indicate the
right and left sides of the machine as viewed from the operator's seat.
If
you require additional information, contact us.
reserves the right
to
make improvements in design or changes
CASE CORPORATION t· "th t • • bl" t· I t· t h
... "l'"'"'u"a"•vm,
at any 1me,w1 ou mcurrmg any o 1ga 10nre a mg o sue
changes.
3
Find manuals at https://best-manuals.com

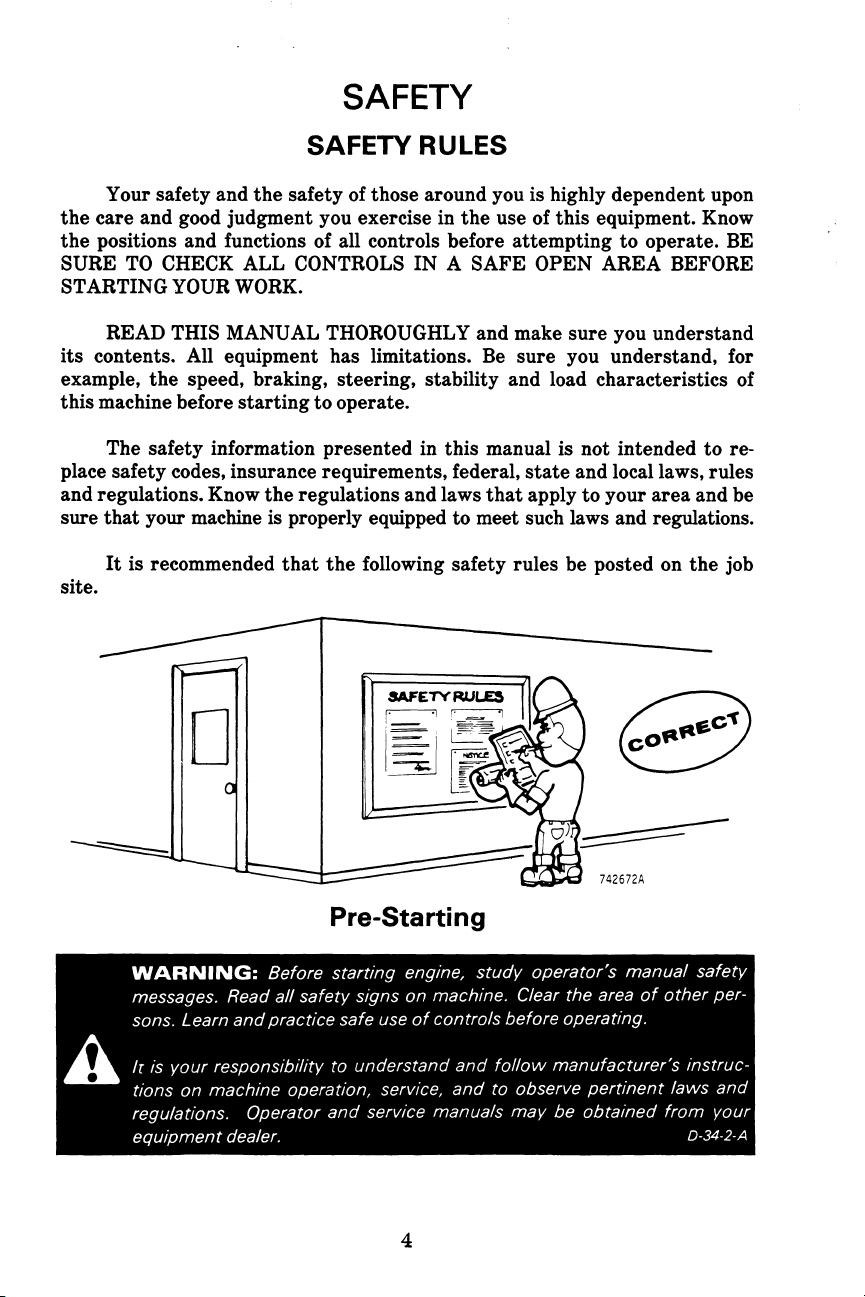

SAFETY
SAFETY RULES
Your safety and the safety of those aroundyou is highly dependent upon
the care and good judgment you exercise in the use of this equipment. Know
the positions and functions of all controls before attempting to operate. BE
SURE TO CHECK ALL CONTROLSIN A SAFE OPEN AREA BEFORE
STARTINGYOURWORK.
READ THIS MANUAL THOROUGHLYand make sure you understand
its contents. All equipment has limitations. Be sure you understand, for
example, the speed, braking, steering, stability and load characteristics of
this machinebefore starting to operate.
The safety information presented in this manual is not intended to re-
place safety codes, insurance requirements, federal, state and local laws, rules
andregulations. Knowthe regulations andlaws that apply to your area and be
sure that your machineis properly equippedto meet such laws and regulations.
It is recommended that the following safety rules be posted on the job
site.
A
□
SAFETY
r==7 __
I~-:
Pre-Starting
742672A
WARNING: Before starting engine, studv operator's manual safetv
messages. Read all safetv signs on machine. Clear the area of other per-
sons. Learn and practice safe use of controls before operating.
Iris vour responsibilitv to understand and follow manufacturer's instruc-
tions on machine operation, service, and to observe pertinent laws and
regulations. Operator and service manuals mav be obtained from vour
equipment dealer. D-34-2-A
4
Find manuals at https://best-manuals.com

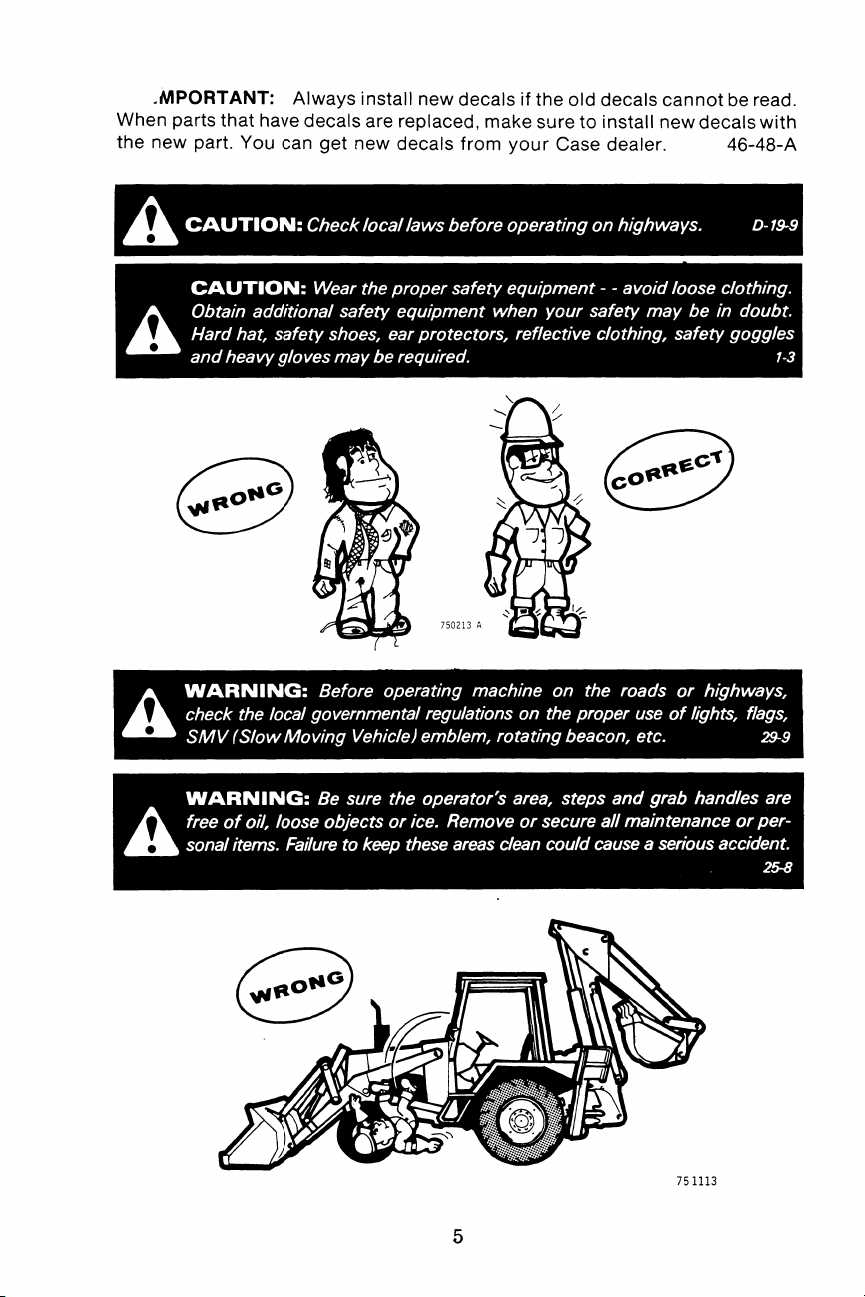

.MPORTANT: Always install new decals if the old decals cannot be read.
When parts that have decals are replaced, make sure to install new decals with
the new part. You can get new decals from your Case dealer. 46-48-A
ACAUTION: Check local laws before operating on highways.
D-19-9
CAUTION: Wear the proper safety equipment - - avoid loose clothing.
h
Obtain additional safety equipment when your safety may be in doubt.
.. Hard hat, safety shoes, earprotectors, reflective clothing, safety goggles
and heavy gloves may be required. 1-3
~
~
750213 A
h
WARNING: Before operating machine on the roads or highways,
.. check the local governmental regulations on the proper use of lights, flags,
SMV (Slow Moving Vehicle)emblem, rotating beacon, etc.
29-9
WARNING: Be sure the operator's area, steps and grab handles are
h
free of oil, loose objects or ice. Remove or secure all maintenance or per-
.. sonal items. Failureto keep theseareasclean could causea seriousaccident.
25-8
751113
5
Find manuals at https://best-manuals.com

AWARNING: Do not smoke when using starting fluid or spray fluid near
an open fire. Do not puncture or throw starting fluid can into an incinerator.
Use this starting aid sparingly and do not store in a hot area. 1-10
J">..CAUTION: Carry and maintain a fire extinguisher and first aid kit at all
.. times. Know how to use them both. 25-9
742673
ACAUTION: Before each operating period, test the machine for proper
steering, braking and operation. A properly operating machine can prevent
accidents. If required, repair or adjust machine before operating. 26-4
A WARNING: Know the location of underground cables, water mains,
gas lines, etc. A ruptured gas line or cut electrical line could result in
personal injury. 26-8
751130
CAUTION: Visually check out the machine for leaks and broken, miss-
/');. ing or malfunctioning parts. Be sure all caps, dip sticks, battery covers,
.. etc. are secure before starting. A part failure during operation could cause
injury. 25-10
EtherInjectionCylinder
./"),,,_CAUTION: Flammable and toxic. Do not depress valve pin. Contents
.. under pressure. Keep away from flame or sparks. Do not refill or incmerate
empty cylinder. Explosion and personal injury can result. D-46-83
6
Find manuals at https://best-manuals.com

h CAUTION: Understand the machine's limitations. Keep it under control
.. at all times. DO NOT TRY TODO TOOMUCH TOOFAST. 3-7
Operation
h CAUTION: If the machine is equipped with ROPS, fasten the seat belt
.. before starting the engine. 2-4
h WARNING: BE PARTICULARLY CAREFUL IF THIS IS NOT THE
.. MACHINE YOU WOULD NORMALLY OPERATE. 2-2
7
Find manuals at https://best-manuals.com

/).. CAUTION: Clean the windshield and windows to provide d
.. visibility. Be sure the windshield wipers are in good condition. Dirty
windows contribute to accidents. 24-1
DANGER: Use extreme caution when stopping. If the loader or attach-
/).. ment is raised, the machine can tip. Keep all movements smooth. It is
.. strongly suggested that the new operator work the machine in an open
area until a "feel" of the machine is developed. 10-7
L').. CAUTION: Warn all personnel who may be servicing or in path of
.. machine before starting. D-28-10
WARNING: Never transport a loaded bucket at full height. Keep the
/).. bucket as low as possible for better machine balance and visibility. When
.. transporting a loaded bucket over rough, uneven ground, keep travel
speed within safe operating limits. 18-6
0 C) ----
751119
8
Find manuals at https://best-manuals.com

CAUTION: Do not permit riders on machine. Thisis a one man machine.
D-28-9
7511H~
AWARNING: If the machine is to be operated on a grade or ramp, always
back up the grade or drive down forward. Keep the bucket close to the
ground for added stability. 46-10
A
WARNING: Lower stabilizers to operating position before "stretching
out" the backhoe (lowering boom and extending dipper). If the stabilizers
are not lowered, an unbalanced condition will result and could cause the
machine to tip.
To reposition machine when trenching, either raise boom to full height
and retract dipper or lower backhoe close to ground before raising
stabilizers.
To help stability when machine is equipped with Extendahoe or other
heavy rear attachments, fill loader bucket with material. 41-1
A CAUTION: Know and understand the traffic flow patterns of your job.
Understand and obey the flagman, road signs or signals. Failure to do so
could cause an accident. 29-3
9

h WARNING: Usecaution when operating in dust, smoke or fog. Slow
.. down when your vision is obscured or a serious accident could result.
34-7
WARNING: When digging on a slope with the backhoe, always engage
A
thepark brake. If the transmissionis in neutral and thepark brakeis released,
the machine will freewheel down the hill when the loader bucket and
backhoe stabilizers are raised. Reposition the machine from the tractor
operator's seat only. 46-28-A
A
WARNING: Use the hand throttle only to set engine speed during
backhoe operations or when instructed by the service manual. Failure
to follow above instructions could causean accident. 46-23
h CAUTION: Do not jump from the machine, serious injury could result.
.. 27-2
WARNING: If the engine stops or the power steering system fails,
h stop the machine as quickly aspossible to avoid an accident. Thesteering
.. ability of this machine is greatly reduced if a failure of this type should
occur. 34-8
WARNING: When backhoe is removed, always install rear 1400pound
h (635kg) counterweight or equivalent rear weight. Failure to observe this
.. warning could result in reduced vehiclebraking andIor cause the machine
to tip over. 46-2
h CAUTION: Uselow range for hillside or ramp operation. Never coast
.. downhill with transmission in neutral. Themachine could go out of control
and tip over.
D-45-12
10

DANGER: Keep all machine parts away from live electrical lines. If work
must be done close to high voltage lines, have the utility company dis-
h. connect them. It is not necessary to actually contact a power line for the
.. electricity to ground through the machine. If power does ground through
the machine, remain on the machine and DO NOT TOUCH THE MACHINE
STRUCTURE. Refer to the following chart. 4-4-A
Conductor Minimum Minimum
Voltage Working Clearance Transit Clearance
from Conductor from Conductor
50,000 volts or less 10' (3 m) 4' (1.2 m)
Over 50,000 volts 10' (3 m) plus 10' (3 m)
0.4" (10.2 mm)
for each 1,000 volts
over 50,000
345,000-750,000 volts 16' (4.8 m)
NOTE: IF ABOVEREQUIREMENTSARELESSSTRINGENTTHANSTATE
REQUIREMENTS,THESTATEREQUIREMENTSSHALLAPPLY. 750997
751121
A CAUTION: When raising a load above transport height, always level
the attachment with the bucket control as the load is raised. This will
prevent spillage of the load. 10-3
I').. WARNING: Check that the parking brake is set and the transmission
.. controls are in neutral before starting the engine. 4-1
/1);. CAUTION: Check that all lights (if so equipped) are functioning properly
.. before operating at night. 25-7
11

/';,.. CAUTION: Lower or block elevated components and engage hand brake
.. before leaving machine. D-28-7
751117
h. CAUTION: Operate tractor and equipment controls from seat position
.. only. Any other method could result in a serious injury. D-45-7
h. CAUTION: Keep alert. Clear the operating area of all unauthorized
.. persons. Know the location of fellow workers in your area. , 2-3
751116
/';,.. CAUTION: Operate backhoe from seat position only. Any other method
.. could result in serious injury. 28-3
h. CAUTION: Do not attempt to drive the machine with the operator's
.. seat positioned for backhoe operation. 8-1
12

WARNING: Never dig under the backhoe stabilizers. The machine
could tip into the excavation if the bank caves in. 41-8
A WARNING: Operate backhoe from operator's seat only. B-4
751124
L'),._CAUTION: Do not use the steering wheel or control levers as a hand-
.. hold for getting on or off the machine. 12-9
f'>..CAUTION: Stop engine before dismounting. Machine runaway and a
.. serious accident could result. D-28-5
13

WARNING: When operating on a slope, always position the mac ne
I\.. to swing the backhoe to the uphill side if possible. Avoid steep slopes or
.. machine positions that are unstable while moving or while operating the
backhoe. 22-8
e 751114
I\.. WARNING: Do not swing too far to one side as it may cause machine
.. to tip. Do not swing too fast as the load may start swinging out of control.
31-8
~~,=-----~~==!_- 751129
A CAUTION: Be sure transport chains are properly installed on backhoe
boom before traveling on roads or between job sites. The chains prevent
accidental lowering of the backhoe. 41-11
I\.. WARNING: Before swinging the backhoe boom to either side, be sure
.. there is ample room and that all persons are out of the way. 7-10
14

A CAUTION: Lock brake pedals together for road travel. There ts danger
of tippmg the machine if either brake pedal is used alone when traveling
over 5 mph. 28-8
h_ WARNING: Do not work under overhangs or where there is a danger
.. of a slide. A serious accident could result. 41-10
h_ CAUTION: Never leave the machme unattended with the engme runnmg .
.. Set the parkmg brake, lower the attachments to the ground and stop the
engme. Park the machme on level ground or sideways on a slope. 24-2-A
~
~
A
751127
WARNING: If the clutch disconnect is not used correctly, an accident
can result. Know the operation of the clutch disconnect before operating
on roads. An example of not using the clutch disconnect correctly is listed
below.
EXAMPLE: Clutch disconnect in the Drive position, transmission in
first gear and the operator is using the hand throttle. Results -Brakes wt/!
not stop the machine. 46-24-8
WARNING: Always drive the machine slowly when on hillsides, ramps
h_ or rough terrain. Be extremely careful when working around trenches or
.. banks. Failure to follow the above recommendations could cause the
machine to roll over. Personal injury could result. 26-10
15

h CAUTION: Never wear a seat belt loosely or with slack in the
.. system. Never wear the belt in a twisted condition or pinched between
the seat structural members. 36-6
WARNING: Normal P. T O operatmg speed 1s54-0rpm Do not operate
h P.T.0 faster than 540 rpm Excess P.T 0. speed can cause personal mjury.
.. Do not operate P T.0. without shield attached and tachometer workmg
A
properly D-44- 7-A
WARNING: Whenever a PTO driven machine is in operation, the safety
guard must always be in place to prevent injury to the operator. The
safety guard must never be removed at any time, except for replacement.
When the PTO is not in use, the tubular guard must be installed over the
end of the PTO shaft. 42-5
A WARNING: When doing stationary PTO work and dismounting from
the tractor with the PTO running, keep clear of all moving parts as they
are apotential safety hazard. 42-6
AWARNING: Rotating machine parts, stay clear, keep shields installed
to help protect from clothing entanglement and injury. Wear close-fitted
clothing. 42-2-D
770804
h WARNING: Stop engine before working on PTO driven machine or
.. PTO shaft, or performing any maintenance. 42-3
Service
L'),._CAUTION: Do not attempt repairs you do not understand. There is no
.. disgrace in asking for help. 6-1
16

CAUTION: Thebattery on this machine is equipped with nonspill caps.
L\.. Make absolutely certain that a replacement battery has nonspill caps.
.. DO NOT operate this machine unless the battery is equipped with non-
spill capsand that they function properly.
18-10
h
DANGER: Batteries ·produce explosive charges. Keep sparks, flame
.. and cigarettes away. Ventilate when charging or using in enclosed space.
Always shield eyeswhen working nearbatteries.
19-1
~
~
h
CAUTION: When removing a battery, alwsys disconnect the (-)
.. negative ground cable first When installing the battery, always connect
the(-) negative ground cablelast. 7-3
h
WARNING: Never check battery charge by placing a metal object
.. across the posts -the sparks could cause an explosion. Usea voltmeter
or hydrometer.
5-7
17

h.
CAUTION: Never wear rings or metal watch bands as you may gro d
.. alive circuit when working on electrical system.
46-55
h
CAUTION: Think out the circuit before making or breaking a con-
.. nection. A wrong connection can be painful and expensive.
54
h
CAUTION: Pressurecooling system. Removecap slowly and only when
.. engine is cool or painful burns could result. D-~2
751122
/").. CAUTION: Storage areas for batteries must be well ventilated to pre-
.. vent accumulation of hydrogen gas from newly recharged batteries.
7-2
/").. DANGER: Exhaust fumes can kill. If necessary to start an engine in an
.. enclosed area, be sure to provide adequate ventilation.
27-4
h
WARNING: Do not fuel the machine when smoking, when near an
.. open fire or with the engine running.
6-6
75 1115
AWARNING: Use extreme caution when disconnecting air pressure or
hydraulic lines. High pressure in a system could cause injury when fittings
are disconnected. Relieveall pressure in system before working on system.
31-6
18
