Operation Guide 5114 5214
E-1
ENGLISH
Congratulations upon your selection of this CASIO watch.
Applications
The built-in sensors of this watch measure direction, barometric pressure, temperature and altitude.
Measurement results are indicated by the second hand of the watch and on the digital display. Such
features make this watch useful when hiking, mountain climbing, or when engaging in other such outdoor
activities.
Warning !
•The measurement functions built into this watch are not intended for taking measurements that
require professional or industrial precision. Values produced by this watch should be considered
as reasonable representations only.
•When engaging in mountain climbing or other activities in which losing your way can create a
dangerous or life-threatening situation, always use a second compass to confirm direction
readings.
•Note that CASIO COMPUTER CO., LTD. assumes no responsibility for any damage or loss
suffered by you or any third party arising through the use of this product or its malfunction.
E-2

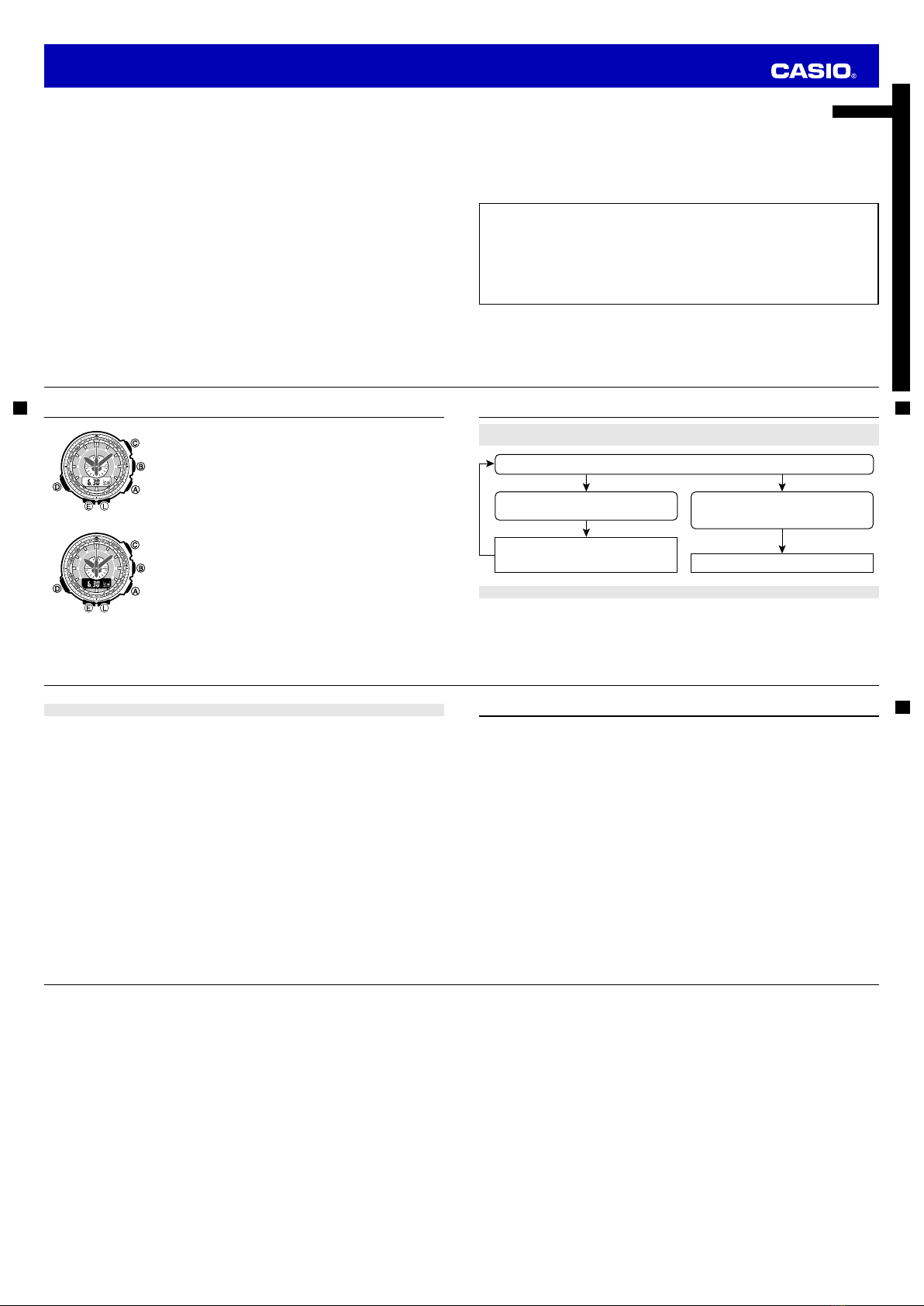

About This Manual
•Depending on the model of your watch, display text appears either as
dark figures on a light background, or light figures on a dark
background. All sample displays in this manual are shown using dark
figures on a light background.
•Button operations are indicated using the letters shown in the
illustration.
•Note that the product illustrations in this manual are intended for
reference only, and so the actual product may appear somewhat
different than depicted by an illustration.
(Light)(Light)
(Light)(Light)
E-3
Things to check before using the watch
1. Hold down Dfor about two seconds to enter the Timekeeping Mode, and then observe the
movement of the second hand.
Is the second hand moving smoothly at one-second intervals?
Go to step 2.
Power is low. Charge the watch by placing it in
a location where it is exposed to light. For
details, see “Charging the Watch” (page E-9).
NO YES
YES
Is the second hand moving at two-second
intervals or is it stopped completely?
The watch is charged sufficiently. For details
about charging, see “Charging the Watch”
(page E-9).
NEXT
2. Check the Home City and the daylight saving time (DST) setting.
Use the procedure under “To configure Home City settings” (page E-28) to configure your Home City and
daylight saving time settings.
Important!
Proper time calibration signal reception and World Time Mode data depend on correct Home City, time,
and date settings in the Timekeeping Mode. Make sure you configure these settings correctly.
E-4
3. Set the current time.
•To set the time using a time calibration signal
See “To get ready for a receive operation” (page E-18).
•To set the time manually
See “Configuring Current Time and Date Settings Manually” (page E-31).
The watch is now ready for use.
•For details about the watch’s radio controlled timekeeping feature, see “Radio Controlled Atomic
Timekeeping” (page E-15).
E-5
Contents
E-2 About This Manual
E-3 Things to check before using the watch
E-9 Charging the Watch
E-14 To recover from the sleep state
E-15 Radio Controlled Atomic Timekeeping
E-18 To get ready for a receive operation
E-20 To perform manual receive
E-21 To check the latest signal reception results
E-21 To turn auto receive on and off
E-23 Mode Reference Guide
E-27 Timekeeping
E-28 Configuring Home City Settings
E-28 To configure Home City settings
E-30 To change the Daylight Saving Time (summer time) setting
E-31 Configuring Current Time and Date Settings Manually
E-31 To change the current time and date settings manually
E-6
E-34 Taking Direction Readings
E-34 To take a direction reading
E-37 To perform magnetic declination correction
E-38 To perform bidirectional calibration
E-39 To perform northerly calibration
E-40 To set a map and find your current location
E-42 To find the bearing to an objective
E-44 Taking Barometric Pressure and Temperature Readings
E-44 To enter and exit the Barometer/Thermometer Mode
E-45 To take barometric pressure and temperature readings
E-50 To calibrate the pressure sensor and the temperature sensor
E-52 Taking Altitude Readings
E-53 To take an altimeter reading
E-55 To select the altitude auto measurement method
E-59 To change the altitude differential scale step unit
E-59 To set the altitude differential start point
E-60 To use the altitude differential value
E-62 To specify a reference altitude value
E-63 To create a manual save record
E-69 Specifying Temperature, Barometric Pressure, and Altitude Units
E-69 To specify temperature, barometric pressure, and altitude units
E-71 Precautions Concerning Simultaneous Measurement of Altitude and Temperature
E-7
E-72 Viewing Altitude Records
E-72 To view altitude records
E-74 To delete a single altitude record
E-74 To delete all altitude records
E-75 Using the Stopwatch
E-75 To enter the Stopwatch Mode
E-75 To perform an elapsed time operation
E-75 To pause at a split time
E-76 To measure two finishes
E-77 Using the Countdown Timer
E-77 To enter the Countdown Timer Mode
E-77 To specify the countdown start time
E-78 To perform a countdown timer operation
E-78 To stop the alarm
E-79 Using the Alarm
E-79 To enter the Alarm Mode
E-80 To set an alarm time
E-81 To test the alarm
E-81 To turn an alarm and the Hourly Time Signal on and off
E-81 To stop the alarm
MO1103-EA

Operation Guide 5114 5214
E-8
E-82 Checking the Current Time in a Different Time Zone
E-82 To enter the World Time Mode
E-82 To view the time in another time zone
E-83 To specify standard time or daylight saving time (DST) for a city
E-84 To swap your Home City and World Time City
E-86 Auto Correction of Hand Home Positions
E-87 To trigger auto correction of hand home positions
E-88 Adjusting Home Positions Manually
E-88 To adjust home positions manually
E-90 Illumination
E-90 To turn on illumination manually
E-91 To change the illumination duration
E-93 To turn the auto light switch on and off
E-95 Button Operation Tone
E-95 To turn the button operation tone on and off
E-96 Troubleshooting
E-103 Specifications
E-9

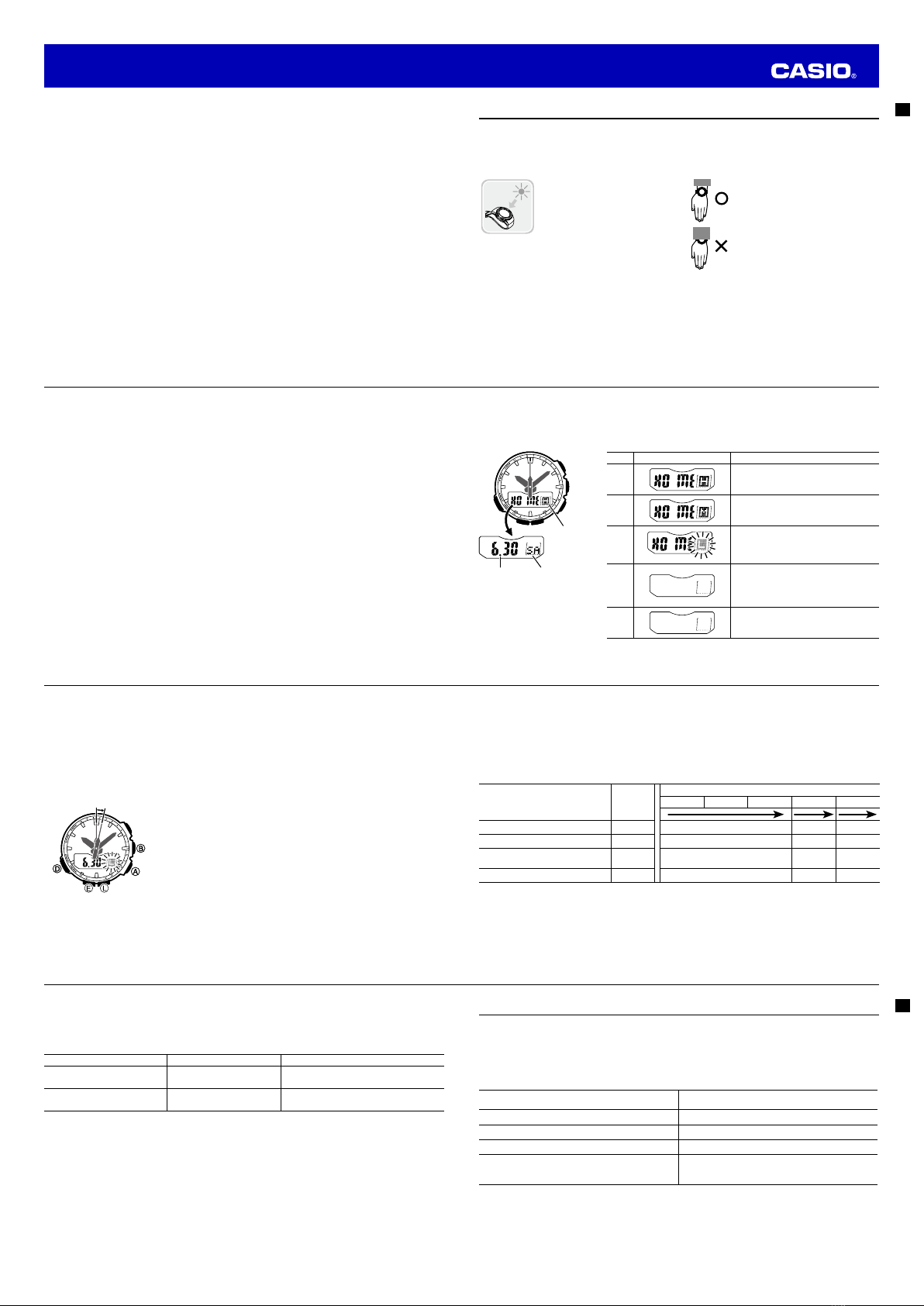

Charging the Watch
The face of the watch is a solar cell that generates power from light. The generated power charges a
built-in rechargeable battery, which powers watch operations. The watch charges whenever it is exposed
to light.
Charging Guide
Whenever you are not wearing the
watch, leave it in a location where it
is exposed to light.
•Best charging performance is
achieved by exposing the watch to
the strongest light available.
When wearing the watch, make sure
that its face is not blocked from light
by the sleeve of your clothing.
•The watch may enter a sleep state
(page E-14) if its face is blocked
by your sleeve even only partially.
Warning!
Leaving the watch in bright light for charging can cause it to become quite hot.
Take care when handling the watch to avoid burn injury. The watch can become particularly hot
when exposed to the following conditions for long periods.
•On the dashboard of a car parked in direct sunlight
•Too close to an incandescent lamp
•Under direct sunlight
E-10
Important!
•Allowing the watch to become very hot can cause its liquid crystal display to black out. The
appearance of the LCD should become normal again when the watch returns to a lower temperature.
•Turn on the watch’s Power Saving function (page E-14) and keep it in an area normally exposed to
bright light when storing it for long periods. This helps to ensure that power does not run down.
•Storing the watch for long periods in an area where there is no light or wearing it in such a way that it is
blocked from exposure to light can cause power to run down. Expose the watch to bright light
whenever possible.
E-11
Power Levels
You can check the current battery power level by viewing the battery power indicator that appears on the
digital display when you enter the Timekeeping Mode.
•To enter the Timekeeping Mode from any other mode, hold down Dfor about two seconds.
Level Battery Power Indicator Function Status
1
(H) All functions enabled.
2
(M) All functions enabled.
3
(L)
Signal reception, illumination, tone,
sensor, and hand home position
correction disabled. Second hand jumps
every two seconds.
4
Signal reception, illumination, tone,
sensor, and hand home position
correction disabled. Blank digital display.
Second hand stopped, hour and minute
hands stopped at 12 o’clock.
5All hands stopped at 12 o’clock. All
functions disabled.
Battery power
indicator
Month Day Day of week
Battery power
indicator
Month Day Day of week
E-12
•The flashing
Lindicator at Level 3 tells you that battery power is very low, and that exposure to bright
light for charging is required as soon as possible.
•At Level 5, all functions are disabled and settings return to their initial factory defaults. Once the battery
reaches Level 2 (
M) after falling to Level 5, reconfigure the current time, date, and other settings.
•Display indicators reappear as soon as the battery is charged from Level 5 to Level 2 (
M).
•Leaving the watch exposed to direct sunlight or some other very strong light source can cause the
battery power indicator to show a reading temporarily that is higher than the actual battery level. The
correct battery level should be indicated after a few minutes.
•All data stored in memory is deleted, and the current time and all other settings return to their initial
factory defaults whenever battery power drops to Level 5 and when you have the battery replaced.
Charging Required Indication (by second hand)
When battery power reaches Level 3, the second hand of the watch will
jump at 2-second intervals in the Timekeeping Mode to let you know that
charging is required.
Power Recovery Mode
•Repeated sensor measurement, illumination, or use of tones over a short period of time may cause the
watch to enter a power recovery mode, which is indicated by a recovery indicator (
R) to flash on the
digital display. The watch will remain in the power recovery mode until battery power recovers.
E-13
•Illumination, tones, and sensor operations are disabled and the hands of the watch stop until battery
power recovers.
•Battery power takes about 15 minutes to recover. The recovery indicator (
R) will stop flashing and
normal watch operation will be restored when battery recovery is complete.
•Frequent flashing of the recovery indicator (
R) indicates that battery power is low. Expose the watch to
light to charge its battery.
Charging Times
Exposure Level (Brightness)
Daily
Operation
*1
Level Change *2
Level 5 Level 4 Level 3 Level 2 Level 1
Outdoor sunlight (50,000 lux) 8 min. 2 hours 18 hours 5 hours
Sunlight through a window (10,000 lux) 30 min. 6 hours 69 hours 19 hours
Daylight through a window on a
cloudy day (5,000 lux) 48 min. 9 hours 111 hours 30 hours
Indoor fluorescent lighting (500 lux) 8 hours 90 hours – – – – – –
*1 Approximate amount of exposure time required each day to generate enough power for normal daily
operation.
*2 Approximate amount of exposure time (in hours) required to take power from one level to the next.
•The above exposure times all are for reference only. Actual exposure times depend on lighting
conditions.
•For details about the operating time and daily operating conditions, see the “Power Supply” section of
the Specifications (page E-106).
E-14
Power Saving
Power Saving enters a sleep state automatically whenever the watch is left for a certain period in an area
where it is dark. The table below shows how watch functions are affected by Power Saving.
•There actually are two sleep state levels: “display sleep” and “function sleep”.
•With this watch, the Power Saving function cannot be disabled.
Elapsed Time in Dark Hands and Display Operation
60 to 70 minutes (display sleep) Blank display, second hand
stopped at 12 o’clock.
Except for display and second hand, all
functions enabled.
6 or 7 days (function sleep) Blank display, all hands
stopped at 12 o’clock.
Except for timekeeping, all functions
disabled.
•The watch will not enter a sleep state between 6:00 AM and 9:59 PM. If the watch is already in a sleep
state when 6:00 AM arrives, however, it will remain in the sleep state.
•You will not be able to enter the Compass, Barometer/Thermometer, Altimeter, Stopwatch, or
Countdown Timer Mode while the watch is in a sleep state.
To recover from the sleep state
Move the watch to a well-lit area, press any button, or angle the watch towards your face for reading (page
E-91).
E-15
Radio Controlled Atomic Timekeeping
This watch receives a time calibration signal and updates its time setting accordingly. However, when
using the watch outside of areas covered by time calibration signals, you will have to adjust the settings
manually as required. See “Configuring Current Time and Date Settings Manually” (page E-31) for more
information.
This section explains how the watch updates its time settings when the city code selected as the Home
City is in Japan, North America, Europe, or China, and is one that supports time calibration signal
reception.
If your Home City Code setting is this: The watch can receive the signal from the transmitter
located here:
LONDON (LON), PARIS (PAR), ATHENS (ATH) Anthorn (England), Mainflingen (Germany)
HONG KONG (HKG) Shangqiu City (China)
TOKYO (TYO) Fukushima (Japan), Fukuoka/Saga (Japan)
HONOLULU (HNL), ANCHORAGE (ANC),
LOS ANGELES (LAX), DENVER (DEN), CHICAGO (CHI),
NEW YORK (NYC)
Fort Collins, Colorado (United States)
Important!
•The areas covered by HONOLULU (
HNL) and ANCHORAGE ( ANC) are quite far from the calibration
signal transmitters, so certain conditions may cause reception problems.
•When HONG KONG (
HKG) is selected as the Home City, only the time and date are adjusted
according to the time calibration signal. You need to switch manually between standard time and
daylight saving time (DST) if required. See “To configure Home City settings” (page E-28) for
information about how to do this.

Operation Guide 5114 5214
E-16

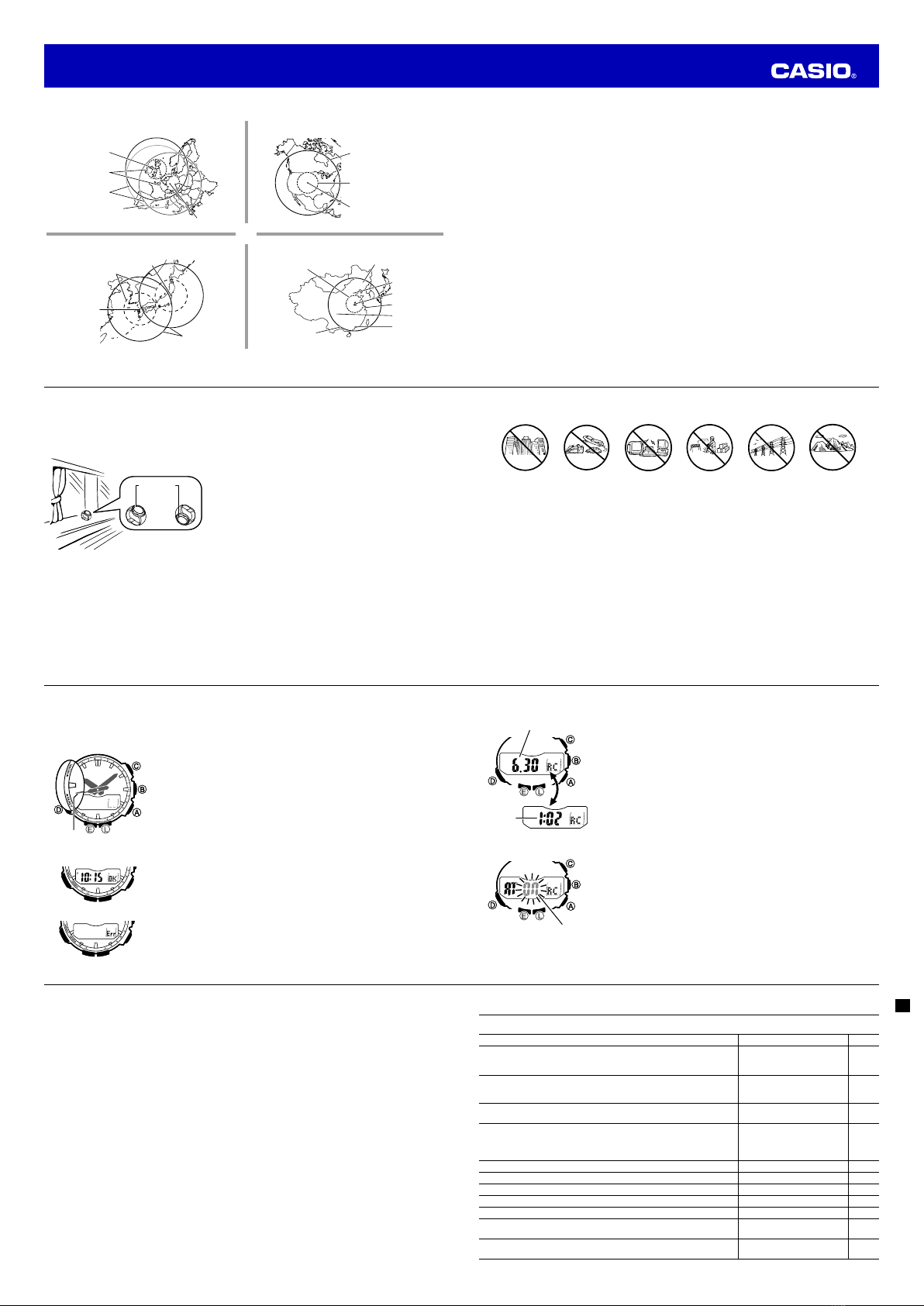

Approximate Reception Ranges
UK and German Signals
Anthorn
500 kilometers
1,500 kilometers
The Anthorn signal is
receivable within this area Mainflingen
2,000 miles
(3,000 kilometers)
600 miles
(1,000 kilometers)
Fort Collins
North American Signal
Japanese Signals Chinese Signal
500 kilometers Changchun
Beijing
Shangqiu
Shanghai
Chengdu
Hong Kong
1,500 kilometers
1,000 kilometers
Fukuoka/Saga
500 kilometers
Fukushima
E-17
•Even when the watch is within range of a transmitter, signal reception may be impossible due to the
effects of geographic contours, structures, weather, the time of year, the time of day, radio interference,
etc. The signal becomes weaker at distances of approximately 500 kilometers, which means that the
influence of the conditions listed above becomes even greater.
•Signal reception may not be possible at the distances noted below during certain times of the year or
day. Radio interference may also cause problems with reception.
Mainflingen (Germany) or Anthorn (England) transmitters: 500 kilometers (310 miles)
Fort Collins (United States) transmitter: 600 miles (1,000 kilometers)
Fukushima or Fukuoka/Saga (Japan) transmitters: 500 kilometers (310 miles)
Shangqiu (China) transmitter: 500 kilometers (310 miles)
•As of July 2010, China does not use Daylight Saving Time (DST). If China does go to the Daylight
Saving Time system in the future, some functions of this watch may no longer operate correctly.
•Using this watch in a country covered by a time calibration that is different from the countries it
supports may result in incorrect time indication due to local application of summer time, etc.
E-18
To get ready for a receive operation
1. Confirm that the watch is in the Timekeeping Mode. If it isn't, hold down
Dfor about two seconds to
enter the Timekeeping Mode. (page E-24)
2. The antenna of this watch is located on its 12 o’clock side. Position the watch with 12 o’clock facing
towards a window as shown in the nearby illustration. Make sure there are no metal objects nearby.
• Signal reception normally is better at night.
• The receive operation takes from two to seven minutes, but
in some cases it can take as long as 14 minutes. Take
care that you do not perform any button operation or
move the watch during this time.
12 o’clock
or
12 o’clock
or
E-19
• Signal reception may be difficult or even impossible under the conditions described below.
Inside or
among
buildings
Inside a
vehicle
Near
household
appliances,
office
equipment,
or a mobile
phone
Near a
construction
site, airport,
or other
sources of
electrical
noise
Near
high-tension
power lines
Among or
behind
mountains
3. What you should do next depends on whether you are using Auto Receive or Manual Receive.
• Auto Receive: Leave the watch over night in the location you selected in step 2. See “Auto Receive”
below for details.
• Manual Receive: Perform the operation under “To perform manual receive” on page E-20.
Auto Receive
•With Auto Receive, the watch performs the receive operation each day automatically up to six times (up
to five times for the Chinese calibration signal) between the hours of midnight and 5 a.m. (according to
the Timekeeping Mode time). When any receive operation is successful, none of the other receive
operations for that day are performed.
•When a calibration time is reached, the watch will perform the receive operation only if it is in the
Timekeeping Mode or World Time Mode. The receive operation is not performed if a calibration time is
reached while you are configuring settings.
E-20
•You can use the procedure under “To turn auto receive on and off” (page E-21) to enable or disable
auto receive.
To perform manual receive
1. Use Dto select the Receive Mode (
RC) as shown on page E-24.
2. Hold down Auntil the second hand points to READY (or Ron some
models).
• This indicates that the watch is ready for signal reception.
• After a short while, the second hand will move to WORK (or Won
some models) and signal reception will begin. Do not operate
any of the watch’s buttons until the second hand starts moving
normally again, which indicates that reception is complete.
• If signal reception is unstable, the second hand may keep moving
between WORK (W) and READY (R).
• OK will appear on the digital display if the receive operation is
successful, while Err indicates reception was unsuccessful.
• If the second hand remains at READY (R), press any button to cancel
signal reception. Move the watch to a location where reception
conditions are better and try again.
3. Press Dtwice to return to the Timekeeping Mode.
Note
To cancel an ongoing signal receive operation, press any of the watch’s
buttons. This will return to the Receive Mode screen in step 1 of this
procedure.
Receiving
Receive successful
Second
hand
Receiving
Receive successful
Second
hand
Receive failedReceive failed
E-21
To check the latest signal reception results
Enter the Receive Mode (page E-24).
•When receive is successful, the digital display shows the time and
date that receive was successful. - : - - indicates that none of the
reception operations were successful.
•To return to the Timekeeping Mode, press Dtwice.
To turn auto receive on and off
1. Enter the Receive Mode (page E-24).
2. Hold down Euntil On or OFF flashes on the digital display. This is the
setting screen.
• Note that the setting screen will not appear if the currently selected
Home City is one that does not support time calibration reception.
3. Press Ato toggle between auto receive on (
On) and off ( OFF).
4. Press Eto exit the setting screen.
Hour :
Minutes
Month Day
1 second
Hour :
Minutes
Month Day
1 second
On/Off
status
On/Off
status
E-22
Radio-controlled Atomic Timekeeping Precautions
•Strong electrostatic charge can result in the wrong time setting.
•Even if a receive operation is successful, certain conditions can cause the time setting to be off by up
to one second.
•The watch is designed to update the date and day of the week automatically for the period January 1,
2000 to December 31, 2099. Updating of the date by signal reception will no longer be performed
starting from January 1, 2100.
•If you are in an area where signal reception is not possible, the watch keeps time with the precision
noted in “Specifications” (page E-103).
•The receive operation is disabled under any of the following conditions.
– While power is at Level 3 (
L) or lower (page E-11)
– While the watch is in the power recovery mode (page E-12)
– While a sensor operation is being performed
– When the watch is in the function sleep state (“Power Saving”, page E-14)
– While a hand home position adjustment operation is in progress (page E-86)
– While a countdown timer operation is in progress (page E-77)
•A receive operation is cancelled if an alarm sounds while it is being performed.
•The Home City setting reverts to the initial default of TOKYO (TYO) whenever the battery power level
drops to Level 5 or when you have the rechargeable battery replaced. If this happens, change the
Home City to the setting you want (page E-28) .
E-23
Mode Reference Guide
Your watch has 11 “modes”. The mode you should select depends on what you want to do.
To do this: Enter this mode: See:
•View the current date in the Home City
•Configure Home City and daylight saving time (DST) settings
•Configure time and date settings manually
Timekeeping Mode E-27
•Determine your current bearing or the direction from your current
location to a destination as a direction indicator and angle value
•Determine your current location using the watch and a map
Compass Mode E-34
•View the barometric pressure and temperature at your current location
•View a graph of barometric pressure readings
Barometer/Thermometer
Mode E-44
•View the altitude at your current location
•Determine the altitude differential between two locations (reference
point and current location)
•Record an altitude reading with the measurement time and date
Altimeter Mode E-52
Recall records created in the Altimeter Mode Data Recall Mode E-72
Use the stopwatch to measure elapsed time Stopwatch Mode E-75
Use the countdown timer Countdown Timer Mode E-77
Set an alarm time Alarm Mode E-79
View the current time in one of 29 cities (29 time zones) around the globe World Time Mode E-82
•Perform a time calibration receive operation
•Check whether the last receive operation was successful Receive Mode E-20
Perform hand home position adjustment Hand Home Position
Adjustment Mode E-86

Operation Guide 5114 5214
E-24

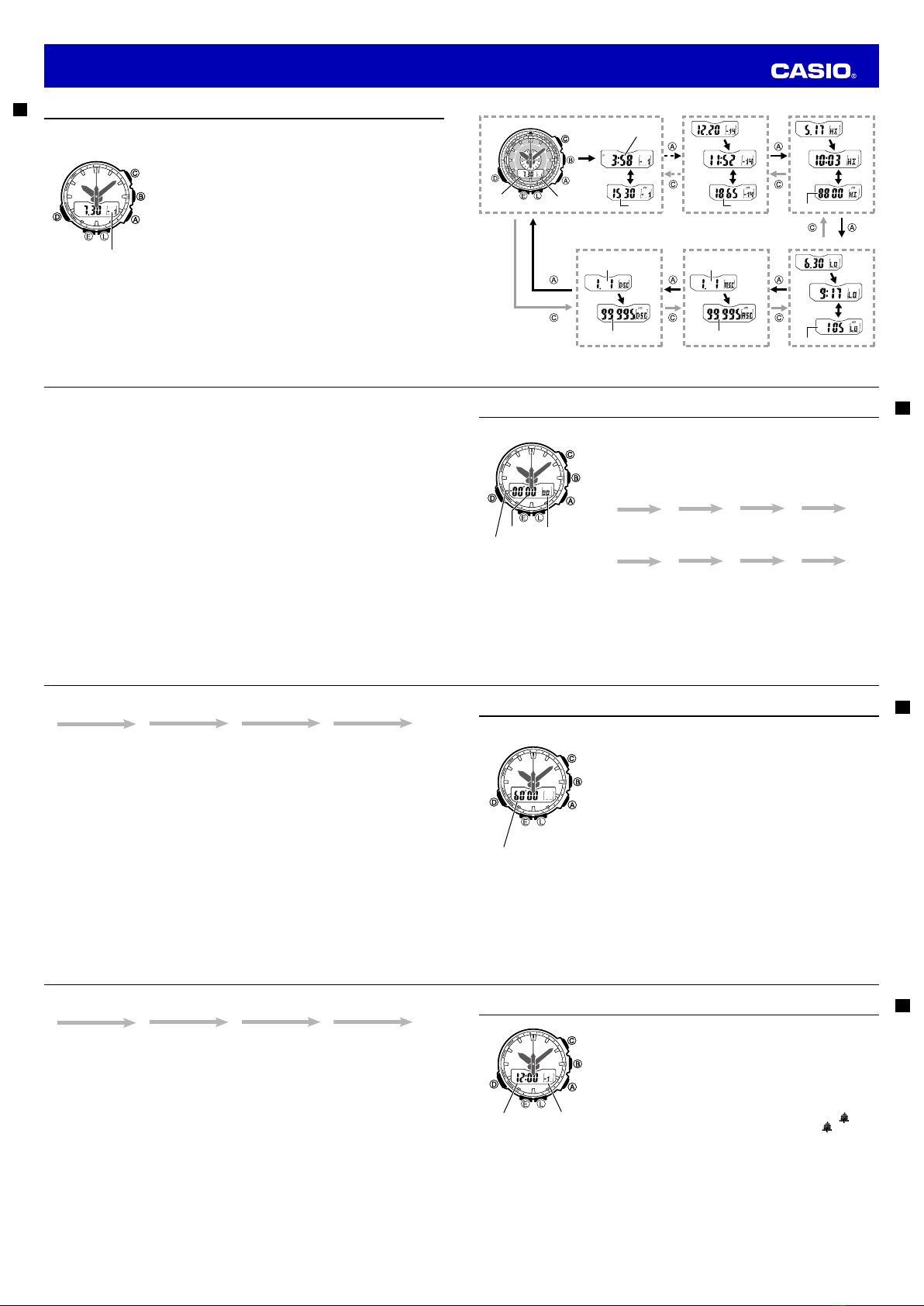

Selecting a Mode
•The illustration below shows which buttons you need to press to navigate between modes.
•To return to the Timekeeping Mode from any other mode, hold down Dfor about two seconds.
•In any mode, press Lto illuminate the display.
World Time
Mode
Data Recall
Mode
Hand Home Position
Adjustment Mode
Stopwatch Mode
Countdown
Timer Mode
Alarm Mode Receive Mode
Timekeeping Mode
World Time
Mode
Data Recall
Mode
Hand Home Position
Adjustment Mode
Stopwatch Mode
Countdown
Timer Mode
Alarm Mode Receive Mode
Timekeeping Mode
E-25
Altimeter Mode
Barometer/
Thermometer Mode
Compass Mode
Sensor Modes
Altimeter Mode
Barometer/
Thermometer Mode
Compass Mode
Sensor Modes
•You can use buttons A,B, and Cto enter a sensor mode directly from the Timekeeping Mode or
from another sensor mode. To enter a sensor mode from the Data Recall, Stopwatch, Countdown
Timer, Alarm, World Time, Receive, or Hand Home Position Adjustment Mode, first enter the
Timekeeping Mode and then press the applicable button.
•The hour and minute hands indicate the current time in all modes. In the Timekeeping, Data Recall,
Stopwatch, Countdown Timer, and Alarm modes, the second hand indicates the current (Timekeeping
Mode) second. The second hand performs other operations in the other modes.
E-26
General Functions (All Modes)
The functions and operations described in this section can be used in all of the modes.
Auto Return Features
•The watch returns to the Timekeeping Mode automatically if you do not perform any button operation
for two or three minutes in the Data Recall, Alarm, Receive, or Hand Home Position Adjustment Mode.
•If you leave a screen with flashing digits on the digital display for two or three minutes without
performing any operation, the watch exits the setting screen automatically.
Initial Screens
When you enter the Data Recall, World Time, Alarm, Compass, or Barometer/Thermometer Mode, the
data you were viewing when you last exited the mode appears first.
Scrolling
The Aand Cbuttons are used to scroll through settings on the digital display while a setting screen is
displayed, and to move the hands of the watch manually. In most cases, holding down either of these
buttons will perform its operation at high speed.
E-27
Timekeeping
Use the Timekeeping Mode (
HOME) to set and view the current time and date.
•In the Timekeeping Mode, press Eto toggle the digital display between the day of the week and the
barometric pressure graph.
Day of weekMonth Day
Second
hand
Day of the Week
Barometric Pressure Graph
Barometric
pressure graph
Month Day
Hour
hand Minute
hand
E-28
Configuring Home City Settings
There are two Home City settings: selecting the Home City, and specifying either standard time or daylight
saving time (DST).
To configure Home City settings
1. In the Timekeeping Mode, hold down Euntil each of the following
steps occurs.
• Hold SET appears on the digital display. ➝ HT flashes. ➝ Second
hand points to the current Home City code.
• For information about city codes, see the “City Code Table” at the
back of this manual.
2. To change the Home City code setting, press Ato move the second
hand clockwise.
• Keep pressing
Auntil the second hand is pointing to the city code
you want to select as your Home City.
• The current time in the time zone of the currently selected city code is
shown on the digital display.
3. Press D. This will display the DST setting screen on the digital
display.
4.
Use Ato cycle through the DST settings as shown below.
Auto DST (AUTO)DST off (OFF)DST on (On)
City code
Hour :
Minutes
PM
indicator
Second
hand
DST indicator
City code
Hour :
Minutes
PM
indicator
Second
hand
DST indicator
E-29
• The Auto DST (AUTO) setting will be available only when a city code that supports time calibration
signal reception (page E-15) is selected as the Home City. While Auto DST is selected, the DST
setting is changed automatically in accordance with time calibration signal data.
• Note that you cannot switch between standard time and daylight saving time (DST) while UTC is
selected as your Home City.
5. After all the settings are the way you want, press Eto return to the Timekeeping Mode.
• The hands of the watch will move the current time in the zone where the city code you selected as
your Home City is located. Do not perform any operation on the watch while the hands are moving.
• If Daylight Saving Time is selected, the dSt indicator will be on the digital display.
Note
• After you specify a city code, the watch will use UTC* offsets in the World Time Mode to calculate the
current time for other time zones based on the current time in your Home City.
* Coordinated Universal Time, the world-wide scientific standard of timekeeping.
The reference point for UTC is Greenwich, England.
• Selecting some city codes automatically makes it possible for the watch to receive the time
calibration signal for the corresponding area. See page E-15 for details.
E-30
To change the Daylight Saving Time (summer time) setting
1. In the Timekeeping Mode, hold down Euntil each of the following
steps occurs.
• Hold SET appears on the digital display. ➝ HT flashes. ➝ Second
hand points to the current Home City code.
2. Press D. This will display the DST setting screen on the digital
display.
3. Use Ato cycle through the DST settings as shown below.
Auto DST (AUTO)DST off (OFF)DST on (On)
• The Auto DST (AUTO) setting can be selected only when a city code that supports time calibration
signal reception (page E-15) is selected. While Auto DST is selected, the DST setting changes
automatically in accordance with DST information included in the received time calibration signal.
4. After all the settings are the way you want, press Eto exit the setting screen.
• The dSt indicator indicates that Daylight Saving Time is selected.
DST indicatorDST indicator
E-31
Configuring Current Time and Date Settings Manually
You can configure current time and date settings manually when the watch is unable to receive a time
calibration signal.
To change the current time and date settings manually
1. In the Timekeeping Mode, hold down Euntil each of the following
steps occurs.
• Hold SET appears on the digital display. ➝ HT flashes. ➝ Second
hand points to the current Home City code.
2. Use Ato select the city code you want to select as your Home City.
• Each press of
Amoves the second hand clockwise. Keep pressing
Auntil the second hand is pointed to the city code you want to
select.
• Select your Home City code before changing any other setting.
• For full information about city codes, see the “City Code Table” at the
back of this manual.
City code
Hour :
Minutes
PM
indicator
Second
hand
City code
Hour :
Minutes
PM
indicator
Second
hand

Operation Guide 5114 5214
E-32

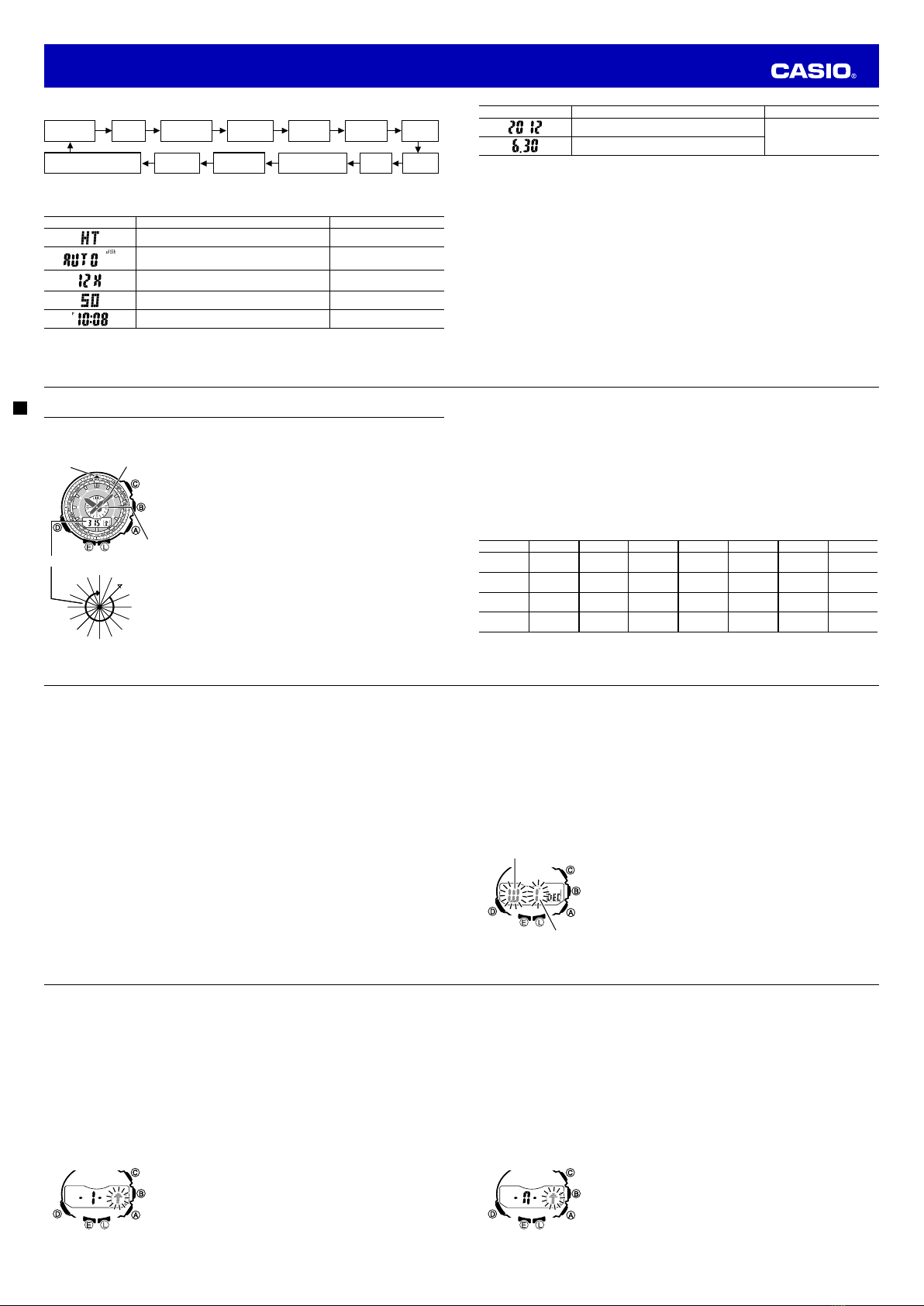

3. Press Dto cycle through the available settings on the digital display in the sequence shown below.
Thermometer/Barometer/
Altitude unit
Auto Light
On/Off
Illumination
Duration
Button Operation
Tone On/Off Day Month
City Code DST 12/24-Hour
Format Seconds Hour Minute Year
• The following steps explain how to configure timekeeping settings only.
4. When the timekeeping setting you want to change is displayed, use Aand/or Cto change it as
described below.
Display To do this: Do this:
Change the city code Press A.
Cycle between Auto DST (
AUTO), Daylight Saving
Time (
On) and Standard Time ( OFF). Press A.
Toggle between 12-hour (
12H) and 24-hour ( 24H)
timekeeping. Press A.
Reset the seconds to 00 Press A.
Change the hour or minute Use A(+) and C(–).
E-33
Display To do this: Do this:
Change the year
Use A(+) and C(–).
Change the month or day
5. Press Eto exit the setting screen.
• The hands of the watch will move to the time you set. Do not perform any operation on the watch
while the hands are moving.
Note
• For information about selecting a Home City and configuring the DST setting, see “Configuring
Home City Settings” (page E-28).
• Changing the time on the digital display will cause the time indicated by the hands to change
accordingly. If the displayed time and the time indicated by the hands do not match, it could mean
that the hand home positions are off. Adjust the hand home positions as required (page E-86).
• While 12-hour format is selected, a P(PM) indicator will appear for times from noon to 11:59 p.m. No
indicator appears for times from midnight to 11:59 a.m. With 24-hour format, time is displayed from
0:00 to 23:59, without any P(PM) indicator.
• The watch’s built-in full automatic calendar makes allowances for different month lengths and leap
years. Once you set the date, there should be no reason to change it except after you have the
watch’s rechargeable battery replaced or after power drops to Level 5 (page E-11).
E-34
Taking Direction Readings
The Compass Mode uses the watch’s direction sensor to detect magnetic north. The second hand will
indicate magnetic north and the digital display shows one of 16 directions and an angle value.
To take a direction reading
1. Check to make sure the watch is in the Timekeeping Mode or one of
the sensor modes.
• The sensor modes are the Compass Mode, Barometer/Thermometer
Mode, and Altimeter Mode.
2. Place the watch on a flat surface. If you are wearing the watch, make
sure that your wrist is horizontal (in relation to the horizon).
3. Point the 12 o’clock position of the watch in the direction you want to
measure.
4. Press Cto start the direction reading operation, which is indicated by
COMP appearing on the digital display.
• When you press C, the second hand will first point in the direction
of the C(COMP) button. This indicates the Compass Mode. After
that the second hand will point in the direction of magnetic north.
• For information about direction reading results, see “Interpreting
Direction Reading Results” (page E-35).
5. After you are finished taking direction readings, press
Dto return to
the Timekeeping Mode.
NW
0
WNW
W
WSW
SW
SSW
S
SSE
SE
ESE
E
ENE
NE
NNE
N
NNW
90
180
270
12 o’clock
position
North indicated by
second hand
Direction
scale
Angle value (in degrees)
NW
0
WNW
W
WSW
SW
SSW
S
SSE
SE
ESE
E
ENE
NE
NNE
N
NNW
90
180
270
12 o’clock
position
North indicated by
second hand
Direction
scale
Angle value (in degrees)
E-35
Interpreting Direction Reading Results
•When you press C,COMP appears on the digital display to indicate that direction reading has started.
•After about two seconds, the second hand moves to point to magnetic north. The digital display shows
either the angle between magnetic north and the 12 o’clock position of the watch, or one of 16 literal
direction indicators.
•The watch updates the direction reading about once every second for about 20 seconds, and then
stops. The digital display shows - - - and the second hand moves to COMP (located below the C
button) to indicate that direction readings are complete. If your want to continue taking direction
readings, press Cagain.
•Pressing Eat this time switches the digital display between the angle value and a one-, two-, or
three-character literal direction indicators.
•The Auto Light switch is disabled during the 20 seconds that direction readings are being taken.
•The following table shows the meanings of the abbreviations used for the literal direction indicators that
appear on the digital display.
Direction Meaning Direction Meaning Direction Meaning Direction Meaning
NNorth NNE North-
northeast NE Northeast ENE East- northeast
EEast ESE East-
southeast SE Southeast SSE South- southeast
SSouth SSW South-
southwest SW Southwest WSW West- southwest
WWest WNW West-
northwest NW Northwest NNW North- northwest
•The margin of error for the angle value and the direction indicator is ±11 degrees while the watch is
horizontal (in relation to the horizon). If the indicated direction is northwest (
NW) and 315 degrees, for
example, the actual direction can be anywhere from 304 to 326 degrees.
E-36
•If the second hand is indicating 12 o’clock (north), the digital display will show an upwards pointing
white on black arrow.
• The small scale in the center of the watch face is a direction scale (page E-34). You can use the
direction scale to get an idea of how many degrees the 12 o
’ clock position of the watch is (clockwise)
from the northerly indication of the second hand. The direction scale is marked in 10-degree increments.
Some watch models may not have a direction scale.
•Note that taking a measurement while the watch is not horizontal (in relation to the horizon) can result in
large measurement error.
• You can calibrate the bearing sensor if you suspect the direction reading is incorrect.
•Any ongoing direction measurement operation is paused temporarily while the watch is performing an
alert operation (daily alarm, Hourly Time Signal, countdown timer alarm) or while illumination is turned
on (by pressing L). The measurement operation resumes for its remaining duration after the operation
that caused it to pause is finished.
•For precautions that should be observed when using the Compass Mode, see “Compass Precautions”
(page E-43).
Calibrating the Bearing Sensor
You should calibrate the bearing sensor whenever you feel that the direction readings being produced by
the watch are off. There are three different calibration methods available: magnetic declination correction,
bidirectional calibration, and northerly calibration.
•Magnetic Declination Correction
With magnetic declination correction, you input a magnetic declination angle (difference between
magnetic north and true north), which allows the watch to indicate true north. You can perform this
procedure when the magnetic declination angle is indicated on the map you are using. Note that you can
input the declination angle in whole degree units only, so you may need to round off the value specified
on the map. If your map indicates the declination angle as 7.4°, you should input 7°. In the case of 7.6°
input 8°, for 7.5° you can input 7° or 8°.
E-37
•Bidirectional Calibration and Northerly Calibration
Bidirectional calibration and northerly calibration calibrate the accuracy of the bearing sensor in relation
to magnetic north. Use bidirectional calibration when you want to take readings within an area exposed
to magnetic force. This type of calibration should be used if the watch becomes magnetized for any
reason. With northerly calibration, you “teach” the watch which way is north (which you have to determine
with another compass or some other means).
Important!
The more correctly you perform bidirectional calibration, the better the accuracy of the bearing sensor
readouts. You should perform bidirectional calibration whenever you change environments where you
use the bearing sensor, and whenever you feel that the bearing sensor is producing incorrect readings.
To perform magnetic declination correction
1. In the Compass Mode, hold down Euntil each of the following steps
occurs.
• Hold SET appears on the digital display. ➝ Magnetic declination
settings flash.
• This is the setting screen.
2. Use A(East) and C(West) to change the settings.
• The following explains magnetic declination angle direction settings.
0°: No magnetic declination correction performed. The magnetic
declination angle with this setting is 0°.
E: When magnetic north is to the east (east declination)
W: When magnetic north is to the west (west declination)
• You can select a value within the range of W 90° to E 90° with these
settings.
Magnetic declination
angle value
Magnetic declination
angle direction value
(E, W, or 0°)
Magnetic declination
angle value
Magnetic declination
angle direction value
(E, W, or 0°)
E-38
• To return the magnetic declination to its initial factory default setting, press
Aand Cat the same
time. This will cause OFF to appear on the digital display. After about one second, the magnetic
declination will change to 0 degrees.
• The illustration on page E-37 shows declination angle direction value and the angle value you should
select when a map shows a magnetic declination of “West 1°”.
3. When the setting is the way you want, press Eto exit the setting screen.
Precautions about bidirectional calibration
•You can use any two opposing directions for bidirectional calibration. You must, however, make sure
that they are 180 degrees opposite each other. Remember that if you perform the procedure
incorrectly, you will get wrong bearing sensor readings.
•Do not move the watch while calibration of either direction is in progress.
•You should perform bidirectional calibration in an environment that is the same as that where you plan
to be taking direction readings. If you plan to take direction readings in an open field, for example,
calibrate in an open field.
To perform bidirectional calibration
1. In the Compass Mode, hold down Euntil each of the following steps
occurs.
• Hold SET appears on the digital display. ➝ Magnetic declination
settings flash.
• This is the setting screen.
2. Press Dto display the bidirectional calibration screen.
• At this time, the digital display will show -1- to indicate that the watch
is ready to calibrate the first direction.
E-39
3. Place the watch on a level surface facing any direction you want, and press Cto calibrate the first
direction.
• - - - is shown on the digital display while calibration is being performed. When calibration is
successful, the digital display will show -2-. This means that the watch is ready for calibration of
the second direction.
• Calibration takes about 13 seconds. Do not move the watch while calibration is being performed.
4. Rotate the watch 180 degrees.
5. Press Cagain to calibrate the second direction.
• - - - is shown on the digital display while calibration is being performed. When calibration is
successful, the digital display will show OK and then change to the Compass Mode screen (- - -).
To perform northerly calibration
Important!
If you want to perform both northerly and bidirectional calibration, perform bidirectional calibration first,
and then perform northerly calibration. This is necessary because bidirectional calibration cancels any
existing northerly calibration setting.
1. In the Compass Mode, hold down Euntil each of the following steps
occurs.
• Hold SET appears on the digital display. ➝ Magnetic declination
settings flash.
• This is the setting screen.
2. Press Dtwice to display the northerly calibration screen.
• At this time, -n- (north) appears on the digital display.
3. Place the watch on a level surface, and position it so that its 12 o’clock position points north (as
measured with another compass).

Operation Guide 5114 5214
E-40
4. Press Cto start the calibration operation.
• - - - is shown on the digital display while calibration is being performed. When calibration is
successful, the digital display will show OK and then change to the Compass Mode screen (- - -).

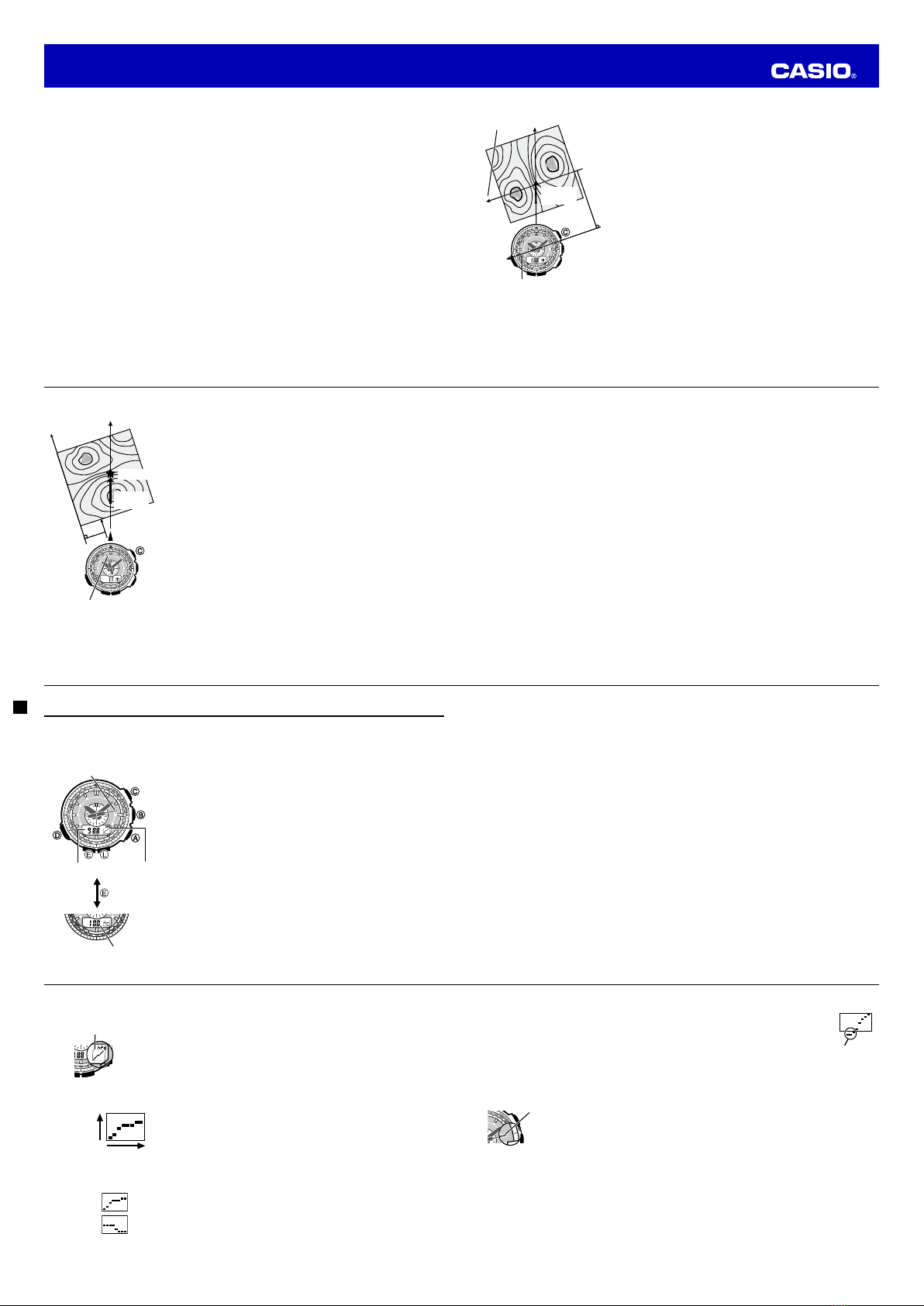

Using the Compass While Mountain Climbing or Hiking
This section provides two practical applications for using the watch’s built-in compass.
•Setting a map and finding your current location
Having an idea of your current location is important when mountain climbing or hiking. To do this, you
need to “set the map”, which means to align the map so the directions indicated on it are aligned with
the actual directions of your location. Basically what you are doing is aligning north on the map with
north as indicated by the watch.
•Finding the bearing to an objective
To set a map and find your current location
1. With the watch on your wrist, position it so the face is horizontal.
2. While in the Timekeeping Mode or in any of the sensor modes, press Cto take a compass reading.
• The reading result will appear on the digital display after about two seconds, and the second hand
will point to north.
E-41
3. Rotate the map without moving the watch so the northerly direction
indicated on the map matches north as indicated by the watch.
• If the watch is configured to indicate magnetic north, align the
map’s magnetic north with the watch indication. If the watch has
been configured with a declination to correct to true north, align
the map’s true north with the watch indication. For details about
magnetic declination correction, see “Calibrating the Bearing
Sensor” (page E-36).
• This will position the map in accordance with your current location.
4. Determine your location as you check the geographic contours around
you.
N
N
Current
location
North indicated
on the map
North indicated by
second hand
N
N
Current
location
North indicated
on the map
North indicated by
second hand
E-42
To find the bearing to an objective
1. Set the map so its northerly indication is aligned with north as indicated
by the watch, and determine your current location.
• See “To set a map and find your current location” on page E-40 for
information about how to perform the above step.
2. Set the map so the direction you want to travel on the map is pointed
straight in front of you.
3. With the watch on your wrist, position it so the face is horizontal.
4. While in the Timekeeping Mode or in any of the sensor modes, press
Cto take a compass reading.
• The reading result will appear on the digital display after about two
seconds, and the second hand will point to north.
5. Still holding the map in front of you, turn your body until north as
indicated by the watch and the northerly direction on the map are
aligned.
• This will position the map in accordance with your current location,
so the bearing to your objective is straight ahead of you.
N
N
Objective
Current
location
12 o’clock
position
North indicated by
second hand
N
N
Objective
Current
location
12 o’clock
position
North indicated by
second hand
E-43
Compass Precautions
This watch features a built-in magnetic bearing sensor that detects terrestrial magnetism. This means that
north indicated by this watch is magnetic north, which is somewhat different from true polar north. The
magnetic north pole is located in northern Canada, while the magnetic South Pole is in southern Australia.
Note that the difference between magnetic north and true north as measured with all magnetic compasses
tends to be greater as one gets closer to either of the magnetic poles. You should also remember that
some maps indicate true north (instead of magnetic north), and so you should make allowances when
using such maps with this watch.
Location
•Taking a direction reading when you are near a source of strong magnetism can cause large errors in
readings. Because of this, you should avoid taking direction readings while in the vicinity of the
following types of objects: permanent magnets (magnetic necklaces, etc.), concentrations of metal
(metal doors, lockers, etc.), high tension wires, aerial wires, household appliances (TVs, personal
computers, washing machines, freezers, etc.).
•Accurate direction readings are impossible while in a train, boat, air plane, etc.
•Accurate readings are also impossible indoors, especially inside ferroconcrete structures. This is
because the metal framework of such structures picks up magnetism from appliances, etc.
Storage
•The precision of the bearing sensor may deteriorate if the watch becomes magnetized. Because of
this, you should store the watch away from magnets or any other sources of strong magnetism,
including: permanent magnets (magnetic necklaces, etc.) and household appliances (TVs, personal
computers, washing machines, freezers, etc.).
•Whenever you suspect that the watch may have become magnetized, perform the procedure under “To
perform bidirectional calibration” (page E-38).
E-44

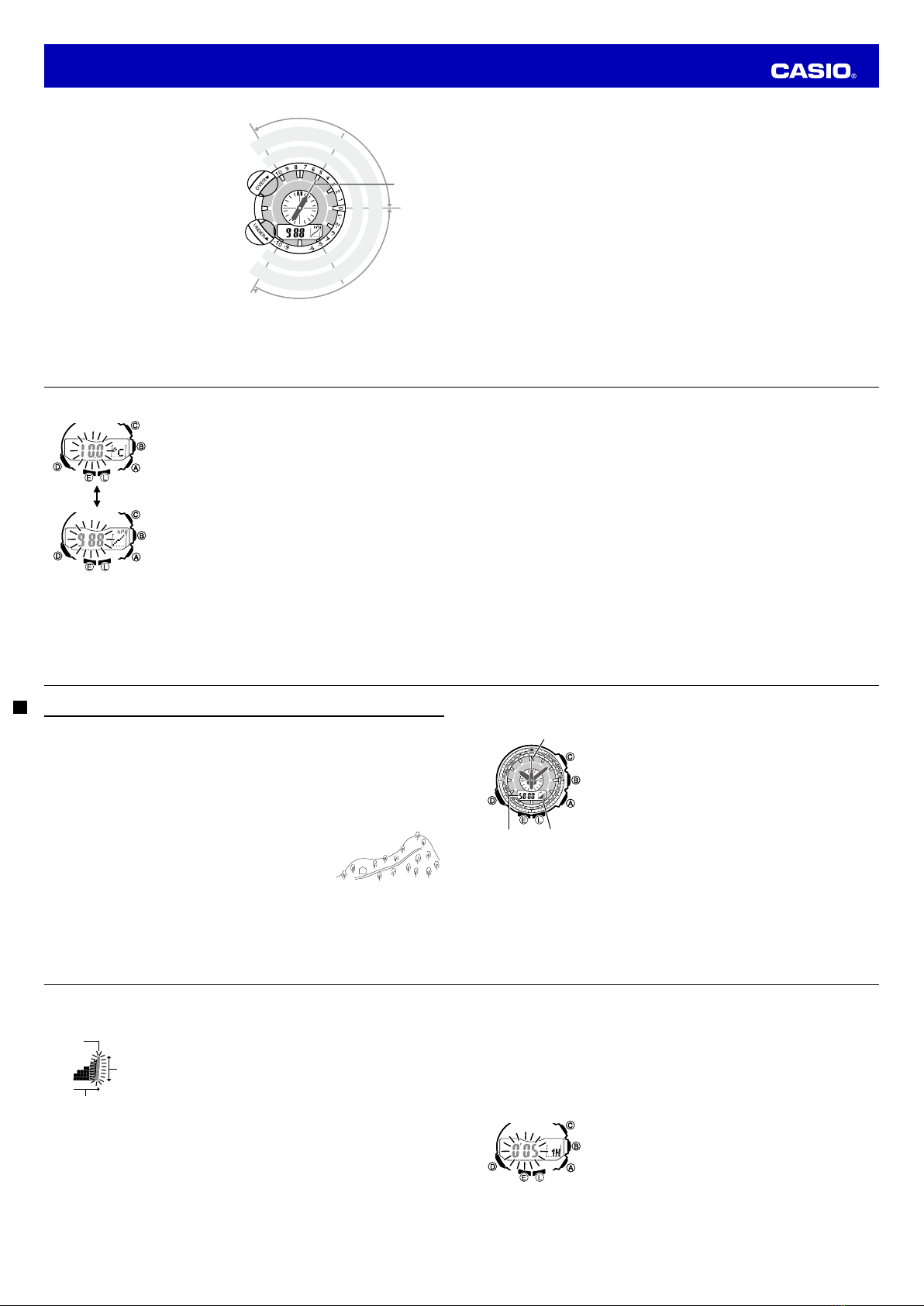

Taking Barometric Pressure and Temperature Readings
This watch uses a pressure sensor to measure air pressure (barometric pressure) and a temperature
sensor to measure temperature.
To enter and exit the Barometer/Thermometer Mode
1. While in the Timekeeping Mode or in any of the sensor modes, press
Bto enter the Barometer/Thermometer Mode.
• BARO appears on the digital display to indicate that barometric
pressure and temperature readings are being taken. The current
barometric pressure or temperature appears on the digital display
after readings are complete.
• When you press B, the second hand will first point in the
direction of the B(BARO) button. This indicates the Barometer/
Thermometer Mode. After that, the second hand will point at the
current barometric pressure differential.
• Pressing
Etoggles the digital display between the barometric
pressure and temperature screen.
• After you press
B, the watch takes readings every five seconds for
the first three minutes, and then every two minutes after that.
2. Press Dto return to the Timekeeping Mode.
• The watch will return to the Timekeeping Mode automatically if you
do not perform any operation for about one hour after entering the
Barometer/Thermometer Mode.
Barometric pressure
differential indicated
by second hand
Barometric
pressure
Barometric
pressure
graph
Temperature
Barometric pressure
differential indicated
by second hand
Barometric
pressure
Barometric
pressure
graph
Temperature
E-45
To take barometric pressure and temperature readings
While in the Timekeeping Mode or in any of the sensor modes, press B.
•The watch will start taking barometric pressure and temperature readings automatically.
•You also can take a barometric pressure and temperature reading at any time by pressing Bin the
Barometer/Thermometer Mode.
•Press Eto toggle the digital display between the barometric pressure and temperature screen.
•It can take up to four or five seconds for the barometric pressure reading to appear after you enter the
Barometer/Thermometer Mode.
Barometric Pressure
•Barometric pressure is displayed in units of 1 hPa (or 0.05 inHg).
• The displayed barometric pressure value changes to - - - if a measured barometric pressure falls outside
the range of 260 hPa to 1,100 hPa (7.65 inHg to 32.45 inHg). The barometric pressure value will reappear
as soon as the measured barometric pressure is within the allowable range.
Temperature
•Temperature is displayed in units of 0.1°C (or 0.2°F).
•The displayed temperature value changes to - - - °C (or °F) if a measured temperature falls outside the
range of –10.0°C to 60.0°C (14.0°F to 140.0°F). The temperature value will reappear as soon as the
measured temperature is within the allowable range.
Display Units
You can select either hectopascals (hPa) or inchesHg (inHg) as the display unit for the measured
barometric pressure, and Celsius (°C) or Fahrenheit (°F) as the display unit for the measured temperature
value. See “To specify temperature, barometric pressure, and altitude units” (page E-69).
E-46
Barometric Pressure Graph
Barometric pressure indicates changes in the atmosphere. By monitoring
these changes you can predict the weather with reasonable accuracy.
This watch takes barometric pressure measurements automatically every
two hours (at the 30th minute of every even numbered hour).
Measurement results are used as the data to create the barometric
pressure graph that appears on the digital display, and the second hand
indicates the barometric pressure differential.
Reading the Barometric Pressure Graph
The barometric pressure graph shows readings of previous measurements for up to 16 hours.
•The horizontal axis of the graph represents time, with each dot
standing for two hours. The rightmost dot represents the most recent
reading.
•The vertical axis of the graph represents barometric pressure, with
each dot standing for the relative difference between its reading and
that of the dots next to it. Each dot represents 1 hPa.
The following shows how to interpret the data that appears on the barometric pressure graph.
A rising graph generally means improving weather.
A falling graph generally means deteriorating weather.
Barometric
pressure graph
Barometric
pressure graph
Barometric
pressure
Time
Barometric
pressure
Time
E-47
Note
•If there are sudden changes in weather or temperature, the graph line of past
measurements may run off the top or bottom of the display. The entire graph will
become visible once barometric conditions stabilize.
•The following conditions cause the barometric pressure measurement to be skipped,
with the corresponding point on the barometric pressure graph being left blank.
– Barometric reading that is out of range (260 hPa to 1,100 hPa or 7.65 inHg to 32.45
inHg)
– Sensor malfunction
About the barometric pressure differential indicated by the second hand
In the Barometer/Thermometer Mode, the second hand indicates the
difference between the value of the last barometric pressure reading
displayed in the barometric pressure graph (page E-46) and the value of
the last barometric pressure reading taken by the watch (which is shown
on the digital display).
Not visible on
the display.
Not visible on
the display.
Second handSecond hand

Operation Guide 5114 5214
E-48
Barometer/Thermometer Mode Second Hand Units
The second hand indicates barometric
pressure differentials up to ±10hPa (in
1-hPa units).
•The nearby illustration, for example,
shows what the second hand would
indicate when the calculated differential
is approximately 5 hPa (approximately
0.15 inHg).
•The second hand will point to OVER or
UNDER if the barometric pressure
differential is outside the allowable
range of the scale.
•The second hand will move to 9 o’clock
if a sensor reading could not be taken
for some reason or if the reading is
outside the allowable range.
•Barometric pressure is calculated and
displayed using hPa as the standard.
The barometric pressure differential
also can be read in inHg units as shown
in the illustration (1 hPa = 0.03 inHg).
−0.15
0.15
−5
5
00
−10
10
−0.3
0.3
Second hand
inHg values
hPa values
Current pressure
greater than most
recent measured
pressure
Current pressure
less than most
recent measured
pressure
−0.15
0.15
−5
5
00
−10
10
−0.3
0.3
Second hand
inHg values
hPa values
Current pressure
greater than most
recent measured
pressure
Current pressure
less than most
recent measured
pressure
E-49
Pressure Sensor and Temperature Sensor Calibration
The pressure sensor and temperature sensor built into the watch are calibrated at the factory and normally
require no further adjustment. If you notice serious errors in the pressure readings and temperature
readings produced by the watch, you can calibrate a sensor to the reading of another device to correct the
errors.
Important!
•Incorrectly calibrating the pressure sensor can result in incorrect readings. Before changing the
calibration value, make sure the readings you are using are reliable and accurate.
•Incorrectly calibrating the temperature sensor can result in incorrect readings.
Carefully read the following before doing anything.
–
Compare the readings produced by the watch with those of another reliable and accurate thermometer.
– If adjustment is required, remove the watch from your wrist and wait for 20 or 30 minutes to give the
temperature of the watch time to stabilize.
E-50
To calibrate the pressure sensor and the temperature sensor
1. Take a reading with another measurement device to determine the
exact current barometric pressure or temperature.
2. With the watch in the Timekeeping Mode or in any of the sensor
modes, press Bto enter the Barometer/Thermometer Mode.
3. Hold down Euntil each of the following steps occurs.
• Hold SET appears on the digital display. ➝ The current temperature
value flashes.
4. Press Dto move the flashing between the temperature value and
barometric pressure value, to select the one you want to calibrate.
5.
Use A(+) and C(–) to adjust the calibration value in the units shown
below.
Temperature 0.1°C (0.2°F)
Barometric Pressure 1 hPa (0.05 inHg)
• To return the currently flashing value to its initial factory default
setting, press
Aand Cat the same time. OFF will appear at
the flashing location for about one second, followed by the initial
default value.
6. Press Eto return to the Barometer/Thermometer Mode screen.
Press D.Press D.
E-51
Barometer and Thermometer Precautions
•The pressure sensor built into this watch measures changes in air pressure, which you can then apply
to your own weather predictions. It is not intended for use as a precision instrument in official weather
prediction or reporting applications.
•Sudden temperature changes can affect pressure sensor readings.
•Temperature measurements are affected by your body temperature (while you are wearing the watch),
direct sunlight, and moisture. To achieve a more accurate temperature measurement, remove the
watch from your wrist, place it in a well ventilated location out of direct sunlight, and wipe all moisture
from the case. It takes approximately 20 to 30 minutes for the case of the watch to reach the actual
surrounding temperature.
E-52
Taking Altitude Readings
The watch displays altitude values based on air pressure readings taken by a built-in pressure sensor.
How the Altimeter Measures Altitude
The altimeter can measure altitude based on its own preset values (initial default method) or using a
reference altitude specified by you.
When you measure altitude based on preset values
Data produced by the watch’s barometric pressure sensor is converted to approximate altitude based on
ISA (International Standard Atmosphere) conversion values stored in watch memory.
When you measure altitude using a reference altitude specified by you
After you specify a reference altitude, the watch uses that value to convert
barometric pressure readings to altitude (page E-62).
•When mountain climbing, you can specify a reference altitude value in
accordance with a marker along the way or altitude information from a
map. After that, the altitude readings produced by the watch will be more
accurate than they would without a reference altitude value.
A
B
A
B
E-53
To take an altimeter reading
1. Make sure the watch is in the Timekeeping Mode or any one of the
sensor modes.
• The sensor modes are: Compass Mode, Barometer/Thermometer
Mode, and Altimeter Mode.
2. Press
A
to start Altimeter measurement.
• When you press A, the second hand will first point in the direction of
the A(ALTI) button. This indicates the Altimeter Mode. After that,
the second hand will point at the current altitude differential.
• ALTI will appear on the digital display, indicating that Altimeter
measurement is in progress. The first reading will appear on the
digital display after about four or five seconds.
• The current altitude value is displayed in units of 5 meters (20 feet).
• After the first reading is obtained, the watch continues to take
altimeter readings automatically every five seconds for the first
three minutes, and then every two minutes after that (under initial
default settings).
• If you leave the watch in the Altimeter Mode, it will update the displayed altitude value regularly and
indicate reading-to-reading changes in graph form.
• You can use the procedure under “Selecting an Altitude Auto Measurement Method” (page E-55) to
specify the altitude auto measurement method you want to use.
3. After you are finished using the Altimeter, press
D
to return to the Timekeeping Mode and stop auto
measurement.
• The watch will return to the Timekeeping Mode automatically if you do not perform any operation for
about 10 hours after entering the Altimeter Mode (under initial default settings).
Altitude differential
indicated by second hand
Altitude
graph
Current
attitude
Altitude differential
indicated by second hand
Altitude
graph
Current
attitude
E-54
Reading the Altitude Graph
The altitude graph shows Altimeter Mode auto measurement readings over time.
•The vertical axis of the graph represents altitude, and each dot stands
for 10 meters (40 feet).
•The horizontal axis represents time. For the altitude readings taken
during the first three minutes after you start an altimeter measurement
operation, each dot represents five seconds. After that, each dot
represents two minutes (under initial default settings).
•An out of range reading or a measurement error will cause the column
of dots for that reading to be blank (skipped).
Note
•The measurement range for altitude is –700 to 10,000 meters (–2,300 to 32,800 feet).
•The displayed altitude value changes to - - - - if an altitude reading falls outside the measurement
range. An altitude value will reappear as soon as the altitude reading is within the allowable range.
• Normally, displayed altitude values are based on the watch’s preset conversion values. You also can
specify a reference altitude value, if you want. See “Specifying a Reference Altitude Value” (page E-61).
•You can change the unit for displayed altitude values to either meters (m) or feet (ft). See “To specify
temperature, barometric pressure, and altitude units” (page E-69).
Altitude
Latest
reading
Time
Altitude
Latest
reading
Time
E-55
Selecting an Altitude Auto Measurement Method
You can select either of the following two altitude auto measurement methods.
0’05 1H
: Readings at five-second intervals for one hour
2’00 10H
: Readings at five-second intervals for the first three minutes followed by two-minute
intervals for approximately 10 hours
Note
If you do not perform any button operation while in the Altimeter Mode, the watch will return to the
Timekeeping Mode automatically after 10 hours (altitude auto measurement method: 2’00 10H ) or after
one hour (altitude auto measurement method: 0’05 1H ).
To select the altitude auto measurement method
1. In the Altimeter Mode, hold down Euntil each of the following steps
occurs.
• Hold SET appears on the digital display. ➝ Hold SET disappears.
2. Press Dto display the current altitude auto measurement method
setting.
• This will cause either 0’05 or 2’00 to flash on the digital display.
3. Press Ato toggle the altitude auto measurement method setting
between 0’05 1H and 2’00 10H .
4. Press Eto exit the setting screen.

Operation Guide 5114 5214
E-56

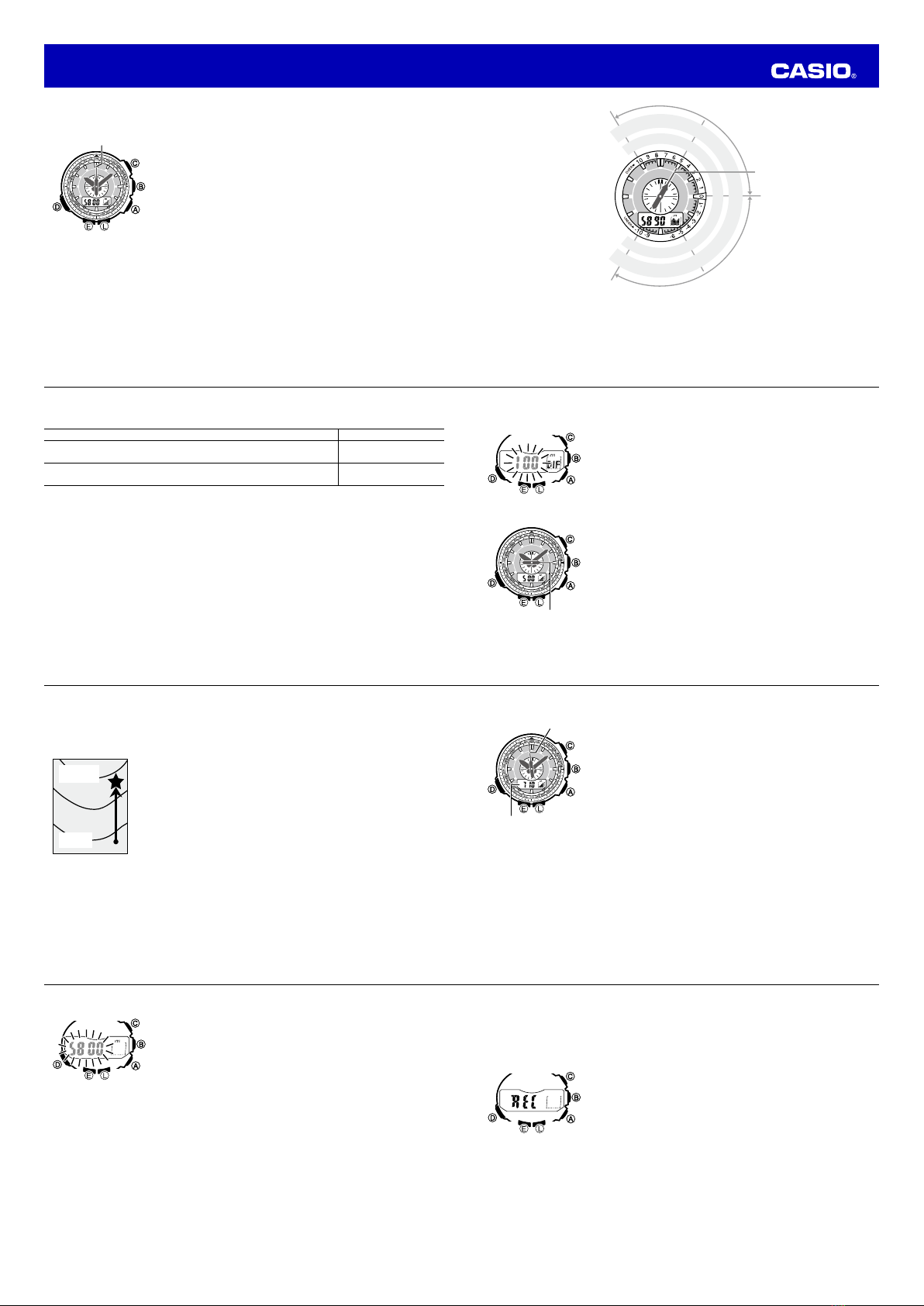

Using the Altitude Differential Value
In the Altimeter Mode, the part of the watch’s dial from 11 o’clock to 7
o’clock acts as an altitude differential scale. The second hand points to a
place on the scale that indicates the difference between the altitude at a
start point set by you and the altitude at your current location. The altitude
differential indication is updated each time the watch takes an altitude
reading.
You can configure the watch so each second mark in the altitude
differential scale stands for 5 meters (20 feet) or 50 meters (200 feet).
See “Configuring the Altitude Differential Scale” (page E-58) for
information about how to configure this setting.
•The second hand will point to OVER or UNDER if the altitude
differential is outside the allowable range of the scale.
•The second hand will move to 9 o’clock if a sensor reading could not
be taken for some reason or if the reading is outside the allowable
range.
•See “Using the Altitude Differential Value While Mountain Climbing or
Hiking” (page E-60) for some real-life examples of how to use this
feature.
Altitude differential
indicated by second hand
Altitude differential
indicated by second hand
E-57
Current altitude
reading greater than
previous reading
Current altitude
reading less than
previous reading
−500 m (−2000 ft)
100 m (400 ft)
1000 m (4000 ft) 500 m (2000 ft)
50 m (200 ft)
00
−50 m (−200 ft)
−100 m (−400 ft)
−1000 m (−4000 ft)
Unit: 50 m (200 ft)
Unit: 5 m (20 ft)
Second hand
E-58
Configuring the Altitude Differential Scale
You can select either of the two altitude differential scale options described below.
To specify this: Select this setting:
Scale step: 5 meters (20 feet) per second mark
Scale range: ±100 meters (± 400 feet) 100
Scale step: 50 meters (200 feet) per second mark
Scale range: ±1000 meters (± 4000 feet) 1000
•Altitude differential is always calculated in meters, even when feet is selected as the altitude
measurement unit.
E-59
To change the altitude differential scale step unit
1. In the Altimeter Mode, hold down Euntil each of the following steps
occurs.
• Hold SET appears on the digital display. ➝ Hold SET disappears.
2. Press Dtwice.
• This will cause either 100 or 1000 to flash on the digital display.
3. Press Ato toggle the altitude differential scale step unit between 100
and 1000.
4. Press Eto exit the setting screen.
To set the altitude differential start point
In the Altimeter Mode, press E.
•The watch will take an altitude reading and record the result as the
current differential start point. At this time, the second hand will point
to 0 because that is the current altitude differential.
Altitude differential
indicated by second hand
Altitude differential
indicated by second hand
E-60
Using the Altitude Differential Value While Mountain Climbing or Hiking
After you specify the altitude differential start point while mountain climbing or hiking, you easily can
measure the change in the altitude between that point and other points along the way.
To use the altitude differential value
1. In the Altimeter Mode, check to make sure that an altitude reading is
on the digital display.
• If an altitude reading is not displayed, press
Ato take one. See “To
take an altimeter reading” (page E-53) for details.
2. Use the contour lines on your map to determine the difference in
altitude between your current location and your destination.
3. In the Altimeter Mode, press Eto specify your current location as the
altitude differential start point.
• The watch will take an altitude reading and register the result as
the altitude differential value start point. The altitude differential
value will be reset to zero at this time.
Current
location
Destination
altitude
Current
location
Destination
altitude
E-61
4. While comparing the altitude difference you determined on the map
and the watch’s altitude differential value, advance towards your
destination.
• If the map shows a difference of +80 meters between your current
location and your destination, you will know that you are
approaching your destination when the second hand is pointed
at +80 meters.
Specifying a Reference Altitude Value
The altitude readings produced by this watch are subject to error caused by changes in air pressure.
Because of this, we recommend that you update the reference altitude value whenever one is available
during your climb. After you specify a reference altitude value, the watch adjusts its air-pressure-to-altitude
conversion calculation accordingly.
Altitude
Altitude differential
indicated by second hand
Altitude
Altitude differential
indicated by second hand
E-62
To specify a reference altitude value
1. In the Altimeter Mode, hold down Euntil each of the following steps
occurs.
• Hold SET appears on the digital display. ➝ Hold SET disappears.
2. Press A(+) or C(–) to change the current reference altitude value
by 5 meters (or 20 feet).
• Specify a reference altitude value based on accurate altitude
information about your current location from a map, etc.
• You can set the reference altitude value within the range of –10,000
to 10,000 meters (–32,800 to 32,800 feet).
• Pressing
Aand Cat the same time returns to OFF (no reference
altitude value), so the watch performs air pressure to altitude
conversions based on preset data only.
3. Press Eto exit the setting screen.
Types of Altitude Data
The watch can maintain two types of altitude data in its memory: manual save records, and auto save
values (low altitude, high altitude, cumulative ascent, cumulative descent).
•Use the Data Recall Mode to view data stored in memory. See “Viewing Altitude Records” (page E-72)
for details.
E-63
Manual Save Records
Any time you perform the procedure below in the Altimeter Mode, the watch will create and store a record
with the currently displayed altitude reading, along with the date and time the reading was taken. There is
enough memory to store up to 14 manual save records, which are numbered from REC01 through
REC14.
To create a manual save record
1. In the Altimeter Mode, check to make sure that an altitude reading is
on the digital display.
• If an altitude reading is not displayed, press
Ato take one. See “To
take an altimeter reading” (page E-53) for details.
2. Hold down Auntil Hold REC appears on the digital display and then
changes to REC.
• This will save the currently displayed altitude reading in a manual
save record, along with the measurement time and date.
• The watch will return to the Altimeter Mode screen automatically after
the save operation is complete.
• There is enough memory to store up to 14 manual save records. If
there are already 14 manual save records in memory, the above
operation will cause the oldest record to be deleted automatically
to make room for the new one.

Operation Guide 5114 5214
E-64

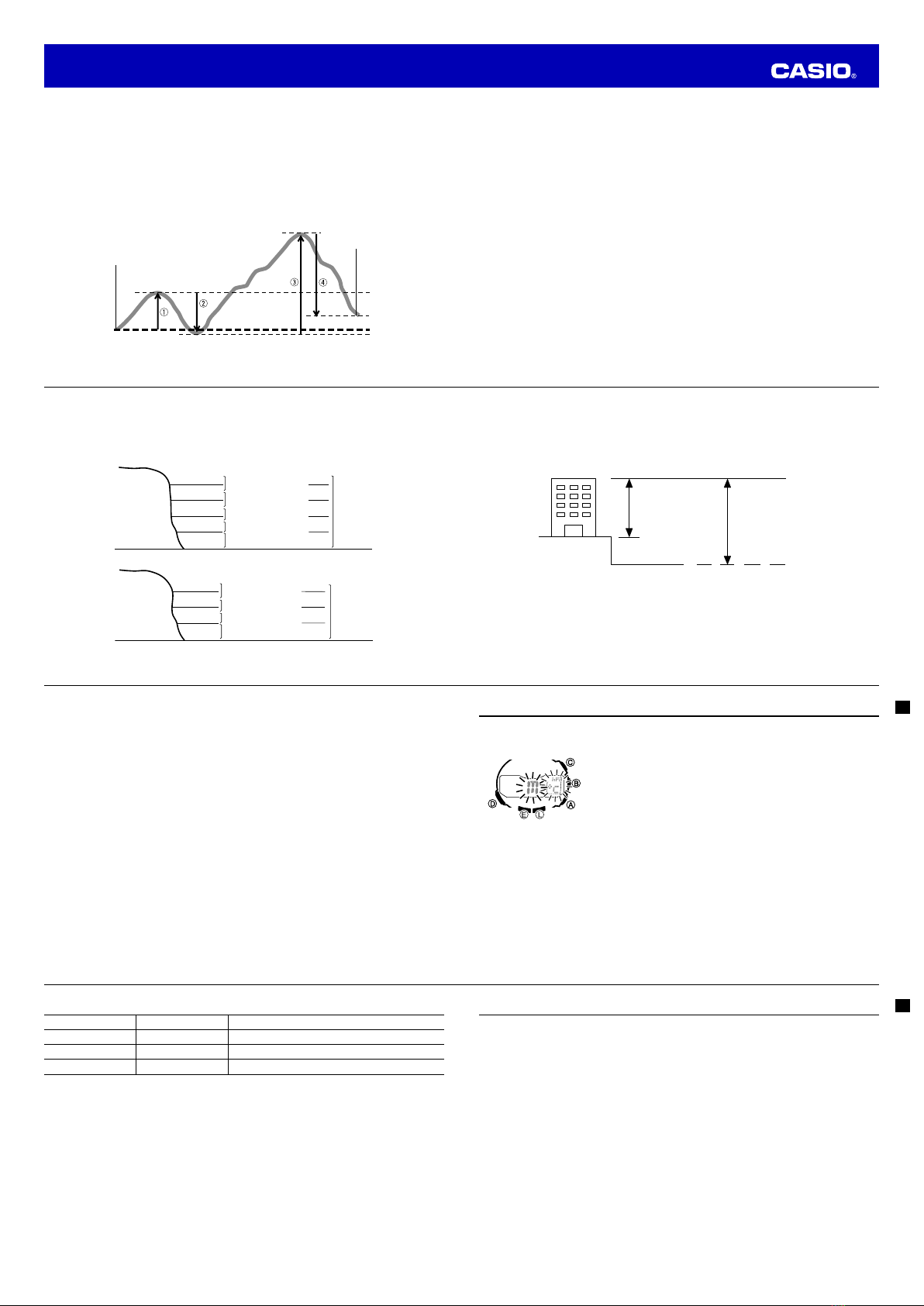

Auto Save Values
While the altitude auto measurement method is being used (page E-55), the watch automatically stores
high altitude (
HI), low altitude ( LO), cumulative ascent ( ASC), and cumulative descent ( DSC) values.
•These values are checked and updated automatically by the watch as altitude auto measurements are
taken.
How high altitude and low altitude values are updated
While the watch is in the Altimeter Mode, altitude readings are taken automatically at the interval specified
by the altitude auto measurement method (page E-55). With each reading, the watch compares the
current reading against the HI and LO values. It will replace the HI value if the current reading is greater
than HI, or the LO value if the current reading is less than LO.
How Cumulative Ascent/Descent Values Are Updated
Session start point
20 m 0 m
120 m
320 m
620 m
Session end point
E-65
The total Cumulative Ascent and Cumulative Descent values produced by an Altimeter Mode
measurement session during the example climb illustrated above are calculated as follows.
Cumulative Ascent:
q
q(300 m) +
e
e(620 m) = 920 m
Cumulative Descent:
w
w(320 m) +
r
r(500 m) = 820 m
•Entering the Altimeter Mode starts a new altitude auto measurement session, but it does not reset the
current ASC and DSC values or change them in any way. This means that the starting ASC and DSC
values for a new Altimeter Mode auto measurement session are the values that currently are in memory.
Each time you complete an Altimeter Mode auto measurement session by returning to the Timekeeping
Mode, the cumulative ascent value of the current session (920 meters in the above example) is added
to the session’s starting ASC value. Also, the cumulative descent value of the current auto
measurement session (–820 meters in the above example) is added to the session’s starting DSC
value.
•Note that any change in elevation when ascending that is less than 15 meters (49 feet) is not added to
the cumulative ascent value for the current Altimeter Mode auto measurement session. Also, any
change in elevation when descending that is less than –15 meters (–49 feet) is not added to the
cumulative descent value for the current Altimeter Mode auto measurement session.
Note
•The high altitude, low altitude, cumulative ascent, and cumulative descent values are retained in
memory when you exit the Altimeter Mode. To clear values, perform the procedure under “To delete a
single altitude record” (page E-74) or “To delete all altitude records” (page E-74).
E-66
How does the altimeter work?
Generally, air pressure and temperature decrease as altitude increases. This watch bases its altitude
measurements on International Standard Atmosphere (ISA) values stipulated by the International Civil
Aviation Organization (ICAO). These values define relationships between altitude, air pressure, and
temperature.
0 m 500 m
1000 m
1500 m
2000 m
2500 m
3000 m
3500 m
4000 m
899 hPa
795 hPa
701 hPa
616 hPa
8.5°C
2°C
–4.5°C
–11°C
15°C1013 hPa
About 6.5°C
per 1000 m
About 8 hPa per 100 m
About 9 hPa per 100 m
About 10 hPa per 100 m
About 11 hPa per 100 m
About 12 hPa per 100 m
Altitude Air Pressure Temperature
0 ft. 2000 ft.
4000 ft.
6000 ft.
8000 ft.
10000 ft.
12000 ft.
14000 ft.
25.84 inHg
22.23 inHg
19.03 inHg
44.7°F
30.5°F
16.2°F
59.0°F29.92 inHg
About 3.6°F
per 1000 ft.
About 0.15 inHg per 200 ft.
About 0.17 inHg per 200 ft.
About 0.192 inHg per 200 ft.
About 0.21 inHg per 200 ft.
Source: International Civil Aviation Organization
E-67
•Note that the following conditions will prevent you from obtaining accurate readings:
When air pressure fluctuates because of changes in the weather
Extreme temperature changes
When the watch itself is subjected to strong impact
There are two standard methods of expressing altitude: Absolute altitude and relative altitude. Absolute
altitude expresses an absolute height above sea level. Relative altitude expresses the difference between
the height of two different places.
Height of building 130 m
(relative altitude)
Rooftop at an altitude of
230 m above sea level
(absolute altitude)
Sea Level
E-68
Altimeter Precautions
•This watch estimates altitude based on air pressure. This means that altitude readings for the same
location may vary if air pressure changes.
•The semiconductor pressure sensor used by the watch for altitude measurements is also affected by
temperature. When taking altitude measurements, do not subject the watch to temperature changes.
•Do not rely upon this watch for altitude measurements or perform button operations while sky diving,
hang gliding, or paragliding, while riding a gyrocopter, glider, or any other aircraft, or while engaging in
any other activity where there is the chance of sudden altitude changes.
•Do not use this watch for measuring altitude in applications that demand professional or industrial level
precision.
•Remember that the air inside of a commercial aircraft is pressurized. Because of this, the readings
produced by this watch will not match the altitude readings announced or indicated the flight crew.
E-69
Specifying Temperature, Barometric Pressure, and Altitude Units
Use the procedure below to specify the temperature, barometric pressure, and altitude units to be used in
the Barometer/Thermometer Mode and the Altimeter Mode.
Important!
When TOKYO (
TYO) is selected as the Home City, the altitude unit is set
automatically to meters (
m), the barometric pressure unit to hectopascals
(hPa), and the temperature unit to Celsius (
°C). These settings cannot
be changed.
To specify temperature, barometric pressure, and altitude units
1. In the Timekeeping Mode, hold down Euntil each of the following
steps occurs.
• Hold SET appears on the digital display. ➝ HT fl a s h e s . ➝ Second
hand points to the current Home City code.
2. Use Dto cycle through the settings on the digital display until the unit
setting screen is shown.
• See step 3 under “To change the current time and date settings
manually” (page E-31) for information about how to scroll through
setting screens.
E-70
3. Perform the operations below to specify the units you want.
To specify this unit: Press this key: To toggle between these settings:
Altitude Am(meters) and ft (feet)
Barometric Pressure BhPa (hectopascals) and inHg (inches of mercury)
Temperature C°C (Celsius) and °F (Fahrenheit)
4. After the settings are the way you want, press Eto exit the setting screen.
E-71
Precautions Concerning Simultaneous Measurement of Altitude and Temperature
Though you can perform altitude and temperature measurements at the same time, you should remember
that each of these measurements requires different conditions for best results. With temperature
measurement, it is best to remove the watch from your wrist in order to eliminate the effects of body heat.
In the case of altitude measurement, on the other hand, it is better to leave the watch on your wrist,
because doing so keeps the watch at a constant temperature, which contributes to more accurate altitude
measurements.
•To give altitude measurement priority, leave the watch on your wrist or in any other location where the
temperature of the watch is kept constant.
•To give temperature measurement priority, remove the watch from your wrist and allow it to hang freely
from your bag or in another location where it is not exposed to direct sunlight. Note that removing the
watch from your wrist can affect pressure sensor readings momentarily.

Operation Guide 5114 5214
E-72
Viewing Altitude Records
Use the Data Recall Mode to view manual save altitude records and automatically saved high altitude, low
altitude, cumulative ascent, and cumulative descent values. Altitude records are created and saved in the
Altimeter Mode.
To view altitude records
1. Use Dto select the Data Recall Mode (
REC) as shown on page E-24.
2. Use Aand Cto scroll through altitude records in the sequence
shown on page E-73.
• For a manual save record, high altitude and low altitude records, the
month and day of the reading will appear first. After about one
second, this will change to show the time of the reading. After that
the time and altitude reading will alternate on the digital display
at one-second intervals. For cumulative ascent and cumulative
descent, the digital display will show the month and day of the
first reading. After about one second, this will change to show the
cumulative altitude.
Record nameRecord name
E-73
1 second
Record name
Month
Day
1 second
Hour : Minutes
Altitude Altitude High altitude
Low altitude
1 second
1 second
1 second
Cumulative ascent
Cumulative recording
start month and day
1 second
Cumulative descent
Cumulative recording
start month and day
Manual Save 1 Manual Save 14 High Altitude (HI)
Cumulative Ascent (ASC) Low Altitude (LO)
Cumulative Descent (DSC)
E-74
3. After you are finished viewing data, use
Dto exit the Data Recall Mode.
•
-.-- will be displayed if data has been deleted or if there is no corresponding data due to error, etc. In
such cases, cumulative ascent (ASC) and cumulative descent (DSC) values will show zero.
• When the cumulative ascent (ASC) or cumulative descent (DSC) exceeds 99,995 meters (or 327,980
feet), the applicable value will restart from zero.
To delete a single altitude record
1. In the Data Recall Mode, use Aand Cto scroll through records until the one you want to delete is
displayed.
2. Hold down Efor about two seconds until each of the following steps occurs.
• Hold CLR appears on the digital display. ➝ CLR appears.
• This deletes the record you displayed in step 1.
• Release Eafter CLR appears on the digital display.
• Deleting a manual save record shifts all of the records following it up one position.
To delete all altitude records
In the Data Recall Mode, hold down Efor about five seconds until each of the following steps occurs.
•Hold CLR
appears on the digital display. ➝ CLR appears. ➝ Hold ALL appears. ➝ CLR ALL
appears.
•This deletes all of the records currently in memory.
E-75
Using the Stopwatch
The stopwatch measures elapsed time, split times, and two finishes.
To enter the Stopwatch Mode
Use Dto select the Stopwatch Mode (
ST) as shown on page E-24.
•About one second after ST appears on the digital display, the display
will change to show the stopwatch time.
To perform an elapsed time operation
AAAAC
Start Stop (Restart) (Stop) Reset
To pause at a split time
ACCAC
Start Split
(SPL displayed)
Split release Stop Reset
Seconds 1/100
second
Minutes
Seconds 1/100
second
Minutes
E-76
To measure two finishes
ACA C C
Start Split
First runner finishes.
Display time of first
runner
Stop
Second runner
finishes.
Split release
Display time of
second runner
Reset
Note
•The Stopwatch Mode can indicate elapsed time up to 59 minutes, 59.99 seconds.
•Once started, stopwatch timing continues until you press Cto stop it, even if you exit the Stopwatch
Mode to another mode and even if timing reaches the stopwatch limit defined above.
•Exiting the Stopwatch Mode while a split time is frozen on the digital display clears the split time and
returns to elapsed time measurement.
E-77
Using the Countdown Timer
The countdown timer can be configured to start at a preset time, and sound an alarm when the end of the
countdown is reached.
To enter the Countdown Timer Mode
Use Dto select the Countdown Timer Mode (
TR) as shown on page E-24.
•About one second after TR appears on the digital display, the display
will change to show the current countdown start time.
To specify the countdown start time
1. Enter the Countdown Timer Mode.
• If a countdown is in progress (indicated by the seconds counting
down), press
Ato stop it and then press Cto reset to the current
countdown start time.
• If a countdown is paused, press
Cto reset to the current
countdown start time.
2. Hold down Euntil each of the following steps occurs.
• Hold SET appears on the digital display. ➝ The current countdown
start time flashes.
3. Use A(+) and C(–) to change the minute setting.
4. Press Eto exit the setting screen.
Countdown time
(Minutes, seconds)
Countdown time
(Minutes, seconds)
E-78
To perform a countdown timer operation
AAA A C
Start Stop (Restart) (Stop) Reset
•Before starting a countdown timer operation, check to make sure that a countdown operation is not in
progress (indicated by the seconds counting down). If it is, press Ato stop it and then Cto reset to
the countdown start time.
•An alarm sounds for five seconds when the end of the countdown is reached. This alarm will sound in
all modes. The countdown time is reset to its starting value automatically when the alarm sounds.
To stop the alarm
Press any button.
E-79

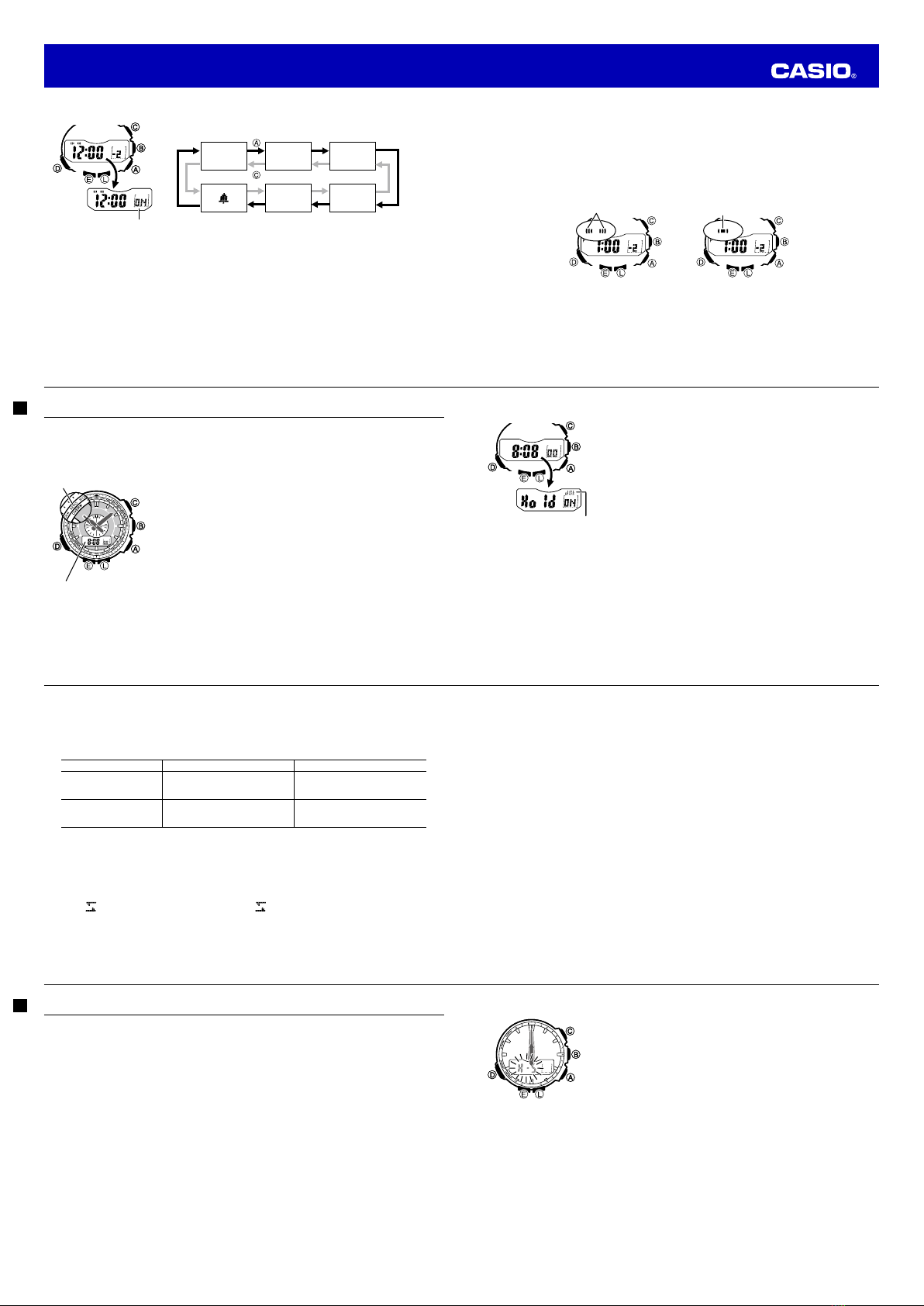

Using the Alarm
You can set five independent daily alarms. When a daily alarm is turned
on, an alarm tone will sound for about 10 seconds each day when the
time in the Timekeeping Mode reaches the preset alarm time. This is true
even if the watch is not in the Timekeeping Mode.
You can also turn on an Hourly Time Signal, which will cause the watch
to beep twice every hour on the hour.
To enter the Alarm Mode
Use
D
to select the Alarm Mode (
AL) as shown on page E-24.
•About one second after AL appears on the digital display, the display
will change to show an alarm number (
−1 through −5) or the
indicator. The alarm number indicates an alarm screen. is shown
when the Hourly Time Signal screen is on the digital display.
•When you enter the Alarm Mode, the data you were viewing when you
last exited the mode appears first.
Alarm time
(Hour: Minutes)
Alarm
number
Alarm time
(Hour: Minutes)
Alarm
number
