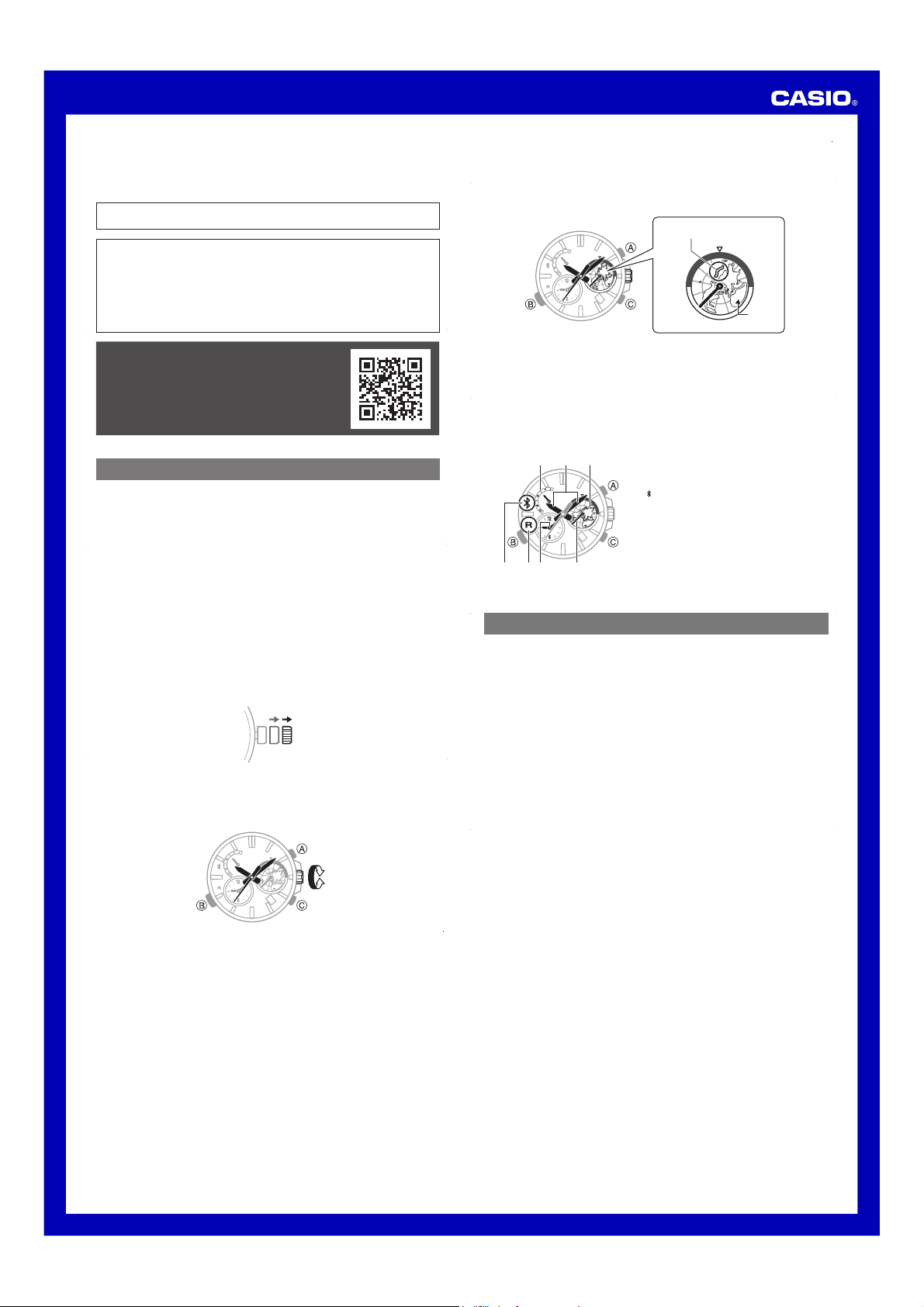

Quick Reference Manual 5466
MA1602-EA
Congratulations upon your selection of this CASIO watch.
To ensure that this watch provides you with the years of service for which it is designed,
carefully read and follow the instructions in this manual, especially the information under
“Operating Precautions” and “User Maintenance”.
Be sure to keep all user documentation handy for future reference.
Bluetooth®is a registered trademark or trademark of Bluetooth SIG, Inc. of the United
States.
Your watch has a Mobile Link function that allows it to communicate with a Bluetooth®
SMART mobile phone and adjust its time settings to match those of the mobile phone.
•This product complies with or has received approval under radio laws in various
countries and geographic areas. Use of this product in an area where it does not
conform to or where it has not been approved under applicable radio laws may be
punishable under local laws. For details, visit http://world.casio.com/ce/BLE/.
•Use of this product inside of an aircraft is restricted by the aviation laws of each
country. Be sure to obey instructions provided by fl
ight personnel concerning use of
devices such as this product.
For details about functions, go to the website
below and select your language for the EQB-
600.
http://support.casio.com/wat/bs/
Using the Watch
Charging
Remove the watch from your wrist and place it in a brightly lit area.
•The watch may become hot when exposed to light for charging. Take care to avoid
burn injury.
•Avoid charging in locations where it is very hot.
Power Saving
•Leaving the watch in a dark location for about one week will cause all hands to stop.
Battery Alerts
•Low Battery
Second hand jumps every two seconds (Low Battery Alert).
•Dead Battery
All hands stopped.
Setting the Time
1. Rotate the crown towards you to loosen it.
2. Pull the crown out to the second click.
•This enables setting of your current location’s time zone.
3. To set your time zone, first adjust the hour and minute hand positions so they are set
approximately to the current time in your location.
•Rotate the crown away from you (forward) or toward you (back) to change the setting
in one-hour increments.
•Hold down Afor about one second advances the time by 15minutes.
30
+15 minutes
+1 hour
–1 hour
Important!
•The above operation will cause the 3D Globe Dial at 3o’clock to rotate in accordance
with your time setting. When the time setting is at your current location’s time, your time
zone should be positioned at 12o’clock on the 3D Globe Dial.
Example: If you set the approximate time in Tokyo, Tokyo’s time zone will be at 12o’clock
on the dial.




 



 87&s
 
Tokyo time zone (UTC +9)
4. Hold down Bfor about one second.
•This enables setting of the current time minute.
5. Rotate the crown to move the minute hand to the current time’s minute.
6. Press the Bbutton.
•This enables setting of the current time hour.
7. Rotate the crown to move the hour hand to the current time’s hour.
8. After the settings are the way you want, push the crown back in.
General Guide
30
123
456 7
1. Days of the week
2. Home Time hour and minute hands
3. 3D Globe Dial
4. : Bluetooth connected *
5. R: Bluetooth standby
6. Dual Time hour and minute hands
7. Dual Time zone hand
*Hold down Bfor about 1.5 seconds to connect via Bluetooth.
Specifications
Accuracy
at normal
temperature
: ± 15 seconds a month
Timekeeping : Hour, minute, second; date, day of the week
Calendar system: Full-auto calendar from 2000 to 2099
Others: Dual time (hour, minute; Swapping with Home Time)
Mobile Link
Functions
: Auto Time Correction
Time setting automatically adjusted during a fixed time period.
Auto summer time switching
Automatic switching between standard time and summer time.
Phone finder
Watch operation sounds the alert of the mobile phone.
Hand position correction
Data Communication Specifications
Bluetooth®SMART
Communication range: 2 meters max. (depends on environment)
Other : Power Saving; Low battery alert; 3D Globe Dial (Current World Time)
Power Supply : Solar panel and one rechargeable battery
Approximate
Battery Life
: 5 months
Conditions
•Auto time correction: 4 times/day
