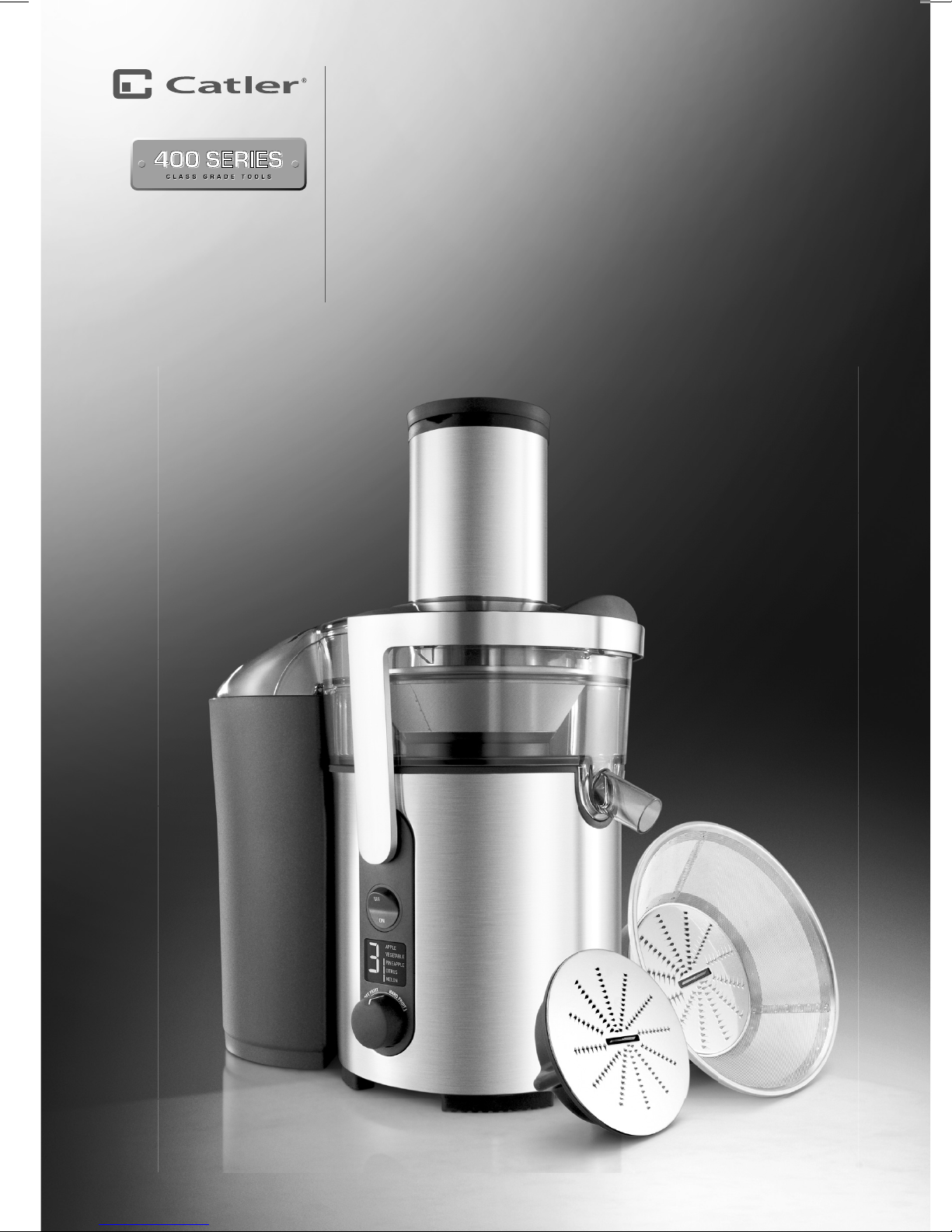

Catler JE 4011 User manual

JE 4011
JUICE
EXTRACTOR
Instructions
for use

JUICE
EXTRACTOR

CONTENTS
2 Congratulations
3 Catler recommends safety rst
5 Know your JE 4011 Juice Extractor
7 Assembling your JE 4011 Juice Extractor
14 Disassembling your JE 4011 Juice Extractor
16 Care and cleaning
18 Trouble shooting guide
19 Tips on juicing
R1 Recipe ideas
1
CONTENTS

2CONGRATULATIONS
Congratulations
on the purchase of your new JE 4011 Juice Extractor.

CATLER RECOMMENDS SAFETY FIRST
We at Catler are very safety conscious. We design and manufacture consumer products with
the safety of you, our valued customer foremost in mind. In addition we ask that you exercise
a degree of care when using any electrical appliance and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR JE 4011 JUICE EXTRACTOR
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for their
safety.
• Children should be supervised to ensure
that they will not play with the appliance.
• Carefully read all instructions before
operation and save for future reference.
• Remove any packaging material and
promotional stickers and labels before
using the Juice Extractor for the rst time.
• Do not place the Juice Extractor near the
edge of a bench or table during operation.
Ensure that the surface is level, clean and
free of water, our, etc. Vibration during
operation may cause the appliance to
move.
• Any signicant spillage onto the surface
under or around the appliance, or onto
the appliance itself, should be cleaned
and dried before continuing to use the
appliance.
• Do not place the Juice Extractor on or near
a hot gas or electric burner, or where it
could touch a heated oven.
• Always ensure the Juice Extractor is
properly assembled before use. The
appliance will not operate unless properly
assembled. Refer to assembly and
operation (pages 9 - 13).
• Do not leave the Juice Extractor
unattended when in use.
• Always ensure the Juice Extractor is turned
o by pressing the‘O/On’ switch on the
control panel to ‘OFF’. Then switch the
appliance o at the power outlet and
unplug the cord. Make sure the stainless
steel lter basket has stopped rotating and
the motor has completely stopped before
releasing the safety locking arm and/or
attempting to move the appliance, when
the Juice Extractor is not in use, and before
disassembling, cleaning and storing.
• Do not operate the Juice Extractor
continuously with heavy loads for more
than 10 seconds. Allow the motor to rest
for 1 minute between each use. Recipes in
this instruction book are not considered
a heavy load. However, hard fruits and
vegetables will put excess strain onto the
motor if a low speed is selected. Please
refer to the Speed Selecter Table on page
14 to determine the correct speed for the
fruits and vegetables selected for juicing.
• ALWAYS USE THE SPEED 1 WHEN USING
THE PUREE DISK AND PUREE INSERT.
Remove seeds core and skin from fruit
before processing (seeds of passionfruit,
berries and kiwi fruit are acceptable).
• Keep hands, ngers, hair, clothing, as well
as spatulas and other utensils away from
the appliance during operation.
• Do not push food into the feed chute with
your ngers or other utensils. Always use
the food pusher provided. Do not place
hand or ngers into food chute when it is
attached to the appliance.
• Be careful when handling the stainless
steel lter basket as the small cutting
blades at the base of the lter basket are
very sharp. Mishandling may cause injury.
3
CATLER RECOMMENDS SAFETY FIRST

4CATLER RECOMMENDS SAFETY FIRST
• Do not use the Juice Extractor for
anything other than food and/or beverage
preparation.
• Keep the appliance clean. Refer to Care
and cleaning, page 18.
• Before setting aside, cleaning, moving,
disassembling, assembling or storage,
always turn the juicer o, switch the
appliance o at the power outlet and
unplug the cord.
• Do not use appliance if the rotating sieve
(lter basket) is damaged.
• Do not touch the small sharp teeth and
blades in the centre of the Juice disc.
• Do not touch the blade in the Feed Chute.
• Do not run ice or hard fruit/vegetables
such as raw beetroot and carrots through
the Juicer when using the Puree extractor.
Fully unwind the cord before use.
• To protect against electric shock, do not
immerse cord, plug or motor base in water
or any other liquid.
• Do not allow the cord to hang over the
edge of a table or counter, touch hot
surfaces or become knotted.
• It is recommended to regularly inspect
the appliance. Do not use the appliance if
the power supply cord, plug or appliance
becomes damaged in any way. Return the
entire appliance to the nearest authorised
Catler Service Centre for examination
and/or repair.
• To eliminate a choking hazard for young
children, remove and safely discard the
protective cover tted to the power plug
of this appliance.
• Any maintenance other than cleaning
should be performed at an authorised
Catler Service Centre.
• This appliance is for household use only.
Do not use this appliance for anything
other than its intended use. Do not use
in moving vehicles or boats. Do not use
outdoors.
• The installation of a residual current
device (safety switch) is recommended to
provide additional safety protection when
using electrical appliances. It is advisable
that a safety switch with a rated residual
operating current not exceeding 30 mA be
installed in the electrical circuit supplying
the appliance. See your electrician for
professional advice.
• Strictly follow cleaning and care
instructions.
IMPORTANT SAFEGUARDS FOR ALL ELECTRICAL APPLIANCES
WARNING:
DO NOT PLACE HANDS OR FOREIGN OBJECTS DOWN FEED CHUTE.
ALWAYS USE THE FOOD PUSHER PROVIDED.
WARNING: ALWAYS MAKE SURE JUICER COVER IS CLAMPED SECURELY IN
PLACE BEFORE MOTOR IS TURNED ON. DO NOT UNFASTEN INTERLOCK ARM
WHILE JUICER IS IN OPERATION.

5
KNOW YOUR JE 4011 JUICE EXTRACTOR
KNOW YOUR JE 4011 JUICE EXTRACTOR
Cleaning Brush
at end of brush assists in
removal of pulp from the
pulp container when juicing
large quantities, nylon brush
end makes for easy cleaning
of the stainless steel lter
basket (top shelf dishwasher
safe)
Unique Direct Central Feed System
ensures maximum juice extraction.
Extra wide feed chute
Fits whole apples, carrots, tomatoes and
peeled oranges. Makes juicing fruit and
vegetables fast and easy.
Juicer cover
(top shelf dish-
washer safe)
3 litre pulp
container
(top shelf
dishwasher safe)
Stylish stainless
steel design
On / O switch
LCD speed
indicator
with juicing
speed guide
Electronic
variable speed
control dial
Cord storage
cord wraps into position under base and clips into place
Heavy duty motor
with ve year motor warranty
Custom designed
juice nozzle
perfect for mess free
juicing straight into
a glass (top shelf
dishwasher safe)
Food pusher
for pushing whole fruit and vegetables down
the feed chute (top shelf dishwasher safe)
Die-cast metal
interlocking safety arm
stops the juicer operating without the
juicer cover locked in place
Filter basket
stainless steel, titanium
reinforced micro mesh lter
basket (top shelf dishwasher
safe)
Motor drive
coupling
1.2 litre juice jug and lid
with in-built froth separator (top shelf
dishwasher safe)
Filter bowl surround
(top shelf dishwasher safe)

6
Puree extractor (for soft fruits and vegetables)
Puree Insert
for processing softer fruits such as bananas, mangoes and
strawberries. Integrated handle for left and right handed
use.
Puree disc
for processing softer fruits such as bananas, mangoes and
strawberries.
Juice Disc
Allows you to extract only the juice from fruit and
vegetables.
Juice jug lid
Allows juicer to operate with the lid on, therefore
eliminating any splatter during operation. Place lid onto
juice jug to store juice in refrigerator.
Built in froth separator
Ensures juice froth is separated from juice when poured
into a glass (if preferred).
KNOW YOUR JE 4011 JUICE EXTRACTOR
To retain froth in the juice jug simply remove the lid
before pouring the juice.
NOTE

7
ASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
Step 1
Place the motor base on a at, dry surface
such as a bench top. Ensure that the motor
base is switched ‘O’ at the control panel,
then switch the appliance o at the power
outlet and unplug the cord.
Step 2
Place the lter bowl surround on top of the
motor base.
Step 3
Align the arrows at the base of the juice disc
with the arrows on the motor drive coupling
and push down until it clicks into place.
Ensure the juice disc is tted securely inside
the lter bowl surround and onto the motor
base.
Step 4
Place the juicer cover over the lter bowl
surround, positioning the feed chute over
the juice disc and lower into position.
BEFORE FIRST USE
Before using your JE 4011 Juice Extractor for the rst time, remove any packaging material
and promotional stickers and labels. Ensure the appliance is switched o at the power outlet
and the power cord is unplugged.
Wash the lter bowl surround, juice disc, juicer cover, Puree disc, Puree insert, food pusher,
pulp container and juice jug and lid in warm, soapy water with a soft cloth. Rinse and dry
thoroughly. The motor base can be wiped with a damp cloth. Dry thoroughly.
FOR USE WITH JUICE EXTRACTOR
ASSEMBLING YOUR JE 4011 JUICE EXTRACTOR

8ASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
Step 5
Raise the safety locking arm up and locate
it into the two grooves on either side of the
juicer cover. The safety locking arm should
now be in a vertical position and locked into
place on top of the juicer cover.
Step 6
Slide the food pusher down the feed chute
by aligning the groove of the food pusher,
with the small protrusion on the inside top
of the feed chute. Continue to slide the food
pusher down into the feed chute.
Step 7
Place the pulp container into position by
tilting the base of the pulp container away
from the motor base and slide the top of the
pulp container over the bottom of the juice
cover. Tilt the base of the pulp container back
into the motor base ensuring it is supported
by the container support extending from
under the motor base.
To minimise cleaning, line the pulp container
with a plastic freezer bag to collect the pulp.
Pulp can then be used in other dishes, or as
compost for the garden or discarded.
NOTE
Step 8
Place the juice jug provided under the spout
on the right-hand side of the JE 4011 Juice
Extractor. The juice jug lid can be used to
avoid any splatter.
Alternatively you can t the custom-designed
juice nozzle over the juice spout and place
a glass underneath. The juice nozzle will
prevent splatter, ensuring mess free juicing.

9
ASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
FOR USE WITH PUREE EXTRACTOR
Step 1
Place the Filter Bowl Surround on the top of
the Motor Base.
Step 2
Place the Puree disc into the Filter Bowl
Surround and onto the Motor Drive Coupling
Push down until it clicks into place. Ensure
the Puree disc is tted securely inside the
Filter Bowl Surround and onto the Motor
Base.
Never use Puree disc without Puree insert. They
must always be used together.
NOTE
Step 3
Place the Puree Insert into the Filter Bowl
Surround, making sure the warning label on
the handle is facing upwards.
Step 4
Place the Juicer Cover over the Puree Insert
and Filter Bowl Surround and lower into
position.

10 ASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
Step 5
Raise the safety locking arm up and lock into
the two grooves on either side of the juicer
cover. The safety locking arm should now be
in a vertical position and locked into place on
top of the juicer cover.
Step 6
Slide the food pusher down the feed chute
by aligning the groove in the food pusher
with the small protrusion on the inside of the
top of the feed chute.
There is no need to use pulp container when
using Puree Extractor.
NOTE
Step 7
Place the juice jug provided under the spout
on the right-hand side of the JE 4011 Juice
Extractor. The juice jug lid can be used to
avoid any splatter.

11
OPERATING YOUR JE 4011 JUICE EXTRACTOR
PREPARATION OF FRUIT AND VEGETABLES
FOR PUREE EXTRACTOR
• Only soft fruits should be used with the
Puree Extractor.
• When using fruits with hard inedible
skins, such as mangoes, pineapple or kiwi
fruit, always peel before juicing.
• When using fruits with a hard core such
as pineapple, always remove this before
juicing.
• All fruits with pits, hard seeds or stones
such as nectarines, peaches, mangoes
and apricots must be pitted or deseeded
before juicing.
• Passionfruit pulp, peeled kiwi fruit
and berries can be processed without
removing seeds.
When using the Puree Extractor, use low speeds
(speed 1 or 2). Always ensure motor is running
before adding fruit and/or vegetables to feed
tube.
NOTE
PUREE EXTRACTOR SPEED
Apricots (stone removed) 1
Bananas (peeled) 1
Kiwi fruit (peeled) 1
Mangoes (peeled, stone removed) 1
Melons (peeled) 1
Pears soft (stalk and core removed) 1
Pineapple (peeled and cored) 1
Raspberries 1
Strawberries (stalks removed) 1
Tomatoes (cored and quartered) 1
Watermelon (peeled, seeds removed) 1
Use speed 2 to push out any
remaining fruit pulp in juice collector 2
WITH JUICE EXTRACTOR OR PUREE
EXTRACTOR
Step 1
Wash selection of fruit and vegetables to be
juiced.
Most fruit and vegetables such as apples,
carrots and cucumbers will not need to be
cut or trimmed to size as these will t whole
into the feed chute. Ensure vegetables such as
beetroot, carrots, etc. have all soil removed,
are well washed and trimmed of leaves before
juicing.
NOTE
Step 2
Based on the type of fruit or vegetable you
are juicing/ pureeing select either the Juice
Extractor or the Puree Extractor.
Step 3
Ensure the JE 4011 Juice Extractor is correctly
assembled. Refer to Assembling your JE 4011
Juice Extractor (pages 9 - 12). Ensure the juice
jug (or a glass) is placed under the spout
and the pulp container is in position before
commencing juicing.
Step 4
Plug the power cord into a 230/240V power
outlet. Turn the power on at the power
outlet. The LCD display will illuminate.
OPERATING YOUR JE 4011 JUICE EXTRACTOR
WARNING: DO NOT PUT HARD FRUIT AND VEGETABLES (I.E. CARROTS,
APPLES, FRESH BEETROOT, ETC.) OR ICE THROUGH JUICER WHEN USING
PUREE EXTRACTOR. THIS COULD DAMAGE PARTS OF THE UNIT.

12 OPERATING YOUR JE 4011 JUICE EXTRACTOR
The LCD display will illuminate continuously
for 3 minutes before going into a sleep mode,
where it will switch o automatically to
conserve power. The screen will come back on
after activating the ‘On/O’ switch, the speed
control dial, or the safety locking arm.
When the safety locking arm is not locked into
place on top of the juicer cover, the LCD display
will illuminate and ash with an “L”, indicating
that the safety locking arm should be locked
into place.
When the safety locking arm is locked into
place on top of the juicer cover, the LCD display
will illuminate and display the selected speed
setting. The speed can be changed by adjusting
the variable speed control dial. For a quick
juicing speed reference, use the speed guide
displayed on the LCD screen, the speed selector
table located on the pulp container, or refer to
the speed selector table.
Hard fruits and vegetables will put excess strain
onto the motor if a low speed is selected. Please
refer to the speed selector table to determine
the correct speed for the fruits and vegetables
being juiced
NOTE
SPEED SELECTOR TABLE
FRUIT / VEGETABLES SUGGESTED
SPEED
Apples 5
Apricots (stone removed) 2
Beetroot (cleaned, trimmed) 5
Blueberries 1
Broccoli 4
Brussel Sprouts (trimmed) 5
Cabbage 4
Carrots (cleaned) 5
Cauliower 4
Celery 5
Cucumber (peeled) 2
Cucumber - soft skinned 4
Fennel 5
Grapes (seedless) 1
Kiwi fruit (peeled) 2
Mangoes (peeled, stone
removed) 2
Melons (peeled) 1
Nectarines (stone removed) 2
Oranges (peeled) 3
Peaches (stone removed 2
Pears - hard (stalks removed) 5
Pears - soft (stalks removed) 2
Pineapple (peeled) 5
Plums (stone removed) 2
Raspberries 1
Tomatoes 1
Watermelon 1
Use the speed selector table located on the pulp
container for a quick and convenient juicing
reference.
NOTE

13
OPERATING YOUR JE 4011 JUICE EXTRACTOR
Step 5
Press the ‘On/O’ switch on the control panel
to ‘On’. The juicer will start to operate at the
selected speed. The speed can be changed
at any time during the juicing process by
adjusting the variable speed control dial.
After 3 minutes, the LCD display will
automatically turn o if the ‘On/O’ switch is
not turned ‘On’, or a speed is not selected.
NOTE
Step 6
With the motor running, place food into the
feed chute and use the food pusher to gently
guide food down.
To extract the maximum amount of juice,
always push the food pusher down slowly.
The JE 4011 Juice Extractor will automatically
stop operating if the motor is stalled for more
than 10 seconds. This is a safety feature.
Either too much food is being processed at
one time or the pieces are not small enough.
Try trimming food, cutting food into smaller
pieces of even size and/or processing a smaller
amount per batch.
To continue juicing, reset the Juice Fountain
Plus by pressing the ‘On/O’ switch on the
control panel to ‘O’, switch o at power outlet
and remove power cord from power outlet,
then clear the feed chute, nally plug power
cord back into power point and switch on at
power outlet. Turn the appliance back on by
pressing the ‘On/O’ switch to ‘On’.
NOTE
Step 7 - Using the Juice Extractor
As fruit and vegetables are processed, juice
will ow into the juice jug and the separated
pulp will accumulate in the pulp container.
The pulp container can be emptied during
juicing by turning the JE 4011 Juice Extractor
‘O’ at the control panel and then carefully
removing the pulp container. Replace the
empty pulp container into position before
continuing to juice.
Do not allow the pulp container to overll as
this may aect the operation of the appliance.
To minimise cleaning, line the pulp container
with a plastic freezer bag to collect the pulp.
Pulp can then be used in other dishes (see
page R8 - R9), or as compost for the garden or
discarded.
To include the froth in with your juice, simply
remove the lid of the juice jug when pouring
juice into the glass.
NOTE
Step 8 - Using the Puree Extractor
When using the Puree Extractor Puree will
ow into the juice jug. There will be no pulp
extracted into Pulp Container.
Some fruit Puree may be left in the juice
collector. This is normal. The amount left over
will vary depending on ripeness and hardness
of fruit.
NOTE
WARNING: NEVER USE FINGERS, HANDS OR OTHER UTENSILS TO PUSH
FOOD DOWN THE FEED CHUTE OR TO CLEAR THE FEED CHUTE DURING
OPERATION. ALWAYS USE THE FOOD PUSHER PROVIDED.

14 DISASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
JUICE EXTRACTOR
Step 1
Ensure the JE 4011 Juice Extractor is turned
o by pressing the‘On/O’ switch on the
control panel to‘O’. Then switch the
appliance o at the power outlet and unplug
the cord.
Step 2
Remove the pulp container by tilting the
base away from the motor base, then un-
latch it from under the juicer cover and the
container support extending from under the
motor base.
Step 3
Use the grip handle located on the safety
locking arm to lift the locking arm from the
juicer cover and lower down out of position.
Step 4
Lift the juicer cover o the JE 4011 Juice
Extractor.
Step 5
Remove the lter bowl surround with the
juice disc still in place.
Step 6
To remove the juice disc from the lter bowl
surround, insert ngers under the grooves
market ‘LIFT BASKET’ and lift the juice disc
up. For easy cleaning, it is recommended to
remove the juice disc over the sink.
DISASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
WARNING: THE JUICE DISC CONTAINS SMALL SHARP BLADES TO CUT AND
PROCESS FRUITS AND VEGETABLES. AVOID TOUCHING BLADES WHEN
HANDLING THE FILTER BASKET.

15
DISASSEMBLING YOUR JE 4011 JUICE EXTRACTOR
PUREE EXTRACTOR
Step 1
Switch the on/o button on the control panel
of the JE 4011 Juice Extractor to turn o. Then
switch the appliance OFF at the power outlet
and unplug the cord.
Step 2
Place both hands on either side of the
Locking Arm and pull back and lift over the
grooves on either side of the Juicer Cover.
Step 3
Lift the Puree insert from the Filter Bowl
surround.
Step 4
Lift the Puree disc out of the Filter Bowl
Surround. (Be careful not to touch the sharp
cutting teeth).
WARNING: THE PUREE CUTTING DISC HAS SUPER SHARP BLADES AND
TEETH. DO NOT TOUCH TEETH AND BLADE WHEN HANDLING THE PUREE
DISC.
CAUTION: ULTRA SHARP STAINLESS STEEL CUTTING DISC AND TEETH.

16 CARE AND CLEANING
Ensure the JE 4011 Juice Extractor is turned
o by pressing the‘On/O’ button on
the control panel to ‘O’. Then switch the
appliance o at the power outlet and unplug
the cord.
Ensure the JE 4011 Juice Extractor is correctly
disassembled. Refer to Disassembling your JE
4011 Juice Extractor (16 - 17).
FOR EASIER CLEANING:
Clean as you go and avoid dried on juice or
pulp residue.
Immediately after each use, rinse removable
parts in hot water to remove wet pulp. Allow
parts to air dry.
To minimise cleaning, line the pulp container
with a plastic freezer bag to collect the pulp.
Pulp can then be used in other dishes (see
recipes section R8 - R9) or as compost for the
garden or discarded.
NOTE
Cleaning the motor base
1. Wipe the motor base with a soft, damp
cloth then dry thoroughly.
2. Wipe any excess food particles from the
power cord.
Do not use abrasive scouring pads or cleaners
when cleaning the parts or motor base as they
may scratch the surface.
NOTE
Cleaning the lter bowl surround, juicer
cover, Puree insert, food pusher, pulp
container
1. Wash all parts in warm soapy water with
a soft cloth. Rinse and dry thoroughly.
The lter bowl surround, juicer cover and pulp
container are dishwasher safe (top shelf only).
The Puree insert is not dishwasher safe.
Please wash in warm water.
NOTE
Cleaning the juice disc
For consistent juicing results always ensure
that the juice disc is thoroughly cleaned
using the supplied cleaning brush.
1. Soak the juice disc in hot soapy water for
approximately 10 minutes immediately
after juicing is completed. If pulp is left to
dry on the lter it may clog the ne pores
of the lter mesh thereby lessening the
eectiveness of the juicer.
2. Using the cleaning brush, hold the juice
disc under running water and brush from
the inside of the basket to the outer rim.
Avoid touching the small sharp blades in
the centre of the juice disc. After cleaning
the juice disc, hold it up towards a light
to ensure the ne mesh holes are not
blocked. If the holes are blocked, soak
the juice disc in hot water with 10%
lemon juice to loosen the blocked holes.
Alternatively, wash the juice disc in the
dishwasher.
The juice disc is dishwasher safe (top shelf only).
NOTE
CARE AND CLEANING

17
CARE AND CLEANING
• Do not soak the juice disc in bleach or
other abrasive cleansers.
• Always treat the juice disc with care as it
can be easily damaged.
Cleaning the juice jug
1. Rinse the juice jug and lid with froth
attachment under running water.
2. Wash both parts in warm soapy
water with a soft cloth. Rinse and dry
thoroughly.
The juice jug and lid are dishwasher safe (top
shelf only).
NOTE
Removing stubborn or strong food stains
and odours
Discolouration of the plastic may occur with
strongly coloured fruit and vegetables. To
help prevent this, wash parts immediately
after use. If discolouration does occur, the
plastic parts can be soaked in water with 10%
lemon juice or they can be cleaned with
a non abrasive cleaner.
DO NOT IMMERSE THE MOTOR BASE IN WATER OR ANY OTHER LIQUID.
THE CENTRE OF THE JUICE DISC AND FEED CHUTE CONTAINS SMALL
SHARP BLADES TO PROCESS FRUIT AND VEGETABLES DURING THE JUICING
FUNCTION. DO NOT TOUCH BLADES WHEN HANDLING THE JUICE DISC OR
FEED CHUTE.

18 TROUBLE SHOOTING GUIDE
Machine will not work when switched‘ON’
The safety locking arm may not be correctly
engaged in the vertical operating position
with the locking arm located into the two
grooves on either side of the juicer cover
(page 10 step 5).
Motor appears to stall when juicing
1. Wet pulp can build up under the juicer
cover if the juicing action is too vigorous.
Try slower juicing action by pushing the
food pusher down more slowly (page
10 step 6). Follow Disassembling and
Cleaning instructions and clean the lter
bowl surround, the juice disc and the
juicer cover.
2. The JE 4011 Juice Extractor will
automatically stop operating if the motor
is stalled for more than 10 seconds.
Either too much food is being processed
at one time or the pieces are not small
enough. Try trimming the food or cutting
into smaller pieces of even size and
processing a smaller amount per batch.
To continue juicing, reset the JE 4011
Juice Extractor by pressing the ‘On/O’
switch on the control panel to ‘O’ then
turn the appliance back on by pressing
‘On/O’ switch to ‘On’.
3. Hard fruits and vegetables will put excess
strain onto the motor if a low speed
is selected. Please refer to the Speed
Selector Table on page 14 to determine
the correct speed for the fruits and
vegetables selected for juicing.
Excess pulp building up in the stainless
steel lter basket
Stop the juicing process and follow
Disassembling Instructions. Remove the
juicer cover, scrape o pulp, reassemble and
begin juicing again. Try alternating (soft and
hard) vegetable and fruit varieties.
Pulp too wet and reduced extracted juice
Try a slower juicing action.
Remove juice disc and thoroughly clean
mesh walls with a cleaning brush. Rinse
the juice disc under hot water. If the ne
mesh holes are blocked, soak the basket in a
solution of hot water with 10% lemon juice to
unblock the holes or wash in the dishwasher.
This will remove excess bre build up (from
fruit or vegetables) which could be inhibiting
the juice ow.
Juice leaks between the rim of the Juicer
and the juicer cover
Try a slower juicing speed and push the food
pusher down the feed chute more slowly
(page 10, step 6).
Juice sprays out from spout
Use juice jug and lid provided, or if juicing
into a glass use the custom designed juice
nozzle. Try using fruits with more water
content to help ush through the contents.
Additionally, try a slower juicing action
by feeding one piece in at a time and by
pushing the food pusher down more slowly.
When using the Puree Extractor, the lter
bowl surround becomes full and clogs its
spout.
Try using fruits with more water content to
help ush through the contents. Additionally,
try a slower juicing action by feeding one
piece in at a time and by pushing the food
pusher down more slowly.
TROUBLE SHOOTING GUIDE
