CAVS Karaoke Station IPS-11G User manual

CAVS IPS-11G Karaoke Station
User’s Manual
This product supports external memory devices with USB connectivity - USB flash drive,
USB hard drive, MP3 player, MP4 player, etc with FAT32 file system (PC)

2

3
---- Table of Contents ----
1 Introduction …………………………………………………………………………………………………… 4
2 Safety and Warning Instruction ……………………………………………………………………………… 5
3 Specification…………………………………………………………………………………………………… 7
4 CAVS IPS-11G and Accessories …………………………………………………………………………… 8
4 1 Package Contents………………………………………………………………………………… 8
4 2 Name of Each Part And Function Description ……………………………………………… 9
5 Installation and Connection ………………………………………………………………………………… 12
5 1 Connecting USB Memory Device ……………………………………………………………… 12
5 2 Removing USB Memory Device ………………………………………………………………… 12
5 3 Remote Control Battery Installation …………………………………………………………… 12
5 4 Power Connection ……………………………………………………………………………… 13
5 5 Video Connection ……………………………………………………………………………… 13
5 6 Audio Connection ……………………………………………………………………………… 15
5 7 Microphone Connection ………………………………………………………………………… 17
6 Operation …………………………………………………………………………………………………… 18
6 1 Photos mode …………………………………………………………………………………… 20
6 2 Music mode ……………………………………………………………………………………… 22
6 3 Videos mode ……………………………………………………………………………………… 23
6 4 Files mode ……………………………………………………………………………………… 24
6 5 Storing files ……………………………………………………………………………………… 25
7 Karaoke ……………………………………………………………………………………………………… 26
7 1 Finding Karaoke Songs ………………………………………………………………………… 26
7 2 Transferring Karaoke Songs …………………………………………………………………… 27
7 3 Playing Karaoke Songs ………………………………………………………………………… 28
7 4 Using Microphones ……………………………………………………………………………… 31
8 Firmware update ……………………………………………………………………………………………… 32
9 Setup system configuration ………………………………………………………………………………… 34
9 1 Photo Setup …………………………………………………………………………………… 34
9 2 Music Setup …………………………………………………………………………………… 35
9 3 Movie Setup …………………………………………………………………………………… 36
9 4 Slide Show Setup …………………………………………………………………………… 37
9 5 Preferences ………………………………………………………………………………… 39
9 6 Karaoke Setup ……………………………………………………………………………… 43
9 7 Speaker Setup ……………………………………………………………………………… 44
9 8 Exit Setup ……………………………………………………………………………………… 44
10 FAQ (Trouble shooting) ……………………………………………………………………………………… 45
* LIMITED WARRANTY

4
1 Introduction
CAVS IPS-11G Karaoke Station is an innovative ultra compact multimedia player that plays photo, music, video,
and karaoke from your USB memory device, such as USB flash drive, USB hard drive, MP3 player, MP4 player,
etc It also plays the same USB hard drives as those made for CAVS DVD 105G and 203G USB players CAVS
IPS-11G is a mobile and versatile player for your home as well as professional entertainment
CAVS IPS-11G connects to your audio video (AV) system and lets you view, search, and play directly on the TV
screen using a remote controller Simply connect, sit back, and enjoy
CAVS IPS-11G plays video files (MPEG, AVI, DAT, VOB), picture files (JPEG, BMP, GIF), music files (MP3),
and karaoke files (CDG, MP3+G, MCG, Super CD+G, MCG-MP3) The files can be downloaded online or
extracted from discs For karaoke, the song files can be downloaded from www cdgdownload com and other
karaoke websites, or extracted from CD+G and Super CD+G discs using MCG Manager program which is
available for free
CAVS IPS-11G has a full line of karaoke functions, including Pitch control, Tempo control, Voice cancel, Search,
Reservation, Dual microphone mixer, Independent volume and echo controls, etc It will bring your USB
memory device alive with fun and enjoyment CAVS IPS-11G is compact, simple to use, and powerful
· Play photo, music, video, and karaoke from external memory device such as USB flash drive, USB hard
drive, MP3 player, MP4 player, etc (formatted FAT32)
· View, search, and play the multimedia files directly on TV screen with a remote control
· Enjoy karaoke songs with full features of lyric display, key control, tempo control, voice cancel, and built-
in dual microphone mixer with independent volume controls and echo control
· Charge your MP3 or MP4 player via USB connector

5
2 Safety and Warning Instruction
Please read it carefully to ensure safe and proper use:

6
FCC NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC rules These limits are designed to provide reasonable protection against harmful interference in
a residential installation This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on The user is encouraged to try to
correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna
· Increase the separation between the equipment and receiver
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
· Consult the dealer or an experienced radio/TV technician for help
Modifications not expressly approved by the manufacturer could void the user's authority to operate the
equipment under FCC rules
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union
and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not
be treated as household waste Instead it shall be handed over to the applicable
collection point for the recycling of electrical and electronic equipment By ensure
this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be
caused by inappropriate waste handling of this product The recycling materials will
help to conserve natural resource For more detailed information about recycling of
this product, please contact your local city office, your household waste disposal
service or the shop where you purchased the product

7
3 Specification

8
4 CAVS IPS-11G Karaoke Station and Accessories
4 1 Package Contents
· CAVS IPS-11G Karaoke Station
· A/V cable
· AC power adapter
· Remote control & Battery
· Microphone
· User’s manual

9
4 2 Name of Each Part And Function Description
4 2 1 CAVS IPS-11G Karaoke Station
4 2 1 1 Front / Top Side
· Power LED: Indicates the system power status (on/off)
· IR sensor: Receives remote control signal For proper operation, be sure that there is no obstacle
between RI sensor and the remote control
4 2 1 2 Right Side
A-Type USB port is located on the right side of the main body to connect your USB memory device such as a
USB flash drive, USB hard drive, MP3 player, MP4 player, etc

10
4 2 1 3 Back Side
SPDIF connector for digital audio output, S-Video connector for high-resolution video output, A/V connector for
RCA 2 Channel audio and composite video output, 9V DC power input terminal, and POWER ON/OFF Switch
are located on the back side
4 2 1 4 Left Side
Two mini (3 5mm, 1/8 inch) jack connectors for dual microphone inputs, microphone volume control knob and
echo control knob are located in left side

11

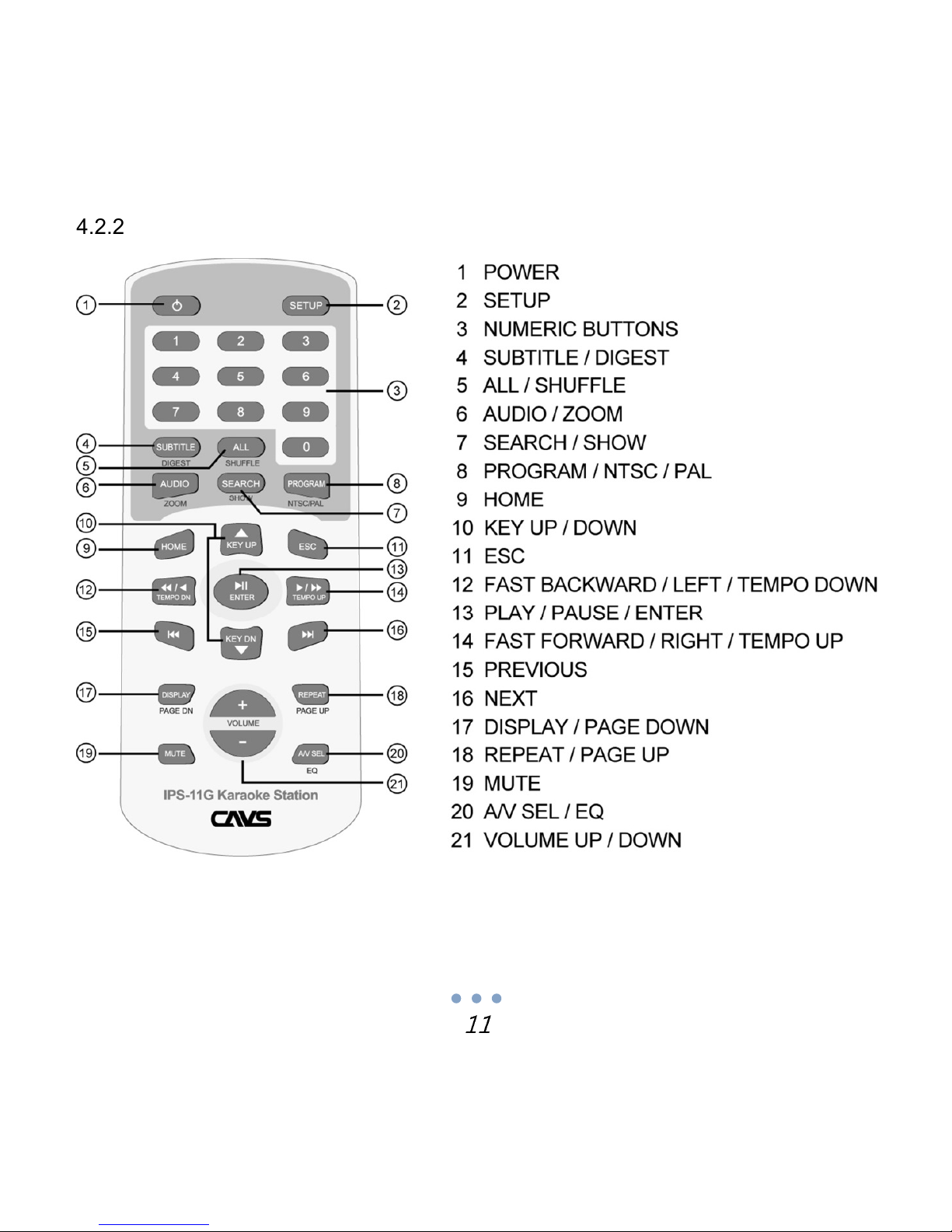

4 2 2 Remote Controller

12
5 Installation and Connection
5 1 Connecting USB Memory Device
Connect your USB memory device, such as iPod®, MP3 player, MP4 player, USB memory stick, USB card
reader, or USB hard drive, to CAVS IPS-11G Karaoke Station Use the USB cable that came with your USB
memory device to connect
You can connect your USB memory device anytime regardless of CAVS IPS-11G being powered on or off
“MEDIA DETECTED” message will appears on TV screen
5 2 Removing USB Memory Device
You can remove your USB memory device from CAVS IPS-11G anytime “NO MEDIA DETECTED” message
will appears on TV screen
5 3 Remote Control Battery Installation
Before using your remote control, insert the battery as described below
· Using a clip or fingertip, pull out the battery holder
· Insert one “CR2032” battery as shown Make sure to keep the correct polarity (+ or -)
· Push in the battery holder until a click sound

13
Do not store the remote control in high temperatures or direct sunlight
The remote control may not function properly in direct sunlight
5 4 Power Connection
AC power adapter supports 100V~240V AC input voltage with DC9V 1000 mA output To prevent any damage
to the system, it is recommended only to use the included AC power adapter
5 5 Video Connection
5 5 1 Connecting to composite output (most commonly used)
Using the yellow connector of AV cable, connect the CAVS IPS-11G AV out terminal with VIDEO IN or
COMPOSITE IN terminal of TV Please refer to the user’s manual of your TV to find the VIDEO IN terminal

14
5 5 2 Connecting to S-VIDEO output
If your TV has S-Video input terminal, you can enjoy high quality video using S-Video cable (not included) from
the S-Video out terminal of CAVS IPS-11G to the S-Video input terminal of your TV

15
5 6 Audio Connection

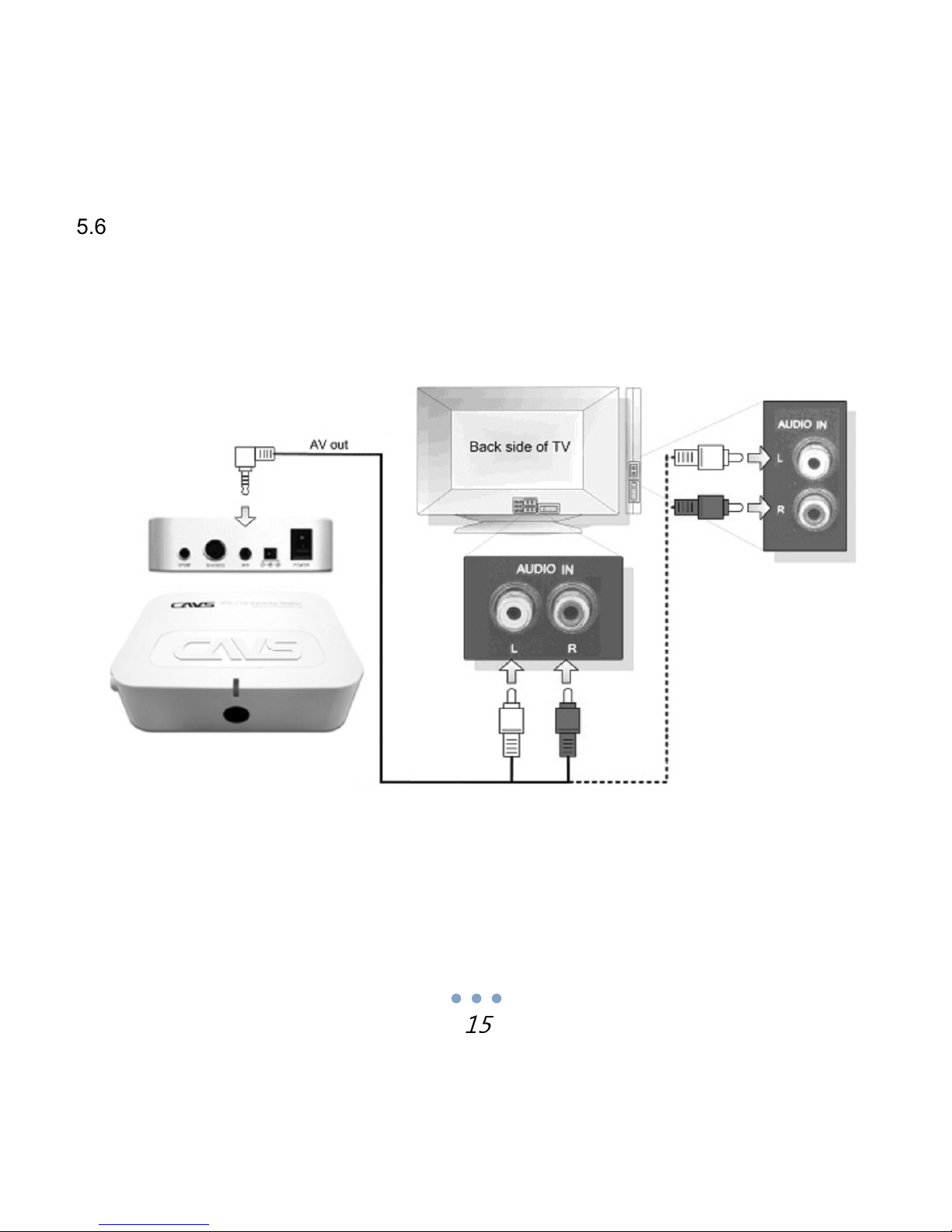

5 6 1 Connecting to analog audio output (most commonly used)
Using the white and red connector of AV cable, connect the CAVS IPS-11G AV out terminal to the AUDIO IN
terminal of TV or amplifier Please refer to the user’s manual of your TV or amplifier to find the AUDIO IN
terminal

16
5 6 2 Connecting to digital audio output (5 1CH)
If your AV receiver has a digital audio input terminal (coaxial), you can enjoy 5 1ch audio when playing back
5 1ch audio files Using the digital audio cable (not included), connect SPDIF digital audio out terminal of CAVS
IPS-11G with digital audio input terminal (coaxial terminal) of your AV receiver Please refer to the user’s
manual of your AV receiver to find the digital audio input terminal

17
5 7 Microphone Connection
CAVS IPS-11G has a built-in dual microphone mixer with 3 5mm mini jack connectors for 2 microphones
Connect the microphones (one included) into the mini jack connectors Turn on the power switch located on the
microphone handle
Adjust the microphone volume and echo level with MIC VOL and ECHO control knobs Turn the control knobs
clockwise to increase, or counter clockwise to decrease, the volume and echo level

18
6 Operation of CAVS IPS-11G Karaoke Station
To start CAVS IPS-11G Karaoke Station,
· Connect the power cable and AV cable of CAVS IPS-11G as shown in Section 5
· Turn on the POWER switch in the back side of CAVS IPS-11G
· Press the POWER key in the remote control
The initial screen of CAVS IPS-11G will appear with a message “NO MEDIA DETECTED” on the TV screen
The POWER key in the remote control only works when the POWER switch in the back side of CAVS
IPS-11G is turned on This state is called standby mode When not in use, turn off the POWER switch in
the back side of the unit
After CAVS IPS-11G is powered on, if the TV screen keeps rolling vertically and has no color, press
PROGRAM key in the remote control of CAVS IPS-11G to change the TV type (MULTI / NTSC / PAL)
setting The PROGRAM key will only work to change the TV type setting in the Main menu when no
digital device is connected To change the TV type setting at any other time, go to Setup menu and
follow the instruction given in Section 9 Setup system configuration

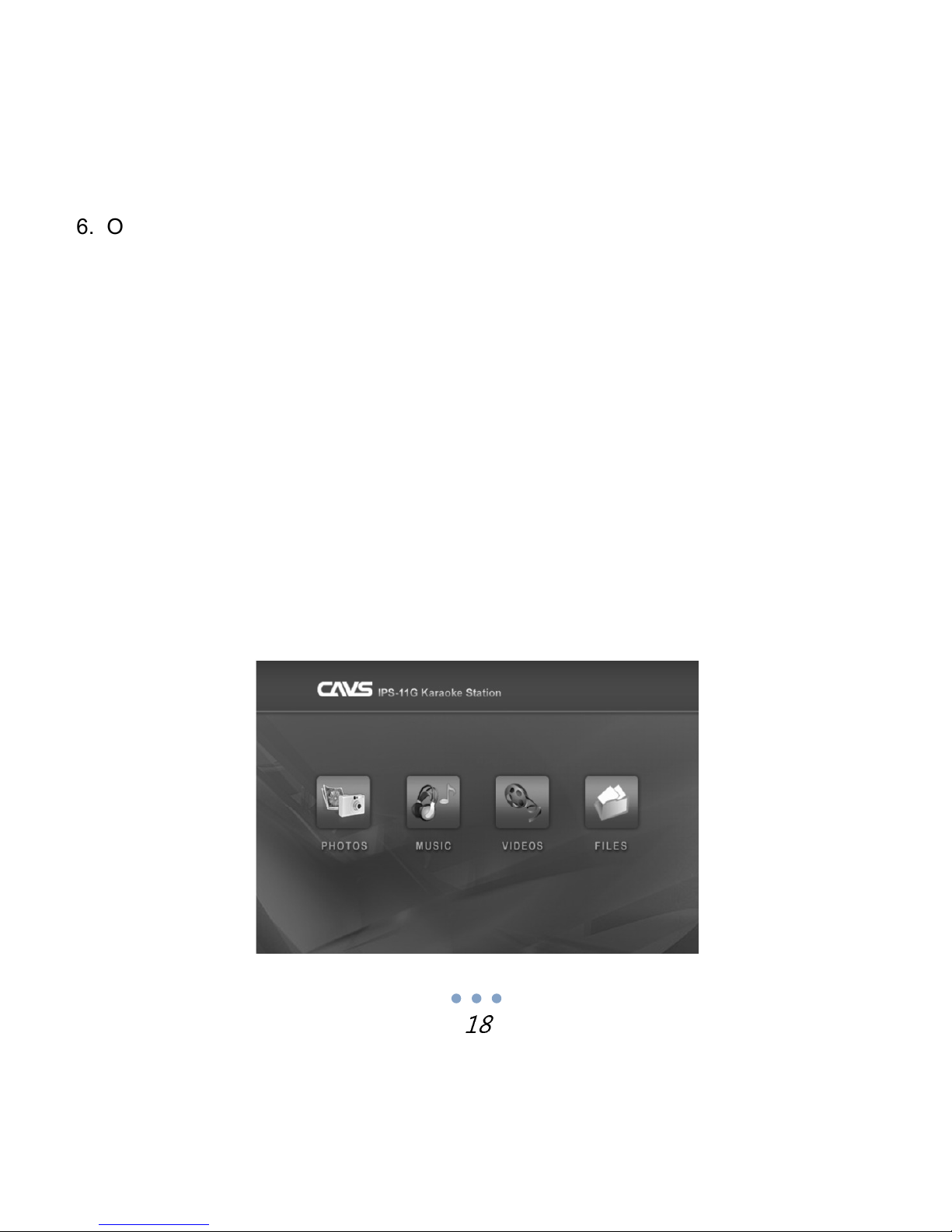

Connect your USB memory device to CAVS IPS-11G The TV screen will show “MEDIA DETECTED” message
and display the Main menu in a few seconds Main menu consists of Photos, Music, Videos, and Files icons

19
You can choose any icon by using the ◄/► keys and pressing the ENT key You can return to Main menu from
any part of operation by pressing HOME key anytime You can disconnect your USB memory device anytime
from CAVS IPS-11G
Remote control keys:
· POWER: Turn on/off CAVS IPS-11G
· HOME: Go to the Main menu
· SETUP: Go to Setup menu (See Section 9 Setup system configuration)
· VOL (+/-): Adjust the volume level
· MUTE: Mute the audio Press again to cancel
· ENT ( ): Select a highlighted menu or play a highlighted file Press to pause during playback
· ESC: Stop playback or go back to previous menu
· /▼: Move up / down when browsing
· ◄/►: Go to previous / next menu when browsing, or fast reverse / fast forward during playback Press
again to return to normal speed during playback
· / (Previous / Next): Go to previous / next page when browsing or previous / next file during playback

20
6 1 Photos mode
Photos mode reads and plays image files saved under a folder named Photos in your digital devices The folder
Photos may contain multilevel sub-folder structure CAVS IPS-11G can play back image files of format
JPG(JPEG), BMP, and GIF
For iPod®, to see the images stored through iTunes®, go to Photos, Full Resolution, and Year-Month-Date
folders Note that only the images stored with “Include full-resolution photos” option in iTunes® will be shown
