cctv camera pros MON-7HD User manual

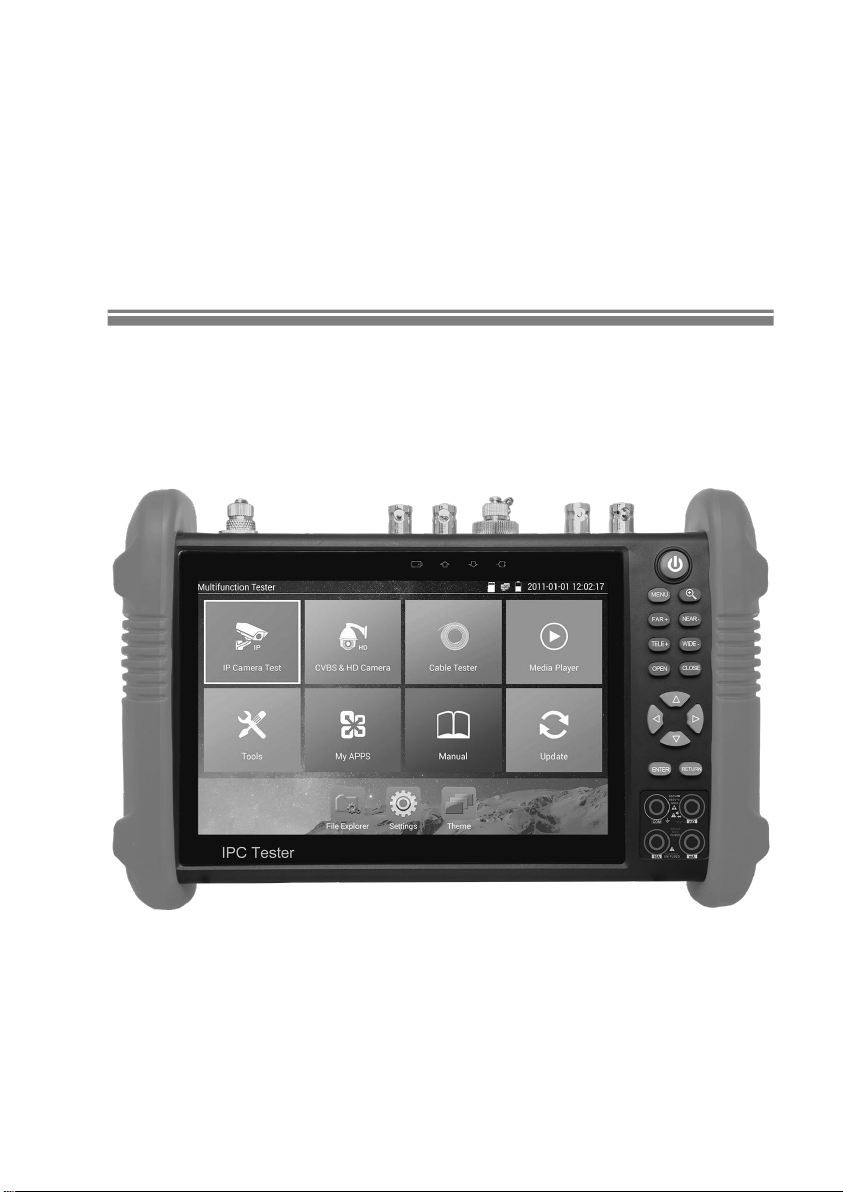

MON-7HD IP Camera Tester / HD CCTV Test Monitor
User Manual
（V01.00）
Supplied exclusively by CCTV Camera Pros
www.cctvcamerapros.com

Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera
tester and use properly.
For using the IP camera tester safely, please first read the「Safety Information」carefully in the
manual.
The manual should be kept well in case of reference.
Keep the S/N label for after-sale service within warranty period. Product without S/N label will
be charged for repair service.
If there is any question or problem while using the IP camera tester, or damages occurred on the
product, please contact our technical Department.

Content
1 .Safety information--------------------------------------------------------------------------------------------------1
2. IP Camera Tester Introduction------------------------------------------------------------------------------------2
2.1 General------------------------------------------------------------------------------------------------------- 2
2.4 Packing list---------------------------------------------------------------------------------------------------3
2.5 Function interface-------------------------------------------------------------------------------------------4
3. Operation------------------------------------------------------------------------------------------------------------ 7
3.1 Installing the Battery--------------------------------------------------------------------------------------- 7
3.2 Instrument connection--------------------------------------------------------------------------------------8

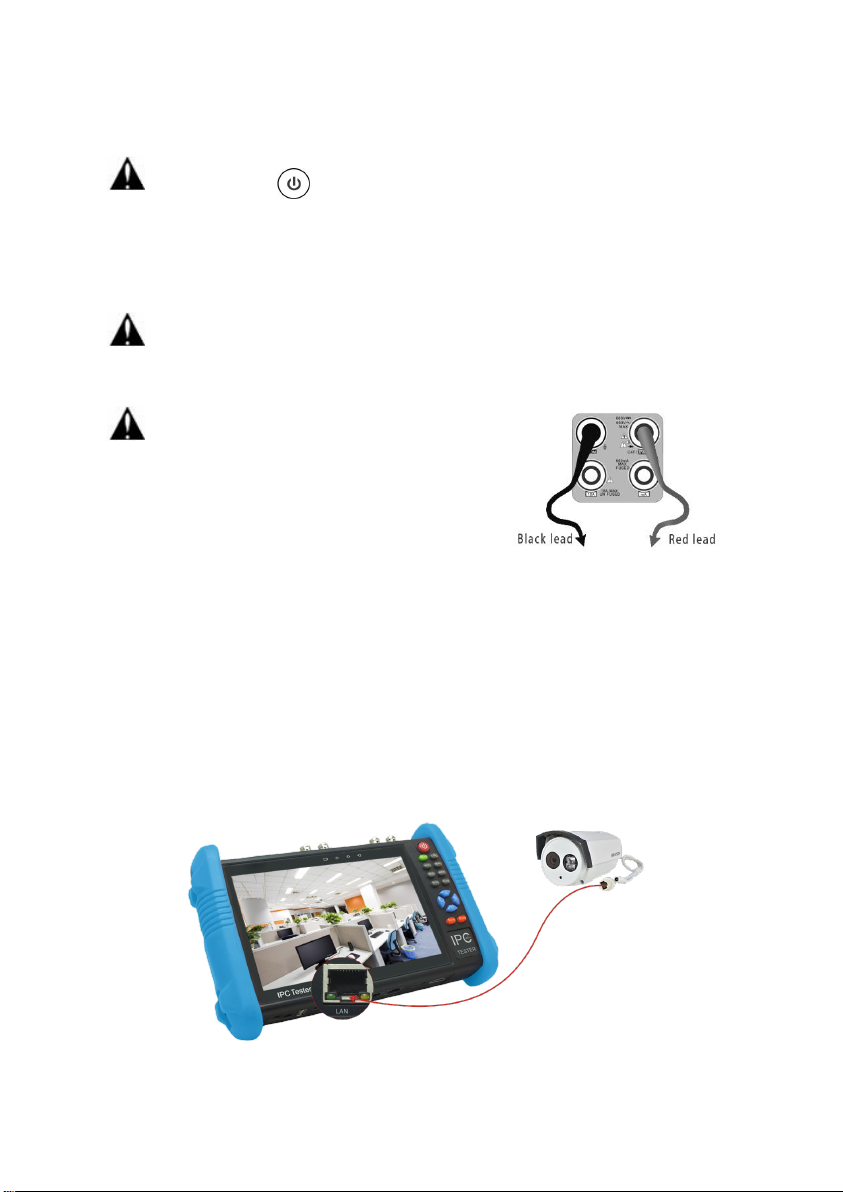

3.2.1 IP camera connection------------------------------------------------------------------------------------ 8

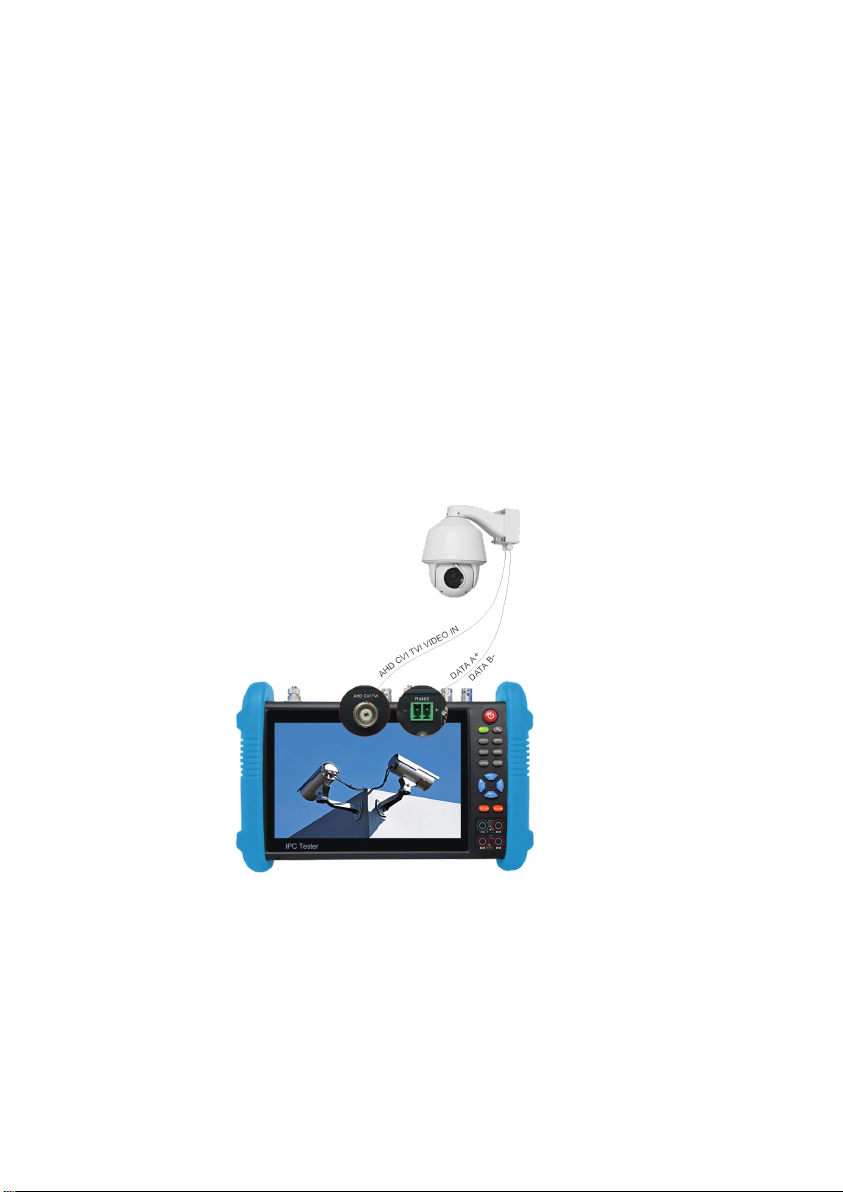

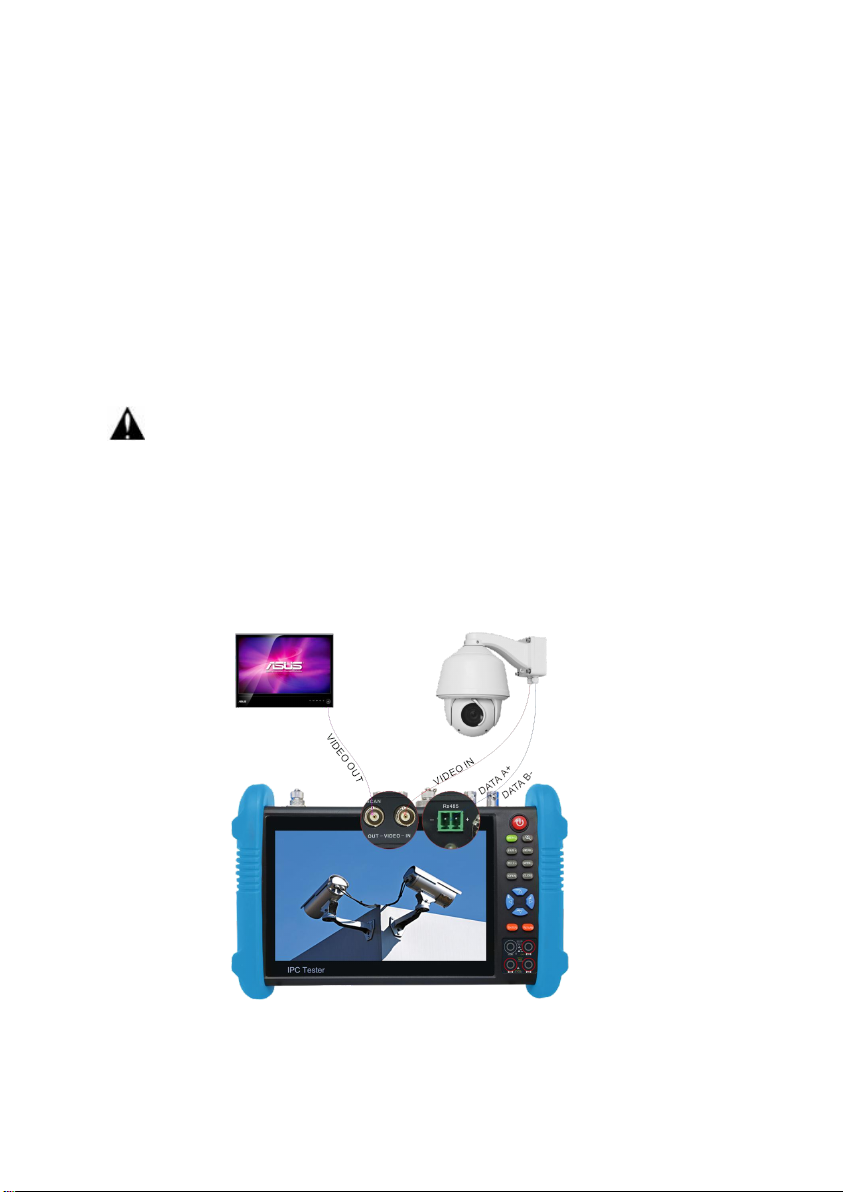

3.2.2 Analog camera connection------------------------------------------------------------------------------ 9
3.2.3 HD Coaxial camera connection----------------------------------------------------------------- 10
3.2.4 HDMI IN ----------------------------------------------------------------------------------------- 11
3.3 OSD menu--------------------------------------------------------------------------------------------------11
3.3.1 Lite mode& Normal mode----------------------------------------------------------------------- 11
3.3.2 Drop-down Menu--------------------------------------------------------------------------------- 15
3.3.3 Short cut-menu------------------------------------------------------------------------------------ 16
3.3.4 Screen capture------------------------------------------------------------------------------------- 17
3.3.5 TesterPlay------------------------------------------------------------------------------------------ 17
3.3.6 Rapid video---------------------------------------------------------------------------------------- 19
3.3.7 IP discovery----------------------------------------------------------------------------------------20
3.3.8 Rapid ONVIF test--------------------------------------------------------------------------------- 21
3.3.9 IP camera test-------------------------------------------------------------------------------------- 36
3.3.10 HDMI IN ( *Optional )----------------------------------------------------------------------- 38
3.3.11 Video monitor test------------------------------------------------------------------------------- 42
3.3.12 Color-bar generator (TV OUT)---------------------------------------------------------------- 51
3.3.13 SDI Camera Test ( *Optional )-------------------------------------------------------------- 52

3.3.14 CVI camera test ( *Optional )--------------------------------------------------------------- 54
3.3.15 TVI camera test ( *Optional )----------------------------------------------------------------61
3.3.16 AHD camera test ( *Optional )-------------------------------------------------------------- 63
3.3.17 Network tool------------------------------------------------------------------------------------- 64
（1）IP address scan------------------------------------------------------------------------------------64
（2）PING Test----------------------------------------------------------------------------------------- 65
（3）Network test (Ethernet bandwidth test)------------------------------------------------------- 65
（4）Port Flashing-------------------------------------------------------------------------------------- 69
（5）DHCP server-------------------------------------------------------------------------------------- 70
（6）Trace route---------------------------------------------------------------------------------------- 70
（7）Link monitor-------------------------------------------------------------------------------------- 71
3.3.18 Rapid IP Discovery------------------------------------------------------------------------------72
3.3.19 PoE power / DC12V 2A and DC 5V 2A USB power output------------------------------ 73
3.3.20 Cable Test --------------------------------------------------------------------------------------- 74
3.3.21 RJ45 cable TDR test---------------------------------------------------------------------------- 75
3.3.22 Cable Tracer ( *Optional )------------------------------------------------------------------ 77
3.3.23 TDR cable test ( *Optional )----------------------------------------------------------------- 79
3.3.24 PoE Voltage test--------------------------------------------------------------------------------- 82
3.3.25 12V power input test---------------------------------------------------------------------------- 83
3.3.26 Digital Multi-meter ( *Optional )----------------------------------------------------------- 84
3.3.27 Optical power meter ( *Optional )---------------------------------------------------------- 91
3.3.28 Visual Fault Locator ( *Optional )---------------------------------------------------------- 93
3.3.29 Audio Record------------------------------------------------------------------------------------ 95
3.3.30 Data monitor------------------------------------------------------------------------------------- 95
3.3.31 Audio player--------------------------------------------------------------------------------------96
3.3.32 Media Player------------------------------------------------------------------------------------- 96
3.3.33 RTSP Player-------------------------------------------------------------------------------------- 97
3.3.34 Hik test tool---------------------------------------------------------------------------------------98
3.3.35 Dahua test tool----------------------------------------------------------------------------------101

3.3.36 Update------------------------------------------------------------------------------------------- 105
3.3.37 Office-------------------------------------------------------------------------------------------- 106
3.3.38 LED Flashlight--------------------------------------------------------------------------------- 106
3.3.39 Browser------------------------------------------------------------------------------------------107
3.3.40 Notepad------------------------------------------------------------------------------------------107
3.3.41 System Setting---------------------------------------------------------------------------------- 108
3.3.42 File explorer------------------------------------------------------------------------------------ 113

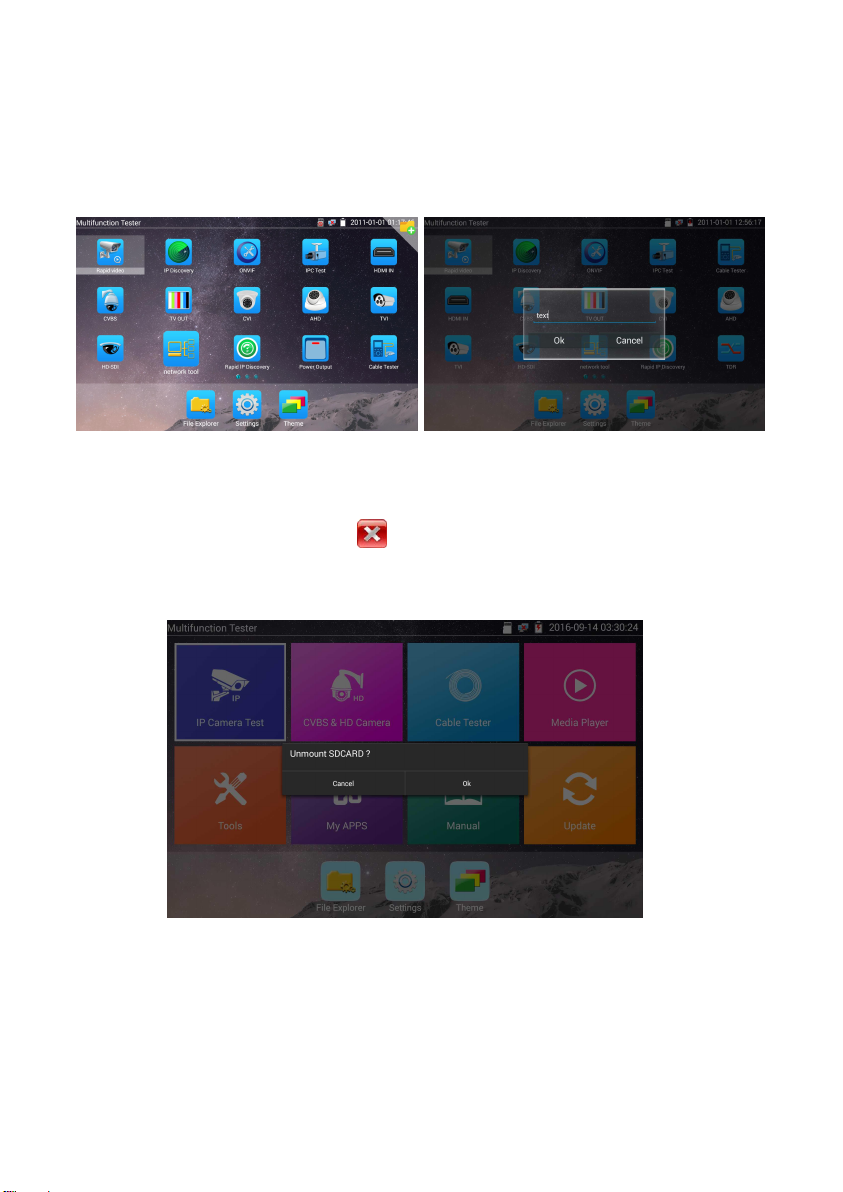

3.3.43 Theme--------------------------------------------------------------------------------------------114
3. 4 Audio test------------------------------------------------------------------------------------------------ 117
3.5 HDMI output--------------------------------------------------------------------------------------------- 117
3.6 PoE power output---------------------------------------------------------------------------------------- 117
3.7 DC12V 2A power output------------------------------------------------------------------------------- 118
4. Specifications---------------------------------------------------------------------------------------------------- 120
4.1 General Specifications---------------------------------------------------------------------------------- 120
4.2 Multi-meter specifications------------------------------------------------------------------------------ 123
4.3 Optical power meter specifications--------------------------------------------------------------------125
4.4 Visual fault locator specifications--------------------------------------------------------------------- 126

Page.1.
1 .Safety information
◆The tester is intended to use in compliance with the local rules of the electrical usage and avoid to
apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc.
◆To prevent the functional decline or failure, the product should not be sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the violent collision and vibration
of the tester, lest damaging components and causing failure.
◆Don’t leave the tester alone while charging and recharging. If the battery is found severely hot, the
tester should be powered off from the electric source at once. The tester should not be charged over 8
hours.
◆Don’t use the tester where the humidity is high. Once the tester is damp, power off immediately and
move away other connected cables.
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be repaired by the user. If the
disassembly is necessary indeed, please contact with the technician of our company.
◆The instrument should not be used under the environment with strong electromagnetic interference.
◆Don’t touch the tester with wet hands or waterish things.
◆Don’t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to remove,
the soft cloth with water or neutral detergent can be used. But the cloth should be tweaked
sufficiently.
About Digital Multi-meter
◆Before using, you must select the right input jack, function and range.
◆Never exceed the protection limit values indicated in specifications for each range of measurement.
◆When the tester is linked to a measurement circuit, do not touch unused terminals.
◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground.
◆At the manual range, when the value scale to be measured is unknown beforehand, set the range
selector at the highest position.
◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind the
probe barriers while measuring.

Page.2.
◆Never connect the meter with any voltage source while the function switch is in the current,
resistance, capacitance, diode, continuity, otherwise it will damage the meter.
◆Never perform capacitance measurements unless the capacitor to be measured has been discharged
fully.
◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.
Visual laser sources
When you turn on visual laser sources, please don’t stare at it, or will damage to eyes
When not using it, please turn it off and cover the protective cap.
2. IP Camera Tester Introduction
2.1 General
The 7 inch touch screen IP camera monitor is designed for maintenance and installation of IP cameras,
analog cameras, TVI, CVI AHD, SDI/EX-SDI cameras, as well as testing 4K H.264 /4K H.265 camera
via mainstream, The 1280x800 resolution enables it to display network HD cameras and analog
cameras in high resolution. The unit supports many ONVIF PTZ and analog PTZ control. The
combination of touch screen and key buttons make the IP camera tester very user-friendly.
The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP
address searching. You can use the blue cable tracer to locate individual connected cables from a bundle
of cables. Test LAN cable for proper connection termination. Other functions include providing 24W
PoE power to your camera, HDMI IN and OUT, CVBS loop test, testing IP and analog at the same time,
LED Flashlight, DC 12V 2A power output and much more. Its portability, user-friendly design and
many other functions make the IP tester an essential tool for all installers or technicians.

Page.3.
2.4 Packing list
1). Tester
2). Adaptor DC12V 2A
3) Network cable tester
4) Polymer lithium ion battery (7.4V DC 5000mAh)
5). BNC cable
6). RS485 cable
7). SC,ST connector（Only for optical power meter）
8). Multi-meter test leads one pair of red and black (only for the Multi-meter models)
9). Output Power cable
10). Audio cable
11). TDR alligator clamp (only for TDR models)
12). Safety cord
13). Tool bag
14). Manual
15).8GB SD card

Page.4.

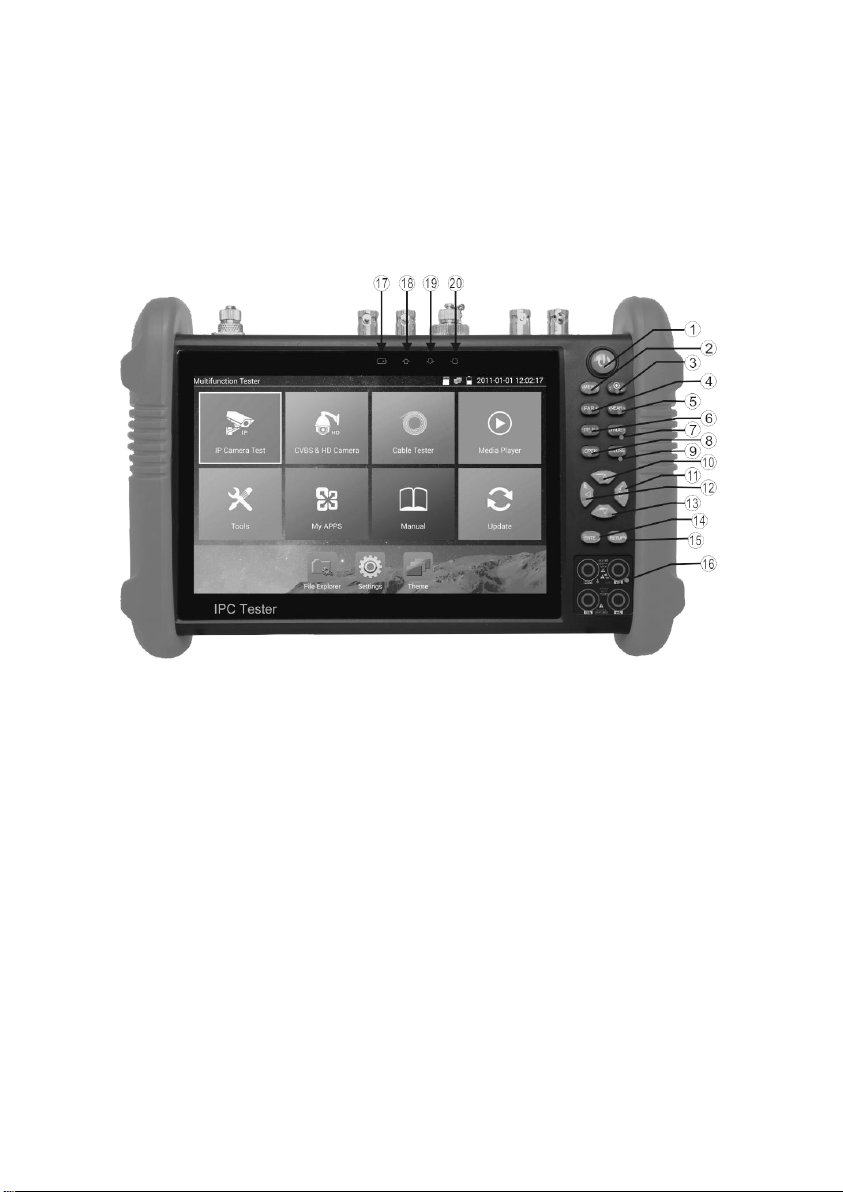

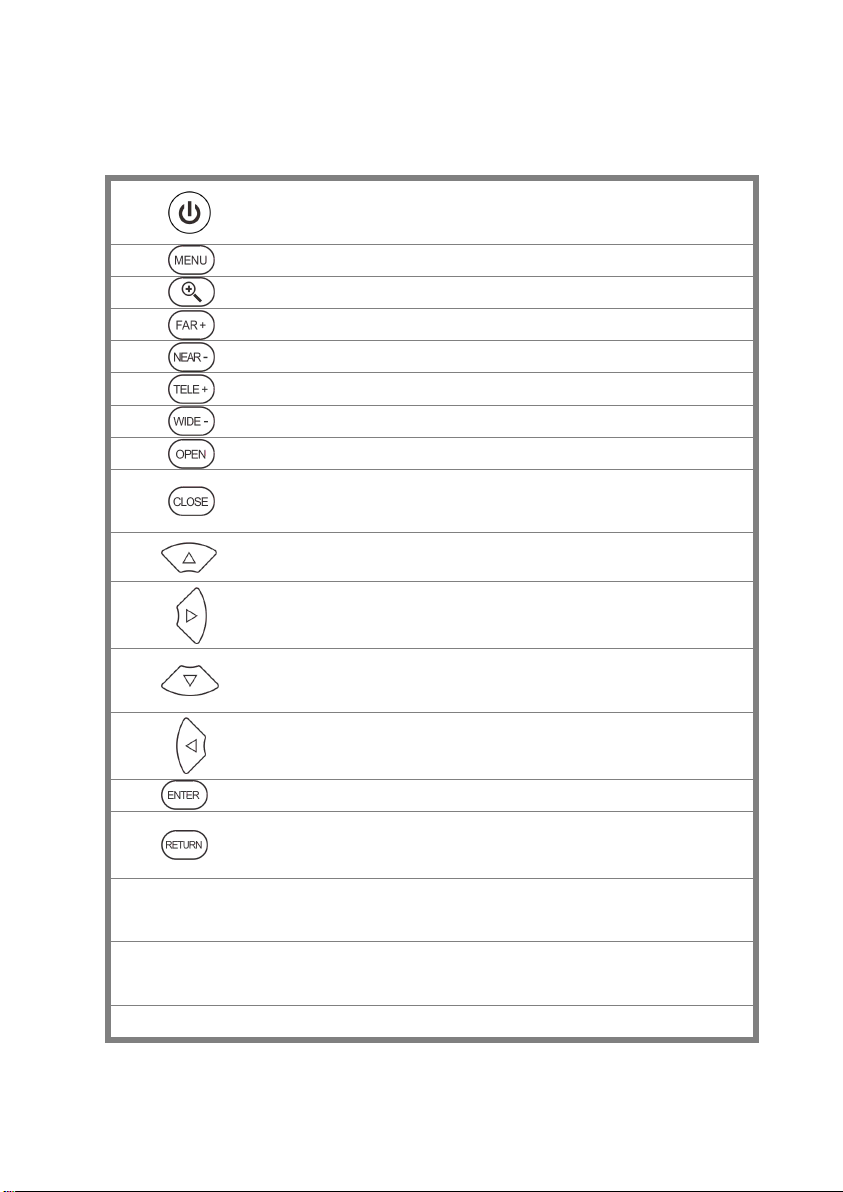

2.5 Function interface

Page.5.
1
Press more than 2 seconds, turn on or off the device ,short press to turn on or off
the menu display
2
Menu key,press it to call short- menu.
3
4xzoom the image displays.
4
Far focus: Focus the image faraway
5
Near focus: Focus the image nearby
6
TELE: zoom in the image
7
WIDE: zoom out the image
8
Open/set ,Confirm the setting of parameters, open or enlarge the aperture
9
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
10
Upward, set function or add parameter. Tilt the PTZ upward
11
Rightward, select the parameter whose value will be changed. Add the value of the
parameter. Pan the PTZ right
12
Downward, set function or reduce the value of the parameter. Tilt the PTZ
downward
13
Leftward, select the parameter whose value will be changed
14
Confirm key,(Long press it to capture screen interface)
15
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
17
The charge indicator: it lights red while the battery is being charged. As the
charging is complete, the indicator turns off automatically
18
The RS485 data transmission indicator: it lights red while the data is being
transmitted
19
The data received indicator: it lights red while the data is being received
