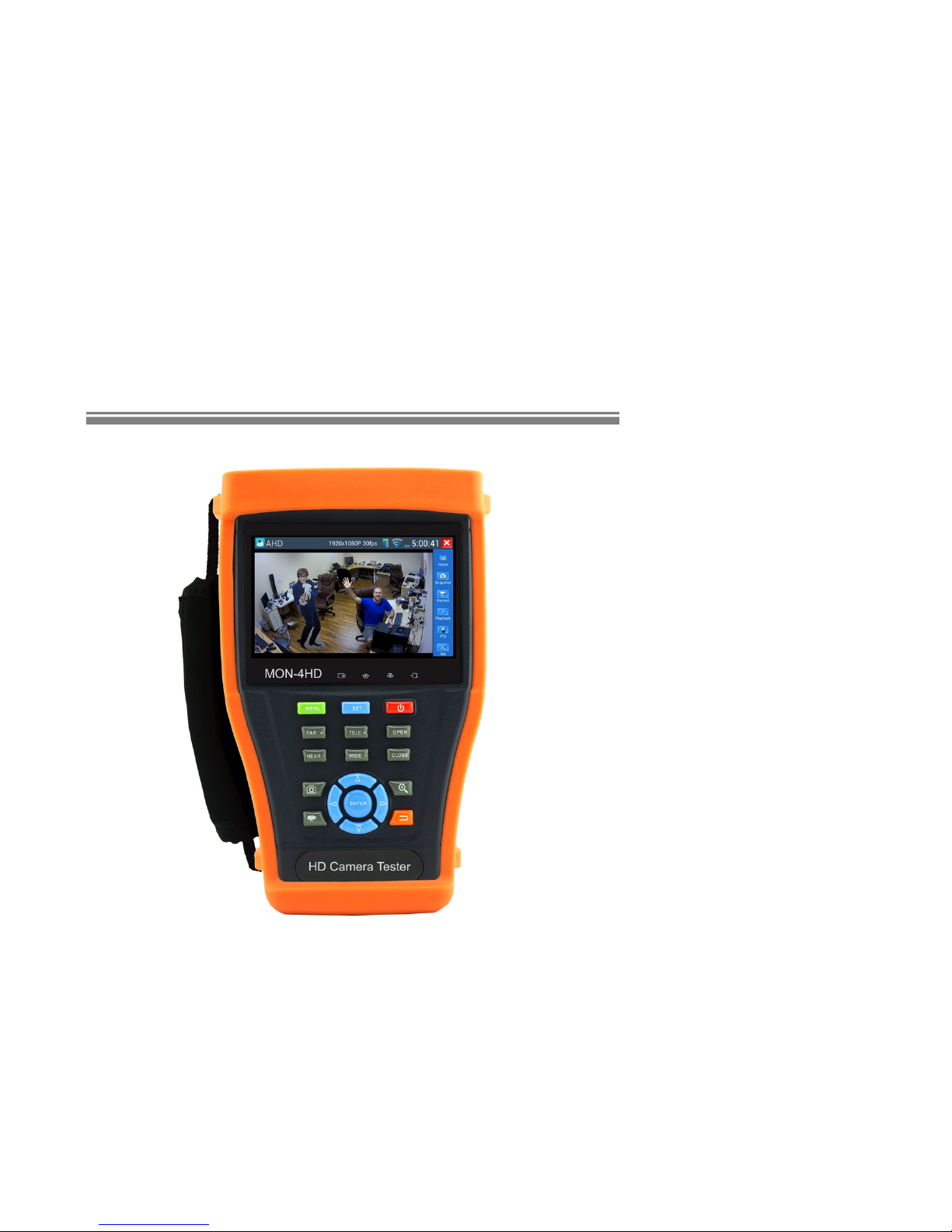

CCTV MON-4HD User manual

!
!
MON-4HD
CCTV Test Monitor for analog, AHD, HD-TVI, HDCVI and IP Cameras
User Manual
（IPC1.03）
Learn more about this HD camera test monitor here.

!
!
Thank you for purchasing the IP camera tester. Please read the manual before using the IP camera
tester and use properly.
For using the IP camera tester safely, please first read the「Safety Information」carefully in the
manual.
The manual should be kept well in case of reference.
Keep the S/N label for after-sale service within warranty period. Product without S/N label will be
charged for repair service.
If there is any question or problem while using the IP camera tester, or damages occurred on the
product, please contact our technical Department.

!
Page!1!
!
Content
1 Safety information-------------------------------------------------------------------------------------------------- 3
2 IP Camera Tester Introduction------------------------------------------------------------------------------------ 4
2.1 General ------------------------------------------------------------------------------------------------- 4
2.2 Features ------------------------------------------------------------------------------------------------- 4
2.3 Function ------------------------------------------------------------------------------------------------- 7
2.4 Packing list -----------------------------------------------------------------------------------------------14
2.5 Function interface ---------------------------------------------------------------------------------------15
3. Operation ----------------------------------------------------------------------------------------------------------19
3.1 Installing the Battery------------------------------------------------------------------------------------19
3.2 Instrument connection ----------------------------------------------------------------------------------20
3.2.1 IP camera connection-------------------------------------------------------------------------20
3.2.2 Analog camera connection-------------------------------------------------------------------21
3.2.3 HD Coaxial camera connection -------------------------------------------------------------22
3.3 OSD menu------------------------------------------------------------------------------------------------23
3.3.1 Video monitor test (PTZ control)-----------------------------------------------------------25
3.3.2 Color-bar generator (TV OUT) -------------------------------------------------------------35
3.3.3 ONVIF------------------------------------------------------------------------------------------35
3.3.4 IP camera test----------------------------------------------------------------------------------44
3.3.5 SDI camera test （* Optional ）----------------------------------------------------------47
3.3.6 CVI camera test （* Optional ）---------------------------------------------------------49
3.3.7 TVI camera test （* Optional ）----------------------------------------------------------53
3.3.8 AHD camera test （* Optional ）--------------------------------------------------------55
3.3.9 IP address scan --------------------------------------------------------------------------------56
3.3.10 PING Test ------------------------------------------------------------------------------------57
3.3.11 Cable test -------------------------------------------------------------------------------------58
3.3.12 Cable tracer （* Optional ）-------------------------------------------------------------58

!
Page!2!
!
3.3.13 Port finder ------------------------------------------------------------------------------------60
3.3.14 Data monitor ---------------------------------------------------------------------------------61
3.3.15 Optical power meter （* Optional ）---------------------------------------------------61
3.3.16 Visual Fault Locator （* Optional ）---------------------------------------------------63
3.3.17 Digital Multi-meter （* Optional ）----------------------------------------------------64
3.3.18 Media Player ---------------------------------------------------------------------------------70
3.3.19 Audio player ---------------------------------------------------------------------------------71
3.3.20 LED Flashlight-------------------------------------------------------------------------------72
3.3.21 PoE/PSE Voltage test -----------------------------------------------------------------------72
3.3.22 TDR cable test （* Optional ）---------------------------------------------------------73
3.3.23 Calculator-------------------------------------------------------------------------------------76
3.3.24 Browser ---------------------------------------------------------------------------------------76
3.3.25 IP camera viewer ----------------------------------------------------------------------------77
3.3.26 PoE power / DC12V 2A and DC 5V 2A USB power output--------------------------78
3.3.27 Application tools ----------------------------------------------------------------------------80
3.3.28 APPS Tools Folder --------------------------------------------------------------------------88
3.3.29 System Setting -------------------------------------------------------------------------------89
3.3.30 Update-----------------------------------------------------------------------------------------92
3.4 HDMI output---------------------------------------------------------------------------------------------92
3.5 PoE power output ---------------------------------------------------------------------------------------92
3.6 DC12V 2A power output-------------------------------------------------------------------------------94
3.7 USB 5V 2A power output------------------------------------------------------------------------------95
3.8 Audio test ------------------------------------------------------------------------------------------------95
4. Specifications -----------------------------------------------------------------------------------------------------96
4.1 General Specifications----------------------------------------------------------------------------------96
4.2 Multi-meter specifications -----------------------------------------------------------------------------99
4.3 Optical power meter specifications ----------------------------------------------------------------- 101
4.4 Visual fault locator specifications------------------------------------------------------------------- 101

!
Page!3!
!
1 Safety information
The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply
at the places which are inapplicable for the use of electrics such as hospital, gas station etc.
◆To prevent the functional decline or failure, the product should not be sprinkled or damped.
◆The exposed part of the tester should not be touched by the dust and liquid.
◆During transportation and use, it is highly recommended to avoid the violent collision and vibration
of the tester, lest damaging components and causing failure.
◆Don’t leave the tester alone while charging and recharging. If the battery is found severely hot, the
tester should be powered off from the electric source at once. The tester should not be charged over 8
hours.
◆Don’t use the tester where the humidity is high. Once the tester is damp, power off immediately and
move away other connected cables.
◆The tester should not be used in the environment with the flammable gas.
◆Do not disassemble the instrument since no component inside can be repaired by the user. If the
disassembly is necessary indeed, please contact with the technician of our company.
◆The instrument should not be used under the environment with strong electromagnetic interference.
◆Don’t touch the tester with wet hands or waterish things.
◆Don’t use the detergent to clean and the dry cloth is suggested to use. If the dirt is not easy to
remove, the soft cloth with water or neutral detergent can be used. But the cloth should be tweaked
sufficiently.
About Digital Multi-meter
◆Before using, you must select the right input jack, function and range.
◆Never exceed the protection limit values indicated in specifications for each range of measurement.
◆When the tester is linked to a measurement circuit, do not touch unused terminals.
◆Do not measure voltage if the voltage on the terminals exceeds 660V above earth ground.
◆At the manual range, when the value scale to be measured is unknown beforehand, set the range
selector at the highest position.
◆Always be careful when working with voltages above 60V DC or 40V AC, keep fingers behind the
probe barriers while measuring.

!
Page!4!
!
◆Never connect the meter with any voltage source while the function switch is in the current,
resistance, capacitance, diode, continuity, otherwise it will damage the meter.
◆Never perform capacitance measurements unless the capacitor to be measured has been discharged
fully.
◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits.
Visual laser sources
When you turn on visual laser sources, please don’t stare at it, or will damage to eyes
When not using it, please turn it off and cover the protective cap
2 IP Camera Tester Introduction
2.1 General
The 4.3 inch touch screen IP camera monitor and tester is designed for maintenance and installation of
IP camera and analog camera as well as other security equipments , 800x480 resolution enables it to
display network HD cameras and analog cameras in high resolution. The unit supports many ONVIF
PTZ and analog PTZ control. The combination of touch screen and key buttons make the IP camera
tester very user- friendly.
The tester is also a great tool for Ethernet network testing. It can test PoE power voltage, PING, and IP
address searching. You can use the blue cable tracer to locate individual connected cables from a bundle
of cables. Test LAN cable for proper connection termination. Other functions include providing 24W
PoE power to your camera, LED Flashlight, DC 12V 2A power output and much more. Its portability,
user-friendly design and many other functions make the IP tester an essential tool for all installers or
technicians.
2.2 Features
² 4.3inch 800×480 touch screen, easy to operate.
² ONVIF IP camera video testing
² Compatible with H.264/MPEG4/MJPEG IP cameras, such as Dahua, HIKVISION, and ACTI

!
Page!5!
!
Customized service is available.
² Built in Wi-Fi ,can receive image from wireless camera, as well as ONVIF and customized IP
cameras.
² SDI Digital camera image display, record and screen snapshot
（
*Optional
）
² HD CVI camera image display, zoom ,video record and playback ,coaxial PTZ control and
call camera OSD menu
（
*Optional
）
² HD TVI camera image display, zoom ,video record and playback ,coaxial PTZ control and call
camera OSD menu
（
*Optional
）
² AHD camera image display, zoom ,video record and playback ,coaxial PTZ control and call
camera OSD menu
（
*Optional
）
² HDMI signal output, support 1080P
² Analog camera image display, Auto adapt and display the video format of NTSC/PAL
² Support more than 30 protocols ,such as PELCO-P,PELCO-D,SAMSUNG etc
² PEAK video signal level, SYNC signal level, Color burst chroma level measurement,test
video signal attenuation
（
*Optional
）
² Video image digital zoom to view the image in greater detail.
² Snapshot function allows you to save the current image as a JPG file in the SD card.
² LED Flashlight.
² 4GB Micro SD card included.
² LCD screen brightness/contrast/color Saturation adjustable
² Visual fault locator , to test fiber’s bending and breakage
（
*Optional
）
² Optical power meter ,test fiber loss and value
（
*Optional
）
² Digital Multi-meter , DC and AC voltage measurement, Resistance measurement
（
*Optional
）
² Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator (Eight-
system switchable, transmit/receive eight-system colorful images).
² Cable tracer, by sending the audio signal, enables the blue cable tracer tester to find the

!
Page!6!
!
connected cable from messy cables.
（
*Optional
）
² Ping test, PING is the most conventional network debugging tools; it is used for testing if the
connected IP camera or other network equipment’s Ethernet port is working normally and the
IP address is correct.
² In digital IP surveillance applications, if the IP camera’s IP address is not known; the device
cannot be used. An IP address scan can quickly search for the connected IP camera or other
network device’s IP address.
² The PoE voltage test can test for PoE voltage when a POE switch is supplying POE power
to an IP camera
² TDR cable test, test cable open circuit and short-circuit
（
*Optional
）
² Cable test , Test LAN cable or telephone cable,UTP cable etc ,cable type and the sequence of
wires will be displayed
² Support RS232/RS485,Rate 600 ～115200bps adjustable
² PTZ protocol analysis, control protocol command displays to check RS485 transmission
whether is normal, easy to find the fault device
² PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and
sets and the preset position
² DC12V 2A output power for camera
² PoE 24W power output,supply temporary power for PoE camera
² DC5V 2A power output,as a power bank
² Audio input and output, test and output the audio signal
² 7.4V 48.1Wh Battery. Remaining battery charge indicator, Lithium Ion Polymer Battery can last
16 hours for normal use after charging for 8 hours
“*”Sign means the function Optional

!
Page!7!
!
2.3 Function
2.3.1 Touch screen and OSD menu
The IP camera tester combines touch screen control and physical buttons. This combination makes the
tester very user friendly. The test meter allows you to move the function icons from the tester’s main
menu to the APPS folder or move them back to customize the main menu
2.3.2 WIFI
With built in WIFI, you can view the video from a wireless camera (ONVIF or customized camera) or
connect to a Wireless network.
2.3.3 IP camera test
The device is designed for ONVIF IP camera testing. It can display the image from an IP camera and
change the IP address. 4.3 inch 800×480 screen display allows the user to view the image with a
sufficient screen size.
With the ONVIF tool, you can display the image from an IP camera and use the PTZ functions. Currently
the IP camera tester supports more than 70 brands’ IP cameras, such as most, ACTi, Dahua, Hikvision,
Samsung, Honeywell and many more.
OEM service is available. Users can send us the IP camera for our engineers try to add the protocols to
the tester, or send us the mobile apps (Android version. APK files) to install in the tester.
2.3.4 SDI camera test
（
*Optional
）
SDI digital video surveillance testing, support720p 60fps / 1080p 30fps / 1080i 60fps digital
camera image test and video image zoom, record, screen snapshot, photo viewer and video
playback .
2.3.5 CVI camera test
（
*Optional
）
HD CVI video surveillance testing, support 720p 25,30,50,60fps / 1080p 25,30fps digital camera image
test and video image zoom, record, snapshot, photo viewer, video playback, coaxial PTZ control and

!
Page!8!
!
call up the camera OSD menu
2.3.6 TVI camera test
（
*Optional
）
HD TVI video surveillance testing, support 720p 25,30,50,60fps / 1080p 25,30fps digital camera image
test and video image zoom, record, snapshot, photo viewer, video playback, coaxial PTZ control and call
up the camera OSD menu.
2.3.7 AHD camera test
（
*Optional
）
AHD video surveillance testing, support 720p 25,30fps / 1080p 25,30fps digital camera image test and
video image zoom, record, snapshot, photo viewer, video playback, coaxial PTZ control and call up the
camera OSD menu.
2.3.8 HDMI signal output
The HDMI output port supports up to a 1080p 60Hz resolution output.
2.3.9 Analog camera test
Display analog camera image ,4.3 inch 800×480 LCD screen display , supports PAL & NTSC formats.
The LCD screen's back light brightness, video image brightness, contrast and color saturation are all
adjustable.
2.3.10 Video level meter (*Optional)
Perform NTSC and PAL video amplitude signal measurements for PEAK to PEAK ,SYNC levels and
COLOR BURST chroma level.
Video signal PEAK to PEAK level:
For NTSC format, the video signal level is 140±15IRE
For PAL format, the video signal level is 1000±200mV
If the level is too low, it will cause the image to lose quality and limit the distance it will travel over cable.
If the level is too high, it will lead to wash out of the image

!
Page!9!
!
SYNC level: Testing the amplitude of the video sync pulse to verify if the video level is correct.
For NTSC format, the SYNC level is 40 ± 5IRE
For PAL format, the SYNC level is 300 ± 35mV
If the level is too low, it will cause the image to not frame out properly. If the level is too high, it will lead
to a poor quality
COLOR BURST level: Testing the color burst level will determine if the burst signal is sufficient to
trigger the displays color producing circuit. Burst will diminish in amplitude over longer cable runs and
can get fall below the threshold for the video display to show a color image.
For NTSC format, the Chroma standard level is 40 IRE
For PAL format, the Chroma standard level is 280mV
If the Chroma level is too low, the color will not be as deep, and some details of the image will get washed
out. If the Chroma level is too high, there will be spots on the image. If the coaxial cable is too long, it
will reduce the chroma level
2.3.11 PTZ controller
Displays and allows for analysis of analog video and controls Pan/tilt/zoom function of PTZ analog
cameras. For PTZ testing, setup the controlling parameters from the meter to match those of the camera:
e.g. PTZ protocol (PELCO-D, etc.), communication port (RS-485, etc.), baud rate, PTZ camera ID and
pan/tilt speed.
2.3.12 Enhanced Color bar generator
The tester sends out color bars via its BNC output to the monitor. This is used to test for a problem in
the cable going from the camera back to the monitoring area
2.3.13 DC
1
2V 2A power output port and 5VDC 2A USB power port
The unit can power a camera with its 12V DC 2A power output. Also included is a built in 5V DC 2A

!
Page!10!
!
power output port used to charge USB devices. NOTE: This USB port is for charging only and has no
ability to transfer data.
2.3.14 PoE power supply
Supports PoE 802.3at power at 48V and up to 24W.
2.3.15 Audio testing
Test the audio from mic level input devices. Connect the tester and mic level device with the audio
cable. Supports audio recording and output. to monitor and / or record audio.
2.3.16 PTZ data analysis
Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test
the PTZ control command data whether received anomaly and RS485/RS232 data transmission.
Screen displays 16 hexadecimal codes such as
PELCO-P:A0 00（Add）xx xxxxxx AF xx
PELCO-D:FF 01（Add）xx xxxxxxxx
2.3.17 Digital Image zooms on the monitor
Set image zoom up to 4X to get a closer look at all the image detail. Supports analog and many IP cameras
2.3.18 Video screenshot
Capture the video image displayed , and save as JPEG file in the SD card.
2.3.19 Record
Capture and save the current video in the SD card.
2.3.20 Playback
The recorded files can play directly via Media player or under the function of “Playback”.
2.3.21 Cable Tracer (cable search)
（
*Optional
）
Cable identification by use of an audio signal. This function enables the blue cable tracer to find the

!
Page!11!
!
connected cable from a bundle of cables with an audio tone.
2.3.22 DHCP dynamic address assignment
Built in DHCP server: Dynamically assign IP address for the IP camera or network device.
2.3.23 Access the dynamic IP address
The IP tester can directly access a dynamic IP address assigned from its DHCP server and use it as the
tester’s IP address. No need to set a IP address manually.
2.3.24 Multi- segments IP Cameras Test
Support Multi- segment Static IP address setting, which can simultaneously test different segments IP
network cameras.
2.3.25 Network bandwidth testing
The network bandwidth test needs two IP testers to test bandwidth: one as a transmitter, the other as a
receiver.
2.3.26 IP address scan
The IP address scan can quickly search for connected IP cameras or another network device IP address.
2.3.27 PING Test
PING is the most conventional network debugging tools; It is used for testing if the connected IP camera
or other network equipment’s Ethernet port is working normally and the IP address is correct.
2.3.28 Port Finder
The tester will send signals to make the connected PoE port flicker at a set frequency. This will enable
the installer to easily and quickly find the connected port for an Ethernet cable.
2.3.29 PoE Test
Test the PoE voltage from a PoE switch. The unit will clearly display the voltage for each wire in an
Ethernet cable.

!
Page!12!
!
2.3.30 Digital Multi-meter (*Optional)
The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the
DC and AC voltage measurement, AC and DC current measurement, Resistance measurement,
Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range
switching, relative value measurement and locking. It is easy operation and professionally accurate.
2.3.31 Visual fault locator
（
*Optional
）
Visual Fault Locator with 650nm wavelength can emit red laser sources to test multi-mode and single
mode fiber’s bending and breakage, and Continuous light-emitting and 1HZ, 2Hz modulating light
output. It is indispensable tool in fiber project constructing, fiber net-work maintaining, optical
component manufacture and research.
2.3.32 Optical Power Meter
（
*Optional
）
The IP camera tester adopts the most advanced handheld instrument specific integrated chip , achieve
ultra-low power operation, with the 4.3 TFT-LCD High-definition screen display ,five wavelength
calibration points 1625nm,1550nm,1490nm,1310nm,1300nm,850nm.Linear or nonlinear optical power
display, it can measure the optical power value, and also be used for Relative measurement of optical
fiber link loss. It is necessary tool for fibre-optic communication, cable television system and security
system maintenance.
2.3.33 LED Flashlight
Press the LED On/Off button to use the LED flashlight.
2.3.34 Screen image rotates 180 degrees
You can manually rotate the display 180 degrees using the settings.
2.3.35 TDR cable open circuit and short circuit measurement
（
*Optional
）
TDR cable testing, accurately measure BNC cable, network cable, controls cable’s open circuit and
short-circuits location. It greatly improves working efficiency.
2.3.36 FTP Server

!
Page!13!
!
Start the tester’s Wi-Fi or connect the tester’s LAN port to the network. Once the tester is online, start its
FTP Server and directly access files from the tester’s SD card. This also allows for the user to upgrade
the tester firmware.

!
Page!14!
!
2.4 Packing list
1). Tester
2). Adaptor DC12V 2A
3) Network cable tester
4) Polymer lithium ion battery (7.4V DC 5000mAh)
5). BNC cable
6). RS485 cable
7). SC,ST connector（Only for optical power meter）
8). Multi-meter test leads one pair of red and black (only for the Multi-meter models)
9). Output Power cable
10). Audio cable
11). TDR alligator clamp (only for TDR models)
12). Safety cord
13). Tool bag
14). Manual
15) 4G SD card

!
Page!15!
!
2.5 Function interface

!
Page!16!
!

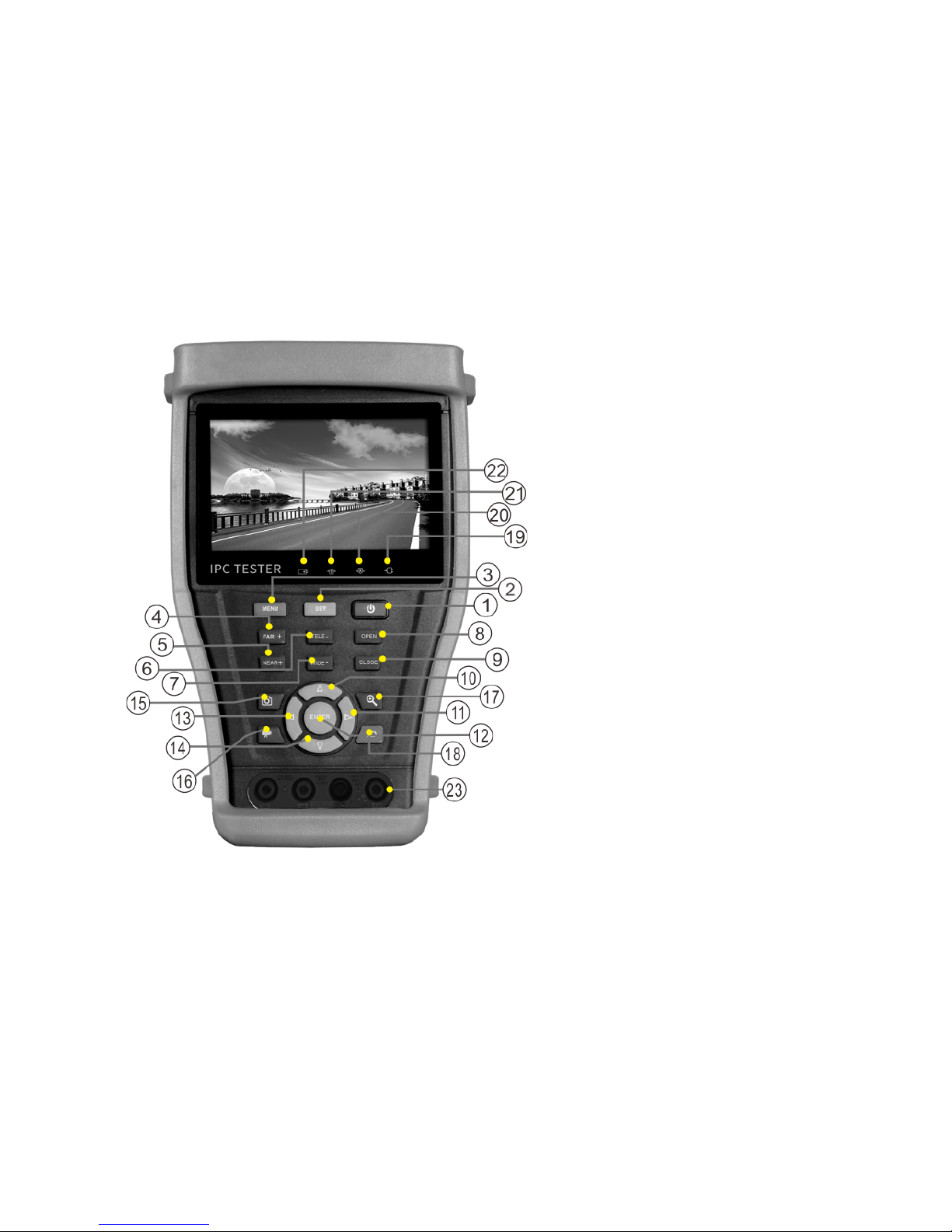

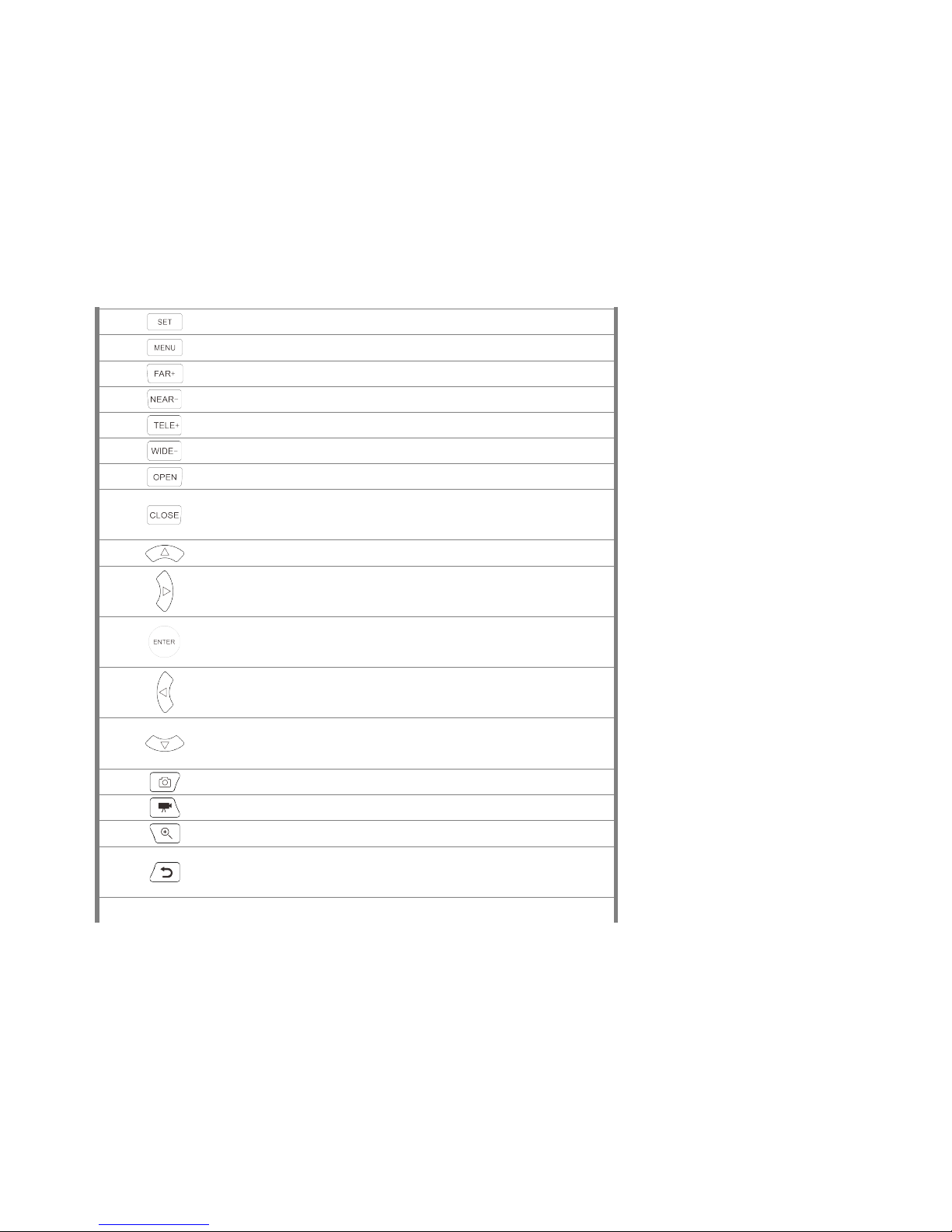

1
Press more than 2 seconds, turn on or off the device ,short press to turn on or off
the menu display
2
Set key
3
Menu key
4
Near focus: Focus the image nearby
5
Far focus: Focus the image faraway
6
TELE: zoom in the image
7
WIDE: zoom out the image
8
Open/set ,Confirm the setting of parameters, open or enlarge the aperture
9
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
10
Upward, set function or add parameter. Tilt the PTZ upward
11
Rightward, select the parameter whose value will be changed. Add the value of the
parameter. Pan the PTZ right
12
Confirm key
13
Leftward, select the parameter whose value will be changed
14
Downward, set function or reduce the value of the parameter. Tilt the PTZ
downward
15
Snapshot
16
Video record
17
Open/set ,Confirm the setting of parameters, open or enlarge the aperture
18
Return/Close : Return or cancel while setting parameters of the menu, close or
decrease the aperture
19
The power indicator: it lights green while the tester is powered on by the adapter
20 The data accepted indicator: it lights red while the data is being received

!
Page!17!
!
21
The RS485/RS232 data transmission indicator: it lights red while the data is being
transmitted
22
The charge indicator: it lights red while the battery is being charged. As the
charging is complete, the indicator turns off automatically
23
Multimeter interface (Optional)
Top interface

!
Page!18!
!
Left interface Right interface
24

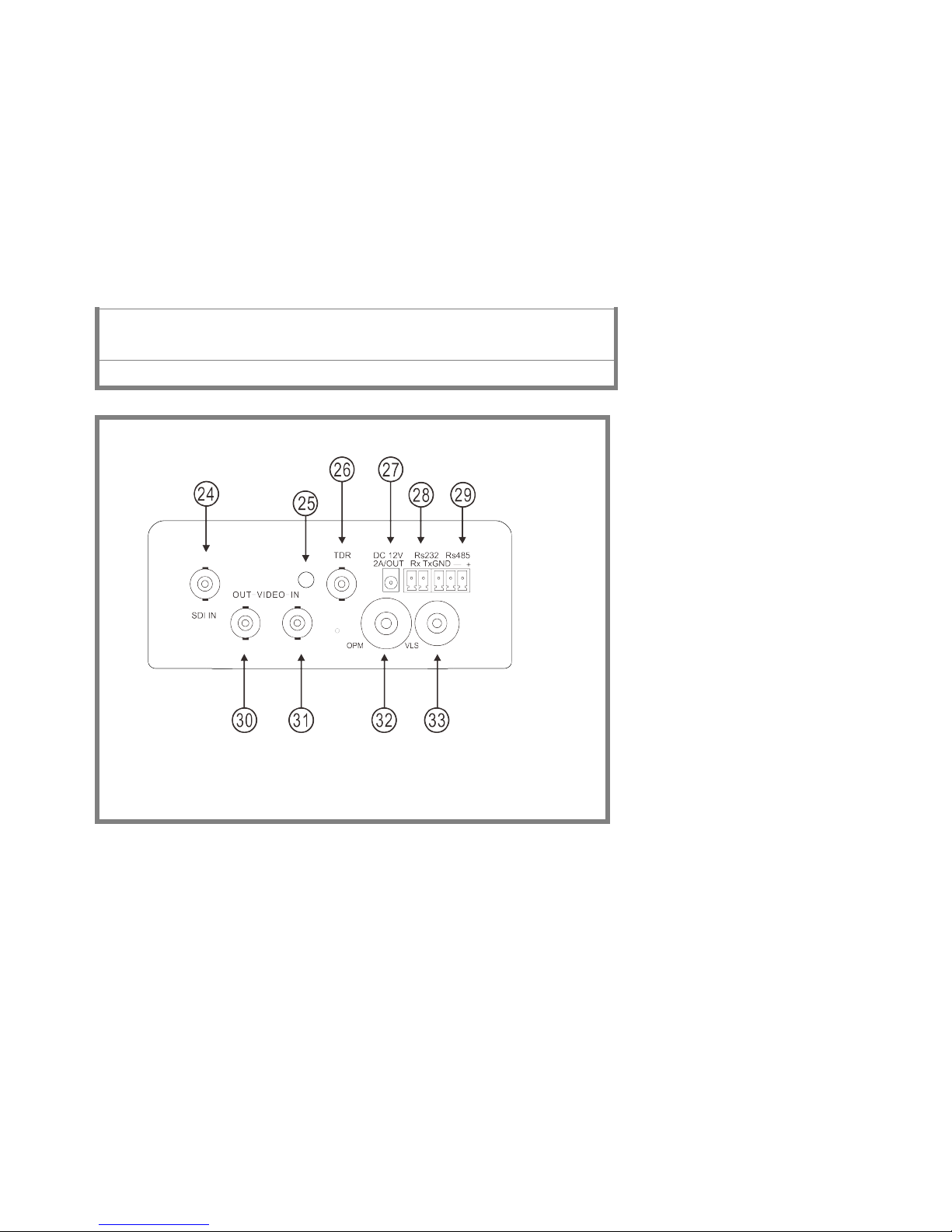

SDI input (BNC interface) (Optional)
25
LED lamp
26
TDR cable test interface/AHD,CVI and TVI input (BNC interface) (Optional)
27
DC12V2A power output , for provisional DC power supply
28
RS232 Interface: RS232 communication for the PTZ
29
RS485 Interface: RS485communication for the PTZ
30
Video image signal output（BNC interface）/cable tracer interface (Optional)
31
Video image signal input（BNC interface）
32
Optical power meter interface (Optional)
33
Visible red laser source emits Interface (Optional)
34
UTP cable port: UTP cable tester port/ Cable tracer port
35
Micro SD card moveable, comes with 4GB, supports up to 32GB
36
Audio input
37 HDMI output interface
