CDA FWV600 Quick start guide

1
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
FWV451, FWV600
& FWV901
Integrated Wine
Coolers
Installation, Use and Maintenance

2
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that
CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance or
use in a commercial environment.
This appliance is not designed to be used by people
(including children) with reduced physical, sensorial or
mental capacity, or who lack experience or knowledge
about it, unless they have had supervision or instructions on
how to use the appliance by someone who is responsible
for their safety.
Under no circumstances should any external covers be
removed for servicing or maintenance except by suitably
qualified personnel.
Do not use the appliance if the plug, the mains cord or the
appliance itself is damaged. If the mains cord is damaged,
you must have it replaced by the manufacturer, or an
authorised service centre or similarly qualified persons in
order to avoid a hazard.
Children should be supervised to ensure that they do not
play with the appliance. Keep the mains cord out of the
reach of children. Do not let the mains cord hang over the
edge of the table or worktop on which the appliance stands.

3
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
EU Declarations of Conformity:
This appliance has been designed, constructed and marketed in
compliance with safety requirements of EU Directive 2014/35/EU (Low
voltage) and requirements of EU Directive 2014/30/EU (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EU.
Please render the appliance unusable before disposal. This includes
removing the plug and breaking the door fixings to prevent children
being trapped inside the appliance during play, or any other risk of
injury.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority dierentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain significant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.

4
Before First Use
You must allow the appliance to settle for at least twenty four
hours prior to switching the power on.
It is recommended that you remove all internal and external
packaging and clean the interior of the appliance prior to first use,
using a solution of bicarbonate of soda and warm water and then
thoroughly dry the interior.
The appliance may have an odour to it at first use. This will disappear
as the appliance cools.
Please note:
• The appliance will work continuously until it gets to the correct
temperature.
• If the appliance is switched o, you should allow five minutes before
switching it on again to prevent the risk of unnecessary damage to
the compressor.
•The LED display may not show the selected temperature whilst the
appliance first gets to the correct temperature. This is normal, and
the display will be corrected automatically once the appliance has
run for a few hours.

5
Use
• Only store wine in sealed containers.
• Do not overload the cabinet.
• Only open the door when necessary.
• Do not cover the shelves with aluminium foil or anything else that
will prevent air from circulating around the cabinet.
• To prevent damage to the door seal, ensure the door is fully open
before removing the shelves.
• This is a self-defrosting appliance. The compressor will not run
during the thirty minute defrost cycle.
•Do not pull the shelves beyond the anti-stop position (approximately
one third out) when fully loaded.
•This appliance is intended to be used exclusively for the storage of
wine.
•In the event of a power failure, leave the door closed as much as
possible to maintain the internal working temperature. Should
the power failure continue for a prolonged period, you should
take steps to protect the contents of the wine cooler against a
rise in temperature. The wine cooler will remember the selected
temperature settings and revert to these settings once the power is
restored.
This appliance is suitable for use in an extended temperature climate
(N) and has a normal operating ambient temperature of 16-32°C. Use
of the appliance below 10°C may cause performance issues that
are not indicative of a fault. Normal operation will resume once the
appliance is within the specified range.

6
Use and Controls
FWV451 & FWV600
To switch the power on/o
• Press and hold the power button for one second to switch the wine
cooler on.
• Press and hold the power button for five seconds to switch the wine
cooler o.
To change the temperature
• Press the up or down buttons until the required temperature is
shown on the display.
• The preset temperature is 12˚C / 54˚F.
• To change the temperature display from Fahrenheit to Celsius,
or Celsius to Fahrenheit, press and hold the light button for five
seconds.
• To view the set temperature, touch the up or down button at any
time and the set temperature will flash in the LED display for five
seconds.

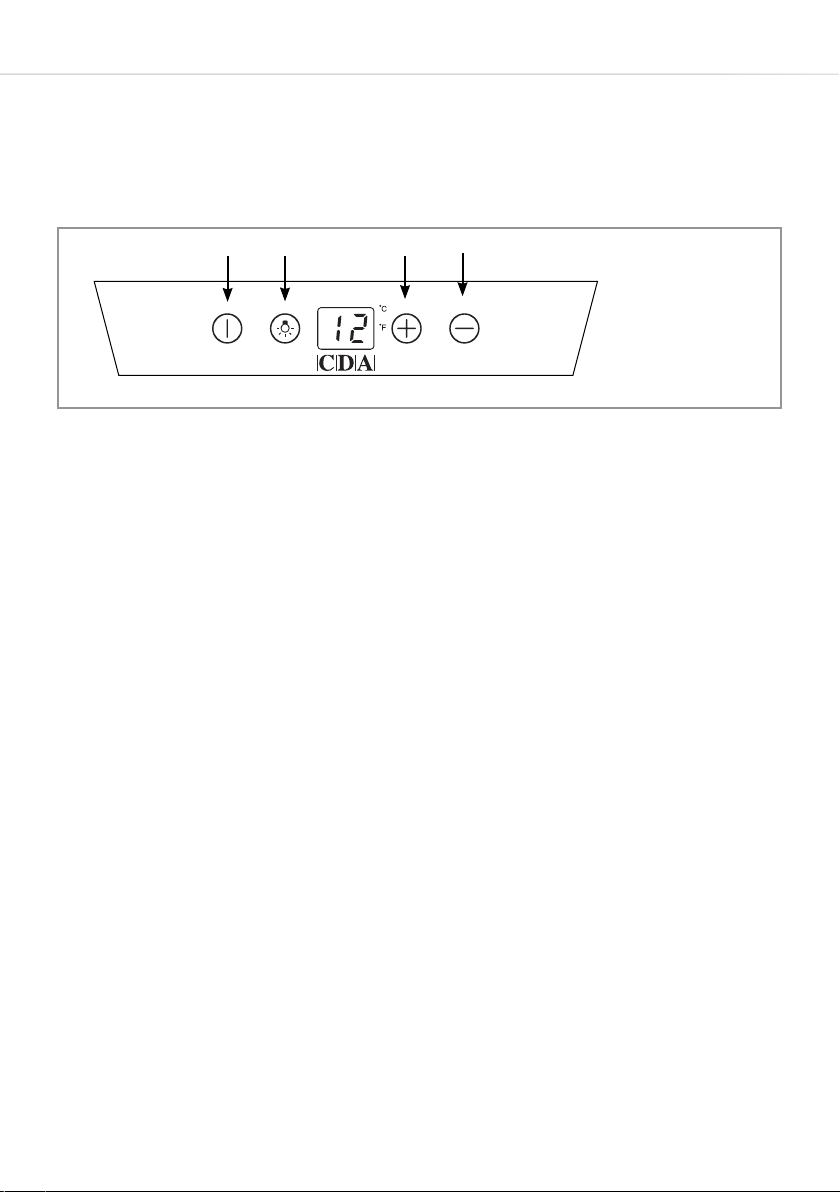

Key:
1 – Power button
2 – Light button
3 – Up button
4 – Down button
Fig. 1
34
1 2

7
• The display shows the current internal temperature when the wine
cooler is on.
Optimal temperature selection
Whilst wine is best stored at temperatures between 13°C and 15˚C,
your wine can also be stored at drinking temperature. For red wine
this is between 15°C and 17˚C, and for white wine between 12°C and
13˚C.
To use the internal light
• Press the light button to switch the light on or o.

8
Use and Controls
FWV901
To switch the power on/o
• Press and hold the power button for one second to switch the wine
cooler on.
• Press and hold the power button for five seconds to switch the wine
cooler o.
To change the temperature
• Press the up or down buttons for the appropriate zone until the
required temperature is shown on the display.
• The preset temperature is 10°C / 50°F for upper zone and 16°C /
60°F for lower zone.
• To change the temperature display from Fahrenheit to Celsius,
or Celsius to Fahrenheit, press and hold the light button for five
seconds.
• To view the set temperature, touch the up or down button at any
time and the set temperature will flash in the LED display for five
seconds.
Key:
1 – Power button
2 – Upper Zone, up button
3 – Upper Zone, down
button
4 – Lower Zone, up button
5 – Lower Zone, down
button
6 – Light button
7 – Upper Zone
8 – Lower Zone
34
1 2
Fig. 2
56
7 8

9
• The display shows the current internal temperatures when the wine
cooler is on.
Optimal temperature selection
Whilst wine is best stored at temperatures between 13°C and 15˚C,
your wine can also be stored at drinking temperature, for red wine this
is between 15°C and 17˚C, and for white wine between 12°C and 13˚C.
To use the internal light
• Press the light button to switch the light on or o.
Please note:
The temperature in the lower zone must be set either the same
as or higher than the temperature in the upper zone. For optimal
performance, the temperatures in the two zones should dier by at
least 4˚C.

10
Use
Internal Humidity
The wine coolers are equipped
with a humidity system to maintain
optimal humidity within the wine
cooler.
Fill the humidity reservoir
approximately 3/4 full with water.
Place the reservoir on the runners on the top shelf as shown in fig. 3.
Ensure it is located correctly to prevent water spillage.
Check the water level regularly and refill if required.
Temperature display
The temperature display will show the current internal temperature.
The display flashes:
• When a dierent temperature is being set
• If the internal temperature is +/- 5˚ away from the set temperature.
This serves as a warning to prevent damage to the contents of the
appliance should the temperature be too high.
Dynamic Cooling and Silent modes
The appliance has two dierent running modes.
• Silent mode
Once the required temperature is reached, the appliance will run without
the fan. The wine cooler is factory set to silent mode.
Fig. 3
