EVP61/91/101/121
Extractors
Installation, Use and Maintenance

2
Important
The manufacturer cannot be held responsible for injuries
or losses caused by incorrect use or installation of this
product. Please note that the manufacturer reserves the
right to invalidate the guarantee supplied with this product
following incorrect installation or misuse of the appliance
or use in a commercial environment.
This appliance is not designed to be used by people
(including children) with reduced physical, sensorial or
mental capacity, or who lack experience or knowledge
about it, unless they have had supervision or instructions
on how to use the appliance by someone who is
responsible for their safety.
Under no circumstances should any external covers be
removed for servicing or maintenance except by suitably
qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault
with your appliance and to register your appliance for guarantee
purposes.
Appliance Model
Serial Number

3
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services. Disposing of a household appliance
separately avoids possible negative consequences for the
environment and health. It also enables the constituent materials to
be recovered, saving both energy and resources. As a reminder of the
need to dispose of household appliances separately, the product is
marked with a crossed-out wheeled dustbin.
Please note:
•Under no circumstances should the extractor be
connected to any gas ventilation system, flue system or hot
air ducting system.
•Do not vent the extractor into an attic or loft space.
•Only house the extractor in rooms with adequate
ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
•Do not tile the extractor in. It should be removable for
service or maintenance.
•Do not use silicone sealant to secure the hood to the wall.
•You must be able to isolate the extractor from the mains
electrical supply after installation.

4
•Steam cleaners must not be used when cleaning this
appliance.
•The performance of your extractor will vary depending
on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and
cleanliness of the filters.
Using your Extractor
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15
minutes after the end of cooking.
Control Panel
A - Light key
B - Decrease speed key
C - Display
D - Increase speed key
E - Timer key
To switch the extractor light on and o
• Touch key “A”.
Fig. 1
ABCDE

5
To switch on the extractor
• Touch either key “B” or “D”. The appliance will switch on at the first
speed.
• To increase the speed touch key “D”.
• To switch the extractor o, touch and hold key “B” for two seconds
when the extractor is working at higher speeds, or touch key “B” at
speed one.
The intensive function
• The extractor is equipped with an intensive function which runs for
ten minutes before returning to the previous selected speed. To
activate the intensive function, touch key “D” at speed three. The
display will blink whilst the intensive function is on.
The timer
• The extractor is equipped with a timer that allows the extractor to
run for 15 minutes before switching o automatically.
• To activate the timer, touch key “E”. The display will flash a decimal
point when the timer is on. Please note: The timer cannot be
activated when the intensive function is on.
The clean air function
• The extractor is equipped with a clean air function that switches on
the motor for ten minutes every hour at speed one.
• To activate the clean air function, touch key “E” for two seconds
when the appliance is o. To return to normal function, touch
either key “B” or “D”. To switch o the clean air function, touch
key “E”. The display “C” will light up in sections whilst the motor is
running, and will show the letter “C” during the fifty minutes when
the motor is not running.

6
Care and Maintenance
IMPORTANT : DO NOT PERFORM
MAINTENANCE OR CLEANING OF
THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY
SUPPLY.
Cleaning
You should use a nonabrasive cleaner.
Any abrasive cleaner (including Cif) will
scratch the surface and could erase
the control panel markings.
You can clean your extractor eectively
by simply using a dilute solution of
water and mild detergent and drying to
a shine with a clean cloth.
Cleaning the grease filter
The grease filters should be kept clean to minimise the risk of fire.
When the display flashes alternating the speed selected with the
letter “A”, or at least once a month, you should remove and clean the
grease filters with hot soapy water. You can also wash the grease
filters in a dishwasher, ensuring that you place them in an upright
position to prevent damage from other items in the dishwasher. After
rinsing and drying, replace the filters. After the grease filters have
been replaced, the electronic memory must be reset by touching key
“A” for approximately five seconds, until the letter “A” stops flashing.
Fig. 2
Fig. 3

7
To remove the grease filters
1. Pull open the handle on each grease filter as shown in fig. 2. It will
release at the handle side.
2. Lower the grease filter to remove it completely.
To replace the grease filters
Repeat the steps above in reverse order.
Please note: Cleaning the grease filters in a dishwasher may lead to
discolouration. This is normal and does not constitute a fault with the
appliance.
Changing the charcoal filter (re-circulating only)
When the display flashes alternating the speed selected with the
letter “F”, the charcoal filters must be replaced. After the charcoal
filter has been replaced, the electronic memory must be reset by
touching key “A” for approximately five seconds, until the letter “F”
stops flashing.
To attach a new charcoal filter, first remove the grease filters as
described above. Then oer up the charcoal filter to the side of the
motor as shown in fig. 3 and turn it clockwise until it locks into place.
Repeat with the other charcoal filter on the other side of the motor.
Then replace the grease filters.

8
C
D

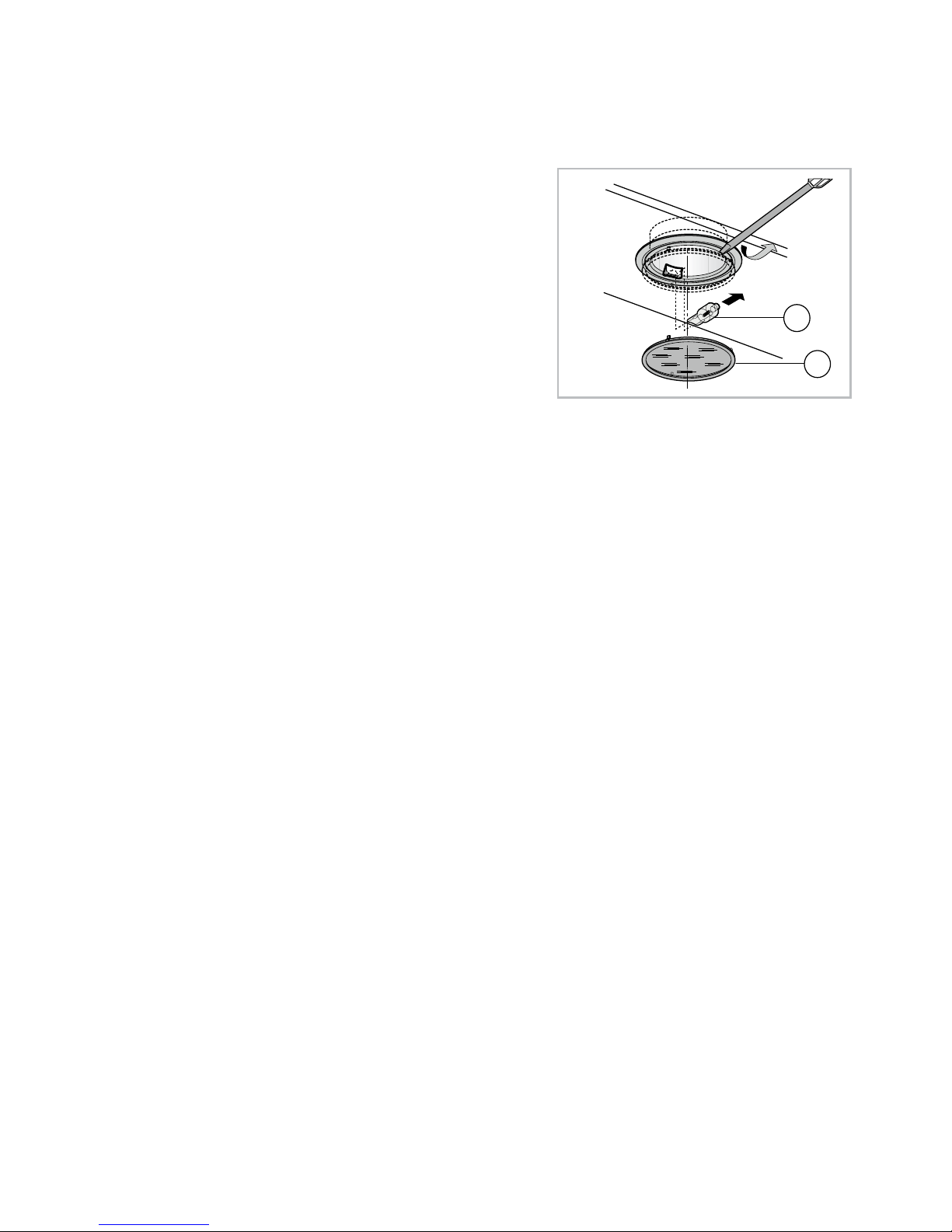

Fig. 4
Changing the Light
DO NOT CHANGE THE LIGHT BULB
IMMEDIATELY AFTER USE AS THE
BULB WILL BE HOT. ALLOW IT TO
COOL BEFORE REMOVING IT.
Unscrew the light bulb cover, see fig. 4.
Unscrew the light bulb and replace with
a 12V 20W halogen light bulb. Finally,
replace the light bulb cover.
Do not touch bulbs or adjacent areas during or straight after
prolonged use of the lights.
The light is designed for use during cooking and not for general
room illumination. Extended use of the light can reduce the life span
of the bulb.
Bulb replacement is not covered by the guarantee.
Only use bulbs recommended for your extractor. Do not fit bulbs of a
higher power rating.
Bulbs of a lower power rating may be adequate for use, generally
last longer and use less energy.

9
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
Mains Electricity
Connection
THIS APPLIANCE MUST BE
CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING
FIXED WIRING VIA A DOUBLE POLE
SWITCHED FUSED SPUR OUTLET
AND PROTECTED BY A 3A FUSE.
We recommend that the appliance is
connected by a qualified electrician,
who is a member of the N.I.C.E.I.C. and who will
comply with the I.E.T. and local regulations.
The wires in the mains lead of this appliance are coloured in
accordance with the following code:
BLUE = NEUTRAL, BROWN = LIVE.
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fused spur, proceed as follows:
•The wire which is coloured blue must be connected to the terminal
marked N (Neutral), or coloured black.
•The wire which is coloured brown must be connected to the
terminal marked L (Live), or coloured red.
NOTE: USE A 3A FUSE

10
Assembly and electrical connection should be carried out by
competent personnel.
When installing this product we recommend you seek the help of
another individual.
IMPORTANT: THIS APPLIANCE IS A CLASS II APPLIANCE
(DOUBLE INSULATED) AND IS NOT INTENDED TO BE EARTHED.
DO NOT FIT AN EARTH LEAD TO THIS EXTRACTOR.
Do not mount the isolation switch behind the chimney section. It is a
requirement that you must be able to isolate the extractor from the
mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical
supply by means of an isolation switch and fused spur and is
intended to be protected by a 3A fuse. The use of a 13A fuse can
cause damage to the internal wiring in the event of a fault, and may
also invalidate the warranty.
Electrical Information
Mains electrical voltage: 230 – 240Vac, 50Hz
Total rated power consumption: 290W
Troubleshooting
If your extractor is not working:
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.

11
Mounting your
Extractor
When the extractor is to be installed
above an electric hob, the minimum
distance between the hob and
extractor must exceed 600mm
(650mm is recommended).
When the extractor is to be installed
above a gas hob, the minimum
distance between the hob and
extractor must exceed 700mm (750mm
is recommended).
If the instructions provided with your gas hob state that the required
distance between the hob and extractor must be greater than
700mm, then that is the distance that should be observed; this is
a legal requirement and may lead to your hob being disconnected
from the gas supply and the installation being reported to RIDDOR
(The height should be measured from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND
EXTRACTOR MUST BE AT LEAST 760mm.
The width of any hob must not be greater than the width of the
extractor installed above it. Fig. 5.
Fig. 5
Gas: 750mm recommended.
Electric: 650mm recommended.
Gas: 750mm recommended.
Electric: 650mm recommended.

12
Ducting and Ventilation
For best performance and lowest noise output, we recommend the
use of 125mm or 150mm ducting. You can also use 100mm ducting
but this will reduce performance and increase the noise from your
extractor.

13
Installation
The extractor is mounted to the wall
using 4 plugs and fixing screws, see
fig. 6.
1. Mark the wall with the positions of
the fixing holes at the required height.
The height of the hood holes should
take into account the minimum height
specified in the instructions.
2.Fit 4 wall plugs appropriate for the
wall type into the drilled holes and
fix two screws to the wall at positions
‘A’ and leave approximately 5mm
protruding.
3.Hang the hood and secure screws ‘A’.
Fix the hood in position using 2 screws
through the remaining mounting holes
shown.
Fig. 7
20
Fig. 6
AA
132.5
282
10
328
58
D
Model Dim “D” (mm)
EVP61 126.5
EVP91 367
EVP101 367
EVP121 496
58
282 328
10
D
132

14
Fig. 8
Mounting the Chimney
Section
1. Adjust the width of the mounting
bracket to suit the chimney size of your
extractor and mark 2 points on the
wall, 20mm down from the ceiling for
the fixings (fig 7).
2.Drill and insert 2 plugs suitable for
use with the wall type into the holes
and fix the bracket with 2 screws.

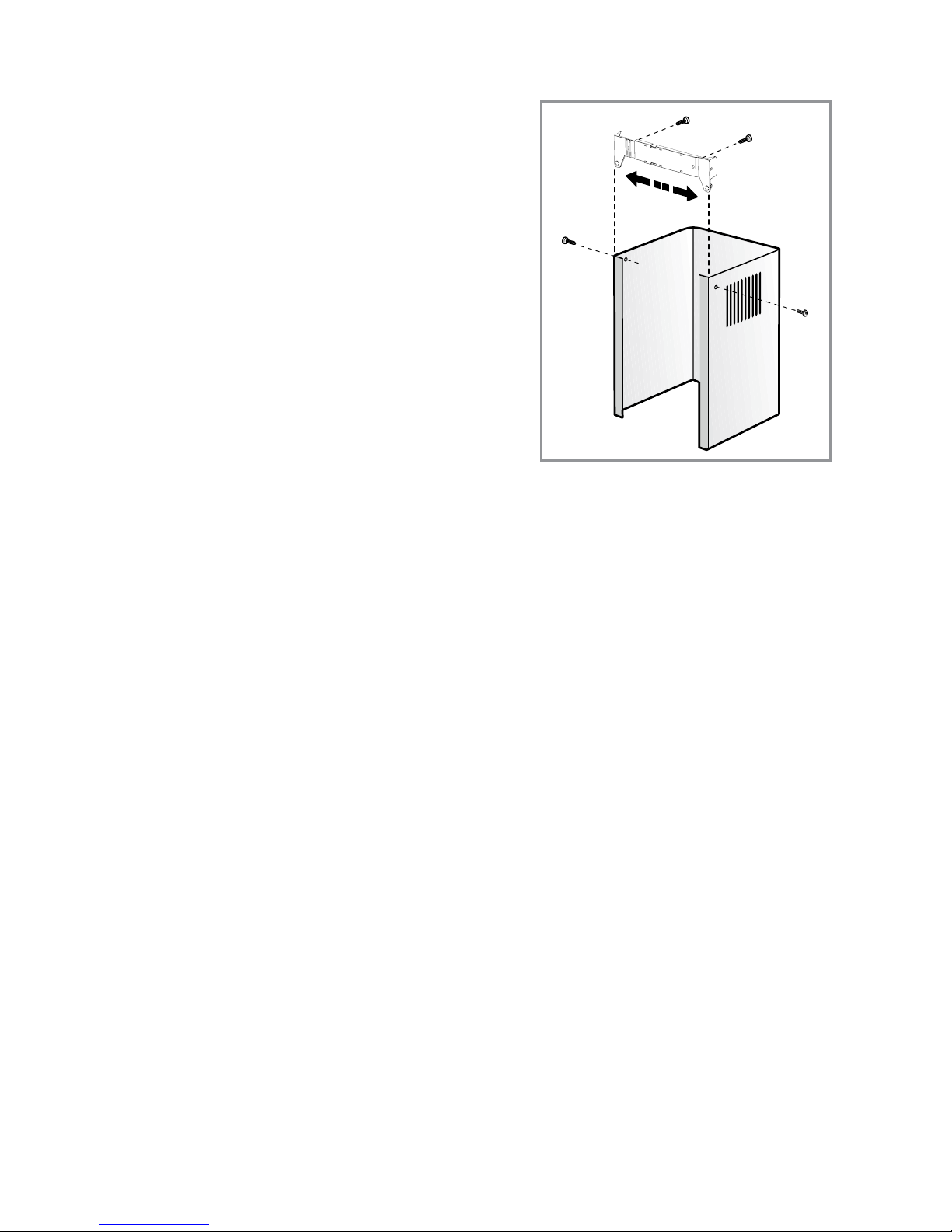

3.Fit the chimney section and secure to
the mounting bracket with the supplied
screws (fig 8).

15
Attribute Symbol Units
Model Identification EVP61/91 EVP101/121
Annual Energy Consumption AECHood 105.1 122.3 kWh
Time increase factor f 1.4 1.4
Fluid Dynamic Efficiency FDEHood 16.1 (D) 17.6 (D)
Energy Efficiency Index EEIHood 89.2 (D) 87.4 (D)
Measured airflow at Best
Efficiency Point
QBEP 347.6 454.1 m3/h
Measured Pressure at Best
Efficiency Point
PBEP 243.5 261 Pa
Maximum airflow QMAX 503 650 m3/h
Measured electric power at
Best Efficiency Point
WBEP 146.3 186.7 W
Nominal lighting power WL 40 40 W
Average illumination of the
lighting system on the
cooking surface
EMiddle 200 200 Lux
Measured power consumption
in standby
PS0.99 0.99 W
Measured power consumption
off mode
PONA NA W
Sound power level LWA 62 69 dBA
Grease Filter Efficiency GFEHood 73 (D) 74 (D) %
Lamp efficiency LEHood 5 (F) 5 (F) %
Energy Efficiency Information
Value
E & O E. All instructions, dimensions and illustrations are provided for guidance only. CDA reserve the
right to change specifications without prior notice.

16
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu www.cda.eu
Please contact our Customer Care Department for Service on the details below
Customer Care Department
The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer[email protected]
Copyright © CDA 2015
