CDA CCA51 Quick start guide

www.cda.eu
CCA51 & CCA71
Extractors
Installation, use and maintenance

2
Contents:
3 Important information
5 Important safety warnings/notes
6 Using your extractor
7 Care and maintenance
7 Cleaning the grease filter
8 Cleaning the charcoal filter
9 Changing the light
10 Mains electricity connection
12 Electrical information
12 Troubleshooting
13 Installation
14 Mounting your extractor (with cutout dimensions)
14 - 15 CCA51 dimensions
15 CCA71 dimensions
16 Ducting
17 Recirculating
19 Energy eciency information

3
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note that
CDA reserve the right to invalidate the guarantee supplied with this
product following incorrect installation or misuse of the appliance or
use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number

4
EU Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EU DIRECTIVE 2012/19/EU.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

5
Please note:
•Under no circumstances should the extractor be connected to any
gas ventilation system, flue system or hot air ducting system.
• Do not vent the extractor into an attic or loft space.
•Only house the extractor in rooms with adequate ventilation.
Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
•Do not tile the extractor in. It should be removable for service or
maintenance.
•Do not use silicone sealant to secure the hood to the wall.
•You must be able to isolate the extractor from the mains electrical
supply after installation.
•This extractor has been designed to be used in a room with a
volume of less than 36m.
•Steam cleaners must not be used when cleaning this appliance.
•The performance of your extractor will vary depending on a number
of factors. These include: type of extraction, length of ducting, room
volume, ventilation available and cleanliness of the filters.

6
Using your extractor
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15 minutes
after the end of cooking.
A - Light switch
B - Power indicator light
C - Power switch
To switch the extractor light on or o
• Slide the light switch (A) to position ‘0’ for o and ‘1’ for on.
To switch on the extractor, or change the motor speed
• Slide the fan switch (C) to the position required dependent on the
speed you require. The red power indicator (B) should illuminate.
To switch the extractor o
• Slide the fan switch (C) to position ‘0’ for o.
0 1 0 1 2
Fig. 1 A B C

7
Fig. 2
Care and maintenance
IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEANING
OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY. PROTECT ALL AREAS SURROUNDING
THE EXTRACTOR WHEN PERFORMING ANY CLEANING OR
MAINTENANCE.
Cleaning
You should use a non-abrasive cleaner. Any abrasive cleaner
(including Cif) will scratch the surface and could erase the control
panel markings.
You can clean you extractor eectively by simply using a dilute
solution of water and mild detergent and drying to a shine with a
clean cloth such as a microfibre cloth.
Cleaning the grease filter
The grease filter should be kept clean to minimize the risk of fire.
At least once a month you should remove and clean the grease filter
with hot soapy water.
To remove the grease filter,
follow the steps below (and on
page 8):
1. Unfasten the securing
screws (S in Fig 2) on either
side of the cover panel and
the cover panel will come
o. Take care not to drop it. S

8
2. Take a note of the position of the securing wires holding the
filter in place, with a photograph on a smartphone or similar if
necessary, so that they can be replaced in the same position.
Lift the filter retaining wires from the cover panel.
3. Remove the grease filter and wash by hand in a lukewarm solution
of water and mild detergent. Once clean, dry the grease filter but
DO NOT wring it out. Clean the filter holder using a dilute solution
of water and mild detergent or with a damp cloth. Allow the grease
filter to dry completely before reassembling the extractor panel.
4. Replace the grill panel and refasten the sliding brackets.
5. Replace the grease filter in the cover panel and reattach the filter
retaining wires.
Please note:
The extractor must not be used without the grease filter in place.
Changing the charcoal filter
To ensure best performance of your extractor, you should replace the
charcoal filters every four to six months, depending on use. Please
note the charcoal filter cannot be washed. To attach a new charcoal
filter, follow the steps below.
1. Unfasten the securing screws (S in Fig 2 on page 7) on either side
of the cover panel and the cover panel will come o. Take care
not to drop it.
2. Remove the old filters using a small posi-headed screwdriver and
fit the new charcoal filters in their place using the screw you just
removed. Diagrams (and info) are on page 17.
Replace the cover panel and refasten the securing screws.

9
Changing the light
IMPORTANT: DO NOT PERFORM MAINTENANCE OR CLEAN-
ING OF THE EXTRACTOR WITHOUT FIRST SWITCHING OFF THE
ELECTRICITY SUPPLY.
DO NOT CHANGE THE LIGHT BULB IMMEDIATELY AFTER USE AS
THE BULB MAY BE HOT. ALLOW IT TO COOL BEFORE REMOVING
IT.
1. Unfasten the securing screws (S in Fig 2 on page 7) on either side
of the cover panel and the cover panel will come o. Take care not
to drop it.
2. Remove the faulty light bulb and replace with a light bulb no more
powerful than that specified on the rating plate (E14, SES, 5.5W
LED).
3. Replace the cover panel and refasten the sliding brackets.
Do not touch bulbs or adjacent areas during or straight after
prolonged use of the lights.
The light is designed for use during cooking and not for general room
illumination. Extended use of the light can reduce the life-span of the
bulb.
Bulb replacement is not covered by the guarantee.
Only use CE marked bulbs recommended for your extractor. Do not fit
bulbs of a higher power rating. Bulbs of a lower power rating may be
adequate for use, generally last longer, and use less energy.
Spare bulbs are available from CDA Customer Care.

10

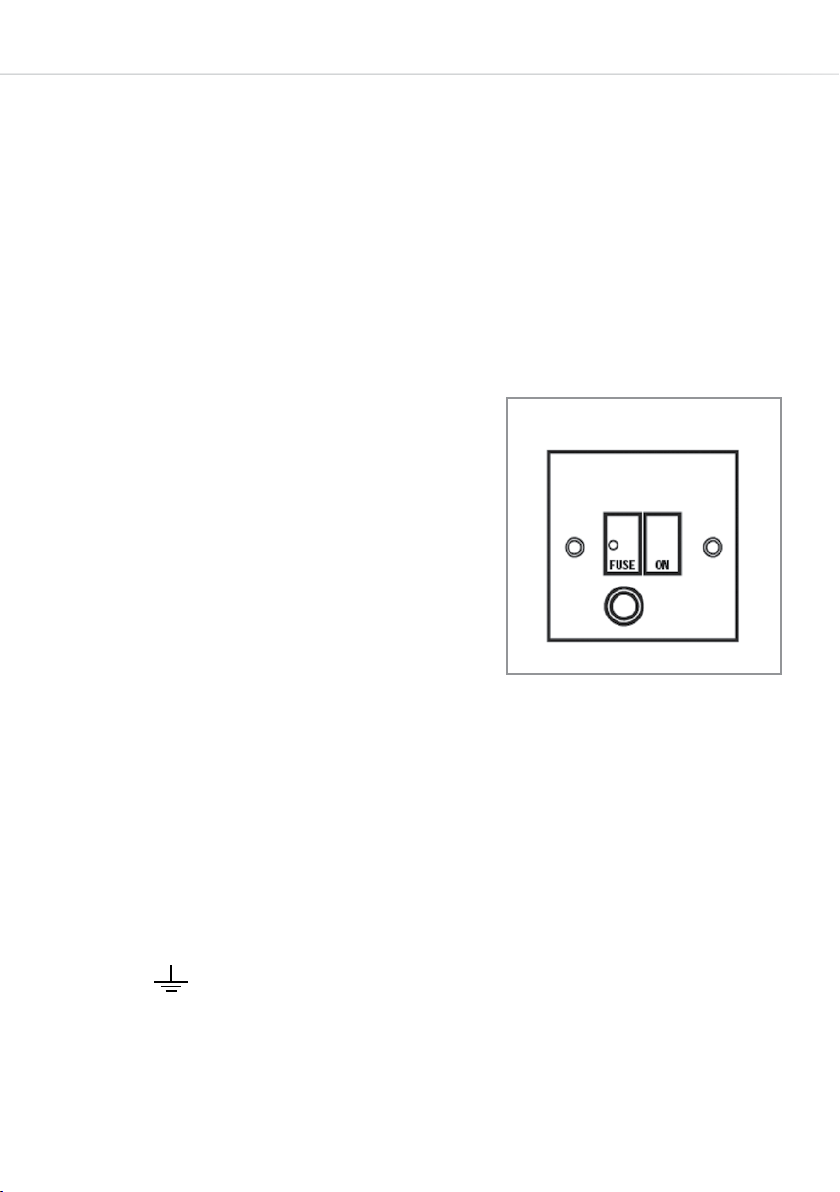

DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
Mains electricity connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE
POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A
3A FUSE.
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations.
The wires in the mains lead of this
appliance are coloured in accordance
with the following code:
BLUE = NEUTRAL, BROWN = LIVE,
GREEN and YELLOW = EARTH.
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fused spur, proceed as follows:
• The wire which is coloured GREEN and YELLOW must be connected
to the terminal which is marked with the letter (E) or by the Earth
symbol or coloured GREEN and YELLOW.
• The wire which is coloured BLUE must be connected to the terminal
which is marked with the letter (N), or coloured BLACK.
• The wire which is coloured BROWN must be connected to the
terminal which is marked with the letter (L) or coloured RED.

11
NOTE: USE A 3A FUSE
Assembly and electrical connection should be carried out by
competent personnel.
When installing this product we recommend you seek the help of
another (competent and qualified) individual.
Do not mount the isolation switch behind the extractor or in an
inaccessible place. It is a requirement that you must be able to isolate
the extractor from the mains electrical supply after installation.
This appliance is intended to be connected to the mains electrical
supply by means of an isolation switch and fused spur and is intended
to be protected by a 3A fuse. The use of a 13A fuse can cause
damage to the internal wiring and, in the event of a fault, and may also
invalidate the warranty.

12
Electrical information
Mains electrical voltage: 230 – 240Vac.
Total rated power consumption CCA51: 105.5W.
Total rated power consumption CCA71: 105.5W.
Troubleshooting
Please note:
Your extractor is equipped with a motor protection device that will
switch o the motor to prevent damage from overheating. This may
happen during cooking when most or all of the zones/burners are
being used simultaneously.
This is normal, and the extractor will work again once the motor has
cooled suciently.
If your extractor is not working:
1. Check that the mains supply has not been switched o.
2. Check that the fuse in the spur has not blown.
Contact CDA Customer Care
A : Customer Care Department, The CDA Group Ltd, Harby Road,
Langar, Nottinghamshire, NG13 9HY
T : 01949 862 012 F : 01949 862 003
E : [email protected] W : www.cda.eu

13
Installation
When the extractor is to be installed above an electric hob, the
minimum distance between the hob and extractor must exceed
600mm (650mm is recommended).
When the extractor is to be installed above a gas hob, the minimum
distance between the hob and extractor must exceed 700mm
(750mm is recommended).
If the instructions provided with your gas hob state that the required
distance between the hob and extractor must be greater than 700mm,
then that is the distance that should be observed; this is a legal
requirement and may lead to your hob being disconnected from the
gas supply and the installation being reported under RIDDOR (The
height should be measured from the top of the burners).
IN THE ABSENCE OF ANY INSTRUCTIONS SUPPLIED WITH THE
GAS HOB, THE MINIMUM DISTANCE BETWEEN THE HOB AND
EXTRACTOR MUST BE AT LEAST 760mm.
The width of any hob must not be greater than the width of the
extractor installed above it.

14
Mounting your extractor
The extractor can be mounted in one of two ways:
1. Mark out the dimensions of the cut-out based on your hood; the
dimensions required are as follows: -
2.Hold the extractor in the housing and secure to the canopy using 4
wood screws, through holes located in the corners of the extractor.
These screw holes are shown in Figs. 3 & 5. We recommend that
you seek the help of another individual when carrying out this task.
Ø 120mm
453mm
478mm
75mm
275mm
302mm 225mm

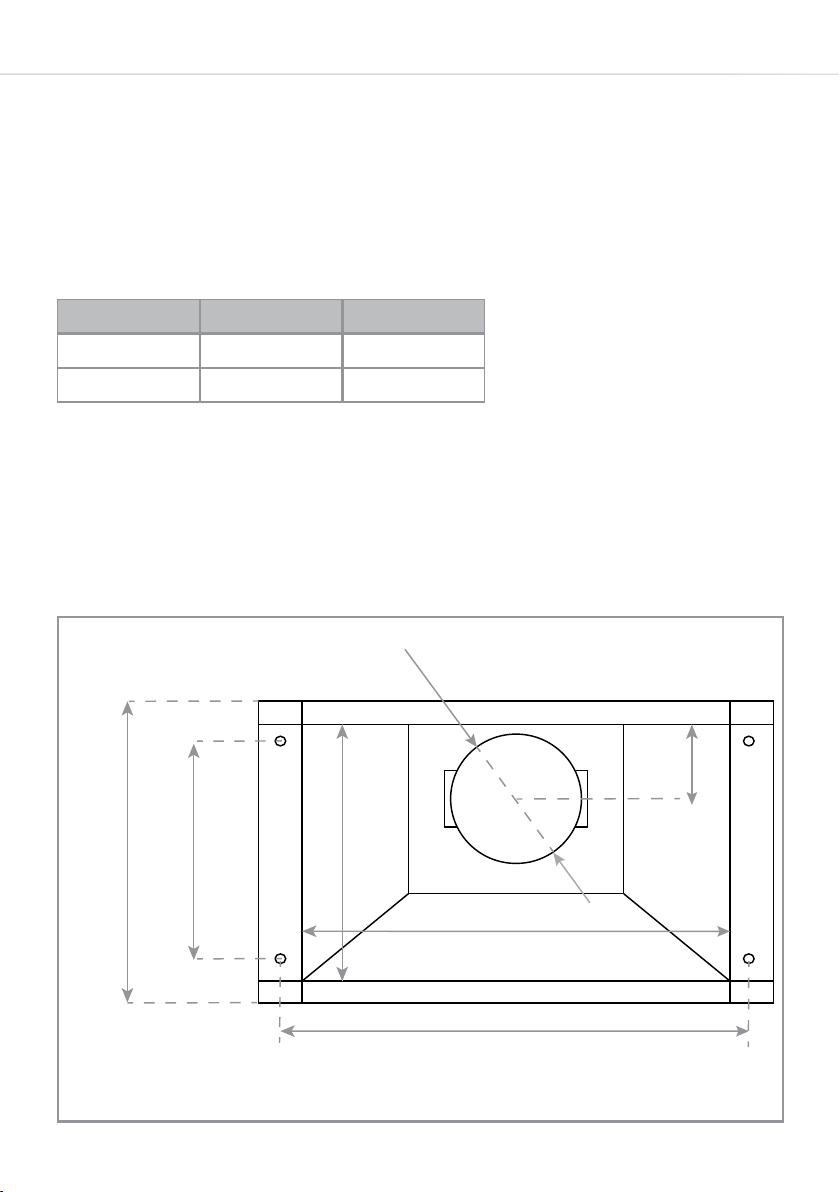

Fig. 3
Version Cut-out Width Cut-out Depth
CCA51 455 277
CCA71 648 277
VIEW FROM TOP - CCA51

15
12mm
170mm
510mm
Fig. 4 VIEW FROM SIDE - CCA51
Ø 120mm
646mm
668mm
75mm
275mm
302mm 225mm
Fig. 5 VIEW FROM TOP - CCA71
12mm
170mm
700mm
Fig. 6 VIEW FROM SIDE - CCA71

16
3.Connect securely the exhaust pipe to the duct adapter and locate
on the extractor. We recommend the use of 120mm (5”) ducting,
although 100mm can be used with the use of a 120-100mm
converter; Note that this will aect performance and potentially
increase noise.
Ducting
The ducting used should be rigid pipe of a constant diameter and
must be manufactured from fire retardant material, produced to BS
476 or DIN 4102-B1.
Wherever possible utilise rigid circular pipe which has a smooth
interior, rather than the expanding concertina type ducting. The
lengths of ducting with minimal eect on performance are as follows:
• 4 metres with 1 x 90° bend.
• 3 metres with 2 x 90° bends.
• 2 metres with 3 x 90° bends.
Please note: Ducting components and ducting kits are optional
accessories and have to be ordered, they are not automatically
supplied with the hood. Use of ducting of a lesser diameter than
the flanges supplied will aect performance and increase the noise
produced by the extractor. Longer ducting can be used but the
performance of the extractor will likely be reduced.
Note that the ducting should be secured and sealed to the vent
outlet using appropriate jubilee clips or securing means.

17
Recirculating
If you are recirculating the extracted air back into the kitchen, then
charcoal filters should be used to cleanse the air. These filters are
available from the CDA Customer Care team under code CHA29.
Contact details are on the rear cover of this manual. The extracted air
should be vented back into the kitchen. You should vent out of the
top of the cupboard unit via a piece of suitable ducting (see page 16).
To fit the charcoal filters, remove the cover panel by unfastening the
securing screws (S in Fig 2 on page 7) on either side of the cover
panel and the cover panel will come o. Take care not to drop it. If
the plastic inlet covers (position of one circled in Fig. 7) are in place,
remove them using a small posi-headed screwdriver and fit the
charcoal filters in their place using the screw you just removed (Fig. 8).
Replacing the charcoal filters after they have saturated (approx. every
6 months) is the same process.
Refit and secure the cover panel.
Fig. 7 Fig. 8

18
NOTES:

19
Attribute Symbol Units
CCA51noitacifitnedI ledoM CCA71
Annual Energy Consumption AECHood
44.7 44.3
Time increase factor f 1.5 1.5
Fluid Dynamic Eciency FDEHood 12.6 (E)
Energy Eciency Index EEIHood 75.2 (C)
Measured airflow at Best Eciency
Point
QBEP 211.2 m3/h
Measured Pressure at Best Eciency
Point
PBEP 155
Maximum airflow QMAX 353.2 359.7 m3/h
Measured electric power at Best
Eciency Point
WBEP 74.2
Nominal lighting power WL
Average illumination of the lighting
system on the cooking surface
EMiddle 148
Measured power consumption in
standby
PSNA NA W
Measured power consumption o
mode
PONA NA W
Sound power level LWA 62/57
Grease Filter Eciency GFEHood 68(D) 66.4 (D)
ELycneiciffe pmaL Hood
Value
Energy Eciency Information
213.3
160 Pa
73.6 W
%
78.2 (C)
kWh
12.9 (E)
W
5.5 5.5
Lux148
dBA65/56
%
26.9 (B) 26.9 (B)

www.cda.eu
Customer Care Department. The CDA Group Ltd, Harby Road, Langar, Nottinghamshire, NG13 9HY
T: 01949 862 012 F: 01949 862 003 E: customer[email protected]
For service or queries relating to your product please contact:
The Customer Care Department on 01949 862 012 or email customer[email protected]
For more information please contact:
The Sales Department on 01949 862 010 or email [email protected]
