ECA & EVA
Extractors
Installation, Use and Maintenance

2
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance
or use in a commercial environment.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
safety (LVD) and Electromagnetic Interference Compatibility (EMC).

3
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin .
Please note:
•Under no circumstances should the extractor be connected to any
gas ventilation system, flue system or hot air ducting system.
• Do not vent the extractor into an attic or loft space.
•Only install the extractor in rooms with adequate ventilation.
Remember that the extractor is powerful and whatever air is
extracted needs to be replaced.
•Do not tile the extractor in. It should be removable for service or
maintenance.
•Do not use silicone sealant to secure the extractor to the wall.
•You must be able to isolate the extractor from the mains electrical
supply after installation.
•This extractor has been designed to be used in a room with a
volume of less than 36m.

4
•Steam cleaners must not be used when cleaning this appliance.
•The performance of your extractor will vary depending on a number
of factors. These include: type of extraction, length of ducting, room
volume, ventilation available and cleanliness of the filters.
Note:
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15
minutes after the end of cooking.

5

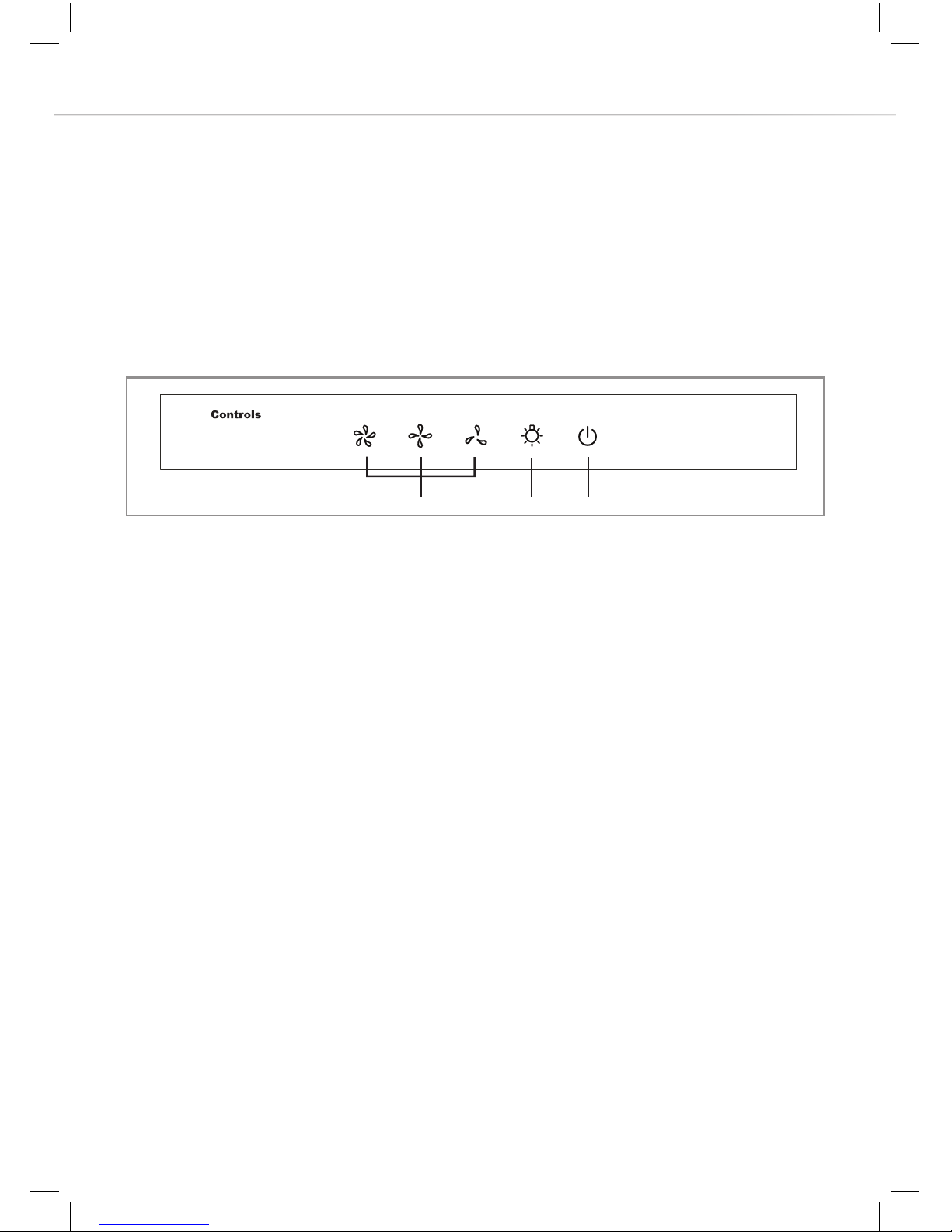

Using Your Extractor (ECA Range)
Control Panel
A - Light button
B - Speed level buttons
C - Power o button
To switch the extractor light on or o:
• Press button “A”.
To switch on the extractor or to change the speed at any time when
the extractor is running:
• Press the relevant “B” button for the first, second or third speed level
as required.
To switch the extractor o:
• Press button “C”.
Fig. 1 A B C

6
Using Your Extractor (EVA Range)
Control Panel
A - Speed level keys
B - Light key
C - O key
To switch on the extractor or to change the speed at any time
when the extractor is running:
• Touch the relevant key “A” for the first, second or third speed level
as required.
To switch the extractor light on or o:
• Touch key “B”.
To switch the extractor o:
• Touch key “C” twice.
To activate the “Timer” mode:
• Touch key “C” once when the extractor is already running. This will
set the extractor to run for a further 15 minutes before automatically
stopping.
Fig. 2 C
AB

7
Care and Maintenance
IMPORTANT : DO NOT PERFORM
MAINTENANCE OR CLEANING OF
THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY
SUPPLY.
Cleaning
You should use a nonabrasive cleaner.
Any abrasive cleaner (including Cif) will
scratch the surface and could erase the
control panel markings.
You can clean your extractor eectively
by simply using a dilute solution of
water and mild detergent and drying to
a shine with a clean cloth, for example
the CDA E-Cloth.
Cleaning the grease filter
The grease filter should be kept clean
to minimise the risk of fire.
At least once a month you should
remove the grease filter and clean
it with hot soapy water. You can also wash the grease filter in a
dishwasher, ensuring that you place it in an upright position to prevent
damage from other items in the dishwasher.
Fig. 4
Fig. 5
Fig. 3

8
To remove the grease filter
• Open the hinged panel as shown in Fig. 3.
• Push in the button on the handle and then pull down on the filter at
the top as shown in Fig. 4.
• When you have released it at the top, then you can pull the filter out
completely.
After rinsing and drying, reassemble the grease filter to the hood by
reversing the removal process.
Please note:
Cleaning the grease filter in the dishwasher may lead to
discolouration. This is normal and does not constitute a fault with the
appliance.
Changing the charcoal filter (re-circulating only)
To ensure best performance of your extractor, you should replace the
charcoal filter every four to six months, depending on use.
To attach a charcoal filter:
• Remove the grease filter as described above.
• Oer up the charcoal filter so that the magnetic pins are facing
upwards, one to the rear and one to each side. The filter will be
held in place by magnetic force.
• Finally, replace the grease filter.
IMPORTANT: Steam cleaners must not be used to clean this
appliance.

9
The LED Lights
The light bulbs are high eciency 3V 3W LEDs.
These lights are designed to last for the lifetime of the product and
are not user-replaceable. In the unlikely event of a problem with
these lights contact CDA Customer Care for assistance.
The lights are designed for use during cooking and not for general
room illumination. Extended use of the lights can reduce the life span
of the LED bulbs.

10
Mains Electricity Connection
THIS APPLIANCE MUST BE CONNECTED TO THE MAINS SUPPLY
BY A COMPETENT PERSON, USING FIXED WIRING VIA A DOUBLE
POLE SWITCHED FUSED SPUR OUTLET AND PROTECTED BY A
3A FUSE.
We recommend that the appliance is
connected by a qualified electrician,
who is a member of the N.I.C.E.I.C. and
who will comply with the I.E.T. and local
regulations.
The wires in the mains lead of this
appliance are coloured in accordance
with the following code:
Green & Yellow = Earth
Blue = Neutral
Brown = Live
As the colours of the wires in the mains lead for the appliance may
not correspond with the coloured markings identifying the terminals
connecting to the fused spur, proceed as follows:
•The wire which is coloured green and yellow must be connected to
the terminal marked “E” (Earth) or coloured green.
•The wire which is coloured blue must be connected to the terminal
marked “N” (Neutral) or coloured black.
•The wire which is coloured brown must be connected to the
terminal marked “L” (Live), or coloured red.
Note: Use a 3A Fuse.
DOUBLE POLE
SWITCHED
FUSED SPUR OUTLET
USE A 3 AMP FUSE
