CDA EVX101 Quick start guide

Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : [e-mail] W : www.cda.eu
www.cda.eu
EVX101
Extractor
Installation, Use and Maintenance

2
Important
The CDA Group Ltd cannot be held responsible for
injuries or losses caused by incorrect use or installation
of this product. Please note that CDA reserve the right to
invalidate the guarantee supplied with this product following
incorrect installation or misuse of the appliance or use in a
commercial environment.
This appliance is not designed to be used by people
(including children) with reduced physical, sensorial or
mental capacity, or who lack experience or knowledge
about it, unless they have had supervision or instructions on
how to use the appliance by someone who is responsible
for their safety.
Under no circumstances should any external covers be
removed for servicing or maintenance except by suitably
qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number

3
CE Declarations of Conformity:
This appliance has been manufactured to the strictest standards and
complies with all applicable legislation, including Gas safety, Electrical
safety (LVD) and Electromagnetic interference compatibility (EMC).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing
appliance recycling services.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health. It also
enables the constituent materials to be recovered, saving both energy
and resources. As a reminder of the need to dispose of household
appliances separately, the product is marked with a crossed-out
wheeled dustbin.

4
Please note:
• Under no circumstances should the extractor be
connected to any gas ventilation system, flue system or
hot air ducting system.
• Do not vent the extractor into an attic or loft space.
• Only house the extractor in rooms with adequate
ventilation. Remember that the extractor is powerful and
whatever air is extracted needs to be replaced.
• Do not tile the extractor in. It should be removable for
service or maintenance.
• Do not use silicone sealant to secure the hood to the wall.
• You must be able to isolate the extractor from the mains
electrical supply after installation.
• This extractor has been designed to be used in a room
with a volume of less than 36m.
• Steam cleaners must not be used when cleaning this
appliance.
• The performance of your extractor will vary depending
on a number of factors. These include: type of extraction,
length of ducting, room volume, ventilation available and
cleanliness of the filters.

5
Using Your Extractor
For best performance, you should switch on the extractor 15 minutes
before starting to cook and leave it to run for approximately 15
minutes after the end of cooking.
To switch on the extractor and set the speed level
- Touch key “A” or press button 1 on the remote. The appliance will
switch on at the last speed level used.
- To increase the speed level touch key “C” or button 2 on the remote.
- To reduce the speed level touch key “B” or button 4 on the remote.
The speed cycles through speed levels, and the relevant number
indicator will show on the display.
- To switch the extractor o, touch key “A” or button 1 on the remote.
The intensive function
The extractor is equipped with an intensive function which runs for ten
minutes before returning to the previous selected speed level.
- To activate the intensive function press key “D” or button 5 on the
fig. 1
HGA B C D FE
5
2
4
3
6
1

6
remote control. Whilst the intensive function is active “HI” appears
on the centre of the display and the bottom right hand dot flashes
once a second.
- To cancel the intensive function, touch key “D” or button 5 again and
the extractor will return to the previous speed level.
The extractor lights
- To switch the lights on and o, press key “G” or button 6 on the
remote control.
The extractor is equipped with an ambient light function, which dims
the lights. To activate the ambient light function, press key “H” or
press and hold button 6 on the remote control for three seconds.
The timer
The extractor is equipped with a timer that allows the extractor to run
for 30 minutes before switching o automatically.
- To activate the timer, touch key “F” or press button 1 on the remote.
The working speed and time remaining will flash alternative on the
display and a dot will flash in the lower right hand corner of the
display.
- To cancel the timer, touch key “F” or button 1 on the remote control.
Please note
The timer cannot be activated when the intensive function is on.
The clean air function
- The extractor is equipped with a clean air function that runs the
motor for 10 minutes every hour at 100m/h to keep the air in the
kitchen refreshed.

7
- To activate the clean air function, touch key “E” when the appliance
is either on or o. When the clean air function is running, “24” will
show on the display and a dot will flash in the lower right hand
corner of the display when the motor is running.
- To cancel the clean air function, touch any key except the light key.
Care and Maintenance
IMPORTANT : DO NOT PERFORM MAINTENANCE OR ATTEMPT
TO CLEAN THE EXTRACTOR WITHOUT FIRST SWITCHING OFF
THE ELECTRICITY SUPPLY.
Cleaning
You should use a nonabrasive cleaner. Any abrasive cleaner (including
Cif) will scratch the surface and could erase the control panel
markings.
You can clean your extractor eectively by simply using a dilute
solution of water and mild detergent and drying to a shine with a
clean cloth.
Cleaning the grease filters
The grease filters should be kept clean to minimise the risk of fire.
After 100 hours of use, “FF” will show on the display when the
extractor is switched o. This indicates that you should remove and
clean the grease filters with hot soapy water. You can also wash
the grease filters in a dishwasher, ensuring that you place them
in an upright position to prevent damage from other items in the
dishwasher. After rinsing and drying, replace the filters.

8
To reset the filter alarm, press button “E”
for approximately 3 seconds when the
extractor is switched o.

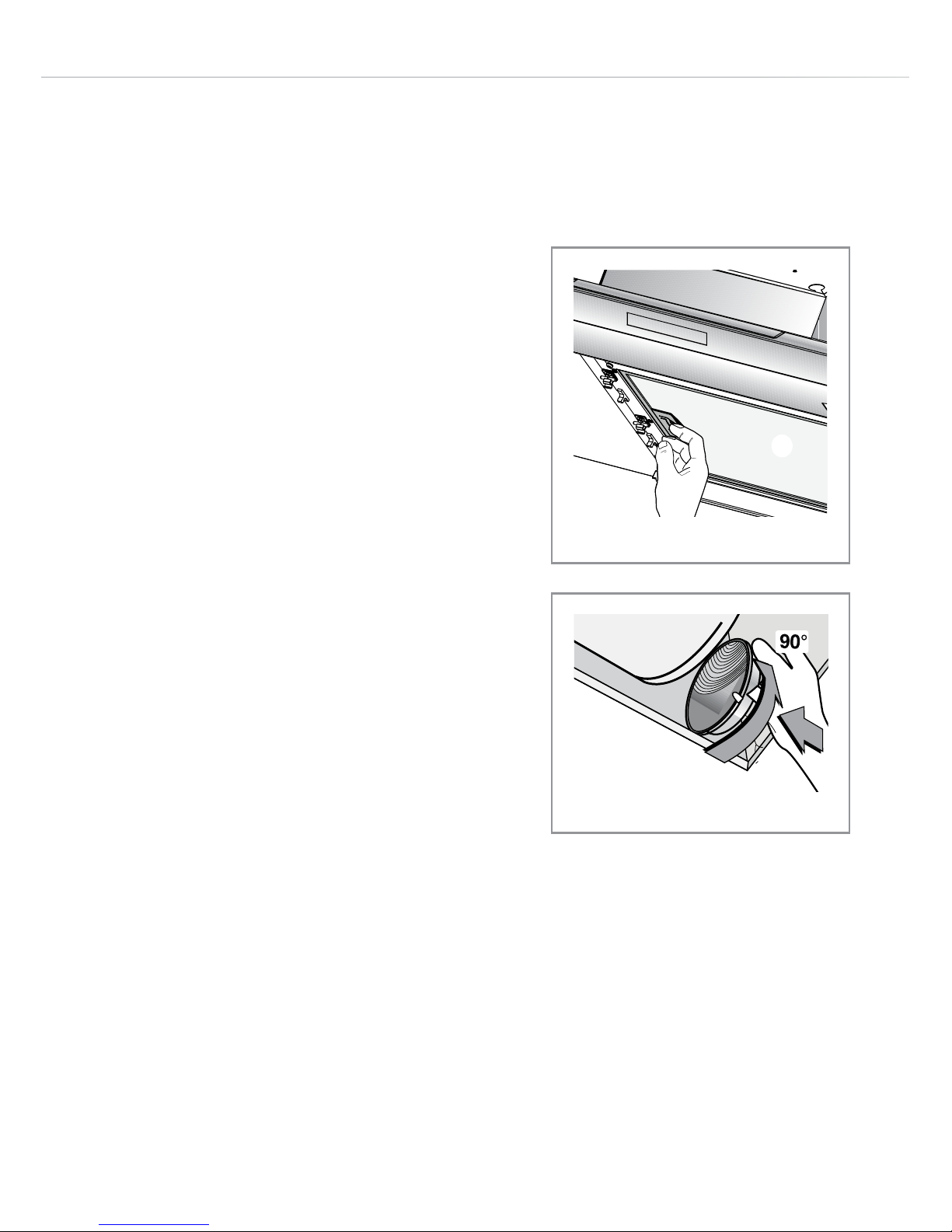

To remove the grease filters follow the
steps below:
1. Open the stainless steel cover panels
by pulling them down and outwards
on either side. They will remain
located in their hinges.
2. Pull open the handle on each grease
filter as shown in fig. 3. It will release
at the handle side. Then lower the
grease filter to remove it completely.
To replace the grease filters, repeat the
above steps in reverse.
Please note:
Cleaning the grease filters in the
dishwasher may lead to discolouration.
This is normal and does not constitute a
fault with the appliance.
Changing the charcoal filter
(re-circulating only)
After 200 hours of use “EF” will show
on the display when the extractor is
switched o. This indicates that you
fig. 2
fig. 3

9
should remove and replace the charcoal filters.
To attach a new charcoal filter, first open the cover panels and remove
the grease filters as described above. Then oer up the charcoal
filter to the side of the motor as shown in figure 3 and turn it clockwise
until it locks into place. Repeat with the other charcoal filter on the
other side of the motor. Then replace the grease filters and cover
panels.
To reset the filter alarms, press button “E” for approximately 3 seconds
when the extractor is switched o.
Care and Maintenance
IMPORTANT: DO NOT PERFORM
MAINTENANCE OR CLEANING OF
THE EXTRACTOR WITHOUT FIRST
SWITCHING OFF THE ELECTRICITY
SUPPLY.
DO NOT CHANGE THE LIGHT BULB
IMMEDIATELY AFTER USE AS THE
BULB WILL BE HOT. ALLOW IT TO
COOL BEFORE REMOVING IT.
Carefully remove the lamp securing
spring using a set of long-nose pliers or
a small screwdriver as shown in fig. 4,
and the bulb will be released.
fig. 4

10
Remove the old bulb from the holder.
Fit the new bulb, taking care not to touch the glass of the bulb.
Take care to ensure any tools used do not damage the extractor
body.
Do not touch bulbs or adjacent areas during or straight after
prolonged use of the lights.
The main extractor light is designed for use during cooking only.
Extended use of the extractor light can reduce the life span of the
bulb.
Bulb replacement is not covered by the guarantee.
Only use bulbs recommended for your extractor. Do not fit bulbs of a
higher power rating.
Bulbs of a lower power rating may be adequate for use, generally last
longer and use less energy.
Model Light Bulbs Required
EVX101 GU10 4 x 4W LED
