CDP UPO 11-1 User manual

User Manual
UPO 11-1-1.5-2-3 (AX) UPO 11-1RT,
1.5RT, 2RT, 3RT PF1.0
Customer Made - COLOMBIA
Rack/Tower Online UPS
Uninterruptible Power Supply System
Version: 1.0 2017

Table of Contents
1. Important Safety Warning....................................................................1
1-1. Transportation..........................................................................................1
1-2. Preparation................................................................................................1
1-3. Installation................................................................................................1
1-4. Operation..................................................................................................1
1-5. Maintenance, service and faults...................................................................2
2. Installation and setup...........................................................................4
2-1. Rear panel view.........................................................................................4
2-2. Operating principle.....................................................................................5
2-3. Install the UPS...........................................................................................6
2-4. Setup the UPS............................................................................................7

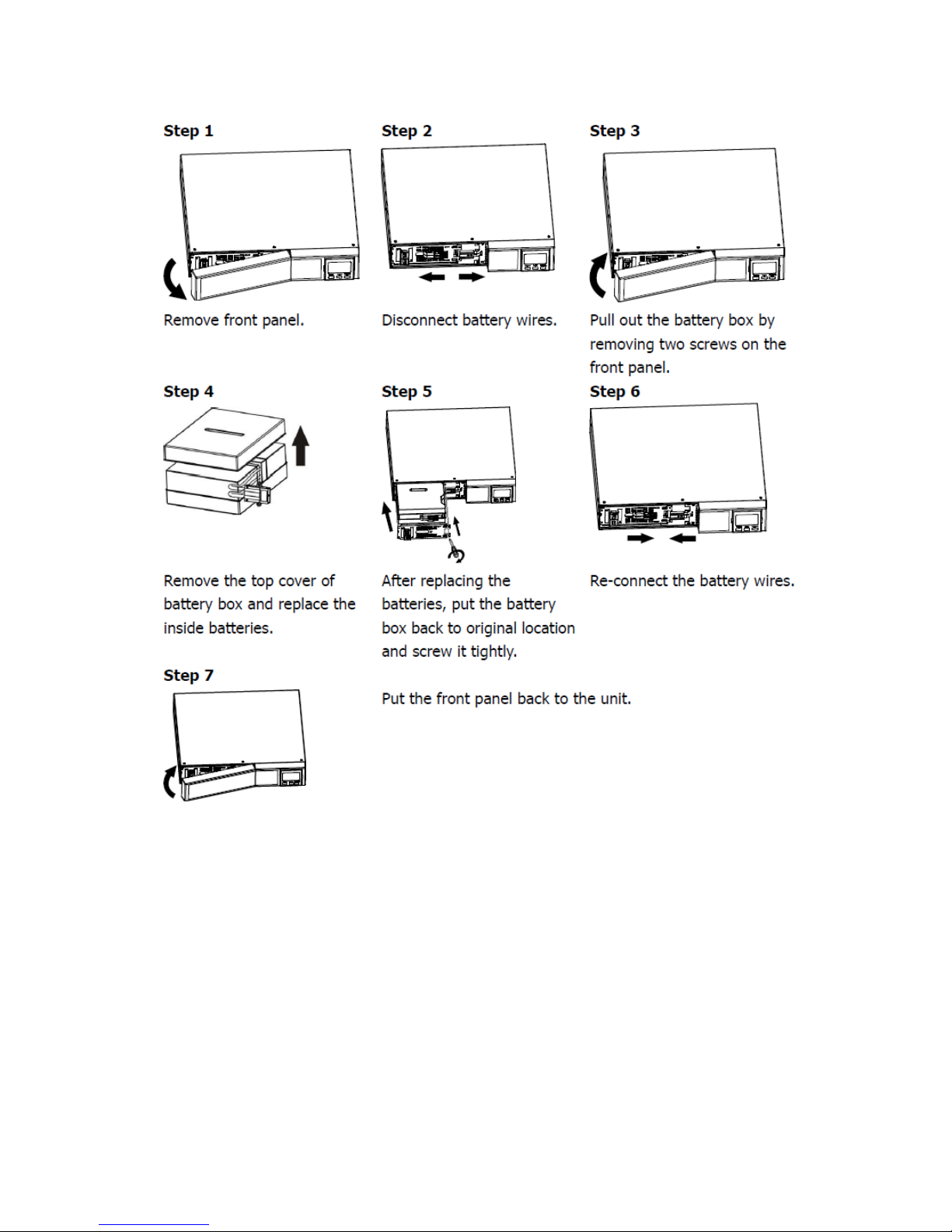

2-5. Battery Replacement..................................................................................9

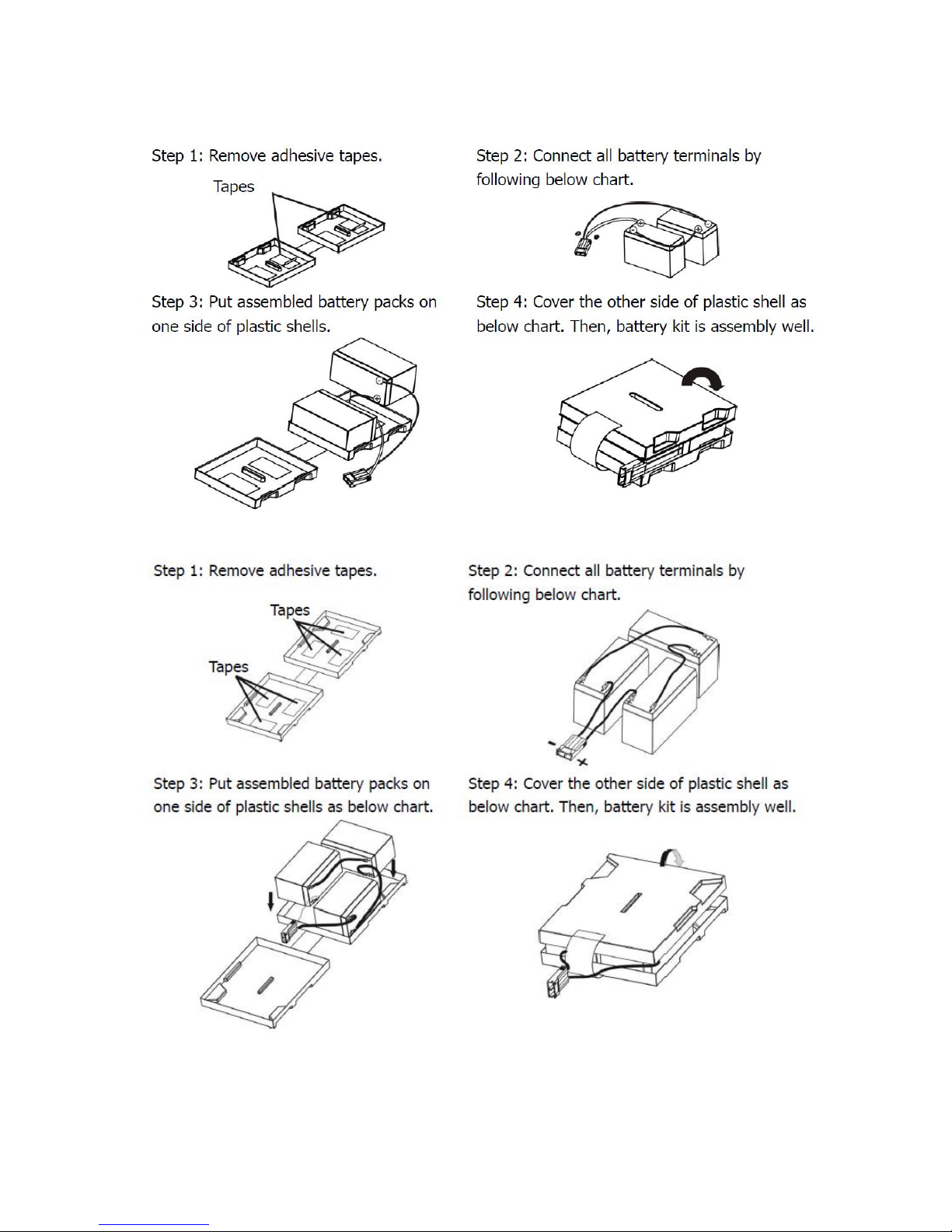

2-6 Battery Kit Assembly (option).....................................................................11
3. Operations...........................................................................................13
3-1. Button operation......................................................................................13
3-2. LCD Panel................................................................................................13
3-3. Audible Alarm...........................................................................................15
3-4. LCD display wordings index.......................................................................15

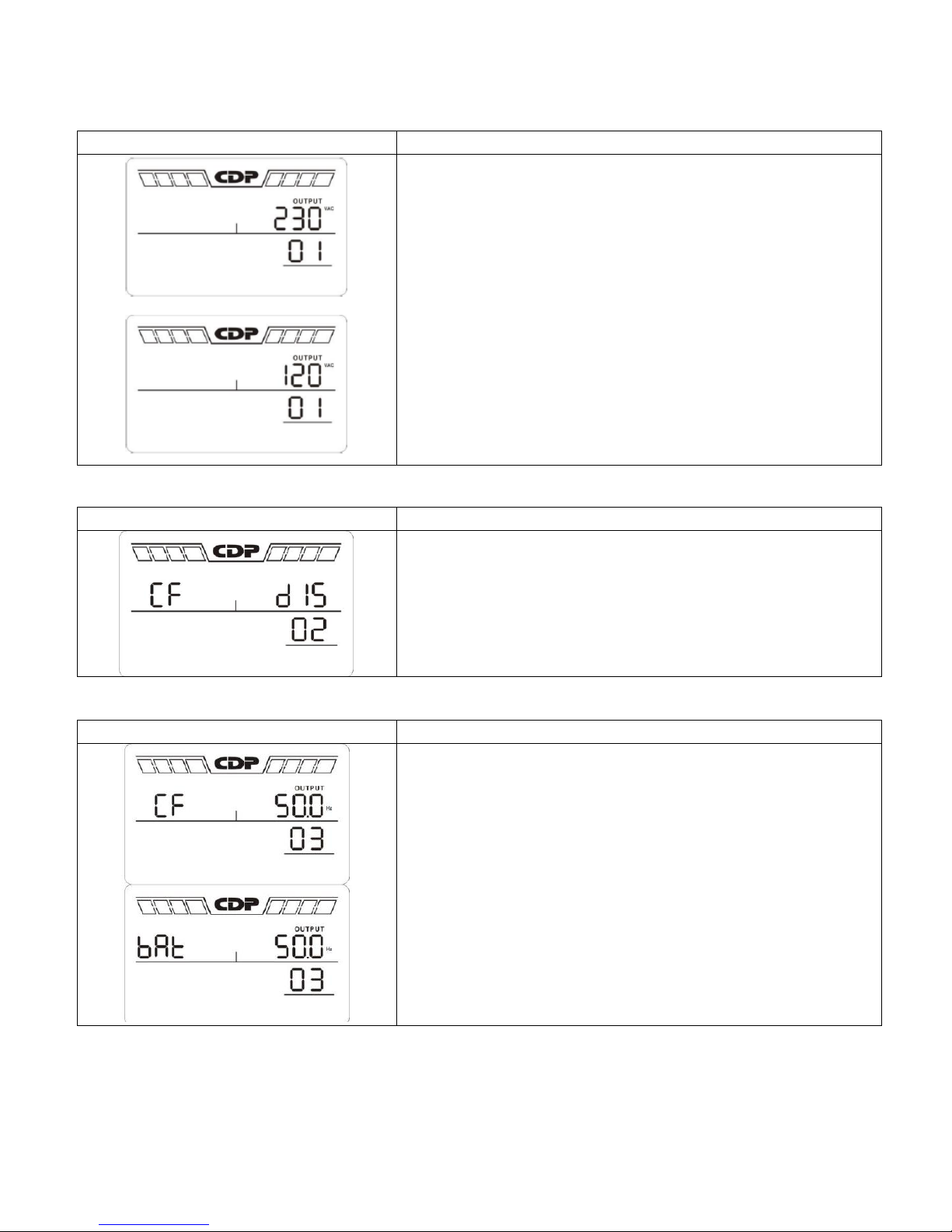

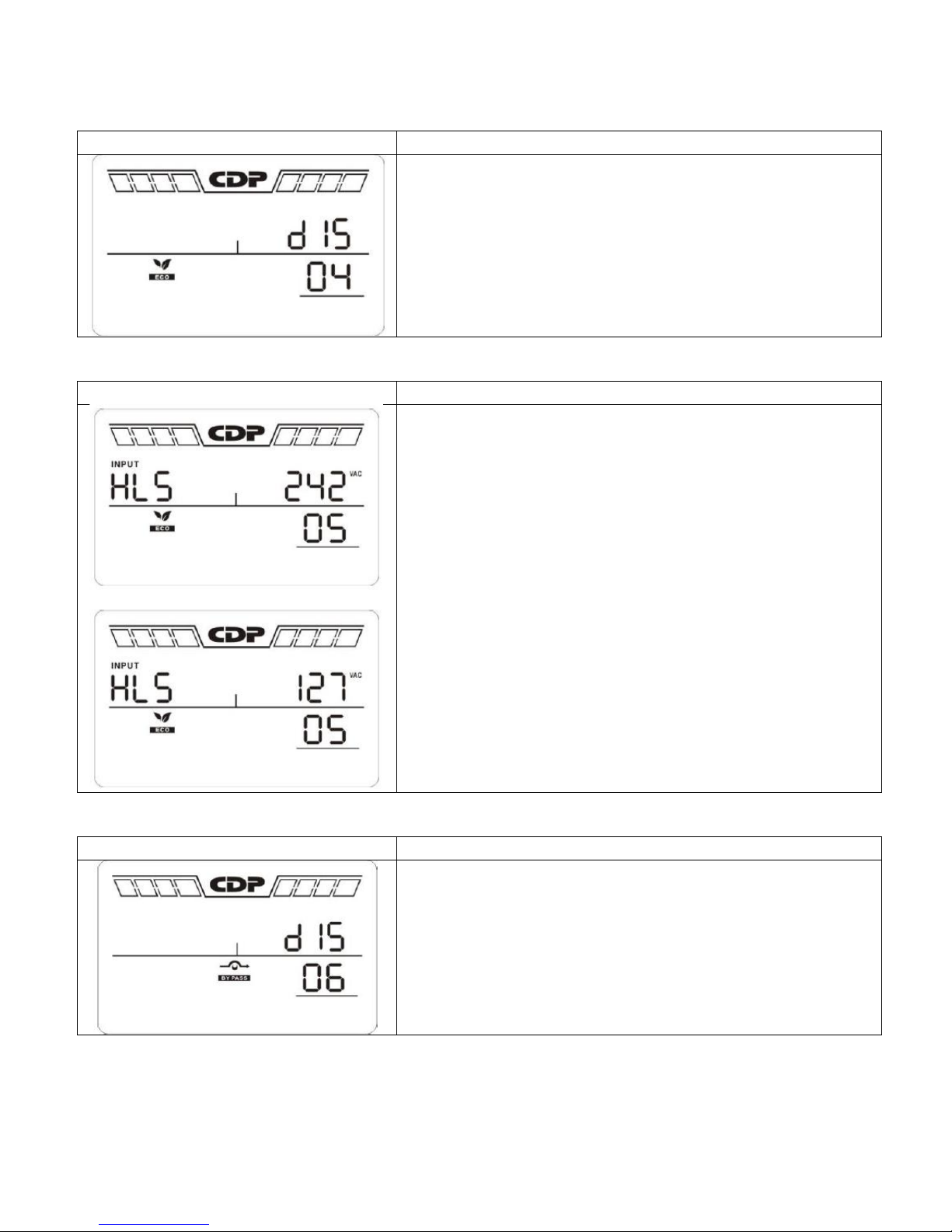

3-5. UPS Setting..............................................................................................15
3-6. Operating Mode Description......................................................................21
3-7. Faults Reference Code..............................................................................22
3-8. Warning indicator.....................................................................................23
4. Troubleshooting..................................................................................24
5. Storage and Maintenance....................................................................25
6. Specifications.......................................................................................26

1. Important Safety Warning
Please comply with all warnings and operating instructions in this manual strictly. Save this manual
properly and read carefully the following instructions before installing the unit. Do not operate this
unit before reading through all safety information and operating instructions carefully.
1-1. Transportation
Please transport the UPS system only in the original package to protect against shock and
impact.
1-2. Preparation
Condensation may occur if the UPS system is moved directly from cold to warm
environment. The UPS system must be absolutely dry before being installed. Please allow
at least two hours for the UPS system to acclimate the environment.
Do not install the UPS system near water or in moist environments.
Do not install the UPS system where it would be exposed to direct sunlight or near heater.
Do not block ventilation holes in the UPS housing.
1-3. Installation
Do not connect appliances or devices which would overload the UPS system (e.g. laser
printers) to the UPS output sockets.
Place cables in such a way that no one can step on or trip over them.
Do not connect domestic appliances such as hair dryers to UPS output sockets.
The UPS can be operated by any individuals with no previous experience.
Connect the UPS system only to an earthed shockproof outlet which must be easily
accessible and close to the UPS system.
Please use only VDE-tested, CE-marked (or UL-marked for 100/110/115/120/127 VAC
models) mains cable (e.g. the mains cable of your computer) to connect the UPS system
to the building wiring outlet (shockproof outlet).
Please use only VDE-tested, CE-marked (or UL-marked for 100/110/115/120/127 VAC
models) power cables to connect the loads to the UPS system.
When installing the equipment, it should ensure that the sum of the leakage current of the
UPS and the connected devices does not exceed 3.5mA.
Temperature Rating - Units are considered acceptable for use in a maximum ambient of
40°C (104°F). This UPS can be used in special cabbinets without batteries until 60°C (140°F).
For Pluggable Equipment - The socket-outlet shall be installed near the equipment and
shall be easily accessible.
1-4. Operation
Do not disconnect the mains cable on the UPS system or the building wiring outlet
(shockproof socket outlet) during operations since this would cancel the protective
earthing of the UPS system and of all connected loads.
The UPS system features its own, internal current source (batteries). The UPS output
sockets or output terminals block may be electrically live even if the UPS system is not
connected to the building wiring outlet.

In order to fully disconnect the UPS system, first press the OFF/Enter button to disconnect
the mains.
Prevent no fluids or other foreign objects from inside of the UPS system.
1-5. Maintenance, service and faults
The UPS system operates with hazardous voltages. Repairs may be carried out only by
qualified maintenance personnel.
Caution - risk of electric shock. Even after the unit is disconnected from the mains
(building wiring outlet), components inside the UPS system are still connected to the
battery and electrically live and dangerous.
Before carrying out any kind of service and/or maintenance, disconnect the batteries and
verify that no current is present and no hazardous voltage exists in the terminals of high
capability capacitor such as BUS-capacitors.
Only persons are adequately familiar with batteries and with the required precautionary
measures may replace batteries and supervise operations. Unauthorized persons must be
kept well away from the batteries.
Caution - risk of electric shock. The battery circuit is not isolated from the input voltage.
Hazardous voltages may occur between the battery terminals and the ground. Before
touching, please verify that no voltage is present!
Caution-Do not dispose of batteries in a fire. The batteries may explode.
Caution-Do not open or mutilate batteries. Released electrolyte is harmful to the skin and
eyes. It may be toxic.
Batteries may cause electric shock and have a high short-circuit current. Please take the
precautionary measures specified below and any other measures necessary when working
with batteries:
a) Remove watches, rings, or other metal objects.
b) Use tools with insulated handles.
c) Wear rubber gloves and boots.
d) Do not lay tools or metal parts on top of batteries.
e) Disconnect charging source and load prior to installing or maintaining the battery.
f) Remove battery grounds during installation and maintenance to reduce likelihood of
shock. Remove the connection from ground if any part of the battery is determined to
be grounded.
When changing batteries, install the same number and same type of batteries or battery
packs.

Manufacture
Type
Rated
Toplite (Guangzhou)
Technology Battery Co Ltd
(MH29104)
NPW45-12
12V dc, 9.0 Ah
UXW460-12
12V dc, 9.0 Ah
NPW36-12
12V dc, 7.2 Ah
UXW360-12
12V dc, 7.2 Ah
NPW45-12 FR
12V dc, 7.0 Ah
UXW460-12 / FR
12V dc, 7.0 Ah
NPW36-12 FR
12V dc, 7.0 Ah
CSB Battery Co Ltd
(MH14533)
UXW460-12 / FR
12V dc, 7.0 Ah
GP1272
12V dc, 7.2 Ah
UPS 12460 F2
12V dc, 9.0 Ah
UPS 12360 6
12V dc, 6.5 Ah
UPS 12360 7
12V dc, 6.5 Ah
HR 1234W
12V dc, 8.5 Ah
HR 1234W FR
12V dc, 8.5 Ah
Yuasa Battery (Guandong)
Co Ltd (MH29616)
NPW45-12
12V dc, 8.0 Ah
NPW45-12 FR
12V dc, 8.0 Ah
For UPS with internally mounted battery
a) Instructions shall carry sufficient information to enable the replacement of the battery
with a suitable manufacturer and catalogue number.
b) Safetyinstructions to allow access by Service Personnel shall be stated in the
installation/service handbook.
c) If batteries are to be installed by Service Personnel, instructions for interconnections,
including terminal torque, shall be provided.
Do not attempt to dispose of batteries by burning them. This could cause battery
explosion.
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and
eyes. It may be toxic.
Please replace the fuse only with the same type and amperage in order to avoid fire
hazards.
Do not dismantle the UPS system.

2. Installation and setup
NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is
damaged. Please keep the original package in a safe place for future use. OPTIONAL: If the end
user wants other cases for application outdoor, it is posible to change the cases; consult your
dealer.
2-1. Rear panel view
Tower Models
IEC Type
NEMA Type

RT Models
1. Programmable outlets: connect to non-critical loads.
2. Output receptacles: connect to mission-critical loads.
3. AC input

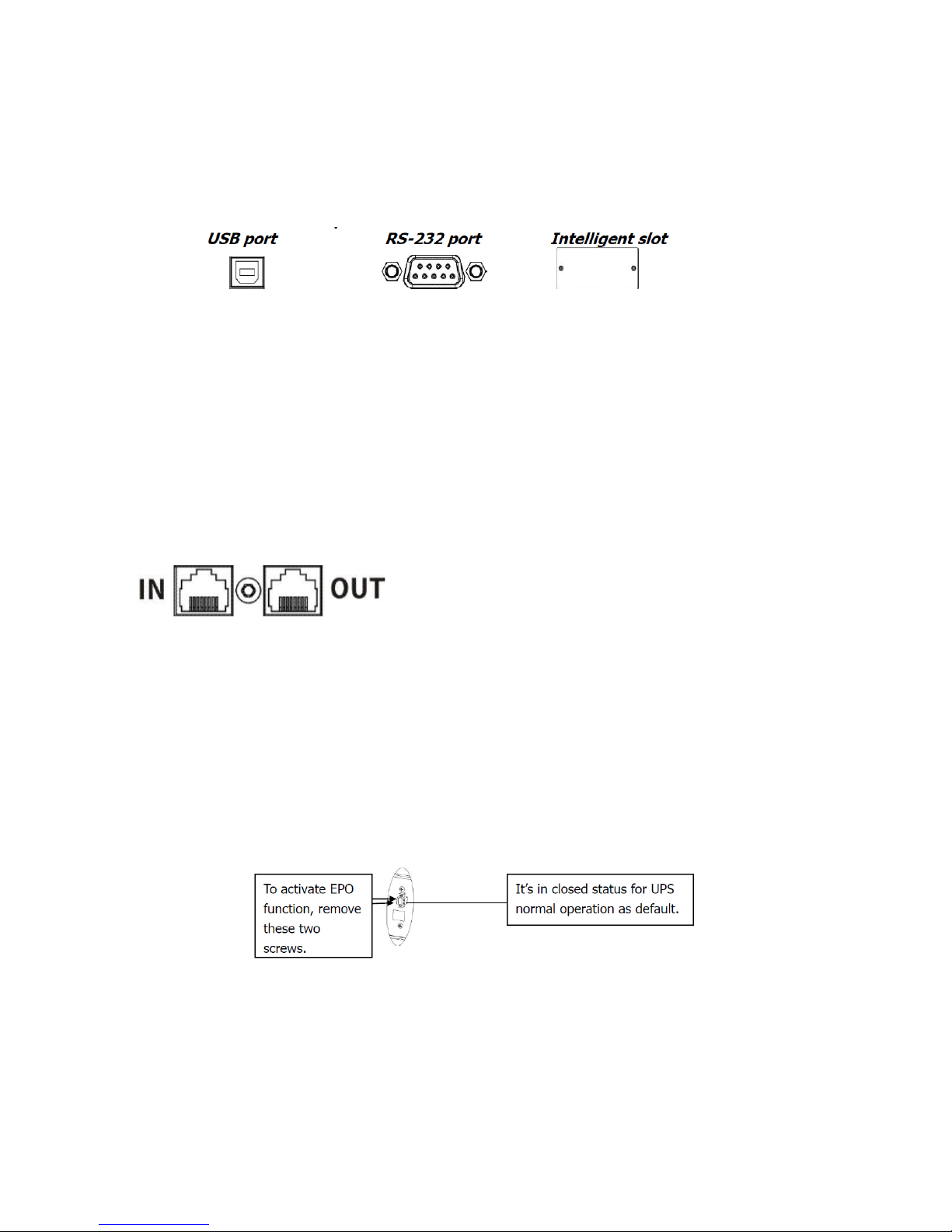

4. Network/Fax/Modem surge protection
5. USB communication port
6. RS-232 communication port
7. SNMP intelligent slot
8. Emergency power off port (EPO)
9. External battery connection
2-2. Operating principle
The operating principle of the UPS is shownas below
The UPS is composed of mains input, EMI/RFI filters, rectifier/PFC, inverter, battery
charger, DC-to-DC converter,battery, dynamic bypass and UPS output.

2-3. Install the UPS(Only for RT Models)
For safety consideration, the UPS is shipped out from factory without connecting battery
wires. Before install the UPS, please follow below steps to re-connect battery wires first.
This UPS can be either displayed on the desk or mounted in the 19” rack chassis. Please
choose proper installation to position this UPS.
Rack-mount Installation
Tower Installation

2-4. Setup the UPS

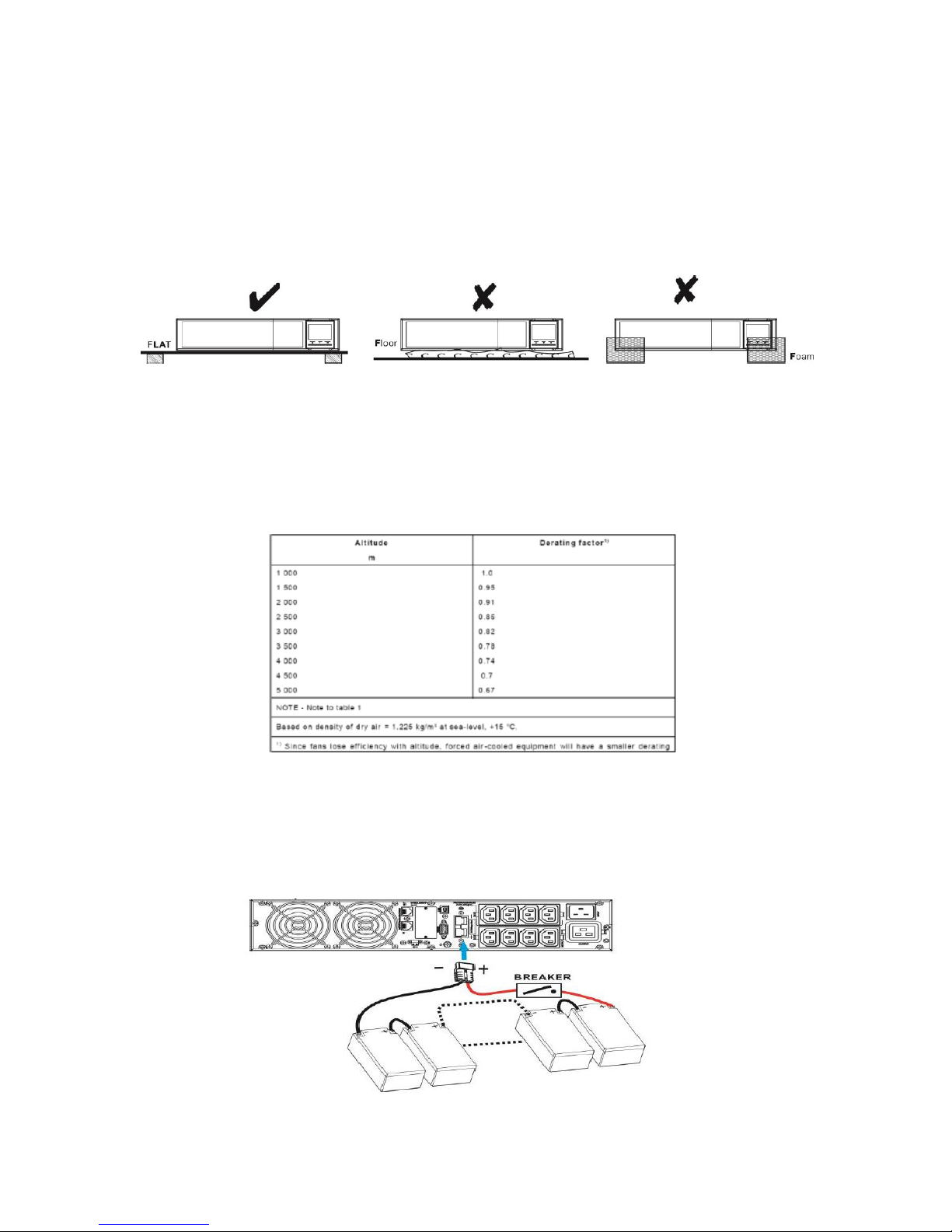

Before installing the UPS, please read below to select proper location to install UPS.
1. UPS should be placed on the flat and clean surface. Place it in an area away from
vibration, dust, humidity, high temperature, flammable liquids, gases, corrosive and
conductive contaminants. For options outdoor please consult our local office. Install
the UPS indoors in a clean environment, where it is away from window and door.
Maintain minimum clearance of 100mm in the bottom of the UPS to avoid dust and
high temperature.
2. Maintain an ambient temperature range of 0ºC to 45ºC for UPS optimal
operation. For every 5ºC above 45ºC, the UPS will derate 12% of nominal capacity
at full load. The highest working temperature requirement for UPS operation is 60ºC.
3. It’s required to maintain maximum altitude of 1000m to keep UPS normal operation
at full load UPS. If it’s used in high altitude area, please reduce connected load.
Altitude derating power with connected loads for UPS normal operation is listed as
below:
4. Place UPS: It’s equipped with fan for cooling. Therefore, place the UPS in a well-
ventilated area. It’s required to maintain minimum clearance of 100mm in the front
of the UPS and 300mm in the back and two sides of the UPS for heat dissipation
and easy- maintenance.
5.Connect to External Battery Pack

When connecting external battery packs, please be sure to connect polarity correctly.
Connect positive pole of battery pack to positive pole of external battery connector in UPS
and negative pole of battery pack to negative pole of external battery connector in UPS.
Polarity misconnection will cause UPS internal fault. It’s recommended to add one breaker
between positive pole of battery pack and positive pole of external battery connector in
UPS to prevent damage to battery packs from internal fault.
The required specification of breaker: voltage ≧1.25 x battery voltage/set; current ≧50A
Please choose battery size and connected numbers according to backup time requirement
and UPS specifications. To extend battery lifecycle, it’s recommended to use them in the
temperature range of 15ºC to 25ºC. The operation the UPS without batteries is from -30°C
to 60°C.
Step 1: External battery connection
Followthe right chart to make external battery connection.
Step 2: UPS input connection
Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension
cords.
For 200/208/220/230/240VAC models: The power cord is supplied in the UPS package.
For 100/110/115/120/127VAC models: The power cord is attached to the UPS. The
input plug is a NEMA 5-15P for 1K and 1.5K models, NEMA 5-20P for 2K model and
NEMA 5-30P for 3K model.
Note:Check if the site wiring fault indicator lights up in LCD panel. It will be illuminated
when the UPS is plugged into an improperly wired utility power outlet (Refer to
Troubleshooting section). Please also check if there is a circuit breaker installed between
the mains and AC input of the UPS against overcurrent and short circuit for safety
operation. The recommended protection specification is listed as following:
For 200/208/220/230/240VAC models: 10A for the 1K and 1.5K models, 16A for the 2K
and 3K models.
For 100/110/115/120/127VAC models: 15A for the 1K and 1.5K models, 20A for 2K
model and 30A for 3K model.
Step 3: UPS output connection
There two kinds of outputs: programmable outlets and general outlets. Please connect non-
critical devices to the programmable outlets and critical devices to the general outlets.

During power failure, you may extend the backup time to critical devices by setting shorter
backup time for non-critical devices.
Step 4: Communication connection
Communication port:
To allow for unattended UPS shutdown/start-up and status monitoring, connect the
communication cable one end to the USB/RS-232port and the other to the communication
port of your PC. With the monitoring software installed, you can schedule UPS
shutdown/start-up and monitor UPS status through PC.
The UPS is equipped with intelligent slot perfect for either UPO SNMP or SNMP web card
box or CDP AS400 card (dry contacts). When installing either UPO SNMP or SNMP web card
box or CDP AS400 card (dry contacts) in the UPS, it will provide advanced communication
and monitoring options.
Step 5: Network connection
Network/Fax/Phone surge port
Connect a single modem/phone/faxline into surge-protected “IN” outlet on the back panel
of the UPS unit. Connect from “OUT” outlet to the equipmentwith another
modem/fax/phone line cable.
Step 6: Disable and enable EPO function
This UPS is equipped with EPO function. By default, the UPS is delivered from factory with
Pin 1 and pin 2 closed (a metal plate is connected to Pin 1 and Pin2) for UPS normal
operation. To activate EPO function, remove two screws on EPO port and metal plate will
be removed.
Note: The EPO function logic can be set up via LCD setting. Please refer to program 16 in
UPS setting for the details.
Step 7: Turn on the UPS
Press the ON/Mute button on the front panel for two seconds to power on the UPS.
Note: The battery charges fully during the first five hours of normal operation. Do not
expect full battery run capability during this initial charge period.

Step 8: Install software
For optimal computer system protection, install UPS monitoring software to fully configure
UPS shutdown. Use supplied RS-232 or USB communication cable to connect RS-232/USB
port of UPS and RS-232/USB port of PC. Then, follow below steps to install monitoring
software.
1. Insert the included installation CD into CD-ROM drive and then follow the on-
screen instructions to proceed software installation. If there no screen shows 1
minute after inserting the CD, please execute setup.exe file for initiating software
installation.
2. Follow the on-screen instructions to install the software.
3. When your computer restarts, the monitoring software will appear as an orange
plug icon located in the system tray, near the clock.
2-5. Battery Replacement (Only for RT Models)
NOTICE: This UPS is equipped with internal batteries and user can replace the batteries
without shutting down the UPS or connected loads. (hot-swappable battery design)
Replacement is a safe procedure, isolated from electrical hazards.
CAUTION! Consider all warnings, cautions, and notes before replacing batteries.
Note: Upon battery disconnection, equipment is not protected from power outages.

2-6 Battery Kit Assembly (option)
NOTICE:Please assemble battery kit first before installing it inside of UPS. Please select
correct battery kit procedure below to assemble it.

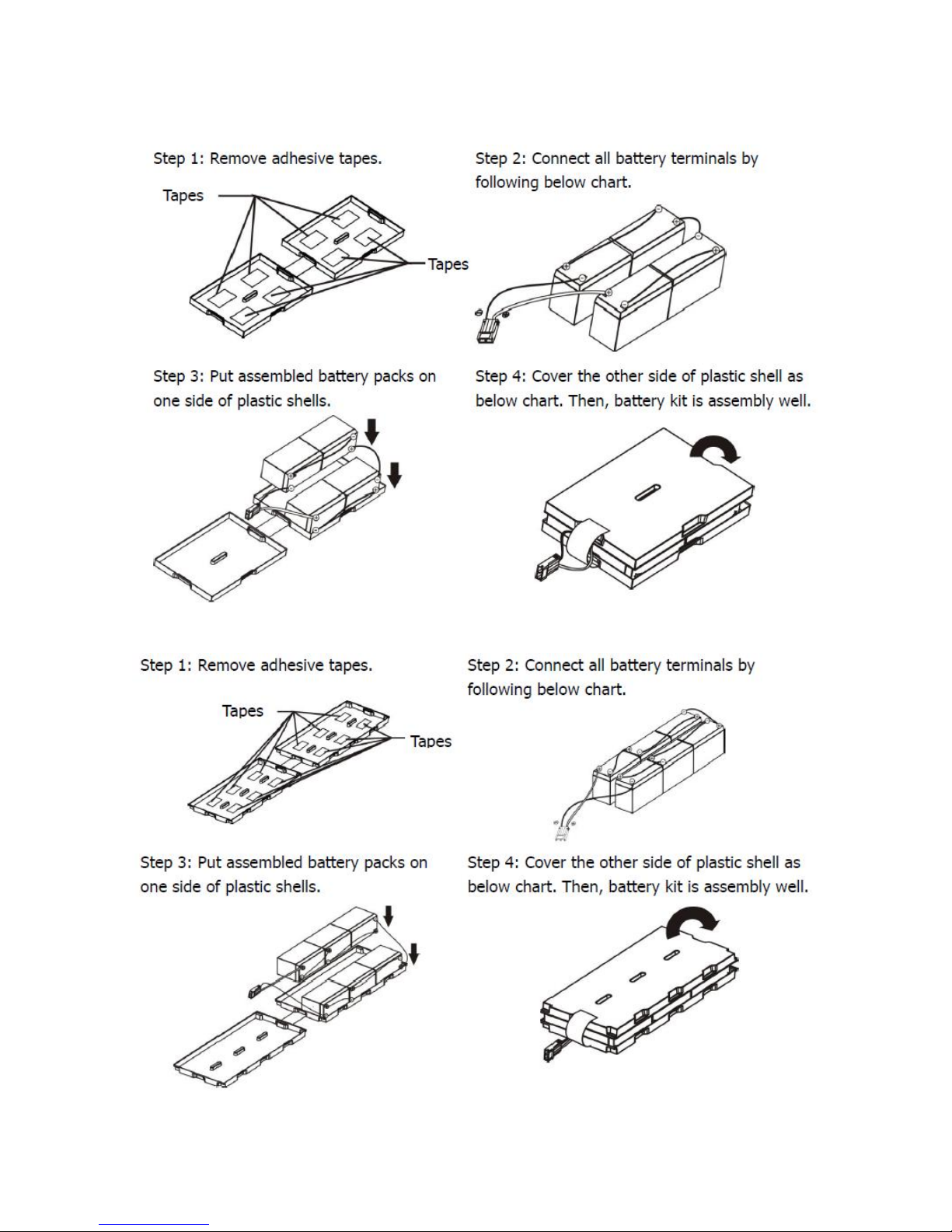

2-Battery kit
3-Battery kit

4-Battery kit
5-Battery kit

3.Operations
3.1. Button Operation
Button
Function
ON/Mute
Button
Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds
to turn on the UPS.
Mute the alarm: After the UPS is turned on in battery mode, press and
hold this button for at least 3 seconds to disable or enable the alarm
system. But it’s not applied to the situations when warnings or errors
occur.
Up key: Press this button to display previous selection in UPS setting
mode.
Switch to UPS self-test mode: Press ON/Mute buttons for 3 seconds to
enter UPS self-testing while in AC mode, ECO mode, or converter mode.
OFF/Enter
Button
Turn off the UPS: Press and hold this button at least 2 seconds to turn off
the UPS. UPS will be in standby mode under power normal or transfer to
Bypass mode if the Bypass enable setting by pressing this button.
Confirm selection key: Press this button to confirm selection in UPS setting
mode.
Select
Button
Switch LCD message: Press this button to change the LCD message for
input voltage, input frequency, battery voltage, output voltage, and output
frequency.
Setting mode: Press and hold this button for 3 seconds to enter UPS
setting mode when Standby and Bypass mode.
Down key: Press this button to display next selection in UPS setting mode.
ON/Mute +
Select Button
Switch to bypass mode: When the main power is normal, press ON/Mute
and Select buttons simultaneously for 3 seconds. Then UPS will enter to
bypass mode. This action will be ineffective when the input voltage is out
of acceptable range.
Exit setting mode or return to the upper menu: When working in setting
mode, press ON/Mute and Select buttons simultaneously for 0.2 seconds
to return to the upper menu. If it’s already in top menu, press these two
buttons at the same time to exit the setting mode.
3.2.LCD Panel

3.3.Audible Alarm
Battery Mode
Sounding every 5 seconds
Low Battery
Sounding every 2 seconds
Overload
Sounding every second
Fault
Continuosly sounding
Bypass Mode
Sounding every 10 seconds
3.4.LCD Display wordings index
3.5.UPS Settings
There are three parameters to set up the UPS.
Parameter 1: It´s for program alternatives.
Refer to below table.
Parameter 2 and parameter 3 are the setting
options or values for each program.

01: Output voltaje setting
Interface
Setting
Parameter 2: Output voltaje
For 200/208/220/230/240 VAC models, you may choose the
following output voltage:
200: presents output voltage is 200Vac
208: presents output voltage is 208Vac
220: presents output voltage is 220Vac
230: presents output voltage is 230Vac (Default)
240: presents output voltage is 240Vac
For 100/110/115/120/127 VAC models, you may choose the
following output voltage:
100: presents output voltage is 100Vac
110: presents output voltage is 110Vac
115: presents output voltage is 115Vac
120: presents output voltage is 120Vac (Default)
127: presents output voltage is 127Vac
02: Frequency Converter enable / disable
Interface
Setting
Parameter 2: Enable or disable converter mode. You may
choose the following two options:
CF ENA: converter mode enable
CF DIS: converter mode disable (Default)
03: Output Frequency Setting
Interface
Setting
Parameter 2: Output frequency setting.
You may set the initial frequency on battery mode:
BAT 50: presents output frequency is 50Hz
BAT 60: presents output frequency is 60Hz
If converter mode is enabled, you may choose the following
output frequency:
CF 50: presents output frequency is 50Hz
CF 60: presents output frequency is 60Hz

04: ECO enable/disable
Interface
Setting
Parameter 2: Enable or disable ECO function. You may
choose the following two options:
ENA: ECO mode enable
DIS: ECO mode disable (Default)
05: ECO voltaje range setting
Interface
Setting
Parameter 2: Set the acceptable high voltage point and low
voltage point for ECO mode by pressing Down key or Up key.
HLS: High loss voltage in ECO mode in parameter 2.
For 200/208/220/230/240 VAC models, the setting range in
parameter 3 is from +7V to +24V of the nominal voltage.
(Default: +12V)
For 100/110/115/120/127 VAC models, the setting range in
parameter 3 is from +3V to +12V of the nominal voltage.
(Default: +6V)
LLS: Low loss voltage in ECO mode in parameter 2.
For 200/208/220/230/240 VAC models, the setting range in
parameter 3 is from -7V to -24V of the nominal voltage.
(Default: -12V)
For 100/110/115/120/127 VAC models, the setting voltage in
parameter 3 is from -3V to -12V of the nominal voltage.
(Default: -6V)
06: Bypass enable/disable when UPS is off
Interface
Setting
Parameter 2: Enable or disable Bypass function. You may
choose the following two options:
ENA: Bypass enable
DIS: Bypass disable (Default)
