CEMB N130 User manual

Portable equipment
N130 / N330
Rev. 01/2019 EN / Translation of the original instructions
QUICK GUIDE
BASIC
OPERATIONS
All manuals and user guides at all-guides.com

all-guides.com

2
Vibration analysis division
12345
Instruments overview
Ports for sensors,
power supply and USB
Accelerometer
with magnetic base
Accelerometer’s cable
(2m length)
Photocell’s cable
(2m length)
Photocell with
magnetic stand
Connector 1: sensor Channel A input
Connector 2: sensor Channel B input (N330 only)
Connector 3: photocell input
Connector 4: micro-USB port
Connector 5: battery charger
CONNECTION PORTSN330
INCLUDED MEASUREMENT KIT
ACCELEROMETER SET PHOTOCELL SET (OPTIONAL FOR N130)
All manuals and user guides at all-guides.com

3 |www.cemb.it
N330
CONNECTION:
insert the connector into the corresponding socket;
screw it clockwise until it is locked.
DISCONNECTION:
unscrew the connector counter clockwise until it is
completely extracted.
CONNECTION OF THE CABLES
N130/N330 KEYBOARD
Switch ON/OFF the instrument
Start/Stop of the measure
Conrm the chosen setup/actions
Function keys (refer to the display)
Arrow keys (UP, DOWN, LEFT, RIGHT)
Switch channels A/B (only for N330)
All manuals and user guides at all-guides.com

4
Vibration analysis division
Y
X
Z
Sensors positioning
NOTE:
Before to use the accelerometer screw the magnetic
stud to the sensor and remove the protection disk from
the base.
Place the sensor on rigid parts of the machine (such as
support bearings). All 3 orthogonal directions (X, Y and
Z) are recommended.
Put the reecting tape on the shaft; place the photocell
on the machine casing using the magnetic stud.
Point the photocell spot to the reective tape
previously positioned on the shaft.
ACCELEROMETER
PHOTOCELL (Optional for N130)
Sensor measurement direction
All manuals and user guides at all-guides.com

5 |www.cemb.it
1
4
2
5
3
6
With photocell power-on, touch the
back of the body with a tool for 2
seconds
Tap shortly, target thought
LED ashing
Calibration successful
Align sensor spot to the
target. Faster ashing, better
reception
Calibration failed

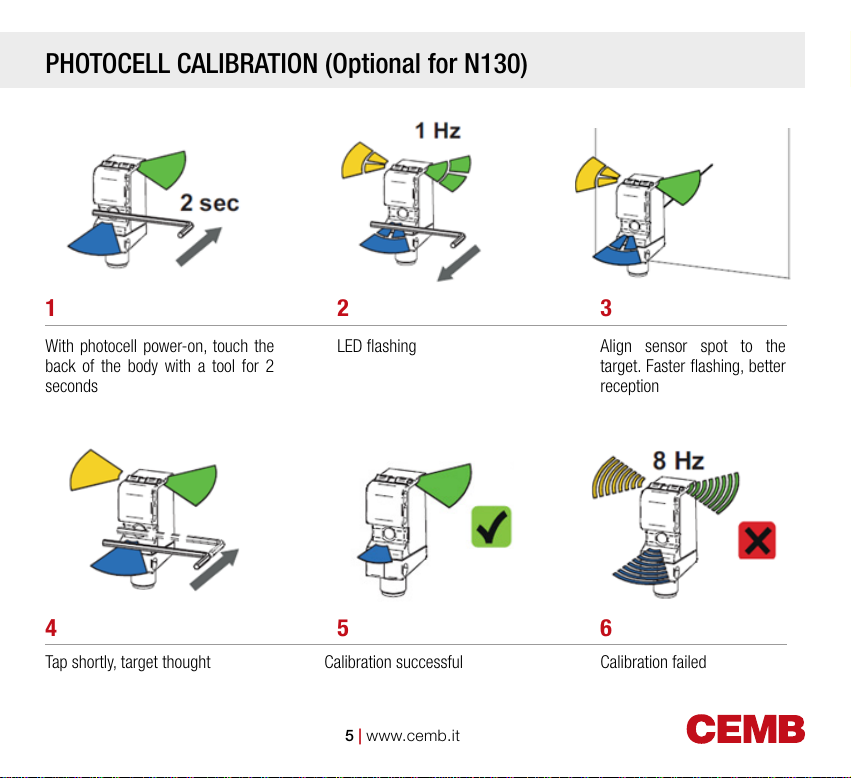

PHOTOCELL CALIBRATION (Optional for N130)
All manuals and user guides at all-guides.com

6
Vibration analysis division
1
2
Instrument setup
INSTRUMENT MAIN SETUP FUNCTION
Tap keys or
to choose the type of setup.
Tap to conrm and access to the function.
SENSORS SETUP
1- Dene the type of sensor used
(choice is between ACCELEROMETER and VELOMITOR).
2- Dene the sensitivity of sensor used for the measure.
MEASURE SETUP
Dene all the parameters for the measure of the vibration.
All manuals and user guides at all-guides.com

all-guides.com

7 |www.cemb.it
DEVICE SETUP
Dene all the instrument parameters such as date, time,
language, etc…
NOTE:
Tap “Arrows keys” to move inside the menu and make the choices.
Tap (DONE) to conrm the setup; tap (BACK) to leave the setup without any changes.
All manuals and user guides at all-guides.com

8
Vibration analysis division
A B
How to take a measure
In every function are available function keys HOME (A) -
goes directly to the instrument home page, and MENU (B)
- shows the menu of the function used.
Tap for HOME (A);
Tap for MENU (B).
The MENU screen is different depending of the function
in use.
Tap keys or
to scroll the MENU options.
Tap to select the desired MENU option.
From the MAIN MENU select the required measure function (this is applicable to VIBROMETER; FFT, CBA,
TACHO).
After to start-up the monitored rotating machine, tap to start the acquisition.
When the reading is stable or when you want to shut down the acquisition, tap again .
All manuals and user guides at all-guides.com

9 |www.cemb.it

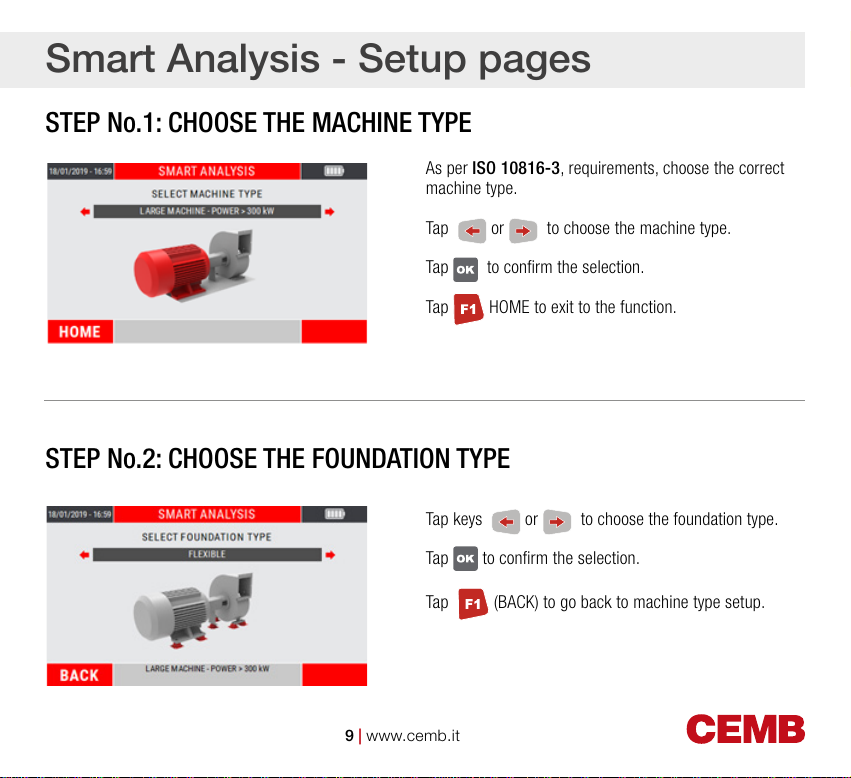

Smart Analysis - Setup pages
As per ISO 10816-3, requirements, choose the correct
machine type.
Tap or
to choose the machine type.
Tap to conrm the selection.
Tap HOME to exit to the function.
Tap keys or
to choose the foundation type.
Tap to conrm the selection.
Tap (BACK) to go back to machine type setup.
STEP No.1: CHOOSE THE MACHINE TYPE
STEP No.2: CHOOSE THE FOUNDATION TYPE
All manuals and user guides at all-guides.com

10
Vibration analysis division
Smart Analysis – Setup pages
Tap keys or
to choose the speed detection
mode.
Tap to conrm the selection.
Tap (MACHINE SETUP) to go back to machine type
setup (see step No.1).
While the machine is running, tap to start the
acquisition.
Tap again to stop the acquisition.
Tap for HOME (A); tap for the MENU (B).
STEP No.3: CHOOSE THE SPEED DETECTION MODE
STEP No.4: MAKE A MEASURE
Causes
of vibration
Overall
vibration
Machine
judgement
All manuals and user guides at all-guides.com

11 |www.cemb.it
How to save a measure
Tap (NEW) to create a new project.
Or tap keys /
to scroll the existing projects.
Tap to conrm the selection.
Tap (BACK) to exit from the function.
Choose the number of bearing starting from a default
point.
Tap keys or
to choose the support number.
Tap to conrm the selection.
Tap (BACK) to go back to list of existing projects.
STEP No.1: CHOOSE OR CREATE A PROJECT
STEP No.2: CHOOSE THE NUMBER OF SUPPORT BEARING
All manuals and user guides at all-guides.com

all-guides.com

12
Vibration analysis division
How to save a measure
Tap keys or
to choose the orthogonal
direction.
Tap to conrm the selection.
Tap (BACK) to go back to the previous step.
STEP No.3: CHOOSE THE ORTHOGONAL DIRECTION
For detailed information please refer to the N130/N330 user manual on the USB pen supplied with
your instrument.
