Central Machinery 46813 User manual

10”TABLE SAW
Model 46813
ASSEMBLY AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2002 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork
contained herein may be reproduced in any shape or form without the express written consent of Harbor
Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improve-
ments, actual product may differ slightly from the product described herein. Tools required for assembly
and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised Manual 10f

SPECIFICATIONS TABLE
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, op-
erating, inspection, maintenance, and cleaning procedures, parts list and
assembly diagrams. Keep your invoice with this manual. Write the invoice
number on the inside of the front cover. Keep this manual and invoice in a safe
and dry place for future reference.
GENERAL SAFETY WARNINGS AND PRECAUTIONS
1. KEEP WORK AREA CLEAN AND DRY. Cluttered, damp or wet work areas
invite injuries.
2. KEEP CHILDREN AWAY FROM WORK AREA. Do not allow children to handle
this product.
3. STORE IDLE EQUIPMENT. When not in use, tools and equipment should be
stored in a dry location to inhibit rust. Always lock up tools and equipment and
keep out of reach of children.
SKU 46813 PAGE 2
ITEM DESCRIPTION
Electrical Requirements 110V, 60Hz, 2,300 Watts, 22.2 Amps, 3 HP, 3,400 RPM
Overall Dimensions (Assembled) 57-1/2”W x 47”D x 41-1/4”H
Table Dimensions (With Exten-
sions)
44-1/16”W x 27”D
Table Height (From Floor on Stant) 36-1/4”
Arbor Diameter 5/8”
Saw Blade 10” Diameter x 5/8”-24 Teeth, Carbide Tip, 5,000 Rated RPM
Maximum Rip Capacity 21” Left Side, 22-5/8” Right Side
Maximum Cut (Front of Blade) 13”
Maximum Depth of Cut (At 0°) 3.35”
Angle of Cut 0°-45° (Left Only)
Miter Scale 0°m 15°, 30°, 45°, 60° Right or Left
Miter Increments 5° Marks -- Pinter 1° Mark
Miter Adjustments Fully Adjustable
Front Rail Scale 0” to 23” Left, 0” to 25” Right
Fence Dimensions 2-1/4”W x 36”L x 2-3/4”H
Dust Collection Features Rear Discharge Port, 2-1/4” O.D.
Tool Accessories 22MM/24MM Open End Wrench,
2.5MM, 3MM, 4MM Hex Keys
Construction Cast Iron, Aluminum, ABS Plastic,
Grade 5 Steel Hardware & Fasteners
Weight 239 Pounds

4. DO NOT USE THIS PRODUCT IF UNDER THE INFLUENCE OF ALCOHOL OR
DRUGS. Read warning labels on prescriptions to determine if your judgment or
reflexes are impaired while taking drugs. If there is any doubt, do not attempt to
use this product.
5. USE EYE, HEARING, AND BREATHING PROTECTION. Wear ANSI approved
safety impact eyeglasses, hearing protectors, and dust masks or respirator when
using this product. ANSI approved safety impact eyeglasses, hearing protectors,
dust masks and respirators are available from Harbor Freight Tools.
6. DRESS SAFELY. Non-skid footwear or safety shoes should be used when work-
ing with this product. Do not wear loose clothing or jewelry as they can become
caught in moving parts. Wear a protective hair covering to prevent long hair from
becoming caught in moving parts. If wearing a long-sleeve shirt, roll sleeves up
above elbows.
7. INDUSTRIAL APPLICATIONS MUST FOLLOW OSHA REQUIREMENTS.
8. DO NOT OVERREACH. Keep proper footing and balance at all times to prevent
tripping, falling, back injury, etcetera.
9. STAY ALERT. Watch what you are doing at all times. Use common sense. Do
not use this product when you are tired or distracted from the job at hand.
10. CHECK FOR DAMAGED PARTS. Before using this product, carefully check that
it will operate properly and perform its intended function. Check for damaged
parts and any other conditions that may affect the operation of this product. Re-
place or repair damaged or worn parts immediately.
11. REPLACEMENT PARTS AND ACCESSORIES. When servicing, use only iden-
tical replacement parts. Only use accessories intended for use with this product.
Approved accessories are available from Harbor Freight Tools.
12. MAINTAIN THIS PRODUCT WITH CARE. Keep this tool clean and dry, and keep
Saw Blades clean and sharp for better and safer performance.
13. MAINTENANCE: For your safety, service and maintenance should be performed
regularly by a qualified technician.
14. USE THE RIGHT PRODUCT FOR THE RIGHT JOB. There are certain
applications for which this product was designed. Do not use small equipment,
tools or attachments to do the work of larger industrial equipment, tools or
attachments. Do not use this product for a purpose for which it was not intended.
SKU 46813 PAGE 3

SPECIFIC PRODUCT WARNINGS AND PRECAUTIONS
1. GROUND THIS PRODUCT. The electrical power cord for this product is
equipped with a grounded 3-Prong Plug. Never remove the grounding prong or
modify the Plug in any way. Do not use adapter plugs with this product. To com-
ply with the National Electric Code, and to provide additional protection from the
risk of electrical shock, the Table Saw should only be connected to a 110 Volt,
3 prong electrical outlet that is protected by a Ground Fault Circuit Interrupter
(GFCI).
2. MAKE SURE THE POWER SWITCH (part #8E) IS IN THE “OFF” POSITION
BEFORE PLUGGING IN THE POWER CORD (part #8F).
3. DO NOT ABUSE THE POWER CORD. Do not use the Power Cord (part #8F) to
pull the 3-prong plug from a power outlet. Keep cord away from heat, oil, sharp
edges, and moving parts. Replace damaged cord immediately. Route the power
cord safely. Protect it from being damaged by other equipment in the shop. Do
not route the cord where it can be walked on or tripped over.
4. IF YOU USE AN EXTENSION CORD, MAKE SURE TO USE ONLY UL
APPROVED CORDS HAVING THE CORRECT GAUGE AND LENGTH. (SEE
FIGURE A.)
FIGURE A
5. MAINTAIN A SAFE WORK ENVIRONMENT. Do not use this product in or near
damp or wet areas. Do not expose this product to rain. Keep the work area well
lit. Make sure there is adequate surrounding workspace. Use this product in a
well ventilated area. Do not operate this product in the presence of flammable
liquids, gases, or dust. To avoid accidental electric shock, do not let your body
come in contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators.
6. DO NOT FORCE THE EQUIPMENT. This Table Saw will do the work better and
safer at the speed and capacity for which it was designed.
SKU 46813 PAGE 4

7. KEEP ALL GUARDS IN PLACE AND IN WORKING ORDER.
8. REMOVE ALL ADJUSTING WRENCHES FROM THE TABLE SAW BEFORE
TURNING IT ON.
9. AVOID UNINTENTIONAL STARTING. Make sure you are prepared to begin
work before turning the Power Switch (part #8E) “ON”.
10. DO NOT USE THIS TOOL FOR CUTTING METALS OR BRITTLE MATERIALS.
Do not cut dangerous materials, such as asbestos that can cause harmful dust or
vapors.
11. ALLOW THE SAW BLADE (part #14-I) TO SPIN UP TO FULL SPEED BEFORE
FEEDING WOOD INTO IT. When turning it off, allow the Saw Blade to spin down
and stop on its own. Do not press against the Saw Blade to stop it.
12. Caution: Never pass hands directly over the Saw Blade (part #14-I) when
cutting the workpiece. Always push the workpiece into the Saw Blade, using an
auxiliary handle or push stick (not provided).
13. DO NOT FORCE THE MATERIAL INTO THE SAW BLADE (part #14-I) WHEN
CUTTING. Apply moderate pressure, allowing the Saw Blade to cut without be-
ing forced.
14. NEVER ATTEMPT TO REMOVE MATERIAL STUCK IN THE MOVING PARTS
OF THE TABLE SAW WHILE IT IS PLUGGED IN AND RUNNING.
15. TURN OFF THE TABLE SAW IF THE WOODSTOCK IS TO BE BACKED OUT
OF AN UNCOMPLETED CUT.
16. ALWAYS KEEP HANDS AND FINGERS AWAY FROM THE SAW BLADE (part
#14-I). Use an auxiliary handle or push stick (not provided) at all times.
17. MAKE SURE THE WORKPIECE IS FREE FROM NAILS AND ANY OTHER
FOREIGN OBJECTS WHICH COULD DAMAGE THE SAW BLADE (part #14-I).
18. ALWAYS FEED THE WORKPIECE INTO THE SAW BLADE (part #14-I) AND
AGAINST ITS ROTATION.
19. WARNING: When replacing the Saw Blade (part #14-I), ALWAYS replace it with
a Saw Blade rated at least 3,400 RPM to prevent possible injury.
20. REDUCE THE RISK OF KICKBACK. Kickback is caused when the Saw Blade
(part #14-I) becomes pinched, miss-aligned, or twisted during the cutting
process, resulting in personal injury and/or damage to the tool.
SKU 46813 PAGE 5

20. (Continued) To avoid kickback, keep a firm grip on the workpiece at all times.
Support overhanging work pieces; as the work piece is cut and weakens it will
sag, causing a pinched Saw Blade. Push the workpiece slower than normal
when cutting through knots, pressure treated and green lumber. Do not attempt
to force the workpiece back on the cut line if the cut begins to go off line. Make
sure to set the depth adjustment of the Table Saw so that one saw tooth of the
Saw Blade projects below the work piece.
21. MAKE SURE THE WORKPIECE IS SUPPORTED AT ALL TIMES DURING OP-
ERATION. Use a Roller Stand (not provided) with a larger workpiece if
necessary.
22. MAINTAIN CONTROL OF THE WORKPIECE AT ALL TIMES. Never allow the
workpiece to rest on the moving Saw Blade (part #14-I) without safely holding on
to the workpiece.
23. BEFORE TRYING NEW OR COMPLICATED TECHNIQUES, STUDY THE PRO-
CEDURE, AND PRACTICE WITH SCRAP WOOD.
24. ALWAYS DISCONNECT THE TABLE SAW FROM ITS ELECTRICAL SUPPLY
SOURCE BEFORE PERFORMING ANY SERVICES OR MAINTENANCE. Turn
off and unplug the Table Saw when leaving the work area, moving the tool from
one location to another, changing Saw Blades (part #14-I), cleaning sawdust
from the unit, etcetera.
25. NEVER USE UNAUTHORIZED ACCESSORIES. Never install unauthorized ac-
cessories such as shaper cutters, wire wheels, grinding wheels or sanding prod-
ucts.
26. WARNING: Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California)
to cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are: lead from lead-based paints, crystalline silica from bricks
and cement or other masonry products, arsenic and chromium from chemically
treated lumber. Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these chemicals; work in
a well ventilated area, and work with approved safety equipment, such as those
dust masks that are specially designed to filter out microscopic particles.
(California Health & Safety Code 25249.5, et seq.)
27. WARNING: People with pacemakers should consult with their physician(s)
before using this product. Operation of equipment in close proximity to a heart
pacemaker could cause interference or failure of the pacemaker.
SKU 46813 PAGE 6

UNPACKING
When unpacking, check to make sure all parts shown on the Parts Lists (pages 27
through 29) are included. If any parts are missing or broken, please call Harbor Freight
Tools at the number shown on the cover of this manual as soon as possible.
PRODUCT OVERVIEW
1. NOTE: Prior to operating the 10” Table Saw, make sure you familiarize yourself
with the main parts components and their functions. (See Figures B, C, and
Assy. Diagrams A through I.)
REAR
RAIL (#3H)
EXTENSION
TABLE
(#5H)
MITER
GAUGE
GROOVE
BLADE
GUARD
(#10D)
RIVING
KNIFE
(#6D) ANTI-KICKBACK
PAWL (#2D)
10” SAW BLADE
(#14-I)
ALIGN-A-CUT
INSERT (#4H)
RIP FENCE
(#10C)
SCALE (#6H)
SWITCH
(#8E)
FINE
ADJUSTMENT
KNOB (#30C)
RIP FENCE
HANDLE
(#37C)
BEVEL
HANDLE
(#5G)
BEVEL
SCALE
(#10G)
HEIGHT
HANDLE
(#5G)
END BRACE
(#6B)
LEG (#4B)
LEVELING FOOT (#1B)
SHORT LEG
BRACE (#9B)
LONG LEG
BRACE (#10B)
SIDE BRACE
(#7B)
FRONT RAIL
(#7H)
BASE (#1G)
MITER GAUGE (#4A)
FIGURE B
SKU 46813 PAGE 7

FIGURE C
SKU 46813 PAGE 8

ASSEMBLY INSTRUCTIONS
NOTE: For additional references to the parts listed below, refer to the Assembly
Diagrams on pages 29 through 37 of this manual.
WARNING! PRIOR TO PERFORMING ANY ASSEMBLY PROCEDURES, MAKE
SURE THE 10”TABLE SAW IS DISCONNECTED FROM ITS ELECTRICAL POWER
SOURCE.
To Mount The 10”Table Saw On A Workbench:
1. NOTE: If the 10” Table Saw is mounted onto a workbench instead of the Leg As-
sembly, the workbench surface must have an opening for sawdust to fall through.
This opening must be as large as the opening in the bottom of the 10” Table Saw
Base (part #1G). A minimum height of 36” from the top of the Base to the floor is
recommended. (See Figure B, and Assy. Diagram G.)
2. With assistance, set the 10” Table Saw in a desired location on the workbench.
NOTE: Make sure the workbench provides a flat, level, sturdy surface capable of
supporting the weight of the 10” Table Saw, tool accessories, and workpieces.
3. Use the four 5/16” mounting holes located at the bottom of the Base (part #1G))
as a template, and mark the two points at which four holes will be drilled through
the workbench. Then, temporarily set the 10” Table Saw aside.
(See Figure B, and Assy. Diagram G.)
4. With a drill and a 5/16” drill bit (not provided), drill four mounting holes downward
through the top of the workbench.
5. Align the four mounting holes at the Base (part #1G) of the 10” Table Saw with
the four previously drilled holes in the workbench. Then secure the 10” Table Saw
to the workbench, using four 5/16” bolts of appropriate length, two lock washers,
and two nuts (not provided).
To Assemble The Leg Stand:
1. NOTE: Temporarily finger tighten all hardware mentioned in this section until the
Leg Stand is fully assembled.
2. Attach one Long Leg Brace (part #10B) to the lower mounting holes in two Legs
(part #4B), using one Carriage Bolt (part #5B), one Washer (part #3B), and one
Hex Nut (part #2B) for each Long Leg Brace. Repeat the assembly procedure for
the remaining one Long Leg Brace and two Legs.
(See Figure B, and Assy. Diagram B.)
SKU 46813 PAGE 9

3. Attach one Short Leg Brace (part #9B) to the lower mounting holes in two Legs
(part #4B), using one Carriage Bolt (part #5B), one Washer (part #3B), and one
Hex Nut (part #2B) for each Short Leg Brace. Repeat the assembly procedure
for the remaining one Short Leg Brace and two Legs.
(See Figure B, and Assy. Diagram B.)
4. Attach one Side Brace (part #7B) to the upper mounting holes in two Legs (part
#4B), using two Carriage Bolts (part #5B), two Washers (part #3B), and two Hex
Nuts (part #2B) for each Side Brace. Repeat the assembly procedure for the
remaining one Side Brace and two Legs. (See Figure B, and Assy. Diagram B.)
5. Attach one End Brace (part #6B) to the upper mounting holes in two Legs (part
#4B), using two Carriage Bolts (part #5B), two Washers (part #3B), and two Hex
Nuts (part #2B) for each End Brace. Repeat the assembly procedure for the re-
maining one End Brace and two Legs. (See Figure B, and Assy. Diagram B.)
6. Screw one Hex Nut (part #2B) onto the threads of each of the four Leveling Feet
(part #1B). Then, insert one Washer (part #3B) onto the threads of each of the
Leveling Feet. Insert a Leveling Foot, with its threaded portion pointing upward,
through the hole located at the bottom of each of the four Legs (part #4B). In-
sert one Washer (part #3B) onto the threads of each of the Leveling Feet. Then,
screw one Hex Nut (part #2B) onto the threads of each of the four Leveling Feet.
(See Figure B, and Assy. Diagram B.)
7. Move the Leg Assembly to the desired floor surface working location. Adjust the
Leveling Feet (part #1B) so that the entire Leg Assembly stands level. Then,
firmly tighten all hardware, using an appropriate size wrench (not provided). (See
Figure B, and Assy. Diagram B.)
To Mount The Leg Stand On The 10”Table Saw Base:

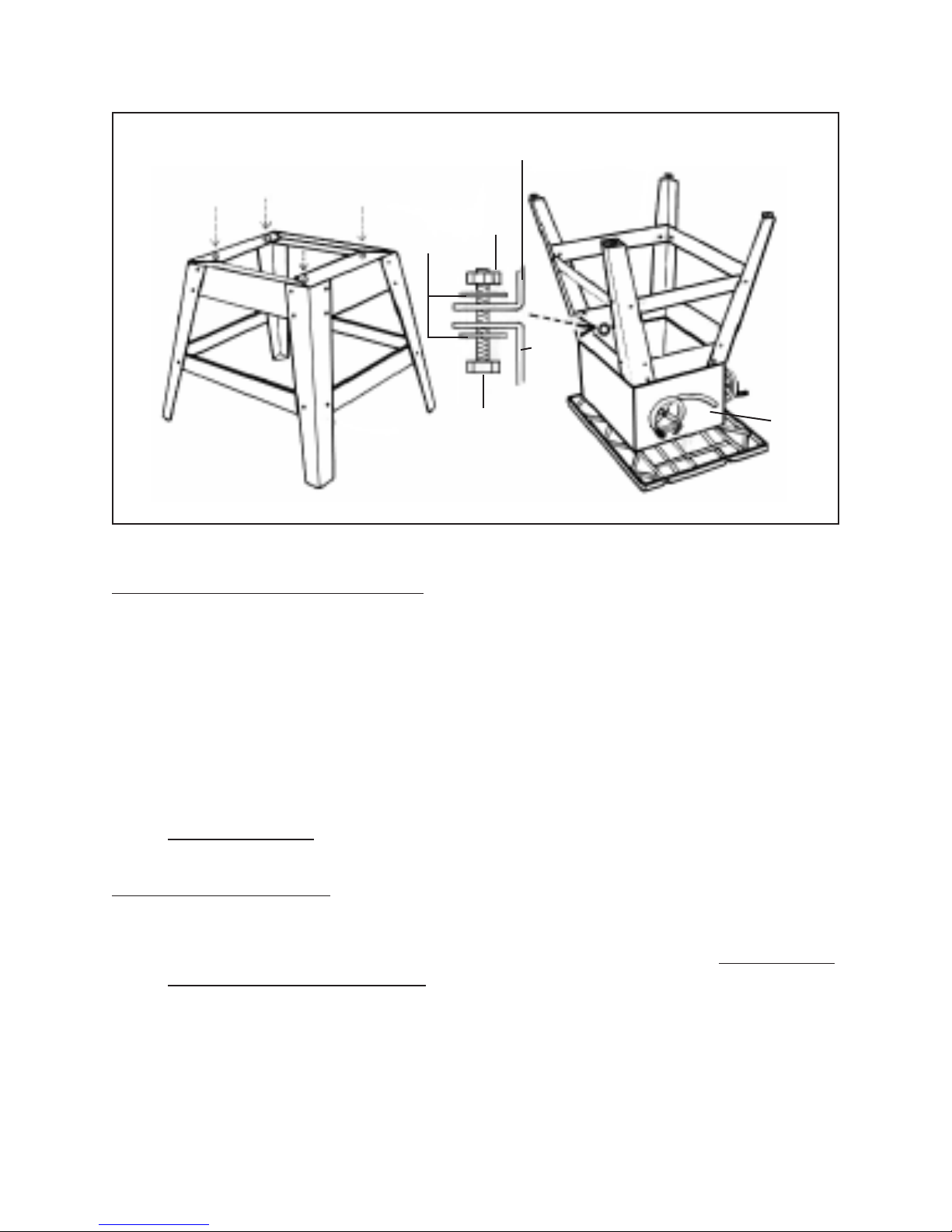

1. With assistance,place the 10” Table Saw upside down on a flat, level, smooth
surface (i.e., cardboard) on the floor. Then, place the Leg Assembly upside down
on the Base (part #1G) of the 10” Table Saw. (See Figure D.)
2. Align the two mounting holes on the each of the two End Braces (part #6B) with
the two mounting holes on each end of the Base (part #1G). Secure the End
Braces to the Base, using four Hex Head Bolts (part #8B), eight Washers (part
#3B), and four Hex Nuts (part #2B). (See Figure D, and Assy. Diagram B.)
3. NOTE: Leave the 10” Saw Table upside down for the next assembly procedure.
SKU 46813 PAGE 10

END BRACE (#6B)
MOUNTING HOLES
END BRACE (#6B)
HEX
NUT
(#2B)
WASHER
(#3B)
BASE
(#1G)
HEX HEAD
BOLT (#8B)
BASE
(#1G)

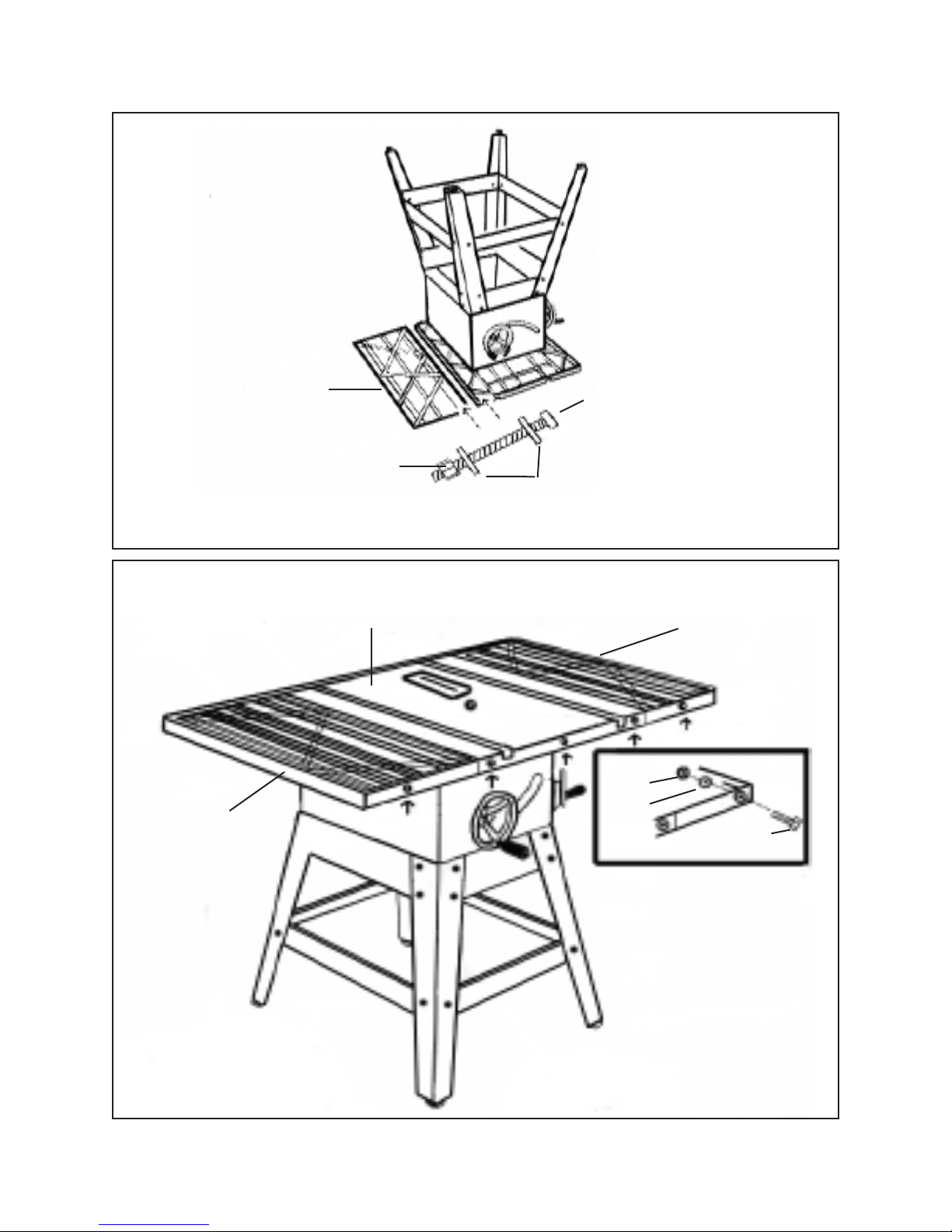

FIGURE D
To Assemble The Extension Tables:
1. With the 10” Table Saw upside down, align the right and left side Extension Tables
(part #5H) with the right and left ends of the Table Saw (with the beveled edges in
front). (See Figure E, and Assy. Diagram H.)
2. Align the four mounting holes in each Extension Table (part #5H) with the four
mounting holes on each end of the 10” Table Saw. Then secure the Extension
Tables to the Table Saw, using four Hex Head Bolts (part #11H), eight Washers
(part #12H), and four Hex Nuts (#13H). (See Figure E, and Assy. Diagram H.)
3. With assistance, stand the 10” Table saw upright.
To Attach The Front Rail:
1. Insert five Square Head Bolts (part #10H) through the mounting holes in the
front edges of the 10” Table Saw and Extension Tables (part #5H). Allow the bolt
heads to extend out about 1/2”. (See Figure F, and Assy. Diagram H.)
2. Loosely attach a Washer (part #12H) and Hex Nut (part #13H) to each Square
Head Bolt (part #10H). (See Figure F, and Assy. Diagram H.)
SKU 46813 PAGE 11

EXTENSION
TABLE (#5H)
HEX HUT
(#13H)
HEX HEAD BOLT
(#11H)
WASHER
(#12H)
10” TABLE SAW
EXTENSION
TABLE (#5H)
HEX
NUT
(#13H)
SQUARE
HEAD BOLT
(#10H)
EXTENSION
TABLE (#5H)
FIGURE E
FIGURE F
WASHER
(#12H)
SKU 46813 PAGE 12

3. NOTE: The back side of the Front Rail (part #7H) has two slots. Slide the upper
slot of the Front Rail over the Square Head Bolts (part #10H). (See Figures F, G,
and Assy. Diagram H.)

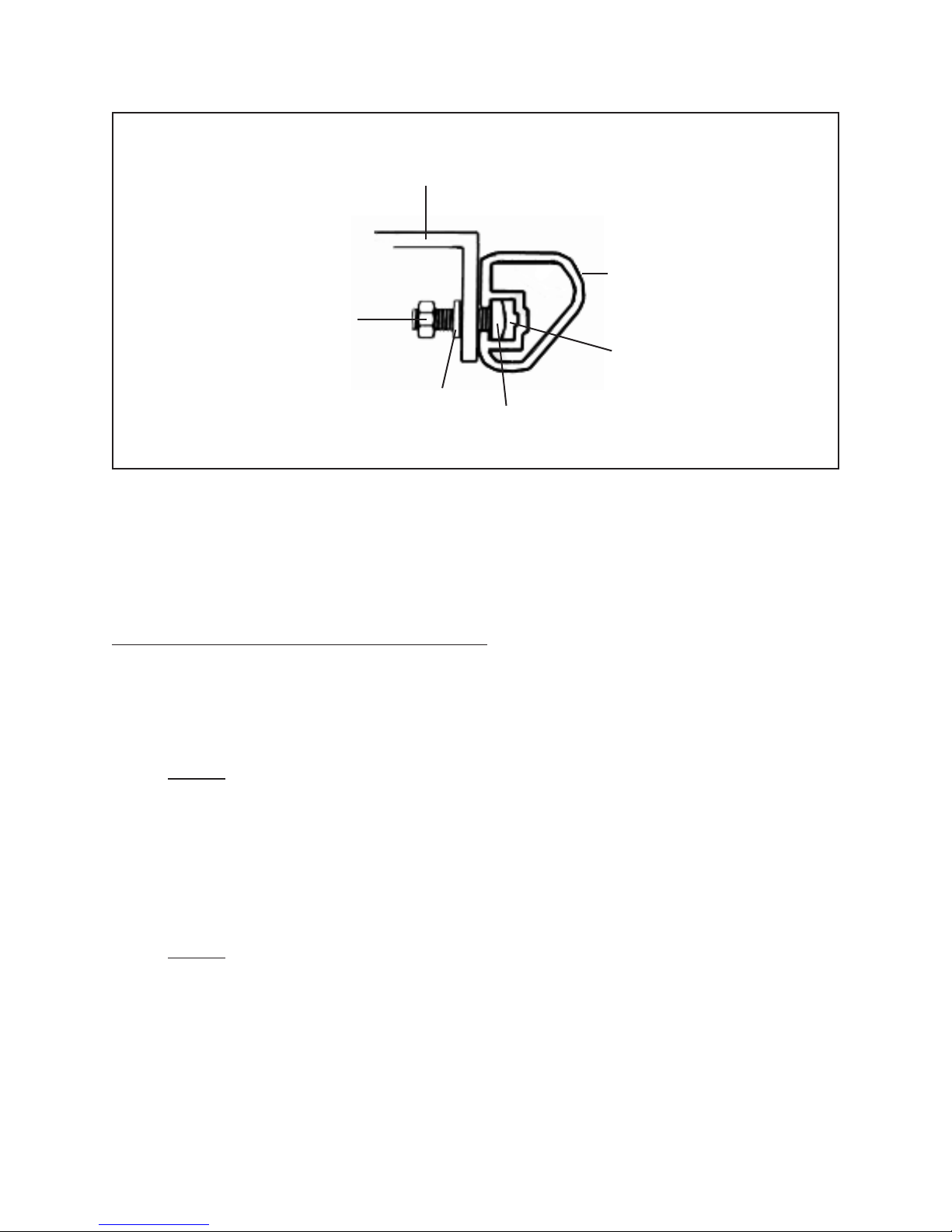

10” TABLE SAW/EXTENSION
TABLES (#5H)
HEX NUT (#13H)
WASHER (#12H)
SEMI-CIRCLE
HEAD SCREW
(#2E)
SWITCH PLATE
(#3E) SQUARE
NUT(#4E)
(LOWER SLOT)
FRONT RAIL (#7H)
(UPPER SLOT)
SQUARE HEAD BOLT (#10H)
(FRONT EDGE)
FIGURE G
4. To align the Front Rail (part #7H), match the 7-1/8” mark on the right scale with
the right edge of the 10” Table Saw Base (part #1G). (See Figure H, and Assy.
Diagram H.)
5. Wrench tighten all five Square Head Bolts (part #10H).
(See Figures F, G, and Assy. Diagrams G, and H.)
6. Secure the Right/Front End Cap (part #8H) and Left/Front End Cap (part #9H) to
the Front Rail (part #7H), using one Tapping Screw (part #1H) on each end.
(See Assy. Diagram H.)
1. NOTE: The procedure for attaching the Rear Rail (part #3H) to the 10” Table Saw
is similar to that of attaching the Front Rail (part#7H) to the Table Saw. (See “To
Attach The Front Rail” section, Figures I, J, and Assy. Diagram H.)
2. Insert five Square Head Bolts (part #10H) through the mounting holes in the
rear edges of the 10” Table Saw and Extension Tables (part #5H). Allow the bolt
heads to extend out about 1/2”. (See Figures I, J, and Assy. Diagram H.)
SKU 46813 PAGE 13
To Attach The Rear Rail:

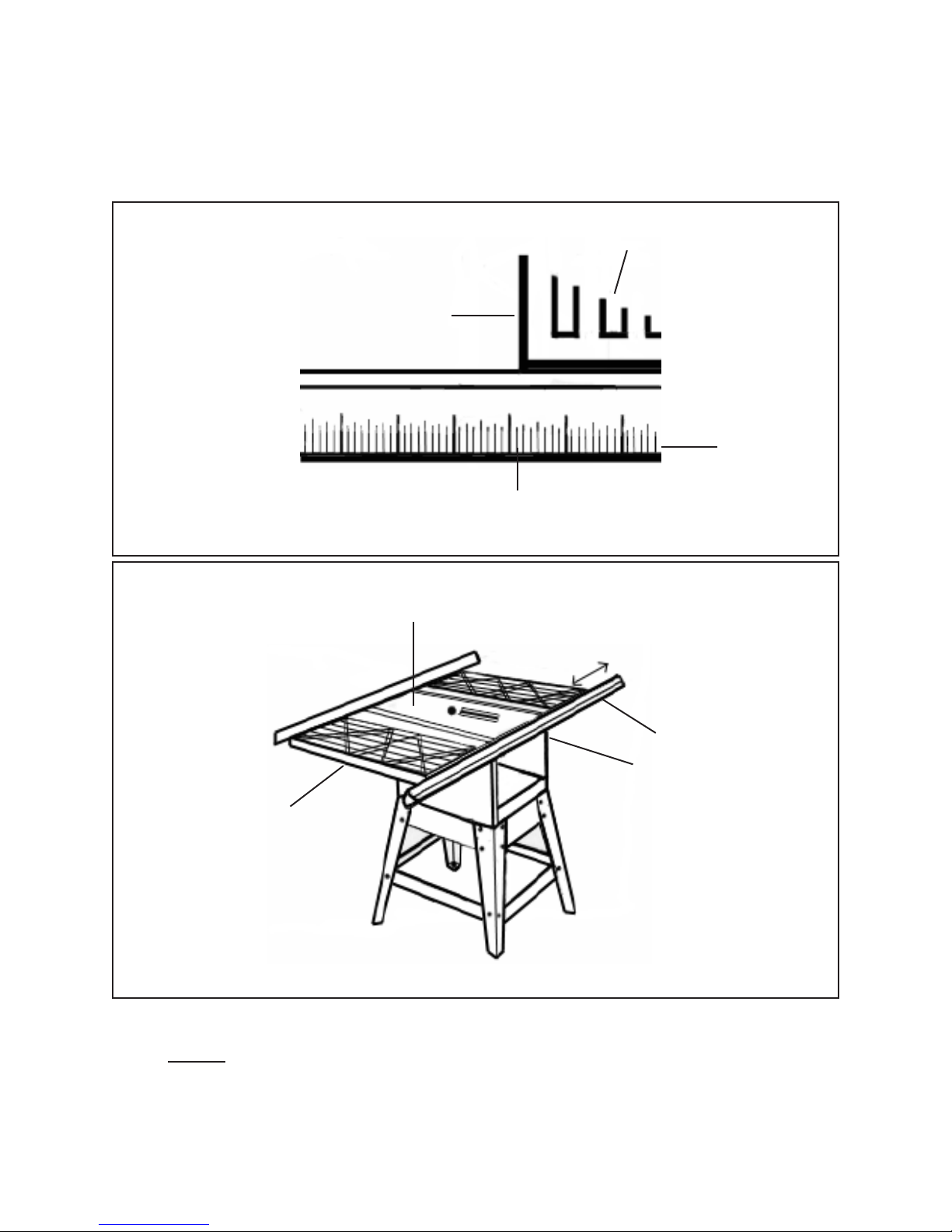

BASE (#1G)
(RIGHT EDGE)
EXTENSION TABLE (#5H)
4 5 6 7 8 9
SCALE (#6H)
7-1/8” MARK, RIGHT SCALE
3. Loosely attach a Washer (part #12H) and Hex Nut (part #13H) to each Square
Head Bolt (part #10H). (See Figures I, J, and Assy. Diagram H.)
FIGURE H
10” TABLE SAW
REAR RAIL (#3H)
BASE (#1G)
EXTENSION
TABLE (#5H)
2-1/2”
FIGURE I
4. NOTE: The back side of the Rear Rail (part #3H) has one slot. Slide the slot of
the Rear Rail over the Square Head Bolts (part #10H).
(See Figures I, J, and Assy. Diagram H.)
SKU 46813 PAGE 14

10” TABLE SAW/EXTENSION TABLES (#5H)
(REAR EDGES)
REAR RAIL (#3H)
SLOT
SQUARE HEAD
BOLT (#10H)
WASHER (#12H)
HEX NUT
(#13H)
FIGURE J
5. Wrench tighten all five Square Head Bolts (part #10H).
(See Figures I, J, and Assy. Diagram H.)
To Attach The Rip Fence And Miter Gauge:
1. Hook the Lock Block (part #7C) under the Rear Rail (part #3H). Then, lower the
front of the Rip Fence (part #10C) into the groove on the Front Rail (part #7H).
(See Figures K, L, and Assy. Diagrams C, and H.)
2. NOTE: The Rip Fence (part #10C) can be removed and reinstalled on the left
side of the 10” Table Saw. In this case, the Rip Fence Scale Indicator (part #20C)
can be repositioned on the left side of the Rip Fence by removing the Semi-Circle
Head Screw (part #22C) and Star Washer (part #21C). Then
reposition the Rip Fence Scale Indicator, and secure it with the Semi-Circle Head
Screw and Star Washer. (See Figures K, L, and Assy. Diagrams C, and Assy.
Diagram H.)
3. NOTE: To attach the Miter Gauge Assembly (parts #1A through 12A), simply
slide the Miter Gauge Rod (part #10A) into the right or left slot (nearest the Saw
Blade opening, on the Saw Table (part #17H).
(See Figure B, and Assy. Diagrams A, and H.)
SKU 46813 PAGE 15

RIP FENCE (#10C)
LOCK BLOCK (#7C)
REAR RAIL (#3H)
SAW TABLE
FIGURE K
SCALE INDICATOR
(#20C)
RIP FENCE
(#10C) FRONT RAIL
(#7H)
FINE ADJUSTMENT
KNOB (#30C)
SAW TABLE
(#17H)
RIP FENCE HANDLE
(#37C)
FIGURE L
To Attach The Power Switch:
1. Insert two Semi-Circle Head Screws (part #2E) from the rear of the Switch Plate
(part #3E). Then, loosely screw one Square Nut (part #4E) onto each
Semi-Circle Head Screw. (See Figures B, G, and Assy. Diagram E.)
2. While holding the Switch Plate (part #3E) to the front, insert and slide the two
Square Nuts (part #4E) into the lower slot of the Front Rail (part #7H).
(See Figures B, G, and Assy. Diagram E.)
3. Slide the Switch Plate (part #3E) to a convenient position. Then, secure the
entire Switch Assembly (parts #1E through #12E) to the Front Rail (part #7H) by
tightening the two Semi-Circle Head Screws (part #2E).
(See Figures B, G, and Assy. Diagram E.)
SKU 46813 PAGE 16

To Assemble And Attach The Bevel And Height Handles To The Base:
1. Insert one Screw (part #6G) each through a Bevel Handle and Height Handle
(part #5G). Tighten each Screw into a Hand Wheel Assembly (part #4G). Then,
attach an End Cap (part #7G) to each of the two Handles.
(See Figures B, M, and Assy. Diagram G.)
2. Align one Handle Assembly (part #4G) with the Height Adjustment Rod (part
#33-I) that extends from the front of the Base (part #1G). Match the flat spots
on the Height Adjustment Rod and inside the Hand Wheel Assembly. Insert a
Socket Head Screw (part #8G) and Washer (part #9G) in the center of the Hand
Wheel Assembly and tighten. (See Figures B, M, and Assy. Diagrams G, and
I.)
3. Align the remaining Handle Assembly (part #4G) with the Threaded Rod (part
#22-I) that extends from the right side of the Base (part #1G). Match the flat
spots on the Threaded Rod and inside the Hand Wheel Assembly. Insert a
Socket Head Screw (part #8G) and Washer (part #9G) in the center of the Hand
Wheel Assembly and tighten.
(See Figures B, M, and Assy. Diagrams G, and I.)
BEVEL LOCK (#19-I)
BEVEL HANDLE (#5G)
HEIGHT HANDLE (#5G)
FIGURE M
To Attach The Motor:
1. Loosen the Bevel Lock Handle (part #19-I). Turn the Bevel Handle (part #5G)
counterclockwise until it stops. Then, retighten the Bevel Lock Handle.
(See Figure M, and Assy. Diagrams I, and G.)

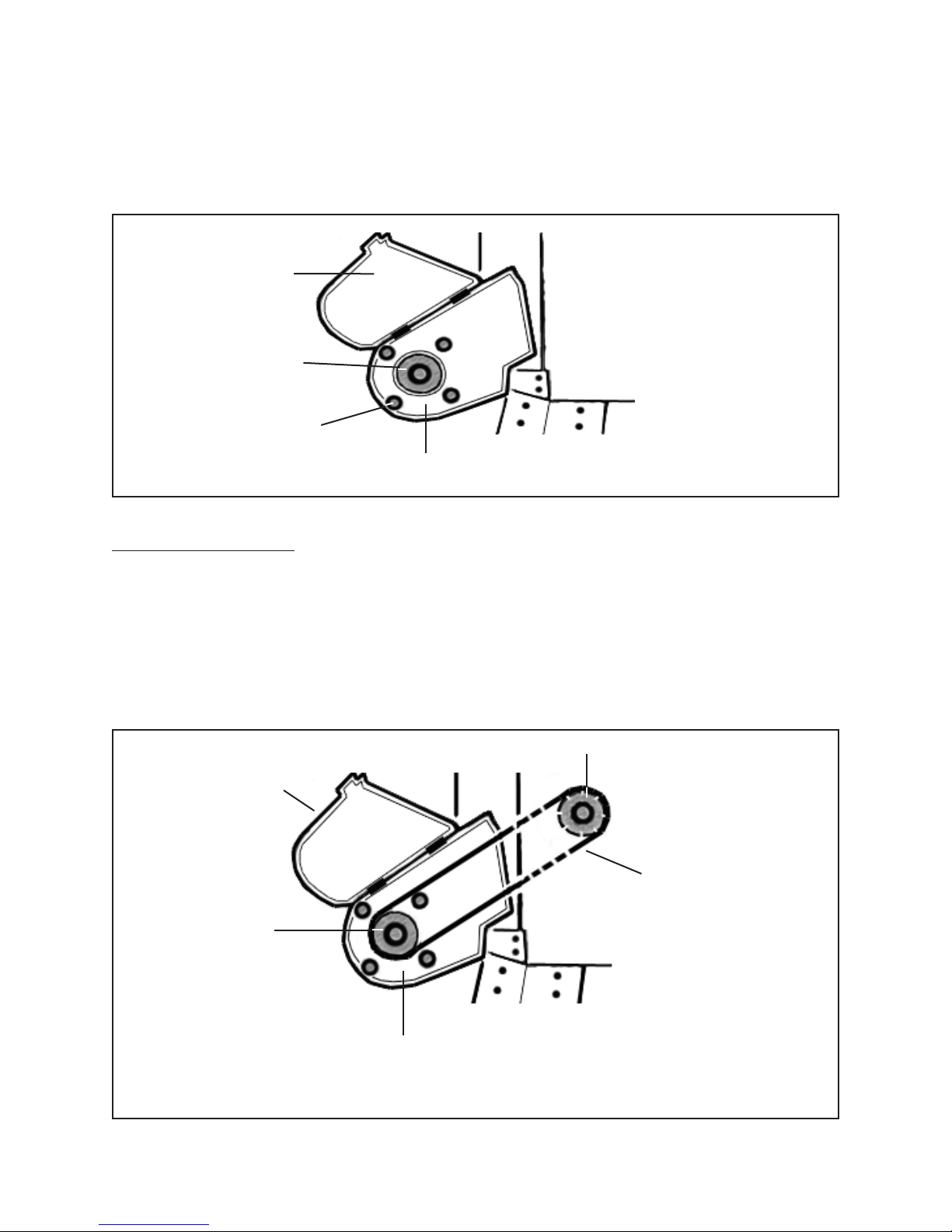

2. Align the four mounting holes in the Motor Bracket (part #7F) with the four
mounting holes in the Motor Mounting Plate (part #50-I).
(See Figure N, and Assy. Diagrams F, and I.)
SKU 46813 PAGE 17

3. Secure the Motor Bracket (part #7F) to the Motor Mounting Plate (part #50-I), us-
ing four Hex Head Bolts (part #9-I), eight Washers (part #52-I), four Lock Wash-
ers (part #1-I), and four Hex Nuts (part #51-I).
(See Figure N, and Assy. Diagrams F, and I.)
LOCK
WASHER
(#1-I)
HEX NUT
(#51-I)
WASHER
(#52-I)
HEX HEAD BOLT (#9-I)
BELT GUARD
MOUNTING SCREW
MOTOR (#7F)
MOTOR MOUNTING PLATE
(#50-I)
(USE TWO SETS OF HARDWARE AT TOP, TWO SETS AT BOTTOM.)
FIGURE N
4. Position the Spring (part #46-I) between the Motor Mounting Plate (part #50-I)
and Motor Support Base (part #45-I). (See Assy. Diagram I.)
5. With the Spring (part #46-I) in place, insert the Motor Support Base (part #45-I)
in the Motor Mounting Plate (part #50-I). Secure the Motor Support Base to the
Motor Mounting Plate by inserting the Pivot Shaft (part #48-I) through the two
parts. Then, lock the Pivot Shaft in place, using two Retaining Rings (part #47-I).
(See Assy. Diagram I.)
6. Insert the two Rods in the Motor Support Base (part #45-I) into the two holes in
the Trunnion Cradle (part #36-I). Push the Motor (part #7F) in as far as it will go.
Then, Thread the two Set Screws (part #42-I) downward into the Trunnion Cradle
to clamp down on the two Rods. NOTE: Do not securely tighten the two Set
Screws yet. (See Assy. Diagram I.)
To Attach The Belt Guard:
1 Open the hinged Belt Guard (parts #1F, #4F) and insert its round opening over
the Motor Pulley (part #5F). (See Figures N, O, and Assy. Diagram F.)
SKU 46813 PAGE 18

2. Secure the Belt Guard (parts #1F, #4F) to the Motor (part #7F), using four Flat
Washers (part #3F) and four Hex Nuts (part #2F).
(See Figures N, O, and Assy. Diagram F.)
OUTER BELT
GUARD (#1F)
MOTOR PULLEY
(#5F)
FLAT WASHER (#3F)
HEX NUT (#2F)
INNER BELT
GUARD (#4F) FIGURE O
To Attach The V-Belt:
1. Turn the Height Handle counterclockwise until it stops.
(See Figure B, and Assy. Diagram G.)
2. Slip the V-Belt (part #40-I) onto the Pulley (41-I) inside the Base (part #1G).
(See Figure P, and Assy. Diagram I.)
OUTER BELT
GUARD (#1F)
PULLEY (#41-I)
V-BELT
(#40-I)
BASE
(#1G)
MOTOR
PULLEY
(#5F)
INNER BELT
GUARD (#4F)
FIGURE P
SKU 46813 PAGE 19

3. Push the Motor (part #7F), with its attached Belt Guard (parts #1F, #4F), forward
and place the V-Belt (part #40-I) on the Motor Pulley (part #5F).
(See Figure P, and Assy. Diagrams F, and I.)
4. Turn the Height Handle clockwise until it stops.
(See Figure B, and Assy. Diagram G.)
5. Pull the Motor (part #7F), with its attached Belt Guard (parts #1F, #4F), out un-
til the V-Belt (part #40-I) is taut. Then, securely tighten the two Hex Head Bolts
(part #44-I). (See Figure P, and Assy. Diagrams F, and I.)
6. Close the hinged Belt Guard (parts #1F, #4F).
(See Figure P, and Assy. Diagram F.)
To Install The 10” Saw Blade:
1. Turn the Height Handle (part #5G) clockwise until it stops.
(See Figure B, and Assy. Diagram G.)
2. Unscrew and temporarily remove the Flat Head Screw (part #16H)) located at the
front of the Throat Plate (part #15H)). Then, remove the Throat Plate to expose
the 10” Saw Blade opening. (See Figures Q, R, and Assy. Diagram H.)
SAW TABLE (#17H)
THROAT PLATE (#15H)
FLAT HEAD SCREW (#16H) FIGURE Q
SKU 46813 PAGE 20 REV 04/03
