Central Machinery 45804 User manual

10” BENCH TABLE SAW - 2 HP
Model 45804
ASSEMBLY AND OPERATING INFORMATION
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Copyright©2004 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form without
the express written consent of Harbor Freight Tools.
For technical questions please call 1-800-444-3353.
®
Brought to You by Augusta Flint

SKU 45804 PAGE 2
E194601
* NOTE:
Recommended Blade (not included):
Item #529 - 10” M2 Molybdenum Tipped (40 Tooth) saw blade.
PRODUCT SPECIFICATIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions,
assembly, operating, inspection, maintenance and cleaning procedures,

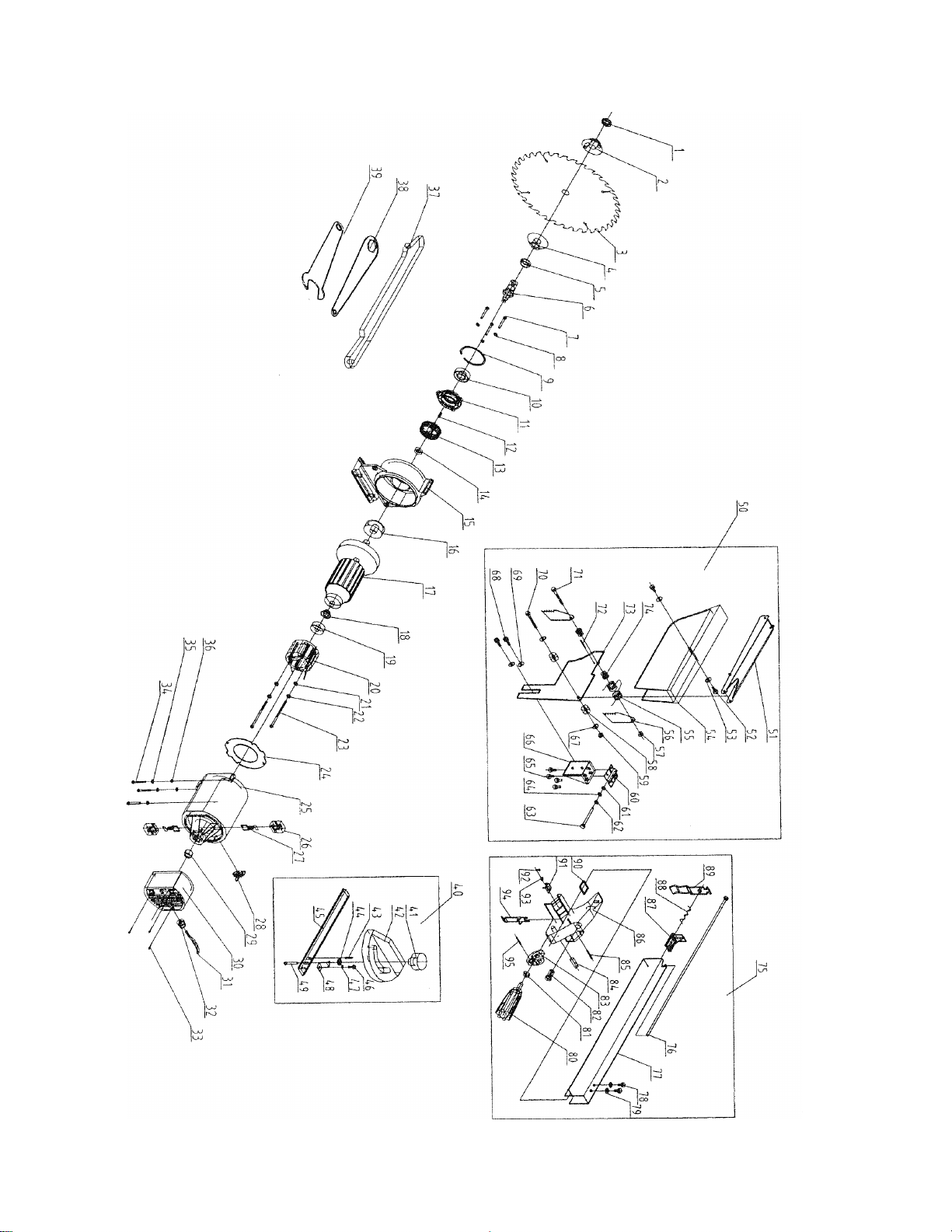

parts list and assembly diagram. Keep your invoice with this manual. Write
the invoice number on the inside of the front cover. Keep this manual and
invoice in a safe and dry place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
Accessories Included: Fence Assembly, Blade Guard, Bottom Plate,
Mitre Guide, Push Stick, Elevation Wheel Handle, 3 Hex Wrenches (4mm,
5mm, 6mm), 2 Spanner Wrenches
ITEM DESCRIPTION
Electrical Requirements 2 HP Motor /12 Volt /60 Hz
13 Amps /3,600 RPM
Blade Size Capacity 10” Diameter / 5/8” Arbor (blade not included)
Overall Dimensions 22-3/4” W x 26” L x 15-1/2” H
Table Dimensions 26” W x 17-1/2” L
Adjustable Rip Fence Size 17-3/4” W x 1-7/8” L
Scale Measurement Increments Inches / Metric
Maximum Rip With Fence 9-1/2”
Blade Adjustments 90 Degrees to 45 Degrees
Cutting Capacity 2-7/8” at 90 Degrees
2-5/16” at 45 Degrees
Weight 32.85 Lbs.
REV 07j
Brought to You by Augusta Flint

SKU 45804 PAGE 3
2. Do not operate power tools in explosive atmospheres, such as in the presence
of flammable liquids, gases, or dust. Power tools create sparks which may ignite
the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and grounded
in accordance with all codes and ordinances. Never remove the grounding
prong or modify the plug in any way. Do not use any adapter plugs. Check with
a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. If the tools should electrically malfunction or break down, grounding
provides a low resistance path to carry electricity away from the user.
5. Double insulated tools are equipped with a polarized plug (one blade is wider
than the other). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician to install a polarized outlet. Do not change the plug in
any way. Double insulation eliminates the need for the three wire grounded
power cord and grounded power supply system.
6. Avoid body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerators. There is an increased risk of electric shock if your body is
grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immediately.
Damaged Power Cords increase the risk of electric shock.
9. When operating a power tool outside, use an outdoor extension cord marked
“W-A” or “W”. These extension cords are rated for outdoor use, and reduce the
risk of electric shock.
PERSONAL SAFETY
10. Stay alert. Watch what you are doing, and use common sense when operating
a power tool. Do not use a power tool while tired or under the influence of
drugs, alcohol, or medication. A moment of inattention while operating power
tools may result in serious personal injury.
Brought to You by Augusta Flint

SKU 45804 PAGE 4
11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
12. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Carrying power tools with your finger on the Power Switch, or plugging in power
tools with the Power Switch on, invites accidents. Make sure you are prepared to
begin work before turning the Power Switch (179) “ON”.
13. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
14. Do not overreach. Keep proper footing and balance at all times. Proper footing
and balance enables better control of the power tool in unexpected situations.
15. Always wear eye, hearing, and breathing protection. Wear ANSI approved
safety impact eye glasses, ANSI approved hearing protectors, and ANSI
approved dust mask or respirator when using this product. Also, non-skid
safety shoes and a hard hat must be used for appropriate conditions.
TOOL USE AND CARE
16. Use clamps (not included) or other practical ways to secure and support the
workpiece to a stable platform. Holding the work by hand or against your body
is unstable and may lead to loss of control.
17. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed. There are
certain applications for which this saw was designed. Do not use this saw to do
the work of a larger saw. Do not use this product for a purpose for which it was not
intended.
Do not force the material into the Saw Blade when cutting. Apply moderate
pressure, allowing the Saw Blade to cut without being forced.
18. Do not use power tool if the Power Switch does not turn it on or off. Any tool that
cannot be controlled with the Power Switch is dangerous and must be replaced.
19. Disconnect the Power Cord Plug from the power source before making
any adjustments, changing accessories, or storing the tool. Such
preventive safety measures reduce the risk of starting the tool accidentally.
20. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
21. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with a sharp cutting edge are less likely to bind and are easier
to control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
Brought to You by Augusta Flint

SKU 45804 PAGE 5
WARNING!
Improperly connecting the grounding wire can result in the risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. Do not modify the power cord plug provided
with the tool. Never remove the grounding prong from the plug. Do not use
the tool if the power cord or plug is damaged. If damaged, have it repaired by a
service facility before use. If the plug will not fit the outlet, have a proper outlet
installed by a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If
the tool should electrically malfunction or break down, grounding provides a low
resistance path to carry electricity away from the user, reducing the risk of electric
shock. (See Figure A, next page.)
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached to
an electrically “live” terminal. (See Figure A.)
22. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly maintained
tools.
23. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous when
used on another tool.
SERVICE
24. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
25. When servicing a tool, use only identical replacement parts. Follow instructions
in the “Inspection, Maintenance, And Cleaning” section of this manual. Use
of unauthorized parts or failure to follow maintenance instructions may create a risk
of electric shock or injury.
GROUNDING
Brought to You by Augusta Flint

SKU 45804 PAGE 6
3. Your tool must be plugged into an appropriate outlet, properly installed and grounded
in accordance with all codes and ordinances. The plug and outlet should look like
those in the following illustration. (See Figure A.)
FIGURE A
DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS
4. Tools marked “Double Insulated” do not require grounding. They have a special
double insulation system which satisfies OSHA requirements and complies with
the applicable standards of Underwriters Laboratories, Inc., the Canadian
Standard Association, and the National Electrical Code. (See Figure B.)
5. Double insulated tools may be used in either of the 120 volt outlets shown in the
following illustration. (See Figure B.)
FIGURE B
Brought to You by Augusta Flint

SKU 45804 PAGE 7

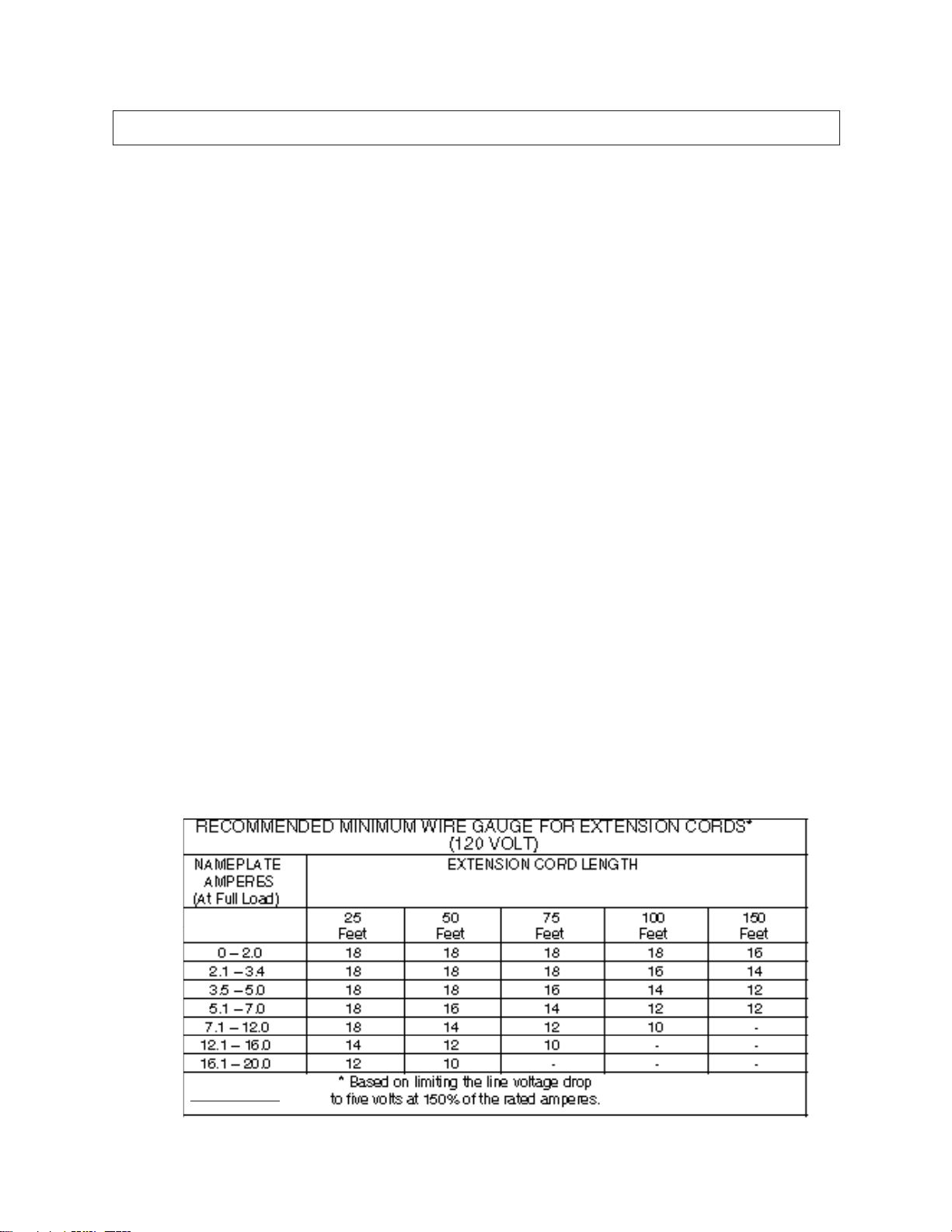

EXTENSION CORDS
1. Grounded tools require a three wire extension cord. Double Insulated tools
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure C)
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure C, and Figure D.)
4. If using more than one extension cord to make up the total length, make sure
each cord contains at least the minimum wire size required.
5. If you are using one extension cord for more than one tool, add the nameplate
amperes and use the sum to determine the required minimum cord size.
(See Figure C, and Figure D.)
6. If you are using an extension cord outdoors, make sure it is marked with the
suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
7. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
electrician before using it.
8. Protect your extension cords from sharp objects, excessive heat, and damp or
wet areas.
FIGURE C
Brought to You by Augusta Flint

SKU 45804 PAGE 8
SYMBOLOGY
V ~
A
xxxx/min.
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
Amperes
No Load Revolutions
per Minute (RPM)
no
SPECIFIC SAFETY RULES
1. Maintain labels and nameplates on the Saw. These carry important information.
If unreadable or missing, contact Harbor Freight Tools for a replacement.
2. Industrial applications must follow OSHA requirements.
3. Check for damaged parts. Before using this product, carefully check that it will
operate properly and perform its intended function. Check for damaged parts and
any other conditions that may affect the operation of this product. Replace or repair
damaged or worn parts immediately.
4. Do not use this tool for cutting metals or brittle materials. Do not cut dangerous
materials, such as asbestos which can cause harmful dust or vapors.
5. Allow the Saw Blade to spin up to full speed before feeding wood into it. When
turning it off, allow the Saw Blade to spin down and stop on its own. Do not press
against the Saw Blade to stop it.
6. Never pass hands directly over the Saw Blade when cutting the workpiece.
Push the workpiece into the Saw Blade, using the Push Stick (37).
7. Never attempt to remove material stuck in the moving parts of the Table Saw
while it is plugged in and running.
8. Turn off theTable Saw if the woodstock is to be backed out of an uncompleted
cut.
9. Always feed the woodstock into the Saw Blade and against its rotation.
10. Make sure the woodstock is supported at all times while sawing. Use a Roller
Stand (not provided) with larger woodstocks if necessary.
Brought to You by Augusta Flint

SKU 45804 PAGE 9
11. Before trying new or complicated techniques, study the procedure, and practice
with scrap wood.
12. Make sure the woodstock is free from loose knots, flaws, nails, and from
any other foreign objects that could damage the Saw Blade or cause
“kickback”.
13. Causes and operator prevention of“kickback”: Kickback is a sudden reaction to
a pinched, bound, or misaligned Saw Blade, causing an uncontrolled woodstock to lift
up and out of the Table Saw toward the operator. When the Saw Blade is pinched or
bound tightly by the kerf closing down, the Saw Blade stalls and the motor reaction
drives the tool rapidly back toward the operator. If the Saw Blade becomes twisted
or misaligned in the cut, the teeth at the back edge of the Saw Blade can raise the
workpiece (walk-up), and eject it towards the operator. Kickback is a result of tool
misuse and/or incorrect operating procedures or conditions and can be avoided by
taking proper precautions as given below:
• Maintain control of the woodstock at all times. Never allow the woodstock to
rest on the moving Saw Blade without holding on to it.
• When the Saw Blade is binding, or when interrupting a cut for any reason,
turn off the Power Switch and hold the woodstock motionless on the Table
Saw until the Saw Blade comes to a complete stop. Never attempt to remove
the woodstock from the Table Saw or pull the woodstock backward while the Saw
Blade is in motion or kickback may occur. Investigate and take corrective actions
to eliminate the cause of Saw Blade binding.
• When restarting a woodstock on the Table Saw, center the Saw Blade in
the pre-cut kerf and check that the saw teeth are not engaged into the
woodstock. If the Saw Blade is binding, the woodstock may walk up or kickback
from the workpiece as the Table Saw is restarted.
• Support large panels to minimize the risk of Saw Blade pinching and
kickback. Large panels tend to sag under their own weight. Supports must be
placed under the panel and near the outer edge of the panel.
• Do not use a dull or damaged Saw Blade. Unsharpened or improperly set
Saw Blades produce a narrow kerf causing excessive friction, Saw Blade binding
and kickback.
• Never use the Fence Assembly (75) as a guide when crosscutting.
• Never rip a woodstock that is twisted or warped, or does not have a straight
edge to guide along the Rip Fence.
• Push the wood stock past the Saw Blade prior to release.
14. Check all guards for proper operation before each use. Never disable any
guards. Do not operate the Table Saw if the Guard Assembly does not move freely
and close instantly. Before each use, raise the Guard Assembly and make sure it
moves freely and does not touch the Saw Blade or any other part, in all angles and
depths of cut.
Brought to You by Augusta Flint

SKU 45804 PAGE 10
15. Always use the proper size and type of Saw Blade (3):
Item #529 is recommended - 10” M2 Molybdenum Tipped (40 Tooth) saw.
16. Never perform layout, assembly, or setup work on the Table of the Table Saw
when the machine is running.
17. Always disconnect the Table Saw from its electrical outlet before performing
any services, maintenance, or cleaning such as leaving the work area, moving
the tool from one location to another, changing Saw Blades, cleaning sawdust from
the unit, etcetera.
18. Before use, the Table Saw should be placed on a flat, stable surface, capable
of supporting the weight of the tool and workpiece, and any additional
pressure caused by working on it. Mounting the Table Saw to the surface is
recommended -see Appendix A on page 22 for mounting details.
19. WARNING! Some dust created by power sanding, sawing, grinding, drilling, and
other construction activities, contain chemicals known (to the State of California) to
cause cancer, birth defects or other reproductive harm. Some examples of these
chemicals are:
(a) Lead from lead-based paints;
(b) Crystalline silica from bricks and cement or other masonry products;
(c) Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how often you do this
type of work. To reduce your exposure to these chemicals; work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles. (California Health & Safety
Code 25249.5, et seq.)
20. WARNING! People with pacemakers should consult their physician(s) before using
this product. Electromagnetic fields in close proximity to a heart pacemaker could
cause interference to or failure of the pacemaker.
UNPACKING
When unpacking, check to make sure all parts shown on the Parts
Lists and Assembly Diagrams on pages 18-21 are included. If any parts
are missing or broken, please call Harbor Freight Tools at the number shown
on the cover of this manual as soon as possible.
Note: While unpacking and before attempting assembly; loosen the motor,
remove the two styrofoam inserts that hold the motor in place during
packing, and retighten the motor.
Brought to You by Augusta Flint

SKU 45804 PAGE 11
ASSEMBLY INSTRUCTIONS
NOTE: For additional references to the parts listed in the following pages, refer
to the Assembly Diagrams on pages 20 and 21 of this manual.
To Attach The Bottom Plate:
1. Turn the saw Base (188) over, and position the
Bottom Plate (193) in place. (See Figure D.)
2. Line up the four holes. Secure Bottom Plate in
place using the 4 cross head screws (be careful
not to overtighten) that are packed in the small
plastic bag included in the box.
To Install A Saw Blade:
1. WARNING! Prior to installing a Saw Blade (3), make sure the Table Saw
is disconnected from its electrical power source.
To help prevent injury, heavy work gloves are recommended
when replacing the blade.

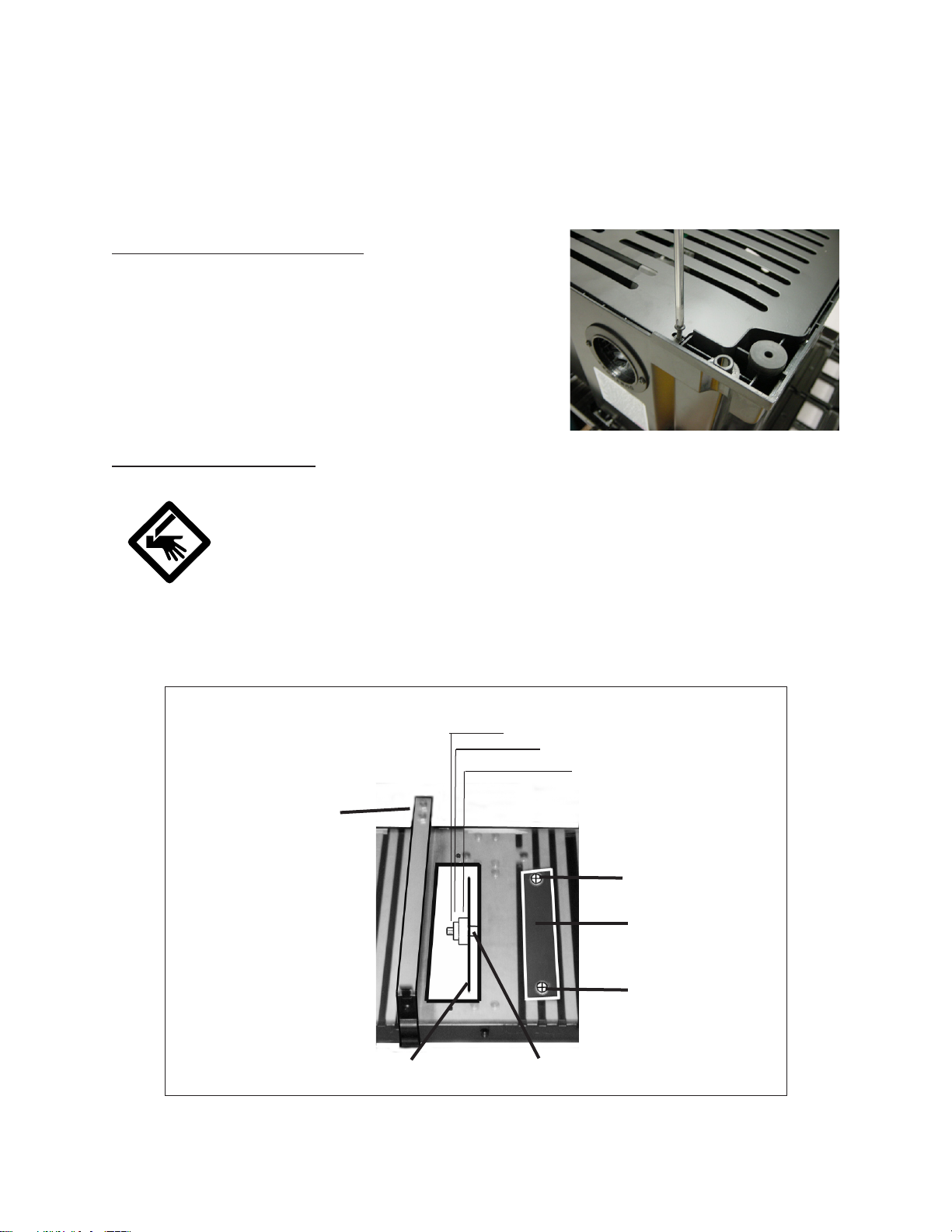

2. Unscrew the two Screws (96) located on the Cover (101), and remove the Cover to
expose the Saw Blade opening. (See Figure E.)
HEX BOLT (1)
FLAT WASHER (2)
WASHER “A” (3)
SCREW (96)
COVER (101)
SCREW (96)
FENCE ASSY. (75)
FIGURE E
SAW BLADE (3)
(not included) SHAFT (#7)
(REMOVED)
FIGURE D
Brought to You by Augusta Flint

SKU 45804 PAGE 12
SAW BLADE (3)
(not included)
REAR OF
TABLE SAW
FRONT OF
TABLE SAW FIGURE F
FENCE ASSY. (75)
Warning! Be very careful during blade tightening and loosening to avoid
contact with the blade.
3. Carefully reach into the Saw Blade opening and remove the Hex Nut (1) and
Blade Pad (2) from the Shaft (6) avoiding contact with the blade.
4. Insert the Saw Blade (3) at a slight angle (10°) and place the Blade on the Shaft
(6).
To Attach The Guard Assembly:
1. WARNING! Prior to installing the Guard Assembly
(50), make sure theTable Saw is disconnected from
its electrical power source.
2. Put the Guard Assembly in place over the table.
The Guard Assembly attaches to the mounting post
shown in Figure G. Simply slip the Guard Assembly
over the mounting post. Place a Spring Washer (62),
Washer (64), and Big Washer (61) over the Socket
Head Screw (63) and thread into the end of the
mounting post. Use the included 4 mm Hex Wrench
(196) to tighten the Socket Head Screw (63). See
Figure H. FIGURE H
FIGURE G
Mounting
Post
NOTE: Make sure the teeth
of the Saw Blade (not
included) are pointing
toward the FRONT of the
Table Saw. Follow the
directional arrow shown
on the Saw Blade when
mounting the Blade.
See Figure F.
5. Place the Blade Pad (2) onto the Shaft (6). Next, hand tighten the Hex Nut (1) onto
the Shaft.
6. In order to keep the Saw Blade (3) from turning during this step, use the Open-end
Spanner (39) to hold the Blade Pad (2). Then while holding the Open-end Spanner
firmly in place, wrench tighten the Hex Nut (1) with the Spanner (38) onto the Shaft
(6) to secure the Saw Blade. Position your hand well away from the blade teeth to
avoid injury if your hand was to slip while tightening.
7. Once the Saw Blade (3) is secured onto the Shaft (6),
replace the Cover (101) and the two Screws (96).
See Figure E, previous page.
Brought to You by Augusta Flint

SKU 45804 PAGE 13
FIGURE I
FIGURE J
3. As shown in Figure I, now tighten the 4 Socket
Head Screws (65) to secure the guard bracket in
place.
4. To adjust the height of the
Blade Guard Assembly (50),
loosen the Hex Screws (68).
Raise the Guard Assembly
to the desired height. Then retighten the two Hex Screws.
See Figure J.
5. After making any adjustments to or installing the Blade
Guard Assembly (50), make sure that the Guard is
aligned properly and doesn’t contact the Blade.

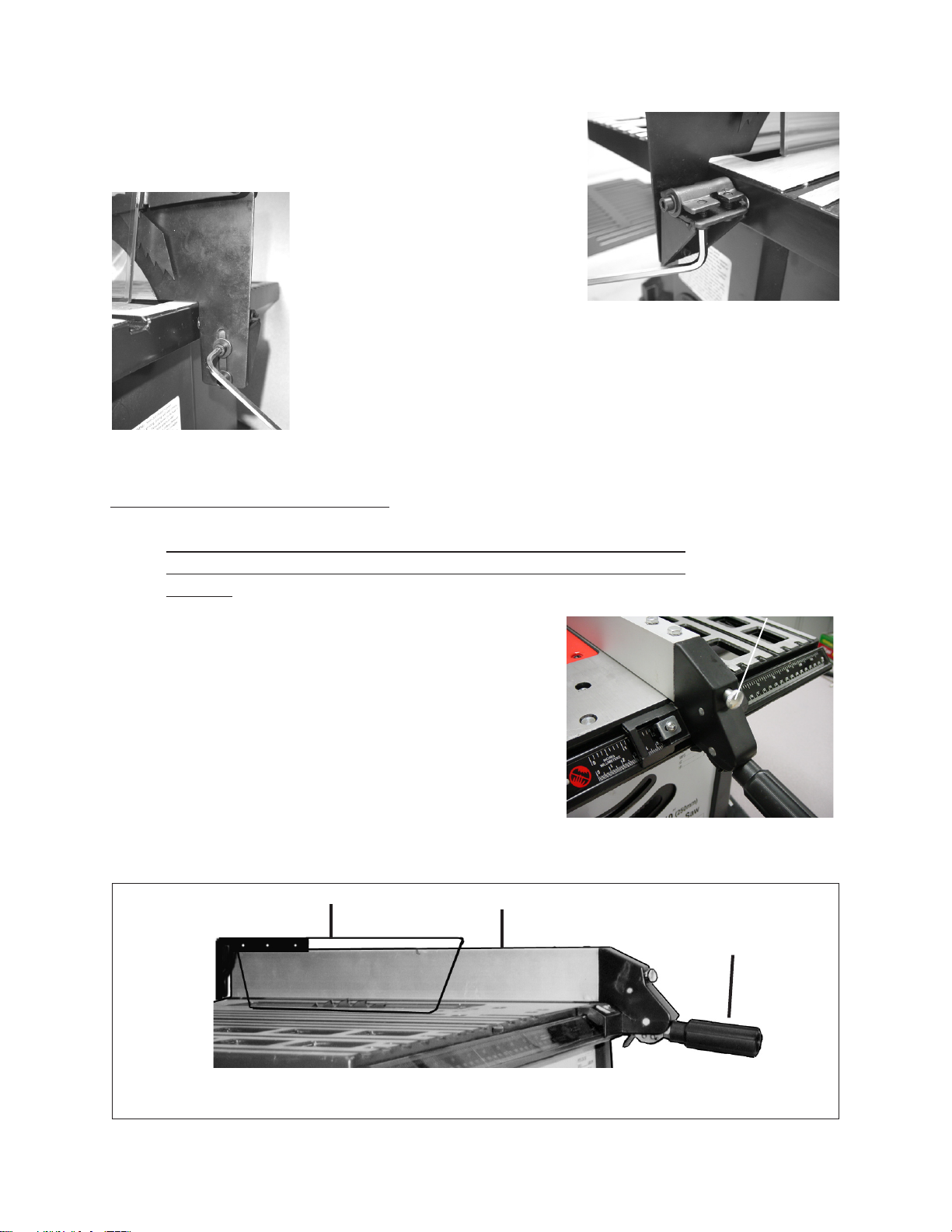

FIGURE K
Tension
Adjustment
Screw
To Attach The Fence Assembly:
1. CAUTION! Prior to installing the Fence Assembly (75), make
sure theTable Saw is disconnected from its electrical power
source.
2. To attach Fence Assembly (75) to the Table
(105), raise the Fence Handle (80) to a
horizontal position. Slip the Front Board (94) of
the fence over the front edge of the Table. (See
Figure K)
3. Slip the rear Clamp (89) of the Fence Assembly
onto the top/rear edge of the Table, lowering the
Fence Assembly all the way onto the Table (105).
Then, lock the Fence Assembly in position by
lowering the Fence Handle to a vertical position.
(See Figure L)
FENCE ASSY. (75)
FENCE HANDLE (80)
(UNLOCKED POSITION)
FIGURE L
BLADE GUARD ASSY. (50)
Brought to You by Augusta Flint

SKU 45804 PAGE 14
OPERATING INSTRUCTIONS
To Raise And Lower The Saw Blade:
1. When cutting, the top edge of the Saw Blade (3) should rise about 1/4” above the
top edge of the workpiece.
2. To raise the height of the Saw Blade (3), unlock the Locking Knob (167) by turning it
counterclockwise. Next, turn the Wheel (170) clockwise until the desired height is
acquired. Then, turn the Locking Knob clockwise to lock the Saw Blade in position.
(See Figure M.)
3. To lower the height of the Saw Blade (3), unlock the Locking Knob (167) by turning
it counterclockwise. Next, turn the Wheel (170) counterclockwise until the desired
height is acquired. Then, turn the Locking Knob clockwise to lock the Saw Blade
in position. (See Figure M.)
To Adjust The Angle Of The Saw Blade:
1. The Table Saw is capable of making cuts from 90 degrees to 45 degrees.
2. The Table Saw also features an Angle Scale and Angle Indicator on the front side
of the unit. (See Figure M.)

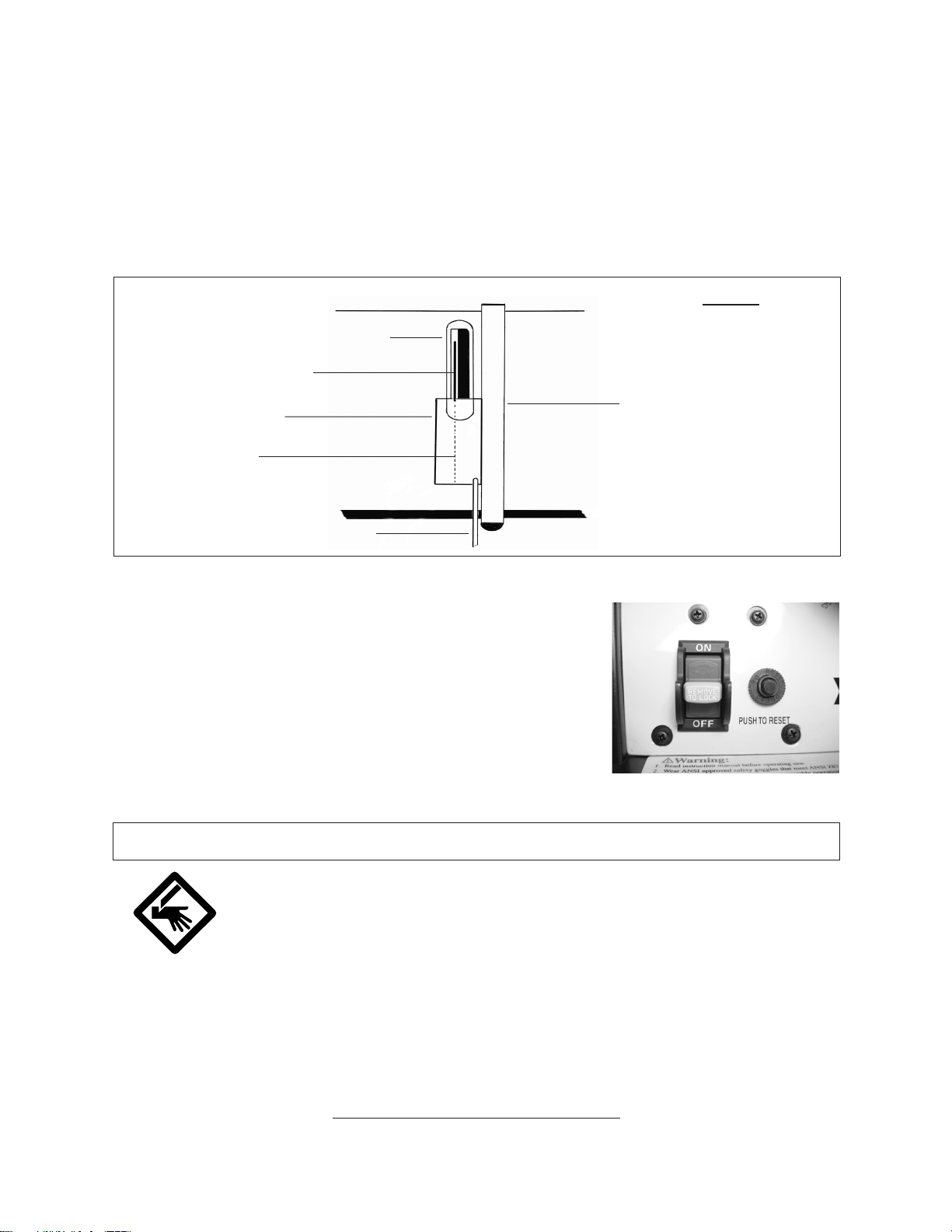

BLADE GUARD
ASSY. (50)
SAW BLADE (3)
(not included)
RULER SUPPORT
(86)
LOCKING KNOB (167)
GRADUATION
SCALE
ANGLE INDICATOR
ANGLE
SCALE
SWITCH
(179) WHEEL
(170)
FENCE HANDLE (80)
(LOCKED POSITION)
FENCE ASSY. (75)
FIGURE M
CIRCUIT
BREAKER
(178)
Brought to You by Augusta Flint

SKU 45804 PAGE 15
3. To adjust the angle of the Saw Blade (3), unlock the Locking Knob (167) by turning
it counterclockwise. Push the Wheel inward to engage the gear, then turn it until
the red pointer indicates the desired angle. Then, turn the Locking Knob clockwise
to lock the Saw Blade in position. (See Figure M, previous page.)

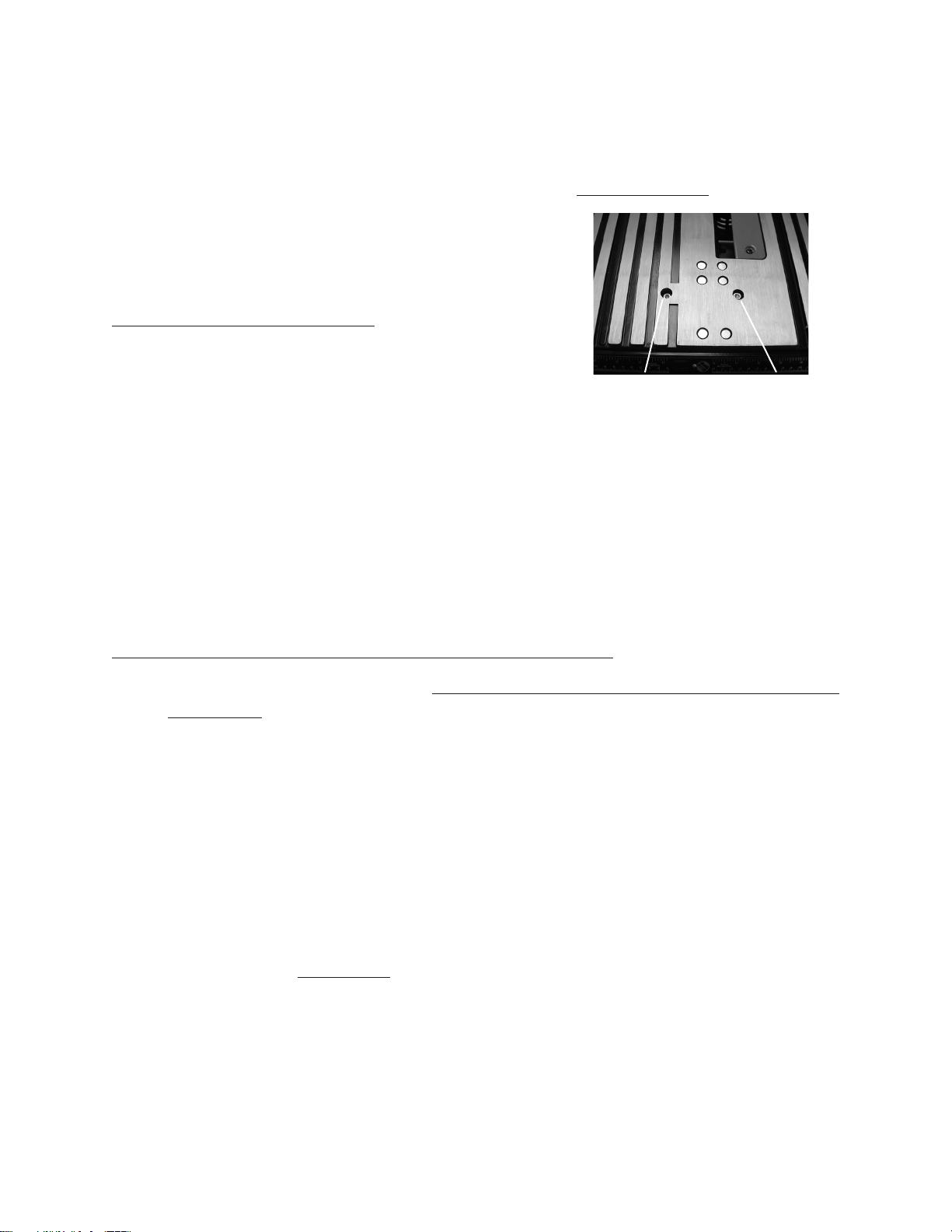

Note that the socket head screws in the table top
(Figure N) are used to adjust the 0 degree and
45 degree positive stops.
To Adjust The Width Of A Cut:
1. The width of a cut is achieved by moving the Fence
Assembly (75) to the right or left. (See Figure M.)
2. The Table Saw features a Graduation Scale on the front of the unit. The Scale’s
measurements are in both inches and metric increments. (See Figure M.)
3. To position the Fence Assembly (75) for the desired width of a cut, unlock the Fence
Handle (80) by raising it upward. (See Figure M.)
4. Place the workpiece on the Table Saw against the Fence Assembly (75). Next, slide
the workpiece, and the Fence Assembly, to the right or left until the left side of the
Ruler Support (86) indicates on the Graduation Scale the desired width to be cut.
Then, lock the Fence Assembly in place by lowering the Fence Handle (80). (See
Figure M.)
Proper Placement Of Hands During The Cutting Process:
WARNING: Review all warnings, especially the Specific Safety Rules found
on page 8, before performing any cutting procedure.
1. WARNING! Always keep all guards in place and in working order.
2. Use the Push Stick (37) or an Auxiliary Handle (not included) only when ripping
widths of 2” to 6”. Use a Push Block (not included) when ripping widths under
2”. Refer to Appendix B on page 22 for instructions on how to make and use
a Push Block.
3. When ripping, always use the Fence Assembly (75). This improves the accuracy
of the cut, and reduces the chance for Saw Blade binding.
4. Never pass hands directly over the Saw Blade (3) when cutting the workpiece.
Always push the workpiece into the Saw Blade, using the Push Stick (37).
(See Figure O, next page.)
5. At the start of the cut, the left hand holds the workpiece firmly on the Table (105)
and against the Fence Assembly (75), The right hand, with the aid of the Push Stick
(37), pushes the workpiece toward the turning Saw Blade (3). (See Figure O.)
6. After the cut is under way the right hand, with the aid of the Push Stick (37),
continues pushing the workpiece forward. Just before the cut is near completion
FIGURE N
0 Degree 45 Degree
Brought to You by Augusta Flint

SKU 45804 PAGE 16
BLADE GUARD ASSY. (50)
SAW BLADE (3)
WORKPIECE
CUT LINE
FENCE ASSY. (75)
PUSH STICK (37) FIGURE O
TABLE SAW OVERLOAD PROTECTION
1. The Table Saw is equipped with a Circuit Breaker (178).
If the motor shuts off or fails to start due to overloading
(cutting stock too fast, using a dull Saw Blade (3), low
voltage, using the Table Saw beyond its capacity, etc.),
turn the Power Switch (179) to its OFF position. Let the
motor cool three to five minutes, and push the Circuit
Breaker button which will reset the overload device.
The motor can then be turned on again in the usual
manner. (See Figure P.)
INSPECTION, MAINTENANCE, AND CLEANING
1. WARNING! Always disconnect the Table Saw from its electrical pow-
er supply source before performing any inspection, maintenance, or
cleaning procedure.
2. Before each use, inspect the general condition of the Table Saw. Inspect switch,
power plug and cord assembly, and extension cord (if used) for damage. Check for
loose screws, misalignment, binding of moving parts, broken, cracked, or improper
mounting of the Saw Blade (3), broken parts and any other condition that may affect
its safe operation. If abnormal noise or vibration occurs, turn off the Table Saw
immediately and have the problem corrected before further use.
Do not use damaged equipment.
NOTE:
TOP VIEW OF TABLE
FIGURE P
move the left hand safely away from the workpiece and the Saw Blade (3). Then,
continue pushing the workpiece into the Saw Blade, with the Push Stick, until the
cut is complete. (See Figure O.)
7. Once the cut is complete, continue to maintain control of the workpiece. Turn
the Power Switch (179) to its OFF position. Then, wait until the Saw Blade (3)
completely stops rotating before removing the workpiece.
Brought to You by Augusta Flint

SKU 45804 PAGE 17
3. Remove cut-off pieces and scraps from the Table before starting the Table
Saw. Before cutting, ensure the machine is switched off. While the Saw Blade (3) is
completely stopped; unplug the machine, remove the Blade following the instructions
on pages 11 and 12, and remove all debris.
Warning! Allowing sawdust, scraps, or other debris to accumulate can cause a
fire, resulting in severe personal injury or property damage.
4. With a brush, soft cloth, or vacuum, remove all sawdust from the Table Saw.
5. Do not use solvents to wipe off the Table Saw, as damage may result. If necessary,
wipe with a damp cloth. You may use a mild detergent.
Warning! Do not introduce water into the electric motor through the motor vents.
6. Once clean, lubricate all moving parts with a light oil.
7. When storing, keep the Table Saw covered with a cloth cover.
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED
THE PARTS DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY.
NEITHER THE MANUFACTURER NOR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT
HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT
OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE
PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS
SHOULD BE UNDERTAKEN BY CERTIFIED AND LICENSEDTECHNICIANS
AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND
LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL
PRODUCT OR REPLACEMENT PARTS THERETO, OR ARISING OUT OF
HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Brought to You by Augusta Flint

SKU 45804 PAGE 18
PARTS LIST A (Parts 1-95)
NO. PART NAME QTY
1 Hex Nut 1
2 Blade Pad 1
3 Saw Blade (not included) 1
4 Blade Press Circle 1
5 Press Washer 1
6 Shaft 1
7 Screw 3
8 Spring Washer 3
9 Board Cover 1
10 Ball Bearing 1
11 Bearing Stand 1
12 Round Key 1
13 Big Gear 1
14 Pin Bearing 1
15 Gear Box 1
16 Ball Bearing 1
17 Armature 1
18 Separate Circle 1
19 Ball Bearing 1
20 Stator-Assy 1
21 Plane Washer 2
22 Spring Washer 2
23 Screw 2
24 Wind Washer 1
25 Cabinet 1
26 Carbon Brush Handle 2
27 Carbon Brush 2
28 Connection Seating 1
29 Rubber Set 1
30 Rear Cover 1
31 Power Cord 1
32 Wire Clip 1
33 Screw 2
34 Screw 3
35 Spring Washer 3
36 Plane Washer 3
37 Push Stick 1
38 Spanner 1
39 Open-end Spanner 1
40 Assembly of Miter Guide 1
41 Lock 1
42 Angle Ruler Body 1
43 Round Pin 1
44 Plane Washer 1
45 Angle Ruler Body 1
46 Screw 1
47 Spring Washer 1
48 Angle Ruler Finger 1
NO. PART NAME QTY
49 Angle Ruler Bolt 1
50 Blade Guard Assembly 1
51 Cover Rod 1
52 Lock Pin 2
53 Spring Washer 2
54 Blade Guard 1
55 Double Direction Spring 1
56 Stop Card 2
57 Hex Nut 1
58 Big Washer 2
59 Non Metal Lock Screw 1
60 Set Pad 1
61 Big Washer 1
62 Spring Washer 1
63 Socket Head Screw 1
64 Plane Washer 1
65 Socket Head Screw 4
66 Support Board 1
67 Washer 2
68 Hex Screw 2
69 Big Washer 2
70 Hex Bolt 1
71 Hex Bolt 1
72 Spring Pin 1
73 Blading Board 1
74 Washer 2
75 Fence Assembly 1
76 Stress Bolt 1
77 Ruler Body 1
78 Hex Bolt 2
79 Washer 2
80 Fence Handle 1
81 Hex Nut 1
82 Long Nut 1
83 Bias Wheel 1
84 Pin A 1
85 Pin B 1
86 Ruler Support 1
87 Spring Board 1
88 Press Spring 1
89 Clamp 1
90 Pad 1
91 Ruler 1
92 Screw 1
93 Lock Washer 1
94 Front Board 1
95 Spring Pin 1
REV 04j
Brought to You by Augusta Flint

SKU 45804 PAGE 19
PARTS LIST B (Parts 96-196)
NO. PART NAME QTY
96 Screw 2
97 Washer 2
98 Screw 2
99 Board 1
100 Lock Nut 2
101 Cover 1
102 Hex Bolt 1
103 Square Bolt 6
104 Hex Bolt 1
105 Working Table 1
106 Graduation Scale 1
107 Rivet 3
108 Bottom Base A 2
109 Bottom Base B 12
110 Hex Bolt 3
111 Plane Washer 3
112 Spring Pin 1
113 Holding Board D 1
114 Spacer 1
115 Lock Nut 1
116 Holding Board C 1
117 Holding Board A 1
118 Shape Tube 2
119 Lock Nut 2
120 Lock Washer 4
121 Hex Bolt 3
122 Lock Nut 1
123 Pin Shaft 1
124 Movable Nut Rod 1
125 Wheel Shaft 1
126 Spring Pin 1
127 Inner-Hex Bolt 1
128 Spring Washer 1
129 Defence Board 1
130 Strap Clamp 1
131 Connect Board 1
132 Washer 1
133 Nut 2
134 Hex Bolt 1
135 Plane Washer 2
136 Hex Bolt 1
137 Hex Screw 1
138 Screw 1
139 Lock Washer 1
140 Angle Indicator 1
141 Assembling 3
142 Lock Nut 1
143 Holding B 1
144 Pin Ferrule 1
145 Lock Nut 2
146 Spring Pin 1
NO. PART NAME QTY
147 Hex Nut 3
148 Spring Washer 3
149 Inner-Hex Bolt 1
150 Plane Washer 3
151 Spring Washer 1
152 Lock Nut 6
153 Axis 1
154 Hex Nut 2
155 Spring Pin 1
156 Axis 1
157 Lock Washer 2
158 Hex Bolt 1
159 Warning Label 1
160 Label 1
161 Half Round Bolt 1
162 Washer A 1
163 Hex Nut 1
164 Big Washer 1
165 Spacer Board 1
166 Big Washer 1
167 Locking Knob 1
168 Screw 9
169 Board 1
170 Hand Wheel 1
171 Hex Nut 1
172 Wheel Handle 1
173 Screw 1
174 Using Mark 1
175 Press Spring 1
176 Nut 1
177 Protect Label 1
178 Circuit Breaker 1
179 Power Switch 1
180 Screw 4
181 Switch Board 1
182 Screw 2
183 Cable 1
184 Protect Washer 1
185 Cord Support 1
186 Inner Cable 1
187 Rubber Feet 4
188 Base 1
189 Corer 1
190 Screw 2
191 Lock Washer 5
192 Hex Bolt 5
193 Mounting Plate 1
194 Hex Wrench 5mm 1
195 Hex Wrench 6mm 1
196 Hex Wrench 4mm 1
Brought to You by Augusta Flint

SKU 45804 PAGE 20
Assembly Diagram A (Parts 1-95)
Brought to You by Augusta Flint
