Central Machinery 93380 User manual

10” TILTING ARBOR, CABINET
TABLE SAW
Model 93380
ASSEMBLY AND OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit ourWeb site at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Copyright©2005 by Harbor Freight Tools®. All rights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
without the express written consent of Harbor Freight Tools.
For technical questions, please call 1-800-444-3353.
®
Due to continuing improvements,actual product may differ slightly from the product described herein.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 2
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SAVE THESE INSTRUCTIONS
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly, oper-
ating, inspection, maintenance and cleaning procedures, parts list and assembly
diagram. Keep your invoice with this manual. Write the invoice number on the
inside of the front cover. Keep this manual and invoice in a safe and dry place for
future reference.
PRODUCT SPECIFICATIONS
stnemeriuqeRlacirtcelErotoM MPR054,3/esahPelgniS/PH3/spmAdaoLoN9.6/CAV032
hctiwSrewoP)FFO/NO(nottuBhsuP
g
ulP&droCrewoP )dedulcniton(gulPCAV032seriuqeR;C3xGWA41
epyTedalBwaSdednemmoceR
)dedulcnitonedalB(
robra"8
/5htiwretemaiD"01
MPR051,4evobarotadetaR
yticapaCgnittuC °54@kcihT"8/1-2/°09@kcihT"8/1-3
yticapaCtuCodaDm
umixaMkcihT"61/31
snoisnemiDelbaT hgiH"43xpeeD"8/1-72xediW"8/1-02
piRmumixaMtfeL"21,thgiR"03
daerhT/eziSeld
nipSHR81lanogaiD/retemaiD"8/5
yticapaCtliTedalB°54
elacSediuGretiMthgiRdnatfeL°06-0
selacSecneFthgiR"21-0/tf
eL"9-0
eziStroPtsuDretemaiDedistuO"4
seirosseccA .yssAecneFpiR/slooTlavomeRedalB/eguaGretiM/drauGedalB
sno
isnemiDllarevOH"8/5-63xW"8/1-14xL"2/1-26
thgieWteNsdnuoP084
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create
sparks which may ignite the dust or fumes.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 3
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
4. Grounded tools must be plugged into an outlet properly installed and
grounded in accordance with all codes and ordinances. Never remove the
grounding prong or modify the plug in any way. Do not use any adapter
plugs. Check with a qualified electrician if you are in doubt as to whether
the outlet is properly grounded. If the tools should electrically malfunction or
break down, grounding provides a low resistance path to carry electricity away
from the user.
5. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
6. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
7. Do not abuse the Power Cord. Never use the Power Cord to carry the tools
or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,
sharp edges, or moving parts. Replace damaged Power Cords immediately.
Damaged Power Cords increase the risk of electric shock.
8. When operating a power tool outside, use an outdoor extension cord
marked “W-A” or “W”. These extension cords are rated for outdoor use, and
reduce the risk of electric shock.
PERSONAL SAFETY
9. Stay alert. Watch what you are doing, and use common sense when operat-
ing a power tool. Do not use a power tool while tired or under the influence
of drugs, alcohol, or medication. A moment of inattention while operating
power tools may result in serious personal injury.
10. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
11. Avoid accidental starting. Be sure the Power Switch is off before plugging
in. Plugging in power tools with the Power Switch on, invites accidents.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 4
12. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
13. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
14. Always wear eye, hearing, and breathing protection. Wear ANSI ap-
proved safety impact goggles, hearing protection, and dust mask or respi-
rator when using this product. Non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
TOOL USE AND CARE
15. Use clamps (not included) or other practical ways to secure and support
the workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
16. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
17. Do not use the power tool if the Power Switch does not turn it on or off.
Any tool that cannot be controlled with the Power Switch is dangerous and must
be replaced.
18. Disconnect the Power Cord Plug from the power source before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
19. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
20. Maintain tools with care. Keep cutting tools sharp and clean. Properly
maintained tools with a sharp cutting edge are less likely to bind and are easier
to control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
21. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 5
22. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
23. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
24. When servicing a tool, use only identical replacement parts. Follow
instructions in the
“Inspection, Maintenance, And Cleaning” section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Ground this product. This Table Saw requires the attachment and use of a UL
approved, 220 volt, grounded, 3-prong, electrical Power Cord Plug (not included).
Only a qualified electrician should install the Power Cord Plug. Never remove the
grounding prong or modify the Power Cord Plug in any way. Do not use adapter
plugs with this product. To comply with the National Electric Code, and to provide
additional protection from the risk of electrical shock, this product should only be
connected to a 220 volt, 3-hole outlet that is protected by a Ground Fault Circuit
Interrupter (GFCI). (See Figure A, page 10.)
2. Maintain labels and nameplates on the Table Saw. These carry important
information. If unreadable or missing, contact Harbor Freight Tools for a
replacement.
3. Avoid unintentional starting. Make sure you are prepared to begin work
before turning on the Table Saw.
4. Do not force the Table Saw. This tool will do the work better and safer at
the speed and capacity for which it was designed. Do not force the Saw Blade
into the workpiece being cut.
5. WARNING! Keep hands and fingers away from cutting area and Saw
Blade. Use a “push stick” (not included) if necessary.
6. Never leave the Table Saw unattended when it is plugged into an
electrical outlet. Turn off the tool, and unplug it from its electrical outlet before
leaving.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 6
7. Always use Saw Blades (not included) with a 10” diameter, 5/8” round arbor
hole, and rated at 4150 RPM or greater. Saw Blades that do not match the
mounting hardware of the Table Saw or that are rated less than the required
minimum RPM will run eccentrically causing loss of control or may fly off the
Saw.
8. Make sure the Table Saw is located on a flat, level, sturdy surface capable
of supporting the weight of the Saw and workpieces.
9. Do not use theTable Saw for cutting metals or for cutting curves. This will
cause the Saw Blade to break and/or reduce its service life.
10. Make sure the Table of the Table Saw and surrounding area are clear with
the exception of the workpiece to be cut.
11. Before using the Table Saw, check to make sure the Saw Blade is prop-
erly mounted on the Saw Spindle. Make sure the Saw Blade is balanced, and
is not cracked or bent.
12. Industrial applications must follow OSHA guidelines.
13. Never stand on the Table Saw. Serious injury could result if the Table Saw
is tipped or if the rotating Saw Blade is accidently contacted.
14. Never attempt to cut more than one workpiece at a time.
15. Never attempt to cut freehand. Make sure the workpiece to be cut is pressed
firmly against the Table.
16. When cutting a large workpiece, make sure its entire length is properly
supported. If necessary, use a roller stand (not included).
17. Always feed the workpiece against the rotation of the Saw Blade.
18. Allow the Saw Blade to spin up to full speed before feeding it into a
workpiece. When turning off the Table Saw, allow the Saw Blade to spin down
and stop on its own. Do not press against the Saw Blade to stop it.
19. To avoid accidental injury, always wear heavy duty work gloves when
changing the Saw Blade.
20. The Saw Blade will become hot while cutting. Allow the Saw Blade to com-
pletely cool before handling.
21. Do not force the workpiece into the Saw Blade when cutting. Apply moder-

SKU 93380 For technical questions, please call 1-800-444-3353. Page 7
25. Always unplug the Table Saw from its electrical outlet before perform-
ing inspection, maintenance, cleaning procedures, or changing accesso-
ries.
26. Before trying new or complicated techniques, study the procedure, and
practice with scrap wood.
27. Make sure the woodstock is free from loose knots, flaws, nails, and any
other foreign objects that could damage the Saw Blade or cause “kickback”.
28. Causes and operator prevention of “kickback”: Kickback is a sudden reaction
to a pinched, bound, or misaligned Saw Blade, causing an uncontrolled
woodstock to lift up and out from the Table Saw toward the operator. When the
Saw Blade is pinched or bound tightly by the kerf closing down, the Saw Blade
stalls and the motor reaction drives the woodstock rapidly back toward the op-
erator. If the Saw Blade becomes twisted or misaligned in the cut, the teeth at
the back edge of the Saw Blade can raise the woodstock (walk up), and eject it
toward the operator. Kickback is a result of tool misuse and/or incorrect operat-
ing procedures or conditions and can be avoided by taking proper precautions as
given below:
* Maintain control of the woodstock at all times. Never allow the woodstock
to rest on the moving Saw Blade without holding on to the woodstock.
* When the Saw Blade is binding, or when interrupting a cut for any reason,
turn off the Power Switch and hold the woodstock motionless on theTable
Saw until the Saw Blade comes to a complete stop. Never attempt to
remove the woodstock from the Table Saw or pull the woodstock backward
while the Saw Blade is in motion or kickback may occur. Investigate and take
corrective actions to eliminate the cause of Saw Blade binding.
* When restarting a woodstock on the Table Saw, center the Saw Blade in
the pre-cut kerf and check that the Saw Teeth are not engaged into the
woodstock. If the Saw Blade is binding, the woodstock may walk up or kick-
ate pressure, allowing the Saw Blade to cut without being forced.
22. Turn off the Table Saw and allow the Saw Blade to completely stop if the
Saw Blade is to be backed out of an uncompleted cut.
23. Never attempt to remove material stuck in the moving parts of the Table
Saw while it is plugged in and running.
24. Make sure the woodstock to be cut off has sufficient room to move side-
ways. Failure to do so may result in off-cut binding against the Saw Blade.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 8
back as the Table Saw is restarted.
* Support large panels with roller stands (not included) to minimize the risk
of Saw Blade pinching and kickback. Large panels tend to sag under their
own weight. Supports must be placed under the panel and near the outer
edge of the panel.
* Do not use a dull or damaged Saw Blade. Unsharpened or improperly set
Saw Blades produce a narrow kerf causing excessive friction, Saw Blade
binding and kickback.
* Never use the Fence assembly as a guide when crosscutting.
* Never rip a woodstock that is twisted or warped, or does not have a
straight edge to guide along the Rip Fence.
* Push the woodstock past the Saw Blade prior to release.
29. Check all guards for proper operation before each use. Never disable
guards. Do not operate the Table Saw if the guard assembly does not move
freely and close instantly. Before each use, raise the guard assembly and
make sure it moves freely and does not touch the Saw Blade or any other
part, in all angles and depths of cut.
30. Never perform layout, assembly, or setup work on the Table of the Table
Saw when the machine is running.
31. Always disconnect theTable Saw from its electrical outlet before performing
any services, maintenance, or cleaning such as leaving the work area, mov-
ing the machine from one location to another, changing Saw Blades, cleaning
sawdust from the machine, etc.
32. Make sure to remove all adjusting wrenches from the Table Saw before
turning it on.
33. Use a “push stick” or “auxiliary handle” (neither included) only when ripping
widths of 2” to 6”. Use a “push block” and “auxiliary fence” (neither included)
when ripping widths under 2”.
34. Keep the Table of the Table Saw clean and clear of debris. Remove cut-off
pieces and scraps of wood from the Table before starting the Table Saw.
35. Use the right tool for the job. Do not attempt to force small equipment to do
the work of larger industrial equipment. There are certain applications for which
this Table Saw was designed. It will do the job better and more safely at the rate

SKU 93380 For technical questions, please call 1-800-444-3353. Page 9
36. WARNING! Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities, contain chemicals known (to the State of Cali-
fornia) to cause cancer, birth defects or other reproductive harm. Some ex-
amples of these chemicals are: lead from lead-based paints, crystalline silica
from bricks and cement or other masonry products, arsenic and chromium from
chemically treated lumber. Your risk from these exposures varies, depending on
how often you do this type of work. To reduce your exposure to these chemicals:
work in a well ventilated area, and work with approved safety equipment, such as
those dust masks that are specially designed to filter out microscopic particles.
(California Health & Safety Code 25249.5, et seq.)
37. WARNING! People with pacemakers should consult their physician(s)
before using this product. Operation of electrical equipment in close proximity to
a heart pacemaker could cause interference or failure of the pacemaker.
38. WARNING! The warnings and cautions discussed in this manual cannot
cover all possible conditions and situations that may occur. It must be under-
stood by the operator that common sense and caution are factors which cannot
be built into this product, but must be supplied by the operator.
SAVE THESE INSTRUCTIONS
for which it was intended. Do not modify this Table Saw, and do not use this
Table Saw for a purpose for which it was not intended.
GROUNDING
WARNING!
Improperly connecting the grounding wire can result in the risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether the
outlet is properly grounded. Do not modify the power cord plug used with
the tool. Never remove the grounding prong from the plug. Do not use the
tool if the power cord or plug is damaged. If damaged, have it repaired by
a service facility before use. If the plug will not fit the outlet, have a proper
outlet installed by a qualified electrician.
GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS
1. Tools marked with “Grounding Required” have a three wire cord and three prong
grounding plug. The plug must be connected to a properly grounded outlet. If
the tool should electrically malfunction or break down, grounding provides a low

SKU 93380 For technical questions, please call 1-800-444-3353. Page 10
resistance path to carry electricity away from the user, reducing the risk of elec-
tric shock. (See Figure A.)
2. The grounding prong in the plug is connected through the green wire inside the
cord to the grounding system in the tool. The green wire in the cord must be the
only wire connected to the tool’s grounding system and must never be attached
to an electrically “live” terminal. (See Figure A.)
3. Your tool must be plugged into an appropriate outlet, properly installed by a
certified electrician
and grounded in accordance with all codes and ordinances.
The plug and outlet should look like that in the following illustration.
(See Figure A.)
220VOLT, GROUNDED,
ELECTRICAL OUTLET
220 VOLT, GROUNDED, 3-PRONG,
POWER CORD PLUG
FIGURE A
EXTENSION CORDS
1. Grounded tools require a three wire extension cord. Double Insulated tools
can use either a two or three wire extension cord.
2. As the distance from the supply outlet increases, you must use a heavier gauge
extension cord. Using extension cords with inadequately sized wire causes a
serious drop in voltage, resulting in loss of power and possible tool damage.
(See Figure B, next page.)
3. The smaller the gauge number of the wire, the greater the capacity of the cord.
For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.
(See Figure B.)
4. When using more than one extension cord to make up the total length, make
sure each cord contains at least the minimum wire size required.
(See Figure B.)

SKU 93380 For technical questions, please call 1-800-444-3353. Page 11
5. If you are using an extension cord outdoors, make sure it is marked with the
suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.
6. Make sure your extension cord is properly wired and in good electrical condition.
Always replace a damaged extension cord or have it repaired by a qualified
electrician before using it.
7. Protect your extension cords from sharp objects, excessive heat, and damp or
wet areas.
Recommended MinimumWire Gauge For Extension Cords*
(220Volt)
* Based on limiting the line voltage drop
to five volts at 150% of the rated amperes.
FIGURE B
SYMBOLOGY
FIGURE C
V ~
A
xxxx/min.
no
Double Insulated
Canadian Standards
Association
Underwriters
Laboratories, Inc.
Volts Alternating Current
Amperes
No Load Revolutions
per Minute (RPM)

SKU 93380 For technical questions, please call 1-800-444-3353. Page 12
UNPACKING
When unpacking both boxes, check to make sure all the parts shown on the Parts Lists
on pages 31, 33, and 34 are included. If any parts are missing or broken, please call
Harbor Freight Tools at the number shown on the cover of this manual as soon as pos-
sible.

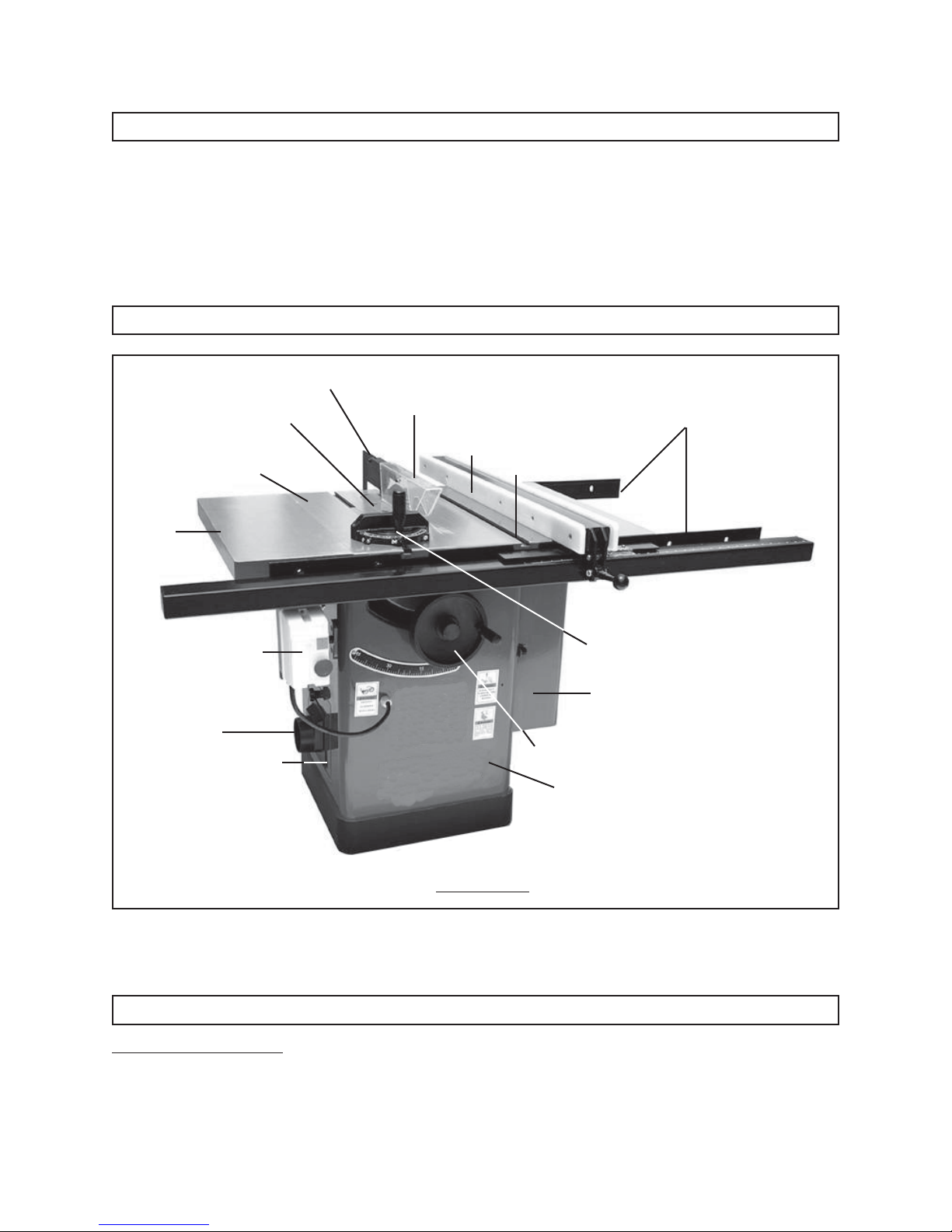

TABLE SAW FEATURES
LEFT
WING
(113)
MAIN TABLE
(115)
SPLITTER
(315)
TABLE INSERT
(116A, 116B)
BLADE GUARD
(300)
RIP FENCE
(2B)
T-SLOT
RIP FENCE RAILS
(23B, 24B)
MITER GAUGE
(202)
MOTOR COVER
(2)
HAND WHEEL
(28)
CABINET
(1)
DUST HOOD
(14)
CLEAN OUT DOOR
(12)
POWER SWITCH
(137)
FIGURE D
SET-UP INSTRUCTIONS
Pallet Disassembly:
1. To improve the Table Saw’s stability during shipping, the machine was bolted to a
pallet. The pallet must be removed prior to using the Table Saw.

SKU 93380 For technical questions, please call 1-800-444-3353. Page 13
2. Open the Motor Cover (2), and remove the four Screws at the bottom of the
Cabinet (1). Then, remove the large steel plate from the bottom of the Cabinet.
(See Figures D and E.)
3. After removing the large steel plate, you will find two Cap Bolts were screwed
through the bottom of the Cabinet (1) and into the pallet. Use a wrench (not
included) to remove the two Cap Bolts. (See Figure E.)
4. You may now lift (using proper lifting devices) the Table Saw up and off the pallet.
Clean Up:
1. To avoid rust, the unpainted surfaces of the Table Saw have been factory-coated
with a waxy oil during shipment. Remove the waxy oil with a solvent or citrus-
based de-greaser. NOTE: Chlorine-based cleaners and solvents will damage the
painted surfaces of the Table Saw.
Motor Brace Disassembly:
1. A red Motor brace has been installed for shipping purposes. Remove this brace
before continuing with assembly. The Bolts that secure the brace should be
screwed back in at the locations from which they came. (See Figure F.)
MOTOR BRACE
FIGURE F
FIGURE E

SKU 93380 For technical questions, please call 1-800-444-3353. Page 14
ASSEMBLY INSTRUCTIONS
NOTE:
For additional information regarding the parts listed in the
following pages, refer to the Assembly Diagrams on pages 32, 33, and 34.
1. CAUTION! Always make sure the Power Switch (137) of the Table Saw is in
its “OFF” position and the tool is unplugged from its electrical outlet prior to
assembling the tool, adding any accessories, or making adjustments to the tool.
Because of the weight of the product, assemble and set up should be performed
by at least 2 people.
To Install The Left And Right Wings:
1. Attach the Left Wing (113) and Right Wing (114) to the Main Table (115), using
three Bolts (111) and three Flat Washers (112) for each Wing. Finger tighten
only. (See Figure G.)
2. Align the fronts of the Left Wing (113) and Right Wing (114) with the top of the
Main Table (115) directly above the front Bolts (111), and flush with the edge of
the Main Table. Then, firmly tighten the front Bolts. (See Figure G.)
3. Align the rears of the Left Wing (113) and Right Wing (114) with the top of the
Main Table (115) directly above the front Bolts (111), and flush with the edge of
the Main Table. Then, firmly tighten the front Bolts. (See Figure G.)
Selecting A Proper Location For The Table Saw:
1. The location selected for the Table Saw must be level, dry, well lighted, and have
room enough to allow movement around the Saw with long pieces of woodstock.
2. Once located, set a carpenter’s level on the Main Table (115) of the Table Saw
and level the machine from front to back and side to side. If necessary, use
shims (not included) under the corners of the Saw.
BOLTS (111)
FLAT WASHERS (112)
FIGURE G

SKU 93380 For technical questions, please call 1-800-444-3353. Page 15
To Install The Clean Out Door And Dust Hood:

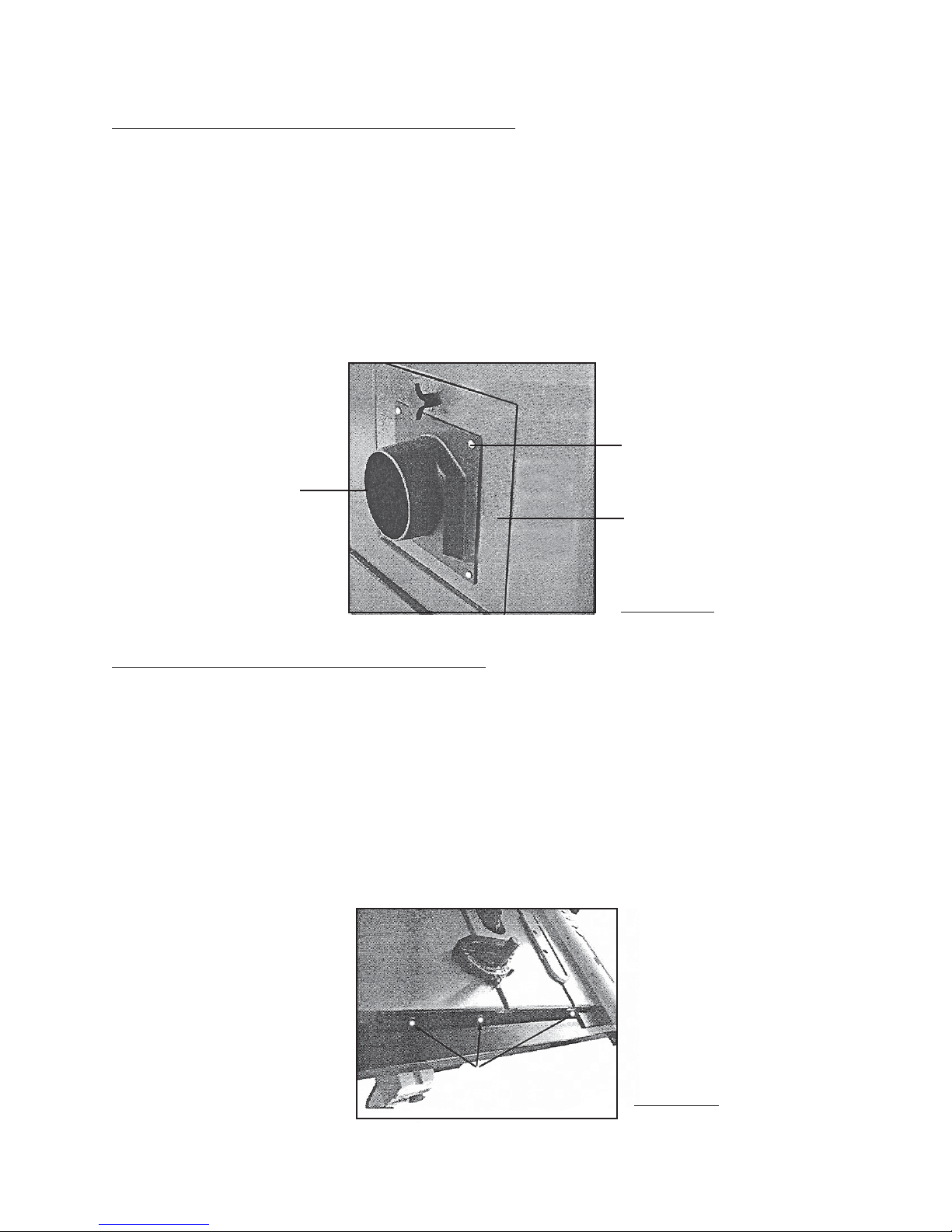

1. Mount the Clean Out Door (12) into the square hole located on the lower left side
of the Cabinet (1). (See Figure H.)
2. Attach the Dust Hood (14) to the Clean Out Door (12), using four Self-Tapping
Screws (13). (See Figure H.)
3. NOTE: Make sure to orient the Dust Hood (14) so the 4” flange is on the lower
half of the Dust Hood when installed. (See Figure H.)
Note: A dust collector (not included) may be attached to the hood, using a 4”
hose.
FIGURE H
CLEAN OUT DOOR
(12)
DUST HOOD
(14)
SELF-TAPPING SCREW
(13)
To Attach The Front And Rear Fence Rails:
1. Align the mounting holes in the Front Rail (23B) with the mounting holes on the
front edges of the Left Wing (113), Main Table (115), and Right Wing (114). Use
four Bolts (27B), four Elastic Washers (26B), and four Flat Washers (25B) to
secure the Front Rail to the Left Wing, Main Table, and Right Wing.
NOTE: Make sure the top of the Front Rail is flush with the top of the Left Wing,
Main Table, and Right Wing. (See Figure I.)
2. Repeat Step #1 above to attach the Rear Rail (24B) to the rear edges of the Left
Wing, Main Table, and Right Wing. (See Figure I.)
BOLT (27B)
ELASTIC WASHER (26B)
FLAT WASHER (25B) FIGURE I

SKU 93380 For technical questions, please call 1-800-444-3353. Page 16
To Attach The Hand Wheels:
1. Line up the Key (67) on the Shaft (69) with the keyway slot in the Hand Wheel
(28), and slide the Hand Wheel onto the Shaft. (See Figure J.)
2. Tighten the Set Screw (29) on the Hand Wheel’s hub to hold the Hand Wheel
securely in place. (See Figure J.)
3. Install the Hand Wheel Lock (27) into the Hand Wheel (28) by inserting the Hand
Wheel Lock into the center hole in the Hand Wheel and threading in a clockwise
direction. (See Figure J.)
4. Install the Handle (26) into the Hand Wheel (28) by inserting the Handle into the
hole at the edge of the Hand Wheel and threading in a clockwise direction.
(See Figure J.)
5. Repeat Steps #1, #2, #3, and #4 above for the remaining Hand Wheel (61),
Shaft (21), Hand Wheel Lock (64), and Handle (63). (See Figure J.)
HAND WHEEL
(28)
HAND WHEEL LOCK
(27)
SHAFT
(69)
HANDLE
(26)
FIGURE J
To Install The Saw Blade:
1. CAUTION! To avoid accidental cuts, make sure to wear heavy duty work
gloves when installing the Saw Blade.
2. Use the accessory Spanner (110) to loosen (turning clockwise) the Left-
Threaded Nut (109) on the Spindle (105). (See Figure K, next page.)
3. Remove the Left-Threaded Nut (109) and the Outer Flange (108) from the
Spindle (105). Remove and discard the 3/4” diameter spacer on the Spindle.
(See Figure K.)

SKU 93380 For technical questions, please call 1-800-444-3353. Page 17
top of the Main Table. (See Figure L.)
4. Check to make sure the Saw Blade will not come into contact with the Table
Insert (116A or 116B). Position the Saw Blade at 90. Then, raise and lower the
Saw Blade through its full range of motion. Also, rotate the Saw Blade, making
sure the Blade never contacts any part of the Table Insert. Repeat this proce-
dure with the Saw Blade in the 45 position.
To Install The Table Insert:
1. Select either the Standard Table Insert (116A) or the Dado Table Insert (116B) to
be installed. (See Figure L, next page.)
2. Set the selected Table Insert (116A or 116B) into the opening in the Main Table
(115). (See Figure L.)
3. Use a 6mm Hex Wrench (not included) to raise or lower each of the four Set
Screws (117A, 117B) until the Table Insert (116A or 116B) is flush with the Main
Table (115) top. Use a straight edge to make sure the Table Insert is flush with
4. Install the Saw Blade onto the Spindle (105). Make sure the blade teeth point
toward you as you stand at the front of the Table Saw. (See Figure K.)
5. Slide on the Outer Flange (108), and thread (counterclockwise) the Left-
Threaded Nut (109) back onto the Spindle (105). (See Figure K.)
6. Use the Spanner (110) provided to firmly tighten the Left-Threaded Nut (109).
NOTE: Wedge a block of scrap wood in the teeth of the Saw Blade to keep it
from turning when tightening the Left-Threaded Nut. (See Figure K.)
SPANNER
(110)
SPINDLE
(105)
SAW BLADE
(NOT INCLUDED)
LEFT-THREADED NUT
(109)
OUTER FLANGE
(108)
SCRAP WOOD
FIGURE K
o
o

SKU 93380 For technical questions, please call 1-800-444-3353. Page 18
STANDARD
TABLE INSERT
(116A)
SET SCREW
(117A)
SET SCREW
(117B)
SET SCREW
(117A)
SET SCREW
(117B)
FIGURE L
To Install The Blade Guard Assembly:
1. Thread the blade guard Shaft (74) into the hole in the Back Trunnion (75) located
at the rear of the Table Saw, and firmly tighten the Shaft. (See Figure M.)
2. Place the Lower Guard Bracket (120) over the Shaft (74), and tighten the two
Set Screws (121). (See Figure M.)
3. Place the L-Bracket (122) onto the Lower Guard Bracket (120). Secure the L-Bracket
to the Lower Guard Bracket, using two Bolts (129), two Elastic Washers (128), and
two Flat Washers (127). Do not tighten firmly at this time. (See Figure M.)
SHAFT (74)
LOWER
GUARD BRACKET
(120)
SET
SCREW
(121)
L-BRACKET (122)
BOLT (129)
ELASTIC WASHER (128)
FLAT WASHER (127)
FIGURE M
SPLITTER (315)
BOLT (123)
FLAT WASHER (124)
ELASTIC WASHER (125)
NUT (126)

SKU 93380 For technical questions, please call 1-800-444-3353. Page 19
4. Temporarily remove the Table Insert (116A, 116B). (See Figure N.)
5. Insert the front tab of the Splitter (315) through the table insert opening in the
Main Table (115). Loosen the Hex Cap Screw in the insert opening in the Main
Table. Insert the front tab of the Splitter between the Flat Washer and Bracket in
the table insert opening. Finger tighten the Hex Cap Screw only at this time.
(See Figure N.)
SPLITTER (315)
TABLE INSERT
(116A, 116B) FIGURE N
6. Attach the rear tab of the Splitter (315) to the L-Bracket (122), using one Bolt
(123), one Flat Washer (124), one Elastic Washer (125), and one Nut (126).
Finger tighten only at this time. (See Figure M.)
7. Reinstall the Table Insert (116A, 116B). (See Figure N.)
8. Check to make sure the Saw Blade will not come into contact with any part of
the Blade Guard Assembly. Position the Saw Blade at 90 degrees. Then, raise
and lower the Saw Blade through its full range of motion. Also, rotate the Saw
Blade,making sure the Blade never contacts any part of the Blade Guard
Assembly. Repeat this procedure with the Saw Blade in the 45 degree position.
9. Once the Blade Guard Assembly is properly adjusted, tighten all remaining loose
Bolts on the Assembly.
To Attach The Power Switch Assembly:
1. Attach the Power Switch Assembly (137) to the left end of the Front Rail (23B),
using two Screws (135).
(See Figure O, next page.)

SKU 93380 For technical questions, please call 1-800-444-3353. Page 20
SCREW (135)
POWER SWITCH
(137)
ON
OFF

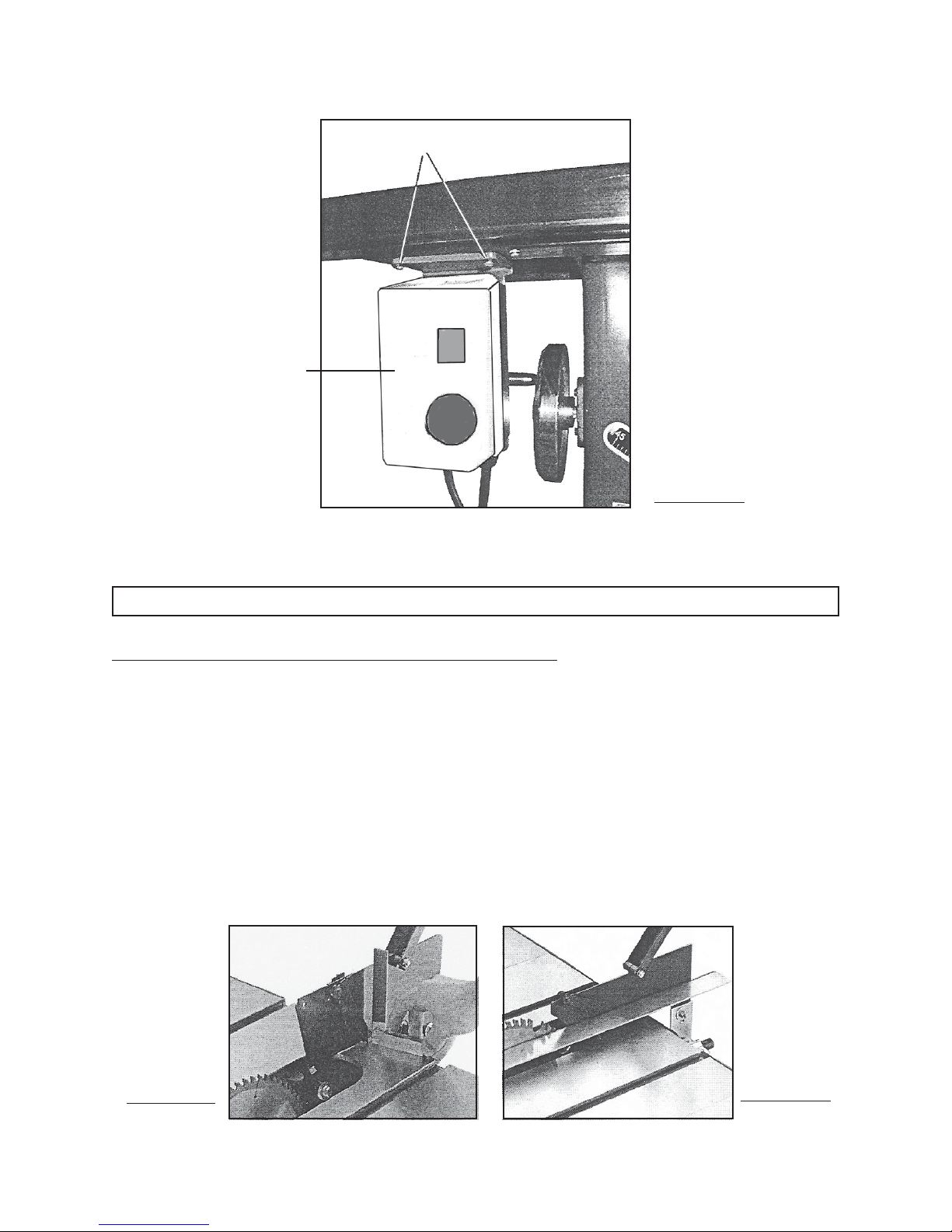

FIGURE O
ADJUSTMENTS
To Adjust The Splitter And Blade Guard Assembly:
1. Set a machinist’s square against the face of the Splitter (315). Slightly rotate the
rear bracket to adjust the face of the Splitter perpendicular to the Main Table
(115). (See Figure P.)
2. Raise the Blade Guard Assembly away from the Main Table (115) and hold the
anti-kickback Pawls (313) away from the Main Table surface. (See Figure P.)
3. Using an accurate straight edge, align the Splitter (315) with the Saw Blade.
Make sure the straight edge rests against the side of the Saw Blade.
(See Figure Q.)
FIGURE P FIGURE Q
