Central Pneumatic 98917 Installation manual

FRAMING NAILER
28 DEGREE
98917
SET UP AND OPERATING INSTRUCTIONS
Visit our website at: http://www.harborfreight.com
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Copyright©2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained
herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams
within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly
from the product described herein. Tools required for assembly and service may not be included.
For technical questions or replacement parts, please call 1-800-444-3353.
Revised 09i; 09l

SKU 98917 For technical questions, please call 1-800-444-3353. Page 2
SAVE THIS MANUAL
Keep this manual for the safety warn-
ings and precautions, assembly, operat-
ing, inspection, maintenance and cleaning
procedures. Write the product’s serial
number in the back of the manual near the
assembly diagram (or month and year of
purchase if product has no number). Keep
this manual and the receipt in a safe and
dry place for future reference.
Safety Alert Symbol and Signal
Words
In this manual, on the labeling,
and all other information provid-
ed with this product:
This is the safety alert
symbol. It is used to alert
you to potential personal
injury hazards. Obey all
safety messages that
follow this symbol to avoid
possible injury or death.
DANGER indicates
a hazardous
situation which, if not
avoided, will result in death or
serious injury.
WARNING
indicates a
hazardous situation which, if
not avoided, could result in
death or serious injury.
CAUTION, used
with the safety
alert symbol, indicates a
hazardous situation which, if
not avoided, could result in
minor or moderate injury.
NOTICE is used to
address practices
not related to personal injury.
CAUTION, without
the safety alert
symbol, is used to address
practices not related to
personal injury.
IMPORTANT SAFETY
INSTRUCTIONS
INSTRUCTIONS PERTAINING
TO A RISK OF FIRE,
ELECTRIC SHOCK, OR
INJURY TO PERSONS
WARNING – When using
tools, basic precautions
should always be followed,
including the following:
General
a. To reduce the risks of electric
shock, re, and injury to persons,
read all the instructions before us-
ing the tool.
Work area
a. Keep the work area clean and well
lighted. Cluttered benches and dark
areas increase the risks of electric
shock, re, and injury to persons.
b. Do not operate the tool in explo-
sive atmospheres, such as in the
presence of ammable liquids,
gases, or dust. The tool is able to
create sparks resulting in the ignition
of the dust or fumes.

SKU 98917 For technical questions, please call 1-800-444-3353. Page 3
c. Keep bystanders, children, and
visitors away while operating the
tool. Distractions are able to result in
the loss of control of the tool.
Personal safety
a. Stay alert. Watch what you are do-
ing and use common sense when
operating the tool. Do not use the
tool while tired or under the inu-
ence of drugs, alcohol, or medica-
tion. A moment of inattention while
operating the tool increases the risk
of injury to persons.
b. Dress properly. Do not wear loose
clothing or jewelry. Contain long
hair. Keep hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
increases the risk of injury to persons
as a result of being caught in moving
parts.
c. Avoid unintentional starting. Be
sure the Trigger (56) is off before
connecting to the air supply. Do not
carry the tool with your nger on the
Trigger or connect the tool to the air
supply with the Trigger on.
d. Remove adjusting keys and
wrenches before turning the tool
on. A wrench or a key that is left at-
tached to a rotating part of the tool
increases the risk of personal injury.
e. Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables
better control of the tool in unexpect-
ed situations.
f. Use safety equipment. A
dust mask, non-skid safety
shoes and a hard hat must
be used for the applicable conditions.
Wear heavy-duty work gloves during
use. Wear a full face shield if you are
producing metal lings or wood chips.
g. Always wear eye protec-
tion. Wear ANSI-ap-
proved safety goggles with
side shields during use.
h. Always wear hearing
protection when using
the tool. Prolonged expo-
sure to high intensity noise
is able to cause hearing loss.
Tool use and care
a. Avoid unintentional misres. Al-
though Nailer has a full
sequential safety trip
mechanism, do not point
tool towards yourself or
anyone whether it contains
nails or not.
b. Do not load fasteners when Nailer
is connected to air hose. Always
assume tool contains fasteners. Unin-
tentional ring may occur.
c. Fire nails into an appropriate work
surface only. Do not attempt to re
nails into surfaces too hard to pen-
etrate. Do not drive nails on top of
other nails, or at too steep an angle.
Nails can ricochet, causing personal
injury. Never re this tool into the air
or point it toward yourself or another
person.
d. Hold tool away from head and
body during use. Tool may kick
back, causing injury.
e. Do not re nails too close to edge
of workpiece. They may split the

SKU 98917 For technical questions, please call 1-800-444-3353. Page 4
workpiece and y free, causing per-
sonal injury.
f. Carry tool safely. Carry tool by
handle.
g. Use clamps or another practical
way to secure and support the
workpiece to a stable platform.
Holding the work by hand or against
the body is unstable and is able to
lead to loss of control.
h. Do not force the tool. Use correct
tool for application. The correct tool
will do the job better and safer at the
rate for which the tool is designed.
i. Disconnect the tool from the air
source before making any adjust-
ments, changing accessories, or
storing the tool. Such preventive
safety measures reduce the risk
of starting the tool unintentionally.
Turn off and detach the air supply
and safely discharge any residual
air pressure before leaving the work
area.
j. Store the tool when it is idle out of
reach of children and other un-
trained persons. A tool is dangerous
in the hands of untrained users.
k. Maintain the tool with care. Keep
tool clean. A properly maintained tool,
reduces the risk of binding and is
easier to control.
l. Check for misalignment or bind-
ing of moving parts, breakage of
parts, and any other condition that
affects the tool’s operation. If dam-
aged, have the tool serviced before
using. Many accidents are caused
by poorly maintained tools. There is a
risk of bursting if the tool is damaged.
m. Use only accessories that are
identied by the manufacturer for
the specic tool model. Use of an
accessory not intended for use with
the specic tool model, increases the
risk of injury to persons.
Service
a. Tool service must be performed
only by qualied repair personnel.
b. When servicing a tool, use only
identical replacement parts. Use
only authorized parts.
c. Use only the lubricants supplied
with the tool or specied by the
manufacturer.
Air source
a. Never connect to an air
source that is capable of
exceeding 120 PSI. Over
pressurizing the tool may
cause bursting, abnormal operation,
breakage of the tool or serious injury
to persons. Use only clean, dry,
regulated compressed air at the rated
pressure or within the rated pressure
range as marked on the tool (60 to
120 PSI). Always verify prior to using
the tool that the air source has been
adjusted to the rated air pressure or
within the rated air-pressure range.
b. Never use oxygen, carbon dioxide,
combustible gases or any bottled
gas as an air source for the tool.
Such gases are capable of explosion
and serious injury to persons.
SAVE THESE
INSTRUCTIONS.
Rev 09l

SKU 98917 For technical questions, please call 1-800-444-3353. Page 5

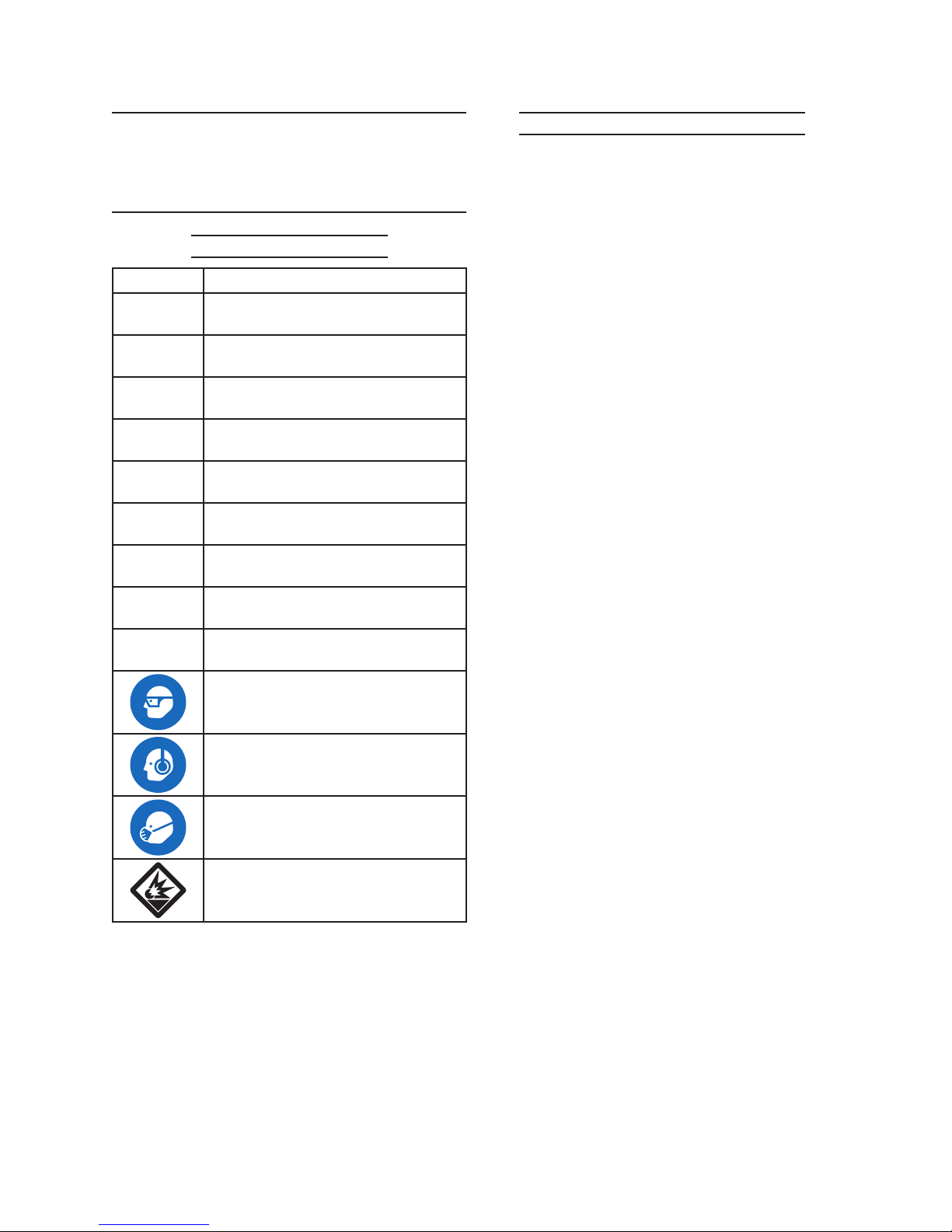

SYMBOLS AND
SPECIFIC SAFETY
INSTRUCTIONS
Symbol Denitions
Symbol Property or statement
noNo-load speed
.../min Revolutions or reciprocation per
minute
PSI Pounds per square inch of pressure
ft-lb Foot-pounds of torque
BPM Blows per minute
CFM Cubic Feet per Minute ow
SCFM Cubic Feet per Minute ow at
standard conditions
NPT National pipe thread, tapered
NPS National pipe thread, straight
WARNING marking concerning Risk
of Eye Injury. Wear ANSI-approved
eye protection.
WARNING marking concerning Risk
of Hearing Loss. Wear hearing
protection.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH-
approved dust mask/respirator.
WARNING marking concerning Risk
of Explosion.
Specic Safety Instructions
1. The warnings and precautions dis-
cussed in this manual cannot cover
all possible conditions and situations
that may occur. It must be under-
stood by the operator that common
sense and caution are factors which
cannot be built into this product, but
must be supplied by the operator.
2. WARNING: Some dust created by
power sanding, sawing, grinding, drill-
ing, and other construction activities,
contains chemicals known [to the
State of California] to cause cancer,
birth defects or other reproductive
harm. Some examples of these
chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and
cement or other masonry products
• Arsenic and chromium from chemi-
cally treated lumber
Your risk from these exposures var-
ies, depending on how often you do
this type of work. To reduce your
exposure to these chemicals: work in
a well ventilated area, and work with
approved safety equipment, such as
those dust masks that are specially
designed to lter out microscopic
particles. (California Health & Safety
Code § 25249.5, et seq.)
3. Take caution, as some woods contain
preservatives such as copper chro-
mium arsenate (CCA) which can be
toxic. When nailing these materials,
extra case should be taken to avoid
inhalation and minimize skin contact.
4. WARNING: The brass components
of this product contain lead, a chemi-
cal known to the State of California
to cause birth defects (or other repro-

SKU 98917 For technical questions, please call 1-800-444-3353. Page 6
ductive harm). (California Health &
Safety code § 25249.5, et seq.)
5. Only use with accessories rated to
handle forces exerted by tool during
operation. Other accessories not de-
signed for the forces generated may
break and forcefully launch pieces.
6. Attach all accessories properly to the
tool before connecting the air sup-
ply. A loose accessory may detach or
break during operation.
7. Obey the manual for the air compres-
sor used to power this tool.

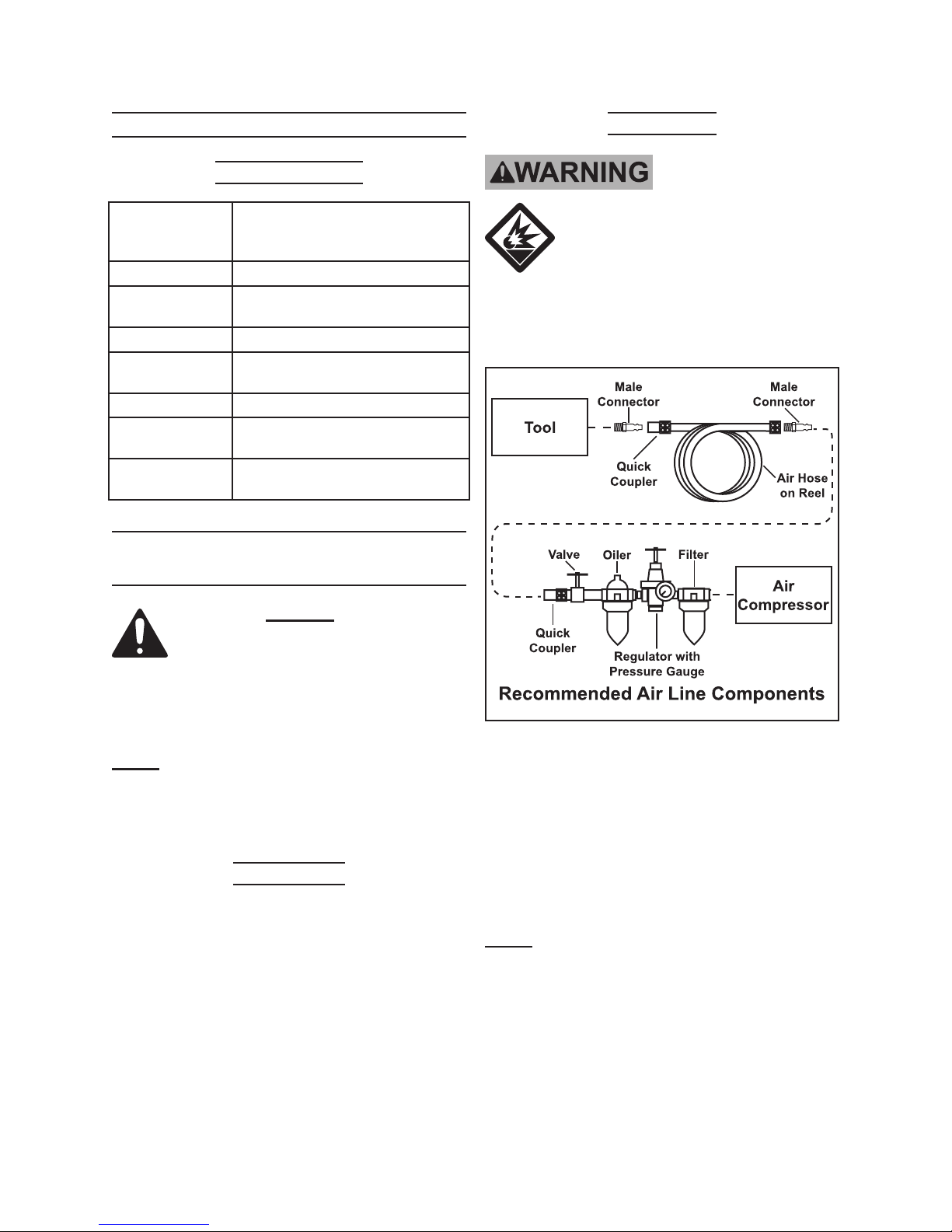

8. Install in-line shutoff valve to allow
immediate control over air supply in
emergency, even if hose is ruptured.
9. Do not lay tool down until it has com-
pletely stopped. Moving parts can
grab surface and lead to control loss.
10. The pressure setting must not exceed
the job site regulations/restrictions.
11. The pressure setting on any Nailer
should not exceed 90 PSI when
working with workpieces that have a
thickness of less than 1-3/4”.
Vibration Precautions
This tool vibrates during use. Re-
peated or long-term exposure to vibra-
tion may cause temporary or permanent
physical injury, particularly to the hands,
arms and shoulders. To reduce the risk of
vibration-related injury:
1. Anyone using vibrating tools regu-
larly or for an extended period should
rst be examined by a doctor and
then have regular medical check-
ups to ensure medical problems are
not being caused or worsened from
use. Pregnant women or people
who have impaired blood circulation
to the hand, past hand injuries, ner-
vous system disorders, diabetes, or
Raynaud’s Disease should not use
this tool. If you feel any medical or
physical symptoms related to vibra-
tion (such as tingling, numbness, and
white or blue ngers), seek medical
advice as soon as possible.
2. Do not smoke during use. Nico-
tine reduces the blood supply to the
hands and ngers, increasing the risk
of vibration-related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration
when there is a choice between dif-
ferent processes.
5. Include vibration-free periods each
day of work.
6. Grip tool as lightly as possible (while
still keeping safe control of it). Let
the tool do the work.
7. To reduce vibration, maintain tool as
explained in this manual. If abnormal
vibration occurs, stop immediately.
SAVE THESE
INSTRUCTIONS.

SKU 98917 For technical questions, please call 1-800-444-3353. Page 7
FUNCTIONAL DESCRIPTION
Specications
Working Air
Pressure
70-120 PSI
(Depending on nail length and
wood density)
Air Inlet 1/4” -18 NPT
Magazine
Capacity 90 Nails (Not Included)
Magazine Angle 28°
Air
Consumption
8 CFM @ 60 PSI
10 CFM @ 100 PSI
Safety Trigger Sequential
Fastener Type Paper-Collated Clip Head Nails
Wire-Collated Full Head Nails
Nail Type 0.113” to 0.131” Shank Dia.
2-3/16” to 3-9/16” L / 28° Angle
INITIAL TOOL SET UP/
ASSEMBLY
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Note: For additional information regarding
the parts listed in the following pages,
refer to the Assembly Diagram near
the end of this manual.
Unpacking
When unpacking, check to make sure
that the item is intact and undamaged. If
any parts are missing or broken, please
call Harbor Freight Tools at the number
shown throughout the manual as soon as
possible.
• This air tool may be shipped with a
protective plug covering the air inlet.
Remove this plug before set up.
Air Supply
TO PREVENT
EXPLOSION:
Use only clean, dry, regulated,
compressed air to power this
tool. Do not use oxygen,
carbon dioxide, combustible
gases, or any other bottled
gas as a power source for this
tool.
1. Incorporate an in-line oiler, shut-off
valve, regulator with pressure gauge,
and lter for best service, as shown in
the diagram above. An in-line shut-
off valve is an important safety
device because it controls the air
supply even if the air hose is rup-
tured.
Note: If an automatic oiler system is not
used, add a few drops of Pneumatic
Tool Oil to the airline connection be-
fore operation. Add a few more drops
after each hour of continual use.
2. Attach an air hose to the compres-
sor’s air outlet. Connect the air hose
to the air inlet of the tool. Other com-
Rev 09l

SKU 98917 For technical questions, please call 1-800-444-3353. Page 8
ponents, such as a connector and
quick coupler, will make operation
more efcient, but are not required.
WARNING! TO PREVENT SERIOUS
INJURY FROM ACCIDENTAL
OPERATION:
Do not install a female quick
coupler on the tool. Such a coupler
contains an air valve that will allow
the air tool to retain pressure and
operate accidentally after the air
supply is disconnected.
Note: Air ow, and therefore tool perfor-
mance, can be hindered by under-
sized air supply components.
3. The air hose must be long enough
to reach the work area with enough
extra length to allow free movement
while working.
4. Close the in-line safety valve be-
tween the compressor and the tool.
5. Turn on the air compressor according
to the manufacturer’s directions and
allow it to build up pressure until it
cycles off.
6. Adjust the air compressor’s output
regulator so that the air output is
enough to properly power the tool,
but the output will not exceed the
tool’s maximum air pressure at any
time. Adjust the pressure gradually,
while checking the air output gauge
to set the right pressure range.
7. Inspect the air connections for leaks.
Repair any leaks found.
8. If the tool will not be used at this time,
turn off and detach the air supply
and safely discharge any residual air
pressure.
Note: Residual air pressure should not be
present after the tool is disconnected
from the air supply. However, it is a
good safety measure to attempt to
discharge the tool in a safe fashion
after disconnecting to ensure that the
tool is disconnected and unpowered.
To Attach An Air Connector:
1. Attach a 1/4” Connector (not
included) to the Air Plug (83) prior to
operation.
2. Wrap about 3” of pipe thread seal
tape (not included) onto threads of
the Connector before attaching it to
the Air Plug.

SKU 98917 For technical questions, please call 1-800-444-3353. Page 9
OPERATING INSTRUCTIONS
Read the ENTIRE IMPORTANT
SAFETY INFORMATION
section at the beginning of this
manual including all text under
subheadings therein before set
up or use of this product.
Inspect tool before use, looking
for damaged, loose, and
missing parts. If any problems
are found, do not use tool until
repaired.
TESTING THE FULL SEQUENTIAL
SAFETY TRIP MECHANISM
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION: Detach the air
supply, safely discharge any
residual air pressure in the
tool, and release the throttle
and/or turn the switch to its
off position before performing
any inspection, maintenance,
or cleaning procedures.
TO PREVENT SERIOUS
INJURY: Do not adjust or
tamper with any control or
component in a way not
specically explained within
this manual. Improper
adjustment can result in
tool failure or other serious
hazards.
1. WARNING! Even though the Nailer
should be empty during this proce-
dure, ALWAYS point the Nailer at a
piece of scrap wood when testing.
2. Make sure the tool is disconnected
from its air supply.
3. Completely empty the Magazine (71)
of Nails.
4. The Nailer should not re if the Nose
Safety Guide (42) is not depressed
against the workpiece.
5. Make sure the Trigger (56) and Nose
Safety Guide move freely, without
sticking.
6. Connect the air supply to the tool at
the Air Plug (83). Do not exceed the
maximum 120 PSI.
7. Test the tool by depressing the Nose
Safety Guide against the workpiece
without pulling the Trigger. The tool
must not cycle (re). If it cycles
(res), stop immediately and have it
repaired by a qualied service techni-
cian.
8. Hold the tool away or off the work-
piece in a safe direction. The Nose
Safety Guide should return to its
original position. Squeeze the Trig-
ger. The tool should not cycle
(re). If the tool cycles (res), stop
immediately and have it repaired by a
qualied service technician.
9. Depress the Nose Safety Guide
against the workpiece and squeeze
the Trigger. The tool must cycle
(re) only once. Release the Trigger
and squeeze it again. The tool must
not cycle (re). With the Trigger
held, carefully lift the Nailer and press
it against the workpiece again. The
tool must not cycle (re). If it fails
to perform in the manner explained in
bold, have it repaired by a qualied
service technician.
Rev 09l

SKU 98917 For technical questions, please call 1-800-444-3353. Page 10
Loading Nails:
1. WARNING! Always wear ANSI-
approved safety goggles
when reloading or performing
any other maintenance on Nailer.
Other people in the work area must
also wear ANSI-approved safety
goggles.
2. WARNING! Make sure Nailer is not
attached to the air hose when load-
ing tool.
3. Note: This Nailer only uses 28°
paper-collated clip head nails and
wire collated full head nails.
4. Pull the Feeder Shoe (69) all the way
to the rear until it latches.
5. Orient a strip of Nails (not included)
with tips down and drop the Nails into
the Magazine (71).
6. Slide the Nails forward in the Maga-
zine. The Magazine will hold 90
Nails.
7. Pull Feeder Shoe backward and then
press Lock (75) to allow Feeder Shoe
to slide forward against the Nails.
Operating Nailer
1. Attach the Nailer to the air supply at
the Air Plug (83).
2. Start your compressor and check the
pressure, making sure you do not
exceed the maximum 120 PSI.
3. Rotate the Exhaust Cover (4) so that
the exhaust air blast will be directed
away from the operator.
4. To re, place the Nose Safety Guide
(42) of the Nailer on the workpiece.
The Nailer should not re if the Nose
is not depressed.
5. Once depressed, gently and briey
squeeze the Trigger (56) once; one
Nail will be red.
6. Do not press the Nose against the
workpiece with extra force. Allow the
tool to do the work. Always allow the
tool to recoil off the work surface.
7. When nished using the Nailer,
always disconnect the tool from its
air supply. Empty the Magazine (71)
completely of Nails.
8. Attempt to re the Nailer into a piece
of scrap wood to ensure it is discon-
nected and is incapable of ring any
Nails.
9. Make sure to store the Nailer in a
clean, dry, safe location out of reach
of children.
Nose Safety Guide (42)
Trigger (56)
Feeder Shoe (69)
Magazine
(71)
INSERT NAILS
HERE
Rev 09l

SKU 98917 For technical questions, please call 1-800-444-3353. Page 11
Clearing Jams
WARNING! Anytime any
maintenance or repairs are
done (including clearing
jams), wear ANSI-approved
safety goggles and appropriate
hearing protection. THEN:
1. Disconnect the Framing Nailer
from its air supply.
2. Empty Magazine (71) completely.
3. Try to re the Nailer into a piece of
scrap wood or ooring to ensure
that it is disconnected and inca-
pable of ring any nails.
4. Always leave Magazine open dur-
ing maintenance. The Magazine
is spring-loaded, and may cause
parts or a Nail to y out of Nailer.
5. Occasionally, a nail may become
jammed in ring mechanism of the
Nailer, making the tool inoperable.
6. To remove a jammed nail, disconnect
the tool from its air supply and empty
the Magazine completely of nails.
7. Attempt to re Nailer into piece of
scrap wood to ensure it is
disconnected and incapable of ring.
8. Use a pair of needle nose pliers to
remove a jammed nail from back of
Nose (30). If a jammed nail cannot
be removed as described, it may be
necessary to disassemble the Maga-
zine as follows:
CAUTION! If you are not clear about
how to remove and re-assemble the
Magazine to clear a jammed nail,
have a qualied service technician
perform this procedure.
9. Remove the Screw (35) from each
side of the Magazine. (One on each
Magazine side.) Remove the two
Nuts (74).
10. Slide Magazine back, off of the Nose.
11. After clearing the jammed nail, re-
assemble Nailer Magazine in reverse
order.
12. CAUTION! Make sure the Nose (30)
moves freely.
13. Reload the Nailer with Nails. Then
reconnect the air supply to tool.
14. Press Nose Safety Guide (42) against
a piece of scrap wood and test re
Nailer several times while check-
ing for operation. If the Nailer fails to
perform properly, immediately discon-
tinue use and have tool repaired by
qualied service technician.
15. When nished working, disconnect
the air supply. Remove the Nails.
Then, store the Nailer in a clean, dry,
safe location out of reach of children.
Anytime any maintenance or re-
pairs are done, FIRST:
1. Disconnect the Floor Nailer from
its air supply.
2. Empty the Magazine (71) com-
pletely.
3. Try to re the Nailer into a piece
of scrap wood or ooring to en-
sure that it is disconnected and
incapable of ring any nails.
4. Always leave Magazine open dur-
ing maintenance. The Magazine
is spring-loaded, and may cause
parts or a Nail to y out of Nailer.

SKU 98917 For technical questions, please call 1-800-444-3353. Page 12
USER-MAINTENANCE
INSTRUCTIONS
Procedures not specically
explained in this manual
must be performed only by a
qualied technician.
TO PREVENT
SERIOUS INJURY
FROM ACCIDENTAL
OPERATION:
Turn off the tool, detach the
air supply, safely discharge
any residual air pressure in
the tool, and release the
Trigger before performing any
inspection, maintenance, or
cleaning procedures.
TO PREVENT SERIOUS
INJURY FROM TOOL
FAILURE:
Do not use damaged
equipment. If abnormal
noise, vibration, or leaking
air occurs, have the problem
corrected before further use.
Cleaning, Maintenance, and
Lubrication
Note: Anytime inspection, maintenance
and cleaning are done:
1. Disconnect the Floor Nailer from
its air supply.
2. Empty the Magazine (71) complete-
ly.
3. Try to re the Nailer into a piece of
scrap wood or ooring to ensure
that it is disconnected and inca-
pable of ring any nails/staples.
4. Inspect the air supply screen located
in the End Cap (82) before each use.
Clean or replace as necessary. Dirt
in the air supply is a major cause of
pneumatic tool wear. Use a lter in
the compressed air system for better
performance and longer tool life. The
lter must have adequate ow capac-
ity for the specic application.
5. Clean the external parts of the Nailer
with a clean cloth and mild detergent
or non-ammable solvent. Then dry.
6. Store in a clean, dry and safe location
out of reach of children.
All maintenance, service or repairs
not listed in this manual are only
to be attempted by a qualied ser-
vice technician.
Record Product’s Serial Number
Here:
Note: If product has no serial number,
record month and year of purchase
instead.
Note: Some parts are listed and shown for
illustration purposes only, and are not
available individually as replacement
parts.

SKU 98917 For technical questions, please call 1-800-444-3353. Page 13
Troubleshooting
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect air supply before service.
Problem Possible Solution
Air leak near top of tool. 1. Tighten all screws on the cylinder cap. (See Assy. Diagram.)
2. Have a qualied service technician install a head valve piston set.
Tool does not work. 1. Check all air connections for leaks.
2. Make sure to fully depress the nose of the workpiece when
attempting to re a nail.
3. Check for nail jams. Clear the jam if necessary.
4. Have a qualied service technician check out the tool.
Sluggish operation. 1. Make sure the compressor regulator is set below 120 PSI. Make
sure the compressor used produces sufcient C.F.M. to operate the
Nailer.
2. Check all air connections for leaks.
3. Have a qualied service technician install a head valve piston set.
Air leak near bottom of tool. 1. Tighten all screws.
2. Have a qualied service technician replace the bumper or head
valve piston set.
Poor return after ring tool. 1. Have a qualied service technician clean the interior of the tool and/
or replace the bumper or head valve piston set.
Weak driving force. 1. Make sure the compressor regulator is set below 120 PSI.
2. Check all air connections for leaks.
3. Have a qualied service technician clean the interior of the tool
and/or replace the bumper or head valve piston set.
Poor feed. 1. Have a qualied service technician clean the interior of the tool
and/or lubricate the magazine and install a new magazine spring.
Tool jamming too often. 1. Have a qualied service technician clean the interior of the tool
and/or lubricate the magazine and install a new magazine spring.
Other problems. 1. Have a qualied service technician check out the tool.
Follow all safety precautions whenever diagnosing or servicing the
tool. Disconnect air supply before service.
Rev 09l

SKU 98917 For technical questions, please call 1-800-444-3353. Page 14
PARTS LIST
Part Description
1 Screw (M5 x 20)
2 Spring Washer (Ø 5)
3 Bushing
4 Exhaust Cover
5 Seal
6 Screw (M6 x 30)
7 Spring Washer (Ø 6)
8A Cylinder Cap
9A O-Ring sealing
10 Washer
11 Valve Seat
12 Spring
13 O-Ring (57.5 x 2.6)
14 O-Ring (72.4 x 3.5)
15 Valve
16 Screw (M6 x 8)
17 Cylinder Seal
18 Collar
19 O-Ring (54.4 x 4)
20 Piston Assembly
21 Cylinder
22 O-Ring (67 x 3)
23 O-Ring (60.25 x s.5)
24 Restrictive Plate
25 O-Ring (97.5 x 3.5)
26 Bumper A
27 Bumper B
28 Body
29 O-Ring (62.3 x 1.8)
30 Nose
31 Spring Washer (Ø 8)
32 Screw (M8 x 25)
33 Spring
34 Safe Bracket A
35 Screw (M5 x 12)
36 Bushing
37 Safe Bracket B
38 Washer
39 Screw (M5 x 10)
40 Rubber Cover
41 Spring Pin
42 Nose Safety Guide
PARTS LIST
Part Description
43 O-Ring (20.3 x 2.5)
44 O-Ring (20.3 x 1.5)
45 Valve Set
46 O-Ring (9.5 x 1.9)
47 O-Ring (10.3 x 1.9)
48A Trigger Valve Head
49 O-Ring (12.8 x 1.9)
50 Spring
51 O-Ring (5.5 x 1.5)
52 Trigger Valve Stem
53 O-Ring (24.8 x 2)
54 Trigger Valve Guide
55 Spring
56 Trigger
57 Seal
58 Pin
59 Rail
60 Washer (Ø 5)
61 Nut (M4)
62 Spring Washer (Ø 5)
63 Coil Spring Assembly
64 Pin
65 Bushing
66 Screw (M4 x 8)
67 Block
68 Spring Washer (Ø 4)
69 Feeder Shoe
70 Screw (M5 x 16)
71 Magazine
72 Screw (M4 x 16)
73 Support
74 Nut (M5)
75 Lock
76 Torsion Spring
77 Bushing
78 Nut (M4)
79 Nut (M6)
80 Soft Grip Sleeve
81 O-Ring (65.4 x 2.5)
82 End Cap
83 Air Plug
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN
THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY
REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS
TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE
MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD
BE UNDERTAKEN BY CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL
RISK AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
REV 09g

SKU 98917 For technical questions, please call 1-800-444-3353. Page 15
ASSEMBLY DIAGRAM
NOTE:
Some parts are listed and show for illustration purposes only, and are not available individually as
replacement parts.
REV 09g

SKU 98917 For technical questions, please call 1-800-444-3353. Page 16
90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality
and durability standards, and warrants to the original purchaser that this product is free
from defects in materials and workmanship for the period of 90 days from the date of
purchase. This warranty does not apply to damage due directly or indirectly, to misuse,
abuse, negligence or accidents, repairs or alterations outside our facilities, criminal ac-
tivity, improper installation, normal wear and tear, or to lack of maintenance. We shall in
no event be liable for death, injuries to persons or property, or for incidental, contingent,
special or consequential damages arising from the use of our product. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY
IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE
WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with
transportation charges prepaid. Proof of purchase date and an explanation of the com-
plaint must accompany the merchandise. If our inspection veries the defect, we will ei-
ther repair or replace the product at our election or we may elect to refund the purchase
price if we cannot readily and quickly provide you with a replacement. We will return re-
paired products at our expense, but if we determine there is no defect, or that the defect
resulted from causes not within the scope of our warranty, then you must bear the cost
of returning the product.
This warranty gives you specic legal rights and you may also have other rights which
vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
