CENTURION SYSTEMS R6 User manual

page 1 www.centsys.com
Centurion Systems (Pty) Ltd
www.centsys.com
R6 SWING GATE
INSTALLATION MANUAL
SWING GATE OPERATORS

page 2 www.centsys.com
After-sales
multi-language
Technical Support
Manufactures to
international
quality standard
ISO 9001:2015
100%
testing of
products
In-house
R&D
development
team
Centurion Systems (Pty) Ltd reserves the right to make changes to the product described in this
manual without notice and without obligation to notify any persons of any such revisions or changes.
Additionally, Centurion Systems (Pty) Ltd makes no representations or warranties with respect to
this manual. No part of this document may be copied, stored in a retrieval system or transmitted in any
form or by any means electronic, mechanical, optical or photographic, without the express prior written
consent of Centurion Systems (Pty) Ltd.
1986 1990 1995 1999 Today
Sales and technical support
to Africa, Europe, Asia,
the Americas, Australia
and the Pacic
Call Centre Operating Times
Monday to Friday
08h00 to 17h00 GMT+2
Saturdays
08h00 to 14h00 GMT+2
Company Prole
ISO 9001:2015

page 3 www.centsys.com
Contents
1. INTRODUCTION
1.1. Important Safety Information
1.2. Lightning Protection
2. SPECIFICATIONS
2.1. Physical Dimensions
2.2. Technical Specications
2.2.1. GateSpecications
3. PRODUCT IDENTIFICATION

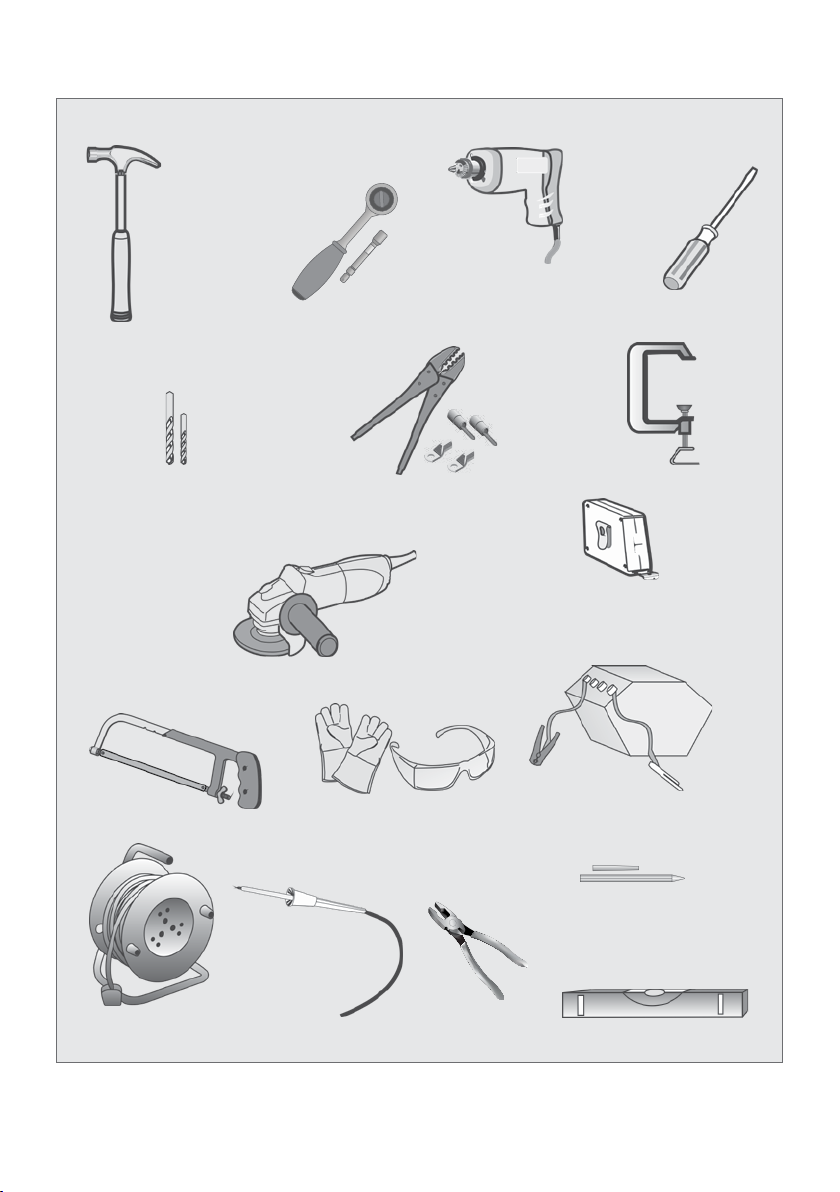

4. REQUIRED TOOLS AND EQUIPMENT
5. NEW SITE INSTALLATION PREPARATION
5.1. General Considerations for the Installation
5.2. Cabling Requirements
6. OPERATOR INSTALLATION
6.1. Simplied Pedestal Mounting Position
6.2. Mounting the Control Box
6.3. Standard Pedestal Positioning (Gate Inward Opening)
6.3.1. Pedestal Positioning (Gate Inward Opening)
6.4. Wall Mount Pedestals (Gate Inward Opening)
7. ELECTRICAL CONNECTIONS
7.1. CP77 Controller
7.2. Motor and Limit Switch Connections
7.3. Radio Connections
7.4. Intercom Connections
7.5. Solenoid Lock
7.6. Magnetic Lock
7.7. Infrared Beams
7.8. Closing Infrared Beams (Photon Infrared Beams)
7.9. Pedestrian Keyswitch
7.10. Holiday Lockout
7.11. Free-Exit Loop
Page 5
Page 6
Page 7
Page 8
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 13
Page 14
Page 15
Page 15
Page 16
Page 16
Page 17
Page 24
Page 28
Page 28
Page 29
Page 30
Page 31
Page 32
Page 32
Page 33
Page 33
Page 34
Page 35
Page 36

page 4 www.centsys.com
7.12. Remote Autoclose Switch
7.13. Status LED
7.14. Pillar Lights
7.15. Remote Pillar Light Control
7.16. Battery Charger Transformer Supply
7.16.1 Option 1
7.16.2 Option 2
7.17. Solar Panel
7.18. Light Industrial and Industrial Harness Connection
7.19. Earthing For Lightning Protection
8. COMMISSIONING
8.1. Control Card Setup
8.1.1. CP77 Controller
8.2. Connecting the Battery
8.3. R6 Limit Setup
8.4. Collision Sensing Adjustment
9. INSTALLATION HANDOVER
10. WARRANTY INFORMATION
Page 36
Page 37
Page 38
Page 38
Page 39
Page 39
Page 39
Page 40
Page 41
Page 41
Page 42
Page 42
Page 42
Page 43
Page 43
Page 45
Page 46
Page 47
CONTENTS

page 5 www.centsys.com
INTRODUCTIONSECTION 1
1. Introduction
The R6 rotary swing gate system is designed to open and close swing gates. The CP77
controlleriscapableofhandlingbothsingleanddoubleswinggatesandoersmanyfeatures
to suit almost any application.
The unit employs a battery-driven DC motor for low-duty domestic applications, which
provides automatic backup protection in the event of a power failure. The unit can also be
ttedwithahigh-dutypowersupplyinadditiontothebatterytoallowformorefrequent
operation of the gate.
TheR6isttedwithaninternalelectroniclimitswitchsystem,whichprovidesreliableand
accurate positioning of the gate. This system allows the operator to smoothly slow the gate
down at the fully-open or -closed positions.
A fail-safe and highly reliable collision sensing system is built into the controller, which will
cause the motor to stop while the gate is opening, and stop and reverse when closing the
gate is obstructed in any way.
Gate movement is transmitted to the gate by means of articulated arms.
Icons used in this manual
This icon indicates tips and other information that could be useful during the
installation.
This icon denotes variations and other aspects that should be considered during
installation.
This icon indicates warning, caution or attention! Please take special
note of critical aspects that MUST be adhered to in order to prevent
injury.

page 6 www.centsys.com
1.1. Important Safety Information
ATTENTION!
To ensure the safety of people and possessions, it is important that
you read all of the following instructions.
Incorrect installation or incorrect use of the product could cause
serious harm to people.
The installer, being either professional or DIY, is the last person on
the site who must ensure that the operator is safely installed and
that the whole system can be operated safely.
INTRODUCTIONSECTION 1
Warnings for the Installer
CAREFULLY READ AND FOLLOW ALL INSTRUCTIONS before installing the
product.
• All installation, repair, and service work to this product must be carried out by a
suitably-qualiedperson
• This operator is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety
• Do not activate your gate unless it is in view and you can determine that its area of
travel is clear of people, pets, or other obstructions
• NO ONE MAY CROSS THE PATH OF A MOVING GATE —
always keep people and objects away from the gate and its area of travel
• NEVER LET CHILDREN OPERATE OR PLAY WITH THE GATE CONTROLS
• Secure all easily-accessed gate opener controls in order to prevent unauthorised use
of the gate
• Do not in any way modify the components of the automated system
• Donotinstalltheequipmentinanexplosiveatmosphere:thepresenceofammable
gases or fumes is a serious danger to safety
• Beforeattemptinganyworkonthesystem,turnoelectricalpowertotheoperator
and disconnect the batteries
• TheMainspowersupplyoftheautomatedsystemmustbettedwithanall-pole
switch with contact opening distance of 3mm or greater; use of a 5A hydraulic
breaker with all-pole circuit breaker is recommended
• Makesurethatanearthleakagecircuitbreakerwithathresholdof30mAistted
upstream of the system
• Never short-circuit the battery and do not attempt to recharge the batteries with
power supply units other than that supplied with the product, or manufactured by
Centurion Systems (Pty) Ltd

page 7 www.centsys.com
INTRODUCTIONSECTION 1
• Make sure that the earthing system is correctly constructed and that all metal parts of
the system are suitably earthed
• Safetydevicesmustbettedtotheinstallationtoguardagainstmechanical
movement risks such as crushing, dragging and shearing
• Alwaystthewarningsignsvisiblytotheinsideandoutsideofthegate
• The installer must explain and demonstrate the manual operation of the gate in case
of an emergency and must hand over the User Guide/Warnings to the user
• The installer must explain these safety instructions to all persons authorised to use
this gate, and be sure that they understand the hazards associated with automated
gates
• Do not leave packing materials (plastic, polystyrene, etc.) within reach of children as
such materials are potential sources of danger
• Dispose of all waste products like packing materials, worn-out batteries, etc.,
according to local regulations
• Always check the obstruction detection system, and safety devices for correct
operation
• Neither Centurion Systems (Pty) Ltd, nor its subsidiaries, accepts any liability caused
by improper use of the product, or for use other than that for which the automated
system was intended
• This product was designed and built strictly for the use indicated in this
documentation; any other use, not expressly indicated here, could compromise the
service life/operation of the product and/or be a source of danger
• Everythingnotexpresslyspeciedintheseinstructionsisnotpermitted
WARNING! WARNING! WARNING! WARNING! WARNING!
MOVING GATE CAN CAUSE SERIOUS INJURY OR DEATH!
KEEP CLEAR! GATE MAY MOVE AT ANY TIME!
DO NOT ALLOW CHILDREN TO OPERATE THE GATE OR PLAY IN THE
NEAR VICINITY OF THE GATE.
KEEP CLEAR!
GATE MAY MOVE AT ANY TIME!
SAFETY
FIRST
The electronic controller utilises the same proven surge protection philosophy that is
used in all our products. While this does not guarantee that the unit will not be damaged
in the event of a lightning strike or power surge, it greatly reduces the likelihood of such
damage occurring. The earth return for the surge protection is provided via the mains
power supply earth and/or earth spike located next to the operator.
1.2. Lightning Protection
In order to ensure that the surge protection is eective, it is essential
that the unit is properly earthed.

page 8 www.centsys.com
SPECIFICATIONSSECTION 2
2. Specications
2.1. Physical Dimensions
FIGURE 1. R6 PHYSICAL DIMENSIONS
337mm220mm
102mm110mm
229mm85mm
110mm
110mm
220mm
DRIVE ARMS
500mm
400mm
250mm

page 9 www.centsys.com
2.2. Technical Specications
R6
Input Voltage
CP13E CP84SM
220V - 240V AC
+/-10% @ 50Hz1
90V - 240V AC
+/-10% @ 50Hz1
Motor Voltage 12V DC
Current Consumption
(mains)
CP13E - 80mA
CP84SM - 170mA
Maximum DC Current Draw 16A
Maximum Output Torque
Standard-torque
operator 300Nm
High-torque
operator 390Nm
Power Supply
Domestic 0.8A CP13E, 7.2Ah Battery
Light-industrial 1.8A CP84SM, 7.2Ah Battery
Industrial 1.8A CP84SM, 33Ah Battery
Maximum Daily Operations
DL = Double Leaf
SL = Single Leaf
Mains present Back-up2
DL SL DL SL
Domestic 20 30 20 30
Light-industrial 250 250 40 60
Industrial 250 250 250 250
Maximum Daily
Continuous Operations
DL = Double Leaf
SL = Single Leaf
Mains present
DL SL
Domestic 20 30
Light-industrial 50 50
Industrial 100 100
Typical Gate Operating
Time
Standard-torque
operator 12s
High-torque
operator 15s
Mass of Motor Kit3
(excluding pedestal or wall
bracket)
15kg
Collision Sensitivity Electronic - Adjustable
Temperature Range -15°C to +50°C
Housing Protection IP55
Packaging Dimensions 255mm wide x 375mm deep x 320mm high
TABLE 1
SPECIFICATIONSSECTION 2
1. Canoperateoasolarsupply,pleaseconsultCenturionSystems(Pty)Ltdforassistance.
2. These values are based on fully charged batteries, derate accordingly based on connected ancillaries.
3. The weight of an operator kit (regardless of Master or Slave).

page 10 www.centsys.com
R6 Standard-Torque Operator
Gate Length (m) 1.5 2 2.5 323.52424.5252
Gate Height (m) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
Max Mass (Kg) 500 500 480 330 240 185 145 120
Allowable Wind
Speed for 25%
Clad (Km/h)1
114 84.7 67.3 56.9 49.2 43.2 38.6 34.8
Allowable Wind
Speed for 100%
Clad (Km/h)1
57 42.4 33.6 28.5 24.6 21.6 19.3 17.4
R6 High-Torque Operator
Gate Length (m) 1.5 2 2.5 323.52424.5252
Gate Height (m) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.8
Max Mass (Kg) 750 750 620 430 315 240 190 155
Allowable Wind
Speed for 25%
Clad (Km/h)1
128.4 95 76.3 64.6 55.9 49.2 43.9 39.6
Allowable Wind
Speed for 100%
Clad (Km/h)1
64.2 47.5 38.1 32.3 27.9 24.6 21.9 19.8
TABLE 2
TABLE 3
SPECIFICATIONSSECTION 2
2.2.1. Gate Specications
1. No wind opening time ~ 12s. Gate opening and closing times will increase as wind speed increases.
2. Fit an electric gate lock if the leaf width is greater than 3 metres.
1. No wind opening time ~ 15s. Gate opening and closing times will increase as wind speed increases.
2. Fit an electric gate lock if the leaf width is greater than 3 metres.

page 11 www.centsys.com
PRODUCT IDENTIFICATIONSECTION 3
3. Product Identication
FIGURE 2. PRODUCT IDENTIFICATION - R6
15
3
2
114
4
2
16
5
17
24
18 19 20 21
22
23
13
1. Pedestal Adapter
2. M8x16 Button Head Bolt
3. M10x20 Bolt
4. Wall Mount Pedestal
5. Pedestal
6. Electrical Connection Block
7. Base Plate
8. Limit Switch
9. 08B Drive Chain
10. Limit Arm
11. 12V DC Electric Motor
12. Keys
13. Cover
14. M8 Washer
15. Drive Arm
16. M8 Washer (x4)
17. M8 Nut (x2)
18. Connecting Arm
19. Connecting Arm Bush (Bottom)
20. Padlock and Key
21. Gate Bracket
22. Connecting Arm Bush (Top)
23. Clevis Pin
24. M8x50 Socket Head Cap Screw (x2)
DRIVE AND CONNECTING ARM ASSEMBLY
87 9
6
12
11
10

page 12 www.centsys.com
REQUIRED TOOLS AND EQUIPMENTSECTION 4
4. Required Tools and Equipment
FIGURE 3. REQUIRED TOOLS AND EQUIPMENT
Ratchet and
Socket set
(13mm and 17mm)
with extensions
Crimping tool
and Pin lugs
Steel and Masonry
Drill bits
Angle grinder
Hacksaw
Spirit level
Marking
pen/chalk
Extension cord
Soldering
iron
Safety equipment
(goggles, gloves, etc.)
Welding machine
(including consumables)
and safety equipment
Measuring
tape
G-clamps
(x2)
Electric Drill
Screwdrivers
6mm Phillips
3.5mm Flat
Hammer
Pliers

page 13 www.centsys.com
NEW SITE INSTALLATION PREPARATIONSECTION 5
5. New Site Installation Preparation
5.1. General Considerations for the Installation
Itisalwaysrecommendedtotadditionalsafetyequipmentsuchassafetyedgesand
safety beams, for additional protection against entrapment or other mechanical risks.
Check that no pipes or electrical cables are in the way of the intended installation.
Check that enough space is available for the gate operator.
Check for loose, sandy soil if installing the operator on a pedestal, as the soil
conditionmayrequirealargerfoundation.
Neverttheoperatorontheoutsideofthegate,wherethepublichasaccesstoit.
Install the gate operator only if:
• It will not pose a hazard to the public
• Thereissucientclearancetoaroadwayand/orpublicthoroughfares
• Theinstallationmeetsallmunicipaland/orlocalauthorityrequirementsoncecompleted
• Thegatemassandapplicationarewithintheoperatorspecications
• Thegateisingoodworkingorder,meaning:
• that it opens and closes freely;
• does not move on its own if left in any position;
• itcanbeinstalledtohavesucientclearancebetweenmovingpartswhen
opening and closing to reduce the risk of personal injury and entrapment;
• Pushbuttonsorkey-switches,whenrequired,canbepositionedsothatthegateisin
line-of-sight of the user

page 14 www.centsys.com
5.2. Cabling Requirements
NEW SITE INSTALLATION PREPARATIONSECTION 5
1
10
12
11
14
4
5
8
7
Legend
1. MAINS SUPPLY CABLE:90V - 240V AC mains cable via double-pole mains
isolator-switch (3 core L.N.E. 1.5mm2SWA)1,2 OR
15V AC TRANSFORMER SECONDARY (3 core L.N.E. 1.5mm2Cabtyre in Conduit)
2. Master Motor (Motor) (3 core 2.5mm2G.P. in Conduit or Norsk) AND
Master Motor (Limit Switch) (3 core 0.2mm2Intercom/Cabtyre/G.P. in Conduit)
3. Optional Slave Motor (Motor) (3 core 2.5mm2G.P. in Conduit or Norsk) AND
Slave Motor (Limit Switch) (3 core 0.2mm2Intercom/Cabtyre/G.P. in Conduit)
4. Optional intercom cable from motor to dwelling (n1 + 6 core30.22mm2multi-strand
shielded cable)
5. Optional intercom cable from motor to entry panel (n2 0.22mm2multi-strand shielded
cable)
6. Optional but recommended infrared safety beams (3 core 0.22mm2multi-stranded)4
7. Optional access control device (3 core 0.22mm2multi-stranded)
8. Optional pedestrian key-switch (2 core 0.22mm2multi-stranded) OR
9. Optional keypad (3 core 0.22mm2multi-stranded)4
10. Optional external radio receiver (3 core 0.22mm2multi-stranded)5
11. Optional pillar lights(3coreLNESWA,sizeaccordingtopowerrequirements)6
12. Optional ground loop for free-exit (1 core 0.5mm2multi-stranded – silicone coated)7
13. Optional solenoid strike8(2 core 0.5mm2cable (ripcord) or G.P. in Conduit)
14. Optional solar panel (2 core 1.5mm2Cabtyre or G.P. in Conduit)
n1meansthenumberofcoresrequiredbyanintercom.
n2meansthenumberofcoresrequiredbyanintercom.
1. Possibly increase cable thickness if pillar lights are installed.
2. Type of cable must adhere to municipal bylaws but typically SWA (steel wire armoured) cable is recommended.
The armouring provides excellent screening, which gives better protection against lightning – earth one end of the screening).
3. Allows for all features such as pedestrian opening, status LED, etc., to be operated from the intercom handset inside the dwelling.
Number of cores and type of cable could vary depending on brand of access control system being used.
4. Wireless accessories are available. Please refer to www.censys.com for further information.
5. For optimum range, an external receiver can be mounted on the wall.
6. Requiresanexternalrelay.
7. Consultmanufacturerofloopdetectorforspecicdetails.
8. For distances greater than 5m, use cable with a thickness of at least 1mm².
For distances greater than 10m, use cable with a thickness of 1.5mm².
FIGURE 4. CABLING REQUIREMENTS
13 6
69
11
2
3

page 15 www.centsys.com
OPERATOR INSTALLATIONSECTION 6
6. Operator Installation
6.1. Simplied Pedestal Mounting Position
Thesetablescanbeusedasaquickalternativetothesetupproceduresshown
on pages 16 to 23.
GATE OPEN ANGLE = 90°
Arm Length A B C
250 235 385 354
400 340 700 565
500 410 915 705
GATE OPEN ANGLE = 100°
Arm Length A B C
250 300 325 320
400 440 615 520
500 540 810 650
GATE OPEN ANGLE = 110°
Arm Length A B C
250 360 265 300
400 540 525 485
500 670 700 605
TABLE 4
FIGURE 5
1. All dimensions shown in millimetres.
2. All dimensions referenced to hinge point.
3. Gate thickness assumed to be 40mm.
4. Distance depends on pillar size. Check carefully before installation.
Pillar
Pedestal
Gearbox
cover
Drive arm
GATE CLOSED
GATE OPEN
Hinge point
Gate open
angle
B
40mm
Seee notes
See Note 4
A C
Gate
bracket

page 16 www.centsys.com
6.2. Mounting the Control Box
1. Remove chassis plate.
2. Mount enclosure to wall.
3. Drill cable entry holes.
4. Replace chassis plate and wire
equipment.
5. Use cable glands to protect the
cables passing through the box.
Control Box preferably
mounted at eye level.
6.3. Standard Pedestal Positioning (Gate Inward Opening)
Step 1
Measure 1 metre along gate and
mark “S1” on the ground.
FIGURE 7. DETERMINE GATE OPENING ANGLE
FIGURE 6. MOUNTING CONTROL BOX
1 Metre
S1
Control
box
OPERATOR INSTALLATIONSECTION 6
CONTROL BOX

page 17 www.centsys.com
Step 2
Swing the gate to the desired
opening position (70 - 120 degrees)
and make the second mark “S2” on
the ground.
Step 3
Measure the distance “Z”, between
“S1” & “S2” in mm, then using “Z”,
look up gate opening Angle and
dimension C for size of Drive Arm
supplied (see Table 5).
FIGURE 8
S1
S2
Z
6.3.1. Pedestal Positioning (Gate Inward Opening)
ZGATE OPENING
ANGLE
DIMENSION C FOR DRIVE ARMS
250mm 400mm 500mm
1147 70° 436 697 872
1161 71° 431 689 861
1176 72° 425 681 851
1190 73° 420 672 841
1204 74° 415 665 831
1218 75° 411 657 821
1231 76° 406 650 812
1245 77° 402 643 803
1259 78° 397 636 795
1272 79° 393 629 786
1286 80° 389 622 778
1299 81° 385 616 770
1312 82° 381 610 762
1325 83° 377 604 755
1338 84° 374 598 747
TABLE 5
OPERATOR INSTALLATIONSECTION 6
Say “Z” is measured as
1482mm, then the closest
Z value in table = 1486mm.
Dimension “C” for a 400mm
Drive Arm is therefore
538mm.

page 18 www.centsys.com
1498 97° 334 534 668
1509 98° 331 530 663
1521 99° 329 526 658
1532 100° 326 522 653
1543 101° 324 518 648
1554 102° 322 515 643
1565 103° 319 511 639
1576 104° 317 508 635
1587 105° 315 504 630
1597 106° 313 501 626
1608 107° 311 498 622
1618 108° 309 494 618
1628 109° 307 491 614
1638 110° 305 488 610
1648 111° 303 485 607
ZGATE OPENING
ANGLE
DIMENSION C FOR DRIVE ARMS
250mm 400mm 500mm
1351 85° 370 592 740
1364 86° 367 587 733
1377 87.0 363 581 726
1389 88° 360 576 720
1402 89° 357 571 713
1414 90° 354 566 707
1426 91° 351 561 701
1439 92° 348 556 695
1451 93° 345 551 689
1463 94° 342 547 684
1475 95° 339 543 678
1486 96° 336 538 673
TABLE 5 CONTINUED
OPERATOR INSTALLATIONSECTION 6

page 19 www.centsys.com
ZGATE OPENING
ANGLE
DIMENSION C FOR DRIVE ARMS
250mm 400mm 500mm
1658 112° 302 482 603
1668 113° 300 480 600
1677 114° 298 477 596
1687 115° 296 474 593
1696 116° 295 472 590
1705 117° 293 469 586
1714 118° 292 467 583
1723 119° 290 464 580
1732 120° 289 462 577
TABLE 5 CONTINUED
Select value of Z in table closest to that measured.
Step 4
Position the Gate Bracket at
dimension “C” and weld or bolt the
bracket to the gate, then mark “S4”
on the ground (gate closed).
FIGURE 9. POSITIONING GATE BRACKET
Hinge
centreline
Gate
Bracket
S4
C
OPERATOR INSTALLATIONSECTION 6
Drive Arm Length Application
250mm - Limited space or outward opening applications.
400mm - Standard double R6 kits.
500mm - Standard R6 or single R6 kits.

page 20 www.centsys.com
Step 5
Swing the gate to the open position,
(same position as step 2) and mark
“S5” on the ground, then draw the
setup line through “S4” & “S5” and
extend it away from the driveway.
FIGURE 10. MARKING SETUP LINE
FIGURE 11. LOCATE POSITION OF PEDESTAL
S4
Setup
line
60mm
S5
PillarWall
Step 7
Lie the Drive Arm over the setup line
so that the end of the Drive Arm lies
directly over mark “S5”. The Pedestal
position lies 60mm closer to the wall
from centre line of the Drive Arm
mounting hole.
FIGURE 12. RECOMMENDED LOCATION OF
PEDESTAL
60mm
Setup
line
Drive
arm
Pedestal
Gate
bracket
S5
S4
S5
Setup
line
OPERATOR INSTALLATIONSECTION 6
Step 6
Pedestals can be mounted anywhere
along a line 133mm away from the
setup line towards the pillar.
Recommended position
Drive Arm end just touches
the gate (see Step 7).
