CAME BX-78 User manual

BX SERIES
INSTALLATION MANUAL
BX-74 / BX-78
AUTOMATION SYSTEMS FOR SLIDING GATES
E
ng
li
s
h
EN

4.1 Operator
This product is engineered and manufactured by CAME CANCELLI AUTOMATICI S.p.A. in compliance with current safety standards.
Guaranteed 24 months if not tampered with.
The operator is made of a cast aluminium part inside of which operates the irreversible, electromechanical gearmotor and an ABS
plastic lining which holds the electronic card and transformer
Important! Check that the command, safety equipment and accessories are CAME originals; this guarantees and make the installa-
tion easy to operate and maintain.
4 Description
2.1 Intended use
2 Conditions of use
The BX-74 motor is designed to operate residential sliding gates; while, the BX-78 may also be used in condominiums.
Do not install or use unless as otherwise shown in this manual.
3 Reference standards
2.2 Limitations to use
BX-74: max weight of the gate is 400 kg.
BX-78: max weight of the gate is 800 kg; for condominium use it is 600 kg.
The company CAME cancelli automatici is ISO 9001:2000 quality certified; it has also obtained the ISO 14001 environmental safe-
guarding certification. CAME engineers and manufactures all of its products in Italy.
This product complies with the following legislation: see declaration of compliance.
4.2 Technical features
BX-74 OPERATOR
Control panel power supply: 230V A.C. 50/60Hz
Operator power supply: 230V A.C. 50/60Hz
Draw max.: 2,6A
Power: 200W
Max Torque: 24 Nm
Reduction ratio: 1/33
Thrust: 300 N
Max speed: 10 m/min
Operative intermittence: 30%
Protection rating: IP54
Insulation class: I
Weight: 15 kg
Capacitor: 12 µF
Engine thermoprotection: 150° C #
#
BX-78 OPERATOR
Control panel power supply: 230V A.C. 50/60Hz
Operator power supply: 230V A.C. 50/60Hz
Draw max.: 2,4A
Power: 300W
Max Torque: 32 Nm
Reduction ratio: 1/33
Thrust: 800 N
Max speed: 10 m/min
Operative intermittence: 30%
Protection rating: IP54
Insulation class: I
Weight: 15 kg
Capacitor: 20 µF
Engine thermoprotection: 150° C

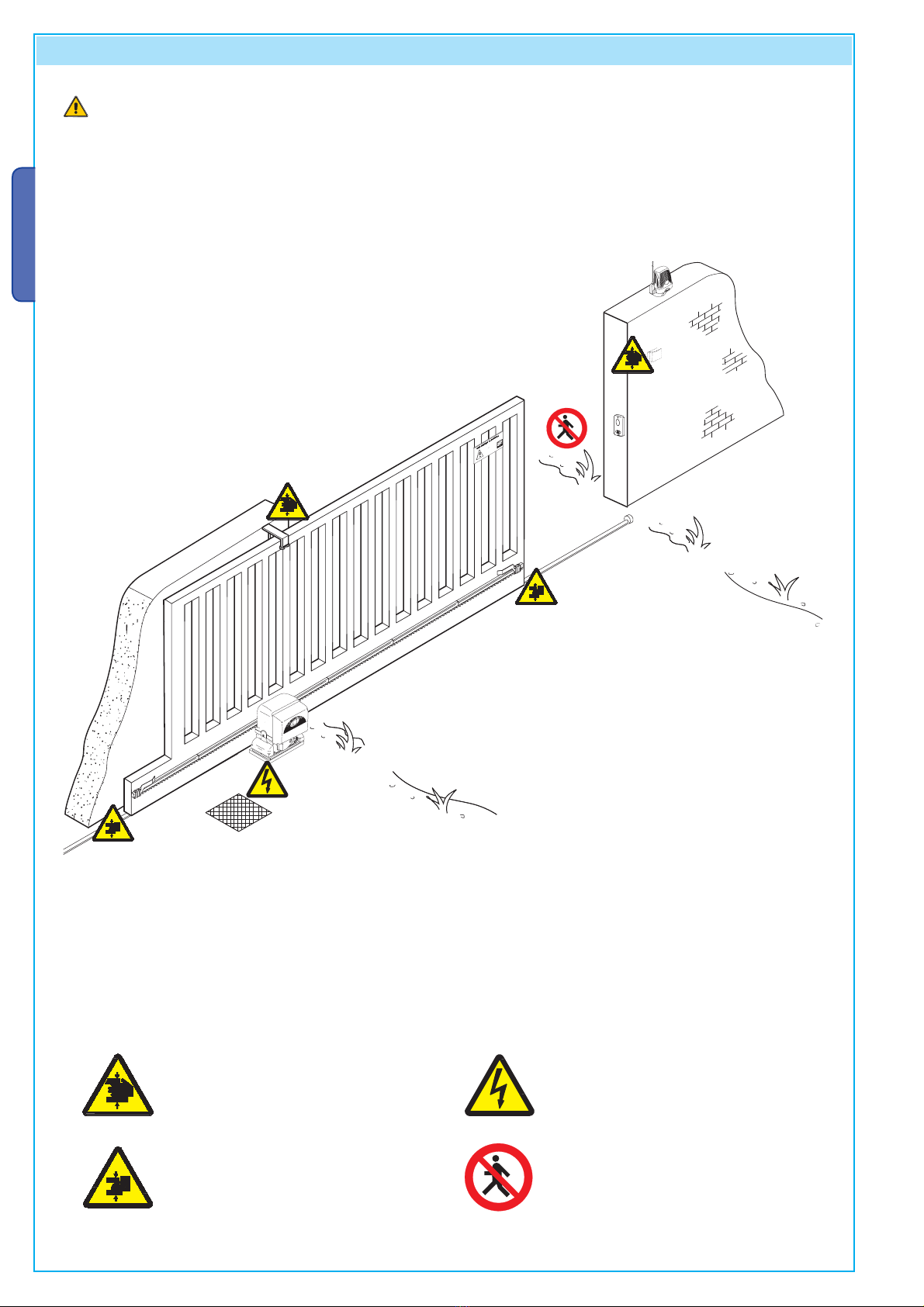

1 Legend of symbols
This symbol tells you to read the section with particular care.
This symbol tells you that the sections concern safety issues.
This symbol tells you what to say to the end-users.
“IMPORTANT INSTALLATION, SAFETY INSTRUCTIONS”
“CAUTION: IMPROPER INSTALLATION MAY CAUSE SERIOUS DAMAGE, FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY”
“THIS MANUAL IS ONLY FOR PROFESSIONAL OR QUALIFIED INSTALLERS”
Pag.
2
2- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

4.4 Dimensions
4.3 Description of parts
(mm)
5 Installation
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
5.1 Preliminary checks
Before installing, do the following:
• Make sure that the gate is stable, and that the castors are in good working order and properly greased.
• The ground rack must be well secured to the ground, entirely above the surface and free of any irregularities that may obstruct the
gate’s movement.
• The upper guide rails must not create any friction.
• Make sure that there is a closing and an opening endstops.
• Make sure that the operator is attached to a solid surface and protected from any impacts;
• Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off) power
supply;
• Check that any connections inside the container (that provide continuity to the safety circuit) are fitted with additional insulation
compared to other internal live parts;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
9
3
4
2
5
6
7
10
11
1 - Top cover
2 - Settings casing
3 - Control board support
4 - Endstop fins
5 - ZB74-78 electronic card
6 - Front cover to control panel
7 - Gearmotor release door
8 - Securing plate
9- Securing bolt
10- Securing screw plate
11- Nut
1
2
8
Pag.
3
3- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance
with the current standards and regulations. The following figure illustrates the minimum equipment needed by the installer.
N.B.: If the cable length differs from that specified in the table, then you must determine the proper cable diameter in the basis of
the actual power draw by the connected devices and depending on the standards specified in CEI EN 60204-1.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual power
draw and distances. When connecting products that are not specified in this manual, please follow the documentation provided
with said products.
5.3 Cable list and minimum thickness
Connection Type of cable Length of cable 1 < 10 m Leng. cable 10 < 20 m Leng. cable 20 < 30 m
Control panel power supply 230V
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1,5 mm23G x 2,5 mm23G x 4 mm2
Flashing light 2 x 0,5 mm22 x 1 mm22 x 1,5 mm2
Photocell transmitter 2 x 0,5 mm22 x 0.5 mm22 x 0,5 mm2
Photocell receiver 4 x 0,5 mm24 x 0,5 mm24 x 0,5 mm2
Accessories power supply 2 x 0,5 mm22 x 0,5 mm22 x 1 mm2
Safety and control devices 2 x 0,5 mm22 x 0,5 mm22 x 0,5 mm2
Antenna connection RG58 max. 10 m
5.2 Tools and materials
1) BX74-78 assembly
2) Rack
3) Reception Antenna
4) Flashing light
5) Keyswitch selector
6) Safety photocells
7) Electric cable junction box
8) Mechanical endstops
9) Guide rails
10) Endstop fins
5.4 Standard installation


3
1
8
2
4
5
6
6
7
9
10
10
Pag.
4
4- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

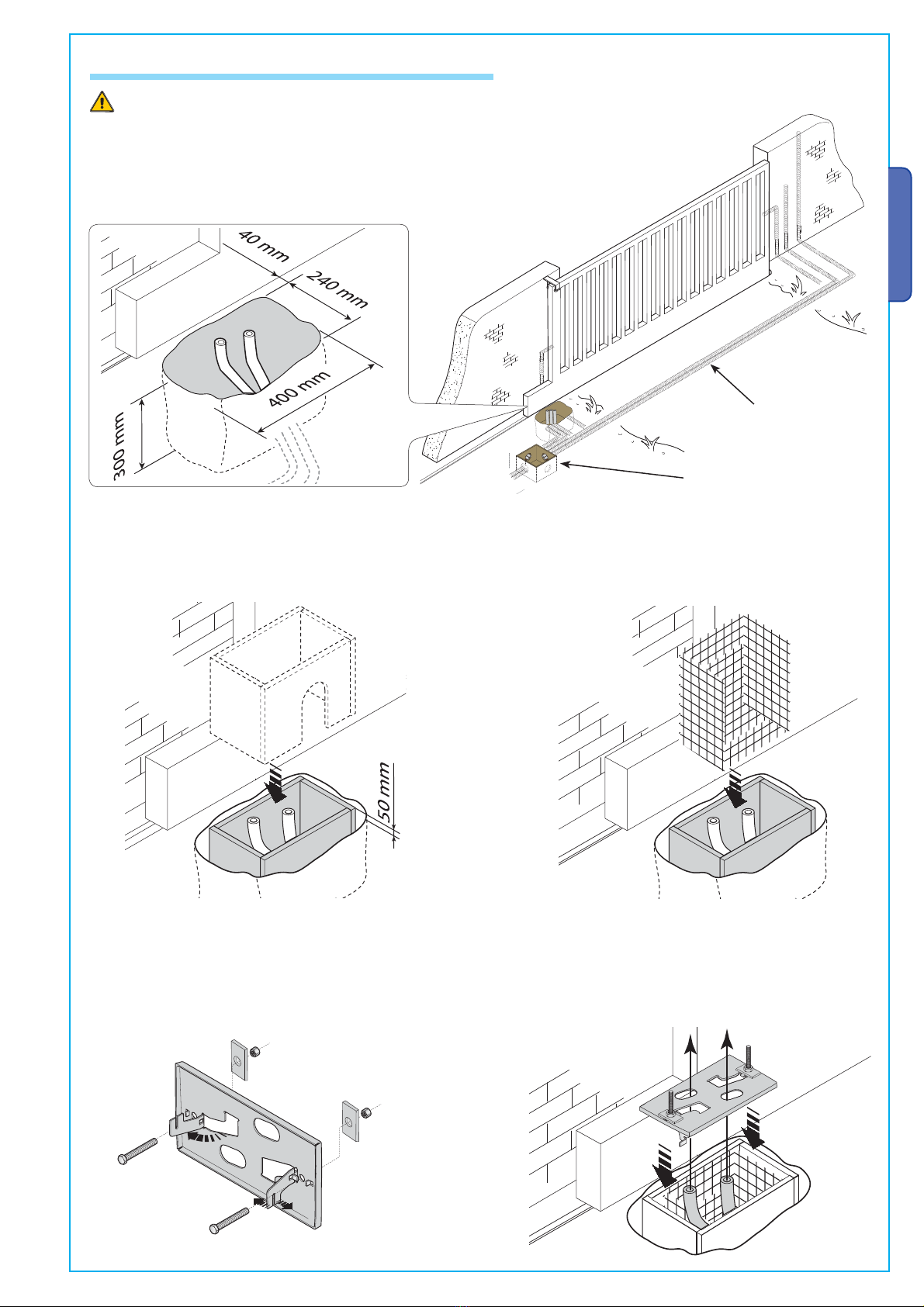

- Dig a pit to the side of the gate (see measurements from diagram).
Prepare the corrugated tubes you will need when making connections coming from the shunt pit.
N.B. the number of tubes depends on the type of system and the accessories you will hook up.
The following applications are only examples, as the space for installing the ratiomotor and accessories varies according to
obstructions. It is thus up to the system installer to select the most suitable solution.
Shunt pit
5.5 Securing the plate and installing the assembly
Conduits for electric
cables
-Prepare the securing plate, insert the bolts into the holes and lock them using the supplied nuts and washers. Extract the preformed
brackets using a screw driver or a set of pliers.
- Position the plate on top of the grid. Careful! The tubes need to pass through the apposite holes.
- Prepare a form box that is larger in size than the securing plate and insert it into the pit. The form box should jut 50mm above
ground level.
Insert an iron grid inside the from box to reinforce the concrete.
Pag.
5
5- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

H
- To position the plate in relation to the rack please see the measurements on the diagram.
Fill the form box with cement and wait for at least 24 hours for it to solidify.
- Remove the form box, fill the pit around the cement block with soil.
- Unbolt the nuts and washers from the bolts. The securing plate must be clean, perfectly aligned and with the bolt threads completely
on the surface.
Insert the electric cables into the tubes until they exit about 400mm.
Pag.
6
6- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH












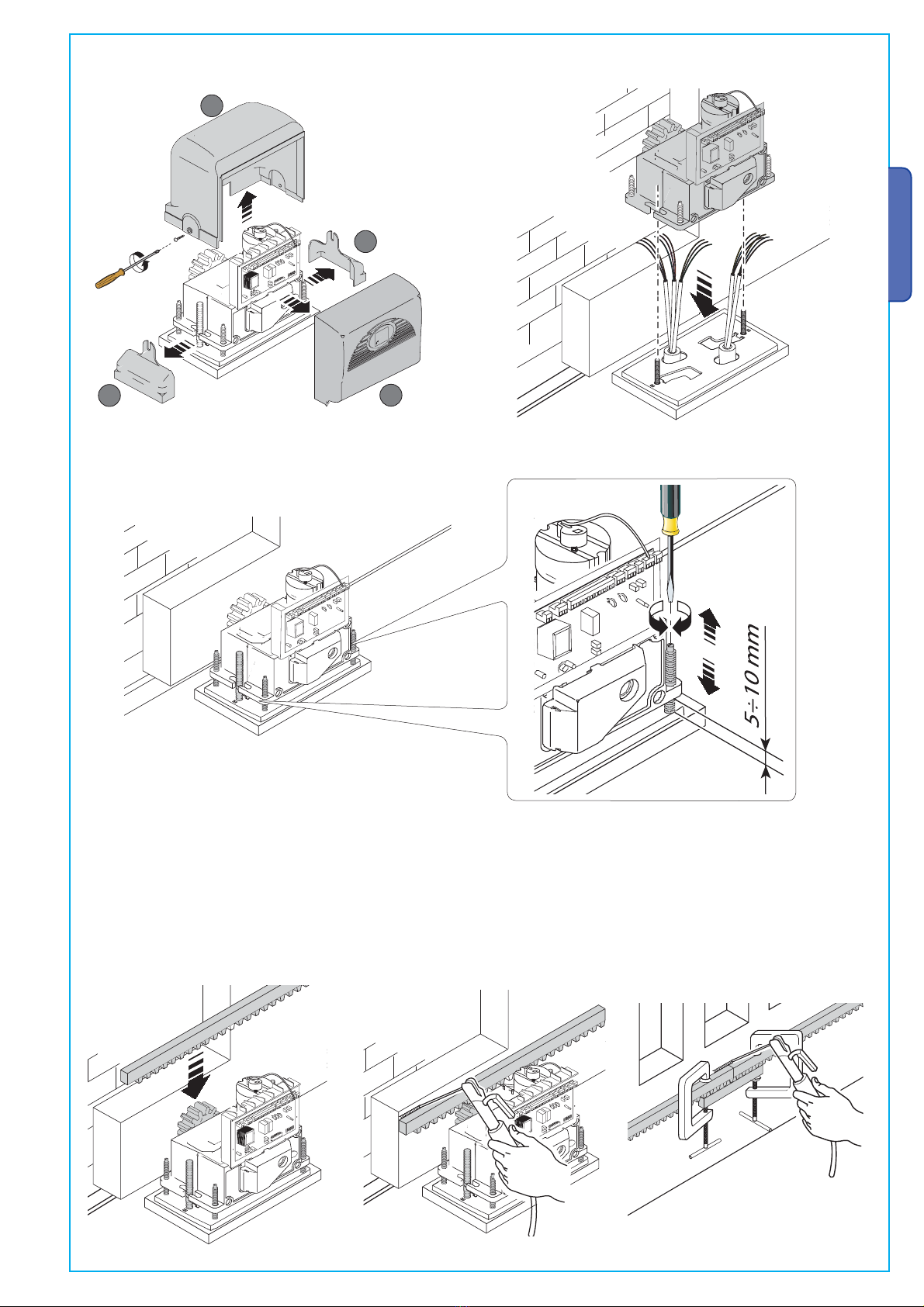

- Remove the cover from the gearmotor by loosening the side bolts, perforate the cable shafts using a screwdriver or a pair of
scissors and position the gearmotor atop the plate. Careful! The electric cables must pass through the cable shafts.
- Lift the gearmotor from the securing plate by about 5 to 10mm by using the threaded steel-levelling feet to allow any later
adjustments between the pinion and the rack.
- The following illustrations for the securing the rack, are just examples of applications. It is up to the installer to choose the best
solution.
Releasing the gearmotor (see paragraph on manual release). Rest the rack on the gearmotor pinion.
Weld or secure the rack to the gate along its entire length.
To assemble the rack modules, use an excess piece of rack and place it under the joining point, then block it using two C-clamps.
Note: if a rack is already in place, then just adjust the pinion-to-rack distance.
Pag.
7
7- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH












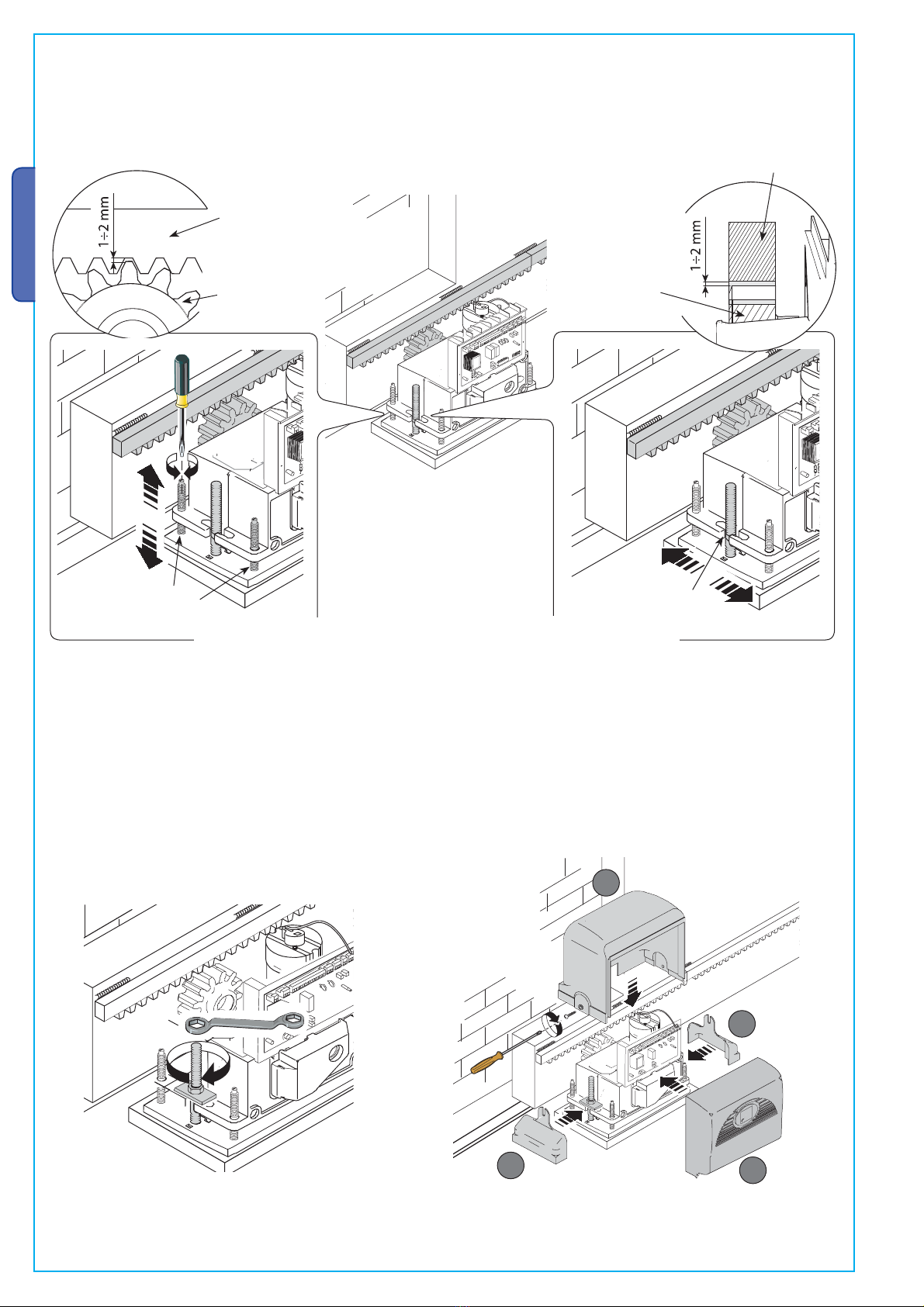

- Open and close the gate manually and register the pinion-to-rack distance using the threaded steel-levelling feet (for vertical
adjusting) and the slotted holes (horizontal adjusting). This prevents the weight of the gate from bearing on the operator.
Once adjustments are finished, secure the assembly using the nuts and washers.
Insert the cover after performing the adjustments and settings on the electronic card.
Levelling feet Slotted holes
Rack
Pinion
vertical adjusting horizontal adjusting
Rack
Pinion
Pag.
8
8- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH










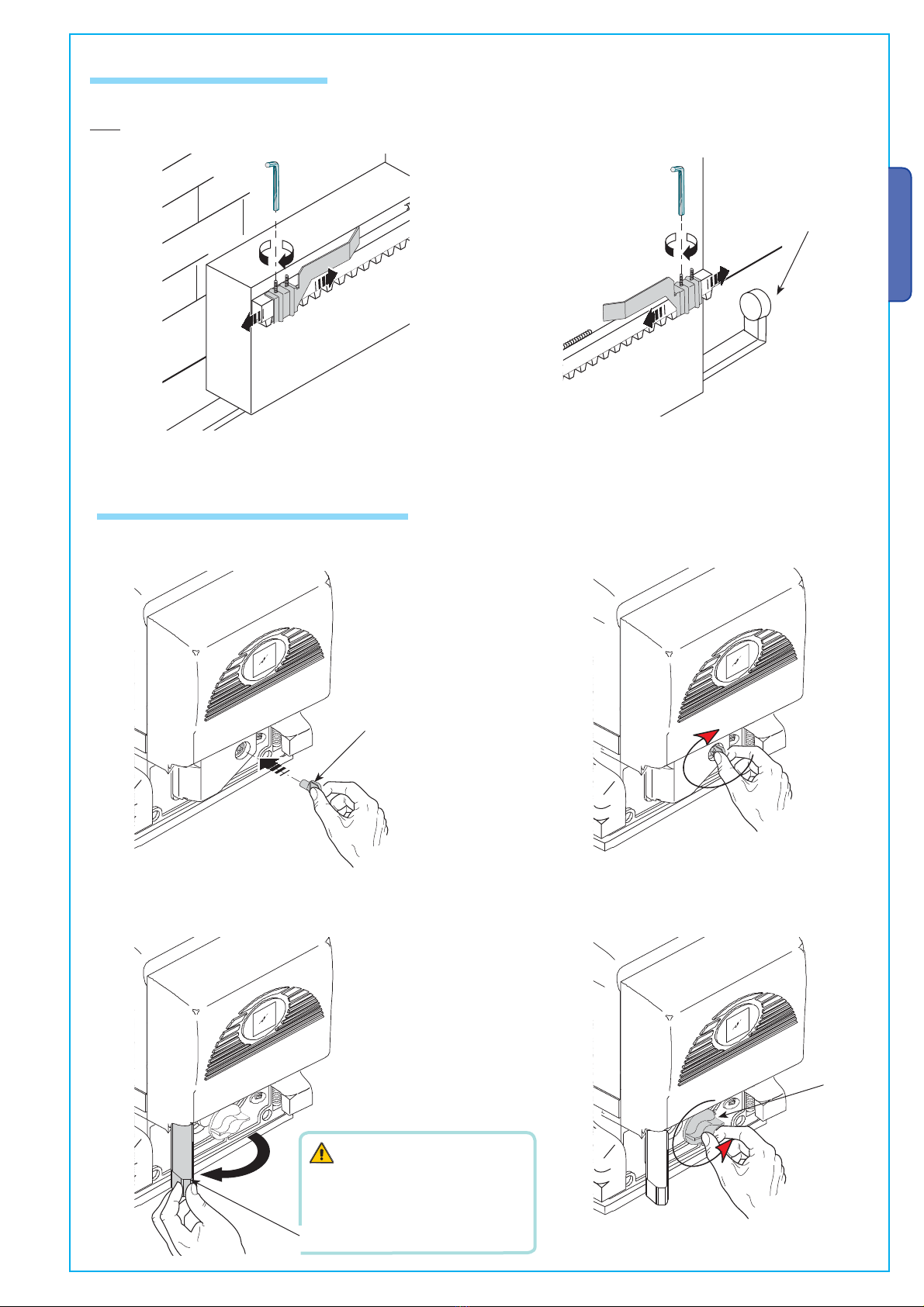

5.7 Manually releasing the gearmotor
- Insert the trilobed key into the lock, push it in and turn it clockwise ....
5.6 Mounting the endstop fins
Place the endstop fins onto the rack and secure them using a 3 mm Allen wrench. Their positioning limits the gate run.
Note: the gate schould not slam against the mechanical stop, when opening or closing.
Mechanical stop
Trilobed key
Knob
..... open the small door and turn the release handle clockwise.
WARNING: opening the door will
disengage the motor (i.e. it will not
function).
To operate the motor the release mecha-
nism must be firmly fastened.
Pag.
9
9- Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

6.1 General description
6 Control board
FUSE TABLE
To protect: fuse:
Control board (line) 5A-F
Accessories 1A-F
Command devices 630mA-F
TECHNICAL INFORMATION
Power supply 230V - 50/60 Hz
Maximum power allowed 200 W (BX74)
300 W (BX78)
Absorption at rest 2,6A (BX74)
2,4A (BX78)
Max power of 24V accessories 20 W

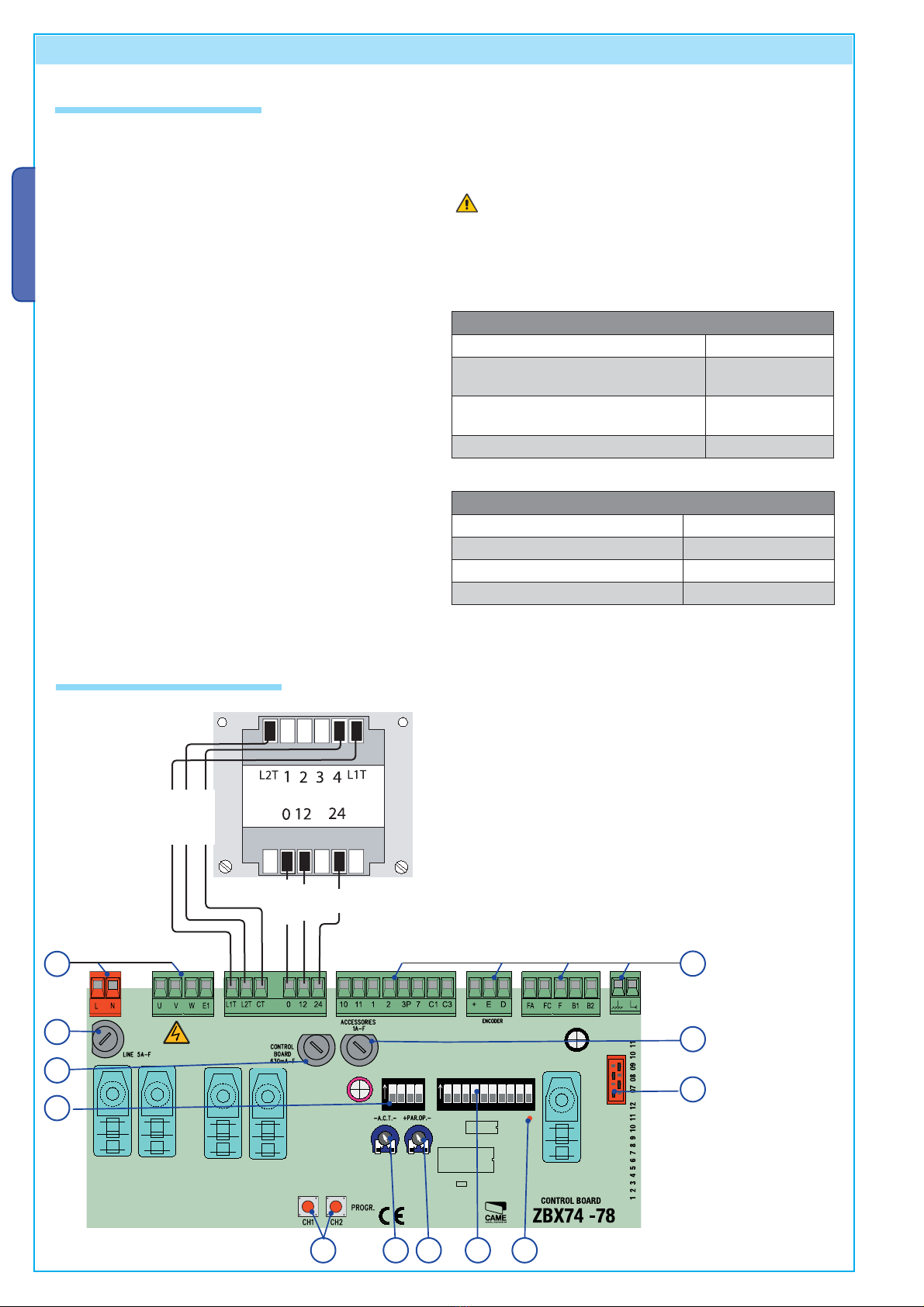

6.2 Main components
1 - Power supply terminals
2 - Line fuse
3 - Accessory fuse
4 - Card fuse
5 - Button for memorising the radio code
6 - Trimmer PAR.OP.: Partial opening adjustment
7 - Trimmer A.C.T.: Automatic closing time adjustment
8 - Function selector (4) DIP switch
9 - Function selector (10) DIP switch
10 - Socket for connecting the remote control’s
11 - Radio-code signalling LED indicator
12 - Accessories’ and command device’s terminals
••••••••
• • • • •• ••
AF
1234
ON
5678 910
1234
ON
12
2
10
3
5 7 6 11 9
4
8
Orange
Blue
Violet
White
Red
Black
Use 230V A.C. to power the electronic card using the L-N
terminals, at a max 50/60Hz frequency.
Use 24V to power the command devices and accessories.
Careful! The accessories cannot exceed 20W of overall power.
The photocells may be set up for re- opening during closing (2-
C1), partial stop, total stop and obstacle detection when motor
is stopped.
Note: when a normally closed safety contact (i.e. 2-C1, 2-C3 or
1-2) is opened, the signalling LED starts to flash (ref. point 11,
main components).
The optical reader inverts the gate’s direction of travel when it
detects and obstacle during its opening and/or closing move-
ment.
Warning: after 3 obstacle detections, the gate stops when in
opening-mode and excludes automatic-closing mode; to regain
movement press the command button or use the remote control.
All connections are protected by quick-fuses – see table.
The card handles the following functions:
- Automatic closing after an opening command;
- Warning light pre-flashing;
- Obstacle detection when gate is still at any point;
The following command modes are possible:
- Opening/closing;
- Opening/closing in maintained action mode;
- partial opening;
- total stop.
Apposite trimmers regulate:
- The automatic closing’s running time;
- The partial opening;
Warning! Before acting on the machinery,cut off the main power
supply and disconnect any emergency batteries.
1
Pag.
10
10 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

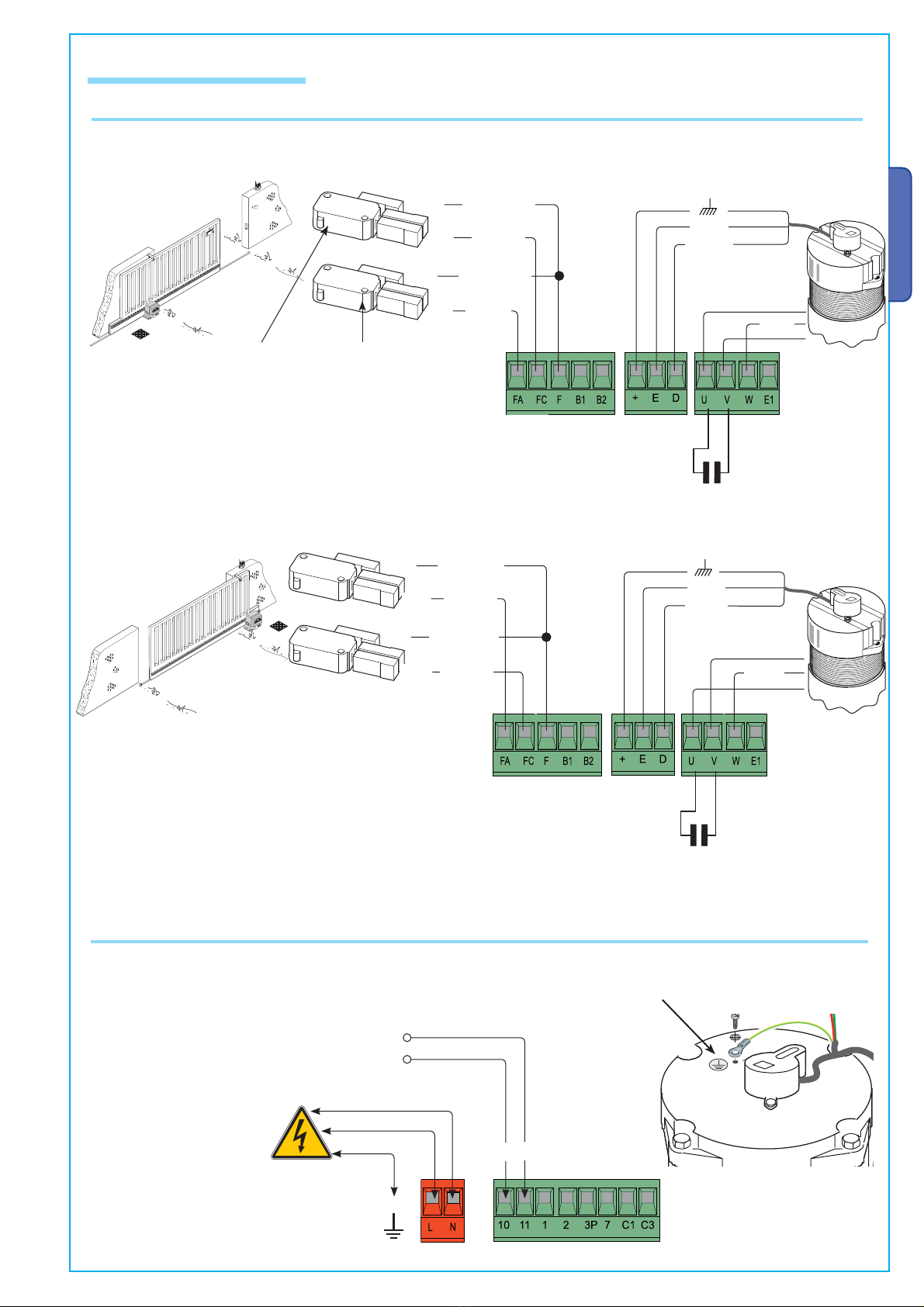

6.3 Electrical connections
Terminals for powering the following accessories:
- 24V A.C. Maximum allowed power: 35W
Power supply for accessories
+
-
COM
NC
NC
COM
Gearmotor, endstop and encoder
Modifications to the electrical connections for right-hand installations
Orange
Orange
Red
White
Black
Red
Orange
Orange
Red
White
Black
Red
COM
NC
NC
COM
Description of the standard electrical connections for left-hand installations
COM
COM
Condenser
Condenser
Closing microswitch
Invert the gearmotor (U-V) and (FA-FC) endstop phases.
Opening microswitch
230V (a.c.) Power, 50/60Hz
frequency
Cable lug with bolt and washer for connecting to earth.
Pag.
11
11 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

Cycle lamp: (contact rating:
230V – 60W max.).
It lights up the driving area and
stays on from the moment the
gate begins to open until it is
fully closed (including the auto-
matic closing time). If automatic
closing is not activated, the lamp
stays on only during movement.
Set DIP 1 and 6 switch to ON.
Movement flashing light (Con-
tact range: 230V – 25W max)
- Flashes during the gate’s
opening and closing phases.
Warning devices
Open-gate status light
(contact range: 24V – 3W
max)
- Signal that gate is open;
turns off when gate is
closed.
Command and control devices
Stop button (N.C. contact)
-Gate stop button. Excludes automatic closing. For motion to resume, press the
command button or the remote control button.
N.B.: If unused, set DIP 9 switch to ON.
Key selector and/or command button (N.O. contact)
- Gate opening and closing command. By pressing the button or turning
the selector key, the gate inverts its movement or stops depending on
which the settings on the DIP switches.
Key selector and/or partial opening button (N.O. contact)
- Partial gate opening for pedestrian access.
Close-gate status light
(contact range: 24V – 3W
max)
- Signal that gate is close;
turns off when gate is
open.
Pag.
12
12 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

«partial stop» (N.C.) contact
- Input for EN 12978 standard-compliant safety
devices such as photocells. Gate stops if moving and
automatically shuts (if this functions has been selected).
Safety devices
RX TX
DIR photocells
(N.C.) contact for «re-open during closing phase»
- Input for EN 12978 standard-compliant safety
devices such as photocells. If contact is opened, while
gate is closing, the gate inverts its direction.
TX
RX DIR photocells
RX TX
./ # .#

«Partial stop» (N.C.) contact
DOC photocells
TX
./ # .#

RX
«Open while closing» (N.C.) contact
DOC photocells
Pag.
13
13 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

DIP-SWITCH 10
1 ON - Automatic Closing - The automatic closing timer activates at the end of the opening gate run. The pre-set time is adjustable,
and is in any case conditioned by the activation of any safety devices, and does not activate after a total safety “stop” or
during a blackout.
2 ON - "Open-stop-close-stop" function with [2-7] button and radio transmitter (fitted with inserted radiofrequency card).
2 OFF - "Open-close" function with [2-7] button and radio transmitter ((fitted with inserted radiofrequency card).
3 ON - "Open only" function with radio transmitter ((fitted with inserted radiofrequency card).
4 ON -Maintained action - The gate works by keeping button pressed (one 2-3P opening button , and one 2-7 closing button).
5 ON - Pre-Opening and closing flasher - Following and opening and closing command, the flasher connected to [W-E1], flashes
for 5 seconds before motion begins.
6 ON - Obstacle detected - When motor is stopped (gate closed or after a total stop command) it prevents any movement if safety
devices, such as photocells, detect any obstacles.
7 OFF - Opening during closing - If the photocells detect an obstacle during gate’s closing, gate motion is inver ted until fully opened ;
connect the safety device to terminals [2-C1]; if unused, set DIP switch to ON.
8 OFF - Partial stop - Gate stop when obstacle is detected by the safety device; once obstacle is removed, the gate remains still or
closes if automatic closing is activated. Connect the safety device to terminal [2-C3]; if unused, set the DIP switch to ON.
9 OFF - Total stop - This function stops the gate and then excludes any automatic closing cycle; to set in motion again, use either
the keypad or transmitter. Insert the safety device in [1-2]; If unused, set DIP switch to ON.
10 OFF Limit switch slowing activated
DIP-SWITCH 4
1 ON - Closing only – with command device connected on contact 2-7 (1 OFF – deactivated)
1 OFF - Open-close – with command device connected on 2-7 (see 10-way Dip Switch 2 of the function selector) (1 ON – deactivated).
2 ON - Only opening – with command device connected on contact 2-3P (2 OFF – deactivated).
2 OFF - Partial opening – with command device connected on contact 2-3P (2 ON – deactivated).
3 ON - Optical reader deactivated; (3 OFF –activated); to program deceleration you need to activated the optical reader.
4 ON - disconnected
NOTE: make selections when motor is stopped and in the closed position.
ON
OFF
/.

 
6.4 Function selector (dip-switch)
DIP-SWITCH 10
•• ••••••
• • • • •• • •
AF
1234
ON
5678910
1234
ON
DIP-SWITCH 4
/.


ON
OFF
Trimmer A.C.T. =Sets the waiting time while open. Once this time has elapsed, closing automatically takes place. The waiting time
may be set from 1 to 120 seconds.
Trimmer PAR.OP. = Sets the gate’s partial opening. By pushing the partial opening button connected at 2-3P, the gate will open for
a set time between 0 and 16 seconds.
6.5 Settings
!#4 0!2/0


•••••• ••
• • • • •• • •
AF
1234
ON
5678910
1234
ON
Pag.
14
14 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

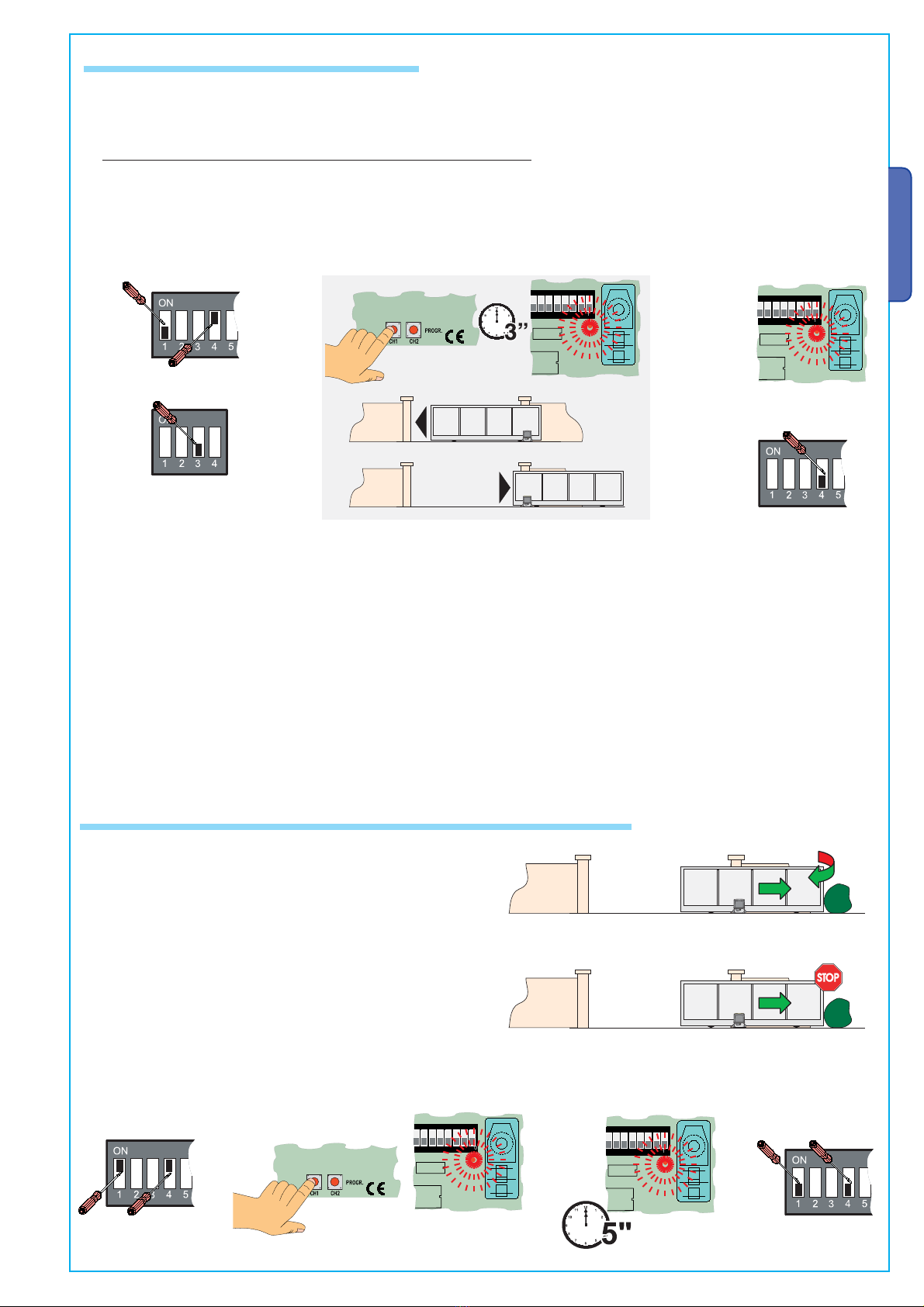

6.6 Programming decelerations
So as to fully meet the compliance requirements established by European Standards EN 12445 and EN 12453 on matters concerning
maximum impact forces, BX-74/78 is set up for deceleration at 50 cm from the opening and closing endpoints. When installing all you
need to do is program the gate operation as follows:
Before proceeding, set all the DIP SWITCHES to OFF (10-way Dip Switches)
a) - Set Dip Switch 4, 7, 8 and 9 to ON (10-way Dip Switch) and Dip Switch 3 e to OFF (4-way dip-switch, optical reader);
b) - press CH1 until the red LED starts flashing (after about 3 secs). After which, the gate will fully open and close.
c) - when the led stays on, this means the programming procedure is finished;
d) - reset the DIP SWITCHES to the previous setting, which is determined by the selection of functions (see parag. 6.4 on p. 14).
b)
d)
c)
The decelerated gate operation speed may be changed by simply pressing CH1 (to reduce it) or CH2 (to increase it) while the
operator is decelerating.
With BX-74/78 you can change the function of the Re-closing Partial
Stop during opening, which is connected on 2-C3.
To activate it, do the following:
a) - Set Dip Switch 1 and 4 on ON;
b) - press CH1: the red LED will start to flash;
c) - when the LED stays lit up (after about 5 secs) this means that
the procedure is finished;
d) - reset the DIP SWITCHES to the previous setting, which is
determined by the selection of functions (see parag. 6.4 on p. 14).
N.B.: to go back to the default selection, follow the same procedure but
press CH2.
a)c) b)d)
CH2 = Partial Stop (default)
CH1 = Re-closing during opening (to select)
6.7 Modifying the Re-closing Partial Stop during opening
345678910 34567 8910
345678910
345678910
“DIP-SWITCH 10”
“DIP-SWITCH 4”
NOTE: When the card is initially activated, the PROG LED will flash rapidly, and in so doing signalling that the card is not programmed;
once programmed the LED will remain off.
To exclude decelerations, set Dip Switch 10 to ON.
If power is cut off during gate closure operation and decelerations have been activated, once the power comes back on, the operator
always and for safety reasons, will perform a full, decelerated opening and closing cycle.
a)
Pag.
15
15 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

7 Activating the radio command
• ••• ••••
1234
ON
5678 910
1234
ON
6.8 Motor torque limiter
To vary the motor torque, move the shown faston
(the one with the black wire) to one of the 4 posi-
tions: 1 min – 4 max.
• ••• ••••
•• • • •• • •

,4 ,4


White
Red
Black
Antenna
Connect the antenna’s RG58 cable to
the apposite terminals.
Possible output of the radio receiver’s
second channel (N.O. socket).
Socket rating: 5A-24V (d.c.).
Pag.
16
16 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

••••••••
••••••••
1234
ON
5678 910
1234
ON

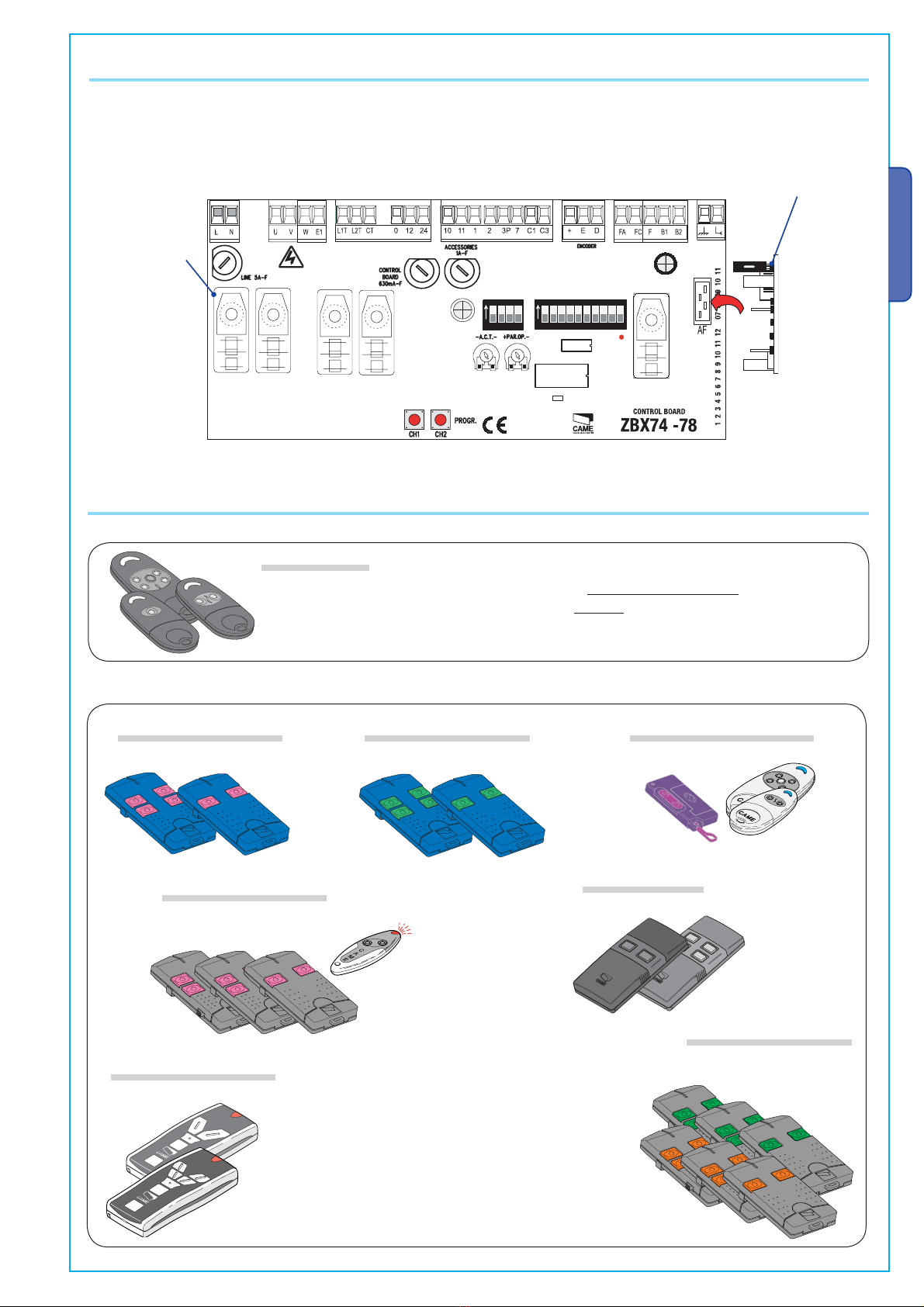

Transmitters
Insert the radio frequency card into the electronic card AFTER DISCONNECTING THE POWER (and disconnecting any batteries).
N.B.: the electronic card picks up the radiofrequency card on when it is running on power
Radiofrequency card
CAME
CAME
CAME
CAME
TOP
TOP-432NA • TOP-434NA
TOP-432S
TOP
TOP-302A • TOP-304A
TOP
TOP-432A • TOP-434A
TAM
T432 • T434 • T438
TAM-432SA
CAME
CAME
CAME
TOUCH
TCH 4024 • TCH 4048
TWIN
TWIN2 • TWIN4
ATOMO
AT01 • AT02
AT04 See instruction sheet in AF43SR radiofrequency
card box
CAME
CAME
CAME
CAME
CAME
CAME
CAME
CAME
CAME
TFM
T132 • T134 • T138
T152 • T154 • T158
AF Card
Electronic card
See instructions on packaging
Pag.
17
17 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

•••••
•••
•••••
•••
AF
1234
ON
5678 910
1234
ON
•••••• ••
•••••• ••
AF
1234
ON
5678 910
1234
ON
LED on
- Repeat the procedure for the “CH2” button associating this to another button on the transmitter.
CH2
T2
T1
LED flashing
CH1
AF
•••••
•••
•••••
•••
AF
1234
ON
5678 910
1234
ON
CH2 = Channel for direct com-
mand to an auxiliary device or
for the control of two paired
motors, connected to B1-B2.
- Keep the CH1 button on the electronic card pressed. The led flashes.
- Press the transmitter button you wish to memorise. The LED will stay on to show memorisation has been successful.
Memorisation
CH1 = Channel for direct
command to a function
of the gearmotor’s card,
(“open only/”open-close-
invert” or ”open-stop-
close-stop” vommand,
depending on the choice
made on DIP switches 2
and 3).
Pag.
18
18 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

A
1) Coordinate the direction of travel of geared motors “A” and “B”, by modifying the rotation of motor “B” (see p. 11 geared motor-
endstop connection)
2) Carry out the electrical connections
on the geared-motor “A” command
card as per paragraph 6.3 electrical
connections.
AB

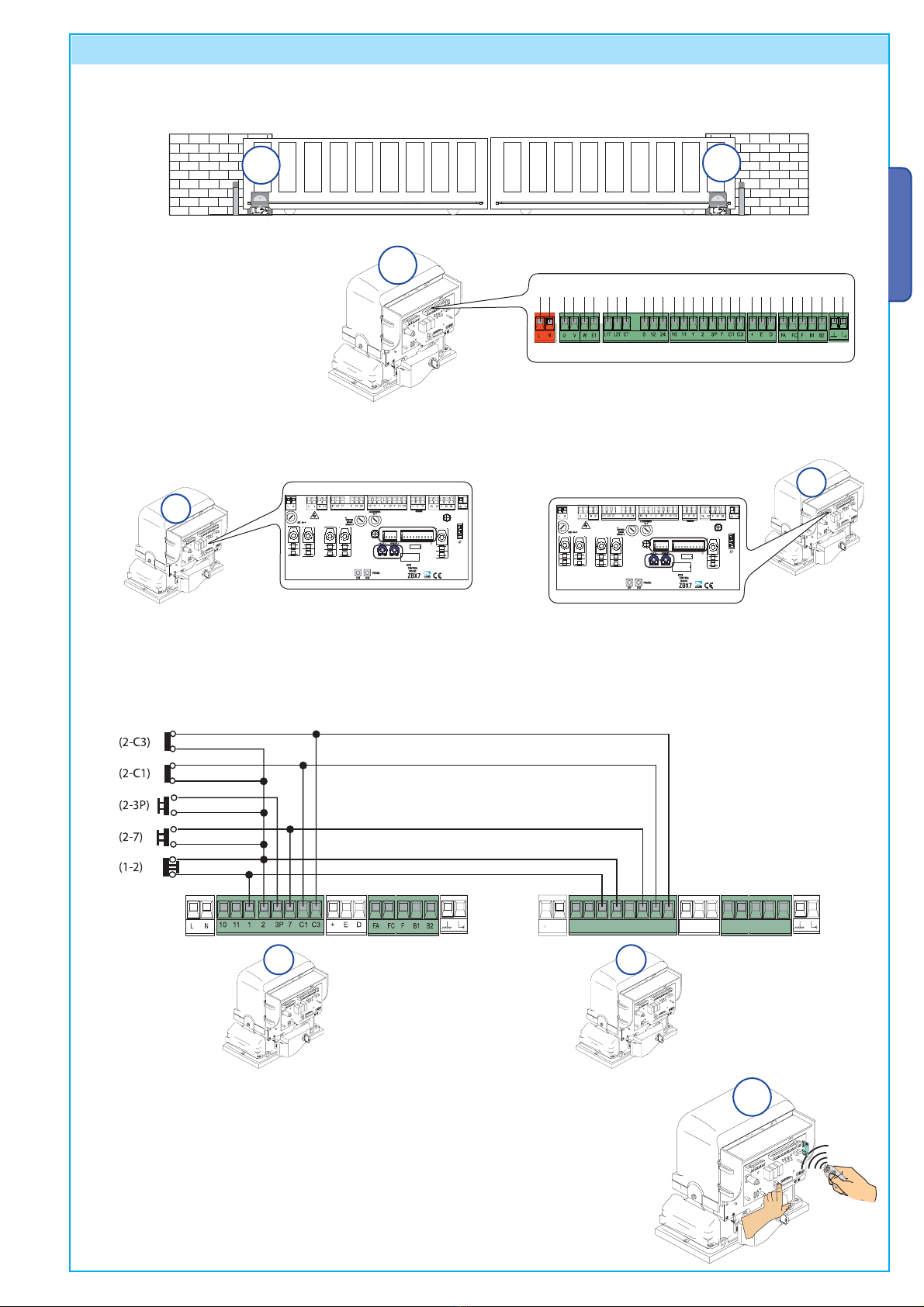

8 Connecting two joined motors with a single command
A
A
B
A B
5) On the geared motor A’s command card, insert the AF radio card.
Activate the radio command, using the CH2 channel (see chapter 7).
After memorising the code, connect contacts B1 and B2 on contacts 2 and 7.
On both cards, select the type of command (see Dip-Switches 2 and 3).
3) On both cards, carry out the same settings and activate the same functions (Dip Switches)
•••
••••••••
•••••
1234
ON
5678910
1234
ON
••••••••••••••••
1234
ON
5678910
1234
ON
LN
10 11 1 23P7C1 C3
FC F
FA B1 B2
+ED
4) Carry out the connections between the two command cards as per the figure.
Note: the (2-3P) partial opening button needs to be connected to the command card’s terminal board of the motor in question
(motor A for opening left-wards, and B for opening right-wards).
Pag.
19
19 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH



9 Safety instructions
This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The
manufacturer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses.
Avoid working close to the hinges or other moving mechanical parts. Stay out of the opening/closing arc when operator is in
motion.
Do not exercise force against the motion of the operator as this could result in potentially dangerous situations.
Do not allow children to play or loiter within the opening/closing arc of the operator. Keep remote controls and any other command
device out the reach of children, to prevent operator from being activated by accident.
In the event of anomalous behaviour, stop using the operator immediately.
Danger of crushing hands
Danger of crushing feet
Danger! High voltage
No transit during operation
Important safety instructions
Pag.
20
20 - Manual code:
119BU56
119 B U 5 6 ver.
1.0
1.0 01/2008 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH
