Century Helicopter Products Predator Casser User manual

Kit Features: Specifications:
© 2009 Century Helicopter Products - All rights reserved.
Lightweight yet extremely strong G10 or carbon fiber frames.
Stainless steel torque tube driven tail system.
Blade grips will accommodate blades with 12mm to 18mm blade roots.
Large 22 oz fuel tank for long engine run time.
Convenient and easy access to spark plug.
Triple bearing supported blade grips and tail blade grips.
Machined dual ball bearing swashplate for 120 degree CCPM.
Adjustable bell-hiller ratio allows tuning for preferred cyclic response.
Tunable flight characteristics for stability or speed.
All metal, lightweight swashplate with Teflon Coated Center Ball.
Tail rotor span: 10.5” - 11.25”
Overall length: 55.7” - 59.45”
Height: 19.1” - 19.85”
Gear Ratio: 1 : 6.28 - 8.80
Engine: Gasoline
Version 1.02

Predator Gasser NX
Page 2
Warning
This radio controlled model is not a toy! It is a precision machine requiring proper assembly and setup to avoid accidents. It is the
responsibility of the owner to operate this product in a safe manner as it can inflict serious injury otherwise. It is recommended that if
you are in doubt of your abilities, seek assistance from experienced radio control modelers and associations. Keep loose items that can
get entangled in the rotor blades away for the main and tail blades, including loose clothing, hair, or other objects such as pencils and
screwdrivers. Especially keep your hands away from the rotor blades. As manufacturer, we assume no liability for the use of this product.
Pre-assembly Information
.launamehtfosnoitcesehtotdnopserrochcihwylbmessafoesaerofdeggaberastraptnenopmocrojamehtlla,tikehtgnineponopU
Various assemblies have been pre-assembled however, only as a reference assembly. Final assembly is up to the user. Installation onto
the particular parts, screws and nuts required for each step are packaged in the same bag as the parts. Be careful when opening each
bag as not to lose any hardware. Care has been taken in filling and packing of each bag however mistakes do happen. If there is a parts
shortage or missing hardware please contact us at:
General Guidelines
Apply thread lock to all metal to metal thread contact points. Do not apply CA (cyanoacrylate) glue or thread lock to ny-lock nuts (metal nuts
with plastic inserts). Diagrams indicated by bounding boxes for screws, bearings, etc. are illustrated at a 1-to-1 ratio. All other illustrations
are not drawn to scale. Throughout this manual, you will find building tips. Please follow the tips and use common sense when building.
Century Helicopter Products
1740-C Junction Ave.
www.centuryheli.com
Flight Guidelines
Please note this checklist is not intended to be a replacement for the content included in this instruction manual. Although it can
be used as a quick start guide, we strongly suggest reading through this manual completely before proceeding.
Always turn the transmitter on first
Allow the gyro, and receiver to arm and initialize properly
Do a pre-flight check making sure all electronics are working and look for any mechanical issues
Fly the model
Land the model
Turn off the engine
Always turn the transmitter off last
San Jose, CA. 95112
Thank You
Congratulations on the purchase of the latest Predator Gasser series. You’re about to build the best selling gasser in the world. With
our constant strive for perfection, the Predator gasser has been engineered and improved upon to what is in your hands today. Being
one of the most flexible platforms, you will be pleased with the flight characteristics whether you are looking to fly a sport platform, 3D
aerobatics, or even a super-stable camera/video platform. Be sure to read through and follow the instructions during the build.

Predator Gasser NX
Page 3

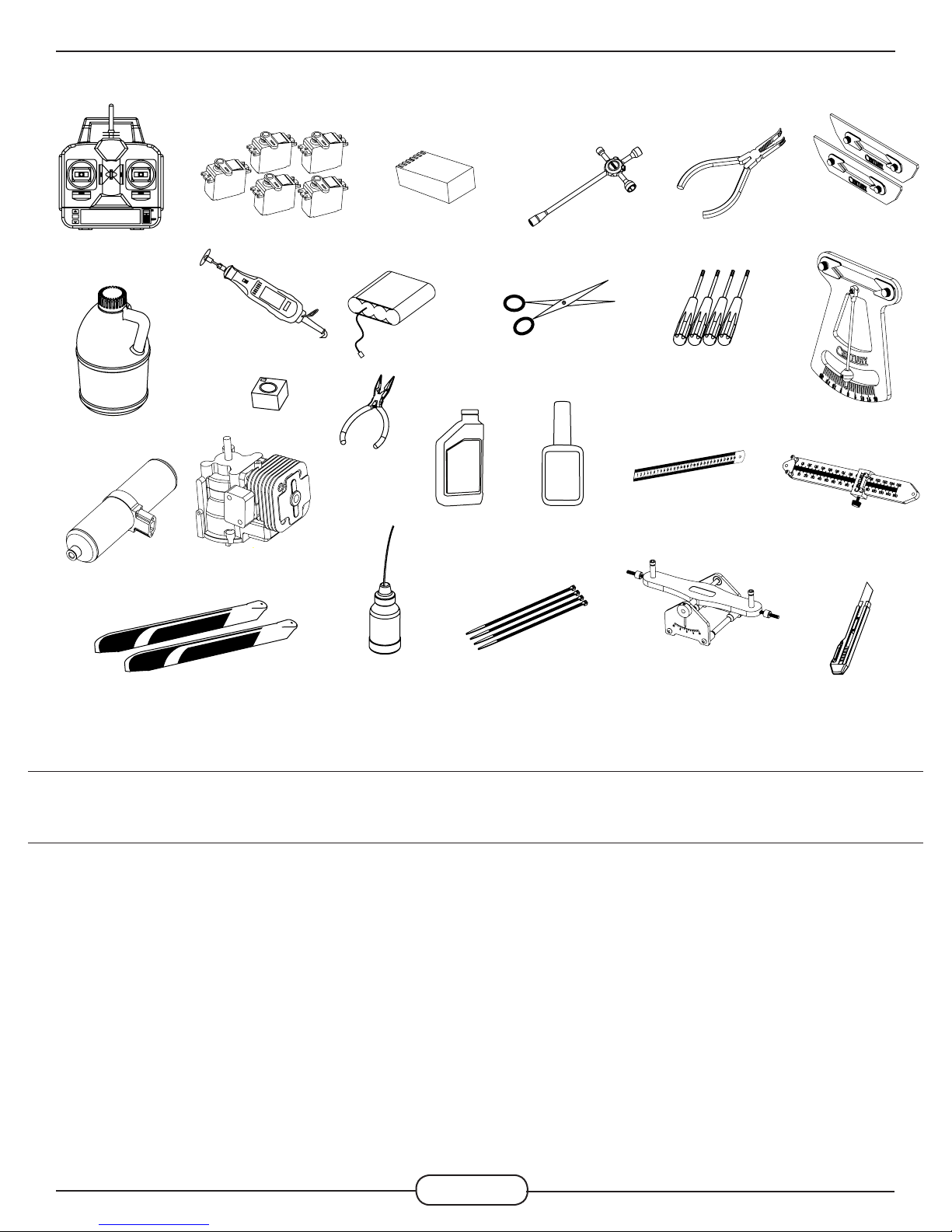

CN2050
PADDLE GAUGE
CN2034A
BALL LINK PLIERS
HOBBY KNIFE
RECEIVER BATTERY
SERVOS X 5
ZIP TIES
4-WAY WRENCH
GYRO
6 CHANNEL RECEIVER
(MINIMUM)
HOBBY SCISSORS
METRIC RULER OR
SIMILAR MEASURING
DEVICE
CN2017
HEX DRIVERS
1.5, 2.0, 2.5, 3.0 & 4.0
6 CHANNEL
CCPM TRANSMITTER
(MINIMUM)
CN2027
G-FORCE PITCH GAUGE
CN2051
ACCURATECH BLADE BAL-
ANCER V.2
CN2255
CONTROL ROD
SETUP GAUGE
NEEDLE NOSE
PLIERS
SYNTHETIC
OIL/GREASE
1.000
87 TO 92 OCTANE
GASOLINE
710MM TO 830MM
CARBON FIBER BLADES
23CC TO 26CC
GASOLINE ENGINE
CN3069B
SPEED TORPEDO
V.4 GASSER TUNED
MUFFLER
2-STROKE
MOTOR OIL
CA GLUE
DREMEL TOOL
OR SIMILAR
REQUIRED ITEMS
Century Helicopter Products warranties that the Products purchased (the “Product”) will be free from defects in materials and workman-
ship 30 days from the date of purchase by the Purchaser.
Warranty Period
(a) This warranty is limited to the original customer (“Purchaser”) and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED
UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF T HE P URCHASER. This warranty covers only those P roducts purchased
from an authorized Century Helicopter Products dealer. Third party transactions are not covered by this warranty. Proof of purchase is
required for warranty claims. Further, Century Helicopter Products reserves the right to change or modify this warranty without notice
and disclaims all other warranties, express or implied.
(b) Limitations- CENTURY HELICOPTER PRODUCT MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER ACKNOWLEDG-
ES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.
(c) Purchaser Remedy- Century Helicopter Products’s sole obligation hereunder shall be that Century Helicopter Products will, at its
option, (i) repair or (ii) replace, any Product determined by Century Helicopter Products to be defective. In the event of a defect, these
are the Purchaser’s exclusive remedies. Century Helicopter Products reserves the right to inspect any and all equipment involved in
a warranty claim. Repair or replacement decisions are at the sole discretion of Century Helicopter Products. This warranty does not
cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any
part of the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or attempted repair by
anyone other than Century Helicopter Products. Return of any goods by Purchaser must be approved by Century Helicopter Product s
before shipment.
Limited Warranty
1.000
CN2031

Predator Gasser NX
Page 4
1
2
3
4
5
6
Take special care when pressing in these bearings. Do not
press in on the inner sleeve of the bearing
7
8
9
10
Do not secure all the screws until lining up the
components in the following steps.
CNBB0730
CNBB0840
HI3167G
CNM3X14BHCS
CNM3X6BHCS
CNM2.5X8CS

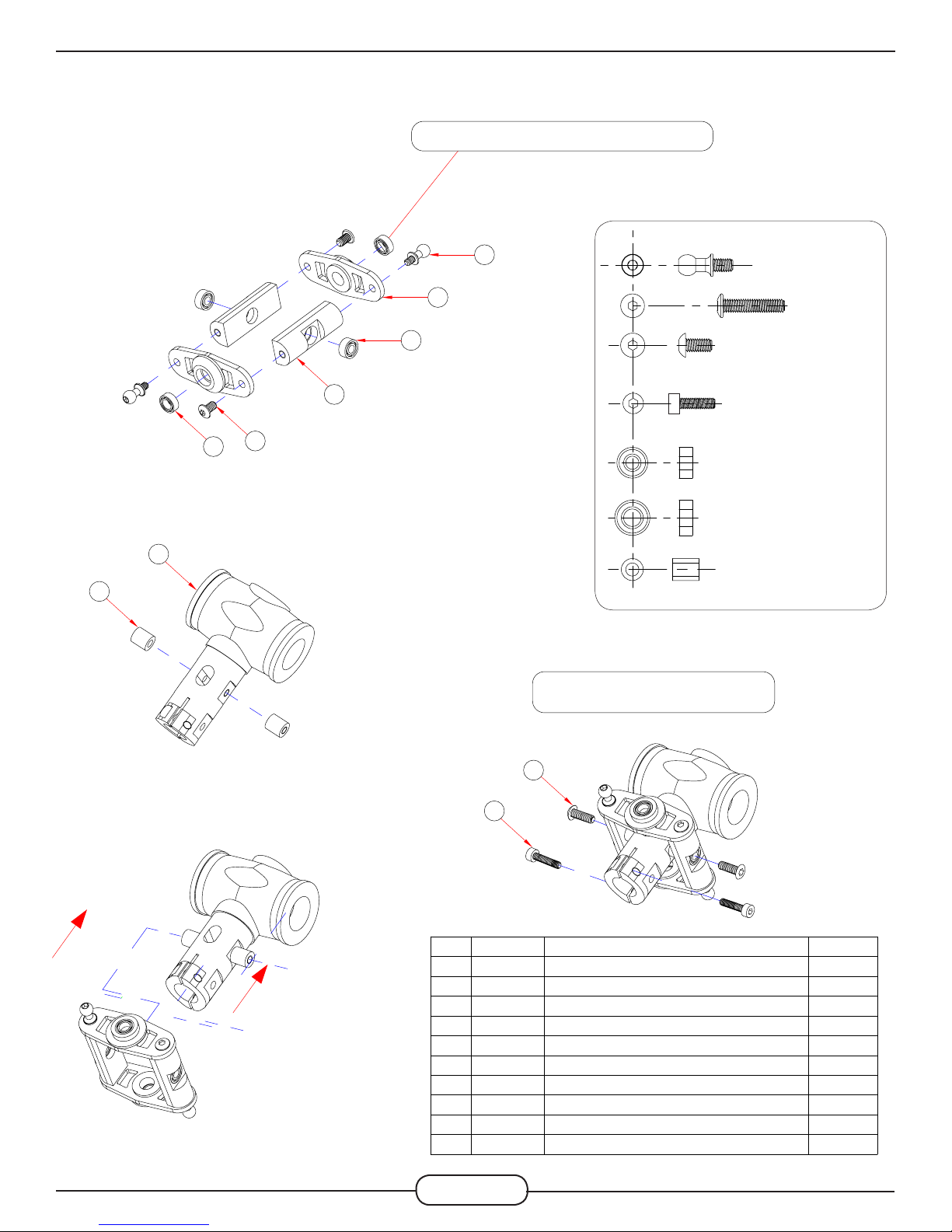

HEAD ASSEMBLY
Insert one ball bearing into each bearing cup and insert into
the offset plate. Apply one small drop of slow cyanoacrylate
glue (Slow CA) to the joint between the backside of the
bearing cup and the offset plate. Insert one ball bear-
ing into each tie bar. Using an available M3
socket cap screw, form threads into
both ends of the tie bars. Insert
one M3x6 button head
screw through the
right side hole of
the offset plate
and thread
into one tie
bar.
Make
t w o
identical
subassemblies .
Note that the bear-
ing cups face outwards
from the head block. Insert
one M3x14 button head screw
through the tie bar bearing, slide
one steel spacer and carefully apply
Blue threadlock to the exposed threads
and insert into the right side of the head block.
Do not overtighten. Repeat for the second sub-
assembly. Once complete apply a small amount of slow
cyanoacrylate glue and insert one CNLR1020 special long
thread ball into each offset plate to complete the assembly.
NX ROTOR HEAD YOKE
SEESAW TIE BAR SET
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
5
6
2
2
2
2
2
2
7
9
CNBB0730
(M3球头螺丝)
(平衡杆固定片)
(轴承)
(平衡控制臂)
CNBB0840 (轴承)
HI3167B
HI3167G
CNM3X14BHCS
HI3167G
(伞头螺丝)
(铁套)
2
2
1
(主旋翼中心座)
HI6160A
8
CNM3X6BHCS (伞头螺丝)
10 CNM2.5X8CS (有头内六角螺丝)2
STAINLESS BALL, 3mm THREAD, MEDIUM
SEESAW OFFSET PLATES
3x7x3 BALL BEARING
M3x6 BUTTON HEAD CAP SCREWS
4x8x3 BALL BEARING
3x5x6 SEESAW TIE BAR SET
M3x14 BUTTON HEAD CAP SCREWS
M2.5x8 SOCKET HEAD CAP SCREWS
Do not open all the bags prior to starting assembly. Open the bags step by step as you go through the
instruction manual. The components are bagged to make assembly easier.
HI6167
HI6167

Predator Gasser NX
Page 5

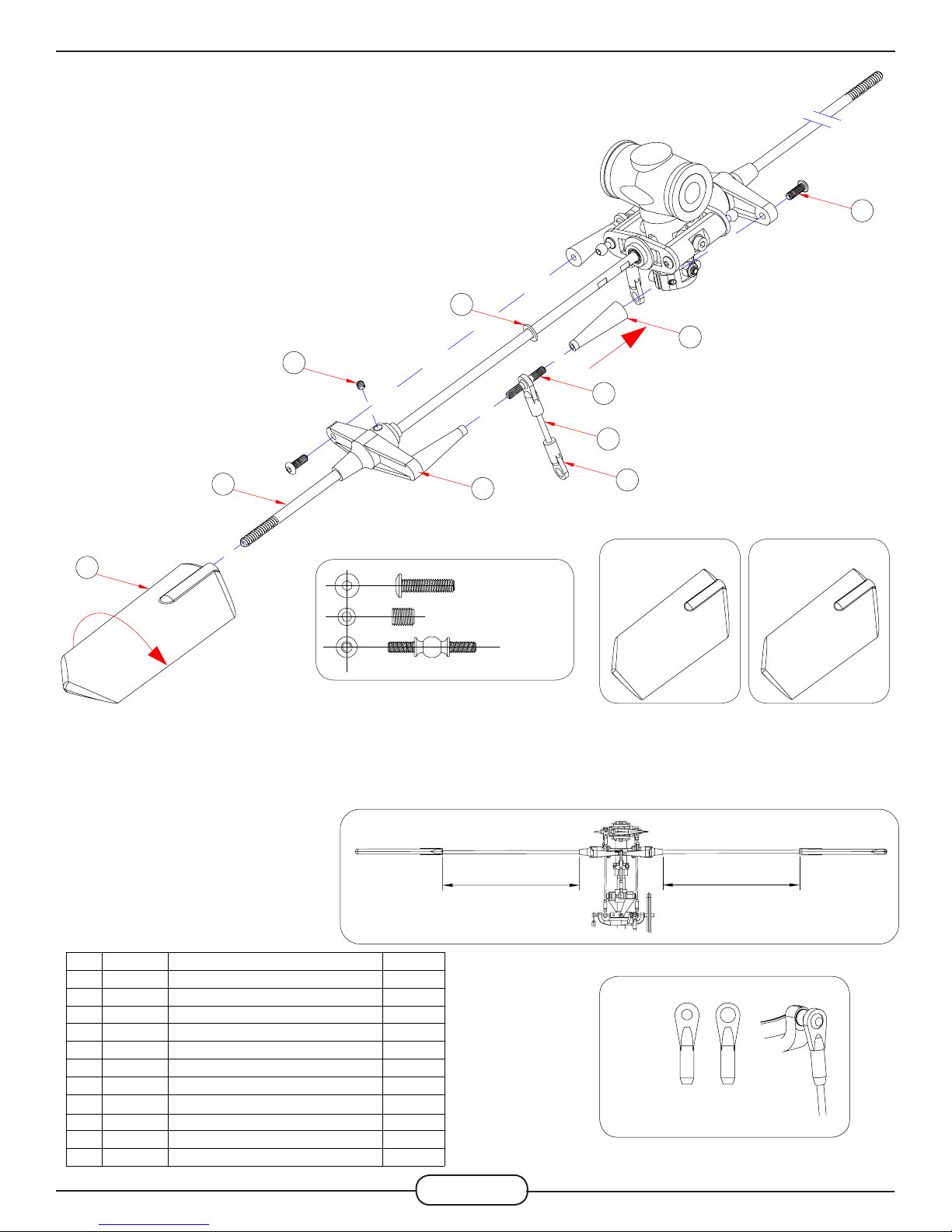

HEAD ASSEMBLY
Pushrod assembly (parts 2 through 4) is already assembled but check that the length is
actually 47mm (center to center). As the pushrods are built and installed they should be
checked for tightness. Press one ball link onto each double studded steel ball, making sure
that pressure is applied from the side of the ball link with circle mark. While holding one fly-
bar control arm, apply a small amount of slow cyanoacrylate glue and thread one end of the
double studded steel ball into each standoff. When it becomes difficult to turn with fingers,
apply slow CA to the threads and start screwing in the tapered control arm stand-off on
the other end of the ball. Slide and center the flybar through the head assembly. Care-
fully look at the flybar control arm assemblies from the previous step and notice
that when installed correctly, the securing set screw is on top. Insert one
M4x6x0.5 micro washer #CNLR1006 against each bearing then slide
the control arm halves onto each side, so that they match togeth-
er and the set screw remains on top. Insert one M3x12 but-
ton head socket screw to secure the opposite standoff.
Hold the tapered standoff using pliers while tight-
ening the screw as the rotor head
rotates clockwise.
Apply a small amount of cya-
noacrylate glue to the special
long thread ball.
All ball links are molded to be in-
stalled in only one direction. Look
carefully at the hole for the ball
as that side is 1mm larger .
Loosely tighten the M4x5 set screws into the round aluminum inserts aligned with the
flat spots on the flybar. Tighten both set screws, one at a time using Blue threadlock.
Make a pencil mark 5mm past the threads on both ends of the flybar. Thread the flybar
paddles onto the flybar until the mark is reached and align the paddles parallel. Again
using the ruler, rotate one paddle or the other to get equal distances while remembering
the leading edge of the paddles turn clockwise.
NOTICE SIZE OF HOLES ON BALL LINKS
THE SIDE WITH THE SMALLER HOLE
SHOULD FACE OUTWARDS
Black=30g
for stability
Gray=22g
for aerobatics
CNM3X12BHCS
CNM4X5SS
12
3
4
5
6
7
8
9
10
Make sure the distance on
both sides are equal
Make sure the distance on
both sides are equal
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
5
6
2
2
2
2
2
2
7
(拉杆)
(球头连接头)
CNM4X5SS
(稳定翼控制臂)
(M3球头双牙螺丝)
(平衡杆控制臂)
(圆头螺丝)
CNM3X12BHCS
(无头内六角螺丝) 2
8(平衡杆) 1
9
(平衡翼)2
HI3176C
HI3176C
HI3176C
HW6173A
HI6145
HW6192
FLYBAR PADDLES
7(平衡翼)2
HI6179G 4mm FLYBAR PADDLES 22g GREY
4mm FLYBAR 500mm
M4x5 SOCKET HEAD SET SCREW
PUSHROD SET
FLYBAR ARMS
FLYBAR ARMS
BALL LINK SET(26 LONG,4 SHORT)
M3x12 BUTTON HEAD CAP SCREWS
10 CNLR1006 M4X6X0.5 WASHER 2
FLYBAR ARMS
W/O WEIGHTS
HI6179B1
HI3176C

Predator Gasser NX
Page 6
6
7
8
9
10
11
12
13
16
15
14
HW6205
CNLR1020
CNBB0730
CNLR1014
CNM5X10CS
HW6180A
CNBB715T
CNBB816
M3X18CS
CNM3X6BHCS

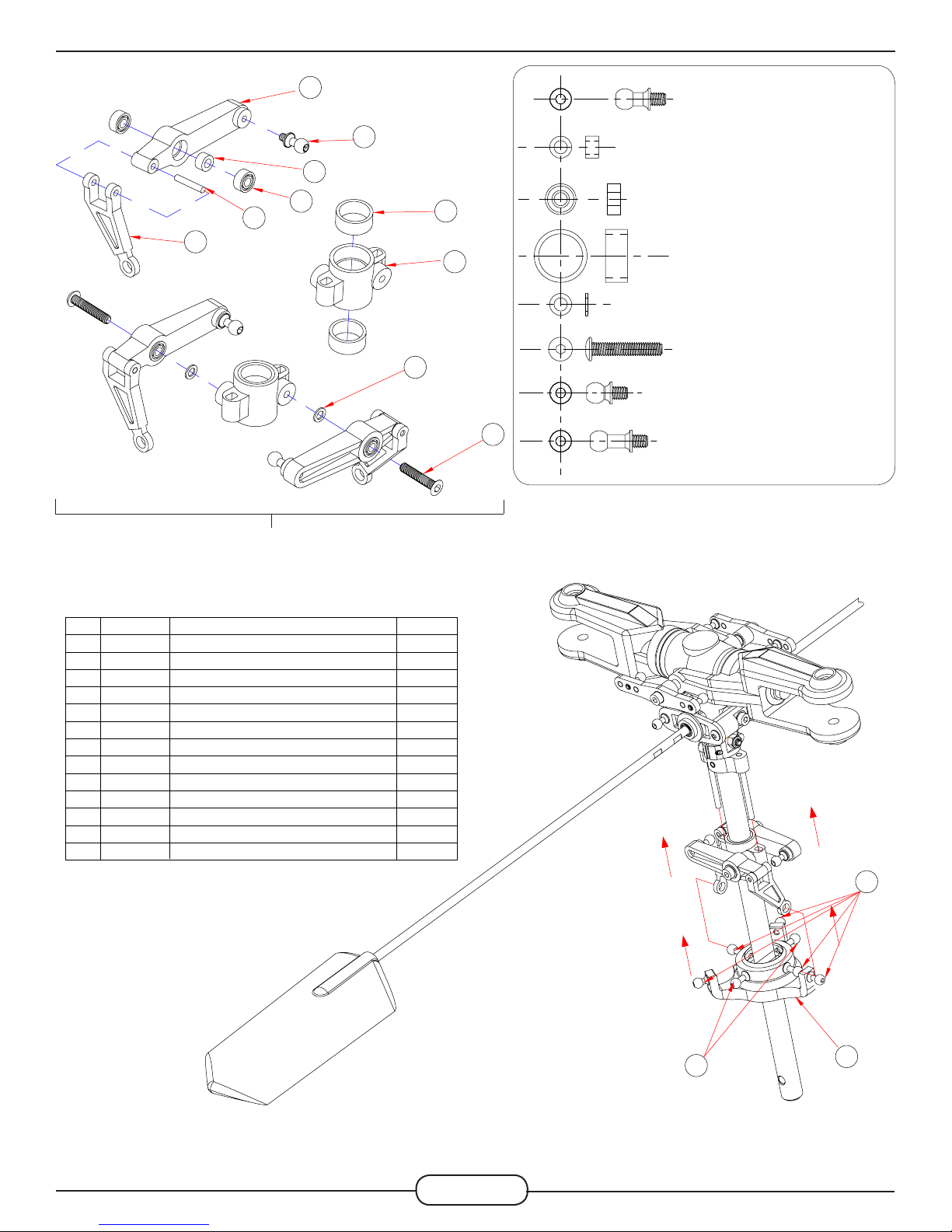

HEAD ASSEMBLY
Press one M3x7 flanged ball
bearing into one side followed
by one M3x5 spacer and another
flanged bearing from the opposite side.
If the bearing is tight, lightly sand the bell
mixer and use Red threadlock to bond the
bearing in place. Install the CNLR1014 short
steel ball into the single hole side of the bell mixer
and install the CNLR1020 medium steel ball using
Blue threadlock. Install the medium steel ball accord-
ing to the table to suit your flying preference. Use the
center hole for sport flying. Make two assemblies.
Using an available M3 screw, carefully form the
threads in the blade grip arm. Slide the M3x18
special socket shoulder screw through the bell
mixer arm from the flat side, add one M3x5x3
spacer and apply a drop of Slow Cyanoacrylate
glue or Epoxy glue to the end of the threads
before installing into the blade grip. Tight-
en the bolt until there is no end to
end movement, but do not
overtighten the bolt as
you can strip out the
hole. Make two as-
semblies.
HI6181A (red) head dampers are for sport flying. 3D and aerobatic pi-
lots should install the hard HI6181B (black) head dampers. Press in the
head dampers into the rotor head block. Lubricate the inside surface of
each damper with light oil. Press one M8x16 ball bearing into both
ends of each main rotor blade grip. Slide
one M14 thrust washer against the bearing
closest to the main rotor blade. Make sure
that the bearing and the thrust washer
are properly seated into the deep end of
the blade grip. If necessary use a sock-
et that matches the outside diameter
of the bearing and press into posi-
tion. Make two assemblies.
BELL MIXER RATIOS STYLE
3D1:1.6
1:1.3
1:1
3D & SPORT
SPORT & FAI
Do not over-
tighten as you
can strip the
blade grip.
3
4
5
2
1
LARGER ID TOWARDS THE GRIP
SIDE PROFILE - BLADE GRIP
RECESSED CREVICE FACES MAIN SHAFT
THRUST BEARING INSTALLATION GUIDE
GROOVES INSIDE
17
编号 名称(ENGLISH-中文） 名称(ENGLISH-中文）数量（PCS） 数量（PCS）
序号 编号 序号
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
2
2
4
2
2
2
2
2
2
2
2
2
15
16
(主桨控制臂)
ENHANCED METAL BELL MIXER ARM SET
(垫圈)
M3x5x3 SPACER
(M3球头螺丝)
CNBB0730 (轴承)
(M3球头螺丝)
STAINLESS BALL, 3mm THREAD, SHORT
(有头内六角螺丝)
(垫圈)
M5x10x1 FEATHERING SHAFT with CENTER BALL
(止推轴承)
7x15x5 THRUST BLADE GRIP BALL BEARING
(轴承)
8x16x5 BEARING
(主旋翼夹片)
NX MAIN ROTOR BLADE GRIPS
(垫圈)
M3x5x3 SPACER
(有头内六角螺丝)
(平面垫片)
(平面垫片)
(轴承)
HI6189
HW6205
CNLR1020
CNLR1014
CNM5X10CS
HW6180A
CNBB715T
HW6182
HW6182
CNBB816
HI6184A
HW6205
CNM3x18CS
CNBB816
2
STAINLESS BALL, 3mm THREAD, MEDIUM
3x7x3 BALL BEARING
8x15 HEAD SHIM SET
8x13 HEAD SHIM SET
8x16x5
17 HI6181B 2
HARD HEAD DAMPENERS BLACK
17 HI6181A STANDARD HEAD DAMPENERS RED
BEARING
M5x10 SOCKET HEAD CAP SCREWS
M3x18 SOCKET HEAD CAP SCREWS
4
A
(平面垫片)
4
6
M5X8X15
M5x8X15 HEAD SHIM SET
HW6183
HW6183
7
HW6182
8X13
HW6182
8X15

Predator Gasser NX
Page 7
HEAD ASSEMBLY
Slide the washout guide and the rotor head onto
the main shaft. Insert the M4x22 shoulder socket
cap screw through the rotor head hub and main
shaft and secure with one M4 locknut, torque
down the screw. Apply Blue threadlock to the
M2.5x8 socket cap screws and tighten into the
bottom of the rotor head block to clamp against
the main shaft, do not overtorque. Position the
washout guide against the collar and align one
hole to the vertical slot in the rotor head. Apply
Blue threadlock to the M3x4 set screws and
evenly tighten set screws in place.
1
2
3
4
5
6Do not apply CA or
thread lock to lock nut!
M3x4
M4x22
M2.5x8
M4防松螺母
编号 名称(ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
5
1
2
1
1
1
(剪型臂导拄)
ALUMINUM WASHOUT GUIDE
(无头内六角螺丝)
CNM3x4SS
(主轴)
HW6053
(M4螺母)
LOCK-NUT
(有头内六角螺丝)
HI6153
10mm MAIN SHAFT
CNM4LOCK
CNM4x22CS
M3x4 SOCKET HEAD SET SCREW
M4x22 SOCKET HEAD CAP SCREWS
6
2
CNM2.5X8CS M2.5x8 SOCKET HEAD CAP SCREWS

Predator Gasser NX
Page 8
WASHOUT AND SWASHPLATE
1
2
3
4
5
6
7
8
9
10
Comes pre-assembled
M3球头长5.8MM
M3x5x3
M10x12x5
M3球头长7.8MM
M3球头长9.5MM
CNBB0730
M3x5x0.5
CNM3x16BHCS
CNLR1020
HI3152C
CNLR1003
CNLR1014
CNLR1019
11
12 13
Starting with the inside race, ap-
ply Blue threadlock to the silver
steel balls and attach them across
from each other. The balls need to be
started by hand at one of the holes in the
outer swashplate rim and then tightened
with an M2.0 hex key through the same hole.
Insert the other two steel balls across fro-
meach other using Blue threadlock. Intall three
short steel balls on the outer arms using thread-
lock.
CNLR1020
CNM3x16BHCS
HI6205
HI3152C
HI3152C
CNLR1003
HW6146B
HI3152A
CNLR1014
CNLR1019
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
5
6
7
8
9
10
11
12
2
(球头螺丝) 2
(铜套)
BELLCRANK SPACER
(轴承)
(插销)
2
(三角控制臂)
(铜套)
WASHOUT SET (10mm)
(控制臂固定座)
WASHOUT SET (10mm)
3x5x0.5 MICRO WASHER
(垫圈)
(圆头内六角螺丝)
(球头螺丝)
(球头螺丝)
STAINLESS BALL, 3mm THREAD, LONG
2
4
2
2
1
2
2
5
2
CNBB0730
HI3152A
13 (十字盘)
NX DUAL BALL BEARING SWASHPLATE 1
STAINLESS BALL, 3mm THREAD, MEDIUM
3x7x3 BALL BEARING
RADIUS LINK w/ PIN
RADIUS LINK w/ PIN
M3x16 BUTTON HEAD CAP SCREWS
(摆臂)
STAINLESS BALL, 3mm THREAD, SHORT
HI3152C WASHOUT SET (10MM)
HW6205

Predator Gasser NX
Page 9
1
2
A8
7
6
5B
D
4
3
C
HEL PFUL TOOL
PART# CN2255: CONTROL ROD SETUP GAUGE
PART# CN2219A: BALL LINK
EASY DRIVER
HELPFUL TOOL:
HEAD PUSHROD LENGTHS
NOTICE SIZE OF HOLES ON BALL LINKS
THE SIDE WITH THE SMALLER HOLE
SHOULD FACE OUTWARDS
DRAWN TO A SCALE OF
1-TO-1. MATCH YOUR
LINKS UP TO THIS PAGE
FOR PROPER MEASURE-
MENTS.
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
5
2
6
7
8
(球头连接杆)
(球头连接杆)
(球头连接杆)
(球头连接杆)
(连杆)
2
2
2
2
2
2
2
BALL LINK SET (26 Long, 4 Short)
HI6145
HI6145
HI6145
HI6145
HW6192 UPPER PUSHROD SET
(连杆)
UPPER PUSHROD SET
(连杆)
UPPER PUSHROD SET
(连杆)
UPPER PUSHROD SET
HW6192
HW6192
HW6192
BALL LINK SET (26 Long, 4 Short)
BALL LINK SET (26 Long, 4 Short)
BALL LINK SET (26 Long, 4 Short)

Predator Gasser NX
Page 10

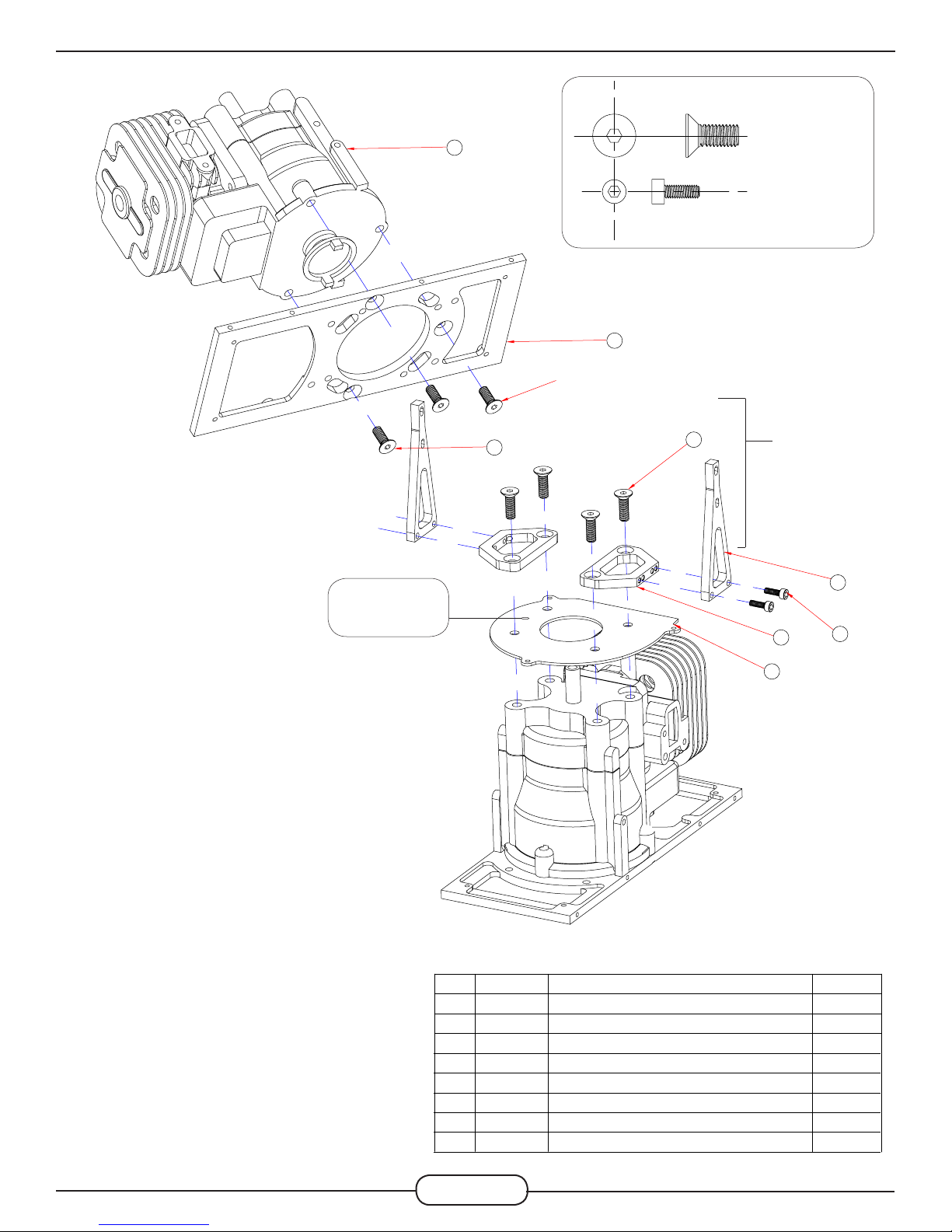

MOTOR AND E.S.S. MOUNTING
M3X8CS
1
2
34
5
6
7
8
Lay the cooling fan shroud mount plate onto the face of the en-
gine with the straight edge towards the cylinder head and the
access hole on the muffler side. The Engine Stabilization System
increases rigidity of the main frame of all Predator Gassers to
enable you to perform hard maneuvers with more ease. Install
the Engine Stabilization System as shown using Blue threadlock.
Do not overtighten these bolts as they thread into the front half
of the aluminum cast engine crankcase.
These screws comes with your Zenoah Engine.
Access hole for
optional governor
sensor
The Engine Stabi-
lization System is
supplied with all
SE, Carbon, or
Condor Kits only.
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
1
1
3
CNM5X16FHCS
(引擎)
(引擎座板)
(斜头螺丝)
GASOLINE ENGINE
LANDING GEAR FRAME (SILVER)
M5x16 FLUSH HEAD CAP SCREWS
4
5
6
7
8
4
2
4
2
1
(固定块)
HW6118 (风扇座板)
E.S.S.
(固定块)
E.S.S.
COOLING SHROUD MOUNT PLATE
(斜头螺丝)
(有头内六角螺丝)
CNM3x8CS
CN2300
CN2300
M3x8 SOCKET HEAD CAP SCREWS
G
NOT INCLUDED
HW6117BKM
CNM5X12FHCS M5X12 FLUSH HEAD CAP SCREWS
CNM5X12FHCS
If no E.S.S. is supplied, use
the CNM3X8CS socket
head cap screws for part
number 4 instead of the
flush head cap screws.

Predator Gasser NX
Page 11
CNM4X8BHCS
CLUTCH SHOE TO FAN AND HUB MOUNTING
Apply light oil to the Torrington bearing in the center of the clutch shoe. Be sure that
no grease contacts the edge of the clutch or it could get transfered to the clutchbell.
Slide the clutch shoe onto the fan hub, press down and install four M4x8 button head
screws using Blue threadlock.
Dip a cloth in rubbing
alcohol and degrease
the threads in the end
of the engine crank-
shaft. Apply liquid oil
to the outside taper of
the engine crankshaft,
the entire taper should
be coated. Do not get
oil into the internal
threads. Use Triflow
or equivalent oil.
Slide the cooling fan assembly onto the engine. Locate the M6x15 socket
cap screw. Thoroughly clean this screw to remove any oil residue. Install
the fan assembly onto the crankshaft. Using a cloth wrapped around the
outside of the cooling fan held by your hand, tighten the M6x15 socket cap
screw until hand tight and check the runout of the fan assembly. Accept-
able runout is 0.002”, if more, remove the fan assembly and install again.
Once satisfied, remove the M6x15 socket cap screw, apply Blue thread
lock and secure in place.
1
2
3
4
5
6
7
If you plan to install a governor, it is best to fabricate the mount for the sensor at this
time, get it fitted and set the sensor gap before the fan shroud is installed.
Tighten these bolts
until they stop and
that’s it. Do not
torque these bolts!
Using a Dremel type tool or
similar, cut away a 29mm x
5.5mm slot.
Take the time now to make sure that the clutch shoe is prop-
erly seated on the fan assembly by looking at it from the side
and making sure there is no vertical movement as you slowly
turn over the engine. Experienced modelers willdial indicate
the clutch with an acceptable amount of runout of 0.002”
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
1
1
4
1
(单向轴承)
(离合器)
(圆头螺丝)
NX / SUPER HEAVY DUTY CLUTCH SHOE
NX / SUPER HEAVY DUTY CLUTCH SHOE
(有头内六角螺丝)
HI6009B
5(风扇) 1
BUTTON HEAD CAP SCREWS
METAL COOLING FAN & HUB
HW6011HDM
HW6011HDM
CNM4X8BHCS
CNM6X16CS
HI6020B
CNM2.5X8CS
M6X16 SOCKET HEAD CAP SCREW
COOLING FAN SHROUD (PLASTIC)
M2.5X8 SOCKET HEAD CAP SCREW
CNM6X16CS
M4X8
HW6011HDM
6
7
1
3

Predator Gasser NX
Page 12

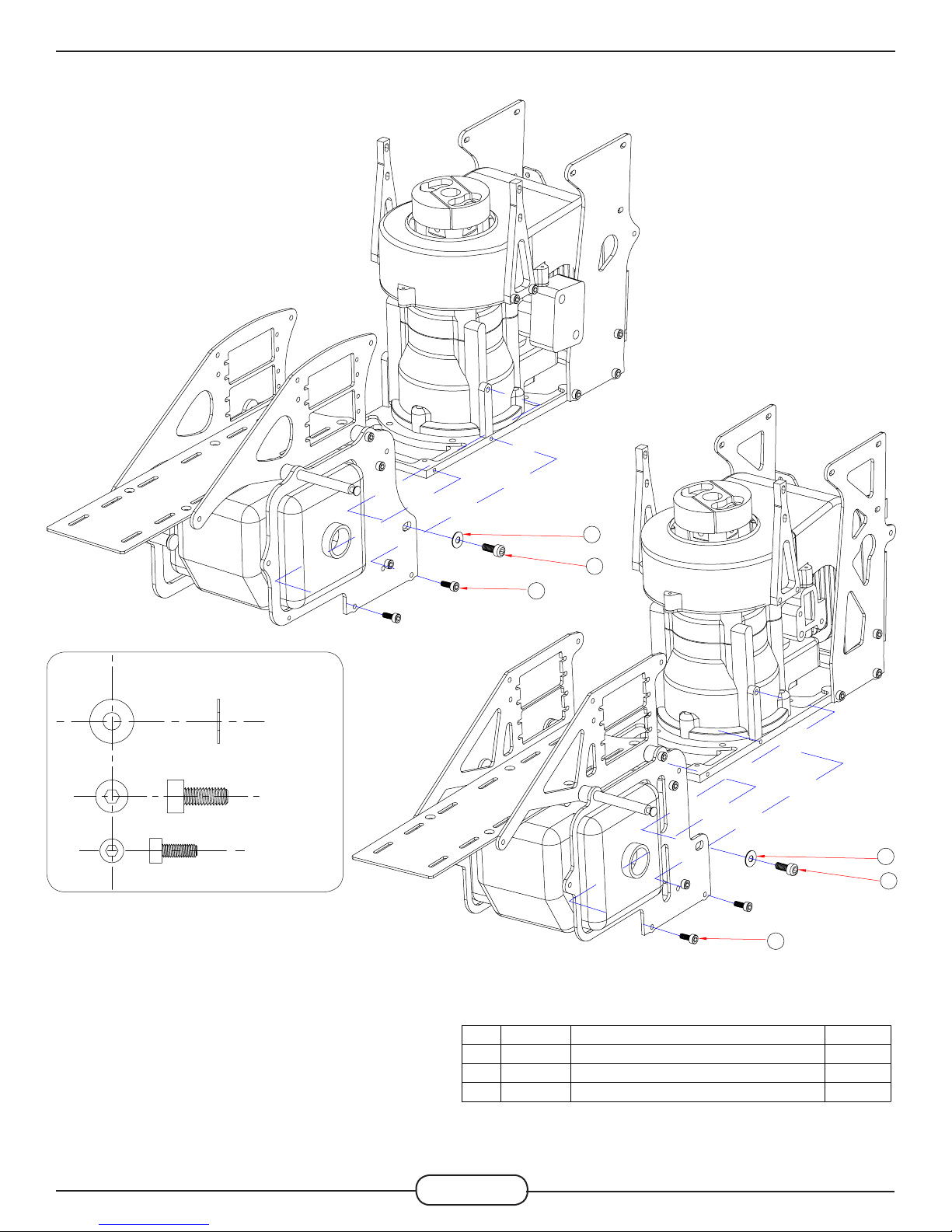

MOTOR MOUNTING
M3X8CS
Slide the rear frame assembly over the
landing gear frame and insert the spark
plug wire through the cutout in the left
side frame and the X frame. Insert four
M3x8 socket cap screws through the
lower frames into the landing gear frame,
do not use threadlock at this time. Press
the spark plug cap over the spark plug in
the engine. Similarly, the M3x8 socket
cap screws will not be tightened until after
the upper frames are installed. Attached
to the coil is a black wire, this is gener-
ally not used in helicopters and should be
secured out of the way with a cable tie.
1
2
3
1
2
The following pages will contain informa-
tion for both the G10 & Carbon framed
versions. You may notice the frames illus-
trated may not pertain to the model you are
building. Only if there is enough of a descre-
pency between the two versions will both
versions be illustrated. Otherwise you can
assume the frames are the same except
for cosmetic differences.
G10 Frames
Carbon Fiber
Frames
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
1
4
(侧板)
REAR LOWER FRAME G10 (RIGHT)
(有头内六角螺丝)
CNM3x8CS
HW6115CGR
31
(侧板)
REAR LOWER FRAME G10 (LEFT)
HW6115CGL
31
(侧板)
REAR LOWER FRAME CARBON (LEFT)
HC6003-2
11
(侧板)
REAR LOWER FRAME CARBON (RIGHT)
HC6003-1
M3x8 SOCKET HEAD CAP SCREWS

Predator Gasser NX
Page 13
M3X8CS
FUEL TANK INSTALLATION
The fuel tank isolators have a “U” profile that need to be fitted to the fuel tank
openings on the lower front side frames. Start at the center of one edge and
work the isolator into the frame, seating the corners. Towards the end, con-
tinue forcing the rubber material until the ends butt against each other. Note
that the frames are different sizes and some trimming is necessary.
This would be the opportune time to install the J-fitting breather. You will need to drill
a hole in your fuel tank to install the breather fitting. This hole should be as close
to the corner as possible to avoid interaction with the frames. Do a dry-fit first
prior to drilling the hole. When doing this, make sure not to oversize the hole
being made as this will cause an unecessary leak. When you install the
J-fitting, it should thread into the hole. One nut will hold the fitting
on the top side and the other nut will hold the fitting from
within the fuel tank. When installing the J-fitting,
the use of a bent paperclip will help to in-
stall the nut within the fuel tank.
As you will notice the fuel tank will float
between the front lower side frames. In-
stall the M3x10x17 fuel tank spacer on
the right side frame into the center hole
with one M3x8 socket cap screw using
Blue threadlock.
1
1
1
1
(油箱)
(铝柱)
2
(有头内六角螺丝)
CNM3x8CS
(铝柱)
ALUMINUM PILLAR
(橡胶圈)
(侧板)
X-FRAME G10
(侧板)
HI6138A
HW6115BGR
HW6115BGL
HW6112BG
HW6112B
1
1
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
1
(侧板)
X-FRAME CARBON
HW6112BC
3
4
5
6
8
7
4
(有头内六角螺丝)
CNM3x8CS 5
9
VERTICAL FRONT FRAME G10 (LEFT)
(侧板)
VERTICAL FRONT FRAME G10 (RIGHT)
1
HC6003-4
9(侧板)
VERTICAL FRONT FRAME CARBON (RIGHT)
(侧板)
HC6003-3 1
4VERTICAL FRONT FRAME CARBON (LEFT)
FUEL TANK ISOLATION SPACER
M3x8 SOCKET HEAD CAP SCREWS
FUEL TANK with FITTINGS & ISOLATOR
FUEL TANK with FITTINGS & ISOLATOR
1
10
M3x8 SOCKET HEAD CAP SCREWS
GS
1.000
1
2
3
4
56
5
7
8
9
10
HI6138G
HI6138G
CNFS115 L-TYPE FULE TANK NOZZLE

Predator Gasser NX
Page 14
CNM3X8FHCS
M3X8CS
ELECTRONICS TRAY ASSEMBLY
Do not threadlock the frame bolts until the upper
frames are installed as it is critical to have the clutch
and clutch bell assembly align perfectly. To accomplish
this the frames can be shifted within the limits of the
fasteners.
G10 Frames
Carbon Fiber
Frames
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
2
5
6
6
1
1
2
3
(电池板)
HW6112CG BATTERY TRAY G10
CNM3X8FHCS (斜头螺丝)
(侧板)
CNM3X8CS (有头内六角螺丝)
(铝柱)
HW6112CC
HW6112GS
M3x8 FLUSH HEAD CAP SCREWS
ALUMINUM PILLAR
BATTERY TRAY CARBON
3
4
1
1
(电池板)
HW6112GR SERVO SIDE FRAME G10 (RIGHT)
31
(电池板)
HC6001-8 SERVO SIDE FRAME CARBON (RIGHT)
(侧板)
HW6112GL SERVO SIDE FRAMES G10 (LEFT)
41
(侧板)
HC6001-7 SERVO SIDE FRAMES CARBON (LEFT)
M3x8 SOCKET HEAD CAP SCREWS
1
4
2
3
5
5
6
1
2
3
4
6

Predator Gasser NX
Page 15
M3X20CS
HW6127B
M3X16CS
ELECTRONICS TRAY ASSEMBLY
2
1
2
1
4
4
3
3
G10 Frames
Carbon Fiber
Frames
4
2
(间隔套)
FRAME STANDOFF SET
CNM3X16CS (有头内六角螺丝)
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
22
CANOPY STANDOFF SET
CANOPY STANDOFF SET
(机头固定铝柱)
(无头螺丝)
2
3
4M3x16 SOCKET HEAD CAP SCREWS
HW6127BM
HW3127D
HW3127D

Predator Gasser NX
Page 16
MAIN FRAME ASSEMBLY
M4X10
CNM4X10CS
M3X8CS
1
2
3
1
2
3
Do not threadlock the frame bolts until
the upper frames are installed as it is
critical to have the clutch and clutch bell
assembly align perfectly. To accomplish
this, the frames can be shifted within the
limits of the fasteners.
Slide the front frame assembly over the
landing gear frame and insert four M3x8
socket cap screws through the lower
frames into the landing gear frame, do
not use threadlock at this time. Install
one M4x10 socket cap screw and M4
flat washer into the slot in the frame,
threaded into the side mounts on the en-
gine crankcase. Do not used threadlock
until after the upper frames are installed.
G10 Frames
Carbon Fiber
Frames
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
2
1
4
(平面垫片)
M4 FLAT WASHER
CNM3X8CS (有头内六角螺丝)
CNM4X10CS
CNM4X10FW
(有头内六角螺丝)M4x10 SOCKET HEAD CAP SCREWS
M3x8 SOCKET HEAD CAP SCREWS

Predator Gasser NX
Page 17
M3X8CS
M3X6CS
MAIN FRAME ASSEMBLY
1
2
3
5
3
1
4
4
1
2
3
1
4
4
Assemble these bolts only to position the
frames at this time, they will be tightened
when the upper frames are installed.
Note that the upper hole remains empty
until that time also.
G10 Frames
Carbon Fiber
Frames
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
1
4
(固定块)
(后框架)
REAR
ALUMINUM FRAME MOUNT
X FRAME G10
HW6117AGS
HW6117AG
21
(后框架)
REAR X FRAME CARBON
HW6117AC
CNM3X6CS (有头内六角螺丝)
4CNM3X8CS 2
M3x6 SOCKET HEAD CAP SCREWS
M3x8 SOCKET HEAD CAP SCREWS
4
5CNM3X12CS M3X12 SOCKET HEAD CAP SCREWS

Predator Gasser NX
Page 18
1
2
3
4
5
CNBB1019
CNBB1524
CNBB1150
If servicing the clutch bearing it must be installed into the bear-
ing block before it is installed onto the clutchbell. Clean the inside
race of the ball bearing and the surface where the clutchbell will be
installed. Apply a small amount of Red threadlock to the top edge
of the clutchbell and press in place using a thin walled automotive
socket that puts pressure only on the inside race of the ball bear-
ing. Pressing from the outside race will damage the bearing which
is not covered by warranty. Finally, re-install the pinion being careful
not to cross the threads using Blue threadlock.
The clutch bell assembly and lower short
breaing block is pre-assembled.
编号 名称（ENGLISH-中文） 数量（PCS）
序号
1
2
3
4
5
1
CNBB1524
(齿轮)
(轴承)
(离合器罩)
CNBB1150 (轴承)
NX / SUPER HEAVY DUTY CLUTCH BELL
5x11x4 BALL BEARING
CNBB1019 (轴承)
10x19x5 BEARING
1
1
1
1
HW6013HDM NX / SUPER HEAVY DUTY CLUTCH BELL
15x24x5 BEARING
CONDOR ONLY
The Condor version is supplied with:
HW6018A: 11 Tooth Pinion Gear
HW6018D

Predator Gasser NX
Page 19
1
2
3
4
5
6
CNBB1350
CNM4X4SS
The gasser kits include the regular starting shaft and hex coupler
as in all the Predator kits to align the clutch to the clutchbell.
Clean both the starting shaft and the inside race of the bear-
ing inside the clutchbell and the inside race of the top start-
ing shaft bearing. Apply a small amount of Red threadlock
positioned just above where the bottom clutchbell bear-
ing will sit on the starting shaft. Slide the starting shaft
up through the bearing blocks. Apply a small amount
of Blue threadlock to the top of the starting shaft
and slide the hex coupler in place aligning the flat
spot with one of the holes. Apply Blue thread-
lock to the the two M4x4 set screws and
tighten in place.
The hex starting system has been suc-
cessfully used with the Z231H engine
but significant wear on the hex coupler
is common. Regular replacement of the
hex coupler is normal and is not covered
by warranty. The pull start should be
used for the first start of the day. After-
wards using a heavy duty electric starter
is possible.
The clutch bell assembly and lower short
breaing block is pre-assembled. If you
notice the clutch bell and bearing block
have a loose fit, be sure to separate the
two and apply a thin coat of Red thread-
lock to the outer race of the bearing
making sure not to get the threadlock
into the inner race.
Clean the top of the pinion gear and the inside surfaces of both the upper
and lower bearings inside the clutch shaft bearing block using alcohol.
Apply a small amount of Red threadlock to the top edge of the clutch gear
where it will contact the bearing. Press the bearing block in place, firmly
seating the bearing against the top of the pinion gear.
The hex starting is not recommended for
the Z260H engine as damage can occur
to your starting equipment and helicop-
ter components.
CLUTCH BELL TO BEARING BLOCK ASSEMBLY
编号 数量（PCS）
序号
1
2
3
4
5
1
(起动轴固定座)
(轴承座)
START SHAFT BEARING BLOCK with BEARING
CNBB1350 (轴承)
5x13x4
HEX COUPLER
BALL BEARING
(轴承座)
NX / SUPER HEAVY DUTY LOWER BEARING BLOCK with BALL BEARING
(起动轴)
HW6045HDM
HW6007M
CNM4X4SS
HW6005
CN0402
(无头内六角螺丝)
M4x4 SOCKET HEAD SET SCREW
6
1
1
1
1
2
START SHAFT
名称（ENGLISH-中文）

Predator Gasser NX
Page 20
CNM3X8FHCS
M3X10CS
M3X8CS
7
8
9
4
5
6
1
2
3
4
5
6
CNBB1019
M3X12CS
Clutch bearing block assembly
G10 Frames
Carbon Fiber
Frames
UPPER FRAME ASSEMBLY
编号 数量（PCS）
序号
1
2
3
4
5
6
1
2
4
1
1
(固定块)
(固定块)
CNM3X8FHCS
CN2300
CN2300
(斜头螺丝)
CNM3X10CS (有头内六角螺丝)
CNM3X8CS (有头内六角螺丝)
(侧板)
HW6110AGR
1
名称（ENGLISH-中文）
UPPER SIDE FRAME G10 (RIGHT)
61
(侧板)
HC6001-2 UPPER SIDE FRAME CARBON (RIGHT)
E.S.S.
E.S.S.
M3x8 FLUSH HEAD CAP SCREWS
M3x10 SOCKET HEAD CAP SCREWS
M3x8 SOCKET HEAD CAP SCREWS
7
8
9
1
2
1
CNBB1019 (轴承)
HW6045M
10x19x5 BEARING
(轴承座)
CNM3X12CS (有头内六角螺丝)
NX / SUPER HEAVY DUTY LOWER BEARING BLOCK with BALL BEARING
M3x12 SOCKET HEAD CAP SCREWS
