Swift
ELECTRIC R/C HELICOPTER
ARF Instruction Manual
Century Helicopter Products
Designed and Developed in USA
1st Edition November 2005 All rights reserved.
Mechanical Specs:
Main Rotor Blades: 520-550mm
Tail Rotor Diameter: 21cm
Length: 105cm
Height: 34.4cm
Weight: 1.54kg (configured with brushless motor and servos)
Electronic Specs:
Speed Control: 50-80 Amp
Motor: 900-1250kv (based on battery)
Battery: 4S-6S Li-Po or 12 cell NiMH or NiCd
Pinion: 9-15 tooth
Head Speed: 1600-2100 RPM

2
Product Warning!
This radio controlled model is not a toy! This model is recommended for persons over the age of 18. Users under the
age of 18 should be supervised for their safety. This model is a precision machine requiring proper assembly and setup
to avoid accidents. It is the responsibility of the owner to operate this product in a safe manner as it can inflict serious
or even lethal injury. It is recommended that if you are in doubt of your abilities, seek assistance from experienced radio
control helicopter modelers and associations. As manufacturer, we assume no liability for the use of this product. If you
are not prepared to operate this model safely, do not continue building this model.
*Product Note: In order to make improvements to this product, specifications may be altered without prior notice.
Introduction
Congratulations on your purchase of Century Helicopter Product’s latest version of our Swift series RC helicopter model.
The Swift helicopter is not only ideal for beginners new to the hobby, but also for the intermediate and right on through
to the expert and 3D flyers. A 6 channel helicopter radio is recommended as the bare minimum to take advantage of the
helicopter programming included in these radios. You may wish to check with us or your local dealer for compatible com-
ponents.
Pre-assembly Information
This model comes almost ready to fly. It is still a dangerous helicopter model and should not be considered a toy. It is up
to the pilot/modeler to verify all parts and assemblies prior to spool up. Various assemblies have been pre-assembled,
only requiring the final assembly and installation of the various sub-assemblies. The screws and nuts required for each
step are packaged in the same bag as the parts for that step. Be careful not to lose any of the hardware when opening
each bag. Care has been taken in filling and packing of each bag. Inspect all bolts and connections for safety as parts
may have shifted in storage or transport.
Warranty
Your new equipment is warranted to the original purchaser against manufacturer defects in material and workmanship for
30 days from the date of purchase. During this period, Century Helicopter Products will repair or replace, at our dis-
cretion, any component that is found to be factory defective at no cost to the purchaser. This warranty is limited to the
original purchaser and is not transferable. This warranty does not apply to any unit which has been improperly installed,
mishandled, abused, or damaged in a crash, or to any unit which has been repaired or altered by any unauthorized agen-
cies. Under no circumstances will the buyer be entitled to consequential or incidental damages. This limited warranty
gives you specific legal rights. You also have other rights which may vary from state.
Table of Contents
Table of Contents & Introduction ................................................................................................................2
Battery Safety .............................................................................................................................................3
Required Items and Tools for Assembly .....................................................................................................4
Package contents ......................................................................................................................................5
Assembly instructions ..............................................................................................................................6-9
Main sub assemblies (exploded views) ...............................................................................................10-14

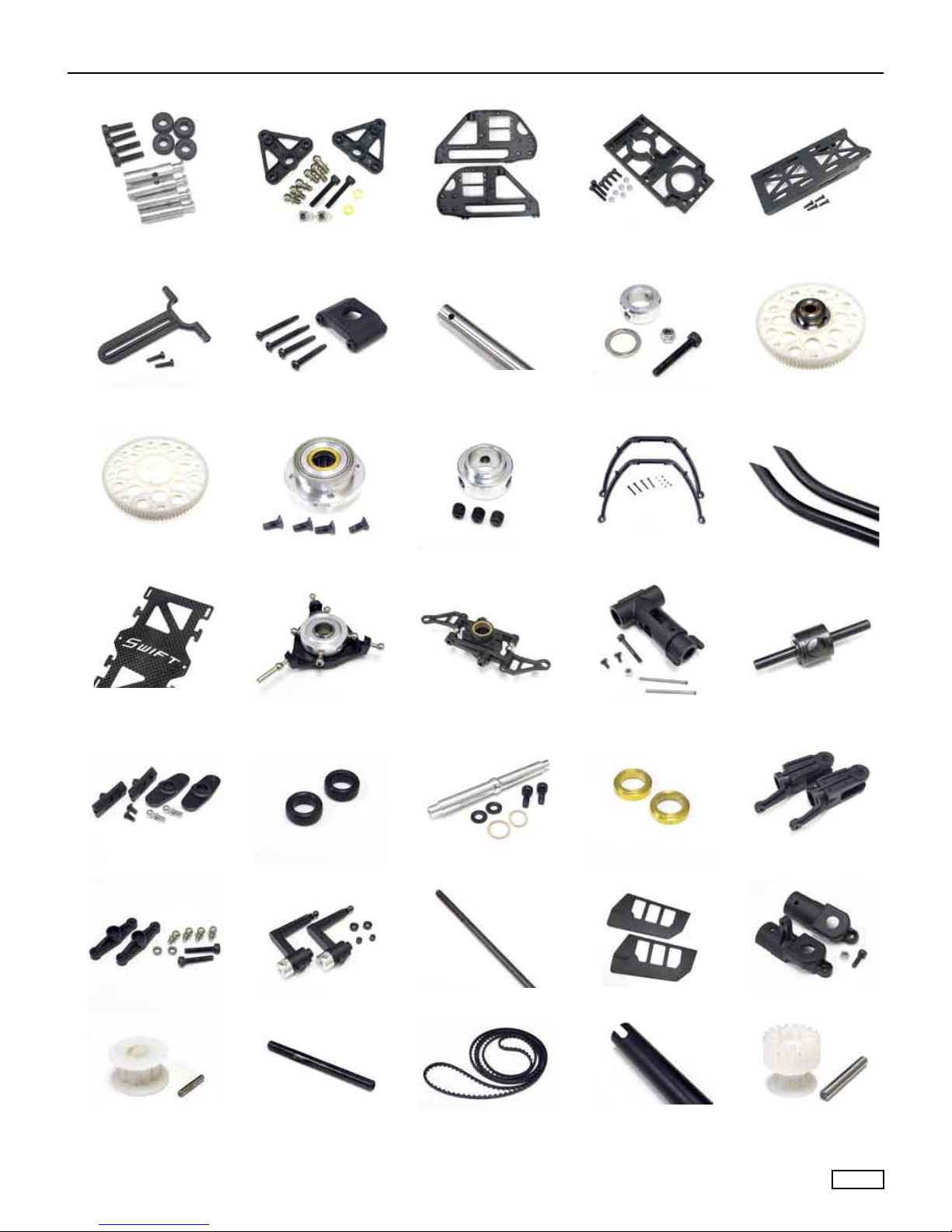

Replacement part list and photos ........................................................................................................15-16
Century Helicopter Products
1740 Junction Ave. C.
San Jose, CA 95112
Fax: [phone]
www.centuryheli.com

For Lithium Polymer and NiMH/NiCD cell or battery packs purchased.
1. Never fast-charge any battery type unattended.
2. Never charge Li-Poly cells or battery packs at any rate unattended.
3. Only charge Li-Poly cells or battery packs with a charger designed specifically for lithium polymer chemistry.
4. Li-Poly cells can ignite because of unmatched cell capacity or voltage, cell damage, charger failure, incorrect
charger setting and other factors.
5. Always use the correct charging voltage. Li-Poly cells or battery packs may ignite if connected to a charger
supplying more that 6 volts per cells.
6. Always assure the charger is working properly.
7. Always charge Li-Poly cells or battery packs where no harm can result, no matter what happens. We suggest a
brick box or likeness. Have sand handy in a bucket for any need to extinguish any fire. NEVER use water on any
cells or battery packs.
8. Never charge a cell or battery pack in a model. A hot pack may ignite wood, foam, plastic, or etc.
9. Never charge a cell or battery pack inside a motor vehicle or in a vehicle’s engine compartment.
10. Never charge a cell or battery pack on a wooden workbench or on any flammable material.
11. If a cell or battery pack is involved in a crash:
a. Remove the cell or battery pack from model.
b. Carefully inspect the cell or battery pack for shorts in the wiring or connections. If in doubt, cut all wires from cell
or battery pack.
c. Disassemble the pack
d. Inspect cells for dents, cracks and splits. Dispose of damaged cells.
12. Dispose of cells or battery packs as follows:
a. Discharge: with the cells or battery pack in a safe area, connect a moderate resistance across the terminals until
the cell or battery pack is discharged. CAUTION: cell or battery pack may be hot.
b. Discard:
i. NiMH: place in regular trash
ii. NiCD: recycle (cadmium is toxic)
iii. Li-Poly: puncture plastic envelope, immerse in salt water for several hours and place in regular trash.
13. Handle all cells or battery packs with care, as they can deliver high currents if shorted. Shorting by a wedding ring,
for example, will remove a finger.
14. Always store cells or battery packs in a secure location where they cannot be shorted or handled by children.
15. When constructing a battery pack, always use cells of the same capacity (mAh)
16. DO NOT store fully charged or discharged batteries in your helicopter.
** Century Helicopter Products will not be liable for any damages that may occur to your helicopter due to any
misuse or mishandling as explained above.
** Century Helicopter Products, its successors, heirs and assignees are not responsible in way for any and all bodily
injury(s) and/or property damage that may occur from the use of, or caused by in any way from Lithium Polymer
and NiMH/NiCD cells or battery packs offered by and or distributed by Century Helicopter Products.
Battery Warnings & Safety
WARNING
3

Part#CN2015 Hardened Tip Hex Screw Driver Set
Part#CN2026 Pitch Gauge with Paddle Gauge
Part#CN2034A 150 Curve Tip Ball link Pliers
Part#CN2052 Main Blade Balancer
Part#CN2055 Ball Link Sizing Tool
Part#CN2070 Universal Flybar Lock
Part#CN2219 Ball Link Easy Driver
Part#CN2255 Control Rod Gauge
Part#CNWI26555 5.5mm Nut Driver
Part#CNWI26570 7.0mm Nut Driver
Hobby scissors
#CN2262
Hardware Description and Identification: M3x6 = 3x6mm and can refer to screws or ball bearings.
M3x6 Phillips Machine Screw
M - metric
3 - diameter
6 - length
M3x6 Self Tapping Screw
M - metric
3 - diameter
6 - length
M3x10 Socket Cap Screw
M - metric
3 - diameter
6 - length
M3x7x3 Ball Bearing
M - Metric Value
3 - Inside
7 - Outside
3 - Thickness

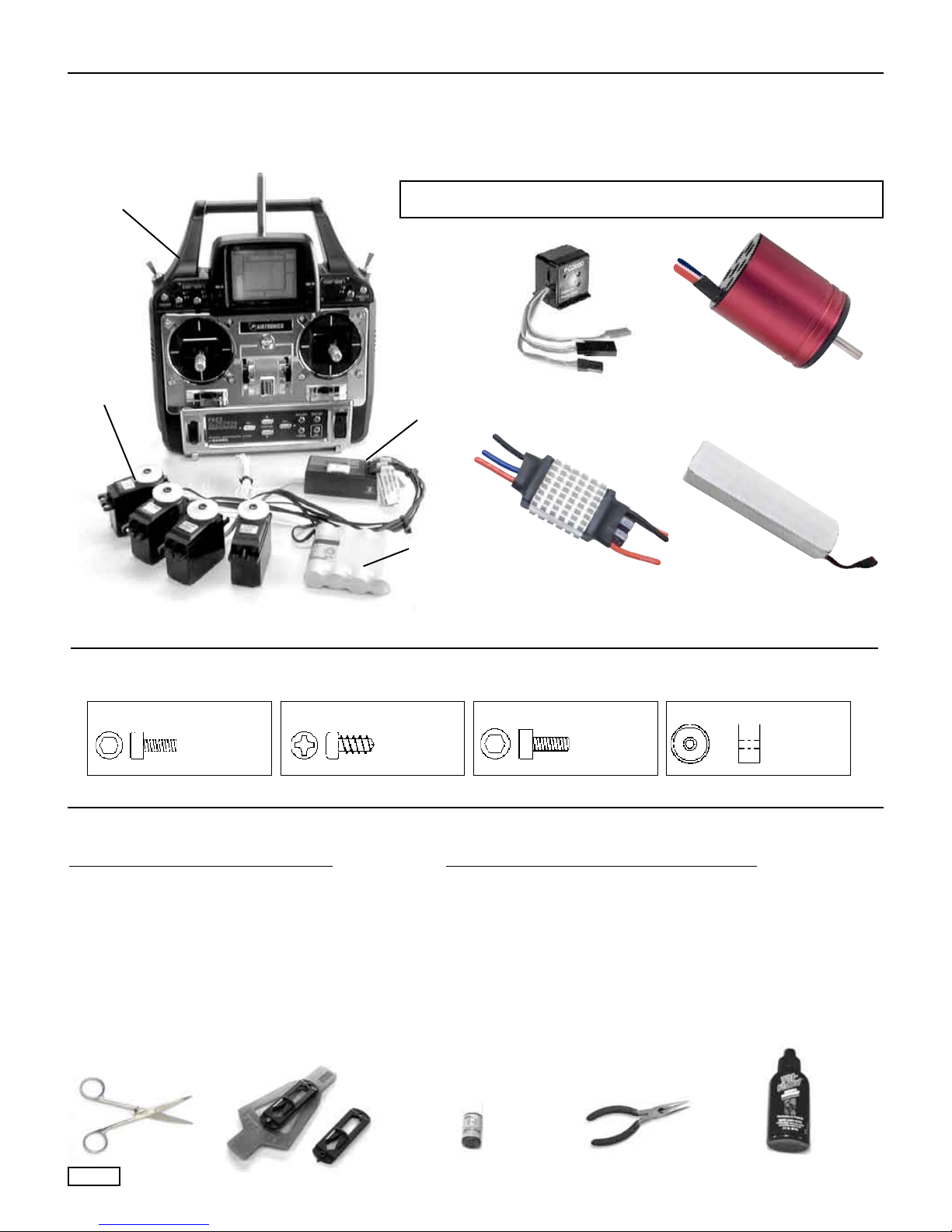

Necessary Items “Not Included” in the kit.
IMPORTANT: 6 Channel helicopter radio or
better with 120o eCCPM mixing required.
PG2000 II Dual Rate Piezo Gyro
#CN2018 (or equivalent) Brushless Electric Motor
#CNE455
Electron 55 Brushless Speed
Control w/ Heat Sink
Required items for operation
This is the general list of items required to get the Swift helicopter flying. Century produces a full spectrum of accessories and tools to
assemble your helicopter. The Swift is a mechanical cyclic collective pitch mixing type helicopter requiring a standard helicopter radio
(the helicopter radio does not require eCCPM type mixing for this model). The Swift uses 4 servos to operate critical systems. Gyro-
scopes are required to operate the model safely.
Recommended Tools & Accessories
Screwdrivers - Slotted and Phillips head
Long-Nosed Pliers
Allen Wrenches - 1.5mm, 2.0mm, 2.5mm + 3.0mm
Appropriate Socket Wrench
Hobby Scissors
Double Sided Foam Tape ( 1/16” - 3/32” )
Foam Rubber ( Radio Packing )
Thread lock liquid (e.g. Locktite)
Hobby Grease ( Super Lube )
Oil to lubricate sliding shafts
Epoxy
The tools and materials listed below are
the minimum needed to build the helicopter:
In addition, the following will make assembly and setup
easier, and prove useful later in your model toolbox:
Main Blade Pitch Gauge
w/PaddleGauge
#CN2026
Locktite
#CN2025BS blue
#CN2025RS red
Lubrication
#CN2024T
Needle Nose Plier
& Cutter Pliers
Fastener and ball bearing dimensions
Servos (4)
Receiver
Transmitter
Receiver
Battery
Pack
4
Power plant
battery pack
4S-6S Li-Po or
12 Cell NiMH
WARNING: Do not overtighten bolts or screws possibly damaging threads of bolts or components.

Package contents: Opening The Swift 16 ARF for the first time
Time to inventory your Hawk Pro! The helicopter is assorted into multiple bags contained inside the box. Each bag will have some parts
that are not associated with that specific part bag. We recommend organizing all hardware and pieces and inventory them then keep
them with their respective bags. It is common to have a few screws and/or washers left on the side after the build.

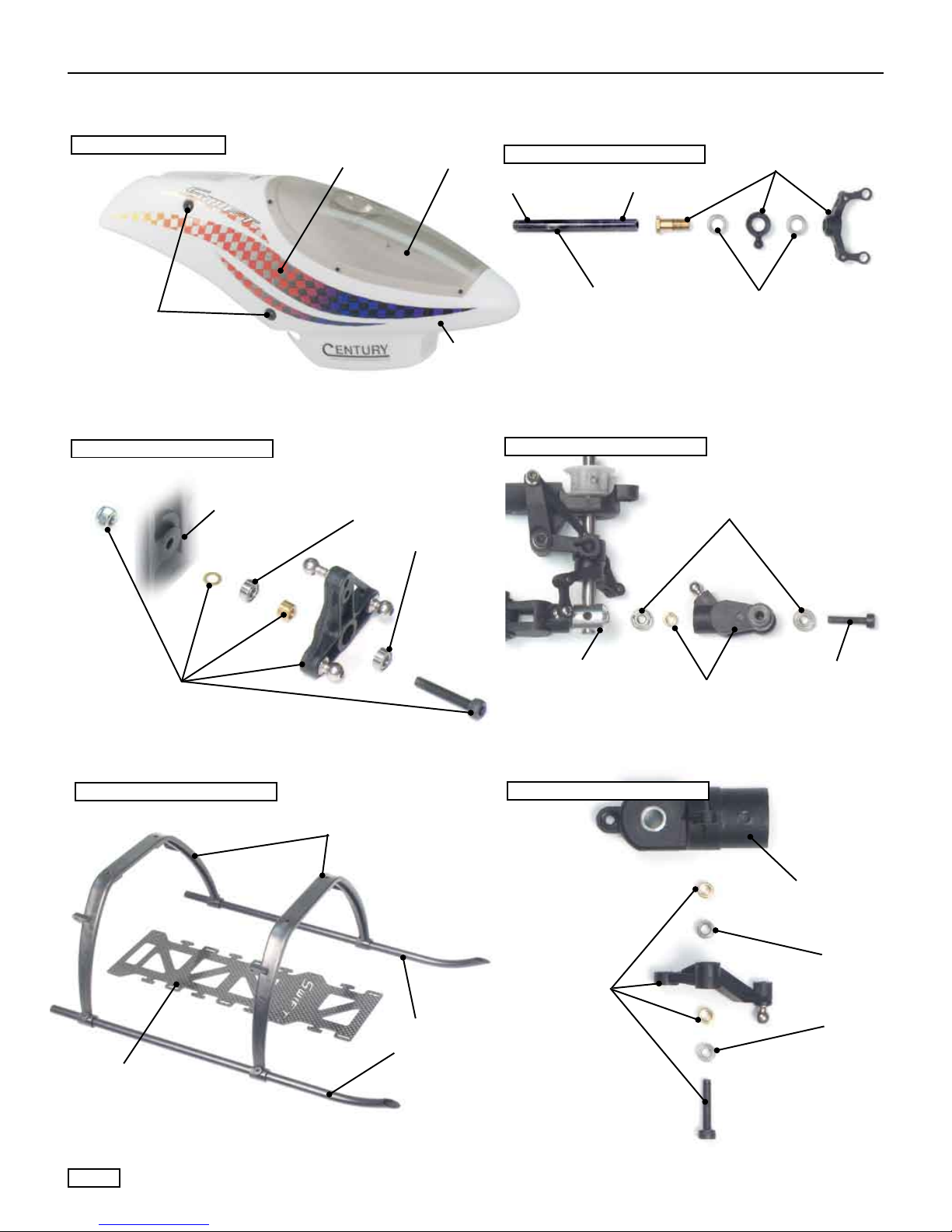

Inventory List: Items Contained In The Swift 16 ARF Box
5
Canopy With Grommets Windshield Forward Mechanics Assembly Landing Gear Pack
Hardware Pack
Battery Tray &
Vertical Fin Pack
Windshield Hardware
Tail Rotor Assembly
Rudder Control Rod & Tail Boom
Support Struts Pack
Canopy
•Polypropylene canopy
•Canopy Grommets (4)
Windshield
•Tinted Windshield (requires cutting)
Forward Mechanics
•Main Frames
•Electronics Tray
•Rotor Head
•Main Gear
•Motor Mounting Plate
•Hardware
•Ball Bearings
Landing Gear Pack
•Plastic Landing Struts
•Aluminum Landing Skids
Decal Sheet
•M3 Lock Nut (4)
•M3x15 Socket Head Cap Screw (4)
•M3x6 Flat Washer (4)
Hardware Pack
•Linkage Rod (4)
•Battery Band (4)
•M2 Nut (12)
•M2 Servo Ball (6)
•M2.5x12 Washer-Head Screw (4)
•M3x12 Phillips Machine Screw (2)
•M3x12 Self Tapping Screw (8)
•Elevator Servo Spacers (2)
•Servo Mounting Tabs (6)
•M2.5x12 Self Tapping Screw (12)
•M3x25 Socket Shoulder Screw (2)
•M3 Lock Nut (2)
•M3x16 Socket head cap screw (2)
•M3 Washer (2)
Windshield Hardware
•M2x5 Self Tapping (5)
Rudder Control Rod & Tail Boom
Support Struts Pack
•M2.5x5 Machine Screw (4)
•Rudder Control Rod
•Tail boom Support Strut (2)
Battery Tray & Vertical Fin Pack
•Carbon Battery Support
•Vertical Fin
Tail Rotor Assembly
•Tail Boom, Gearbox
•Horizontal Fin
•Tail Blades
•Rudder Servo Mounts
•Transmission Gears
•Drive Belt
•Hardware
•Ball Bearings
•Rudder Control Rod Guide
Decal Sheet
•Swift Canopy Decals & Stickers
Main Rotor Blades
•Main Rotor Blades (2)
•Main Blade Root End (4)
•Main Blade Hardware
•Tracking Tape
Main Rotor Blades

Section 1: Combining Main Frame, Battery Plate & Landing Gear
Section 2: Combining Tail Assembly & Main Frame Assembly
6
(1.1) Align the holes in the carbon fiber battery plate with the holes in the two plastic landing struts.
(1.2) Assemble the landing gear as pictured with the plastic mounting posts facing rearward (away from the curved part of
the skids). Tighten the four set screws when aligned (Set screws are mounted in the landing struts from the factory).
(1.3) Align the mounting points on the main frame with the holes in the landing struts and the battery tray.
(1.4) Place the landing struts below the main frame then the battery tray below the landing struts aligned as pictured and
use the provided hardware to join them (4pc M8x15 bolt & M3 lock nut).
(2.1) Align the mounting posts from the front transmission gearbox with the mounting posts at the rear of the main frame.
The horizontal fin on the tail boom facing should face up so the rudder pushrod and tail boom support struts hang below
the tail boom.
(2.2) Using the hardware provided attach the tail section to the frame section. Do not fully tighten the screws till the
following step.
1.1 1.2
1.3 1.4
2.1 2.2
Bolt heads in
transmission gearbox
must face UP.
M3x12 Self tapping
screews (8)
Do not fully tighten
the screws till the
following step.
M3x15 Socket head
cap screws (4)
M3 Locknut (4)
M3x6 Flat washer (4)
Set screws
installed by
factory (4)

7
Section 4: Final Rotor Head Adjustments & Linkage
Section 3: Aligning Tail Gear Mesh & Landing Support Struts
(3.1) Align the transmission gear mesh before fully tightening the screws holding the frame and tail sections. Good
alignment is smooth and free of resistance without slipping or skipping teeth. (HINT:) place a piece of paper between the
gears to give proper clearance.
(3.2) Attach the tail boom support struts to the horizontal fin clamp and the rear mounting posts on the landing struts as
shown by tightening the four set screws. (HINT:) To help prevent rotation of the horizontal fin mount, wrap the area under
the horizontal fin mount with a few layers of electrical tape.
3.1 3.2
Linkage:
bell mixer to
swashplate
(2) = 96mm
Linkage: flybar
control arm to
washout arm
(2) = 48mm
Linkage: bell
mixer to seesaw
(2) = 25mm
Linkage: Aileron/
Pitch control arm
to swashplate
(2) = 75mm
Linkage:
Elevator Servo
to swashplate
(1) = 50mm
(4.1) The flybar is not fastened by the facotry
and requires alignment. Adjust the flybar until
the outter flat spots align with the set screws
in the flybar control arms (set screws facing
upward and flybar control arms are flush up
against the seesaw).
(4.2) Make certain that the flybar is equal in
length on both sides of the rotor head before
tightening the flybar control arms. Set the flybar
control arms flush and level to the seesaw and
tighten the set screws using locktite.
(4.3) It is important to check the linkages of the
helicopter before installing servos to be sure the
lengths are correct. In this diagram we will show
you the correct rotor head linkage lengths. Link-
age lengths are based on the distance between
centers of the metal control balls.
4.3
4.1 4.2
Flybar outter
flat spot
Equal flybar length
on each side
Flybar control arms must
be level with Seesaw. Set
screws (2 pre-installed)
face upward.
Flybar outter flat spots align
with flybar control arms when
arms are flush with seesaw.
Use Threadlock
M3x12 Socket head
cap screws (2)
M3 Locknut (2)
M3x12 Machine
screw (2)

8

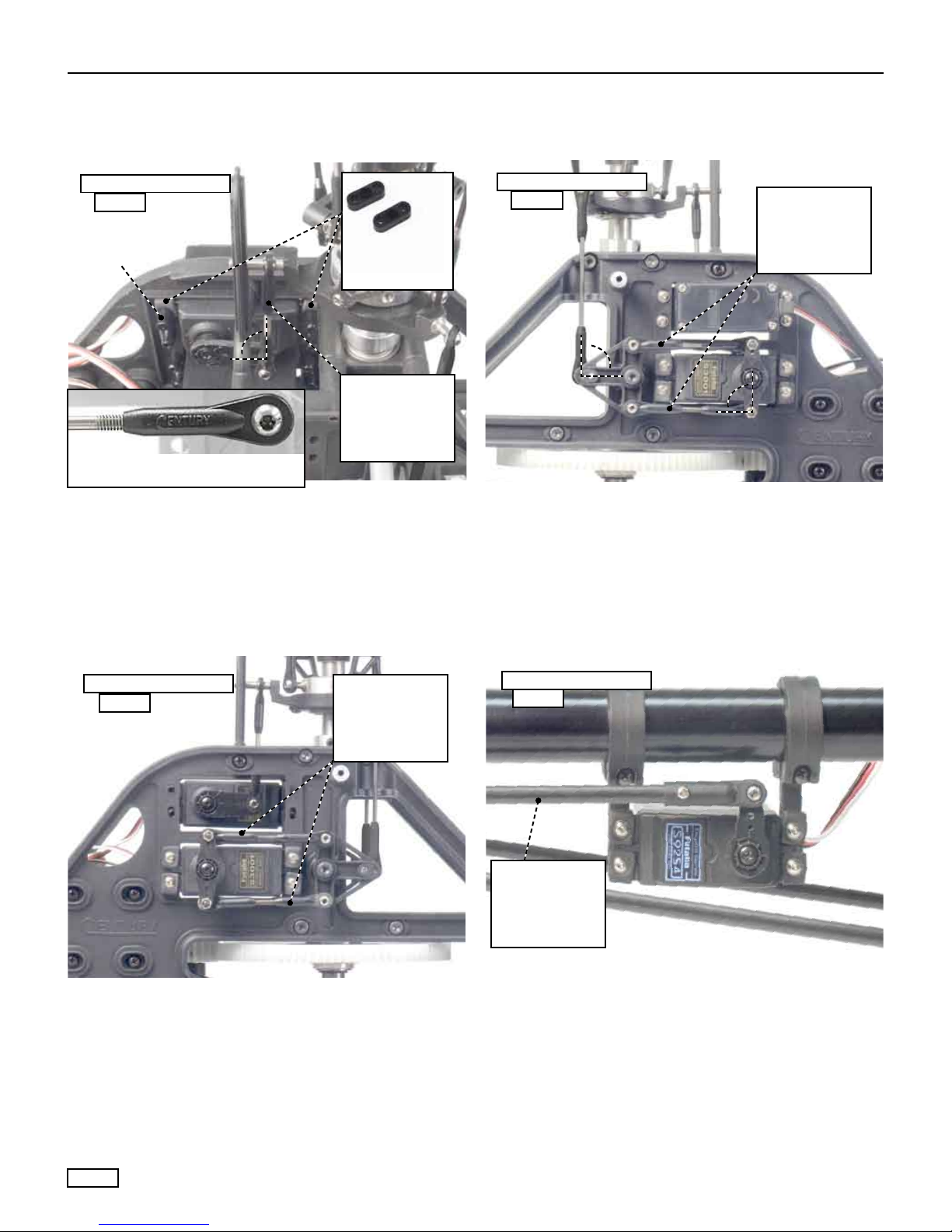

Section 5: Installing Servos & Servo Linkage
Installing servos and linkage to the airframe. Before beginning this section you should center all servos using the radio.
All servo arms must be set with linkages as pictured at 90 degree angles. All servos mount with M2.5x12 self tapping
screws, M2 servo balls and M2 Nuts. IMPORTANT: Century logo on all ball links must face OUTWARD as pictured.
(5.3) The aileron servo will mount with a full servo arm on
the lower opening of the right side of the main frame. Use
the 4 servo screws and 2 servo mounting tabs to mount
the aileron servo with the servo arm further toward the
rear of the frame (pictured above).
Place two servo balls to the aileron servo arm facing
inside toward the frame. Attach 2 of the 47mm linkages
to the servo arm balls then to the balls on the aileron
bellcrank.
(5.2) The pitch servo will mount with a full servo arm on
the lower opening of the left side of the main frame. Use
the 4 servo screws and 2 servo mounting tabs to mount
the pitch servo with the servo arm further toward the rear
of the frame (pictured above).
Place two servo balls to the pitch servo arm facing inside
toward the frame. Attach 2 of the 47mm linkages to the
servo arm balls then to the balls on the pitch bellcrank.
(5.1) The elevator servo will mount with a half servo arm
on the upper opening of the left side of the main frame.
Use the 4 servo screws and 2 servo mounting tabs to
mount the elevator servo with the servo arm output facing
toward the rear inside of the frame (pictured above).
Place one servo ball to the pitch servo arm facing inside
toward the frame. Attach one 50mm linkage to the servo
arm ball then to the ball on the back of the swashplate.
(5.4) The rudder servo will mount with a half servo arm
on the servo bracket on the tail boom. Use the 4 Servo
screws and 2 servo mounting tabs to mount the servo
with the servo output facing the forward right side of the
helicopter (pictured above).
Use a servo ball on the outside of the servo arm. Attach
the front end of the rudder control rod to the servo ball.
Servo
Mounting
Tab
View: Right Side
Linkage:
Elevator Servo
to swashplate
(1) = 50mm
Linkage:
Pitch Servo to
bellcrank
(2) = 47mm
Linkage:
Pitch Servo to
bellcrank
(2) = 47mm
Linkage for
Rudder servo:
Preset length
by factory.
View: Left Side
View: Right Side View: Right Side
5.1 5.2
5.3 5.4
90o
90o
Century logo on all ball links must
face OUTWARD as pictured
90o
Elevator servo
spacers may be
needed here
CNE547

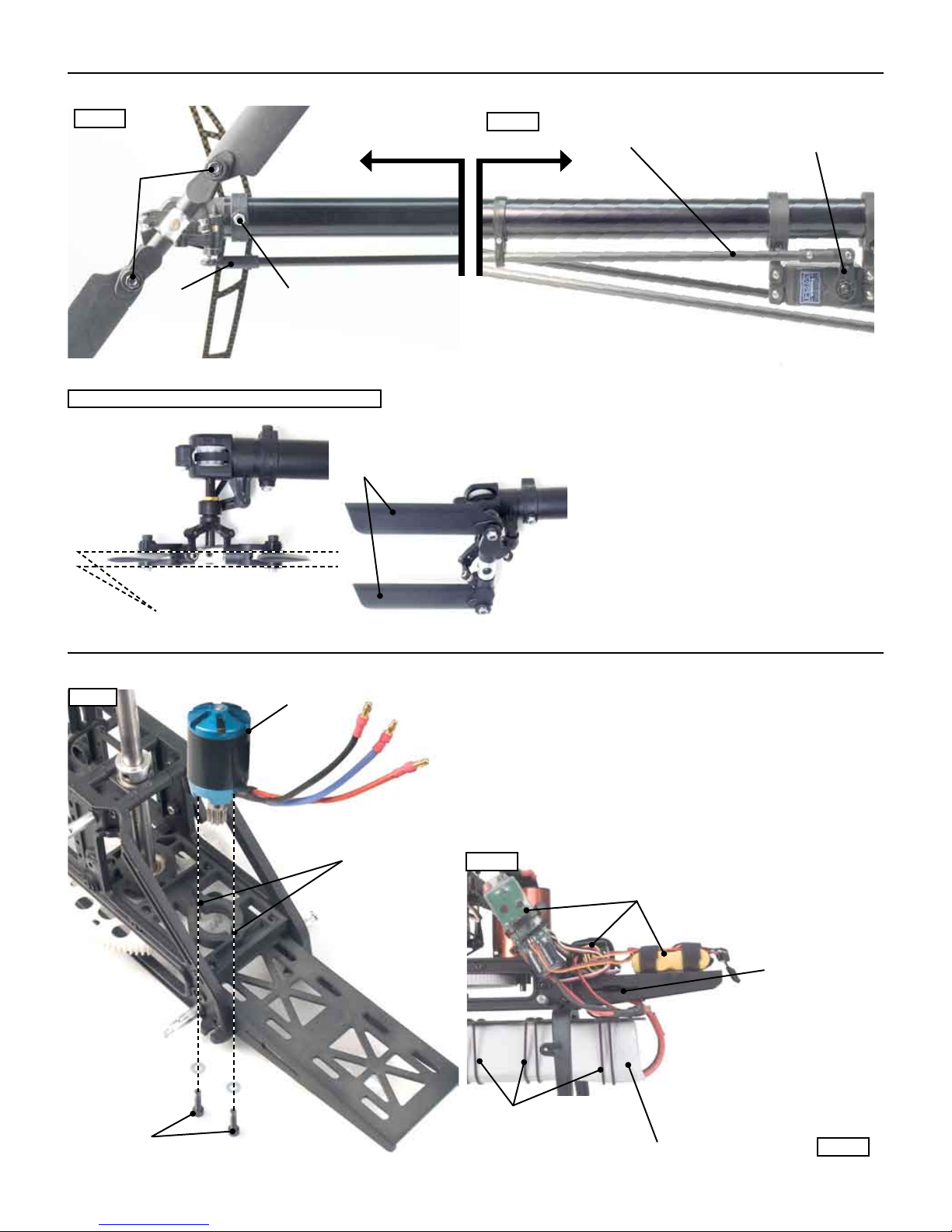

Section 7: Mounting Motor & Electronics
Section 6: Setting Tail Linkage & Blades
Rear Front
Rudder
Pushrod
Rudder
Pushrod
Servo arm is at a
90 degree angle
(7.1) The key to installing the motor is the gear mesh. The
elongated slots for mounting the motor allow space to adjust
the mesh between the motor pinion gear and the main gear.
Install the motor to the motor mounting plate and secure with
hardware provided by the manufacturer of the motor.
(7.2) Install the batteries and control system neatly onto the
electronics tray. When installing electronics make sure that
wires are not going to come into contact with moving parts.
6.1-2 6.3
Motor
Mounting
Slots
Electric Motor
M3x16 Socket
head cap
screws (2)
Motor mounting
screws &
washers
7.1
Tighten the
tail blade
grips here
(6.1) Install the vertical fin as pictured using
the pre-installed socket head cap screw and
locknut.
(6-2) The rudder pushrod controls the position
of the tail pitch plate. The tail pitch plate
should be first set in the middle position of the
tail rotor shaft. The tail blades should have
no pitch in that position. Tighten the tail rotor
blades until the blade grips hold firm and will
still fold back in the event of a blade strike.
(6.2) Adjust the position of the rudder servo
bracket so that the tail pitch plate is centered
on the tail rotor shaft while the servo arm is at
a 90 degree angle (as pictured).
Tail rotor blades with
zero pitch (blade tips
will be in-line)
Tail blades will line up in a flat
straight line
Hint: Setting zero pitch for tail blades
9
M3 Socket head cap screw
M3 Locknut (pre installed by
factory)
CNE553
Rubber Battery Clamps (4)
*Requires 3-4
Radio equipment (speed
control / receiver / receiver
battery, gyro & etc.)
Battery Pack
7.2
IMOPRTANT: The gyro cannot be
mounted too close to the speed
control due to interference. Keeping
electronics and wires apart helps
reduce glitches.
HINT: Installing industrial strength
velcro will help secure the batteries
during aerobatics.
Receiver
switch
mount
NOTE: The motor
can be bolted
through the carbon
battery tray using
the open spaces in
the tray.

The canopy may require
cutting to make space
for certain batteries or
other extras.

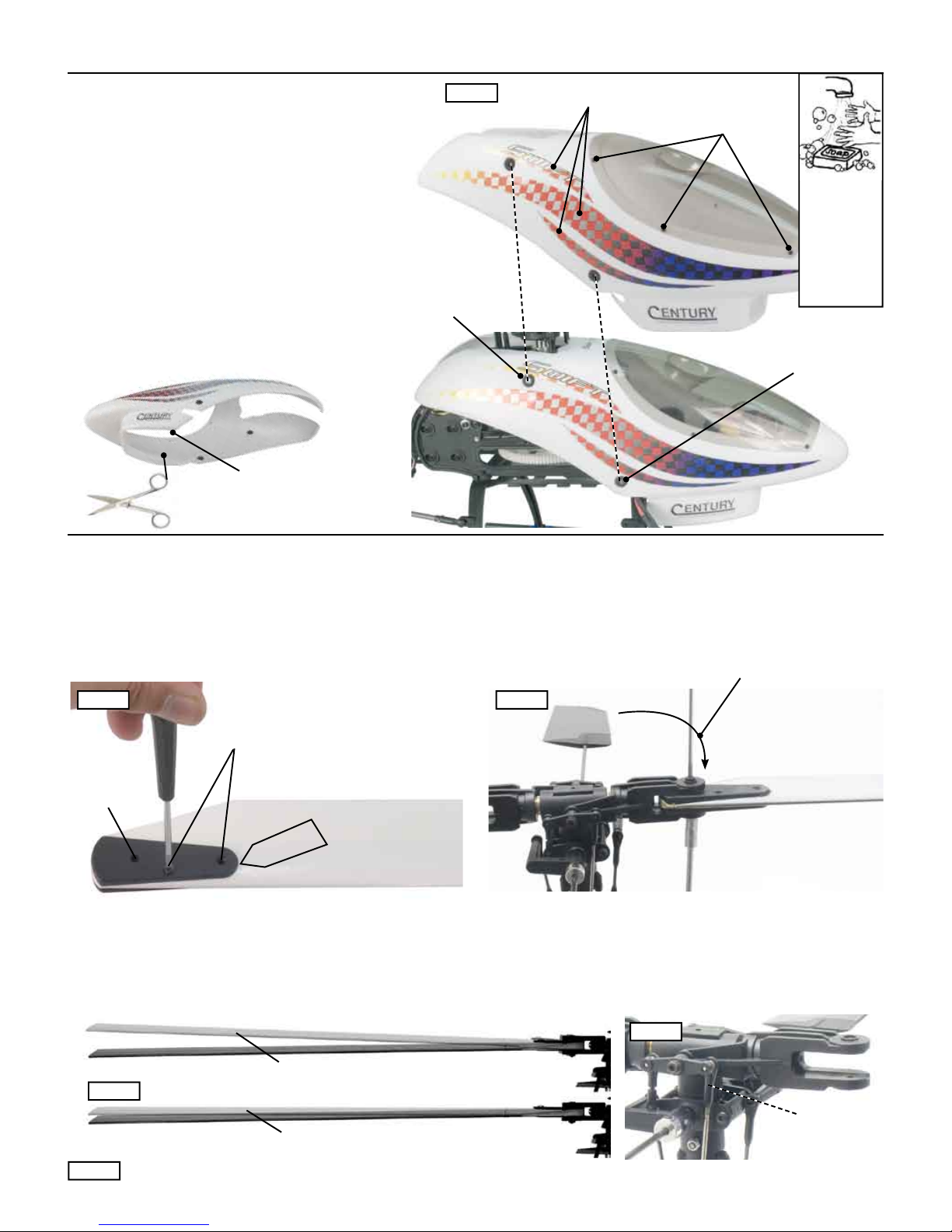

Section 8: Mounting The Canopy
Section 9: Preparing, Mounting & Tracking The Main Rotor Blades
(8.1) Cut the windshield of the canopy to align with
the windshield lip of the canopy. Use the supplied
hardware to attach the windshield to the canopy.
(HINT:) Use Krylon ‘Fusion’ paint if painting.
(8.2) Use soap and water to clean the canopy
before applying decals. Decals are designed for
application as pictured. Mount the decals in such a
way that they do not come too close to the canopy
mounting grommets.
(8.3) Mount the canopy to the front of the
helicopter using the four grommet posts as
shown. Be sure that the rotor head linkage is not
obstructed and the swashplate has room to move.
M2x5 Self
tapping
screws (5)
Canopy
grommet
mounting
for rear
post
Canopy
grommet
mounting
for front
post
Layout for decal
application
(9.2) Each rotor blade has 3 holes drilled in the root. Use epoxy to glue the plastic root ends to the exposed wood pre-cut
by the factory. Use the countersunk screws to secure the root ends to the blades and let the glue dry.
(9.3) Use the 2 M4x30 blade bolts and M4 locknuts to secure the blades to the blade grips on the main rotor head.Main
rotor blades should have their leading edge turning clockwise.
IMPORTANT NOTE: MAIN BLADES AND FLYBAR PADDLES TURN CLOCKWISE.
Trailing edge
Leading edge
M2.5 Countersunk
blade root screws (4)
Blade bolt
hole
8.1-3
IMPORTANT NOTE:
MAIN BLADES AND
FLYBAR PADDLES
TURN CLOCKWISE.
Tracking Adjustment:
(9-3) Tracking refers to trimming the actual pitch of the main rotor blades to be equal. On the first flight, bring the rotor
head up to speed without leaving the ground and look at the side or profile of the rotor disk (FROM A VERY SAFE
DISTANCE, MAKING SURE TO WEAR EYE PROTECTION).
(9-4) Only one rotor blade should be visible, if there are two distinctive blades then the tracking linkage must be changed.
Observe which blade is tracking above the other by marking one first. Track that blade lower by shortening the ‘bell mixer
to swashplate’ linkage rod.
Very Bad!
Improved!
Trailing edge
Leading edge
Glue here
9.1
10
9.1
9.3
9.4
ASSEMBLY COMPLETE! MODELER IS RESPONSIBLE FOR COMPLETENESS AND SAFETY OF THE MODEL.
Bell mixer to
Swashplate
linkage
Use soap
and water
to clean
the canopy
before
applying
decals.
M3x25 Socket
shoulder head cap
screw (2)
M3 Locknut (2)

CNE545
Pushrod Set
CNE527
Flybar Paddles
CNE515
Swashplate
CNE516
Washout Assembly
CNE526
Flybar
CNE525
Flybar Control
Arms
CNE523
Main Blade Grips
CNE517
Head Block
CNE519
Seesaw Assembly
CNE525
Flybar Control Arm
Spacer
11
CNE521
Feathering
Spindle
CNE517
Head Block
CNE520
Black Rubber
Dampeners
CNE522
Main Blade Grip
Spacers (tapered
lip faces CNBB814)
CNE519
Seesaw
Assembly
CNBB614T
Main Blade Grip
Thrust Bearing (2)
*Requires 2
CNBB814
Main Blade Grip
Radial Bearings (2)
*requires 4
CNE524
Bell Mixer Set
CNE521
Feathering Spindle
CNE523
Main Blade Grips
Main Blade Grips
Rotor Head Block
CNE521
Feathering Spindle
Washer
Construction Details: Rotor Head Assembly
CNBB0730
Seesaw Bearing (2)
*Requires 2
CNE517
Head Block
CNE518
Seesaw Shaft
CNE517
Head Block
CNE519
Seesaw
Assembly
CNBB364
Flybar Bearing
CNE519
Seesaw Spacer
Seesaw Shaft
Main Rotor Head
CNBB364
Tail Pitch Lever
Bearing (4)
*Requires 2

Construction Details: Main Frame Assembly
Attach the carbon fiber battery plate to the bottom portion of the main frame
CNE503
Main Frames
(left and right)
CNE505
Front
Electronics
Tray
CNE514
Carbon Fiber
Support Frame
CNE501
Canopy
Standoffs &
Grommets
(Short)
CNE511
Upper Shaft Collar
CNE510
Main Gear With
Autorotation Hub
CNE507
Upper Bearing
Block
CNE506
Anti Rotation
Bracket
CNE504
Motor Bottom
Block
CNE502
CCPM
Bellcrank
CNE509
Lower Shaft Collar
(Goes over bottom
of main shaft)
Main Gear Bottom
CNE508
Main Shaft
Construction Details: Tail Drive Assembly
CNE529
Tail Gear Box Gear
With Pin
CNE531
Swift 16 Tail Drive Belt
CNE533
Transmission Gear
With Pin
CNE529
Tail Gear Box Gear
With Pin
CNE534
Rudder Control
Rod Set
CNE538
Tail Pitch Lever
CNE537
Tail Pitch
Slider
CNE530
Tail Rotor Shaft
CNE539
Tail Rotor Hub
CNE533
Transmission Gear
With Pin
CNE531
Swift 16 Tail
Drive Belt
CNE531
Swift 16 Tail
Drive Belt
CNE535
Fin Mounts
(vertical)
CNE542
Tail Transmission
Gear Box
CNE532
Swift Tail Boom
CNE544
Tail Servo
Mounts
View: Right SideView: Bottom
View: Right Side
CNE510
Main Gear With
Autorotation Hub
CNE528
Tail Gear
Box
Tail Drive Belt
12
CNE501
Canopy
Standoffs &
Grommets
(Long)

CNE533
Transmission Gear
With Pin
Construction Details: Tail Boom Assembly
13
CNE541
Tail Rotor Blades
CNE538
Tail Pitch Lever
CNE539
Tail Rotor Hub
CNE540
Tail Blade Grips
CNE528
Tail Gear
Box
CNE532
Swift Tail Boom
CNE534
Rudder Control
Rod Set
CNE536
Carbon Fiber
Fin Set
CNE536
Carbon Fiber Fin Set
CNE537
Tail Pitch Slider
CNE543
Tail Boom
Support Set
CNE532
Swift Tail Boom
CNE544
Tail Servo
Mounts
CNE542
Tail Transmission
Gear Box
CNE533
Transmission Gear
With Pin
CNE535
Fin Mount
(Horizontal)
CNE529
Tail Gear Box Gear
With Pin
CNE534
Rudder Control
Rod Set
CNE529
Tail Gear Box Gear
With Pin
CNE530
Tail Rotor Shaft
CNBB1350
Tail Gear Box
Bearing (2)
*Requires 2
CNBB1350
Tail Gear Box
Bearing (2)
*Requires 2
CNE528
Tail Gear Box
CNE542
Tail Transmission
Gear Box (top)
CNE542
Tail Transmission
Gear Box (bottom)
CNBB4102
Transmission Gear
Bearing (2)
*requires 2
Tail Gearbox
Tail Transmission
Gear Box
Tail Boom Assembly

Construction Details: Sub Assemblies
CNE514
Carbon Fiber
Support Frame
CNE513
Landing Skids
CNE512
Landing Struts
CCPM Bellcranks
CNE502
CCPM Bellcrank Set
CNBB364
CCPM Bell Crank
Bearing (4)
*Requires 4
CNE503
Main Frames
(Left and right)
14
Canopy & Decal
CNE549
Canopy
CN2210A
Canopy
Grommets
CNE551
Decal Set
CNE550
Windshield
Tail Blade Grips
CNBB0384
Tail Blade Grip
Bearings (4)
*Requires 4
CNE540
Tail Blade Grips
Landing Gear Tail Pitch Lever
CNE538
Tail Pitch Lever
CNE539
Tail Rotor Hub
CNE539
Tail Rotor Hub
Screws (2)
Tail Pitch Plate
CNE530
Tail Rotor Shaft
CNE537
Tail Pitch Slider
CNBB610
Tail Pitch Slider
Bearing (2)
*Requires 2
Recess
Hole
CNE528
Tail Gear Box
CNBB364
Tail Pitch Lever
Bearing (4)
*Requires 2

CNE501
Canopy Standoffs &
Grommets
CNE502
CCPM Bellcrank Set
CNE503
Main Frames
(Left and right)
CNE504
Motor Bottom Block
CNE505
Front Electronics Tray
CNE506
Anti Rotation Bracket
CNE507
Upper Bearing Block
CNE508
Main Shaft
CNE509
Lower Shaft Collar
CNE510
Main Gear With
Autorotation Hub
CNE510A
Main Gear Only
CNE510B
Autorotation Hub &
Bearing Only
CNE511
Upper Shaft Collar
CNE512
Landing Struts
CNE513
Landing Skids
CNE514
Carbon Fiber
Support Frame
CNE515
Swashplate
CNE516
Washout Assembly
CNE517
Head Block
CNE518
Seesaw Shaft
CNE519
Seesaw Assembly
CNE520
Black Rubber
Dampeners
CNE521
Feathering Spindle
CNE522
Main Blade Grip
Spacers
CNE523
Main Blade Grips
CNE524
Bell Mixer Set
CNE525
Flybar Control
Arms
CNE526
Flybar
CNE527
Flybar Paddles
CNE528
Tail Gear Box
Swift Replacement Parts
CNE529
Tail Gear Box Gear
With Pin
CNE530
Tail Rotor Shaft
CNE531
Swift 16 Tail Drive Belt
CNE532
Swift Tail Boom
CNE533
Transmission Gear
With Pin
15

Swift Replacement Parts (Continued)
CNE534
Rudder Control
Rod Set
CNE535
Fin Mounts
CNE536
Carbon Fiber Fin Set
CNE537
Tail Pitch Slider
CNE538
Tail Pitch Lever
CNE539
Tail Rotor Hub
CNE540
Tail Blade Grips
CNE541
Tail Rotor Blades
CNE542
Tail Transmission
Gear Box
CNE543
Tail Boom
Support Set
CNE544
Tail Servo
Mounts
CNE545
Pushrod Set
CNE546
Ball Link Set
(22 Long, 4 Short)
CNE547
Elevator Servo
Spacers (2)
CNE548
520mm Main
Blades
CNE549
Canopy
CNE550
Windshield
CNE551
Decal Set
CNE552
M3x5x3.5 Spacers (10)
*Requires 7
CNBB364
Bell Mixer Bearing (4)
*Requires 4
CNBB1030
Rotor Hub Bearing (2)
*Requires 2
CNBB364
CCPM Bell Crank
Bearing (4)
*Requires 4
CNBB0730
Seesaw Bearing (2)
*Requires 2
CNBB0384
Tail Blade Grip
Bearings (4)
*Requires 4
CNBB1350
Tail Gear Box
Bearing (2)
*Requires 2
CNBB614T2
Main Blade Grip
Thrust Bearing (2)
*Requires 2
CNBB814
Main Blade Grip
Radial Bearings (2)
*Requires 4
CNBB1019
Upper Bearing
Block Bearing (1)
*Requires 1
CNBB4102
Transmission Gear
Bearing (2)
*Requires 2
CNBB610
Tail Pitch Slider
Bearing (2)
*Requires 2
16
CNE553
Rubber Battery
Clamps (4)
*Requires 4
CNBB364
Tail Pitch Lever
Bearing (4)
*Requires 2
CNE554
Swift Crash Kit
