Century Helicopter Products Radikal G30 User manual

Kit Features: Specifications:
Lightweight yet extremely strong carbon fiber frames.
High gloss large diameter 25mm tail boom with belt drive system.
Blade grips accommodate blades 14mm to 16mm blade roots.
300 mL fuel tank for long engine run time.
Convenient and easy access to spark plug.
Triple bearing supported blade grips and tail blade grips.
Machined center dual ball bearing swashplate for 120 degree CCPM.
Adjustable bell-hiller ratio allows tuning for preferred cyclic response.
Tunable flight characteristics for stability or speed.
Length: 1397mm
Height: 432mm
Width: 260mm
Main rotor diameter: 1580mm
Tail rotor diameter: 282.5mm
Main rotor blades: 690mm-720mm
Tail rotor blades: 95mm
Version 1.00
© 2013 Century Helicopter Products - All rights reserved.
VERSION 2.0

Radikal G30 v.2
Page 2
INTRODUCTION
Warning
This radio controlled model is not a toy! It is a precision machine requiring proper assembly and setup to avoid accidents. It is the
responsibility of the owner to operate this product in a safe manner as it can inflict serious injury otherwise. It is recommended that if
you are in doubt of your abilities, seek assistance from experienced radio control modelers and associations. Keep loose items that can
get entangled in the rotor blades away for the main and tail blades, including loose clothing, hair, or other objects such as pencils and
screwdrivers. Especially keep your hands away from the rotor blades. As manufacturer, we assume no liability for the use of this product.
Pre-assembly Information
.launamehtfosnoitcesehtotdnopserrochcihwylbmessafoesaerofdeggaberastraptnenopmocrojamehtlla,tikehtgnineponopU
Various assemblies have been pre-assembled however, only as a reference assembly. Final assembly is up to the user. Installation onto
the particular parts, screws and nuts required for each step are packaged in the same bag as the parts. Be careful when opening each
bag as not to lose any hardware. Care has been taken in filling and packing of each bag however mistakes do happen. If there is a parts
shortage or missing hardware please contact us at:
General Guidelines
Apply thread lock to all metal to metal thread contact points. Do not apply CA (cyanoacrylate) glue or thread lock to ny-lock nuts (metal nuts
with plastic inserts). Diagrams indicated by bounding boxes for screws, bearings, etc. are illustrated at a 1-to-1 ratio. All other illustrations
are not drawn to scale. Throughout this manual, you will find building tips. Please follow the tips and use common sense when building.
Century Helicopter Products
1740-C Junction Ave.
www.centuryheli.com
Flight Guidelines
Please note this checklist is not intended to be a replacement for the content included in this instruction manual. Although it can
be used as a quick start guide, we strongly suggest reading through this manual completely before proceeding.
Always turn the transmitter on first
Allow the gyro, and receiver to arm and initialize properly
Do a pre-flight check making sure all electronics are working and look for any mechanical issues
Fly the model
Land the model
Turn off the engine
Always turn the transmitter off last
San Jose, CA. 95112
Thank You
Congratulations on the purchase of the latest Century Gasser series, the Radikal G30. You’re about to build one of the world’s lightest
fully functional 3D aerobatic helicopters powered by the Zenoah 23 to 30cc gasoline engine. Be sure to read through and follow the
instructions during the build.

Radikal G30 v.2
Page 3
CN2050
PADDLE GAUGE
CN2034A
BALL LINK PLIERS
HOBBY KNIFE
RECEIVER BATTERY
SERVOS X 5
ZIP TIES
4-WAY WRENCH
GYRO
6 CHANNEL RECEIVER
(MINIMUM)
HOBBY SCISSORS
METRIC RULER OR
SIMILAR MEASURING
DEVICE
6 CHANNEL
CCPM TRANSMITTER
(MINIMUM)
CN2027
G-FORCE PITCH GAUGE
CN2051
ACCURATECH BLADE BAL-
ANCER V.2
CN2255
CONTROL ROD
SETUP GAUGE
NEEDLE NOSE
PLIERS
SYNTHETIC
OIL/GREASE
1.000
87 TO 92 OCTANE
GASOLINE
690MM TO 720MM
MAIN ROTOR BLADES
23CC-30CC ZENOAH
GASOLINE ENGINE
CN3070
20cc TORPEDO
GASSER TUNED
MUFFLER
2-STROKE
MOTOR OIL
SLOW &
Medium CA
GLUE
Medium
(Medium)
THREAD-
LOCK
DREMEL TOOL
OR SIMILAR

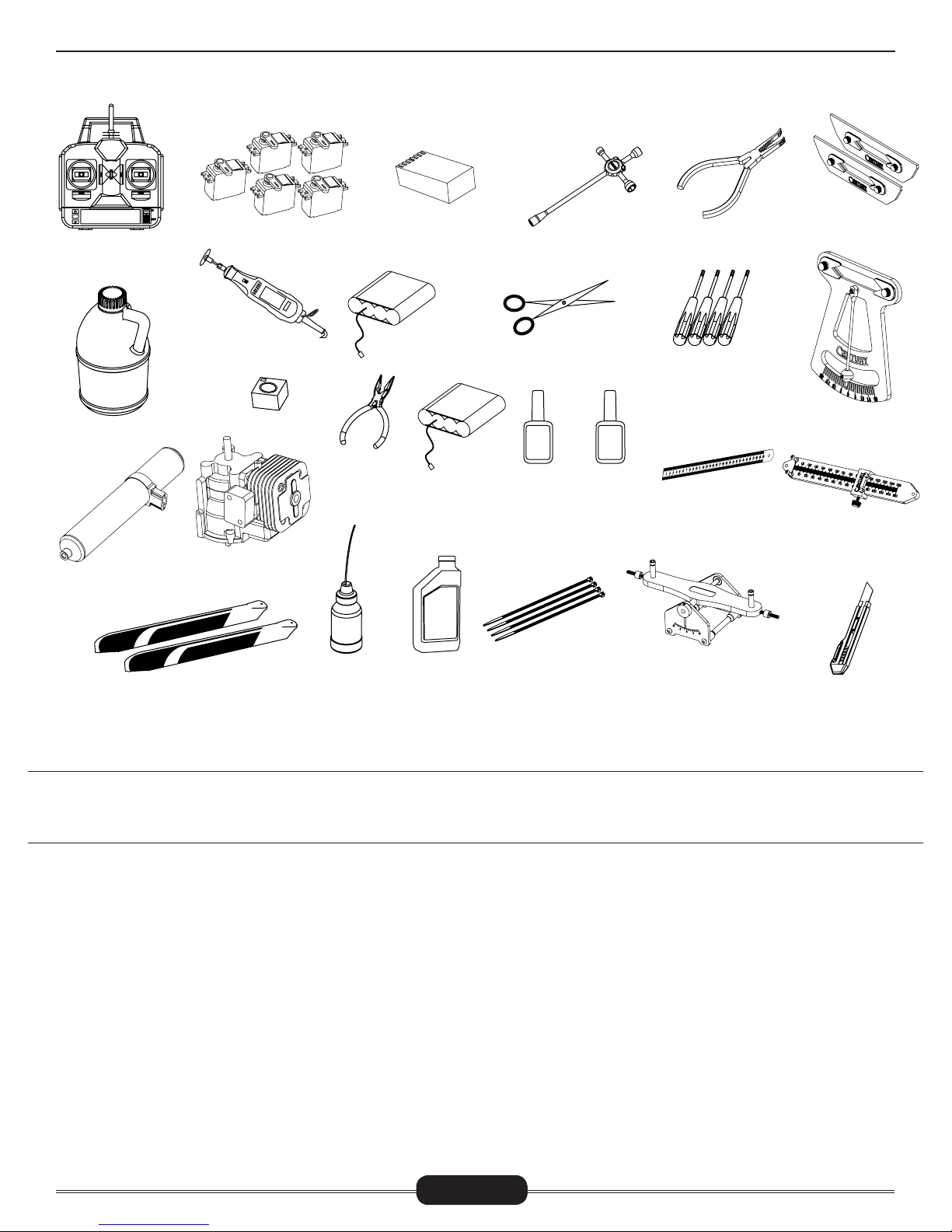

REQUIRED ITEMS
Century Helicopter Products warranties that the Products purchased (the “Product”) will be free from defects in materials and workman-
ship 30 days from the date of purchase by the Purchaser.
Warranty Period
(a) This warranty is limited to the original customer (“Purchaser”) and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED
UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF T HE P URCHASER. This warranty covers only those P roducts purchased
from an authorized Century Helicopter Products dealer. Third party transactions are not covered by this warranty. Proof of purchase is
required for warranty claims. Further, Century Helicopter Products reserves the right to change or modify this warranty without notice
and disclaims all other warranties, express or implied.
(b) Limitations- CENTURY HELICOPTER PRODUCT MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE PURCHASER ACKNOWLEDG-
ES THAT THEY ALONE HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S
INTENDED USE.
(c) Purchaser Remedy- Century Helicopter Products’s sole obligation hereunder shall be that Century Helicopter Products will, at its
option, (i) repair or (ii) replace, any Product determined by Century Helicopter Products to be defective. In the event of a defect, these
are the Purchaser’s exclusive remedies. Century Helicopter Products reserves the right to inspect any and all equipment involved in
a warranty claim. Repair or replacement decisions are at the sole discretion of Century Helicopter Products. This warranty does not
cover cosmetic damage or damage due to acts of God, accident, misuse, abuse, negligence, commercial use, or modification of or to any
part of the Product. This warranty does not cover damage due to improper installation, operation, maintenance, or attempted repair by
anyone other than Century Helicopter Products. Return of any goods by Purchaser must be approved by Century Helicopter Product s
before shipment.
Limited Warranty
1.000
CN2031
CN2017
HEX DRIVERS
1.5, 2.0, 2.5, 3.0, 4.0, 5.0
ELECTRONIC
IGNITION
BATTERY

Radikal G30 v.2
Page 4
AMA RULES & REGULATIONS
1) I will not fly my model aircraft in sanctioned events, air shows or model flying demonstrations until it has been proven to be airwor-
thy by having been previously, successfully flight tested.
2) I will not fly my model higher than approximately 400 feet within 3 miles of an airport without notifying the airport operator. I will
give right-of-way and avoid flying in the proximity of full-scale aircraft. Where necessary, an observer shall be utilized to supervise flying
to avoid having models fly in the proximity of full-scale aircraft.
3) Where established, I will abide by the safety rules for the flying site I use, and I will not willfully or deliberately fly my models in a
careless, reckless and/or dangerous manner.
4) The maximum takeoff weight of a model is 55 pounds, except models flown under Experimental Aircraft rules.
5) I will not fly my model unless it is identified with my name and address or AMA number on or in the model. (This does not apply to
models while being flown indoors.)
6) I will not operate models with metal-bladed propellers or with gaseous boosts, in which gases other than air enter their internal
combustion engine(s); nor will I operate models with extremely hazardous fuels such as those containing tetranitromethane or hy-
drazine.
1) I will have completed a successful radio equipment ground range check before the first flight of a new or repaired model.
2) I will not fly my model aircraft in the presence of spectators until I become a qualified flier, unless assisted by an experienced helper.
3) At all flying sites a straight or curved line(s) must be established in front of which all flying takes place with the other side for
spectators. Only personnel involved with flying the aircraft are allowed at or in front of the flight line. Intentional flying behind the flight
line is prohibited.
4) I will operate my model using only radio control frequencies currently allowed by the Federal Communications Commission. (Only
properly licensed Amateurs are authorized to operate equipment on Amateur Band frequencies.)
5) Flying sites separated by three miles or more are considered safe from site-to site interference, even when both sites use the
same frequencies. Any circumstances under three miles separation require a frequency management arrangement, which may be
either an allocation of specific frequencies for each site or testing to determine that freedom from interference exists. Allocation
plans or interference test reports shall be signed by the parties involved and provided to AMA Headquarters. Documents of agree-
ment and reports may exist between
(1) Two or more AMA Chartered Clubs, (2) AMA clubs and individual AMA members not associated with AMA Clubs, or (3) two or
more individual AMA members.
6) For Combat, distance between combat engagement line and spectator line will be 500 feet per cubic inch of engine displacement.
(Example: .40 engine = 200 feet.); electric motors will be based on equivalent combustion engine size. Additional safety requirements
will be per the RC Combat section of the current Competition Regulations.
7) At air shows or model flying demonstrations, a single straight line must be established, one side of which is for flying, with the
other side for spectators.
8) With the exception of events flown under AMA Competition rules, after launch, except for pilots or helpers being used, no powered
model may be flown closer than 25 feet to any person.
9) Under no circumstances may a pilot or other person touch a powered model in flight.
General
Radio Control

Radikal G30 v.2
Page 5

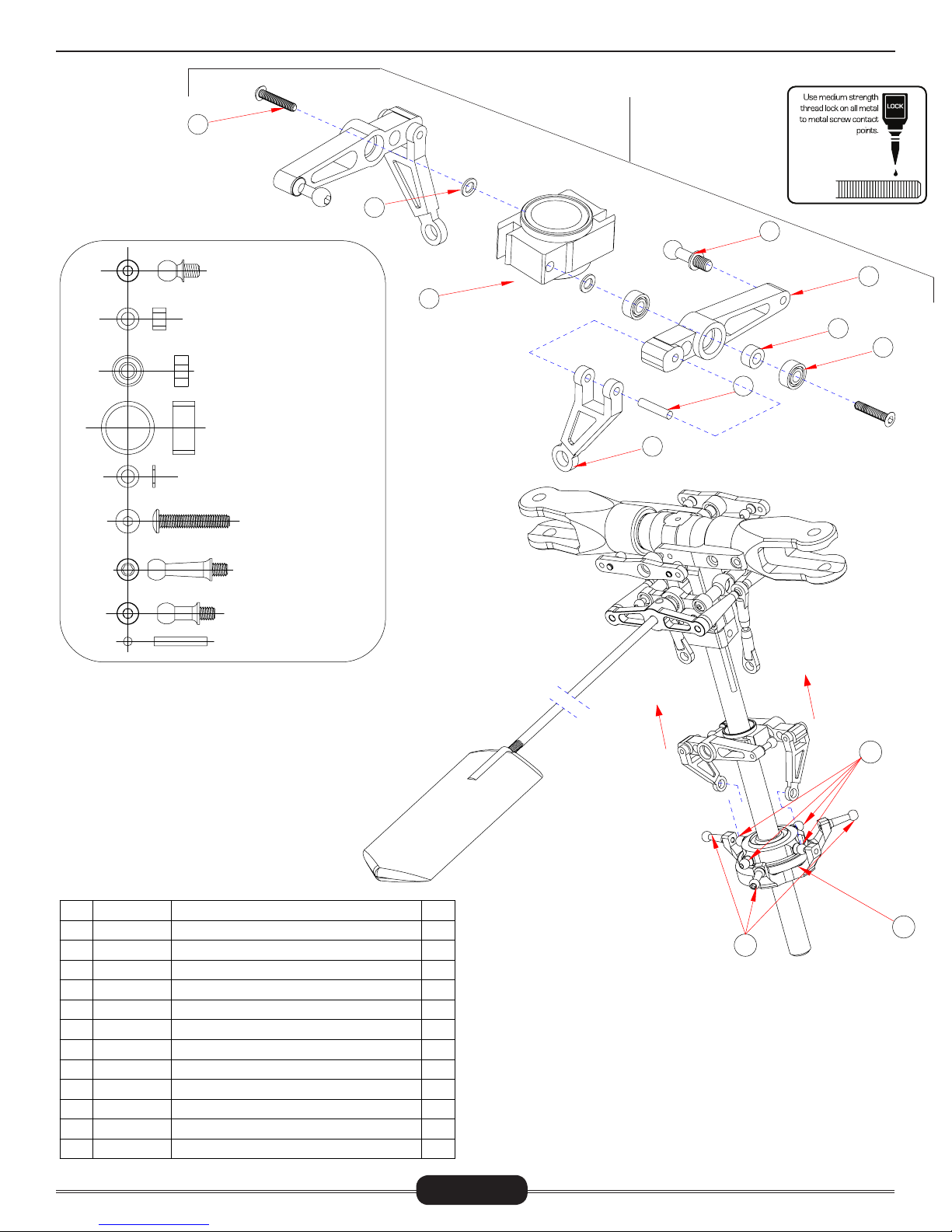

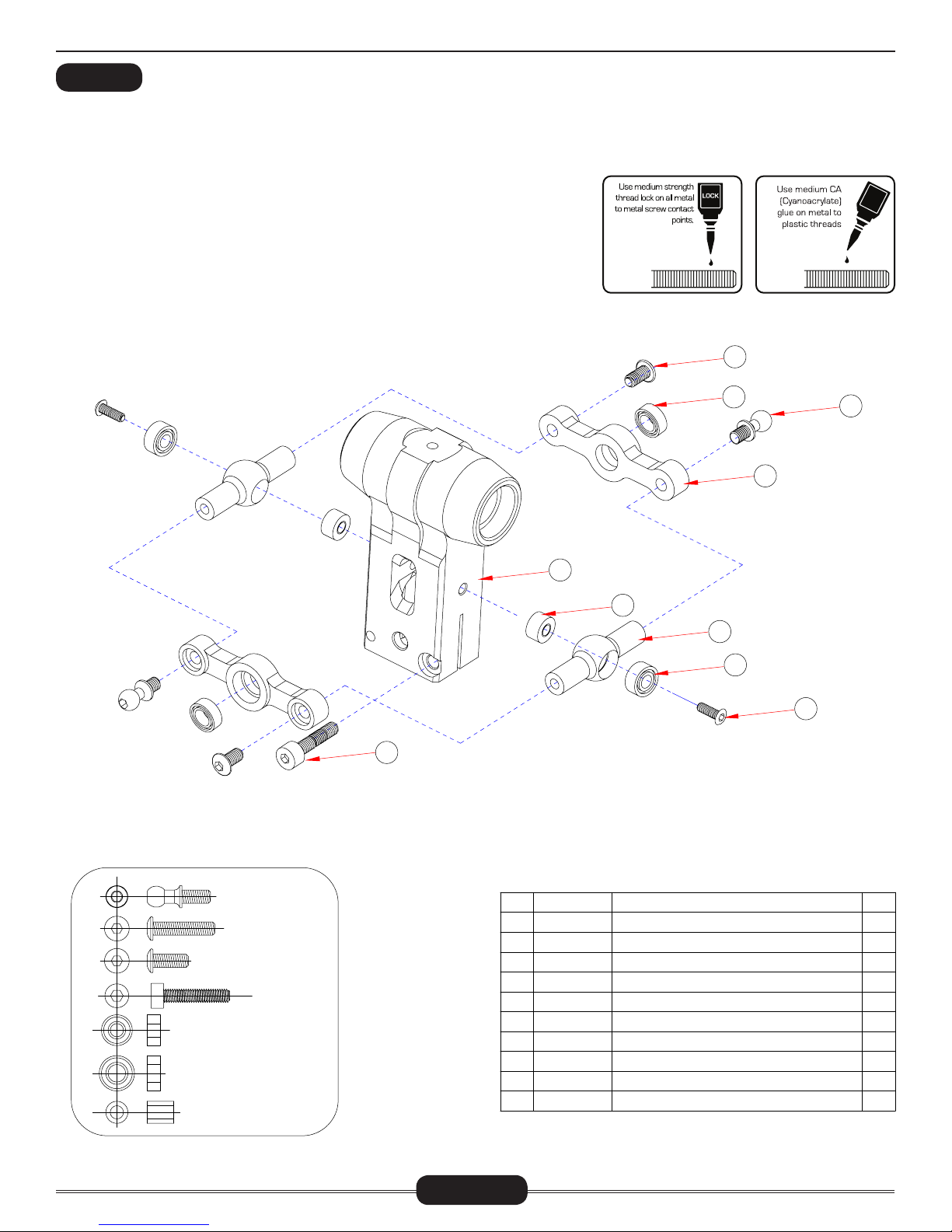

HEAD ASSEMBLY (FLYBAR HEAD)
BAG 1
1
23
4
6
5
7
8
9
10
CNBB0730
CNBB0840
HI3167G
CNLR1017 L=6.5MM
CNM3x8BHCS
CNM3x14BHCS
M3X15CS
No. Description Qty
1
2
3
4
5
Part #
6
7
8
9
10
NX Rotor Head Yoke(主旋翼中心座)
Seesaw Tie Bar Set( 平衡杆控制臂)
2
2
2
2
CNBB0730
CNBB0840
CNM3X14BHCS
HW6205
2
2
1
CNM3X15CS 2
Seesaw Offset Plates( 平衡杆固定片)
3x7x3 Ball Bearing( 轴承)
4x8x3 Ball Bearing( 轴承)
(铁套)
M3x14 Button Head Cap Screws( 伞头螺丝)
M3x15 Cap Screws( 杯头螺丝)
2
CNM3X8BHCS
M3x8 Button Head Cap Screws( 伞头螺丝)
2
CNLR1017 M3 Ball Link(M3 球头螺丝)
CN2511B
CN2511C
CN2511C
Apply Red threadlock to the outer race of one 4x8x3 ball bearing and install the
bearing into the bearing cup of the offset plate. Apply Red threadlock to the outer
race of one 3x7x3 bearing and insert it into the seesaw tie bar. Attach the seesaw
tiebar and threadlock the threaded ball and M3x8 button head screw. Attach the
completed end to the headblock making sure you have the seesaw tie bar spacer.
Attach using the completed end using an M3x14 button head screw. Complete
the other end around the headblock. Install the M3x15 cap screw however do
not tighten it as you will be doing this in the following steps once you are ready to
install the head onto the mainshaft.
3x5x3 Spacers
CA
Do not open all the bags prior to starting assembly. Open the bags step by step as you go through the instruction manual. The
components are bagged to make assembly easier. The next few pages will pertain to the assembly of the head. Please follow
the instructions based on the head type you own. Make sure to apply threadlock to any screws going into metal.

Radikal G30 v.2
Page 6
HEAD ASSEMBLY (FLYBAR HEAD)
24
5
6
7
3
8
9
10
1
2
2
2
HI3167C
HI6145
Pushrod Set( 拉杆)
M3 Double-sided Ball Screw(M3 球头双牙螺丝)
Ball Link Set(球头连接头)
No. Description Qty
1
2
3
4
5
Part #
6
7
8
9
10
CNM3X12BHCS
M3x12 Button Head Cap Screws(圆头螺丝)4
2
金属平衡翼控制臂)
HW6176SA
Flybar Control Arm Spacer (平衡翼控制臂垫块)2
HW6176SA
4
金属平衡翼控制臂)
HW6176SA
CNM4X5SS 2
M4x5 Socket Head Set Screw(无头内六角螺丝)
4mm Flybar(平衡杆)1
HI6179B Flybar Paddles( 平衡翼)2

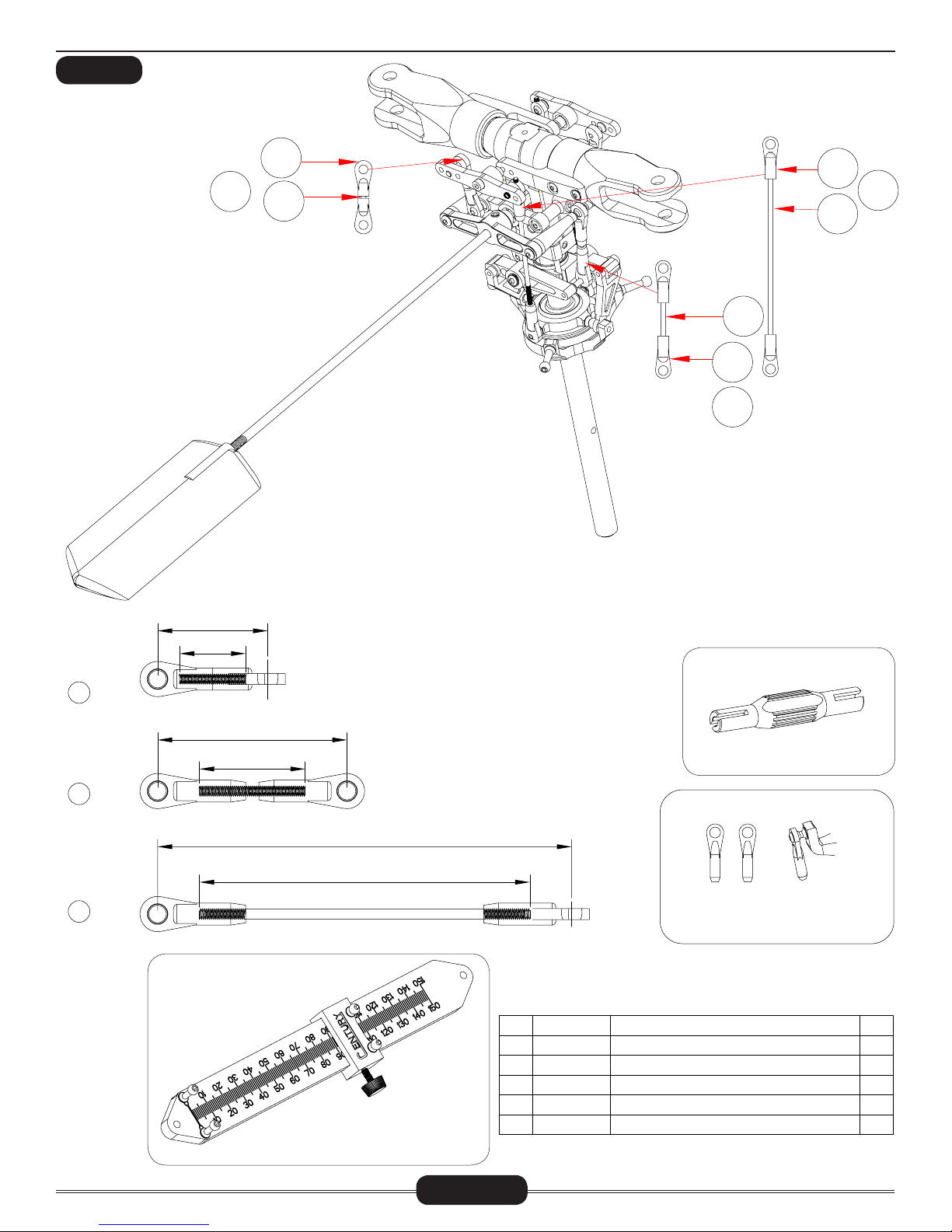

Pushrod assembly (parts 4 through 6) is already assembled but check that the length is actually
43mm (center to center). As the pushrods are built and installed they should be checked for
tightness. Press one ball link onto each double studded steel ball, making sure that pressure is
applied from the side of the ball link with the circle mark. While holding one flybar control arm, ap-
ply a small amount of Medium threadlock and thread one end of the double studded steel ball into
each standoff. Do the same with the other flybar control arm tiebar. Slide and center the flybar
through the head assembly. Carefully look at the flybar control arm assemblies from the previous
step and notice that when installed correctly, the securing set screw is on top. Insert one flybar
control arm cushion against each bearing and then slide the control arm halves onto each side
so that they match together and the set screw remains on top. Insert one M3x12 button head
socket screw to secure the opposite standoff.
NOTICE SIZE OF HOLES ON BALL LINKS
THE SIDE WITH THE SMALLER HOLE
SHOULD FACE OUTWARDS
CA
CNM3X12BHCS
CNM4X5SS
HW3167C
Make sure the distance on
both sides are equal
Make sure the distance on
both sides are equal
Loosely tighten the M4x5 set screws into the arm aligned with the flat spots
on the flybar. Tighten both set screws, one at a time using Medium thread-
lock. Make a pencil mark 5mm past the threads on both ends of the flybar.
Thread the flybar paddles onto the flybar until the mark is reached and align
the paddles parallel. Again using the ruler, rotate one paddle or the other to
get equal distances while remembering the leading edge of the paddles will be
turning clockwise.
1
HW6173A
HW6192
BAG 1
Flybar Control Arm(
Flybar Control Arm(
11
11 CNLR1006 M4x6x0.5 Washer 平面垫片)2

Radikal G30 v.2
Page 7

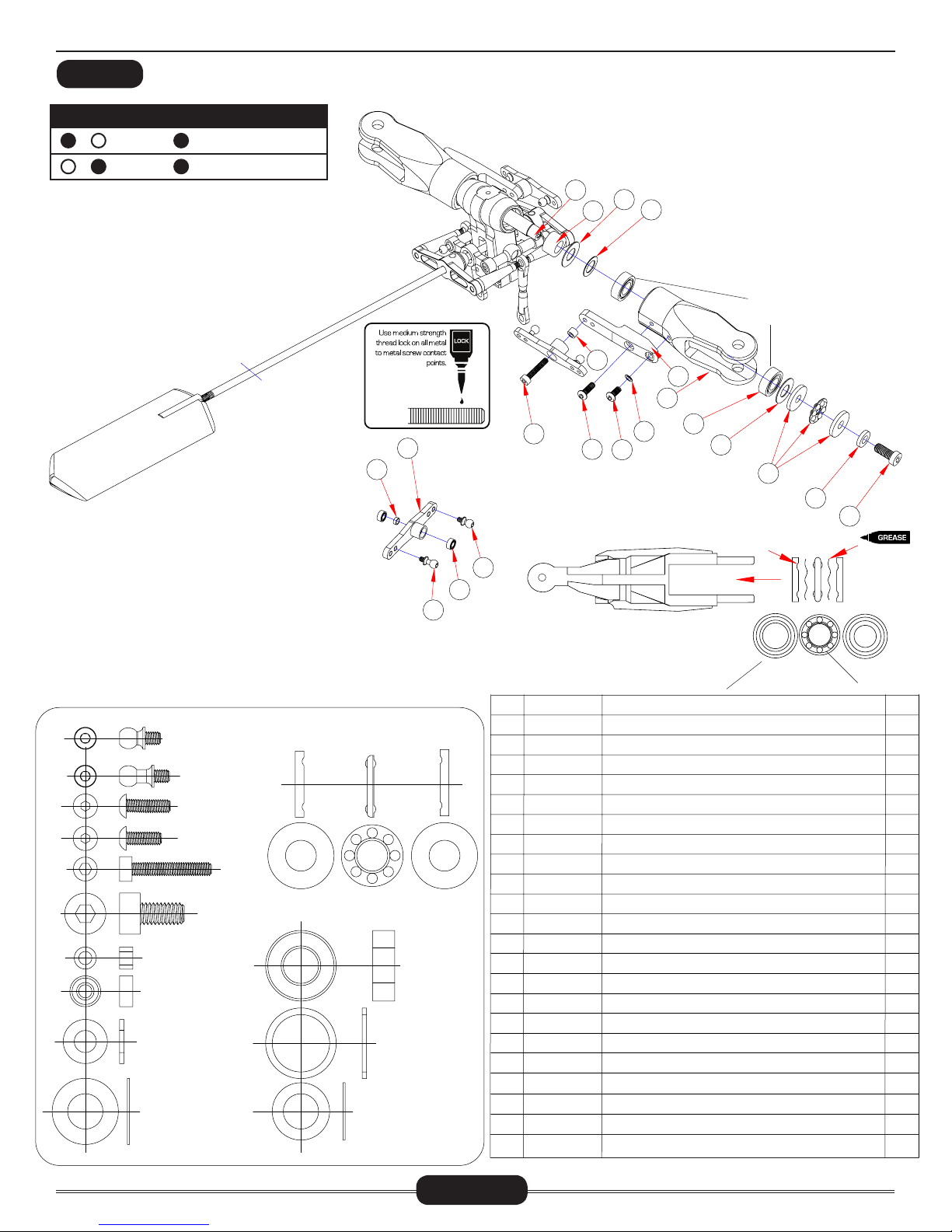

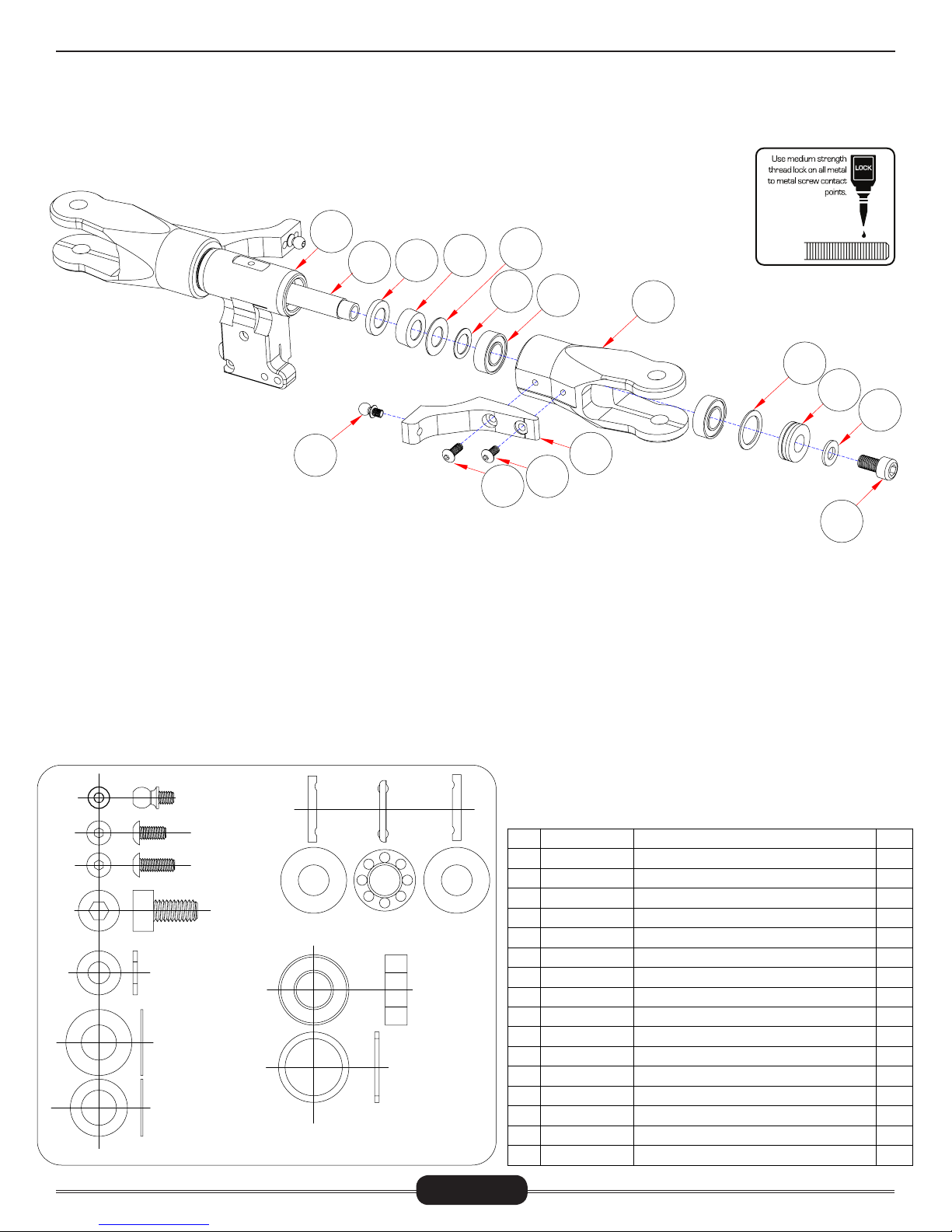

HEAD ASSEMBLY (FLYBAR HEAD)
No. Description Qty
1
2
3
4
5
Part #
6
7
8
9
10
11
12
13
14
15
2
2
2
4
2
2
2
2
2
4
2
2
2
2
M3x5x3 Spacer( 垫圈)
CNBB0730
M5x10x1 Spacer( 垫圈)
7x15x5 Thrust Blade Grip Ball Bearing(止推轴承)
M13x16x1 Washer(平面垫片)
8x16x5 Bearing( 轴承)
Metal Main Rotor Blade Grips(主旋翼夹片)
M3x5x3 Spacer( 垫圈)
HI6189
HW6205
CNLR1020
CNLR1014
CNM5X10CS
HW6180A
CNBB715T
HW6182
HW6182
HW6182
CNBB816
HW6205
CNM3x18CS
2
M3 Ball Link(M3球头螺丝)
3x7x3 Bearing( 轴承)
M5x10 Cap Screws(杯头螺丝)
M3x18 Cap Screws(杯头内六角螺丝)
8x15 Washer( 平面垫片)
Bell Mixer Arm(混控臂)
M3 Ball Link(M3球头螺丝)
8x13 Washer(平面垫片)
16
17
18
Metal Main Blade Grip Control Arm(主旋翼夹片摆臂)2
CN2510B-1
CN2510B-2
19
HI6181B 2
20
CNLR1003 Washer(垫片)3X5X0.5 2
CNM3X8BHCS
M3x8 Button Head Cap Screws(伞头螺丝) 2
CNM3X10BHCS
M3x10 Button Head Cap Screws(伞头螺丝) 2
Hard Head Dampeners
HW6205 3X5X3
CNLR1020
CNBB0730
CNLR1014
CNM5X10CS
HW6182 8X15X0.5
CNBB715T
HW6180A
M5X10X1
CNBB816
M3X18CS
HW6182
M14X16X1
CNM3X8BHCS
HW6182 8X13X0.5
CNM3X10BHCS
19
18
6
7
8
9
10
11
3
4
5
2
1
16
15
12
13
14
17
BELL MIXER RATIOS
BAG 1
Drop some Medium threadlock into the side of
the blade grip. Place the grip arm over the grip
and install the M3 button head screws as shown
with washer. Slide the M3x18 button head screw
through the bell mixer arm from the flat side, add
one M3x5x3 spacer and apply a drop of Medidum
threadlock to the end of the threads before in-
stalling into the blade grip. Tighten the bolt
until there is no end to end movement,
but do not overtighten the bolt as you
can strip out the hole or bind
the bearings. Make two
assemblies.
BELL MIXER RATIOS
1:1.6
1:1.3
There are two types of dampeners provided. The hard black plastic dampeners
(HI6520A) should only be used for hard 3D flying. If using the hard plastic dampeners,
use only one of the (HW6182) 8x13 spacer. Press in the head dampers into the rotor
head block. Lubricate the inside surface of each damper with light oil. Press one M8x16
ball bearing into both ends of each main rotor blade grip. Slide
one M14 thrust washer against the bearing closest to the
main rotor blade. Make sure that the bearing and
the thrust washer are properly seated into the
deep end of the blade grip. If necessary use
a socket that matches the outside
diameter of the bearing and
press into position. Make
two assemblies.
Press one M3x7 flanged ball bearing into one
side followed by one M3x5 spacer and another
flanged bearing from the opposite side. If the bear-
ing is tight, lightly sand the bell mixer and use Red
threadlock to bond the bearing in place. Install the
CNLR1014 short steel ball into the single hole side of
the bell mixer and install the CNLR1020 medium steel
ball using Blue threadlock. Install the medium steel ball ac-
cording to the table to suit your flying preference. Make two
assemblies.
20
21
21 HW6180BS Feathering Shaft 1
SIDE PROFILE - BLADE GRIP
RECESSED CREVICE FACES MAIN SHAFT
THRUST BEARING INSTALLATION GUIDE
GROOVES INSIDE
SMALLER ID
LARGER INNER DIAMETER TOWARDS HEAD BLOCK
LARGER ID
17 2 HI6520A Hard Plastic Dampeners
These bearings are already
pressed into the blade grips.

Radikal G30 v.2
Page 8
HEAD ASSEMBLY (FLYBAR HEAD)
1
2
3
4
6
5
¿Ì¶ 1.000
CNM3x4SS
CNM4x22CS
CNM4LOCK
No. Description Qty
1
2
3
4
5
Part #
1
2
1
1
1
Aluminum Washout Guide( 剪型臂导柱)
CNM3x4SS
M4 Lock-nut(M4 螺母)
10mm Main Shaft( 主轴)
CNM4LOCK
CNM4x22CS
M3x4 Socket Head Set Screw( 无头内六角螺丝)
M4x22 Cap Screws(杯头内六角螺丝)
主轴铝套)1
CN2511B
HI6153A
HW6053B
6
Insert the sleeve into the head block, then slide the washout
guide and the rotor head onto the main shaft. Insert the M4x22
shouldered socket cap screw through the rotor head hub mak-
ing sure the sleeve is aligned and secure with one M4 locknut.
Apply Medium threadlock to the M3x8 socket cap screws that
were previously installed and tighten onto the bottom of the ro-
tor head block to clamp against the main shaft. DO NOT OVER
TORQUE. Position the washout guide against the collar and align
the guide with the headblock. Apply Medium threadlock to the
M3x4 set screws and evenly tighten set screws in place.
Rotor Head Hub Sleeve (

Radikal G30 v.2
Page 9
WASHOUT AND SWASHPLATE (FLYBAR HEAD)
M3x5x3 HI6205
M10x12x5 HI3152C
M3 L=9.5MM CNLR1019
CNBB0730
M3x5x0.5 CNLR1003
CNM3x16BHCS
M3 L=18MM
Ø2x12
CNLR1014
10
11
12
1
2
3
4
5
6
7
8
9
It is up to you to determine whether this assembly is correct. Please make
sure to check it prior to installation.
Comes pre-assembled
Starting with the inside race, apply Medium threadlock to
the silver steel balls and attach them across from each
other. The balls need to be started by hand then tight-
ened with an M2.0 hex driver. Insert the other two steel
balls across from each other using Medium threadlock.
Remove and install the three long steel balls on the outer
arms using Medium threadlock.
No. Description Qty
1
2
3
4
5
Part #
6
7
8
9
10
11
12
2
1
2
2
4
2
1
2
2
5
2
1
CNLR1019 M3 Ball Link(M3 球头螺丝)
Metal Washout Arm Set 2 pcs (摆臂)
CNBB0730 3x7x3 Bearing( 轴承)
HI6205 3x5x3 Bellcrank Spacer(铜套)
HI3152A
Radius Link w/ Pin( 插销)
HI3152A
Radius Link w/ Pin( 三角控制臂)
Metal Washout Base for CN2511B (控制臂固定座)
CNLR1003 3x5x0.5 Micro Washer(垫圈)
CNM3x16BHCS
M3x16 Button Head Cap Screws( 圆头内六角螺丝)
M3 Ball Link(M3 球头螺丝)
CNLR1014
M3 Ball Link L=18MM(M3 球头螺丝)
CNLR1021
Dual Ball Bearing Swashplate (十字盘)
CN2351
CN2291B
HW6146GA
The swashplate comes pre-packed with a lot
of grease within the dual-support bearings.
During use, you may notice grease may leak
from the swashplate as the grease loosens.
Simply wipe off any excess grease.

Radikal G30 v.2
Page 10
HEL PFUL TOOL
PART# CN2255: CONTROL ROD SETUP GAUGE
PART# CN2219A: BALL LINK
EASY DRIVER
HELPFUL TOOL:
HEAD PUSHROD LENGTHS (FLYBAR HEAD)
NOTICE SIZE OF HOLES ON BALL LINKS
THE SIDE WITH THE SMALLER HOLE
SHOULD FACE OUTWARDS
DRAWN TO A SCALE OF
1-TO-1. YOU CAN MATCH
YOUR LINKS UP TO THIS
PAGE FOR PROPER MEA-
SUREMENTS.
A
B
C
43
25
14
75
No. Description Qty
1
2
3
4
5
Part #
2
4
8
2
2
Ball Link Set (26 Long, 4 Short)( 球头连接杆)
HI6145
HI6145
HW6192A Pushrod Set( 连杆)
HW6192A
HW6192A
Ball Link Set (26 Long, 4 Short)(球头连接杆 )
Pushrod Set( 连杆)
Pushrod Set( 连杆)
BAG 1
25.5
95
Build the pushrods with the ball links as shown.
Make sure you install the ball links onto the
steel balls in the correct direction. The pro-
vided measurements are measured from the
center of the whole on the plastic ball links.
These measurements are the same for all fly-
bar versions of the Radikal G30 heads. These
measurements are provided as a guideline
and should be fine tuned.
A
B
C
1
2
3
4
5
6

Radikal G30 v.2
Page 11

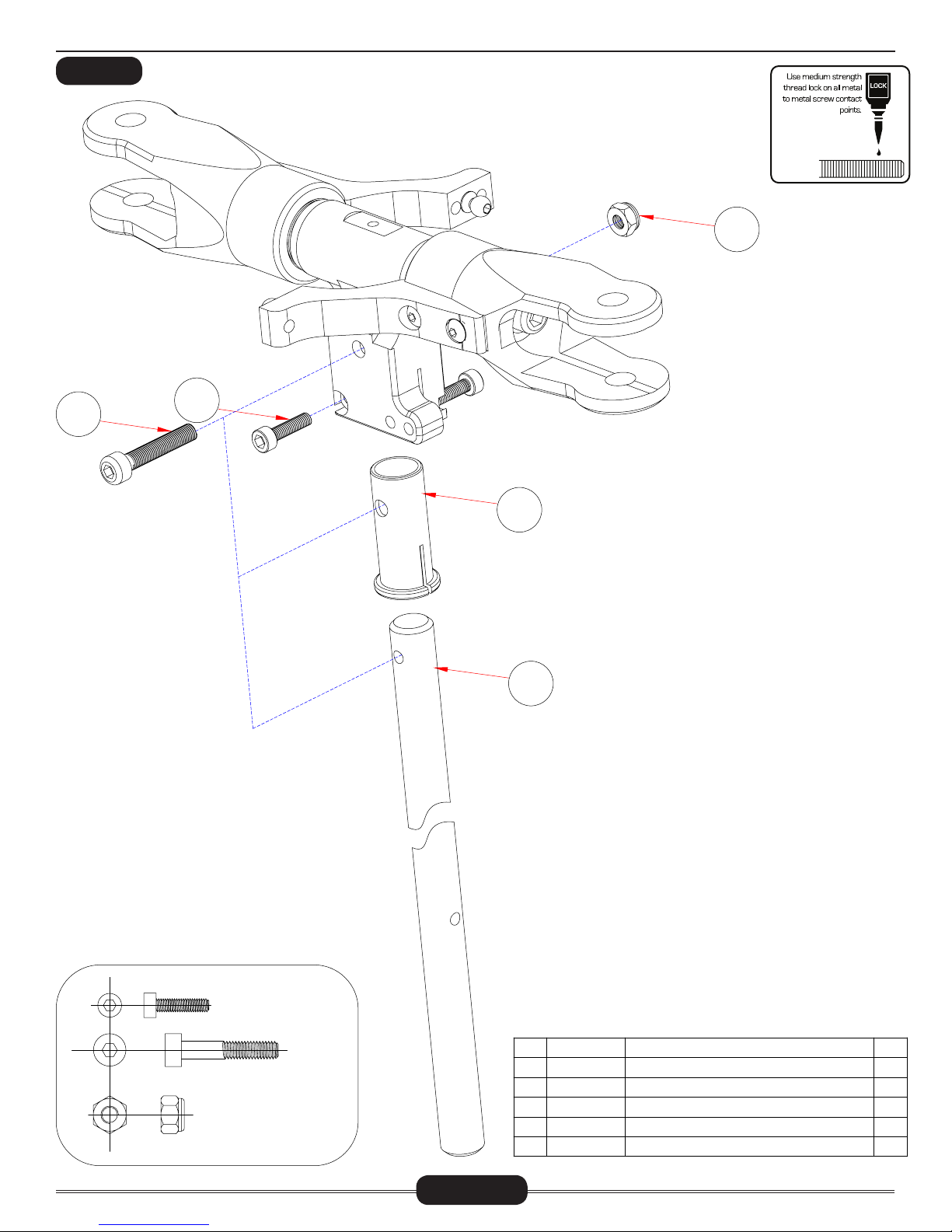

HEAD ASSEMBLY (FLYBARLESS HEAD)
1
2345
678
9
1011
12
13
14
15
16
CNLR1014
CNM5X10CS
HW6182 8X15X0.5
CNBB715T
HW6180A M5X10X1
CNBB816
HW6182
M14X16X1
CNM3X8BHCS
HW6182 8X13X0.5
CNM3X6BHCS
Even though the head comes pre-assembled for your reference, it is up to you to
check the assembly and make sure bearings are greased and the screws have
thread lock applied.
If you plan to use an aftermarket damper like KBDD dampers, remove 9x13x2
Plastic Washer (#3)
Do not open all the bags prior to starting assembly. Open the bags step by step as you go through the instruction manual. The
components are bagged to make assembly easier. The next few pages will pertain to the assembly of the head. Please follow
the instructions based on the head type you own. Make sure to apply threadlock to any screws going into metal.
No. Description Qty
1
2
3
4
5
Part #
6
7
8
9
10
11
12
13
14
15
1
1
2
2
2
2
4
2
2
2
2
2
2
16
2
2
2

Flybarless Rotor Head Yoke(主旋翼中心座)
CN2520-2
Feathering Shaft( 横轴)
HW6180BS 
9x13x2 Plastic Washer( 塑料垫片)
CN2517A-6
92 Durometer Dampeners(塑料垫片)
HI6181D
HW6182
HW6182
8x15 Washer( 平面垫片)
8x13 Washer( 平面垫片)
8x16x5 Bearing( 轴承)
CNBB816
CN2510B-1 NX Main Rotor Blade Grips( 主旋翼夹片)
Flybarless Grip Arm(主旋翼夹片摆臂)
CN2520-4
M13x16x1 Washer( 平面垫片)
HW6182
7x15x5 Thrust Ball Bearing( 止推轴承)
CNBB715T
M5x10x1 Spacer( 垫圈)
HW6180A
CNM5X10CS M5x10 Cap Screws( 杯头螺丝)
CNM3X6BHCS

M3x6 Button Head Cap Screws(伞头螺丝)
CNM3X8BHCS

M3x8 Button Head Cap Screws(伞头螺丝)
CNLR1014 M3 Ball Link(M3 球头螺丝)

Radikal G30 v.2
Page 12
HEAD ASSEMBLY (FLYBARLESS HEAD)
1
2
3
45
M3X12CS
CNM4x22CS
CNM4LOCK
No. Description Qty
1
2
3
4
5
Part #
1
1
2
1
M4 Lock-nut(M4 螺母)
CNM4LOCK
1
Main Axle Aluminum Wrap ( 主轴铝套)
10mm Main Shaft( 主轴)
CNM4x22CS
M4x22 Cap Screws( 杯头内六角螺丝)
CNM3x12CS
M3x12 Cap Screws( 杯头内六角螺丝)
CN2520-5
HW6053B
BAG 1

Radikal G30 v.2
Page 13
HEAD ASSEMBLY (FLYBARLESS HEAD)
1
2
3
4
5
67
8
M3x5x3 HI6205
CNBB0830
M3x5x0.5 CNLR1003
CNM3x16BHCS
Ø2x12
CNM3x3SS
No. Description Qty
1
2
3
4
5
Part #
6
7
8
2
4
2
2
2
2
2
2
CNLR1003 3x5x0.5 Micro Washer( 垫圈)
CNBB0830 3x8x3 Bearing( 轴承)
HI6205 3x5x3 Bellcrank Spacer( 铜套)
Radius Link w/ Pin( 摆臂)
HI3152A
CNM3x16BHCS

M3x16 Button Head Cap Screws( 圆头内六角螺丝)

HI3152A
Radius Link w/ Pin( 三角控制臂)
CNM3x3SS M3x3 Socket Head Set Screw( 无头内六角螺丝)
HI3152A
Radius Link w/ Pin( 插销)
Follower arms come presassembled. Make sure to apply
threadlock to the bolts and set screws. There is no need to
press the bearings out.
BAG 1

Radikal G30 v.2
Page 14
No. Description Qty
1
2
3
4
5
Part #
1
3
4
4
2
M3 Ball Link L=18MM(M3 球头螺丝)
CNLR1021
HW6146GA
Dual Ball Bearing Swashplate(十字盘)
M3 Ball Link(M3 球头螺丝)
CNLR1014
HI6145
HW6192A L=45mm Pushrod Set( 连杆)
Ball Link Set(26 Long,4 Short)(A 型控制臂座)
M3 L=18MM
CNLR1014
45
63
A
A
1
2
3
4
5

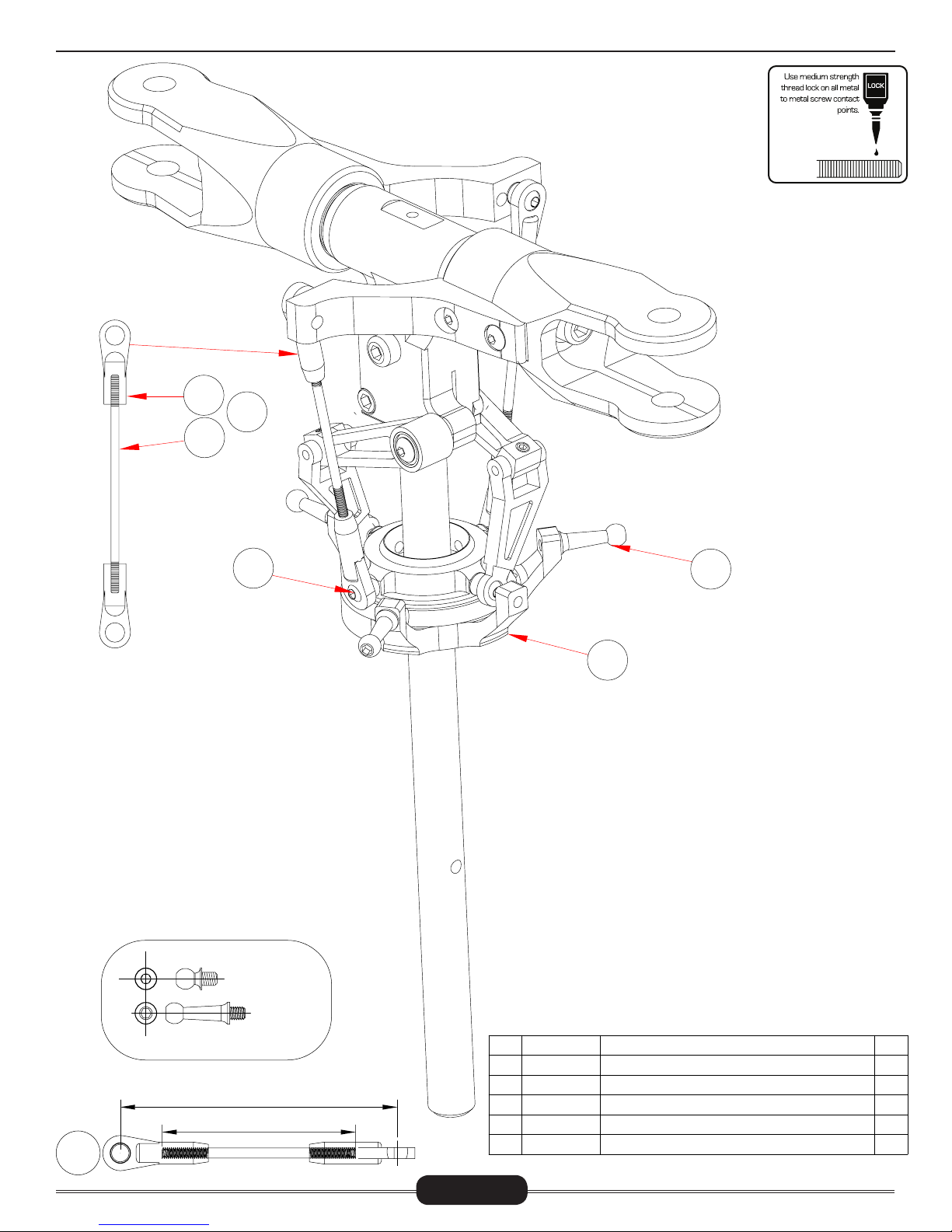

HEAD PUSHROD LENGTHS (FLYBARLESS HEAD)

Radikal G30 v.2
Page 15

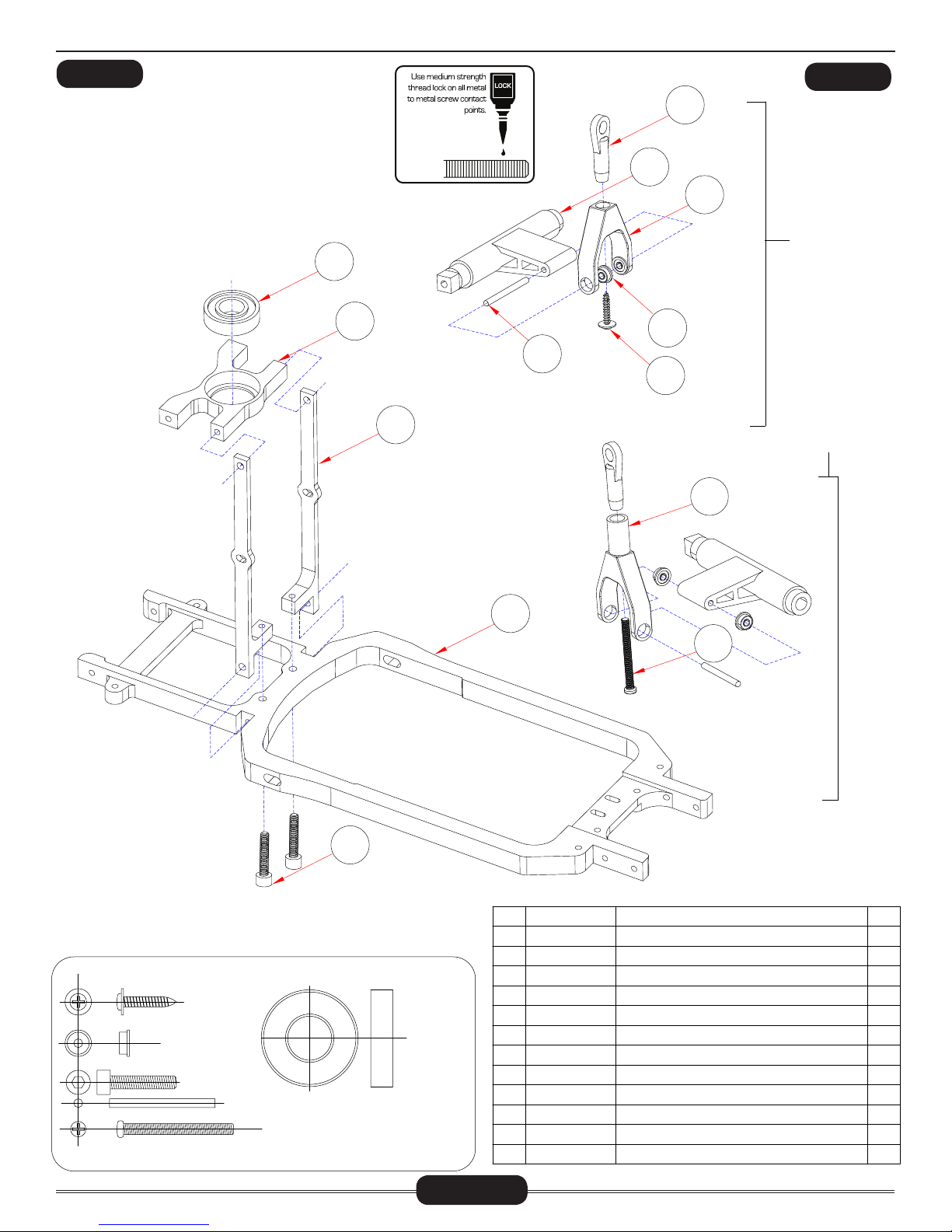

SKELETAL SUPPORT BRACES
COMES
PRE-ASSEMBLED
COMES
PRE-ASSEMBLED
BAG 2
This bearing is already
pressed into the bearing
block. Notice the way the
bearing block is facing.
11
12
1
2
3
4
5
6
7
8
9
11
10
CNM3x15BHCS
CNBB1022
Ø2X24
CNBB25F
CNM2.5X25PH
CNM2.3x12ST
1
2
3
4
6
7
5
8
9
10
11
12
HI6032GA
Landing Gear Frame( 引擎座底板)
1
2
Box Frame Support (L&R) (机身加强支架)
Lower Main Shaft Bearing Block (主轴下轴承座)
1
CNM3x15CS 2
1
Bearing(滚珠轴承)10x22x6
CNBB1022
1
1
1
A Block-based Control Arm(A 型控制臂座)
HW6117G30A
HW6119A
HW6042GL3
No. Description Qty
Part #
Cap Screw(杯头内六角螺丝)M3x15
HI6145
Metal A-Arm(金属A形臂)
HI6032GG
HI6032GG
2X5X2.3 Elevator Lever Flange Bearing( 带边轴承)
CNBB25F
A-Arm Extension( 铝套)
2
CNM2.5X25PH M2.5x25 Phillips Screw( 圆头十字螺丝)1
CNM2.3X12ST M2.3x12 Self Tapping Screws( 尖尾自攻螺丝)
Ball Link Set(26 Long,4 Short)(A 型控制臂座)
1
1
FLYBAR HEAD
FLYBARLESS
HEAD
BAG 2

Radikal G30 v.2
Page 16
13 14
15
16
1
2
3
4
5
6
7
8
9
10
11
12
Plastic Cooling Shroud( 风扇罩)1
CNBB1014A
1
Clutch One way Bearing (10mm) (单向轴承)
Clutch Shoe 59mm ( 离合器)
Cap Screw(杯头内六角螺丝)M6x16
CNM6x16CS
Cooling Fan Hub ( 风扇座)
Cooling Shroud Mount Plate( 挡风板)
Cap Screw(杯头内六角螺丝)M2.5x8
CNM2.5x8CS
Flush Head Cap Screws( 斜头内六角螺丝)M4x10
CNM5x10FHCS
Engine(引擎)
HI6020B
HW6011G3
HI6012
ZENOAH PUH
No. Description Qty
1
2
3
4
6
7
5
8
9
10
1
1
1
2
1
1
Part #
11
12
13
2
1
14
15
16
HI6011 Two Way Cooling Fan( 风扇)1
1
Flush Head Cap Screws( 斜头内六角螺丝)M3x6
CNM3x6FHCS 5
Cap Screw(杯头内六角螺丝)M2.5x16
CNM2.5x16CS
Cooling shourd plate support bar ( 铝柱)
HW6116
Cap Screw(杯头内六角螺丝)M2.5x8
CNM2.5x8CS
CNM3x8BHCS
Washer(垫片)6.5x13x1
CNM6.5x13FW
1
4
1
Button Head Cap Screw( 圆头内六角螺丝)M3x8
CNM3x8BHCS
CNM6x16CS
6.5x13x1
CNM2.5x8CS
CNM4x10FHCS
6.5x13x1
CNM3x6FHCS
CNM2.5x16CS
Attach the cooling shroud mounting plate first, making sure it is installed in the correct po-
sition. The drilled beveled holes must match with the bevel head screws. Clean the crank
shaft on the engine with alcohol, then apply a very small coating of oil to the crank shaft
prior to installing fan/clutch hub. Once you have the fan assembly installed onto the motor,
tighten the M2.5x8 screw on the bottom of the hub. Be gentle as not to over-torque this
screw. This screw is used to center the hub and is not the anchoring screw that holds the
hub to the engine. Next, install the M6.5 washer and M6x13 bolt.
Bearing is pre-installed
Once the clutchshoe is mat-
ed with the clutchbell, the
clutchshoe should protrude
about 1mm from the bot-
tom of the clutchbell. Use
6.5x13x1 shims if neces-
sary to raise the clutchshoe
up if it’s protruding more
than 1mm.
Do not overtighten
Build the fan by placing Medium threadlock into the threaded
holes on the fan hub (#16). Attach the fan to the hub as shown
and install the M3x6 flush head cap screws making sure the
screws fall into the beveled hole on the fan.
When tighten-
ing the M6x13 bolt,
you can use a piston locking tool
(Part Number #CN2155Z) made for
gasoline engines.This will allow you to torque
the bolt without the engine spinning. NEVER grab
the bottom of the crank shaft where the starter attaches
and tighten the bolt holding fan/clutch hub.

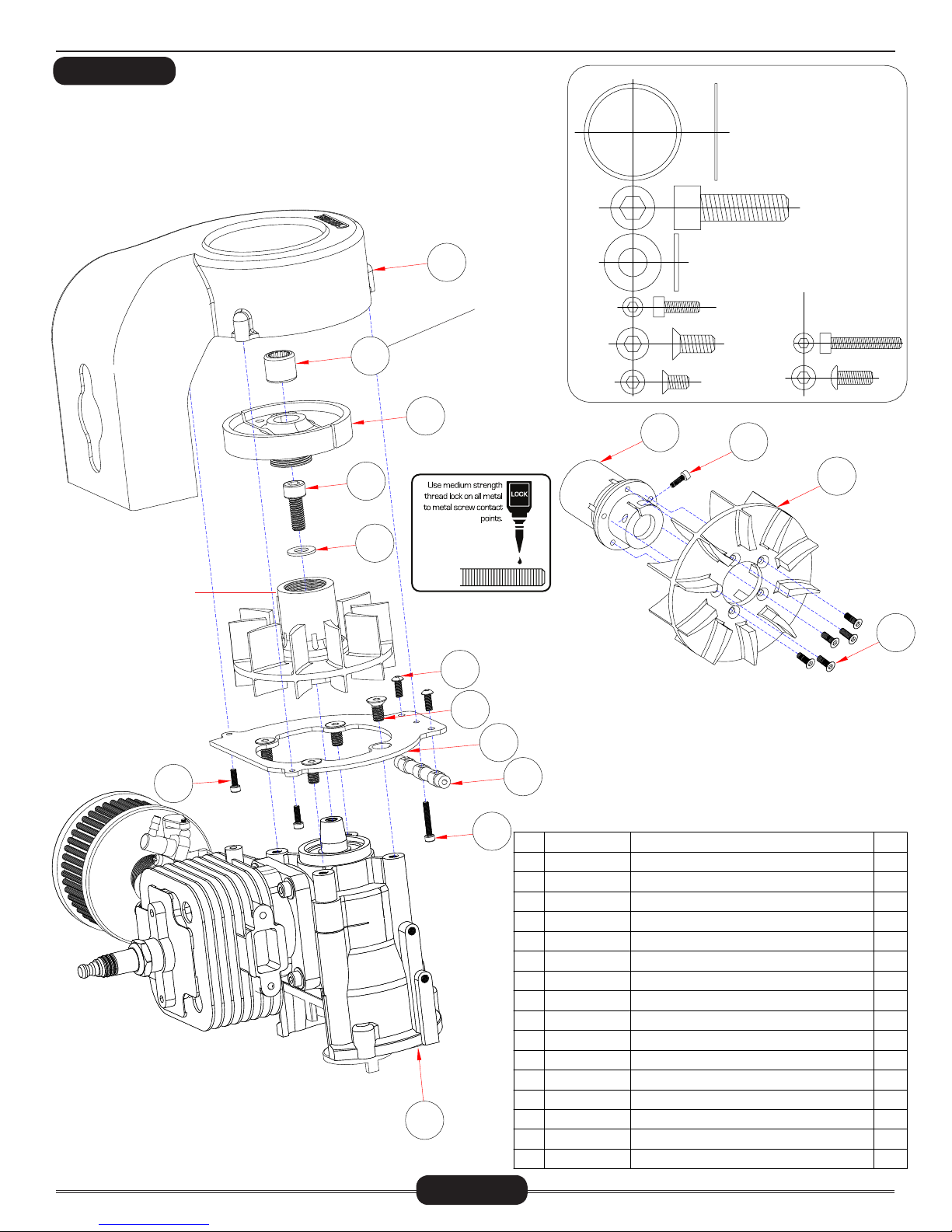

CLUTCHSHOE AND FAN ASSEMBLY
BAG 2 & 3
HW6118H3A

Radikal G30 v.2
Page 17
CNM2.5x8CS
CNM4x10CS
CNM4x10FW
CNM3x7FW
Cap Screw(杯头内六角螺丝)M4x20
CNM4x20CS
No. Description Qty
1
2
Part #
CNM4x10FW Washer(垫片)4x10x1
3
4
5
6
Cap Screw(杯头内六角螺丝)M2.5x8
CNM2.5x8CS
CNM3x7FW Washer(垫片)3x7x1
Front Engine Mounting Block ( 引擎固定块)
HW6117G3A
Cap Screw(杯头内六角螺丝)M4x20
CNM4x20CS
4
2
2
2
1
1
1
2
3
4
56

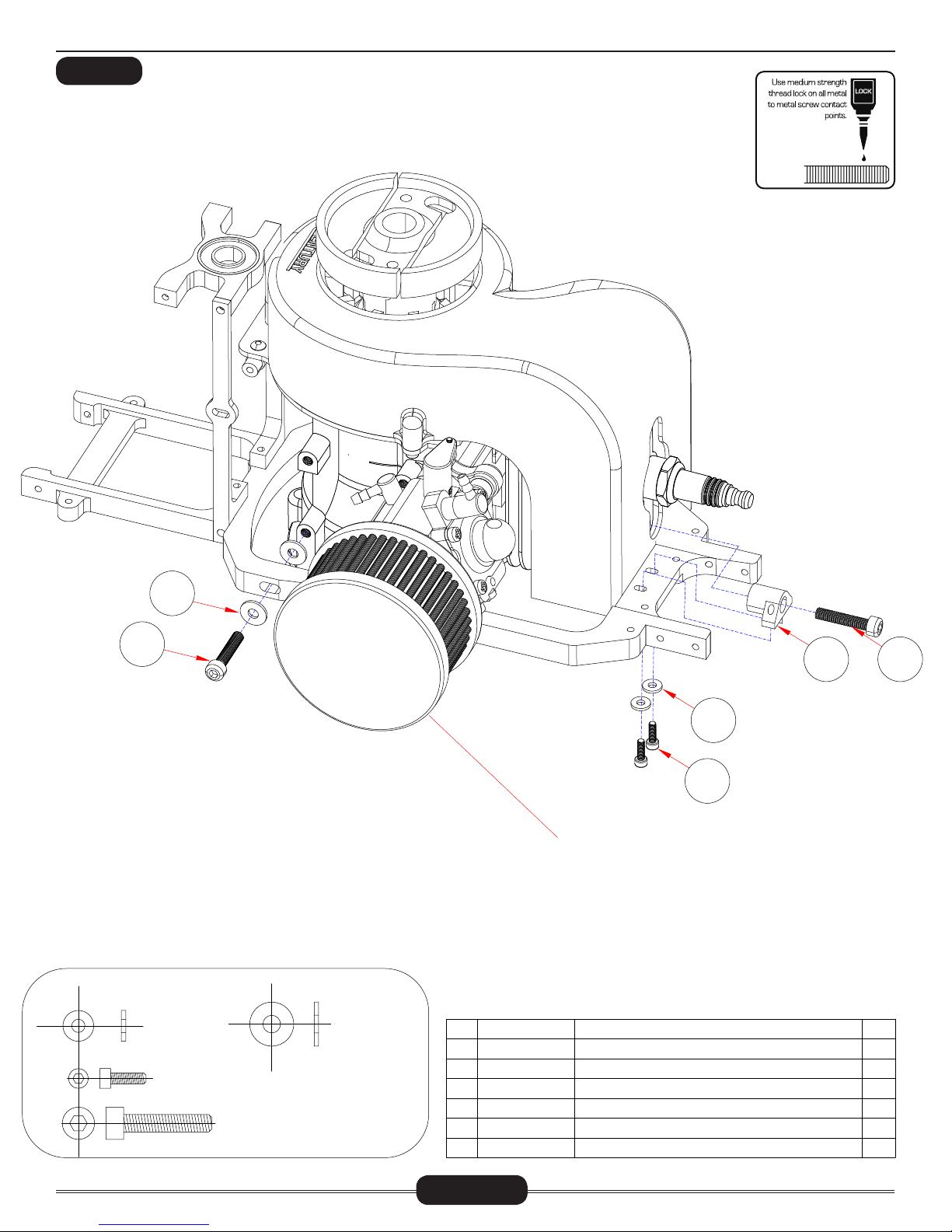

When installing the engine assembly to the frames, do not tight-
en one side all the way leaving the other side completely loose.
Tighten the M4x20 bolts on either side of the frames evenly
moving from one side to the other. Make sure to apply medium
threadlock to these bolts prior to installation. After you have
installed the left and right M4x20 bolts, install the front engine
block making sure to use medium threadlock on the M4x20
bolt holding the engine’s head in place. Dry fit the M3x8 button
head screws holding the clutch assembly. Leave these loose
until the next step.
MOUNTING MOTOR
The Air Filter (Part Number #CN2214Z) is
not included with your kit.
BAG 2

Radikal G30 v.2
Page 18

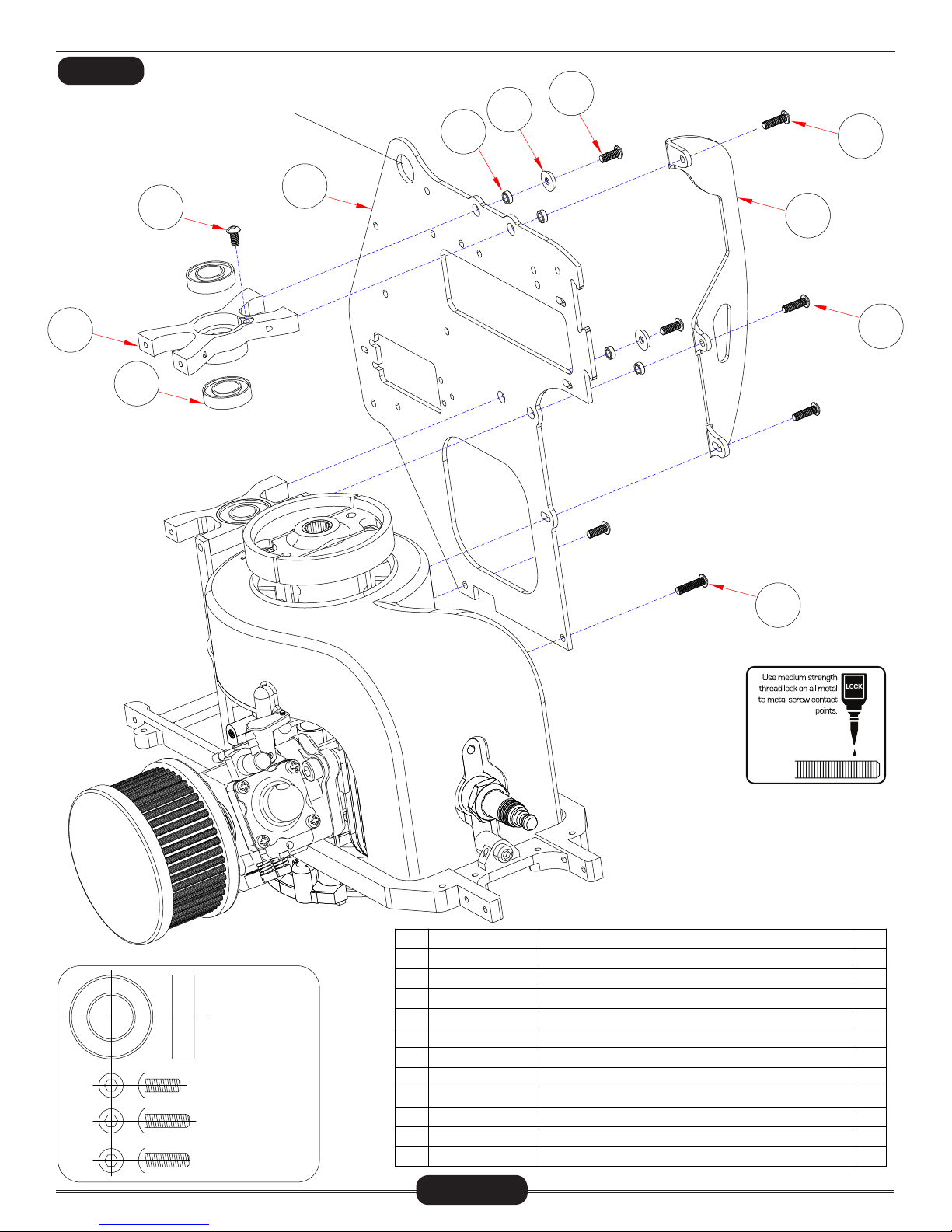

REAR SIDEFRAME (LEFT)
BAG 3
2
1
34
67
58
9
10
11
CNM3x8BHCS
CNBB1019
CNM3x12BHCS
CNM3x10BHCS
3x5x1.8 Steel (3x5x1.8 钢套)
HI6116LC3GA
Bearing (滚珠轴承)10x19x5
CNBB1019
Upper Bearing Block (主轴上轴承座)
HW6042GU
Button Head Cap Screw (圆头内六角螺丝)M3x6
CNM3x6BHCS
Button Head Cap Screw (圆头内六角螺丝)M3x12
CNM3x12BHCS
Reinforcement Plate Left (补强板)
HW6114G3
Main Frames Left Rear Carbon (左右后侧板)
2
1
2
1
3
1
4
No. Description Qty
1
2
3
4
6
5
7
Part #
8
9
10
11
Machined Washer ( 螺丝护套)
CN2218S
Button Head Cap Screw (圆头内六角螺丝)M3x8
CNM3x8BHCS
Button Head Cap Screw (圆头内六角螺丝)M3x10
CNM3x10BHCS
Button Head Cap Screw (圆头内六角螺丝)M3x12
CNM3x12BHCS
HI6116LC3GA
1
1
2
1
Flanged bearing is already
pressed into frames. Make sure
the flange is facing inwards.
This bearing is already pressed
into the bearing block.
Attach the left sideframe as shown
and apply medium threadlock to all
the screws. Check screw #3. If it
does not seem threadlocked, remove
it and apply medium threadlock.

Radikal G30 v.2
Page 19

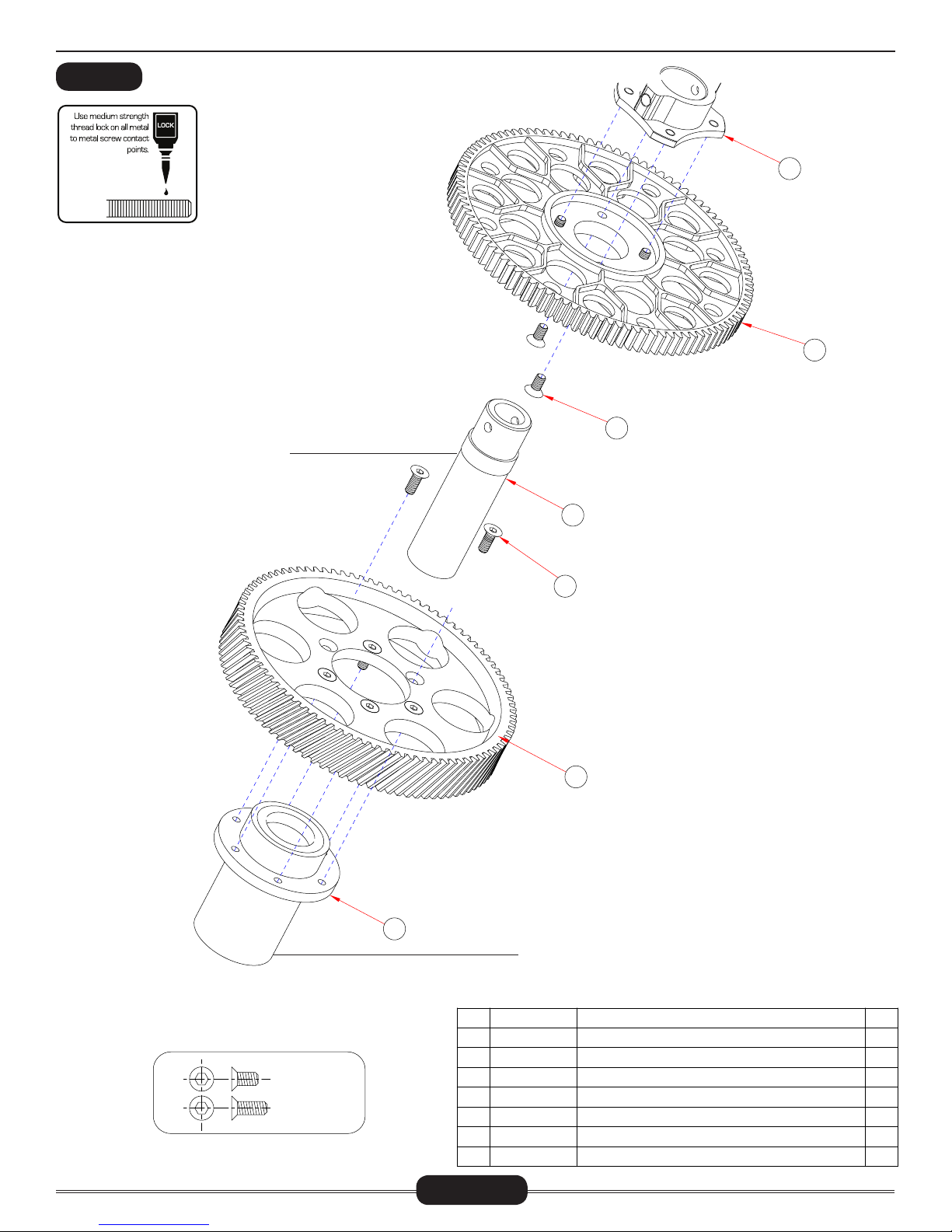

MAIN GEAR ASSEMBLY
BAG 3
1
2
3
4
5
7
6
CNM3x6FHCS
CNM3x8FHCS
Drop some medium threadlock into the
four holes on the driven tail hub. Then
use the M3x6 flush head cap screws
and install through the tail drive gear
tightening onto the driven tail hub.
Make sure to use threadlock sparingly
as to not get excess threadlock onto the
plastic gear. Apply medium threadlock
to the six holes on the dual bearing au-
to-rotation hub and install the gear onto
the hub. Then using the M3x8 flush
head cap screws torque down onto the
main gear. Make sure the flush head
cap screws are installed onto the con-
cave beveled side of the screw holes on
the main gear.
Be sure to clean the inside and outside of the main shaft
sleeve with alcohol prior to installation.
For the roller bearings, we recom-
mend a very light oil. The oil MUST-
NOT attack/break down plastic as
this could damage the cage in the
one-way bearing. Prior to applying oil,
make sure to clean the roller bear-
ings with a cotton swab making sure
there is no debris in the bearings.
If in the future your one-way bearing or
sleeve is worn or damaged, it is highly
recommended to replace the sleeve and
one-way bearing hub at the same time.
Driven Tail Hub(传动主齿轮座)1
1
CNE510A
1
Main Gear(传动主齿轮)
Main Shaft Auto Sleeve (主齿轮铁套)1
90T Main Gear(斜齿轮)
Auto Hub w/Dual One-way Bearing( 单向轴承座 )1
Flush Head Cap Screws(斜头内六角螺丝 )M3x6
CNM3x6FHCS 4
Flush Head Cap Screws(斜头内六角螺丝)M3x8
CNM3x8FHCS 6
HW6057C3
HW6057D3
No. Description Qty
1
2
3
4
6
5
7
Part #
HI6057C
HW6057A

Radikal G30 v.2
Page 20
ATTACHING HEAD AND MAIN GEAR ASSEMBLY
1
2
3
4
5
CNM2.5x8CS
CNM4x4SS
Ø3x23.7
10x18x1
Apply grease to the thrust bearing. Place the
Main Gear assembly into the frames. Insert
the main shaft with head assembly through the
bearing blocks while lining mast stopper while
going through the Main Gear assembly. Line
up the hole in the Main Shaft with the hole on
the Driven Tail Hub. With the help of needle
nose pliers or hemostats, place the Pin (#3)
through while making sure you have it going
through the Main Shaft. Install the two M4x4
set screws making sure you have them evenly
threaded on both sides. When installing the
Mast Stopper (#2), make sure it is pushed up
to the top prior to tightening the M2.5x8 Cap
Screw. DO NOT OVER TIGHTEN.
CNM2.5X8CS
Mast Stopper( 主轴限位块)
HW6054
Copper Washer( 铜垫片)10x18x1
Cap Screw(杯头内六角螺丝)M2.5x8
Set Screw(无头内六角螺丝)M4x4
CNM4x4SS
Pin(插销)Ø3x23.7
HW6057AS
HW6057DS
1
1
2
1
No. Description Qty
Part #
31
4
5
2
1
BAG 3
