Swift Carbon 550
ELECTRIC R/C HELICOPTER
Kit Instruction Manual
Century Helicopter Products
Designed and Developed in USA
1st Edition June 2007 All rights reserved.
Mechanical Specs:
Main Rotor Blades: 520-550mm
Tail Rotor Blades: 75-85mm
Length: 105cm
Height: 34.4cm
Weight: 1.54kg (congured with brushless motor and servos)
Electronic Specs:
Speed Control: 50-80 Amp
Motor: 900-1250kv (based on battery)
Battery: 4S-6S Li-Po or 12 cell NiMH or NiCd
Main Gear: 96 Tooth
Pinion: 9-15 Tooth
Head Speed: 1600-2100 RPM

1. Introduction
Congratulations on your purchase of Century Helicopter Product’s Swift Carbon 550 Kit. The Swift Car-
bon 550 is a high performance machine providing the agility and durability that is expected out of a heli-
copter of this caliber. The attention and praise by the R/C helicopter community is well deserved as the
Century Swift line is unmatched in affordability, quality and performance.
In order to take advantage of your Swift’s performance capabilities we recommend using a high quality
computer radio system with 120 degree eCCPM mixing. The radio system should have at least 6 chan-
nels to use modern heading lock gyros, Standard servos can be used with a specialized high speed tail
servo.
Warning
This radio controlled model is not a toy! It is a precision machine requiring proper assembly and setup to
avoid accidents. It is the responsibility of the owner to operate this product in a safe manner as it can in-
ict serious injury otherwise. It is recommended that if you are in doubt of your abilities, seek assistance
from experienced radio control modelers and associations. As manufacturer, we assume no liability for
the use of this product.
Pre-assembly Information
Upon opening the kit, all components are in individual bags. Please thoroughly read through this manual
before attempting assembly. Some specialized tools are recommended but not required for full assembly.
Be careful when opening each bag as not to lose any hardware. As a reminder, all metal to metal screw
assemblies require “blue” thread lock compound, all metal to plastic screw assemblies require slow set-
ting CA and all bearing race to metal shafts should use “red” thread lock compound.
Warranty
Your new equipment is warranted to the original purchaser against manufacturer defects in material and
workmanship for 30 days from the date of purchase. During this period, Century Helicopter Products will
repair or replace, at our discretion, any component that is found to be factory defective at no cost to the
purchaser. This warranty is limited to the original purchaser and is not transferable. This warranty does
not apply to any unit which has been improperly installed, mishandled, abused, or damaged in a crash, or
to any unit which has been repaired or altered by any unauthorized agencies. Under no circumstances
will the buyer be entitled to consequential or incidental damages. This limited warranty gives you specic
legal rights. You also have other rights which may vary from state to state.
Century Helicopter Products
1740-C Junction, Ave.
San Jose, CA 95112
Fax: [phone]
www.centuryheli.com
2

2. Battery Warnings & Safety
For Lithium Polymer and NiMH/NiCD cell or battery packs purchased.
1. Never fast-charge any battery type unattended.
2. Never charge Li-Poly cells or battery packs at any rate unattended.
3. Only charge Li-Poly cells or battery packs with a charger designed specically for lithium polymer chemistry.
4. Li-Poly cells can ignite because of unmatched cell capacity or voltage, cell damage, charger failure, incorrect
charger setting and other factors.
5. Always use the correct charging voltage. Li-Poly cells or battery packs may ignite if connected to a charger
supplying more than 5 volts per cell.
6. Always assure the charger is working properly.
7. Always charge Li-Poly cells or battery packs where no harm can result, no matter what happens. We suggest a
brick box or likeness. Have sand handy in a bucket for any need to extinguish any re. NEVER use water on any
cells or battery packs.
8. Never charge a cell or battery pack in a model. A hot pack may ignite wood, foam, plastic, etc.
9. Never charge a cell or battery pack inside a motor vehicle or in a vehicle’s engine compartment.
10. Never charge a cell or battery pack on a wooden workbench or on any ammable material.
11. If a cell or battery pack is involved in a crash:
a. Remove the cell or battery pack from model.
b. Carefully inspect the cell or battery pack for shorts in the wiring or connections. If in doubt, cut all wires from cell
or battery pack.
c. Disassemble the pack
d. Inspect cells for dents, cracks and splits. Dispose of damaged cells.
12. Dispose of cells or battery packs as follows:
a. Discharge: with the cells or battery pack in a safe area, connect a moderate resistance across the terminals until
the cell or battery pack is discharged. CAUTION: cell or battery pack may be hot.
b. Discard:
i. NiMH: place in regular trash
ii. NiCD: recycle (cadmium is toxic)
iii. Li-Poly: puncture plastic envelope, immerse in salt water for several hours and place in regular trash.
13. Handle all cells or battery packs with care, as they can deliver high currents if shorted. Shorting by a wedding ring,
for example, will remove a nger.
14. Always store cells or battery packs in a secure location where they cannot be shorted or handled by children.
15. When constructing a battery pack, always use cells of the same capacity (mAh)
16. DO NOT store fully charged or discharged batteries in your helicopter.
17. When cutting wires, always cut ONLY ONE WIRE AT A TIME.
** Century Helicopter Products will not be liable for any damages that may occur to your helicopter due to any
misuse or mishandling as explained above.
** Century Helicopter Products, its successors, heirs and assignees are not responsible in way for any and all bodily
injuries) and/or property damage that may occur from the use of, or caused by in any way from Lithium Polymer and
NiMH/NiCD cells or battery packs offered by and or distributed by Century Helicopter Products.
Lithium Polymer
Battery Safety
3

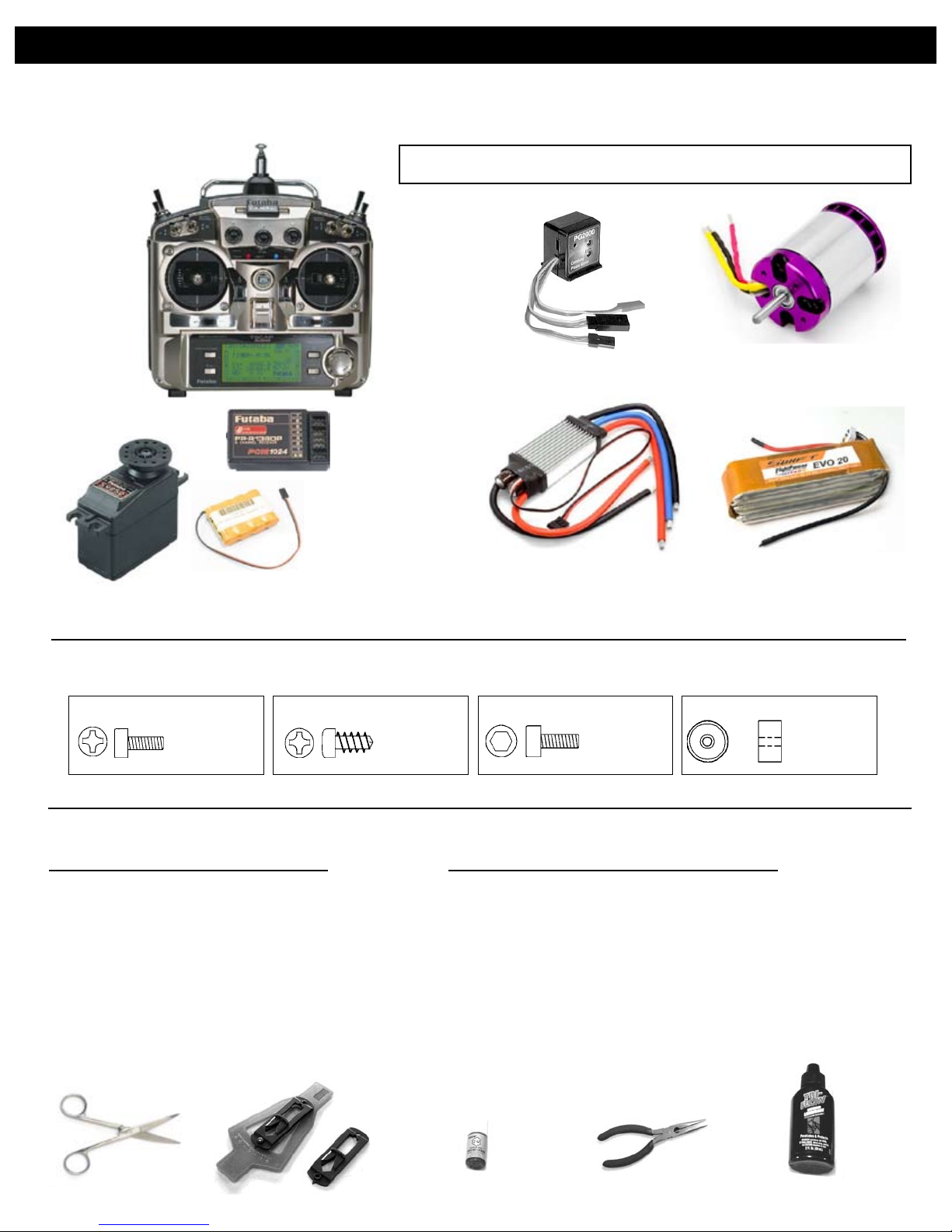

3. Required Items for Operation
Part#CN2015 Hardened Tip Hex Screw Driver Set
Part#CN2026 Pitch Gauge with Paddle Gauge
Part#CN2034A 150 Curve Tip Ball link Pliers
Part#CN2052 Main Blade Balancer
Part#CN2055 Ball Link Sizing Tool
Part#CN2070 Universal Flybar Lock
Part#CN2219 Ball Link Easy Driver
Part#CN2255 Control Rod Gauge
Part#CNWI26555 5.5mm Nut Driver
Part#CNWI26570 7.0mm Nut Driver
Hobby scissors
#CN2262
Hardware Description and Identication: M3x6 = 3x6mm and can refer to screws or ball bearings.
M3x6 Phillips Machine Screw
M - metric
3 - diameter
6 - length
M3x6 Self Tapping Screw
M - metric
3 - diameter
6 - length
M3x10 Socket Cap Screw
M - metric
3 - diameter
6 - length
M3x7x3 Ball Bearing
M - Metric Value
3 - Inside
7 - Outside
3 - Thickness
Necessary Items “Not Included” in the kit.
IMPORTANT: 6 Channel helicopter radio or
better with 120oeCCPM mixing required.
PG2000 II Dual Rate Piezo Gyro
#CN2018 (or equivalent)
Brushless Electric Motor
Century Outrunner 550/600
PLUS # CNE271/CNE273
Electron 80/100 Brushless Speed
Control w/ Heat Sink #CNE480
This is the general list of items required to get the Swift Carbon 550 helicopter ying. Century produces a full spectrum of accessories
and tools to assemble your helicopter. The Swift Carbon 550 is a electronic cyclic collective pitch mixing type helicopter requiring a
standard helicopter radio (the helicopter radio requires eCCPM mixing for this model). The Swift Carbon 550 uses 4 servos to operate
critical systems. Gyroscopes are required to operate the model safely.
Recommended Tools & Accessories
Screwdrivers - Slotted and Phillips head
Long-Nosed Pliers
Allen Wrenches - 1.5mm, 2.0mm, 2.5mm + 3.0mm
Appropriate Socket Wrench
Hobby Scissors
Double Sided Foam Tape ( 1/16” - 3/32” )
Foam Rubber ( Radio Packing )
Thread lock liquid (e.g. Locktite)
Hobby Grease (Super Lube)
Oil to lubricate sliding shafts
CA (Cyanoacrylate) Glue
The tools and materials listed below are
the minimum needed to build the helicopter:
In addition, the following will make assembly and setup
easier, and prove useful later in your model toolbox:
Main Blade Pitch Gauge
w/Paddle Gauge
#CN2026
Locktite
#CN2025BS blue
#CN2025RS red
Lubrication
#CN2024T
Needle Nose Pli-
ers & Cutter Pliers
Fastener and ball bearing dimensions
Servos (4) Receiver
Transmitter
Receiver
Battery
Pack
Power plant
battery pack
4S-6S Li-Po or
12 Cell NiMH
WARNING: Do not overtighten bolts or screws possibly damaging threads of bolts or components.
4

5. Safety
Before ying, please check to make sure no one else is operating on the same frequency.
Before ight, please check if the batteries or transmitter have enough capacity.
Before turning on the transmitter, please check to ensure the throttle stick is in the lowest position. IDLE switch is Off.
When turning on the unit, please follow the power on/off procedure. Power ON - Turn on the transmitter rst and then turn
on the receiver. Power OFF - Turn off the receiver rst and then turn on the transmitter. If this protocol is not followed,
control of the model may be lost.
Before operation, check movement of all controls are smooth and no linkages are binding. Carefully inspect servos for full
operation.
Check for missing, damaged, or loose items. Carefully inspect main rotor blades and tail blades for damage. If damaged,
replace with new ones to ensure a safe ight.
Check all ball links to ensure proper tment. If loose, replace ball links with new ones.
Check servo plugs, ESC plugs, motor plugs, gyro plugs, and battery plugs to make sure they are securely fastened. A
loose plug may result in a complete lose of control over the model.
Check the tail belt tension to make sure the belt is not too lose. No more than 5mm movement when pushed inward.
Symbols used to help assist you in building the kit:
CA
THREAD LOCK
OIL
Whenever this symbol appears, use CA
(cyanoacrylate) glue.
Whenever this symbol appears, use
blue thread lock. (CN2025BS)
Whenever this symbol appears, use
grease.
B
Whenever this symbol appears, use red
thread lock. (CN2025RS)
THREAD LOCK
R
4. Before You Begin
Every attempt has been made to ease the assembly of your kit, at each step where there are complex instructions there are de-
tailed written instructions to walk you through each step. Remember to take a few minutes before each step to carefully examine
each process to become familiar with the parts and assembly before beginning that step.
5

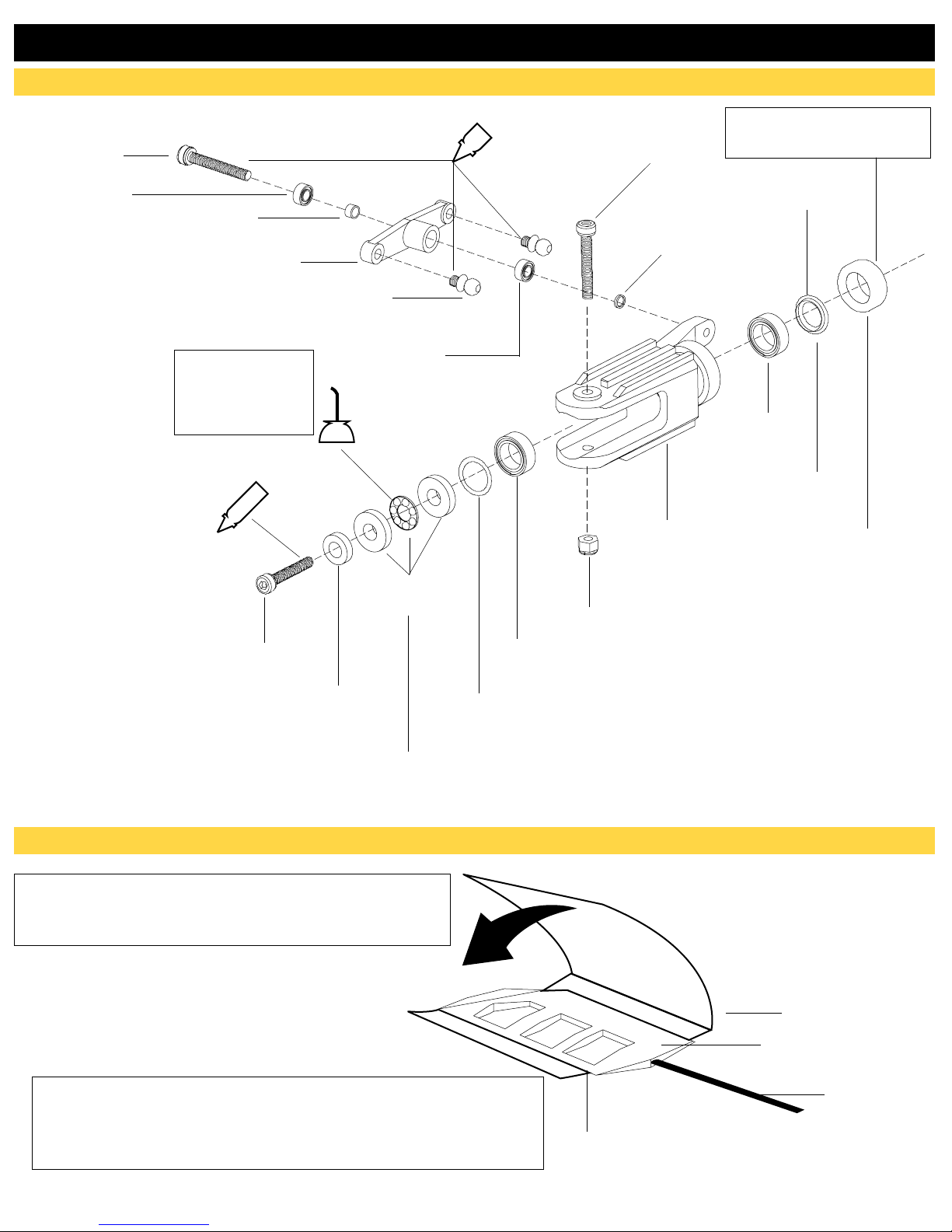

Flybar Paddle Cover
Flybar Paddle
Flybar
Wipe the paddles with 70% Isopropyl alcohol making
sure that it is free from oil. Use the ybar paddle cover
found on the decal sheet. Wrap around the ybar paddle.
Hint: Cover the bottom end of the ybar paddle and adhere the ex-
cess covering material to the trailing edge of the ybar paddle. Tightly
pull the top side of the cover over the ybar paddle, ush with the
trailing edge and cut the excess material along the trailing edge. Trailing Edge
Preparing the Flybar Paddles
6
OIL
Add a small
amount of
Synthetic Hydro
Carbon Grease
Thrust Bearing
(CNBB614T2)
Linkage Ball
(CNLR104)
Cap Screw M3x16
(CNM4x16)
Bearing M3x6x2.5
(CNBB364)
Brass Spacer M3x5x3
(CNE524)
Bell Mixing Arm
(CNE524)
Bearing M3x6x2.5
(CNBB364)
Cap Screw M4x10
(CNM4x10CS)
Washer M4x9
(CNM4x8x1FW) Flat Washer M10x14x1
(CNE521)
Bearing 8x14x4
(CNBB814)
M4 Locknut
Main Blade Grip
(CNE523)
Bearing 8x14x4
(CNBB814)
Brass Washer M8x12x3
(CNE522)
Rubber Dampener
(CNE520)
Spacer M3x5x2
(CNE524)
Cap Screw M4x30
(CNM4x30)
*The thrust bearing washer with the bigger inner race should
be closer to the head block. The thrust bearing washer with
the smaller inner race should be closer to the rotor blade.
*Raised lip should
be facing the bearing
6. Assembly Instructions
Main Blade Grip
CA
THREAD LOCK
B
Attaches to feathering
shaft on the following page

6. Assembly Instructions
Head Block
Button Head M3x6
(CNM3x6BH)
Linkage Ball
(CNLR1014)
Seesaw Offset Plate
(CNE519)
Tie Bar
(CNE519) Bearing 3x10x4
(CNBB1030)
Button Head M3x6
(CNM3x6BH)
Seesaw Offset Plate
(CNE519)
Button Head M3x6
(CNM3x6BH)
Linkage Ball
(CNLR1014)
Bearing 3x10x4
(CNBB1030)
Seesaw Shaft
(CNE518)
Tie Bar
(CNE519)
Feathering Shaft
(CNE521A)
Rubber Dampener
(CNE520)
Brass Spacer M8x7x3
(CNE522)
Set Screw M4x4
(CNM4x4SS)
Bearing 3x7x3
(CNBB0730)
*Apply small amount of CA to
the threads of the ybar
Flybar Control Arm
(CNE525)
Flybar (CNE526)
Flybar Paddles
(CNE527)
Plastic Spacer M3x6x3
(CNE525)
Measure the ybar evenly on both sides. Measure
from the ybar control arm to the tip of the ybar
prior to installing the ybar paddles. Screw the pad-
dles evenly on both sides of the ybar.
After attaching the paddles, measure the inner side
of the ybar to the tip of the y bar control arm, and
verify that the ybar is equal on both sides.
Hint: Note the orientation of the ybar con-
trol arm the ball link faces the angle off at-
tack and the set screws faces upwards.
CA
OIL
CA
CA
THREAD LOCK
B
Head Block
(CNE556-1)
7
Plastic Spacer M3x6x3
(CNE525)
Set Screw M3x4
(CNM3x4SS)
CNC Washout Guide
(CNE556-2)
THREAD LOCK
B

Washout Base
(CNE516)
Linkage Ball
(CNLR1014)
Washout Control Arm
(CNE516)
Bearing 3x6x2.25
(CNBB36)
Cap Screw M3x8
(CNM3x8CS)
Flat Washer M3x5x.5
(CNLR1003)
Medium Linkage Ball
(CNLR1020)
Antirotation Linkage Ball
(CNE515)
*Hint: Undo the cap screws and linkage balls to the assembled parts. Apply CA
on metal to plastic assembly. Apply blue thread lock on metal to metal assem-
bly. Do not over tighten when screwing the attached assembly to its subassembly.
Swashplate
(CNE515)
Swashplate and Washout Assembly
6. Assembly Instructions
CA
Main Shaft
(CNE508)
Flybar outer
at spot
Equal ybar length
on each side
Flybar control arms must
be level with Seesaw. Set
screws face upward.
Flybar outer at spots align
with ybar control arms when
arms are ush with seesaw.
THREAD LOCK
Adjusting the Flybar
Apply Thread lock to all the inner
steel ball links.
THREAD LOCK
R
8
Head Block

A-Arm Assembly
6. Assembly Instructions
THREAD LOCK
B
Ball Link
(CNE546)
A-Arm
(CNE580)
Linkage Ball
(CNLR1011)
Push Pull Bell-
crank (CNE581)
Elevator Spacer Long
(CNE583)
Elevator Spacer
Short (CNE583)
Set Screw M3x3
Total of 3 (CNM3x4SS)
9
1. Screw the ball link into the A-arm, make sure it is screwed
all the way in. Back it off so that it is parallel with the face of the
Arm.
2. Place the elevator push pull
bellcrank onto the shaft and the
two spacers. Level up the bell-
crank so that it is 90 degrees to
the A-arm.
3. Use calipers to measure 52mm from
one end of the spacer to the other, in-
crease the gap between the bellcrank
until this is so. Now double check your 90
degree alignment, and snug all 3 of the
set screws, with lock tight.
52mm
90
Increase this gap
Bellcrank Assembly
Ball Link
(CNLR1011)
Cap Screws M3x18
(CNM3x18CS)
Bellcrank Bear-
ings (CNBB36) Bellcrank Spacer
(CNE502)
Bell Crank
(CNE502)
Ball Link
(CNLR1011)
Washer M3x5x.5
(CNLR1003)
1. The bellcrank is symmetrical.
Use thin CA to tightly secure the
Ball Links in place as shown.
Press the bearings and spacer into
the bellcrank, they are a tight t
and do not require CA.
2. Slot the Cap Screw through
the bearings and place the small
washer
Bellcrank Frame
Spacer 3.5mm
(CNE588)
Servo position
3. Use a M3 Hex Nut to secure
the assembled bellcrank through
the frames in the hole next to the
servo position, Tighten until the
bellcrank will spin freely but does
not have any slop.
4. Repeat this step for the other side of the frame, re-
member to install it on the opposite side of the frame.
4. Once the set screws are all
locked in, screw in the 2 ball links,
with blue lock tight.

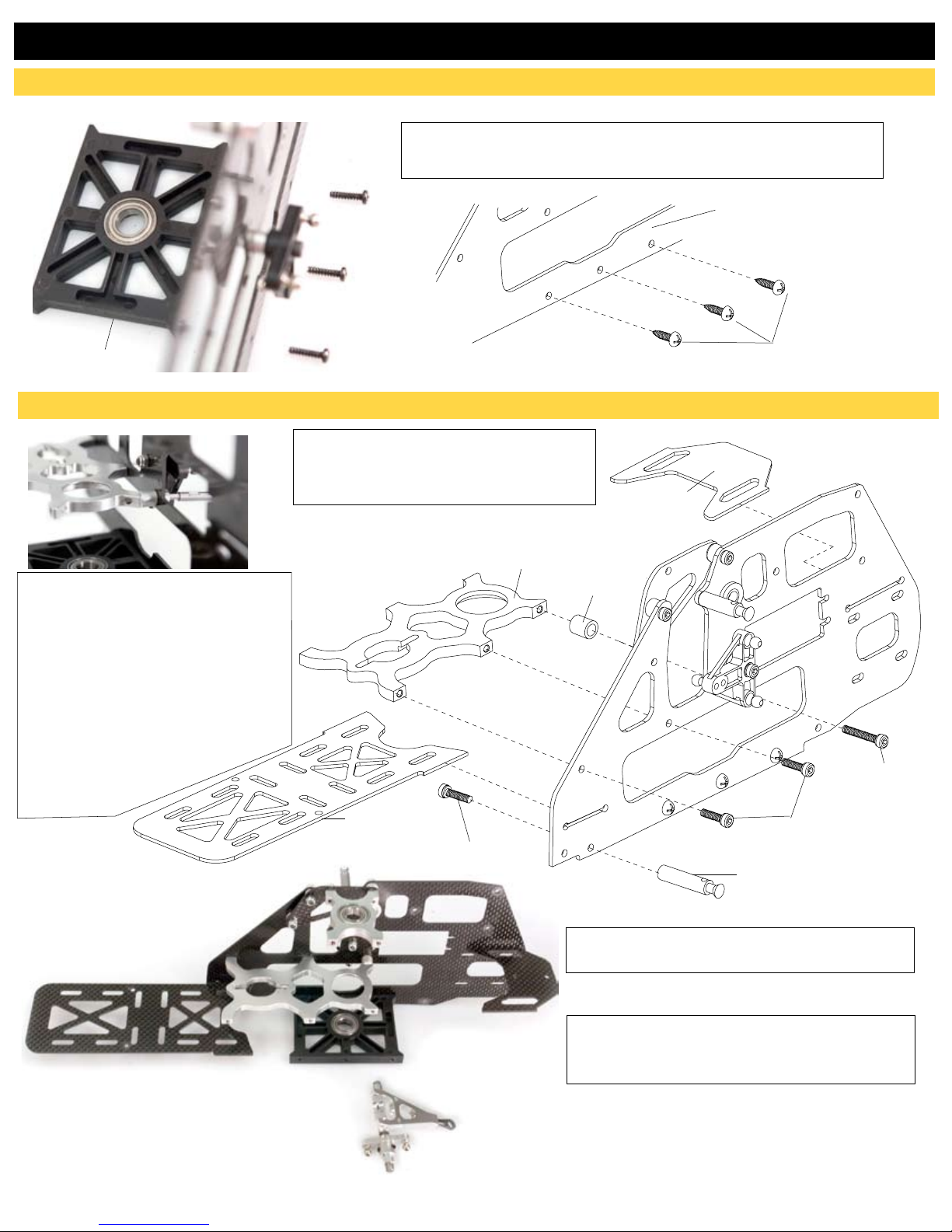

Uppper Bearing Block Assembly
6. Assembly Instructions
CF Main
Shaft Support
(CNE577)
A-Arm
Bearing
(CNE582)
Aluminum
Spacer 3.5mm
(CNE586)
Cap Screws M3x12
(CNM3x12CS)
Aluminum
Spacer 3.5mm
(CNE586)
Upper Bearing
Block, Bearing
(CNBB1019)
Upper Bearing
Block
(CNE593)
Cap Screw M3x8
(CNM3x8CS)
M3 Hex Lock Nut
(CNM3LOCK)
1. Lay down part; CF Main Shaft Support over
the holes to ensure correct orientation.
2. Be sure to install the plate on the op-
posite side to the bellcrank
3. The hole for the A-arm bearing is
tight and may require sanding in order
for the bearing to t. Remember to do
this in a well ventilated area and use a
mask.
The bearing should be pushed through
from the inside of the frame.
Flange this side
4. Screw the canopy mount through the main
frames using a M3x8 Cap Screw.
Cap Screw M3x8
(CNM3x8CS)
Upper Bearing
Block
(CNE593)
Aluminum
Spacer 3.5mm
(CNE586)
Cap Screw M3x12
(CNM3x12CS)
Cap Screw M3x8
(CNM3x8CS)
6. Insert the Aluminum spacer between the two carbon pieces. Apply blue lock tight to
the cap screws and insert them through the frame into the bearing block. Make sure the
bearing is facing up.
Do not attach the other side of the frame at this stage.
5. Perform steps 1 to 3 in a mirror fashion to the
other side of the frame.
10
Main Frames
(CNE503)

2. Included in your kit is a small piece of
sand paper. You may have to sand down
the edges of your radio tray and gyro
plate in order for them to t perfectly.
When sanding, remove small amounts
of material and test t the parts. You
want the parts to t snuggly in place.
*WARNING: Before sanding, make sur e
you and your model are in a well venti-
lated area, or outside. When sanding car-
bon, you must wear a dust mask
as inhaling the dust particles
can be harmful to
your health.*

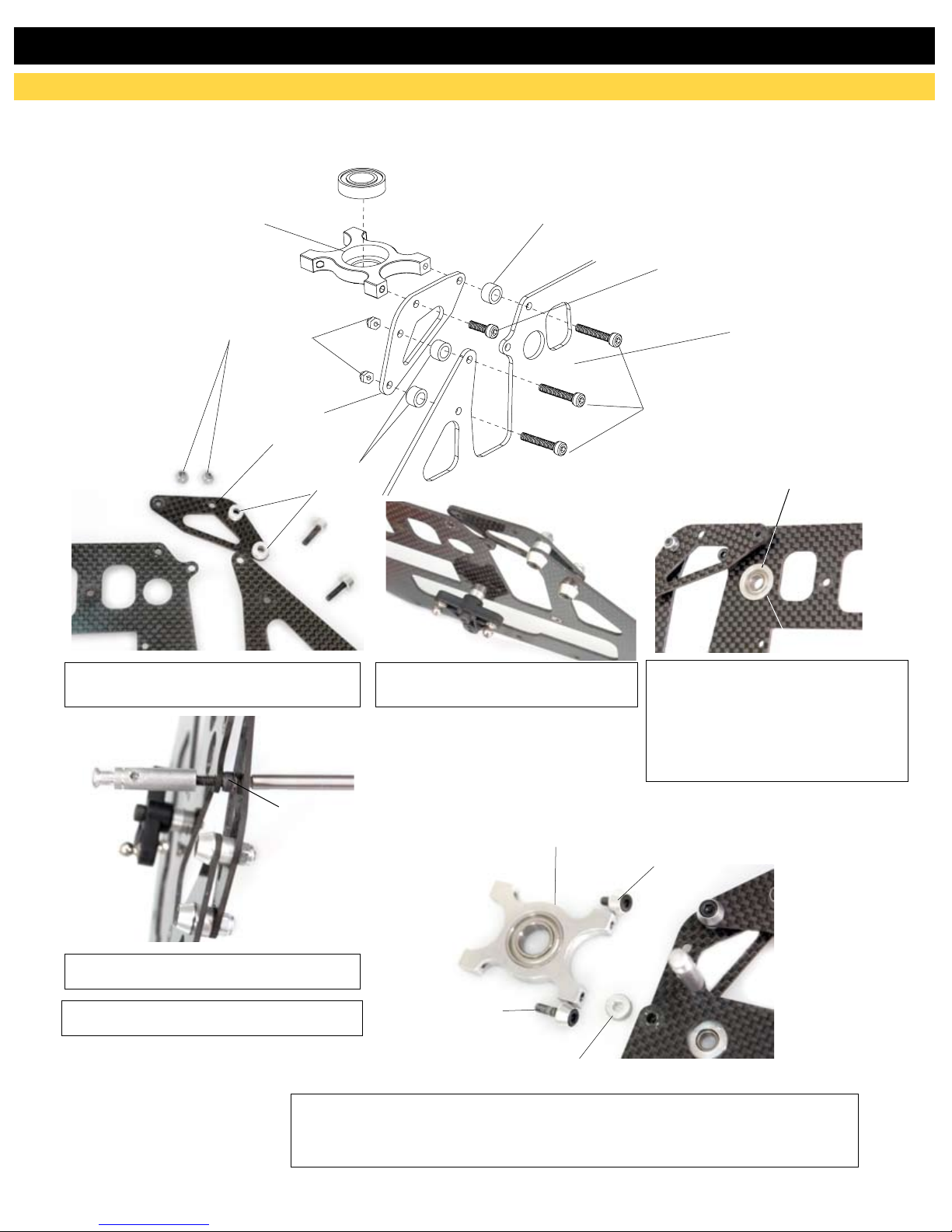

Lower Bearing Block Assembly
6. Assembly Instructions
1. Push the bearing (CNBB1019) into the Third Bearing Block (CNE569) and
attach to the bottom of the frames, using: Self Tapping Screw M3x10.
Make sure your block is facing upwards.
Self Tapping Screw M3x10
(CNM3x10ST)
Main Frame
(CNE503)
Third Bearing Block
(CNE569)
Motor Mount Assembly
Cap Screw
M3x16
(CNM3x16CS)
Cap Screw M3x8
(CNM3x8CS)
Canopy Standoff
(CNE501)
CF Gyro Plate
(CNE527)
CNC Machined
Motor Mount
(CNE563)
CF Electronics
Tray (CNE575)
7mm Motor
Mount Spacer
(CNE587)
Cap Screw M3x8
(CNM3x8CS)
3. Screw in the remaining Canopy Standoff into the
main frames, using blue lock tite.
1. Use bule lock tite to install the Motor mount
to the inside of the frame.
The Motor Mount smooth side must be facing
up.
4. Assembly is almost compleate, be sure that
the opposing frame has the nessiserry hardwear
installed.
11

Main Frame Assembly
6. Assembly Instructions
Washer M10x14x.5 (CNE592)
Main Gear
(CNE510A)
Auto-rotation Hub and Bearing
(CNE510B)
Flush Head Cap Screw
(CNM3x8FHCS)
Main Gear
(CNE510A)
Flush Head Cap Screw
(CNM3x8FHCS)
Driven Tail Hub (CNE591)
Split Gear Assembly
Button Head Cap
Screw M3x8
(CNM3x8BH)
Button Head Cap
Screw M3x8
(CNM3x8BH)
1. Place the two side frames together with the elevator A-arm assembly in-
between them.
When looking through the back the elevator bellcrank should be on the left side.
2. First secure the Upper bearing
block using a M3x12 cap screw and a
M3x8 cap screw, With the Ali-spacer
between the carbon frame and the
carbon support. Use Blue Locktite.
3. Install the Self tapping screws to secure
the bottom.
Cap Screw M3x12
(CNM3x12CS)
Spacer 3.5mm
(CNE586)
Self Tapping Screw M3x10
(CNM3x10ST)
4. Attach the Carbon Switch plate to the
two supports, then the supports to the
underneath of the CF Radio tray
CF Switch Plate
(CNE572)
CNC Switch Plate
Standoffs
(CNE585)
Button Head Cap
Screw M3x8
(CNM3x8BH)
5. Use the remaining four Button
head screws to attach the Main
frame supports, using blue Lock
tight
Main Frame Sup-
ports
(CNE584)
1. Locate which side of your frame
assembly has the larger slot for your
gear to pass through. Install the rst
gear inside the frame and push up
on the gear until the bearing is fully
pressed into the motor mount.
2. Make sure you have the washer on
the gear, pass this gear though the
slot, this will only be difcult if the top
gear is not pushed up far enough.
If you continue to have difculty you
can remove the third bearing block.
12

Tail Component Assembly
6. Assembly Instructions
M3 Locknut
(R) Gear Box
(CNE528) Lock Pin M2x13
(CNE529)
Tail Gear
(CNE529)
Cap Screw M3x10
CNM3x10CS)
Set Screw M3x4
(CNM3x4SS)
Tail Shaft
(CNE530)
Bearing 5x13x4
(CNBB1350)
Cap Screw M3x30
(CNM3x30CS)
Vertical Fin
(CNE536)
Fin Mount
(CNE535)
Rudder Pushrod Guide
(CNE534)
Tail Servo Mount
(CNE544)
Tailboom
(CNE532)
Carbon Tail Control Rod
(CNE534)
Self Tapping Screws M3x12
(CNM3x12ST)
Fine Thread Screw M2x10
(CNM2x10PH)
Horizontal Fin
(CNE535)
Self Tapping Screw M3x8
(CNM3x8ST)
M3 Locknut
(L) Gear Box
(CNE528)
Tail Boom Support Struts and Rudder Control Rod
CA
Use CA to secure the rod ends in place
Tail Boom Support
Strut (CNE543)
Tail Boom Support
Strut End (CNE543)
The tailboom support struts and tail rudder control
rod arrive pre-built. To ensure the safety of your
helicopter and others around, please follow the CA
glue instructions.
Rudder Control Rod
(CNE534)
Rudder Control Rod
Ball Link
(CNE534)
Phillips Screw
(CNM2x8PH)
Phillips Screw
(CNM2x8PH)
CA
13
Fin Mount
(CNE535)

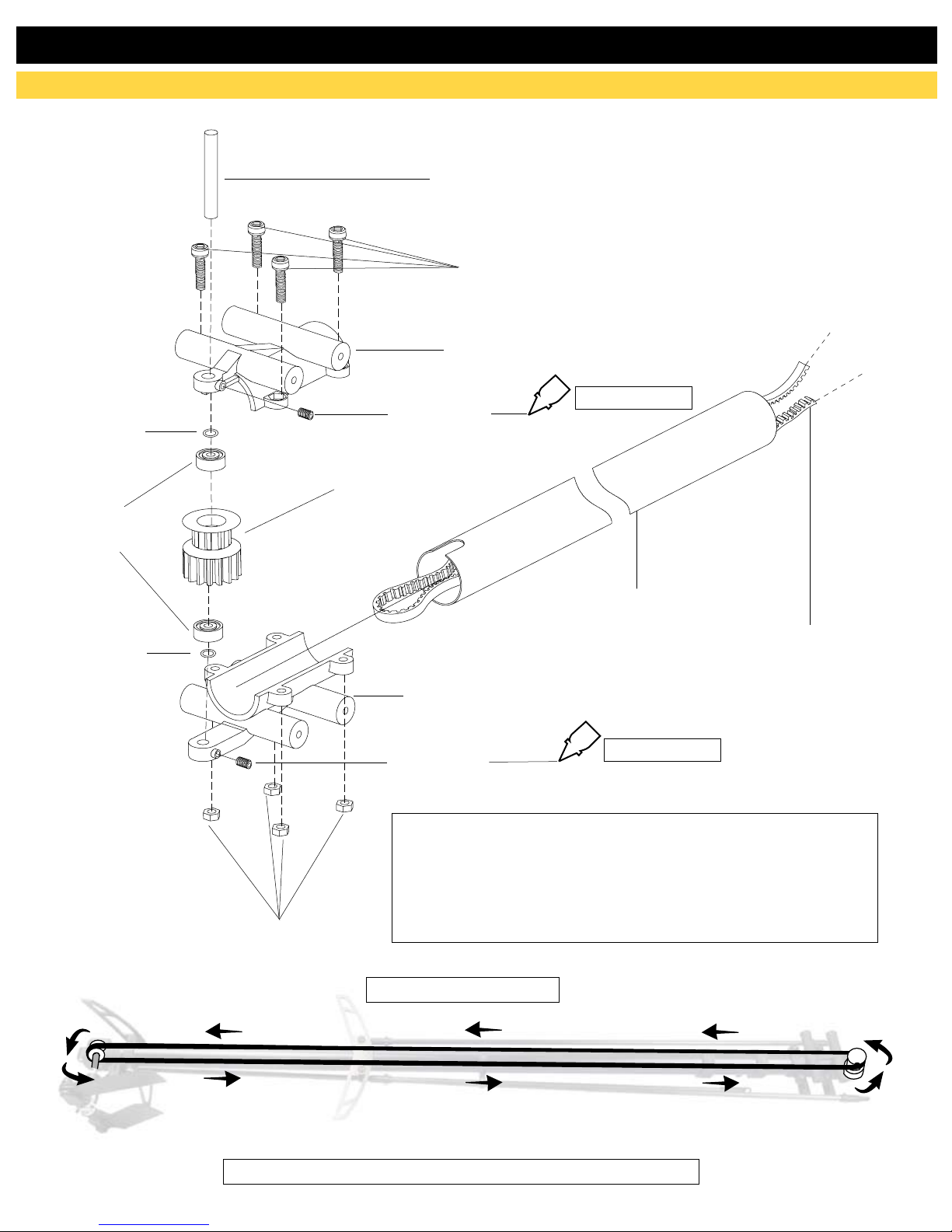

Tail Belt Drive
(CN531)
Tailboom
(CNE532)
M3 Locknut
Lower Transmission Case
(CNE542)
M4x4 Set Screw
Bearing 4x10x4
(CNBB4102)
Transmission Gear
(CNE533)
M3x4 Set Screw
Upper Transmission Case
(CNE542)
M3x10 Cap Screw
(CNM3x10CS)
M4x30 Pin
(CNE533)
Brass Spacer
M4x6x.25
(CNLR1006)
Brass Spacer
M4x6x.25
(CNLR1006)
Do not over tighten
Tail Transmission Assembly
6. Assembly Instructions
CA
CA
Do not over tighten
14
Note: Straighten the belt inside the tailboom, from the transmission gear,
rotate the belt 90-degree counter clockwise. Assemble the transmis-
sion gearbox, do not tighten at this point. Attach the tailboom assem-
bly to the main frame and secure it in place. Properly mesh the main
gear and the transmission gear. Pull the tailboom outward to achieve
the desired belt tension and evenly tighten the transmission screws.
Tail Drive Belt Direction
While facing the tail, the tail blades should spin counter clockwise.
Back of Heli Front of Heli

Tail Rotor Blades
(CNE541)
Tail Blade Grip
(CNE540)
Rotor Hub
(CNE539)
Set Screw M3x4
(CNM3x4SS)
Bearing M3x8x3
(CNBB038)
Linkage Ball
(CNLR1014)
M3 Locknut
Button Head Screw M3x14
(CNM3x14BHCS)
Bearing 3x8x3
(CNBB038)
Cap Screw M3x16
(CNM3x16CS)
Tail Blade Grip
(CN540)
CF Vertical Fin
(CNE536)
Tail Gear Box
(CNE528)
Tail Rotor Shaft
(CNE530)
Brass Slider Slipper
(CNE537)
Pitch Slider Base
(CNE537)
Spacer M3x5x2
Bearing 3x6x2.5
(CNBB364)
Tail Pitch Lever
(CNE538)
Spacer
M3x5x3.25
Linkage Ball
(CNLR1014)
Cap Screw M3x14
(CNM3x14CS)
Carbon Tail Control Rod
(CNE534)
Tail Pitch Arm
(CNE537)
Bearing 6x10x3
(CNBB610)
Bearing 3x6x2.5
(CNBB364)
Tail Gear Box Assembly / Autorotation Hub Assembly
6. Assembly Instructions
THREAD LOCK
B
THREAD LOCK
R
Fin Mount
(CNE535)
Tail Blade Grip
Spacer
(CNE552)
The tail pitch lever will t, if the lever socket is heated
with warm water and ball link pliers are used to pop the
ball into the socket. The whole assembly will be nice and
free after being put together.
15

Cap Screw M3x18
(CNM3x18CS)
Set Screw M3x4
(CNM3x4SS)
Landing Skids
(CNE513)
Cap Screw M3x8
(CNM3x8CS)
Hint: Place strut into a cup of warm water, if
skid does not slide through the hole of the strut.
*Apply light CA to M3x4 set screw.
CF Battery Support Plate
(CNE514) M3 Locknut

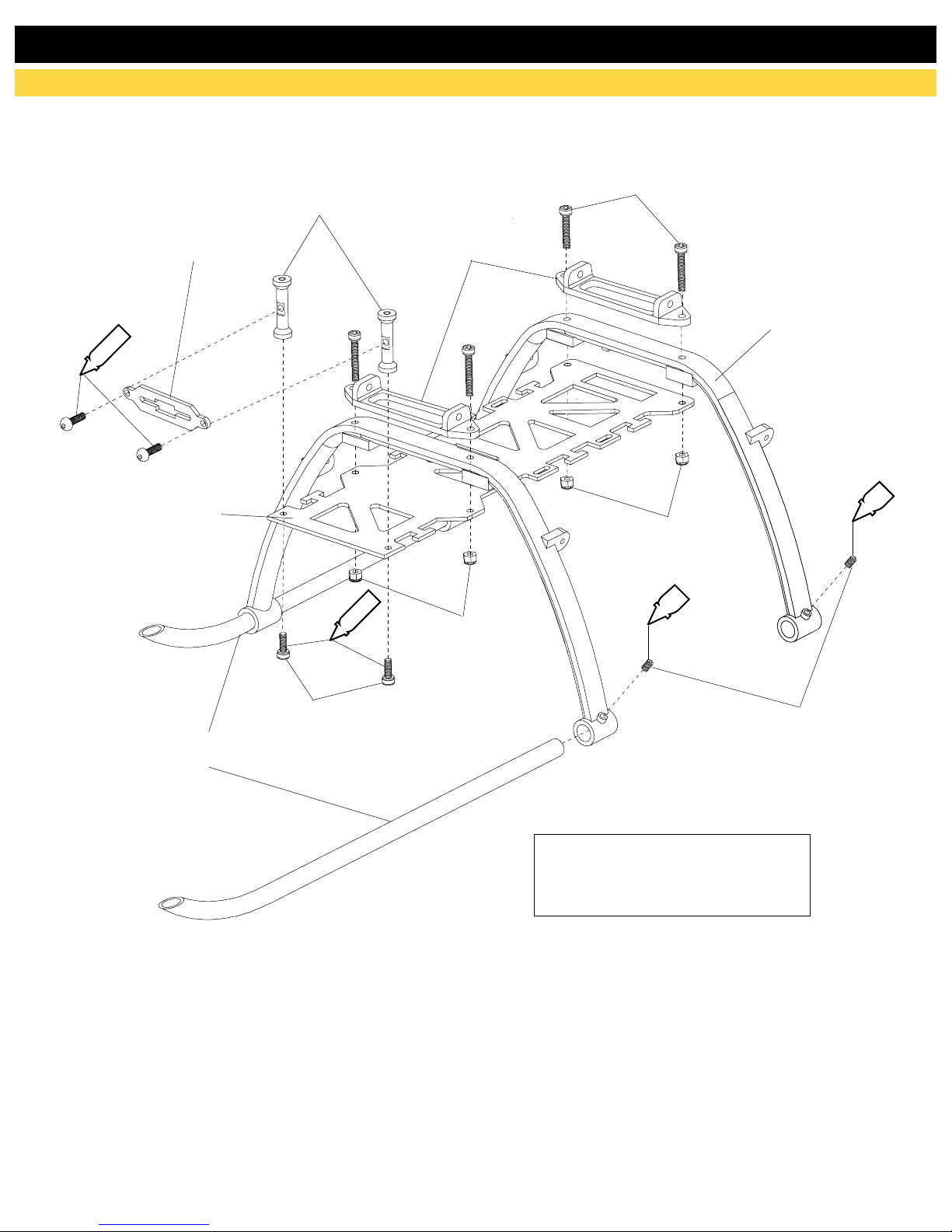

Landing Gear Assembly
6. Assembly Instructions
CA
CA
16
M3 Locknut
Button Head Cap
Screw M3x8
(CNM3x8BH)
THREAD LOCK
B
CF Switch Plate
(CNE572)
THREAD LOCK
B
Landing Struts
(CNE512)
Main Frame Braces
(CNE584)
CNC Switch Plate
Standoffs
(CNE585)

1) Align the mounting posts from the front transmission
gearbox with the mounting posts at the rear of the main
frame. The horizontal n on the tail boom facing should
face up so the rudder pushrod and tail boom support struts
hang below the tail boom.
2) Using the hardware provided attach the tail section to
the frame section. Do not fully tighten the screws till
the following step.
1) Align the transmission gear mesh before fully
tightening the screws holding the frame and tail sections.
Good alignment is smooth and free of resistance without
slipping or skipping teeth. (HINT:) place a strip of paper
between the gears to give proper clearance. Turn the
main gear while feeding the strip of paper between
through the gears. If the strip of paper comes out torn,
then the gear mesh is too tight. If the strip of paper
comes out not matching the obvious accordion pattern
from the gears’ teeth, then the gear mesh is too loose.
2) Attach the tail boom support struts to the horizontal n
clamp and the rear mounting posts on the landing struts
as shown by tightening the four set screws. (HINT:) To
help prevent rotation of the horizontal n mount, wrap the
area under the horizontal n mount with a few layers of
electrical tape.
M3x8 Machine
screw (2)
Assembling the Components
7. Putting Together Your Model
After completing the previous steps, the following instructions are for putting together the sub-assemblies. Please follow the
instructions and any hints along the way to ensure that you have a properly ying model.
M3x8 Machine Screw (2)
17
M3x12 Self tapping
screws (8)
Do not fully tighten
the screws till the
following step.
Look at gear mesh
through here.
1) Mounting the switch underneath the battery try keeps
it away form moving parts and allows you to access the
the switch when the canopy is on. Remember to use
locktite on the M3 socket head cap screws.
H Spacer Plate
(CNE590)
H Spacer Plate
(CNE590)
1) Place the collar onto the main shaft.
2) Place the assembled head through the upper bearing
block and down through the gear assembly. Fasten in place
with a M3x20 socket head cap screw and Lock Nut.
3) Pull up on the head and fasten the set screws into place.
Set Screw
(CNE511)
Upper Shaft
Collar
(CNE511)

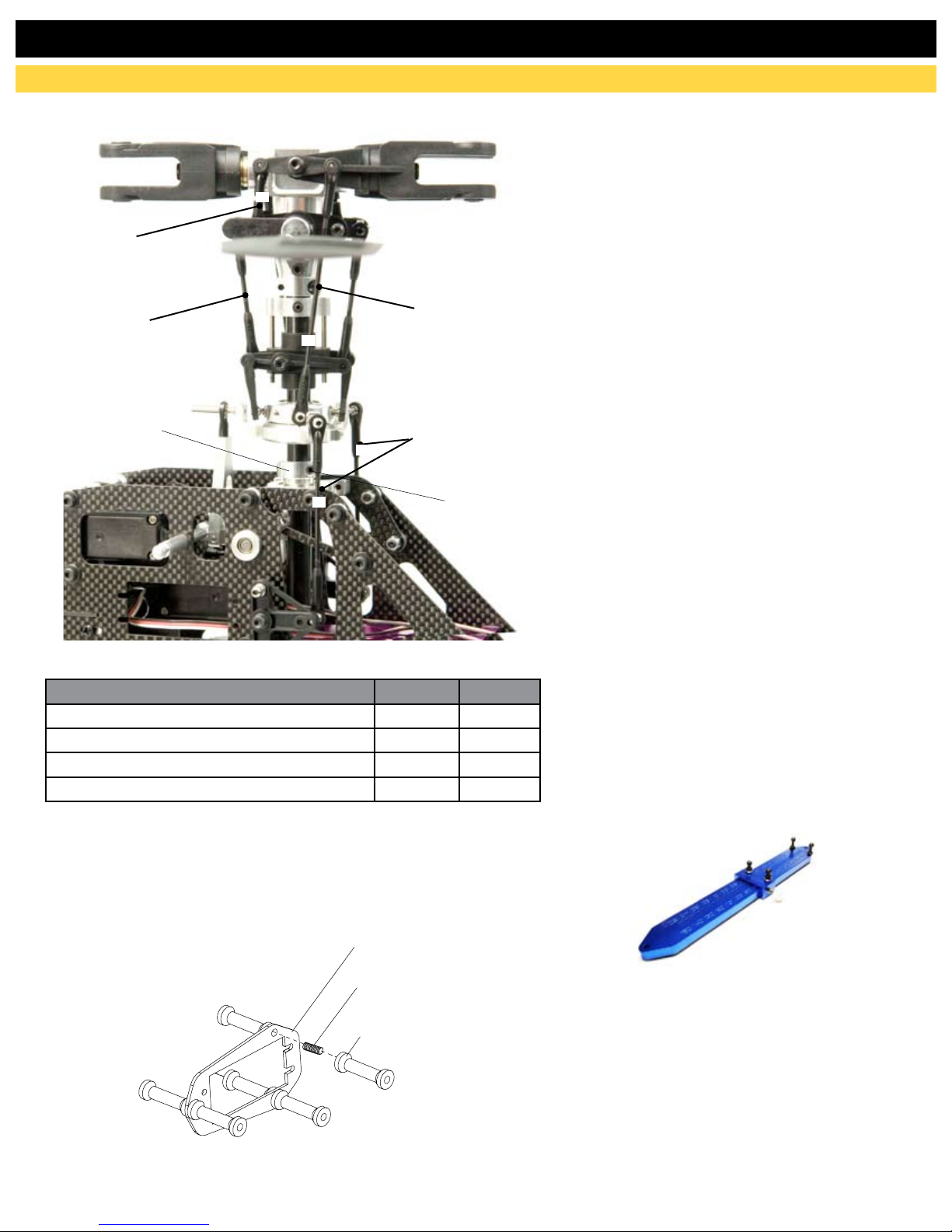

Linkage:
bell mixer to
swashplate
(2) = 98mm
Linkage: ybar
control arm to
washout arm
(2) = 52mm
Linkage: bell
mixer to seesaw
(2) = 23mm
Linkage: Aileron/
Pitch control arm
to swashplate
(2) = 78mm
1) Before proceeding to measure and install the
pushrods, make sure you have adjusted the
ybar to it’s optimal level (ybar paddles at and
parallel to the ground). Adjust the ybar until
the outer at spots align with the set screws
in the ybar control arms (set screws facing
upward and ybar control arms are ush up
against the seesaw).
2) Make certain that the ybar is equal in length
on both sides of the rotor head before tighten-
ing the ybar control arms. Set the ybar control
arms ush and level to the seesaw and tighten
the set screws using locktite.
It is very important that before you install the
pushrod linkages that your transmitter’s bat-
teries are fully charged. Then remove all the
servo horns from the servos and center all the
mechanical or electronic trims on the radio.
Due to the different types of radio and servos
that are chosen to install into the helicopter,
match each pushrod to the lengths in the table
for optimum setup.
Note: All dimensions are in millimeters and
are measured from the centers of the con-
trol balls or ball ends.
7. Putting Together Your Model
Servo Linkage Lengths
Location Length ID
Aileron/Pitch Control Arm to Swashplate 78mm A
Swashplate to Bell Mixer Link 98mm B
Bell Mixer to Seesaw 23mm C
Flybar Control Arm Linkage to Washout Arm 52mm D
A
A
B
C
D
These lengths should allow for approximately +/- 12 degrees of pitch
with 0 degrees at center stick (typical 3D setup).
(Optional Part) CN2255 Control Rod Set-
up Gauge
Easily duplicates pushrods by attaching a
master pushrod and match new pushrods as
they are assembled. Gauge has millimeter
scale for accurate lengths center to center.
18
Set Screw
(CNE511)
CF Servo Plate
(CNE573)
M3x20 Double Stud
Screws
(CNE589)
CNC Standoff
(CNE589)
Install your elevator servo so the output or horn
is at the front of the Servo Plate.
Front
Upper Shaft
Collar
(CNE511)

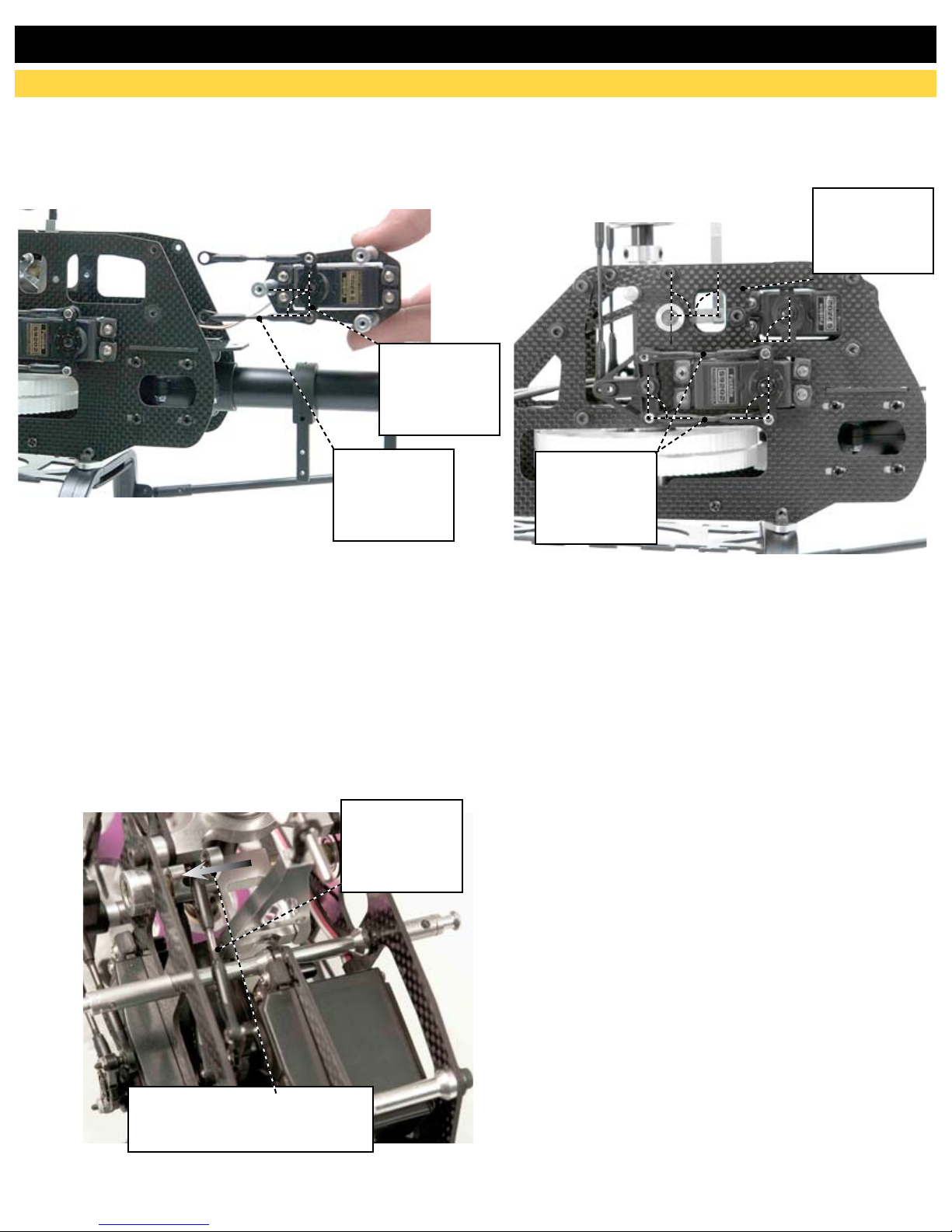

There are three servos that are mounted on the left and right main frames. They work together to tilt the swashplate
producing the collective pitch, roll cyclic pitch (aileron control) and the fore-aft cyclic pitch (elevator control). Before be-
ginning this section you should center all servos using the radio. All servo arms must be set with linkages as pictured at
90 degree angles. All servos mount with M2.5x12 self tapping screws, M2 servo balls and M2 Nuts. IMPORTANT:
Century logo on all ball links must face OUTWARD as pictured.
The pitch servo will mount with a full servo arm on the
lower opening of the left side of the main frame. The dis-
tance between the steel balls (center of ball) on the servo
arm should be 25mm. Use the 4 servo screws and 2 servo
mounting tabs to mount the pitch servo with the servo arm
further toward the rear of the frame (pictured above).
Place two servo balls on to the pitch servo arm facing
inside toward the frame. Attach 2 of the 49mm linkages to
the servo arm balls then to the balls on the pitch bellcrank.
Use the 4 servo screws and 2 servo mounting tabs to
mount the elevator servo with the servo arm output fac-
ing toward the front inside of the frame (pictured above).
The distance from the center of the servo to the center of
the ball on the servo arm should be between 20-22mm
Place one servo ball to the pitch servo arm facing in-
side toward the frame. Attach two 50mm linkage to the
servo arm ball then to the balls on the elevator bellcrank
(CNE581).
Linkage:
Elevator Servo
to bellcrank (2)
=47mm
Linkage:
Pitch Servo to
bellcrank
(2) = 49mm
Linkage:
Elevator Servo
to bellcrank(2)
= 50mm
90o
Century logo on all ball links must
face OUTWARD as pictured
90o
Adjusting the Servos
8. Installing and Adjusting Control Components
The aileron servo will mount with a full servo arm on the lower
opening of the right side of the main frame. The distance be-
tween the steel balls (center of ball) on the servo arm should
be 12.5mm. Use the 4 servo screws and 2 servo mounting
tabs to mount the aileron servo with the servo arm further
toward the rear of the frame (pictured above).
Place two servo balls to the aileron servo arm facing inside
toward the frame. Attach 2 of the 49mm linkages to the servo
arm balls then to the balls on the aileron bellcrank.
Move the collective stick to its maximum position and watch
for any roll (aileron) or pitch (elevator) inputs. If an input is
found, the problem will be one of the following in the table.
The table describes the symptom and the steps to correct
them.
19
90o
90o
Linkage:
Elev Servo to
bellcrank
(2) = 47mm
Servo Arm:
Elevator Servo
hole to hole =
20-22mm
Elevator Bellcrank needs to
be pushed up against bearing
(CNE582).

Linkage for
Rudder servo:
Preset length
by factory.
View: Right Side

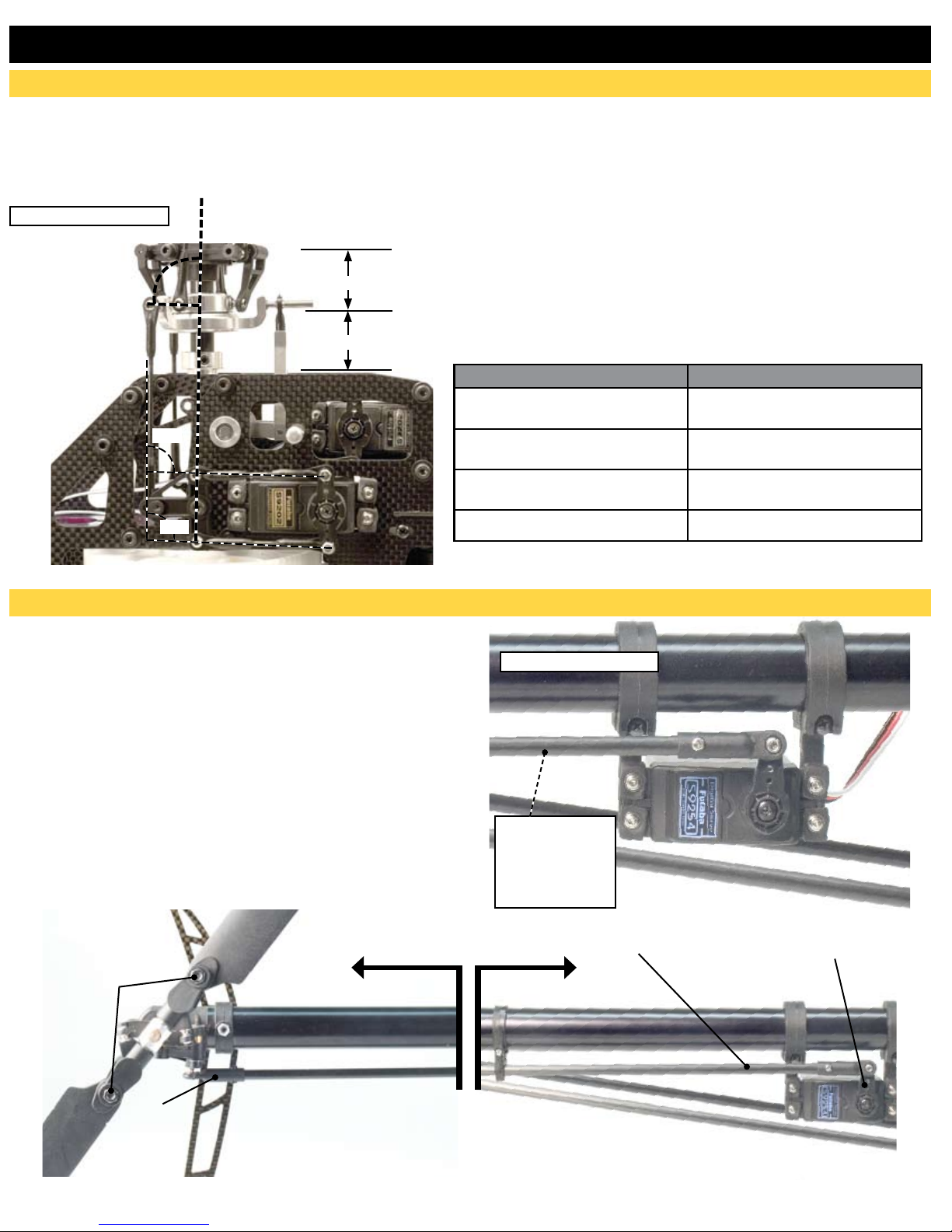

CCPM Servo Guidelines
8. Installing and Adjusting Control Components
The goal in the end after all the servos are mounted is to have the swashplate sit level or at 90 degrees to the main shaft and
have the swashplate move equally fore, aft and side to side. The swashplate will also travel up and down as the three servos
work together. This will result if the previous instructions have been followed and the ATV function for the three CCPM servos
has been set very, very accurately to eliminate pitch change when moving the aileron or elevator sticks.
Setting Up the Rudder Servo
90o
90o
A
B
A=B
Swashplate
is aligned 90o
with main shaft
After installing the three cyclic pushrods, the swashplate should sit
level.
Move the collective stick to its maximum position and watch for any
roll (aileron) or pitch (elevator) inputs. If an input is found, the prob-
lem will be one of the following in the table. The table describes the
symptom and the steps to correct them.
Symptom Corrective Solution
metal control ball distance move ball location to match other
servos, or carefully use ATV
angle of horn & servo not 90oset radio to 0%, place horn on, if
not 90, take off and turn untill it is.
angle of horn & linage not 90oadjust pushrod untill set exactly
parralell to bellcrank/
swashplate is not level adjust pushrod A length to level
View: Left Side
The Rudder Servo Pushrod changes the pitch of the tail ro-
tor blades to increase or decrease the torque compensation to
rotate the nose of the helicopter about the main shaft.
Use a servo horn in the shape of a cross and trim the 3 of the 4
arms off. The Rudder Servo Pushrod has a preset length from
the factory. Use the 4 Servo screws and 2 servo mounting tabs
to mount the servo with the servo output facing the forward right
side of the helicopter (pictured to the right). At this point, turn
on your radio equipment to center the rudder servo. Attach the
servo horn at 90 degrees aligned with the servo.
Use a servo ball on the outside of the servo arm. Attach the front
end of the rudder control rod to the servo ball.
Rear Front
Rudder
Pushrod
Rudder
Pushrod
Servo arm is at a
90 degree angle
Tighten the
tail blade
grips here
20
A
