Century SMART MOVE PM-1634AB 6/01 User manual


Instruction
Manual
Avoid injury or death -
Read and understand this manual!
Para instrucciones en Español,
llamar al: 1-800-837-4044
www.centuryproducts.com
PM-1634AB 6/01

TABLE OF CONTENTS
Important Information.....................................1
Warnings.........................................................2
Basic Information.............................................4
Vehicle Seat Belts........................................... 16
• Locking Clip........................................ 21
Additional Information ...................................22
• Installation of Anchor Hardware
• Tether Storage
• Care and Cleaning
• Aircraft Use
• Second Hand Car Seat
Storage.....................................Back Cover
• Locking Clip
• Instruction Manual
Help Information.......................Back Cover
Instruction manual is for:
SmartMove® 5-Point Newborn/Toddler
Car Seat
❃Before You Begin
❃Use
❃Special Information
Height & Weight Limits.....................................5
Rear-facing Installation.................................... 6
Forward-facing Installation................................8
Placing Child in Car Seat...............................10
Operations and Adjustments......................... 12
• Harness Straps
• Harness Tie
• Buckle
• Recline / Upright Positions
• Changing Harness Strap Slots

IMPORTANT INFORMATION
No car seat can guarantee protection from
injury in every situation, but proper use helps
reduce the risk of serious injury or death.
Child restraints (car seats) could be recalled for
safety reasons. You must register this restraint
to be reached in a recall. Fill out the
registration card attached to car seat and mail
today or send your name, address, and the
restraint’s model number and manufacturing
date to:
Century Products
P.O. Box 551
Elverson, PA 19520-9973
or call 1-888-224-6549
For recall information:
• Call the U.S Government’s Auto Safety
Hotline at 1-800-424-9393
(202-366-0123 in D.C. area)
• www.nhtsa.dot.gov
• Call Century Products at 1-800-837-4044
✔Read and understand instruction manual
and car seat labels.
✔Infants less than 20 lbs. (9.1 kg) must use
car seat rear-facing.
✔Do not use car seat rear-facing in vehicle seat
with air bag.
✔Secure children in back seat whenever
possible.
✔Never leave child unattended.
✔Install car seat securely.
✔Do not use after date shown on back of
car seat.
✔Do not allow anyone (babysitter, relatives,
etc.) to use car seat without first
understanding all instructions.
1
❃Registration Information
❃Safety First Check List

WARNINGS - Prevent serious injury or death:
DO NOT use rear-facing child
restraint in a vehicle seating
position equipped with an air bag.
Child’s head and neck may be
seriously injured when an inflating
air bag hits back of child restraint.
Never put a car seat in a front
vehicle seat unless recommended by
vehicle owner’s manual. National
Highway Traffic Safety
Administration (NHTSA) alerts
vehicle owners that according to
accident statistics, children up to
age 12 are safer in the back seat.
For vehicles with air bags, refer to
vehicle owner’s manual for child
restraint installation information.
If car seat is in a crash, it must be
replaced. DO NOT use it again! A
A crash can cause unseen damage
and using it again could result in
serious injury or death.
Failure to follow these instructions
and car seat labels can result in child
striking the vehicle’s interior during
a sudden stop or accident. Secure
child restraint with a vehicle seat
belt as shown in this manual.
Infants less than 20 lbs. (9.1 kg)
must use this car seat rear-facing.
Serious crippling injury or death can
result if infant faces front of vehicle.
Vehicle seat belt system MUST hold
car seat securely. Not all vehicle seat
belts can be used with a car seat. If
vehicle seat belt does not hold car
seat securely, read “Vehicle Seat
Belts” section.
2

3
DO NOT use car seat if it is damaged
or has missing parts.
DO NOT use accessories or parts
other than those provided by
Century or Graco. Their use could
alter the performance of the
car seat.
Rear-facing car seat must be
properly leveled:
• Too reclined can result in injury
or ejection.
• Too upright can result in
breathing difficulties.
Never leave child unattended, even
when sleeping. Child may become
tangled in harness straps and
suffocate.
WARNINGS - Prevent serious injury or death (continued):

BASIC INFORMATION
This car seat meets or exceeds all applicable
requirements of Federal Motor Vehicle Safety
Standard 213 for use in motor vehicles and
aircraft.
Always secure car seat with a vehicle seat belt,
even when unoccupied. An unsecured car seat
can injure passengers.
Protect vehicle seat. Use a car seat mat, towel
or thin blanket under and behind car seat.
Car seat parts can get very hot in the sun or
warm weather.
To avoid burns, always check before putting
child in car seat.
4
Do not use car seat on rear-facing or
side-facing vehicle seats.
❃Certification ❃Unoccupied Car Seat
DO NOT use after date shown on back of
car seat due to changing requirements and
normal wear and tear.
Look for: Do not use this car
seat after December Year
❃Car Seat Useful Life
❃Dangerous Vehicle Seats ❃Vehicle Seat Protection
❃Warm Weather

Forward-facing
HEIGHT & WEIGHT LIMITS
A preterm infant or low birth weight infant may
be at special risk in a vehicle or aircraft.
According to the American Academy of
Pediatrics, these infants may suffer breathing
difficulties if improperly reclined in a car seat.
Century advises that you have your physician or
hospital staff evaluate your infant and
recommend the proper car seat or car bed
before you and your infant leave the hospital.
5
❃Preterm or Low Birth Weight
Infants
❃Outgrowing Car Seat
Prevent serious injury or death:
• Top of child’s ears must be below top
edge of car seat.
• Child’s shoulders MUST not be above
top harness slots.
WARNING
Rear-facing: Birth to 30 lbs. (13.6 kg)
• Infants from birth to 20 lbs. (9.1 kg) MUST
be rear-facing.
• Infants or toddlers 20 to 30 lbs.
(9.1 to 13.6 kg) may be rear-facing.
Forward-facing: 20 to 40 lbs. (9.1 to 18.1 kg)
• Toddlers 20 to 30 lbs. (9.1 to 13.6 kg) who
are capable of sitting upright unassisted
may be forward-facing *. If unable to sit
unassisted, use rear-facing.
• Toddlers 30 to 40 lbs. (13.6 to 18.1 kg)
and up to 40 inches (101.6 cm) tall MUST
be forward-facing.
Rear-facing 40 lbs.
(18.1 kg)
Birth 30 lbs.
(13.6 kg)
20 lbs.
(9.1 kg)
IMPORTANT: This car seat is certified for use
rear-facing with children up to 30 lbs. (13.6 kg).
However, some children approaching 30 lbs.
(13.6 kg) may be too tall to fit comfortably
rear-facing. When child can no longer
comfortably fit and knees remain bent, child
should use car seat forward-facing, only if child
is over 20 lbs. (9.1 kg) and can sit upright
unassisted *.
*The American Academy of Pediatrics recommends
that children should be at least one year of age
before being positioned forward facing.

When using car seat rear-facing, car seat MUST
be able to rotate freely from a reclined to an
upright position on impact.
• Test by moving car seat through all seating
angles.

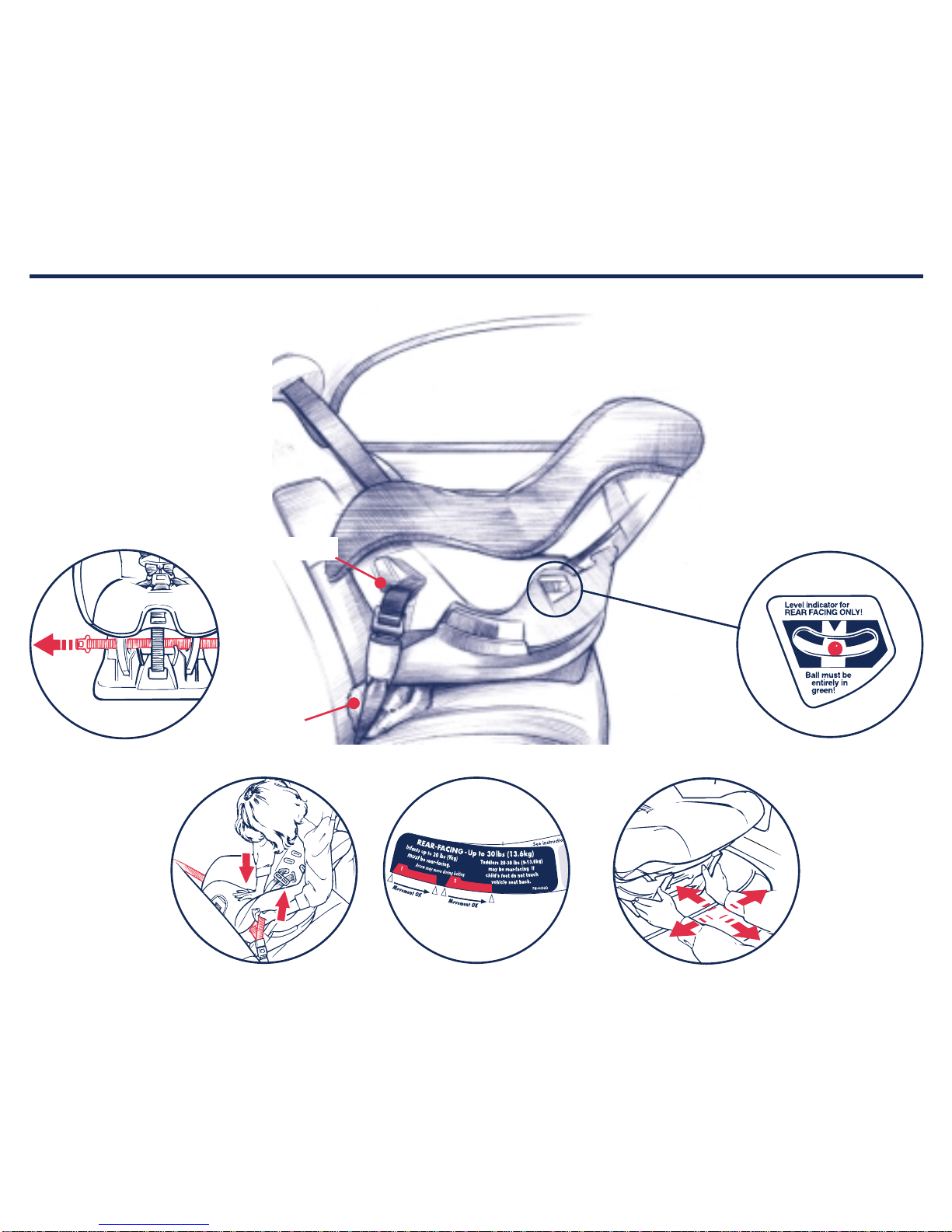

Adjust car seat to reclined or semi-reclined
position and place rear-facing on vehicle seat.
Thread vehicle seat belt through openings over
recline lever on front of car seat and buckle
belt (fig. a).
Press down firmly in center of car seat to
compress vehicle seat cushion while tightening
vehicle seat belt (fig. b).
Because of car seat design, you may experience
some movement of the pointer in positions
1 & 2 during vehicle seat belt tightening.
This is normal. Make sure you start installing
car seat with pointer in the locked position
1 or 2 and adjust the vehicle belts keeping the
pointer within the colored zone (fig. c).
REAR-FACING INSTALLATION
1
2
6
Pull front to back and left to right to check for
secure installation (fig. d). Vehicle lap belt
MUST stay tight.
If not secure, see “Vehicle Seat Belts” section.
Check level indicator on car seat.
Ball MUST be entirely in green zone (fig. e). If
necessary, place rolled towels under car seat, at
vehicle seat crease, until entire ball is in green
zone. Then re-check level indicator.
NOTE: Vehicle must be on level ground and
child in car seat when checking level indicator.
4
5
To prevent serious injury or death:
Do not allow anything in vehicle
interior or in base of car seat to obstruct
rotation in a crash.
WARNING
3

(fig. b) (fig. d)
(fig. e)
Openings
Towels
REAR-FACING INSTALLATION (continued)
7
(fig. c)
(fig. a)

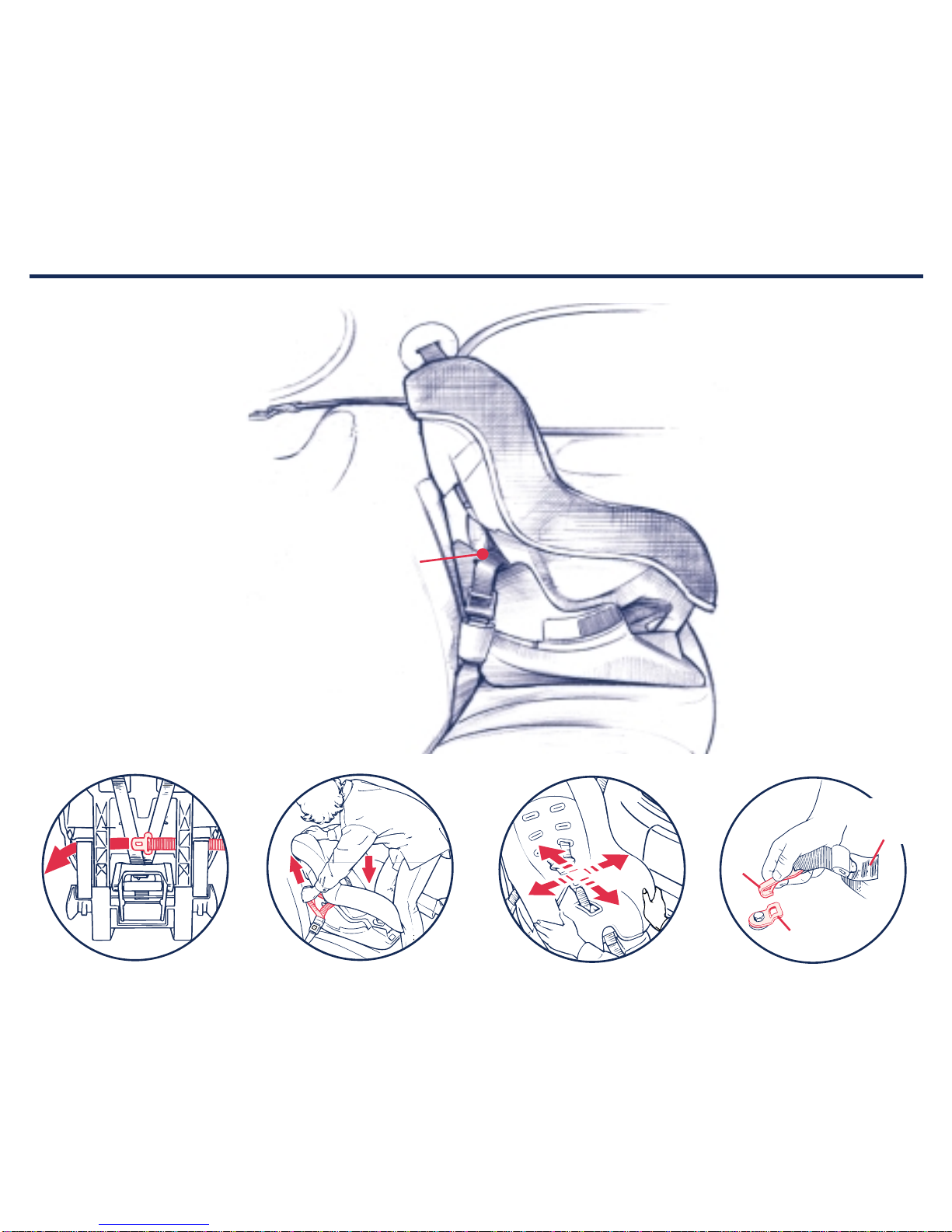

Adjust car seat to upright or semi-upright position
and place forward-facing on vehicle seat.
Thread vehicle seat belt through openings and
behind harness straps (fig. a).
Buckle belt.
Press down firmly in center of car seat to compress
vehicle seat cushion while tightening vehicle seat
belt.
HINT: Use your knee to press down in center of
car seat (fig. b).
Pull front to back and left to right to check for
secure installation (fig. c). Vehicle lap belt
MUST stay tight.
If not secure, see “Vehicle Seat Belts” section.
Attach tether strap hook (A) to anchor hardware (B)
and tighten strap to remove any slack (fig. d).
If tether anchor hardware (B) is not available, see
“Installation of Anchor Hardware“ section.
FORWARD-FACING INSTALLATION
1
2
3
4
8
5

(fig. a) (fig. b) (fig. c) (fig. d)
(B)
(A)
Pull to
tighten
9
FORWARD-FACING INSTALLATION (continued)
Openings

Place child in car seat with child’s back flat
against back of car seat.
Place harness straps over child’s shoulders and
insert tongues into buckle.
Pull up on tongues to be sure they are locked.
Close harness tie:
Position harness tie at arm pit level.
Adjust harness straps to be snug with just
enough room to insert one finger between
child’s chest and harness straps (fig. a).
Check that harness straps on chest and thighs
are snug.
A rolled towel can be used on each side to
support small children (fig. b). Be sure towels
do not interfere with harness system.
To prevent serious injury or death:
• Keep harness straps snug and
positioned on shoulders.
• Do not use strap covers, blankets,
cushions, or padding under harness
straps or child unless provided by
Century or Graco.
• Child must be dressed in clothing with
arms and legs that will not interfere
with buckling harness.
1
2
3
4
5
PLACING CHILD IN CAR SEAT
WARNING
Check harness system:
•Rear-facing - Harness straps must be
through bottom or middle slots at or
below shoulders.
•Forward-facing - Harness straps MUST be
through top slots.
10

11
2
3
(fig. a) (fig. b)
PLACING CHILD IN CAR SEAT (continued)
4

OPERATIONS and ADJUSTMENTS
Recline / Upright Positions:
Rear-facing - MUST use Reclined (#1) or
Semi-reclined (#2) position.
Forward-facing - MUST use Semi-upright (#3)
or Upright (#4) position.
• Squeeze lever located under front (fig. b)
or rear (fig. c) of car seat.
• Move car seat to desired position by
aligning pointer to desired position.
Be sure car seat locks into position.
Harness straps MUST move freely. Make sure
harness straps are not pinched between lever
and car seat shell.
Harness Straps (fig. a):
• To tighten: Pull lower belt tab.
• To loosen: Pull and hold upper belt tab
while pulling harness straps out.
Harness Tie:
• To open: Press tab and pull apart.
• To close: Snap halves together. Make
sure harness tie is locked by pulling out
on each half.
Buckle:
• To buckle: Insert both tongues into
buckle. Pull up on tongues to be sure
they are locked.
• To unbuckle: Press red button and pull
tongues out of buckle.
1
2
4
3
12

13
(fig. a) (fig. b)
1
2
3
Upper
Lower
(fig. c)
4
OPERATIONS and ADJUSTMENTS (continued)

14
Changing Harness Strap Slots:
ALoosen harness straps:
Pull and hold upper belt tab.
Pull harness straps out.
BRemove both harness strap loops from
Splitter Plate on back of car seat.
CChange harness strap slots.
Make sure harness straps are threaded
through matching slot of seat pad and
car seat.
It may be necessary to remove seat pad
from top of car seat.
DRe-attach harness strap loops to Splitter
Plate (fig. e):
• For Infants or Small Toddlers:
Put Top right strap loop on Splitter
Plate first, then attach Top left strap
loop.
NOTE: Make sure ends of straps are
in front of Splitter Plate as shown.
• For Toddlers:
Put Bottom right strap loop on Splitter
Plate first, then attach Bottom left strap
loop.
NOTE:
• Make sure both strap loops are securely
attached within Splitter Plate hook.
• Make sure strap is NOT twisted and
is routed between adjuster lever and
car seat shell (fig. f).
7
OPERATIONS and ADJUSTMENTS (continued)

15
Bottom
Loop
Splitter Plate
Top
Loop
OPERATIONS and ADJUSTMENTS (continued)
(fig. f)
Rear Recline
Lever
(fig. e)

16
VEHICLE SEAT BELTS
To provide the most secure installation of the
car seat:
• Read the vehicle owner’s manual regarding
car seat installation and seat belt use with
car seat.
• Follow all instruction labels on vehicle seat
belt and car seat.
If car seat is not held securely after following
instructions in this manual, vehicle seat belt
labels, and vehicle owner’s manual:
• Move car seat to another seating location
and try again, or
• Contact vehicle dealer for possible seat
belt modification parts.
Not all vehicle seat belts can be used
with a car seat. The car seat must be
held securely at all times by a lap belt
(or lap belt portion of a lap/shoulder
belt) that will not change length while
driving.
WARNING

17
Vehicle seat belts located forward of seat
crease may not securely hold car seat. Check
vehicle owner’s manual or see vehicle dealer for
car seat installation requirements.
• If approved for use with car seat, install
car seat and check for secure installation by
pulling car seat front to back. If car seat
slides forward, DO NOT use these seat belts.
Seat Crease
Seat Crease
❃Belts Forward of Seat Crease
VEHICLE SEAT BELTS (continued)

18
Lap belts with retractors may or may not hold
a car seat securely.
Follow these steps to determine if you have a
retractor system that will hold car seat securely:
a. Pull belt all the way out.
b. Allow belt to retract about 6 inches (15 cm).
c. Pull out on belt again.
If belt is locked and you cannot pull the belt out
any further, you have an Automatic Locking
Retractor which may be used with a car seat.
Remember, when installing a car seat, pull belt all
the way out, buckle belt, and then tighten.
If you can pull the belt out again (step c), you
have an Emergency Locking Retractor which
must not be used with a car seat.
The locking latch plate on some seat belts may
slip and loosen after being buckled on car seat if
positioned at a certain angle. If this happens,
flip latch plate over (fig. a) and re-buckle. Test
installation again to see if this works. If not,
move car seat to another seating position.
(fig. a)
Retractor
❃Lap Belts - Manually Adjustable
❃Lap Belts - With Retractor
Flip
VEHICLE SEAT BELTS (continued)
