CE+T Power TSI Bravo User manual

Copyright © 2013. Construction electroniques & telecommunications S.A.
All rights reserved. The contents in document are subject to change without notice.
The products presented are protected by several international patents and trademarks.
Address: CE+T S.a, Rue du Charbonnage 12, B 4020 Wandre, Belgium
www.cet-power.com - [e-mail]
DUAL INPUT INVERTER
The Commercial Power as default source
AC BACKUP IN A DC ENVIRONMENT
Leverage your existing DC infrastructure
ONE STOP SHOP
wide output power range
HARSHEST AC INPUT CONDITIONS
Without compromising the quality of the AC output
BEYOND THE INVERTER
THE NEW GENERATION OF POWER CONVERTERS
www.cet-power.com
TSI BRAVO - 230VAC
User Manual V7.0

2 – TSI Bravo – User manual – v7.0
Table of content
1. Abbreviations............................................................................................................................................................ 5
2. Safety instructions .................................................................................................................................................... 6
2.1 Handling........................................................................................................................................................... 7
2.2 Surge and transients ........................................................................................................................................ 7
2.3 Other................................................................................................................................................................ 7
3. Twin Sine Innovation................................................................................................................................................. 8
3.1 EPC-mode ........................................................................................................................................................ 8
3.2 On-line EPC ...................................................................................................................................................... 9
3.3 Safe mode........................................................................................................................................................ 9
3.4 REG-mode........................................................................................................................................................ 9
4. Building blocks ......................................................................................................................................................... 10
4.1 Inverter............................................................................................................................................................. 10
4.2 Sub-rack .......................................................................................................................................................... 10
4.3 Monitor unit T2S............................................................................................................................................... 11
5. Accessories .............................................................................................................................................................. 12
5.1 Cabinet............................................................................................................................................................. 12
5.2 Manual by-pass................................................................................................................................................ 12
5.3 AC distribution unit ........................................................................................................................................... 13
5.3.1 Miniature circuit breakers ..................................................................................................................... 13
5.3.2 MCCB ................................................................................................................................................... 13
6. Monitoring accessories ............................................................................................................................................. 14
6.1 Can Dis shelf .................................................................................................................................................... 14
6.1.1 Display ................................................................................................................................................. 14
6.1.2 TCP/IP Agent......................................................................................................................................... 14
7. System Design.......................................................................................................................................................... 15
7.1 Pack / A la Carte ............................................................................................................................................... 15
7.1.1 Pack .................................................................................................................................................... 15
7.1.2 A la Carte.............................................................................................................................................. 15
8. Installation of Bravo PACK or Single shelf/shelves ..................................................................................................... 16
8.2 Electrical installation (Bravo PACK or single shelf)............................................................................................. 17
8.2.1 Pre requisites........................................................................................................................................ 17
8.2.2 Surge suppression................................................................................................................................ 18
8.2.3 Terminations......................................................................................................................................... 18
8.2.4 Grounding............................................................................................................................................. 18
8.2.5 DC input ............................................................................................................................................... 18
8.2.6 AC input................................................................................................................................................ 19
8.2.7 AC output.............................................................................................................................................. 19
8.2.8 Signalling.............................................................................................................................................. 19
8.2.9 Remote ON/OFF.................................................................................................................................... 20
8.2.10 Internal buss (TSI Bus 6 pin / TSI Bus 8 pin).......................................................................................... 21
8.2.11 Rear cover ............................................................................................................................................ 21

3 – TSI Bravo – User manual – v7.0
9. Installation of cabinet (A la Carte).............................................................................................................................. 22
9.1 Unpacking the system ...................................................................................................................................... 22
9.2 Raising the cabinet........................................................................................................................................... 22
9.3 Fixing the cabinet to the floor............................................................................................................................ 22
9.4 Electrical installation......................................................................................................................................... 22
9.4.1 Positioning............................................................................................................................................ 23
9.4.2 Cabling ................................................................................................................................................. 23
9.4.3 Grounding............................................................................................................................................. 24
9.4.4 AC Input (X2)......................................................................................................................................... 24
9.4.5 DC input (X1) ........................................................................................................................................ 25
9.4.6 Connection Table – AC Input (X2) +24DC............................................................................................... 27
9.4.7 Connection Table – AC Input (X2) -48VDC to 220VDC ............................................................................ 27
9.4.8 Connection Table DC Input +24VDC (X1) ............................................................................................... 28
9.4.9 Connection Table DC Input -48VDC (X1) ................................................................................................ 28
9.4.10 Connection Table DC Input -60VDC (X1) ................................................................................................ 29
9.4.11 Connection Table DC Input +110VDC (X1) ............................................................................................. 29
9.4.12 Connection Table DC Input +220VDC (X1) ............................................................................................. 30
9.4.13 Signalling.............................................................................................................................................. 30
10. Interface ................................................................................................................................................................... 32
10.1 Inverter module ................................................................................................................................................ 32
10.2 T2S .................................................................................................................................................................. 32
11. System set up........................................................................................................................................................... 33
11.1 Communication setting..................................................................................................................................... 33
11.2 Menu access .................................................................................................................................................... 34
12. Inserting/removing/replacing modules ...................................................................................................................... 35
12.1 TSI Inverter....................................................................................................................................................... 35
12.1.1 Removal ............................................................................................................................................... 35
12.1.2 Inserting ............................................................................................................................................... 35
12.2 T2S .................................................................................................................................................................. 36
12.2.1 Removal ............................................................................................................................................... 36
12.2.2 Inserting ............................................................................................................................................... 36
12.3 Fan replacement............................................................................................................................................... 36
13. AC output distribution ............................................................................................................................................... 37
13.1 Miniature Circuit breaker installation/removal ................................................................................................... 37
13.2 MCCB............................................................................................................................................................... 37
14. Manual By-pass........................................................................................................................................................ 38
14.1 Pre requisites ................................................................................................................................................... 38
14.2 Manual by-pass <20kVA................................................................................................................................... 38
14.3 Normal to By-pass............................................................................................................................................ 38
14.4 By-pass to Normal ........................................................................................................................................... 38
14.5 Manual by-pass >20kVA.................................................................................................................................. 38
14.5.1 Normal to By-pass ................................................................................................................................ 39
14.5.2 By-pass to Normal ................................................................................................................................ 39
15. Finishing................................................................................................................................................................... 40

4 – TSI Bravo – User manual – v7.0
16. Commissioning ......................................................................................................................................................... 41
16.1 Check list ......................................................................................................................................................... 42
17. Trouble shooting ....................................................................................................................................................... 43
18. Maintenance............................................................................................................................................................. 44
18.1 Access T2S with lap top.................................................................................................................................... 44
18.2 Manual check................................................................................................................................................... 44
18.3 Optional............................................................................................................................................................ 44
18.4 Manual by-pass ............................................................................................................................................... 44
19. Defective modules .................................................................................................................................................... 45
20. Appendix .................................................................................................................................................................. 46
20.1 Cabinet foot print, layout................................................................................................................................... 46
20.2 Single phase circuit diagram ............................................................................................................................ 47
20.3 Three phases circuit diagram ........................................................................................................................... 48
20.4 Main connection, Single phase ......................................................................................................................... 49
20.5 Mains connection, Three phases....................................................................................................................... 50

1. Abbreviations
TSI Twin Sine Innovation
EPC Enhanced Power Conversion
REG Regular
DSP Digital Signal Processor
AC Alternating current
DC Direct current
ESD Electro Static Discharge
MET Main Earth Terminal
MBP Manual By-pass
TCP/IP Transmission Control Protocol/Internet Protocol
USB Universal Serial Bus
5 – TSI Bravo – User manual – v7.0

2. Safety instructions
 The modular inverter system/rack can reach hazardous leakage currents. Earthing must be carried out prior energizing the
system. Earthing shall be made according to local regulations.
 Prior any work conducted to a system/unit make sure that AC input voltage and DC input voltage is disconnected.
 Inverter modules and shelves comprise capacitors for filtering and energy storage. Prior to accessing to the system/
modules wait min 5 minutes to allow capacitors to discharge.
 AC and DC circuits shall be terminated with no voltage / power applied.
 Some components and terminals carry high voltage during operation. Contact may result in fatal injury.
 Warning labels must not be removed.
 Never wear metallic objects such as rings, watches, bracelets during installation, service and maintenance of the product.
 Insulated tools must be used at all times when working with live systems.
 When handling the system/units pay attention to sharp edges.
 ESD Strap must be worn when handling PCBs and open units.
 The modular inverter system/rack is not supplied with internal disconnect devises on input nor output.
 The modular inverter rack is a dual input power supply. The complete system shall be wired in a way that both input and
output leads can be made powerless in a single action.
 REG systems can be seen as independent power sources. To comply with local and international safety standards N (output)
and PE shall be bonded.
 EPC system that have no AC input wired and connected to comply with local and international safety standards N (output)
and PE shall be bonded. The bonded between N output and L must be removed once the AC input is being connected.

The safety standard IEC/EN62040-1-1 requires that, in case of output short circuit, the inverter must disconnect in maximum
5 seconds. Parameter can be adjusted on T2S; however, if the parameter is set at a value > 5 seconds, an external protection
must be provided in order that the short circuit protection operates within 5 seconds. Default setting is 60s.
 The equipment must be installed and commissioned by skilled technicians according to instructions in this manual.
 Local regulations must be adhered.
 The manufacturer declines all responsibilities if equipment is not- installed according to -instructions herein -by skilled
technician -according to local safety regulation.
 Warranty does not apply if the product is not installed, used and handled according to the instructions in the manuals.
 CE+T cannot be held responsible for disposal of the Inverter system and therefore the customer must segregate and
dispose the materials which are potentially harmful to the environment, in accordance with the local regulations in force in
the country of installation.
 If the equipment is dismantled, to dispose of the products it consists of, you must stick to the local regulations in force in
the country of destination and in any case avoid causing any kind of pollution.
6 – TSI Bravo – User manual – v7.0

2.1 Handling
 The cabinet shall not be lifted using lifting eyes.
 Remove weight from the cabinet by unplugging the inverters. Mark inverters clearly with shelf and position for correct. This
is especially important in three phase configurations.
 Empty inverter positions must not be left open. Replace with module or cover.
2.2 Surge and transients
The mains (AC) supply of the modular inverter system shall be fitted with suitable Lightning surge suppression and Transient
voltage surge suppression for the application at hand. Manufacturer’s recommendations of installation shall be adhered. It is
advisory to select device with alarm relay for function failure.
Indoor sites are considered to have a working lightning surge suppression device in service.
 Indoor sitesMin Class II
 Outdoor sites Min Class I + Class II or combined Class I+II
2.3 Other
 Isolation test must not be performed without instructions from the manufacturer.
7 – TSI Bravo – User manual – v7.0

BOOST
DSP
T2S
EMI
FILTER
EMI
FILTER
EMI
FILTER
User
Interface
Redundant
Commuication
Bus
L
N
L’
N’
-
+
Local Signaling
8 – TSI Bravo – User manual – v7.0
3. Twin Sine Innovation
Inverter modules carrying the TSI logo and the EPC mark is a triple port converter (AC in, DC in, AC out). Sinusoidal output
converted from mains or/and DC.
Typical loads
 Resistive load
 Inductive and resistive
 Capacitive and resistive
 Non linear (electronic)
3.1 EPC-mode
Mains input (AC) is by default priority whilst DC works as backup.
Switching time between AC input and DC input is 0ms (source transfer).
Regardless of supply source the output voltage is always conditioned, low THD (sineoidal output).
The BOOST functionality enables 10x Inom for a period of >20ms in the event of down stream failures. The upstream breakers
does not have to be oversized to prevent tripping. The overload capacity is 150% for 15 seconds.
The system efficiency is 94-96%1which reduce the overall energy consumption. When running on backup typical efficiency is >9
1%.
The TSI works according to True Redundant Structure (TRS) that features decentralized logic, redundant communication bus and
three levels of, individually independent, disconnection.
The functionality is all included in every inverter module, running them in parallel provides a modular system with no single point of
failure, always conditioned output, high system efficiency, 0ms source transfer time and controlled down stream clearing capacity.
1 | Nova EPC (94%), Media EPC (95%), Bravo EPC (96%)

DSP
T2S
EMI
FILTER
EMI
FILTER
User
Interface
Redundant
Commuication
Bus
L’
N’
-
+
Local Signaling
9 – TSI Bravo – User manual – v7.0
3.2 On-line EPC
DC is the priority source of supply whilst mains (AC) work as the secondary source of supply.
Switching time between DC input and AC input is 0ms (source transfer).
Regardless of supply source the output voltage is always conditioned, low THD (sinusoidal output) Boost function is enabled
without delay
3.3 Safe mode
Safe mode use DC as primary source of supply while mains (AC) is standby.
Mains (AC) is normally disconnected through internal inlet relay and is only connected when down stream clearance is required
(boost) or DC is unavailable.
The transfer between DC and AC result in transfer time, typical 10ms
3.4 REG-mode
Inverter modules carrying the TSI logo and the REG mark is a traditional converter (DC in, AC out). Sinusoidal output converted
from DC input.
 DC input only.
 The output voltage is always conditioned, low THD (sinusoidal output)
 The overload capacity is 150% for 15 seconds
 The inverter efficiency is >88-91%2.
The TSI works according to True Redundant Structure (TRS) that features decentralized logic, redundant communication bus and
three levels of, individually independent, disconnection.
Isolation test must not be performed without instructions from the manufacturer.
2 | Veda REG 88%, Nova/Media/Bravo REG 91%

10 – TSI Bravo – User manual – v7.0
4. Building blocks
4.1 Inverter
Telecom / Datacom: +24VDC / 230Vac 50/60Hz
-48VDC / 230VAC, 50/60Hz
-60VDC / 230VAC, 50/60Hz
Industrial / Transport: 110VDC / 230VAC, 50/60Hz
220VDC/ 230VAC 50/60Hz

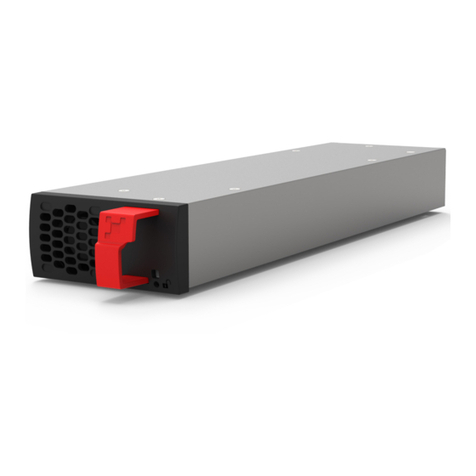

 The TSI Bravo is a 2500VA/2000W (1500VA/1200W 1) triple port inverter.
 All versions available in EPC or REG.
 The TSI inverter modules are hot swappable and hot pluggable.
 The module operator interface is LEDs showing converter status and output power
 Inverter modules run in single phase or three phase configurations.
 The inverter modules is equipped with soft start
 Fan is equipped with alarm and run time meter. The fan is field replaceable.
 435 (D) x 102 (W) x 88 (H)
 5 Kg
4.2 Sub-rack
 The BRAVO shelf shall be integrated in min 600mm deep cabinets, Inch/ETSI mounting.
 The BRAVO shelf house max four (4) inverter modules and one (1) monitor unit.
 The extension shelf house max four (4) inverter modules and one (1) monitor blank.
 The BRAVO shelf is designed with individual DC input, Common AC input and Common AC output.
 Optional rear cover for IP 20 in open rack
 Max 10kVA (6kVA 2) per shelf
 480 (D) x 19” (W) x 2U (H)
 6 Kg empty
1 | +24VDC version
2 | +24VDC version

4.3 Monitor unit T2S
The T2S monitors max 32 inverters in one bus
The T2S provides
 Alarm monitoring
 Record the latest 200 events. Fi-Fo
 3 outgoing alarms
 2 digital input
 MOD bus
 CAN bus
 USB front connector
In depth, read the TxS manual xxx.xxx
11 – TSI Bravo – User manual – v7.0

5. Accessories
5.1 Cabinet
Powder coated (RAL 7032), 19 “welded steel sheet cabinet with 600x600mm foot print. Cabinet designed for top cabling or
bottom cabling.
 1100mm (600x600mm) 24U
 1800mm (600x600mm) 36U
 2130mm (600x600mm) 44U
The cabinet comes with a separable top cover to facilitate cabling. Tie strap support at cable entrance/exit.
Door optional accessory
5.2 Manual by-pass
The manual by pass operates via manually operated switches that create a by-pass from mains input via output AC distribution.
Inverter modules are by-passed and possible to remove without impacting the load. When in by-pass shelves and modules have
no AC supply, DC is still present.
The manual by-pass is “Make before Break”
NOTE! When the system is in by-pass the load is subjected to mains disturbances.
WARNING
IF ATS (automatic transfer switch) IS INSTALLED UPSTREAM.
MAKE SURE THAT THE ATS SWITCH DOES NOT ALLOW
TRANSFER BETWEEN AC SOURCE OUT OF SYNC. THE MAXIMUM
ALLOWED PHASE SHIFT IS 10°.
12 – TSI Bravo – User manual – v7.0

5.3 AC distribution unit
5.3.1 Miniature circuit breakers
The standard AC output distribution is designed with
a 35mm DIN rail, MultiClip termination board and N/PE
copper terminal bars and built as a part of the cabinet.
The MultiClip offers a unique flexibility during
installation and expansion. The terminals are spring
loaded and adapts contact pressure to the size of
conductor. Only one cable can be inserted per spring
loaded terminal.
The AC distribution unit comes as 1 pole, 2 pole and 3 pole
Max current per AC DU is 200A, max current per terminal connector is 50A. Two adjacent terminal connectors shall be used for
63A breakers
If alarm is required for AC output breakers a held contact attached to each individual breaker is used (OF or SD). The alarm
function is common and use one of the digital input on the control unit. The help contact limit the qty breakers
Single pole Double pole Three pole
w/o help
contact
With help
contact OF/SD
w/o help
contact
With help
contact OF/SD
w/o help
contact
With help
contact OF/SD
Up to 40A 24 16 12 9 8 6
5.3.2 MCCB
AC output distribution via MCCB in the range
up to 400A (1p, 2p or 3p)
Max two MCCB per inverter cabinet.
13 – TSI Bravo – User manual – v7.0

6. Monitoring accessories
6.1 Can Dis shelf
The CanDis shelf has room for 1-3 display units and 1 TCP/IP agent.
6.1.1 Display
Backlit 2 line dot matrix
The display show two values simultaneous
6.1.2 TCP/IP Agent
The TCP/IP interface board is mounted on the CanDis shelf and is powered within the system.
14 – TSI Bravo – User manual – v7.0

7. System Design
7.1 Pack / A la Carte
The systems designed are divided in two topologies.
7.1.1 Pack
The PACK is a pre assembled and configured single phase inverter system comprising 19”
inverter sub rack, inverter modules, monitor device and AC output distribution breaker.
The PACK is normally mounted in a 19” rack. Mounting kit is included in the delivery.
The PACK is only available as single phase, -48VDC, EPC-mode.
A PACK comprises of max 6 inverter modules.
7.1.2 A la Carte
The A la Carte is pre assembled and configured as single phase or three phase systems. The system comprises cabinet, inverter
sub rack, inverter modules (+24VD to 220VDC), manual by-pass, monitor device and AC output distribution.
The A la Carte is available as EPC (Enhanced Power Conversion) or REG (Regular) operation.
The A la Carte (single phase) populate 1 to 32 modules, max 80kVA (48kVA3)
The A la Carte (three phase) populate 3 to 30 modules, max 75kVA (45kVA3)
 Dual input (AC and DC) inverter modules (EPC)
 96% efficiency4at normal operation (EPC)
 Always conditioned and filtered output voltage
 Seamless transfer (0ms) between primary and secondary source of supply
 No single point of failure
 Flexible AC output distribution
 Full modularity
 Full redundancy
3 | +24V Version
4 | Bravo EPC -48VDC/230VAC
T2S
Blank
TSI
TSI blank
AC Ooutput
15 – TSI Bravo – User manual – v7.0

8. Installation of Bravo PACK or Single shelf/shelves
■ Read safety instructions prior starting any work
■ Do NOT attempt to use lifting eyes to erect the cabinet.
■ System is preferable handled without modules.
■ Pay attention to the module position, make sure that modules are repositioned in the same slot.
■ T2S is always mounted in the first shelf, left hand position.
■ In PACK the 4th inverter position (1st sub-rack) comprise an output circuit breaker.
■ In three phase systems modules are configured per phase 1 (A, R), phase 2 (B, S) and phase 3 (C, T). These are not
interchangeable. Make sure that modules from one phase are not mixed with modules from another phase.
8.1 Mounting kit (Bravo PACK or Single shelf)
The mounting guide rail is adjustable to fit different kind of cabinet depths.
4x Fixing brackets (ref 1)
2x Slider (ref 2)
2x Mounting brackets (ref 3)
12x Mounting screws (ref 4)
12x Cage nuts (ref 5)
Assemble the sliders and adjust the length to suit the
mounting depth
Fix cage nuts (5) in the cabinet front and rear frame
of the left and the right side
Fix the left and right slider of the cabinet with the
supplied screws (4)
2
2
2
3
4
4
5
5
16 – TSI Bravo – User manual – v7.0

Fix cage nuts (4) in the mounting frame
Assemble the mounting bracket (3) in a suitable
position.
Slide the shelf in position and fix the shelf with the
supplied screws (5)
Finished
8.2 Electrical installation (Bravo PACK or single shelf)
8.2.1 Pre requisites
 The sub –rack have markings for all terminations
 All cables shall be rated at Min 90 deg C.
 Electrical terminations shall be tightened with 1,2 – 1,5Nm
 All connection screws are M5 x 12mm
 DC Input-Individual (per module), observe polarity.
 AC Input / AC output –Common (per shelf), respect phases.
 Wire all positions in the sub-rack for future expansion
 Input AC / Output AC / Input DC / Signal cables shall be separated
 Cable crossings shall be done in 90 deg angles
5
3
17 – TSI Bravo – User manual – v7.0

8.2.2 Surge suppression
The mains (AC) supply of the modular inverter system shall be fitted with suitable Lightning surge suppression and Transient
voltage surge suppression for the application at hand. Manufacturer’s recommendations of installation shall be adhered. It is
advisory to select device with alarm relay for function failure.
Indoor sites are considered to have a working lightning surge suppression device in service.
 Indoor sitesMin Class II
 Outdoor sites Min Class I + Class II or combined Class I+II
8.2.3 Terminations
All terminations are clearly marked.
8.2.4 Grounding
“PE CHASSIS GROUND”
PE Chassis ground shall be wired to MET or distributed earth bar connected to MET
According to local regulations.
8.2.5 DC input
CB per inverter module Cable, min Connector Torque
+24VDC 80A 2 x 25mm2
M5 1.5Nm
-48VDC / Bravo pack 63A 2 x 16mm2
-60VDC 50A 2 x 10mm2
+110VDC 32A 2 x 6mm2
+220VDC 16A 2 x 2.5mm2
18 – TSI Bravo – User manual – v7.0

8.2.6 AC input
CB per pack CB per shelf Cable, min Connector Torque
Bravo pack Single shelf 2p 32AC 3 x 6mm2
M5 1.5Nm
Bravo pack Double shelf 2p 63AC 3 x 16mm2
+24VDC 2p 32AC 3 x 6mm2
-48VDC to +220VDC 2p 40AC 3 x 10mm2
8.2.7 AC output
Cable, min Connector Torque
Bravo pack Single shelf 3x6mm2
M5 1.5Nm
Bravo pack Double shelf 3x16mm2
+24VDC 3x6mm2
-48VDC to +220VDC 3x10mm2
8.2.8 Signalling
Relay characteristics (Selectable, Major, Minor)
 Switching power 60W
 Rating 2A at 30VDC / 1A at 60VDC
 Max wire size 1mm2
Digital input characteristics (Digital In 1 / 2)
 Signal voltage +5VDC (galvanic insulated)
 Max wire size 1mm2
1
2
3
10
11
12 Common
Common
Common
Common
NO
NO
NO
ln 2
NC
NC
NC
ln 1
Digital 2
Digital 1
Minor (NUA)
Major (UA)
Selectable*
12
12
11
19 – TSI Bravo – User manual – v7.0

8.2.9 Remote ON/OFF
Notice: The shelf is by default equipped with a connection between pin 3 and 2. If remote ON/OFF is not used the strap shall
remain in all connected shelves. Should the remote ON/OFF be used all straps must be removed and in one (1) shelf
replaced with a changeover contact or emergency button.
 The remote ON/OFF switch the output AC OFF.
 Input AC and input DC is not affected by the remote ON/OFF.
 The remote ON/OFF can be connected to any shelf.
 The remote ON/OFF requires changeover contacts, one input opens as the other close.
If both transitions are not picked up the status is not changed
Relay characteristics (Remote ON/OFF)
 Signal voltage +5VDC (galvanic insulated)
 Max wire size 1mm2
Functional table for remote ON/OFF function
# Pin 1-3 Pin 2-3 Status Indication
1 Open Open Normal operation All (Green)
2 Closed Open OFF AC output (OFF)
AC Input (Green)
DC Input (Green)
3 Open Closed Normal operation All (Green)
4 Closed Closed Normal operation All (Green)
3
2
1
Common
ON
OFF
20 – TSI Bravo – User manual – v7.0
