Certa CT3TRTKEJWA User manual

3 IN 1 TYRE REPAIR TOOL KIT WITH
ELECTRIC JACK & WRENCH
CT3TRTKEJWA

•The material of the cover is plastic, which is easy to break, please handle it with care
when using. Then if carrying it, please with the handle, not lifting the pressure rod.
•Do not attempt to modify or alter the machine.
•Cut off the power when it is not in use for an extended period.
•Avoid submerging the machine in water or using it in wet conditions.
•Ensure the power output of the car’s dashboard power outlet is 12V before use.
•Take notice of the smooth floor and loading capacity when using, also pay attention
to finding the exact loading position of the car before the operation of lifting.
•Do not overload the machine. Make sure to keep upright when lifting the car, and
never operate it on a slant.
•Do not pull out the power cable when in use. Discontinue use if the cable is damaged
or worn.
•Ensure the car is parked and the engine is off before using the product.
•It is recommended that the wheels of the vehicle be chocked, and that no person
should remain in the car when operating the machine
•Do not leave the machine unattended while in use. Turn the unit off if it must be left
unattended.
•Always provide adequate ventilation and avoid use in extremely high or low
temperature environments. The suitable temperature range is from -15℃to 50℃.
•Do not use the electric wrench continuously for more than 10 minutes at one time.
•Do not touch the drive shaft head during operation.
•Take care to use the correct polarity when connecting the wrench to a vehicle’s
battery terminals. For negatively earthed vehicles, always connect the red battery clip
to the positive terminal (+), and the black battery clip to the negative terminal (-).
•The rated electric current of replacement fuses should be equal to or less than 12A.
•Turn off the switch 3-5 seconds after hearing the “clattering” sound, then resume
operation.
•It is recommended to check the tightness of the wheel nuts with a wheel brace after
tightening with the impact wrench. The impact wrench is only for emergency use. Use
a professional torque wrench to recheck the correct torque as soon as possible.
•Kogan.com takes no responsibility for incorrect usage of this product and the electric
wrench is only designed to loosen and tighten the wheel nuts of vehicle.
•Young children should be supervised to ensure they do not play with the appliance.
SAFETY & WARNINGS

1
2-in-1 electric jack
x1
2
Electric impact wrench
x1
3
Plastic toolbox
x1
4
12V DC power cable
x1
5
Safety hammer
x1
6
Socket adapters (17-19mm, 21-23mm)
x2
7
Battery clamp connecting cable
x1
8
Inflatable needle and hose connectors
x3
9
Fuse
x2
10
Hex wrench
x1
11
Gloves
1 pair
COMPONENTS

Diagram 1
1
Pressure rod
The lifting mechanism of the jack
2
Handle
For transporting the product
3
Base plate
Stabilises the load
4
Rubber foot
Shockproof and anti-skidding
5
Line winding box
For storage of cables and lines

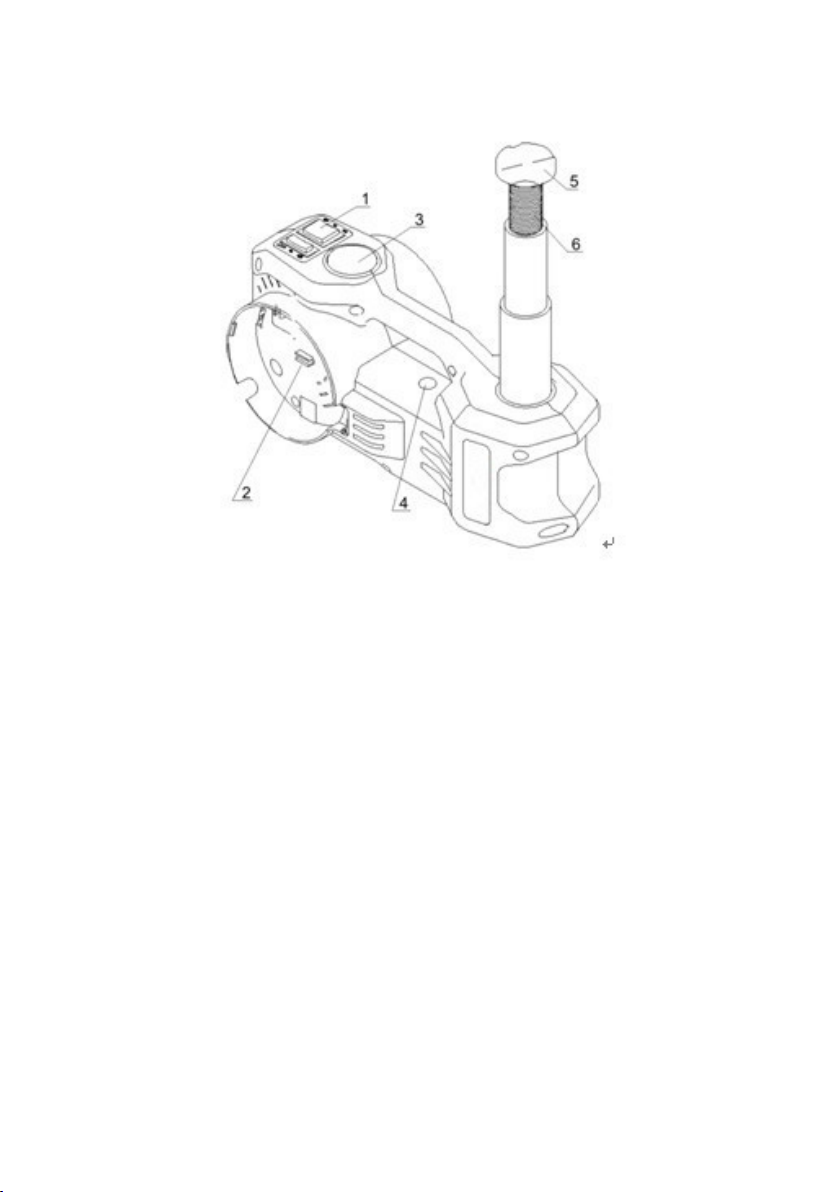

OVERVIEW

Diagram 2
1
Switches
See Diagram 3
2
Toolbox
For storage of tools and air hose
3
Pressure gauge
Displays the current pressure level
4
Safety valve
Unlock the pressure rod in an emergency
5
Protective pad
Prevents damage to the car chassis
6 Adjusting Screw
Adjust the height of the pressure rod and
automobile chassis

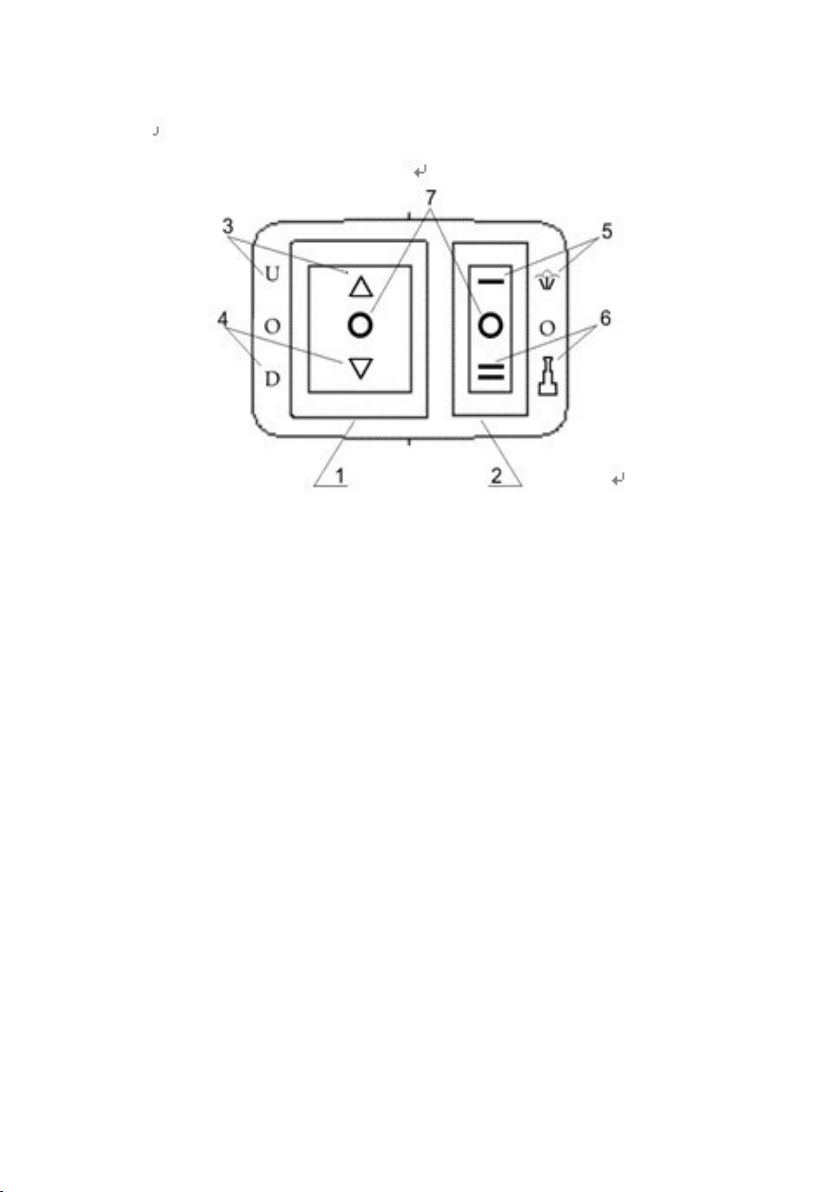

Diagram 3
1
Directional switch
Up/Close/Down
2
Function switch
Inflate/Close/Lift
3
U
Up
4
D
Down
5
Air bag
Inflation
6
Jack
Lift
7
O
Close

Jack function
1. Turn off the car and apply the hand brake. It is recommended that the wheels of
the vehicle be chocked. Ensure no one is in the car while the jack is in use.
2. Ensure the switch is in the closed “O” position, then connect the power plug into
the car’s dashboard power supply.
3. Place the jack on the inner side of a car tyre and ensure the centre of pressure rod
is aligned with the loading part of the automobile chassis. Rotate the adjusting
screw to raise it close to the automobile chassis as possible.
4. Adjust the function switch to “Lift” and the direction switch to “Up”, and the jack
will operate. When the distance between the car tyre and the floor is about 5cm,
reset the directional switch to centre. When the power is disconnected, the
machine will lock automatically and hold the load in place.
5. After changing the tyre, adjust the direction switch to “Down” and the jack will
retract the pressure rod.
6. Once finished, collect the cables and tools for storage in the line winding box.
Inflation function
1. Pull out the air hose and choose the suitable inflatable head to connect to the tyre,
then turn on the power.
2. Adjust the function switch to “Inflation” and it will start to inflate. Ensure to monitor
the pressure gauge whilst inflation is in progress.
3. When finished inflating, turn off the power first, then pull out the inflatable head to
store in the toolbox. The dashboard power plug can then be removed, and the
cables collected into the toolbox.
Impact wrench function
1. Park your vehicle safely on level ground and follow your vehicle manufacturer’s
instructions to jack up the vehicle so that the wheel you want to change is clear of
the ground.
2. Plug the electric impact wrench into your vehicle’s dashboard power outlet or
connect directly to your car battery (12V only) using the supplied adapter cable.
3. Choose the proper socket to attach the wrench’s shaft (see Figure 1, next page)
4. Press the appropriate switch for loosening or tightening (see Figure 2, next page)
•Press the left side of the switch ( ) to start operation and each nut will be
loosened after two or three instances of the “clattering” sound.
•Press right side of the switch ( ) to tighten nuts; they will be sufficiently tightened
after two or three instances of the “clattering” sound.
OPERATION

Figure 1
Choose and apply the correct socket to the wrench head
Figure 2
Apply the wrench to wheel nut and press the left side of the switch ( ) to start; the nut will
be loosened within 3 seconds.
Usage of the safety valve
Remove the head of safety valve (see Diagram 2, point 4). Loosen the safety valve with a
hex wrench (rotate about a half-circle anticlockwise) until the pressure rod falls to the
default position, then tighten it again.

Electric jack
Inflator pump
Electric impact wrench
Voltage
DC 12V
Max. current
12A
Rated power
100W
Max. torque
340Nm
Weight
2.0kgs
Input voltage
DC 12V
Rated power
150W
Max. current
13A
Fuse
15A
Power cable length
3.5m
Max. loading car weight
3.0T
Lifting height range
135-360mm (Common Item)
155-450mm (Update Item)
Operable temperature
-15-50 ℃
Input voltage
DC 12V
Inflating speed
35L/min
Max. current
10A
Max. pressure
10BAR/150PSI
Air hose length
600mm
Cylinder diameter
25mm
SPECIFICATIONS

Problem
Possible Cause
Solution
Unit does not turn on.
The two switches are not set
to the correct position.
Set the switches to their correct
positions.
The power cable is not
connected securely to the
vehicle’s dashboard power
outlet.
Press the plug inside the outlet
and make sure the LED indicator
on power cable plug is on.
The LED indicator on the
power cable plug is off. The
power cable internal fuse is
blown.
Replace the fuse (15A).
The power cable is damaged.
Contact Kogan.com
The vehicle’s dashboard
power outlet is dirty.
Clean the outlet.
The vehicle’s dashboard
power outlet protective fuse is
blown.
Refer to vehicle’s operating
manual for fuse replacement
instructions.
The vehicle’s battery is dead.
Recharge/replace the battery.
The inflator motor is
running but does not
inflate the object.
The hose nozzle is not
properly attached to the
inflatable object.
Secure the nozzle to the object.
The inflator hose or inflatable
object has a hole, allowing air
to escape.
Repair the hose or object.
The tire is completely deflated
and is separated from the rim,
allowing air to escape.
Jack up the vehicle to release
the tire from under the vehicle’s
pressure.
The inflator takes too
long to inflate the
object.
The vehicle’s battery voltage
is too low.
Recharge/replace the battery.
The inflator has been running
too long.
Rest the unit for 15-20 minutes.
The inflator hose is damaged
or is leaking.
Repair the hose.
The hose connector is not
properly connected to the
inflatable object air inlet.
Secure the nozzle to the object.
Inflator hose is hot.
The inflator has been running
too long.
Rest the unit for 15-20 minutes.
TROUBLESHOOTING

The jack motor is
running but does not
operate.
Load is too heavy.
Reduce the load by relocating
the jack to other lifting points of
the vehicle.
The jack is leaking hydraulic
fluid internally.
Unit is defective. Contact
Kogan.com
The jack has not been used
for a long time and needs to
be cycled.
Set the jack Up/Down switch to
Up and then Down a few times.
The safety valve screw is
loose.
Tighten the release valve screw.
The jack Up/Down switch is
set to the incorrect position.
Set the switch to the correct
position.
The jack takes too
long to lift the load.
The vehicle’s battery voltage
is too low.
Recharge/replace the battery.
The jack has been running too
long.
Rest the unit for 15-20 minutes.
The jack is leaking hydraulic
fluid internally.
The unit is defective. Contact
Kogan.com
Ambient temperature is too
low causing jack’s hydraulic
fluid to thicken.
Warm up the unit for 1 hour
before use.
The Safety valve screw is
loose.
Tighten the safety valve screw.
Only the first stage of
jack’s pressure rod
rises.
The load is too heavy.
Reduce the load by relocating
the jack to other lifting points of
the vehicle.
The jack has been running too
long.
Rest the unit for 15-20 minutes.
The pressure rod does
not come down when
jack switch is set to
Down position.
The Inflator/Jack switch is
either set to Off or Inflator
position.
Set the switch to Jack position.
The pressure rod is stuck.
Loosen the safety valve screw to
allow the pressure rod to come
down.

NOTES

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
