Cervélo HBP-HB14-EXTMT User manual

CER-HB14-V1 2021-12-17
www.cervelo.com
HBP-HB14-EXTMT
HB14 Tri Extension
Mount Assembly

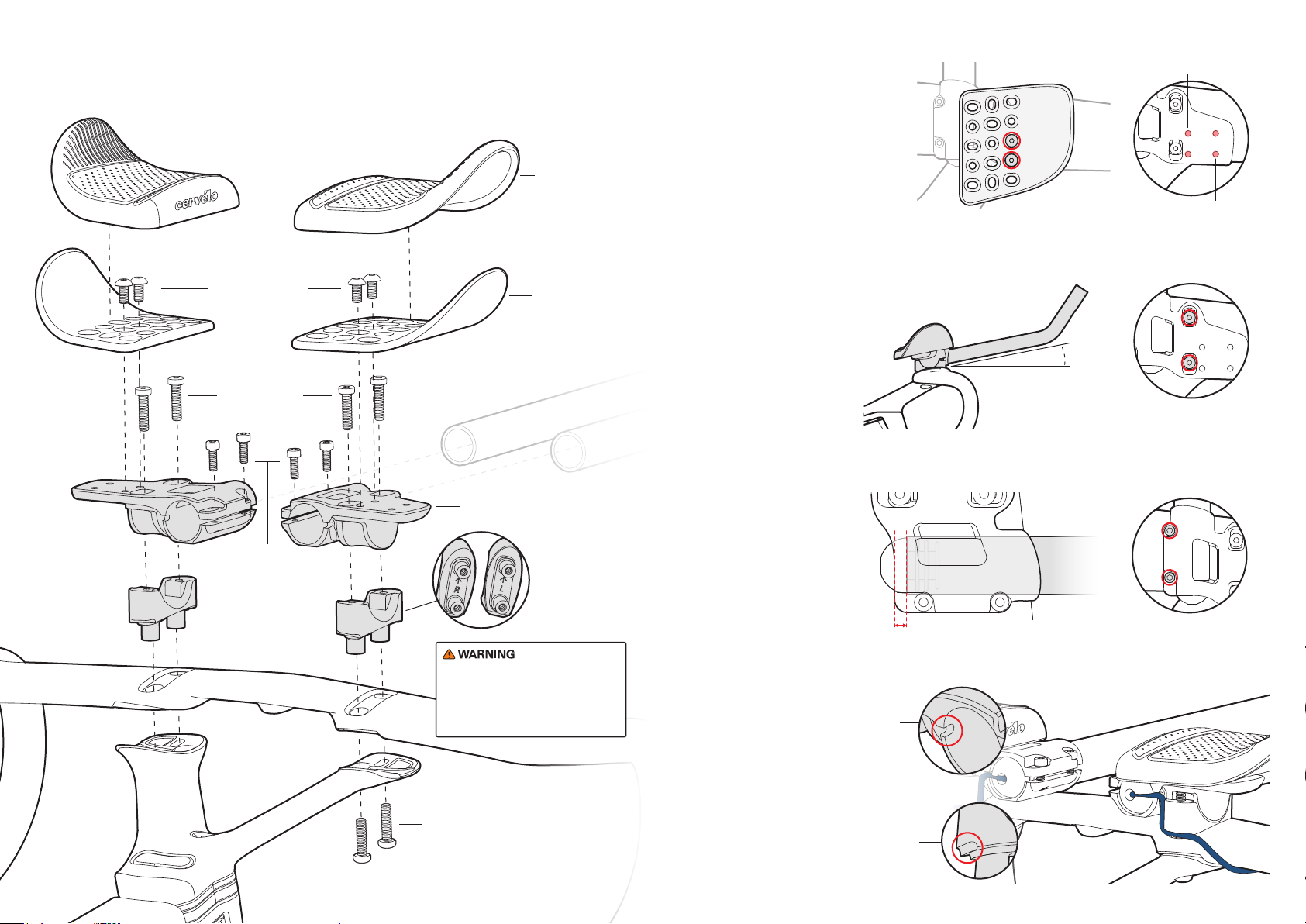

HB14 TRI EXTENSION MOUNT ASSEMBLY
HBP-HB14-EXTMT
Extension Mount
(Left & Right)
Extension
Mount Base
(Left & Right)
EX11 Arm Pad
(Left & Right)
EX11 Arm
Pad Carrier
(Left & Right)
Extension Mount
Fixing Screws
M5x20mm x4
Arm Pad Carrier
Fixing Screws
M5x12mm x4
Extension Clamp
Fixing Screws
M4x12mm x4
Handlebar
Fixing Screws
T25 Torx,M5x20mm x4
Note: Bar and
stem are not
included with
HBP-HB14-EXTMT
ADJUSTING PAD POSITION
Use the Arm Pad Carrier Fixing
Screws to adjust position of
the Arm Pad Carriers.
Once desired position is found,
torque the screws to 3Nm.
The fixing screws must be
installed in fore-aft fixing
position, and not in a
diagonal. Wide Setting
Narrow Setting
Extension Mount
Fixing Screws
15˚
5mm
Extension Clamp
Fixing Screws
TILT ADJUSTMENT
Use the Extension Mount
Fixing Screws to adjust the
angle of the extensions and
pads from 0˚-15˚
Once desired angle is found,
torque the screws to 3Nm.
If extension shifters
are used, route
E-wire through the
back of the extension
and into the slot on
the back of the
Extension Mount Base.
E-WIRE ROUTING
Secure the extensions by
tightening Extension Clamp
Fixing Screws to 3Nm.
Ensure that the rearward end
of the extensions is set
flush or less than 5mm from
the rearward edge of the
Extension Mount as shown.
EXTENSION POSITIONING
Letter
indicates
side and
arrow points
forward
Tuck E-wire into
rear lower slot
on Extension
Mount Base.
Tuck E-wire
into slot
on Extension
Mount.
Extension Mount Bases are clearly
labeled for side and direction
specific installation. Mixing these
parts will void warranty and may
result in injury.
