Cessna 172R Owner's manual

Doc.-No.: 20-0310-22043*
Continental Aerospace
Technologies GmbH
Platanenstraße 14
D - 09356 St. Egidien
Tel. [phone]
Fax [phone]
www.continentaldiesel.com
[e-mail]
Supplemental Airplane Flight Manual
or
Pilot´s Operating Handbook
and
FAA Approved Airplane Flight Manual Supplement
(as applicable)
for the
Cessna 172 R & S
equipped with
TAE 125-01 and TAE 125-02-99
Installation
Issue 3
Revision 3
This supplement must be attached to the Pilot's Operating Handbook
whentheengineinstallation hasbeeninstalledinaccordancewithSTC
SA01303WI.
This manual constitutes a FAA approved AFM Supplement or
Supplemental AFM (as applicable) for US registered airplanes in
accordance with FAR 21.29.
The information contained in this supplement supersedes or adds to
the Pilot's Operating Handbook and FAA approved AFM (if required)
only as set forth herein.
For limitations, procedures, performance and loading information not
contained in this supplement, consult the basic Pilot's Operating
Handbook and FAA approved AFM (as applicable).
MODEL No.
SERIAL No.
REGISTER No.

*The last digit of the document number describes the issue of the
manual. All manuals with a lower last digit are previous issues of this
version.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page iii
Issue 3
Revision 3, Mar. 2022
APPROVAL
The technical content of this document is approved under the
authority of the DOA, ref. EASA.21J.010.
LOG OF REVISIONS
Revision Section Description Date Approved
3/0 all new Issue
Change of Ownership
Propeller MTV-6-A/190-69
incorporated
Editorial changes
June 30, 2016
3/1 Cover Corrected May 29, 2017
1 Fuels and Liquids
2 Fuels and Liquids
Weight Limits Update
3 Various minor corrections
3/2 4 Update FADEC Test above
5500ft Jan. 22, 2018

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page v
Issue 3
Revision 3, Mar. 2022
LIST OF EFFECTIVE SECTIONS
GENERAL REMARK
The content of this POH supplement is developed on basis of
the approved POH.
Sections Issue/Revision Date
1 3/2 Mar. 01, 2022
2 3/2 Mar. 01, 2022
3 3/2 Mar. 01, 2022
4 3/1 Jan. 22, 2018
5 3/0 June 30, 2016
5a 3/0 June 30, 2016
5b 3/0 June 30, 2016
6 3/0 June 30, 2016
7 3/0 June 30, 2016
8 3/1 Mar. 01, 2022
9 3/0 June 30, 2016

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page vi
Issue 3
Revision 3, Mar. 2022
This page intentionally left blank

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page vii
Issue 3
Revision -, June 2016
TABLE OF CONTENTS
COVER SHEET
LOG OF REVISIONS..................................................... page iii
LIST OF EFFECTIVE SECTIONS................................. page v
GENERAL REMARK ..................................................... page v
TABLE OF CONTENTS................................................ page vii
CONVERSION TABLES.............................................. page viii
ABBREVIATIONS......................................................... page xii
SECTION 1 GENERAL
SECTION 2 LIMITATIONS
(FAA approved chapter)
SECTION 3 EMERGENCY PROCEDURES
SECTION 4 NORMAL PROCEDURES
SECTION 5 PERFORMANCE
SECTION 6 WEIGHT & BALANCE
SECTION 7 AIRPLANE & SYSTEMS
DESCRIPTION
SECTION 8 HANDLING, SERVICE &
MAINTENANCE
SECTION 9 SUPPLEMENTS

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page viii
Issue 3
Revision -, June 2016
CONVERSION TABLES
VOLUME
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Liter [l]
US gallon [US gal]
US quart [US qt]
Imperial gallon [lmp gal]
Cubic inch [in³]
[l] / 3.7854 = [US gal]
[l] / 0.9464 = [US qt]
[l] / 4.5459 = [[lmp gal]
[l] x 61.024 = [in³] [US gal] x 3.7854 = [l]
[[US qt] x 0.9464 = [l]
[[lmp gal] x 4.5459 = [l]
[in³] / 61.024 = [l]
TORQUE
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Kilopondmeter [kpm]
Foot pound [ft.lb]
Inch pound [in.lb]
[kpm] x 7.2331 = [ft.lb]
[kpm] x 86.7962 = [in.lb]
[ft.lb] / 7.2331 = [kpm]
[in.lb] / 86.7962 = [kpm]
TEMPERATURE
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Degree Celsius [ºC]
Degree Fahrenheit [ºF] [ºC] x 1.8 + 32 = [ºF] ([ºF] - 32) / 1.8 = [ºC]
SPEED
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Kilometers per hour [km/h]
Meters per second [m/s]
Miles per hour [mph]
Knots [kts]
Feet per minute [fpm]
[km/h] / 1.852 = [kts]
[km/h] / 1.609 = [mph]
[m/s] x 196.85 = [fpm] [mph] x 1.609 = [km/h]
[kts] x 1.852 = [km/h]
[fpm] / 196.85 = [m/s]

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page ix
Issue 3
Revision -, June 2016
PRESSURE
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Bar [bar]
Hectopascal [hpa]
=Millibar [mbar]
Pounds per square inch
[psi] inches of mercury
column [inHg]
[bar] x 14.5038 = [psi]
[hpa] / 33.864= [inHg]
[mbar] / 33.864 = [inHg] [psi] / 14.5038 = [bar]
[inHg] x 33.864 = [hPa]
[inHg] x 33.864 = [mbar]
MASS
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Kilogramm [kg]
Pound [lb] [kg] / 0.45359 = [lb] [lb] x 0.45359 = [kg]
LENGTH
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Meter [m]
Millimeter [mm]
Kilometer [km]
Inch [in]
Foot [ft]
Nautical mile [nm]
Statute mile [sm]
[m] / = 0.3048 [ft]
[mm] / = 25.4 [in]
[km] / = 1.852 [nm]
[km] / = 1.609 [sm] [in] x 25.4 = [mm]
[ft] x 0.3048 = [m]
[nm] x 1.852 = [km]
[sm] x 1.609 = [km]
FORCE
Unit [Abbr.] Conversion factor
SI to US / Imperial Conversion factor US / Imperial to Si
Newton [N]
Decanewton [daN]
Pound [lb]
[N] / 4.448 = [lb]
[daN] / 0.4448 = [lb] [lb] x 4.448 = [N]
[lb] x 0.4448 = [daN]

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page x
Issue 3
Revision -, June 2016
°C °F
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
-58
-38
-18
2
22
42
62
82
102
122
142
162
182
202
222
242
262
282
302

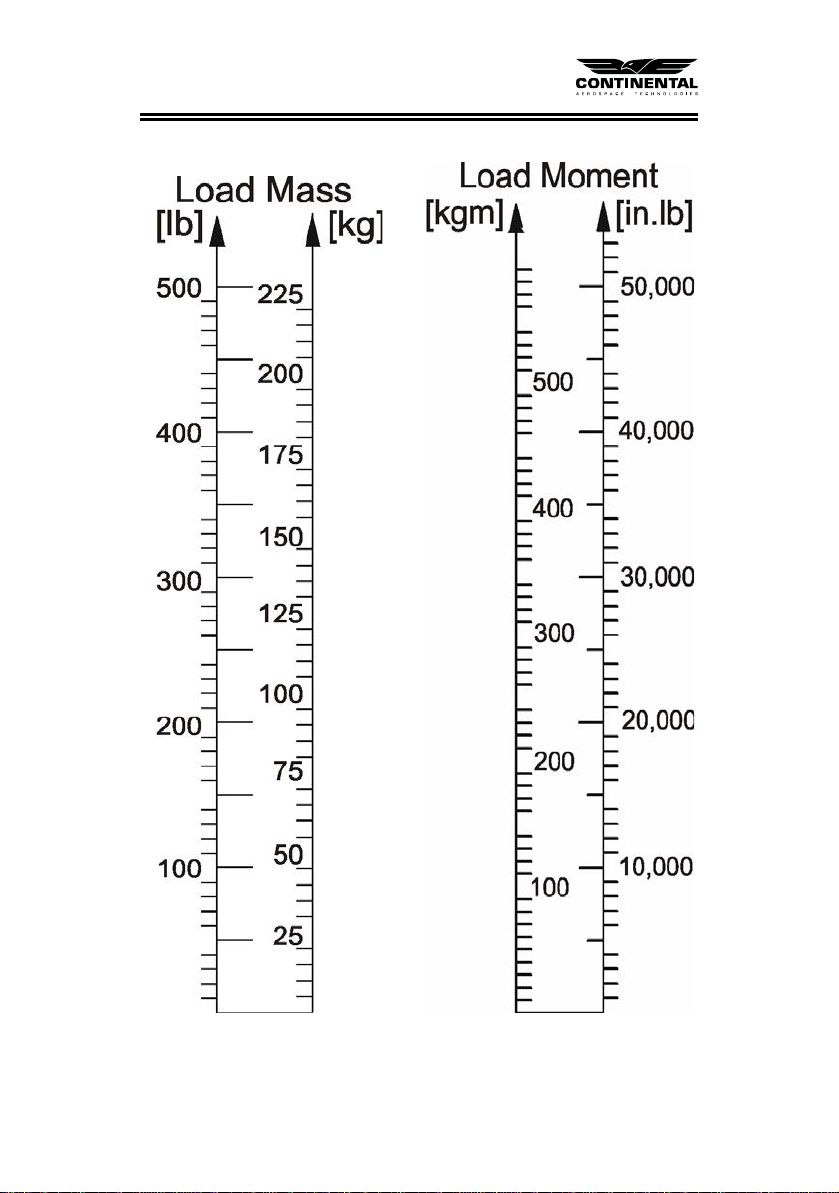

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page xi
Issue 3
Revision -, June 2016

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page xii
Issue 3
Revision -, June 2016
ABBREVIATIONS
FADEC Full Authority Digital Engine Control
CED 125 Compact Engine Display
Multifunctional instrument for indication of
engine data
AED 125 Auxiliary Engine Display
Multifunctional instrument for indication of
engine and airplane data

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 1-1
Issue 3
Revision 2, Mar. 2022
SECTION 1
GENERAL
Safety Recommendations
The following symbols and warnings are used in this manual.
They must be heeded strictly to prevent personal injury and
material damage, to avoid impairment of the operational safety
of the aircraft and to rule out any damage to the aircraft as a
consequence of improper handling.
UPDATE AND REVISION OF THE MANUAL
WARNING: Non-compliance with these safety rules
could lead to injury or even death.
CAUTION: Non-compliance with these special notes
and safety measures could cause damage
to the engine or to the other components.
Note: Information added for a better
understanding of an instruction.
WARNING: A safe operation is only assured with an up
to date POH supplement. Information about
actual POH supplement issues and
revisions are published in the Service
Bulletin TM TAE 000-0004.
Note: The Doc.-No of this POH supplement is
published on the cover sheet of this
supplement.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 1-2
Issue 3
Revision 2, Mar. 2022
ENGINE
Engine manufacturer:Continental Aerospace Technologies GmbH
Engine model:...........................TAE 125-01 or TAE 125-02-99
The TAE 125-02-99 is the successor of the 125-01. Both engine
variants have the same power output and the same propeller
speeds but different displacement. While the TAE 125-01 has
1689 ccm, the TAE 125-02-99 has 1991 ccm. Both TAE 125
engine variants are liquid cooled in-line four-stroke 4-cylinder
motors with DOHC (double overhead camshaft) and are direct
Diesel injection engines with common-rail technology and
turbocharging. Both engine variants are controlled by a FADEC
system. The propeller is driven by a built-in-gearbox (i=1.69)
with mechanical vibration dampening and overload release.
The engine variants have an electrical self starter and an
alternator.
Due to this specific characteristic, all of the information from the
flight manual recognized by EASA are no longer valid with
reference to:
•carburetor and carburetor pre-heating
•ignition magnetos and spark plugs, and
•mixture control and priming system
WARNING: The engine requires an electrical power
source for operation. If the main battery and
alternator fail, the engine will only operate
for a maximum of 30 minutes on FADEC
backup battery power.
Therefore, it is important to pay attention to
indications of alternator failure.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 1-3
Issue 3
Revision 2, Mar. 2022
PROPELLER
Manufacturer:.........................MT Propeller Entwicklung GmbH
Model:........................................................... MTV-6-A/187-129
.....................................MTV-6-A/190-69 (only TAE 125-02-99)
Number of blades:....................................................................3
Diameter: ........................................1.87 m (MTV-6-A/187-129)
..........................................................1.90 m (MTV-6-A/190-69)
Type:..................................................................constant speed
FUELS and LIQUIDS
Fuel: ............................................JET A-1 (ASTM 1655)
...............................................JET A (ASTM 1655)
...............................Jet Fuel No. 3 (GB6537-2006)
.........................................JP-8 (MIL-DTL-83133E)
.................................JP-8+100 (MIL-DTL-83133E)
Only TAE 125-02-99:
......................................... TS-1 (GOST 10227-86)
......................TS-1 (GSTU 320.00149943.011-99)
WARNING: The engine must not be started under any
circumstances if the level is too low.
CAUTION: Use of unapproved fuels may result in damage
to the engine and fuel system components,
resulting in possible engine failure.
CAUTION: Use approved oil with exact declaration only!
CAUTION: Normally it is not necessary to fill the cooling
liquid or gearbox oil between maintenance
intervals. If the level is too low, please notify
the service department immediately.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 1-4
Issue 3
Revision 2, Mar. 2022
Engine oil: ...................................... AeroShell Oil Diesel Ultra
................................. AeroShell Oil Diesel 10W-40
..........................................Shell Helix Ultra 5W-30
..........................................Shell Helix Ultra 5W-40
Gearbox oil: ............ Shell Spirax S6 GXME 75W-80, API GL-4
....................Shell Spirax S4 G 75W-90, API GL-4
Only TAE 125-02-99:
........................................ Shell Spirax S6 ATF ZM
......................................Centurion Gearbox Oil N1
Coolant:............Use of Ready Mix ratio 50:50 is recommended
Radiator Protection:................................BASF Glysantin / G48
............................ Valvoline/Zerex Glysantin / G48
............................... BASF Glysantin Protect / G05
............................ Valvoline/Zerex Glysantin / G05
Only TAE 125-02-99:
..................................Mobil Antifreeze Extra / G48
........ Comma Xstream Green - Concentrate / G48
Note: The additive Biobor JF can be used in jet
and diesel fuel systems to prevent microbial
contamination and ensure fuel quality. The
recommended dosage is 1 gal per 9.5 gal
fuel. Drain water bottoms prior application.
For further information refer to
manufacturer specifications especially in
the case of an already contaminated fuel
system.
Note: If Ready Mix is not available please use
concentrate and distilled water in a ratio of
50:50 to ensure an ice flocculation point at
-38°C +/-2°C (-36,4°F +/- 3,6°F).
CAUTION: G05 and G48 must not be mixed with each
other.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 1-5
Issue 3
Revision 2, Mar. 2022
Coolant:............Use of Ready Mix ratio 50:50 is recommended
Radiator Protection:................................BASF Glysantin / G48
............................ Valvoline/Zerex Glysantin / G48
............................... BASF Glysantin Protect / G05
............................ Valvoline/Zerex Glysantin / G05
Only TAE 125-02-99:
..................................Mobil Antifreeze Extra / G48
........ Comma Xstream Green - Concentrate / G48
Note: If Ready Mix is not available please use
concentrate and distilled water in a ratio of
50:50 to ensure an ice flocculation point at
-38°C +/-2°C.
CAUTION: G05 and G48 must not be mixed with each
other.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 1-6
Issue 3
Revision 2, Mar. 2022
This page intentionally left blank

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 2-1
Issue 3
Revision 2, Mar. 2022
SECTION 2
LIMITATIONS
ENGINE OPERATING LIMITS
Engine manufacturer:Continental Aerospace Technologies GmbH
Engine model:...........................TAE 125-01 or TAE 125-02-99
Take-off and Max. continuous power:.............. 99 kW (135 HP)
Take-off and Max. continuous RPM:........................2300 min-1
WARNING: It is not allowed to start up the engine using
external power. If starting the engine is not
possible using battery power, the condition
of the battery must be verified before flight.
Note: In the absence of any other explicit
statements, all of the information on RPM in
this supplement to the Pilot´s Operating
Handbook are propeller RPM.
Note: This change of the original aircraft is
certified up to an altitude of 17,500 ft.

Supplement POH
Cessna 172 R&S
(FAA-Version)
Page 2-2
Issue 3
Revision 2, Mar. 2022
ENGINE OPERATING LIMITS FOR TAKE-OFF AND
CONTINUOUS POWER
Oil temperature:
Minimum engine starting temperature:.....................-32 °C (-26°F)
Minimum operating limit temperature:.......................50 °C (122°F)
Maximum operating limit temperature:....................140 °C (284°F)
Coolant temperature:
Minimum engine starting temperature:.....................-32 °C (-26°F)
Minimum operating limit temperature: ......................60 °C (140°F)
Maximum operating limit temperature:....................105 °C (221°F)
Gearbox temperature:
Mininum operating limit temperature:.......................-30 °C (-26°F)
Maximum operating limit temperature:....................120 °C (248°F)
WARNING: It is not allowed to start the engine outside
of these temperature limits.
Note: The operating limit temperature is a
temperature limit below which the engine
may be started, but not operated at the
Take-off RPM. The warm-up RPM to be
selected can be found in Section 4 of this
supplement.
