Cessna 172 Series 1996 User manual

Cessna
A Textron Company
TEMPORARY
REVISION NUMBER
5-1
DATED 1 NOVEMBER 2001
MANUAL TITLE
Model 172
Series 1996 And On Maintenance Manual
MANUAL NUMBER - PAPER COPY 172RMM06
MANUAL NUMBER
- AEROFICHE 172RMM06AF
TEMPORARY REVISION NUMBER 172RMM06TR5-1
MANUAL DATE 2 December 1996
REVISION NUMBER 6 DATE 18
August 2001
This Temporary Revision
consists of the following pages, which
affect and replace existing pages in the paper
copy manual and supersede
aerofiche information.
CHAPTER/
SECTION/
AEROFICHE
SUBJECT
PAGE
FICHE/FRAME
5-11-00
1
1/B14
5-11-00
2
1/B15
5-11-00
3
1/B16
REASON FOR TEMPORARY REVISION
1. Add Dry Vacuum Pump and Vacuum Pump Coupling to the Component Time Limits Table.
FILING INSTRUCTIONS FOR THIS TEMPORARY REVISION
1.
For Paper Publications, file this cover sheet behind the
publication's title page to identify inclusion
of the
temporary revision in the manual.
Insert the new pages in the publication
at the appropriate locations
and remove and discard the superseded pages.
2. For Aerofiche Publications,
draw a line, with permanent red ink marker,
through any aerofiche frame
(page) affected
by
the temporary
revision.
This will
be a visual identifier that
the
information
on the
frame (page) is no longer valid and the temporary revision should be referenced. For "added" pages in
a temporary revision, draw a vertical line between the applicable frames. Line should be wide enough to
show on the edges of the pages. Temporary revisions should be collected and maintained ina notebook
or binder near the aerofiche library for quick reference.
COPYRIGHT © 2001
CESSNA AIRCRAFT COMPANY
WICHITA,
KANSAS,
USA

CESSNA
AIRCRAFT COMPANY
MODEL 172
MAINTENANCE
MANUAL
COMPONENT
TIME
LIMITS
1.
General
A. Most
components
listed
throughout
Chapter
5
should
be inspected
as
detailed elsewhere
in this
chapter
and
repaired, overhauled
or
replaced
as required.
Some
components,
however,
have a
time
or
life limit associated
with them,
and must
be
overhauled or replaced
on or before
the
specified
time
limit.
NOTE:
The
terms
overhaul and
replacement
as used
within
this section
are defined
as follows:
*
Overhaul
- Item may
be overhauled
as defined
in FAR 43.2
or it can
be replaced.
*
Replacement -
Item must be replaced
with a new item
or a serviceable
item that is
within its
service life and
time limits or has
been rebuilt as
defined in FAR
43.2.
B.
This section
(5-11-00)
provides
a
list of items
which must
be
overhauled or
replaced
at specific time
limits.
Table 1 lists
those
items which
Cessna
has
mandated
must
be overhauled or replaced
at specific
time limits.
Table 2
lists
component
time
limits which
have
been
established
by
an outside supplier
on
their product.
In addition
to these
time limits,
the
components
listed
herein
are also
inspected
at
regular
time
intervals
set forth in
Inspection
Time Intervals,
and
may require
overhaul/replacement
before
their
time limit
is reached based
on
service
usage and
inspection
results.
2. Cessna-Mandated
Replacement
Time
Limits
A.
The following
component
time
limits have
been established
by
The Cessna Aircraft
Company.
Table 1. Cessna-Mandated
Replacement
Time
Limits
CHAPTER
COMPONENT
PART NUMBER
REPLACEMENT
OVERHAUL
TIME
25
Restraint
System,
504516-401-8013
10 years
NO
Pilot
Left
Hand/Right Hand
Auto Adjust.
25
Restraint
System,
504851-401-8013
10 years
NO
Pilot
Left
Hand/Right
Hand
Manual
Adjust.
25
Restraint
System,
504516-403-8013
10 years
NO
Aft Bench Left
Hand/Right
Hand
Auto
Adjust.
25
Restraint
System,
504851-403-8013
10 years
NO
Aft Bench Left
Hand/Right
Hand
Manual
Adjust.
25
Restraint
Assy,
2000031-09-201
10 years
NO
Pilot Seat
25
Restraint
Assy,
2000031-10-201
10 years
NO
Copilot Seat
25
Restraint
Assy, 2000031-11-201
10 years
NO
Right Rear
Seat
25
Restraint
Assy,
2000031-12-201
10
years
NO
Left Rear Seat
172RMM06 Temporary
Revision Number
5-1 -
Nov 1/2001
5-11-00
Page
1
Aug 18/2001

CESSNA AIRCRAFT COMPANY
MODEL 172
MAINTENANCE
MANUAL
Table 1. Cessna-Mandated
Replacement Time
Limits (continued)
CHAPTER COMPONENT
PART NUMBER REPLACEMENT
OVERHAUL
TIME
27 Trim Tab Actuator
1260074-1 1,000
hours or 3 YES
years, whichever
comes first.
37
Dry Vacuum Pump
Various Note 9
NO
37 Vacuum Pump 350 Note 8 NO
Coupling
37 Gyro
Filter C294502-0201
600 Hours NO
37 Regulator
Valve B3-5-1
600 Hours NO
Filter
71
Engine Various
10 years or engine
NO
Compartment
overhaul, whichever
Flexible Fluid
comes
first (Note 1).
Carrying Teflon
Hoses (Cessna
Installed) Except
Drain Hoses
71 Engine Various On Condition NO
Compartment
Drain Hoses
71 Engine Flexible Various Note 2 NO
Hoses (Textron
Lycoming Installed)
71
Air Filter - 172R
CA3559 100 hours
NO
71 Air Filter-172R and P198281 500 hours NO
172S
71 Mixture and Throttle Refer to Illustrated At engine TBO NO
Cables Parts Catalog for
specific numbers.
71 Starter, Engine
31B22207
At engine TBO YES
3. Supplier Established Replacement Time Limits
A. The following component
time limits have been established by specific
suppliers and are reproduced
as follows:
Table 2. Supplier Established Replacement Time Limits
CHAPTER COMPONENT PART NUMBER REPLACEMENT OVERHAUL
TIME
25 Pointer ELT Battery 2020 NOTE 3 NO
37 Vacuum
Manifold 1H5-25
NOTE 4 NO
71 Slick Magnetos 4371 NOTE 5 YES
172RMM06
Temporary Revision Number 5-1 - Nov
1/2001 5-11-00
Page 2
Aug 18/2001

CESSNA AIRCRAFT
COMPANY
MODEL
172
MAINTENANCE
MANUAL
Table
2. Supplier
Established
Replacement
Time Limits (continued)
CHAPTER COMPONENT
PART NUMBER
REPLACEMENT
OVERHAUL
TIME
71 Engine
IO-360-L2A NOTE 6
YES
71
Engine Oil Filter CH48110
NOTE 7 NO
NOTES:
Note 1:
(This
life limit is not intended
to allow flexible fluid carrying
teflon
hoses in
a deteriorated
or damaged
condition
to remain in service.) Replace engine
compartment
flexible fluid carry
teflon hoses (Cessna
installed only)
every ten
years or
at engine
overhaul,
whichever occurs first.
This
does not include
drain
hoses. Hoses which
are beyond
these limits
and are in a serviceable
condition,
must
be placed on
order immediately
and then be replaced within
30
days after
receiving
the new hose
from Cessna.
Note 2:
Refer
to latest
Textron Lycoming Engine
Service Bulletins.
Note 3:
Refer
to FAR 91.207
for battery
replacement
time
limits.
Note 4:
Refer to
Airborne Air & Fuel
Product Reference
Memo No. 39 or latest revision
for
replacement
time limits.
Note 5:
Refer to
Slick Service Bulletin SB2-80C
or latest
revision for time limits.
Note 6:
Refer
to Textron/Lycoming
Service Instruction
S.I.
1009AJ or
latest revision
for time
limits.
Note
7:
Referto
Textron/Lycoming
Service
Instructions
S.I. 1492
B, S.I. 1267C, and
Service
Bulletin
SB 480C.
Note
8:
Replace
the engine driven
dry
vacuum pump
coupling
at 6 years
or per the
pump
manufacturer's
recommended
inspection
and
replacement
interval,
whichever
occurs first.
Note 9:
Replace the engine driven dry vacuum
pump not equipped
with
a wear indicator
every
500 hours
of operating,
or replace
according
to the
vacuum
pump
manufacturer's
recommened
inspection
and replacement
interval, whichever
occurs
first. For vacuum
pump equipped
with a wear indicator,
replace according
to the
vacuum pump manufacturer's
recommended
inspection
and replacement
interval.
172RMM06
Temporary
Revision
Number
5-1
- Nov
1/2001
5-11-00
Page 3
Aug 18/2001

Cessna
A
Textron
Company
TEMPORARY
REVISION
NUMBER
61-1
DATED 15
NOVEMBER
2001
MANUAL TITLE
Model
172
Series
1996 And
On
Maintenance
Manual
MANUAL
NUMBER
- PAPER COPY
172RMM06
MANUAL
NUMBER -
AEROFICHE
172RMM06AF
TEMPORARY
REVISION NUMBER 172RMM06TR61-1
MANUAL
DATE
2
December
1996 REVISION NUMBER
6
DATE
18 August
2001
This Temporary Revision
consists
of the following
pages,
which affect
and replace
existing pages
in the
paper
copy manual
and supersede aerofiche
information.
CHAPTER/
SECTION/
AEROFICHE
SUBJECT
PAGE
FICHE/FRAME
61-10-00
201
4/C12
61-10-00
202
4/C13
REASON
FOR TEMPORARY
REVISION
1. Propeller
bolt torque
value.
FILING
INSTRUCTIONS
FOR
THIS
TEMPORARY
REVISION
1. For Paper
Publications, file this cover
sheet behind the publication's title
page to
identify inclusion of the
temporary
revision
in the manual.
Insert the
new
pages in the
publication
at the appropriate
locations
and remove and
discard
the superseded
pages.
2. For Aerofiche
Publications,
draw a line,
with permanent
red
ink marker,
through any
aerofiche
frame
(page) affected
by
the temporary
revision. This
will be a visual identifier that
the information
on the
frame (page)
is no longer
valid
and the temporary
revision
should
be referenced.
For "added"
pages
in
a temporary
revision,
draw a vertical
line between the
applicable
frames. Line should
be wide
enough to
show on the edges
of
the pages. Temporary
revisions should
be
collected and
maintained
in a notebook
or binder
near the
aerofiche library
for quick reference.
COPYRIGHT
©
2001
CESSNA AIRCRAFT
COMPANY
WICHITA,
KANSAS,
USA

CESSNA AIRCRAFT COMPANY
MODEL 172
MAINTENANCE MANUAL
PROPELLER - MAINTENANCE PRACTICES
1.
Description
and Operation
A.
The airplane is equipped with a two bladed,
fixed pitch metal propeller. Maintenance practices
consist
of propeller/spinner
removal and installation.
For information
beyond the scope
of this section, refer
to the applicable
McCauley Service
Manual.
2. Propeller and Spinner Removal/nstallation
A. Remove
Propeller
and Spinner
(Refer to Figure
201).
WARNING: EXERCISE CARE
WHEN WORKING WITH THE
PROPELLER. ENSURE
MAGNETO SWITCH
IS
IN THE OFF
POSITION BEFORE
TURNING
PROPELLER.
(1) Remove screws securing spinner to bulkheads. Remove spinner and cut safety wire from
propeller mounting bolts.
(2) Remove mounting
bolts and
remove forward bulkhead,
propeller, aft
bulkhead and spacer
from
crankshaft.
(3)
If starter ring gear is to be removed, loosen
alternator adjusting arm and slip alternator
belt off
of starter ring
gear before removing
gear.
NOTE: Remove
cowling and nosecap for access.
Refer to Chapter 71, Cowling
-
Maintenance Practices.
B. Install
Propeller and Spinner
(Refer to Figure 201).
(1) If starter ring gear
was removed, clean the
mating surfaces
of the ring gear and
crankshaft before
reassembly.
NOTE:
Ensure that
"O" identification mark
on starter ring gear
and "0" identification
mark on
crankshaft flange overlap.
Starter ring gear must be located correctly
on crankshaft
to assure proper alignment
of the timing marks
on the ring gear.
(2) Clean mating
surfaces
and assemble the
spacer, propeller
and bulkheads to crankshaft.
Assemble ensuring that
the serial number stamped
on
the side of the spacer
lines up with
either of the propeller blades.
NOTE:
It is not necessary
to align the spacer serial
number with a
specific blade. However,
the
spacer and propeller
have been
balanced as a
pair and must be
reinstalled
together.
(3) Secure propellerassembly
using
propeller bolts and
washers. Tighten bolts
in a crossing pattern
to 660-780 inch-pounds
(55-65 foot-pounds), safety wire and install
spinner.
(4) After securing
spinner to the bulkheads, check spinner
to aft bulkhead clearance.
(a) If not removed, remove upper
cowling and upper nosecap. Refer to Chapter
71, Cowling -
Maintenance Practices.
(b) Using a
0.03 inch feeler
gauge insert gauge between
spinner and aft
bulkhead to ensure
the gap is 0.03 inches or less.
NOTE: If
a gauge is not available, fabricate a
gauge from phenolic, aluminum or steel
that is 0.5 inches wide by
0.03 inches thick and 2.0
inches long.
(c)
Replacement of
the Aft Bulkhead
will be required if
gap is more than 0.03 inches.
(d) Adjust alternator belt tension. Refer to Chapter 24, Alternator - Maintenance Practices.
(e) Reinstall nosecap and cowling. Refer to Chapter 71, Cowling - Maintenance Practices.
172RMM06 Temporary Revision Number
61-1 - Nov 15/2001
61-10-00 Page 201
Aug
18/2001

CESSNA AIRCRAFT COMPANY
MODEL 172
MAINTENANCE MANUAL
B1786
~~~~~~~~~~A ~~~SPACER
DOWEL
byN \ \\ /> !^ ( |AFT BULKHEAD
ASSEMBLY
PROPELLER
FORWARD
BULKHEAD
-' \
ASSEMBLY
DETAIL A
0510T1007
Propeller and Spinner Installation
Figure 201 (Sheet 1)
172RMM06 Temporary
Revision Number 61-1 - Nov
15/2001 61-10-00
Page 202
Aug
18/2001

Cessna
A Textron Company
Maintenance
Manual
1996 & ON
MODEL 172
SERIES
REVISION 7 TO THE BASIC MANUAL PROVIDES ADDITIONAL INFORMATION NECESSARY TO MAINTAIN THE AIRPLANE AND
INCORPORATES TEMPORARY REVISIONS 172RMM06 TR5-1 AND TR61-1.
)
Member
of GAMA
FAA APPROVAL HAS BEEN OBTAINED ON TECHNICAL DATA IN THIS PUBLICATION THAT AFFECTS AIRPLANE TYPE DESIGN.
COPYRIGHT
© 1996
CESSNA AIRCRAFT
CO
WICHITA, KANSAS,
172RMM07 REVISION 7 15 FEBRUARY 2002

CESSNA
AIRCRAFT COMPANY
MODEL 172
MAINTENANCE
MANUAL
LIST OF
EFFECTIVE
PAGES
CHAPTER-SECTION-SUBJECT
PAGE DATE
Introduction
- List of Effective Pages
1 Feb
15/2002
Record of Revisions
Service Bulletin List 1 Feb 15/2002
2 Feb 15/2002
3 Feb 15/2002
4 Feb 15/2002

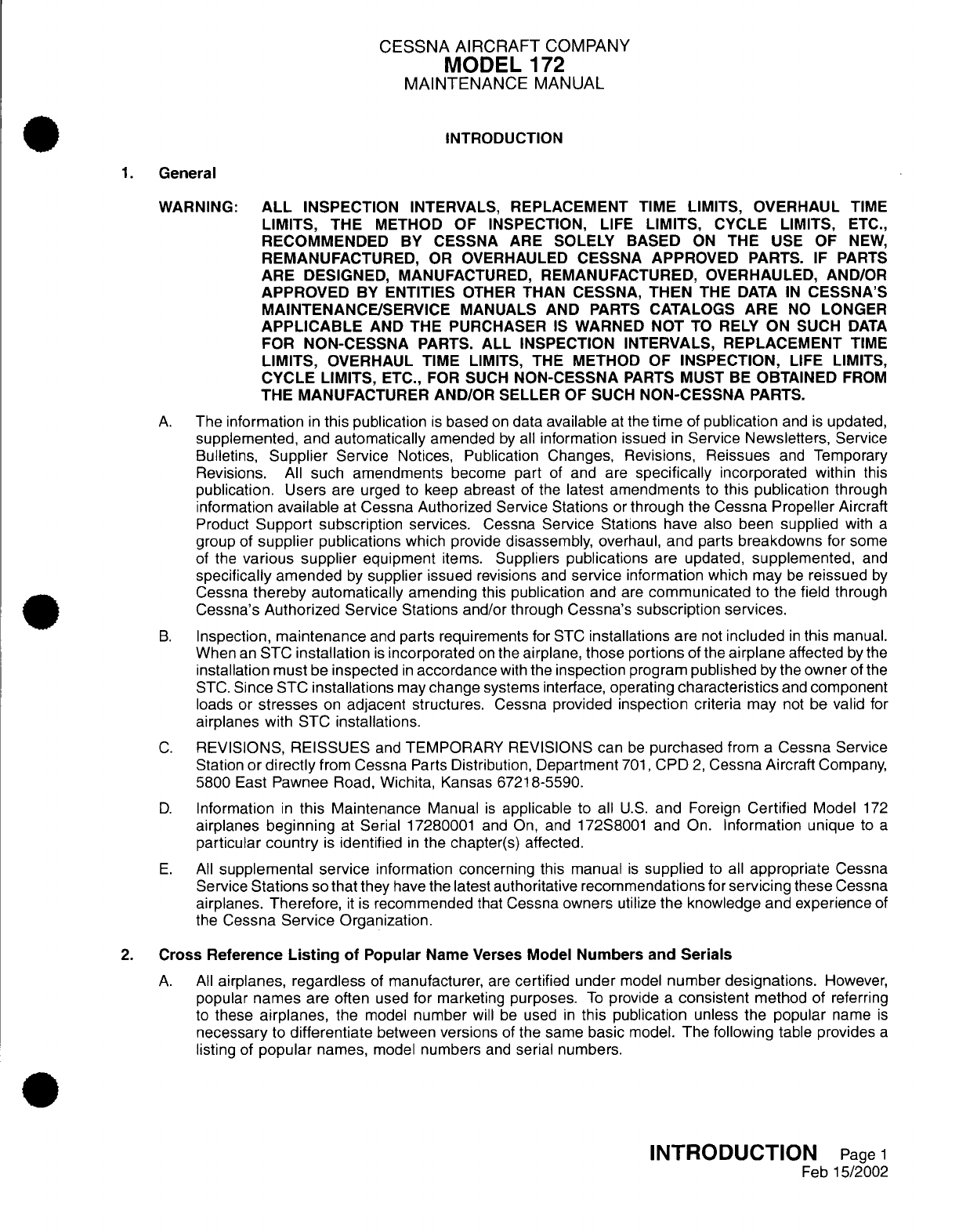

Introduction
1 Feb 15/2002
2 Feb 15/2002
3 Feb 15/2002
4 Feb 15/2002
5 Feb 15/2002
6 Feb 15/2002
List
of Revisions
Added 1 Feb
15/2002
List of Chapters 1 Feb 15/2002
INTRODUCTION
- LIST OF EFFECTIVE
PAGES Page 1
Feb
15/2002

CESSNA
AIRCRAFT
COMPANY
MODEL 172
MAINTENANCE MANUAL
RECORD OF REVISIONS
REVISION DATE DATE PAGE REVISION DATE DATE PAGE
NUMBER INSERTED REMOVED NUMBER NUMBER INSERTED REMOVED NUMBER

CESSNA AIRCRAFT COMPANY
MODEL 172
MAINTENANCE
MANUAL
RECORD OF REVISIONS
REVISION
DATE DATE PAGE REVISION
DATE DATE PAGE
NUMBER INSERTED REMOVED
NUMBER NUMBER
INSERTED REMOVED
NUMBER

CESSNA
AIRCRAFT COMPANY
MODEL 172
MAINTENANCE
MANUAL
RECORD
OF REVISIONS
REVISION DATE DATE
PAGE REVISION
DATE
DATE PAGE
NUMBER INSERTED
REMOVED
NUMBER
NUMBER INSERTED
REMOVED NUMBER

CESSNA AIRCRAFT COMPANY
MODEL
172
MAINTENANCE MANUAL
RECORD OF REVISIONS
REVISION DATE DATE PAGE REVISION DATE DATE PAGE
NUMBER INSERTED REMOVED NUMBER NUMBER INSERTED REMOVED NUMBER

CESSNA AIRCRAFT
COMPANY
MODEL
172
MAINTENANCE
MANUAL
SERVICE
BULLETIN
LIST
1. Service Bulletins
Service Title
Service Manual
Bulletin
Bulletin Date
Incorporation
Number
SB97-11-01 PILOT'S OPERATING HANDBOOK AND May 12/97 May 3/99
CHECKLIST
REVISION
SB97-11-04 AFT BAGGAGE PLACARD INSPECTION/ Nov 3/97 May 3/99
REPLACEMENT
SB97-11-05 ALTIMETER CERTIFICATION LOGBOOK ENTRY Dec 15/97 May 3/99
VERIFICATION
SB97-22-01 BENDIX/KING AUTOPILOT FLIGHT
COMPUTER
Oct 6/97 May 3/99
MODIFICATION
SB97-24-01 ELECTRICAL WIRE BUNDLE INSPECTION Dec 15/97 May 3/99
SB97-25-01
AFT BENCH SEAT BACK MODIFICATION
Aug 11/97
May 3/99
SB97-26-01
FIRE EXTINGUISHER MOUNTING
BRACKET Dec 22/97
May 3/99
INSPECTION
SB97-27-01 INSPECTION OF ELEVATOR AND ELEVATOR TRIM Dec 14/98 May 3/99
R1 CONTROL CABLE PULLEYS
SB97-28-01 INSPECTION OF FUEL STRAINER DRAIN AND Jun 6/97 May 3/99
ENGINE
MUFFLER TAILPIPE
SB97-33-01 LIGHT DIMMING MODULE RESISTOR Dec 14/98 May 3/99
R1
INSTALLATION
INSPECTION
SB97-34-01 KLN 89B GPS NAVIGATION SYSTEM APPROACH Jul 2/97 May 3/99
RESTRICTIONS
SB97-34-02 ALTERNATE STATIC SOURCE VALVE INSPECTION Dec 6/97 May 3/99
R1
SB97-53-01 INSPECTION
OF FUSELAGE STATION 205.812
Jul 1/97 May 3/99
TAILCONE BULKHEAD
SB97-53-02 LOWER FORWARD DOORPOST FASTENER Sep 15/97 May 3/99
R1 INSTALLATION
SB97-71-01 ALTERNATE AIR DOOR HINGE ASSEMBLY Jul 27/98 May 3/99
R1 REPLACEMENT
SB97-71-02 ENGINE INDUCTION
DRAIN LINE INSPECTION Dec 22/97
May 3/99
SB98-11-01 VOLTAGE POLARITY
PLACARD INSTALLATION Mar 23/98
May 3/99
SB98-11-02 PILOT'S OPERATING HANDBOOK AND Mar 30/97 May 3/99
CHECKLIST REVISIONS
SB98-11-05 GERMAN
PILOT'S OPERATING HANDBOOK AND
Sep 21/98 May 3/99
CHECKLIST REVISIONS
SB98-11-06 BRAZILIAN
PILOT'S OPERATING HANDBOOK Oct
12/98 May 3/99
REVISION
SERVICE
BULLETIN
LIST
Page
1
Feb 15/2002

CESSNA
AIRCRAFT
COMPANY
MODEL 172
MAINTENANCE MANUAL
Service
Title
Service
Manual
Bulletin Bulletin
Date Incorporation
Number
SB98-20-01
FIREWALL
SEALANT REPLACEMENT
Dec 31/98
May
3/99
R1
SB98-24-01 ALTERNATOR REPLACEMENT
Mar 30/98
Jan 15/01
SB98-25-01
PILOT AND
COPILOT SEAT BACK
PIVOT FITTING
Jun 1/98 May
3/99
INSPECTION
SB98-25-02
PILOT
AND COPILOT
SEAT ROLLER INSPECTION Sep
14/98
May 3/99
SB98-27-01
FLAP
FOLLOW UP
SYSTEM CABLE
CLAMP Mar
30/98
May 3/99
INSPECTION
SB98-27-02
AILERON
CONTROL CABLE
ROUTING
Dec 31/98
May
3/99
R1
INSPECTION
SB98-27-03
AILERON PRIMARY
CONTROL CABLE-TO-DRUM Jun
1/98
May 3/99
LOCK CLAMP INSPECTION
SB98-27-05
RIGHT WING AILERON
CONTROL CABLE Dec
31/98
May
3/99
R2
ROUTING
INSPECTION
SB98-27-06
FLIGHT CONTROL CABLES
AND TRAVEL Jun 15/98
May
3/99
INSPECTION
SB98-27-07
CONTROL
YOKE
ATTACH BUSHING
INSTALLATION
Sep
21/98
May 3/99
SB98-28-01 ENGINE
FUEL
PRESSURE TRANSDUCER Mar
2/98
May 3/99
INSPECTION AND REPLACEMENT
SB98-28-02
WING TO
FUSELAGE
FUEL HOSE CLAMP
Feb 1/99 Aug
1/00
R1 INSPECTION
SB98-28-03
FUEL SHUTOFF
VALVE CABLE
CLAMP
May 4/98
May 3/99
INSPECTION
SB98-34-01
KLN 89B
GPS NAVIGATION
SYSTEM
IFR
Aug 3/98
May
3/99
R1 NON-PRECISION APPROACH LIMITATION
SB98-37-01
AIRBORNE
VACUUM PUMP
INSPECTION
Nov 2/98
Aug
1/00
R1
SB98-52-01
BAGGAGE DOOR
SEAL REPLACEMENT
Feb
23/98
May
3/99
SB98-53-01 FIREWALL RIVET
INSPECTION
Dec 14/98
May 3/99
R1
SB98-53-02
FIREWALL
INSPECTION AND
COWL
MOUNT
Dec 26/00
Aug
18/01
R2 ALIGNMENT
SB98-55-01
ELEVATOR
STOP BOLT
BRACKET NUTPLATE
Jul 6/98
May
3/99
AND HORIZONTAL STABILIZER
INSTALLATION
INSPECTION
SB98-55-02
HORIZONTAL
STABILIZER
INBOARD
SKIN
RIVET
Jul 27/98
May 3/99
INSPECTION
SB98-57-01 WING
STRUT
ATTACH BOLTS
NUT TORQUE
Jun 1/98
May 3/99
INSPECTION
SERVICE
BULLETIN
LIST
Page 2
Feb 15/2002

CESSNA AIRCRAFT
COMPANY
MODEL 172
MAINTENANCE MANUAL
Service Title
Service Manual
Bulletin
Bulletin
Date Incorporation
Number
SB98-71-01 FORWARD
ENGINE BAFFLE AND
HEAT SHROUD Jul 27/98
May 3/99
MODIFICATION
SB98-71-02 ENGINE AIR FILTER REPLACEMENT Jul 27/98 May 3/99
SB98-78-01 ENGINE EXHAUST MUFFLER
INSPECTION AND
Jan 10/98 May 3/99
REPLACEMENT
SB99-11-01
PILOT'S OPERATING
HANDBOOK REVISION
Sep 27/99 Jan
15/01
SB99-21-01
FRESH AIR VENT REPLACEMENT
Mar 15/99 Jan 15/01
SB99-24-01
ELECTRICAL POWER SYSTEM MODIFICATION
Mar 15/99 Aug
1/00
SB99-24-02 CIRCUIT
PANEL ASSEMBLY COVER INSTALLATION
Dec 27/99 Aug
1/00
SB99-25-01 EMERGENCY LOCATOR
TRANSMITTER (ELT) Dec 27/99
Jan 15/01
R1 OPERATIONAL TEST
SB99-27-01 CONTROL
YOKE PIVOT BOLT INSPECTION/ Jul
12/99 Aug 1/00
REPLACEMENT
SB99-28-01 WING
FUEL TANK VENT CHECK VALVE
Apr 26/99 Aug 1/00
INSPECTION
SB99-34-01
KLN 89B GPS
NAVIGATION SYSTEM
Apr 24/00 Jan
15/01
R1 MODIFICATION
SB99-37-01
VACUUM HOSE
MODIFICATION Dec 27/99
Aug
1/00
SB99-53-03
ELEVATOR CONTROL YOKE
ROLLER Dec 6/99
Aug 1/00
ENGAGEMENT INSPECTION/MODIFICATION
SB99-55-01
VERTICAL FIN AFT SPAR INSPECTION Mar 29/99
May 3/99
SB99-71-01 ENGINE PISTON PIN PLUG WEAR INSPECTION Jul 12/99 Aug 1/00
R2
SB99-71-02 ENGINE OIL FILLER TUBE TO ENGINE MOUNT Aug 12/99 Aug 1/00
CLEARANCE
SB99-71-05
ENGINE VALVE SEAT INSPECTION
Oct 25/99 Aug
1/00
SB99-73-01 ENGINE FUEL MANIFOLD
SPRING Jan 8/99
Aug 1/00
REPLACEMENT
SB99-73-02 ENGINE FUEL INJECTOR
UNIT INSPECTION Feb 1/99
Aug 1/00
SB00-11-01 GERMAN PILOT'S OPERATING HANDBOOK
Mar 13/00
Aug 1/00
REVISION
SB00-11-03 PILOT'S OPERATING HANDBOOK
AND PILOT'S
May 22/00 Jan 15/01
CHECKLIST REVISIONS
SB00-11-04 PILOT'S OPERATING
HANDBOOK AND PILOT'S Aug 14/00
Jan 15/01
CHECKLIST REVISIONS
SB00-22-01 KAP-140 AUTOPILOT
SERVO INSPECTION/
Feb 14/00 Aug 1/00
MODIFICATION
SB00-24-01 MAIN POWER JUNCTION
BOX CIRCUIT BREAKER Mar 13/00 Aug
1/00
RETROFIT KIT INSTALLATION
SERVICE
BULLETIN LIST
Page 3
Feb 15/2002

CESSNA AIRCRAFT
COMPANY
MODEL 172
MAINTENANCE MANUAL
Service Title Service Manual
Bulletin Bulletin Date Incorporation
Number
SB00-24-02 ELECTRICAL PANEL WIRING
MODIFICATIONS Jun 5/00
Jan 15/01
SB00-34-01
PITOT TUBE HEATER ASSEMBLY INSULATION
Apr 10/00 Jan 15/01
INSTALLATION
SB00-37-01 VACUUM SYSTEM AIR
FILTER ELEMENT Aug 14/00 Jan
15/01
INSPECTION/REPLACEMENT
SB00-55-01 RUDDER ATTACH BOLT TORQUE INSPECTION Apr 10/00 Jan 15/01
SB00-57-01 FLAP TRACK AND WING INBOARD TRAILING Jul 31/00 Jan 15/01
EDGE INSPECTION
SB00-61-02 PROPELLER HUB INSPECTION
Aug 14/00
Jan 15/01
SB00-73-01 ENGINE FUEL INJECTION LINES AND SUPPORT Jul 17/00 Jan 15/01
R1
CLAMPS INSPECTION
SB00-79-01 ENGINE LOW OIL PRESSURE SWITCH Feb 21/00 Jan 15/01
R1 REPLACEMENT
SB00-34-01 PITOT TUBE HEATER INSULATION INSTALLATION Apr 10/00 Feb 15/02
SB01-28-03
FUEL SHUTOFF VALVE CONTROL CABLE
Jul 23/01 Feb 15/02
INSPECTION
SB02-61-01 PROPELLER SPINNER AND BULKHEAD Jan 21/02 Feb 15/02
INSPECTION
SERVICE
BULLETIN
LIST Page
4
Feb 15/2002

CESSNA AIRCRAFT
COMPANY
MODEL
172
MAINTENANCE
MANUAL
INTRODUCTION
1. General
WARNING: ALL INSPECTION
INTERVALS, REPLACEMENT
TIME LIMITS, OVERHAUL TIME
LIMITS, THE METHOD OF INSPECTION,
LIFE
LIMITS, CYCLE LIMITS,
ETC.,
RECOMMENDED
BY CESSNA ARE SOLELY BASED
ON THE USE OF NEW,
REMANUFACTURED, OR OVERHAULED
CESSNA APPROVED PARTS.
IF PARTS
ARE
DESIGNED, MANUFACTURED,
REMANUFACTURED,
OVERHAULED, AND/OR
APPROVED BY ENTITIES OTHER THAN CESSNA, THEN THE DATA IN CESSNA'S
MAINTENANCE/SERVICE MANUALS AND PARTS CATALOGS ARE NO LONGER
APPLICABLE
AND THE PURCHASER IS WARNED
NOT TO RELY ON SUCH DATA
FOR NON-CESSNA
PARTS. ALL INSPECTION INTERVALS,
REPLACEMENT TIME
LIMITS,
OVERHAUL
TIME LIMITS, THE METHOD
OF
INSPECTION, LIFE
LIMITS,
CYCLE LIMITS, ETC., FOR
SUCH NON-CESSNA PARTS MUST
BE OBTAINED FROM
THE
MANUFACTURER AND/OR SELLER
OF SUCH NON-CESSNA
PARTS.
A.
The information in this publication is based
on data available at the time of publication and
is updated,
supplemented,
and automatically amended by
all information issued in Service Newsletters,
Service
Bulletins, Supplier Service
Notices, Publication Changes, Revisions,
Reissues and Temporary
Revisions. All such
amendments become part of and are
specifically incorporated within this
publication. Users
are urged to keep abreast
of the latest amendments
to this publication
through
information available at Cessna Authorized Service
Stations or through the Cessna Propeller Aircraft
Product
Support subscription services.
Cessna
Service Stations have
also been supplied
with a
group of
supplier publications
which provide disassembly,
overhaul, and
parts breakdowns
for some
of the various supplier
equipment
items. Suppliers publications
are updated,
supplemented, and
specifically
amended by
supplier issued revisions
and service information
which may
be reissued by
Cessna
thereby automatically
amending this
publication and are
communicated to the
field through
Cessna's
Authorized Service
Stations and/or
through
Cessna's subscription
services.
B.
Inspection, maintenance and parts requirements
for STC installations are not included in
this manual.
When
an STC installation
is incorporated on
the airplane, those portions
of the airplane
affected by the
installation
must be inspected in accordance with
the inspection program published by the
owner of the
STC. Since STC installations
may change
systems interface, operating
characteristics
and component
loads or stresses on
adjacent structures. Cessna provided inspection
criteria may not be valid for
airplanes with STC installations.
C. REVISIONS, REISSUES
and TEMPORARY REVISIONS can
be purchased from a Cessna Service
Station or directly from Cessna Parts Distribution,
Department 701, CPD 2, Cessna
Aircraft Company,
5800 East
Pawnee Road, Wichita,
Kansas 67218-5590.
D. Information in this Maintenance Manual
is applicable to all U.S. and Foreign
Certified Model 172
airplanes beginning
at Serial 17280001 and On, and 172S8001
and On. Information unique
to a
particular country
is identified in the chapter(s) affected.
E. All supplemental
service information concerning this manual
is supplied to all appropriate Cessna
Service Stations so that they have
the latest authoritative recommendations
for servicing these Cessna
airplanes. Therefore,
it
is recommended that
Cessna owners utilize
the knowledge and
experience of
the
Cessna Service
Organization.
2. Cross Reference
Listing of Popular Name Verses
Model Numbers and Serials
A.
All airplanes, regardless of manufacturer, are
certified under model number designations.
However,
popular names are
often used for marketing
purposes. To provide
a consistent method
of referring
to these airplanes,
the model number
will be used in this publication
unless the
popular name is
necessary to differentiate
between versions
of the same basic
model. The following
table provides a
listing of popular names, model numbers and serial numbers.
INTRODUCTION Page 1
Feb 15/2002

CESSNA AIRCRAFT
COMPANY
MODEL
172
MAINTENANCE
MANUAL
NAME
MODEL
SERIALS
BEGINNING
Skyhawk
172R
17280001
Skyhawk
SP
172S
172S8001
| 3.
Coverage and Format
A.
The
Cessna Model
172
1996 And
On Maintenance
Manual
has been
prepared
to assist
maintenance
personnel
in
servicing
and maintaining
Model
172 airplanes
(beginning
at Serial
17280001
and
172S8001).
This manual
provides
the necessary
information
required to
enable
the mechanic
to
service, inspect,
troubleshoot,
remove
and replace
components
or repair
systems.
NOTE:
This manual
is not
intended
to cover
Model 172
airplanes
produced
prior to 1996.
For
manuals
related
to these airplanes,
please
refer
to applicable listings
in
the Cessna
Propeller
Aircraft
Care Customer
Supplies
and
Publications Catalog.
B.
This manual
has
been prepared
in
accordance
with
the Air Transport
Association
(ATA)
Specification
Number
100
for Manufacturer's
Technical
Data.
C.
Information
beyond the scope
of this
manual may be
found
in the applicable
Model
172 Wiring
Diagram
Manual,
Model
172 Illustrated
Parts Catalog
and
the Single
Engine
Models
172, 182,
T182,
206 and
T206,
1996 And
On, Structural
Repair
Manual.
D.
Technical
Publications
are
also available for
the
various components
and
systems
which are
not
covered in
this manual.
These
manuals
must be
utilized as
required
for maintenance
of
those
components
and
systems,
and
may
be purchased
from
the manufacturer.
| 4. Temporary Revisions
A.
Additional information
which becomes available
may
be provided
by
temporary
revision.
This
service
is used
to provide,
without
delay, new
information
which
will assist
in maintaining
safe
flight/ground
operations.
Temporary
revisions
are
numbered
consecutively
within
the ATA
chapter assignment.
Page numbering
utilizes
the three-element
number
which
matches the
maintenance
manual.
Temporary
revisions
are
normally incorporated
into
the maintenance
manual
at the
next
regularly
scheduled revision.
5.
Serialization
A. All
Model
172 airplanes
are
issued a
serial number.
This
number
is assigned
as
construction
begins
and remains with
the
airplane throughout
its service
life. This serial number
appears
on the
airplane
ID plate,
located below
the horizontal
stabilizer,
and
on a trim
plate located
on the
pilot side
doorpost.
This
serial number
is used
to identify
changes within
the
text or within
an illustration.
The
absence
of
a serial number
in
text or illustration indicates
the material
is applicable
to all airplanes.
6. Material
Presentation
A.
This Maintenance
Manual
is available
on paper,
aerofiche
or Compact
Disc (CD/ROM).
The CD/ROM
contains
the
Maintenance
Manual, Illustrated
Parts
Catalog
Manual,
Wiring
Diagram Manual
and
Structural
Repair
Manual
on
a single
disc.
7. Service
Bulletins
A.
Service
Bulletins
may
require special inspections
and authorize
modifications
to the
airplane
and/or
system.
As
service bulletins
are
issued, they
will be incorporated
in the next
scheduled
revision
and
noted
in the
Service
Bulletin
List, located previous
to
the Introduction.
The list
of service bulletins
utilizes
four columns
to summarize
information.
(1) Service
Bulletin Number -
This service bulletin number
column identifies
the bulletin by number.
Service Bulletins are numbered
consecutively within ATA chapter
assignment.
INTRODUCTION
Page
2
Feb 15/2002

CESSNA AIRCRAFT
COMPANY
MODEL 172
MAINTENANCE
MANUAL
(2) Service
Bulletin
Date
- The
service
bulletin
date column
indicates
the
initial date
the
bulletin
became active.
(3) Title
- The title column
identifies
the service bulletin
by nomenclature.
Itis
the same title
displayed
on page one of
the service
bulletin.
(4) Manual
Incorporation - The
manual incorporation
column indicates the
date the service bulletin
has been incorporated
in the maintenance
manual.
8.
Using the Maintenance
Manual
A.
Division of Subject
Matter.
(1)
The Maintenance
Manual
is divided into
four major sections.
The major
sections are
in turn
separated
into chapters,
with each chapter
having
its own effectivity
page and
table of contents.
The manual divisions are as follows:
(a)
Major
Section
1 - Airplane
General
Chapter
Title
5 Time Limits/Maintenance Checks
6 Dimensions and Areas
7
Lifting
and Shoring
8
Leveling
and Weighing
9
Towing and
Taxiing
10 Parking,
Mooring, Storage and
Return to Service
11
Placards and
Markings
12 Servicing
(b) Major Section
2 - Airframe
Systems
Chapter Title
20 Standard Practices - Airframe
21 Air Conditioning
22 Auto Flight
23
Communications
24 Electrical Power
25
Equipment/Furnishings
26
Fire Protection
27 Flight Controls
28
Fuel
31
Indicating/Recording
Systems
32 Landing Gear
33 Lights
34
Navigation
INTRODUCTION
Page
3
Feb
15/2002
