Cetus 3D Cetus User manual

1
Cetus3D
Cetus3D
Cetus
User Manual V 0.1

2
Cetus3D
Precautions
Printer Body
Accessories
Install Print Head
Installing Build Platform
Installing the Software
Software Interface
Starting UP the Printer
Setting the Nozzle Height
Preparing for Printing
Setting UP Wi-Fi
Product Activation
Loading a Model
Printing a Model
Pausing a Print Job
Rotating a Model
Scaling a Model
Moving a Model
Making Copies
Merging and Saving Models
Printing Preference
Printing Parameters
4
5
6
7
8
9
10
11
12
13
14
18
19
20
21
22
23
24
25
26
27
29
Table of Contents

3
Cetus3D
Using Customized Material Prole
Converting a 2D Picture into a 3D Model
Machine and Software Settings
Printer Info and Naming a Printer
Change Nozzle
30
31
33
34
35
Table of Contents

4
Cetus3D
Cetus 3D printer only works with the power adapter provided by the original manufacturer, otherwise the
machine could become damaged or even cause a re hazard. Keep the power adapter away from water and high
temperature environments.
During printing, the temperature of the nozzle of
Cetus could reach 260°C and the print platform could
reach 100°C. Do not touch these parts with your bare
hands while they are hot—not even with the heat
resistant gloves included with the machine—as the
temperature could damage the gloves and injure
your hands.
Wear goggles when removing the supporting material from models, or detaching models from the print board.
During printing, the nozzle and the print platform
could be moving at high speeds. Do not touch these
parts while they are moving.
When printing with ABS or PLA, the plastics will generate a slight odor. Run the printer in a well-ventilated
environment. We also suggest you put the printer in an environment with a stable temperature as unwanted
cooling could cause adverse eects to the print quality.
When the UP software is sending data to the printer—indicated on the status bar on the left bottom corner of the
software interface with the text "sending layers"—do not unplug the USB cable as this will disrupt the data transfer
and result in a printing failure. The USB cable can be unplugged after the data transfer is nished.
The Cetus's ideal working temperature is between 15°C and 30°C with relative humidity between 20–50%. Users are
recommneded to discharge any static charge from the body before touching the machine to prevent interruption
of printing and any potential damage to the printer.
Precautions
Warning label on printer:
High Temperature,
do not touch!
Warning label on printer:
Moving Parts, do not touch!
1
2
3
4
5
6
7

5
Cetus3D
Main Board Case
Build Platform
X-axis
Power
Switch
Y-axis
Print Head
Z-axis
USB Connector
Power
Connector
Printer Body

6
Cetus3D
Accessories
Nozzle Wrench Print Head
Plier
Build Plate Nozzles
0.2mm
0.4mm
Hex Keys
2.0mm, 2.5mm
Power Adapter USB CableScraperPower Cable

7
Cetus3D
Installing the Print Head
1 2
3
Plug in print head
cable

8
Cetus3D
Installing the Build Platform
1 2
The machine is pre-leveled in factory.
There is no way and no need to level the build platform.

9
Cetus3D
Install the Software
Cetus temporarily use the UP Studio as its printing software.
Please go to www.up3d.com to download the latest version. Mac users could go to Mac
App Store to download the latest version.

10
Cetus3D
Software Interface
Account
UP (Print)
Library
Help
Printer name
Nozzle & Platform
Temperature
Current
Material
Printer Status
Account
Settings
Share
Skin
Model
Adjustment
wheel
Back to home
Add a Model/
Print
Initialize
Calibration
Maintenance
Connection
type
Build
Space
Mirror
Save
Delete
Restore to
default
Undo
Fix
Model
Perspectives
To 2nd Level
Menu
Undo
Scale
Move
Rotate
Auto Place
To 1st level
Menu

11
Cetus3D
Starting Up the Printer
Initialization is required every time the
machine is switched on. During initialization,
the print head and the print platform move
slowly and hit the endstops of the XYZ
axes. This is essential as the printer needs
to nd the endpoints to each axis. Other
software options will light up and become
available for use only after initialization.
Initialize
Connect to power and computer as shown
in the photo on the right.
Turn on the machine using the power
switch.
Initialize the machine by clicking the
"Initialize" button in the software menu

12
Cetus3D
Setting the Nozzle Height
1. Go to Calibration.
2. Press button 5 to move print head to the middle
of the build platform.
3. Use the + button to lower the print head to close
proximity of platform.
4. Put a piece of paper in between the nozzle and
the platform.
5. Use the + and - buttons to adjust the print head
to just touching the paper.
6. Move the paper back and forth to feel the drag
between the nozzle and the platform. There should
be a slight resistance but the paper could be moved
freely. Refer to the figure at the bottom of this page.
7. When the correct distance is obtained, note
the value of current print head position, deduct
0.5mm from the value, and click the "Set"
button to set it as the Nozzle Height.
For example: If the print head position
determined by the paper is 179. Then set the
nozzle height to 178.5
1
2
3
4
The print head is too low. The
nozzle is pinning the paper
onto the platform. Lower the
platform slightly.
The height is just right.
Can feel some resistance
when moving paper.
The print head is too
high. No resistance is felt
at all when moving the
paper. Raise the platform
slightly.

13
Cetus3D
Preparing for Printing
Make sure the printer switched on
and connected to a computer. Click
the "Maintenance" button in the
software.
Choose PLA or the material
you choose from the dropdown
material list, and input the lament
weight.
Click "Extrude". The print head
will start to heat up. About ve
minutes, the temperature of the
print head will reach the melting
temperature, e.g. for PLA, it is
210°C. The printer will buzz and
the print head will start to extrude.
Gently insert the lament into the
small hole on the print head. The
lament will be fed into the print
head automatically when it reaches
the extruder gear inside the print
head.
Check the nozzle for plastic
extrusion. If plastic is coming out
from the nozzle, it means the
lament is loaded correctly and the
printer is ready for printing. (The
extrusion will stop automatically
after a while.)
1
2
3
4
5
PLA
PLA
Although ABS and ABS+ are
both available in the material list,
Cetus currently does not support
these materials.

14
Cetus3D
or

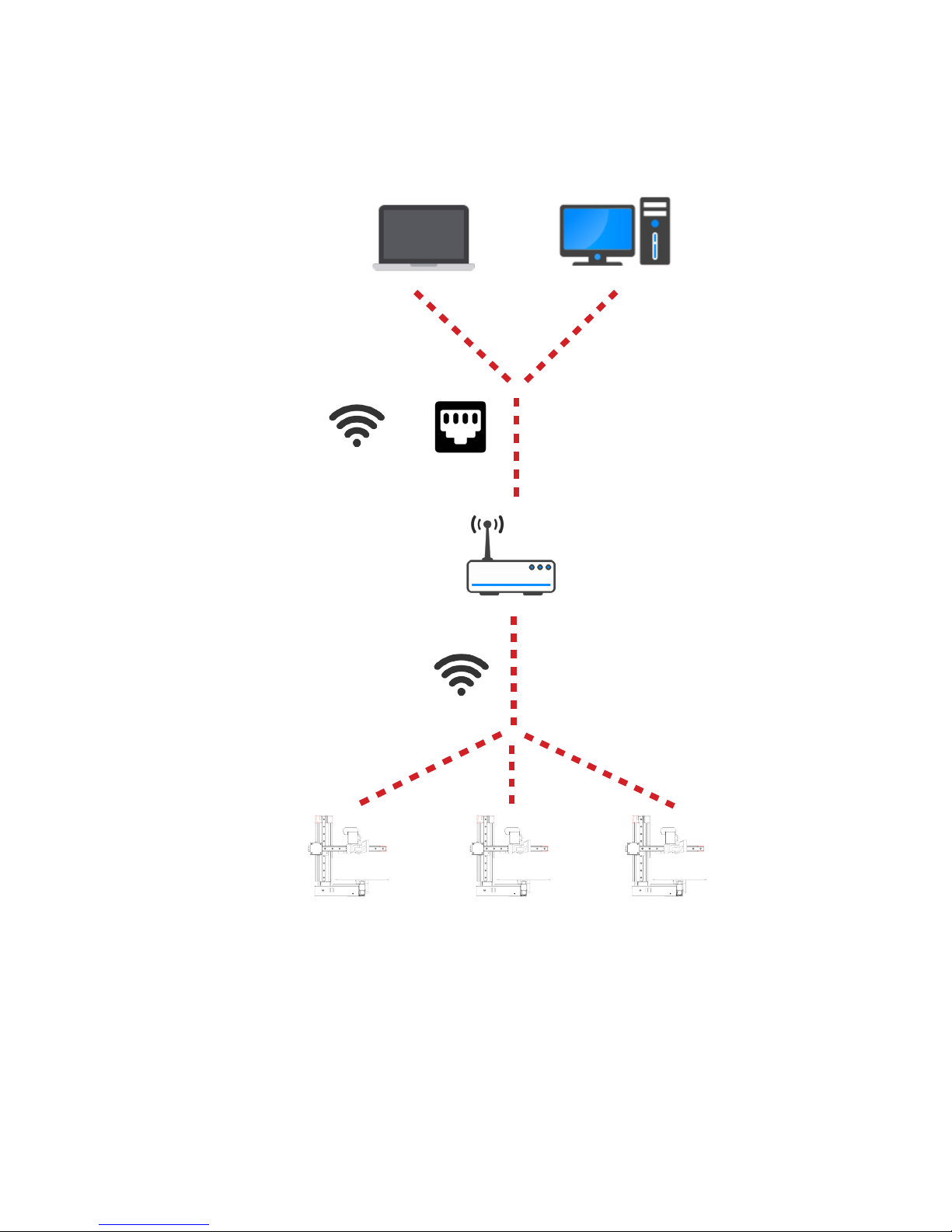

Connecting to Cetus through Wi-Fi requires a Wireless Local Area Network (WLAN). The
computer and the printers must connect to the same WLAN (same SSID) before they can
communicate.
In order to achieve stable Wi-Fi connection, It is highly recommended to use the printer under
a capacious Wi-Fi environment. A crowded network or an area with many Wi-Fi networks are
known to cause interruption during data transfer.
Setting Up Wi-Fi

15
Cetus3D
At the top right corner click the
printer tab
Click the “Printer Detail”button.
Wi-Fi Setup
Connect Cetus to a computer through USB.
2
1

16
Cetus3D
Click the dropdown menu to choose an available network.
3
Choose your network from the drop down list.

17
Cetus3D
Disconnect USB and by clicking the available printer on the network to
operate through Wi-Fi.
Printer Tab
If “Private” is set to ON, a private password can be optionally added to limit
the printer access via Wi-Fi to trusted users. Please note that the password
for private access is a weak protection that anyone who can connect the
printer through USB connection can disable or change the password
without any limitation.
Input the password for the Wi-Fi network.
4
5
6
tier

18
Cetus3D
Product Activation
2
Press the "Account" button
at the main menu
Click the "Sign UP" button.
Register an UP account. If a user account is
already available, skip to step 5.
When nished the registration, go the
registered mail box, activate the account
through the activation email.
Connect the printer to a computer.
Go to the account section and Sign In. User
will see a printer management list. Find your
printer in the list, and click the “Activate”
button to activate your printer.
1
3
4
5
It is highly recommended to activate Cetus as soon as possible to be able to access its
unlimited printing power and the cloud based web functionality. The inactivated machine has
limited printing times before the activation is done.
Congratulations!

19
Cetus3D
Click "Import Mode
or Image", choose to
open a 3D model.
Choose your model.
The loaded model will
appear on the print plate.
Click "Print" to open the
print preview window.
Loading a Model
1
2
3
4
Open Cancel

20
Cetus3D
After sending the data, the program will
show the amount of material and the
time needed for the print job in a pop-
up window. At the same time, the nozzle
will start to heat up. The print will start
automatically.
Now your are safe to disconnect the
printer from computer.
5
6
Set Layer Thickness
Select Inll Type
Select Print Quality/Speed
Shell: No inll,
normal wall.
Printing a Model
Make sure the printer is connected to a computer throug USB or Wi-Fi ( go to page 19
for details about Wi-Fi setting), and loaded a model.
Advanced Options
Surface: No top and bottom layers,
no inll, single perimeter.
Hollow
Big Hole
Loose Inll
Solid Inll
Click the print button to open the print interface
Please note that 0.05mm
and 0.07mm layers are
optimized for 0.2mm
diameter nozzles, while
0.6mm nozzle is only for
printing layer thickness of
0.3mm or above
