CF MOTO 9AW-801100-2000 Parts list manual

ITEM DESCRIPTION QTY. REMARK
1 13mm SOCKET 1
Recommended tools
2 10mm SOCKET 1
3 RUBBER HAMMER 1
4 PROTECTIVE GLOVES 1
TOOL LIST:
ITEM PART NAME PART NUMBER QTY. REMARK
1FRONT BUMPER ASSEMBLY 9AW#-801100-2000 1
2 FRONT BUMPER 9AW#-801110-2000 1
3 MOUNTING BRACKET, LH 9AW#-801101-2000 1
4 MOUNTING BRACKET, RH 9AW#-801102-2000 1
5 BRACKET, LICENSE PLATE 9AW#-801130-2000 1
6 PLUG 38 9DS#-801200-6000-20 4
7 BOLT M8X16 30006-080016870 4
ACCESSORY SETUP INSTRUCTION
BEFORE YOU BEGIN: Read and understand the instructions before starting any work. Make sure that all parts are
ready and that you have all the tools required for assembly.
NOTE: CFMOTO shall not be liable for any damage caused by incorrect assembly. CFMOTO recommends that all
original accessories be assembled by an authorized CFMOTO dealer.
Before assembly, park the vehicle on a at surface, put the transmission gear into Park (P) and turn o󰀨 the key switch.
Zhejiang CFMOTO Power Co., Ltd. All rights reserved. Reproduction of this document, even in part, as well as copying of all kinds, is
permitted only with the express written permission of the copyright owner.
!
MEANING OF SYMBOLS
- Indicates information with more details or tips.
- Indicates information of warning or danger.
i

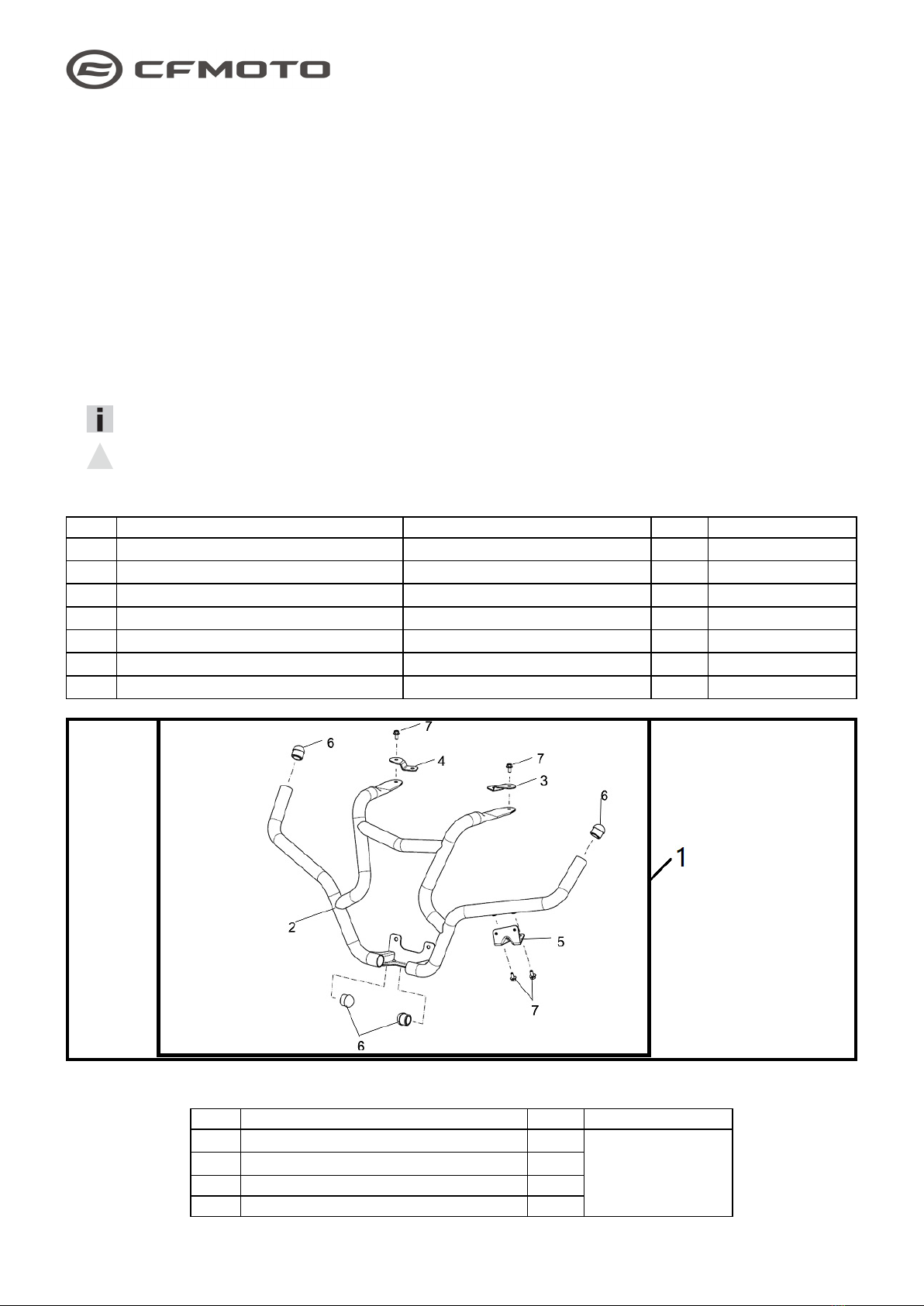

PARTS LIST:
FRONT BUMPER ASSEMBLY -- PN 9AW#-801100-2000
VALID FOR: CF800/CF850XC/CF1000

2
∥Use a rubber hammer to install the plugs (6) into the
front bumper (2).
∥Install the license plate bracket (5) to the front bumper
(2) with bolt (7).
2
6
2
ASSEMBLY and INSTALLATION
7
6
5
∥Remove the winch fairlead bolts (A).
A
∥Turn the winch quick release knob to the 'FREESPOOL'
position and release the winch cable.
BOLT M8x16 30006-080016870 8-16N.m

3
∥Remove the bolts (B) and take down the left cover (C),
center cover (E), right cover (D) in turn.
∥Remove bolts (H) and loosen bolts (G).
G
B
ASSEMBLY and INSTALLATION
B
CD
E
H
H
43
BOLT M8x16 30006-080016870 8-16N.m
∥Lift the front rack assembly (F).
∥Install the left mounting bracket (3) and right mounting
bracket (4) to the front rack with bolts (H).
F
∥Align the upper bumper mount (2) to the mounting
bracket (3,4) mounting holes, then install the bolts (7).
Do not fully tighten bolts at this time.
2
7

4
∥Align the winch fairlead and lower bumper mount to the
mounting holes, then install the previously removed
M10x20 bolts (A).
∥Tighten all bolts to the specied torque value.
∥Retract the winch rope.
∥Install the left cover (C) and right cover (D) to the front
rack with bolts (B).
∥Install the center cover (E).
A
ASSEMBLY and INSTALLATION
NOTE: Winch fairlead is placed on top of the bumper.
E
BOLT M10x20 30006-0100020810 16-20N.m
BOLT M8x16 30006-080016870 8-16N.m
7
B
C
B
D
BOLT M6x14 8010-000004 6-10N.m
