CF MOTO 9AW 802400-2000 Series Parts list manual

ITEM PART NAME PART NUMBER QTY. REMARK
1 REAR RACK EXTENDER ASSEMBLY G 9AW#-802400-2000 1
2 REAR RACK EXTENDER 9AW#-802100-2000 1
3 SCREW M6×25 9AW#-802300-2000-20 6
ITEM DESCRIPTION QTY. REMARK
1 5mm INNER HEX 1
Recommended tools2 4mm INNER HEX 1
3 PROTECTIVE GLOVES 1
TOOL LIST:
ACCESSORY SETUP INSTRUCTION
BEFORE YOU BEGIN: Read and understand the instructions before starting any work. Make sure that all parts are
ready and that you have all the tools required for assembly.
NOTE: CFMOTO shall not be liable for any damage caused by incorrect assembly. CFMOTO recommends that all
original accessories be assembled by an authorized CFMOTO dealer.
Before assembly, park the vehicle on a at surface, put the transmission gear into Park (P) and turn o󰀨 the key switch.
Zhejiang CFMOTO Power Co., Ltd. All rights reserved. Reproduction of this document, even in part, as well as copying of all kinds, is
permitted only with the express written permission of the copyright owner.
!
MEANING OF SYMBOLS
- Indicates information with more details or tips.
- Indicates information of warning or danger.
i

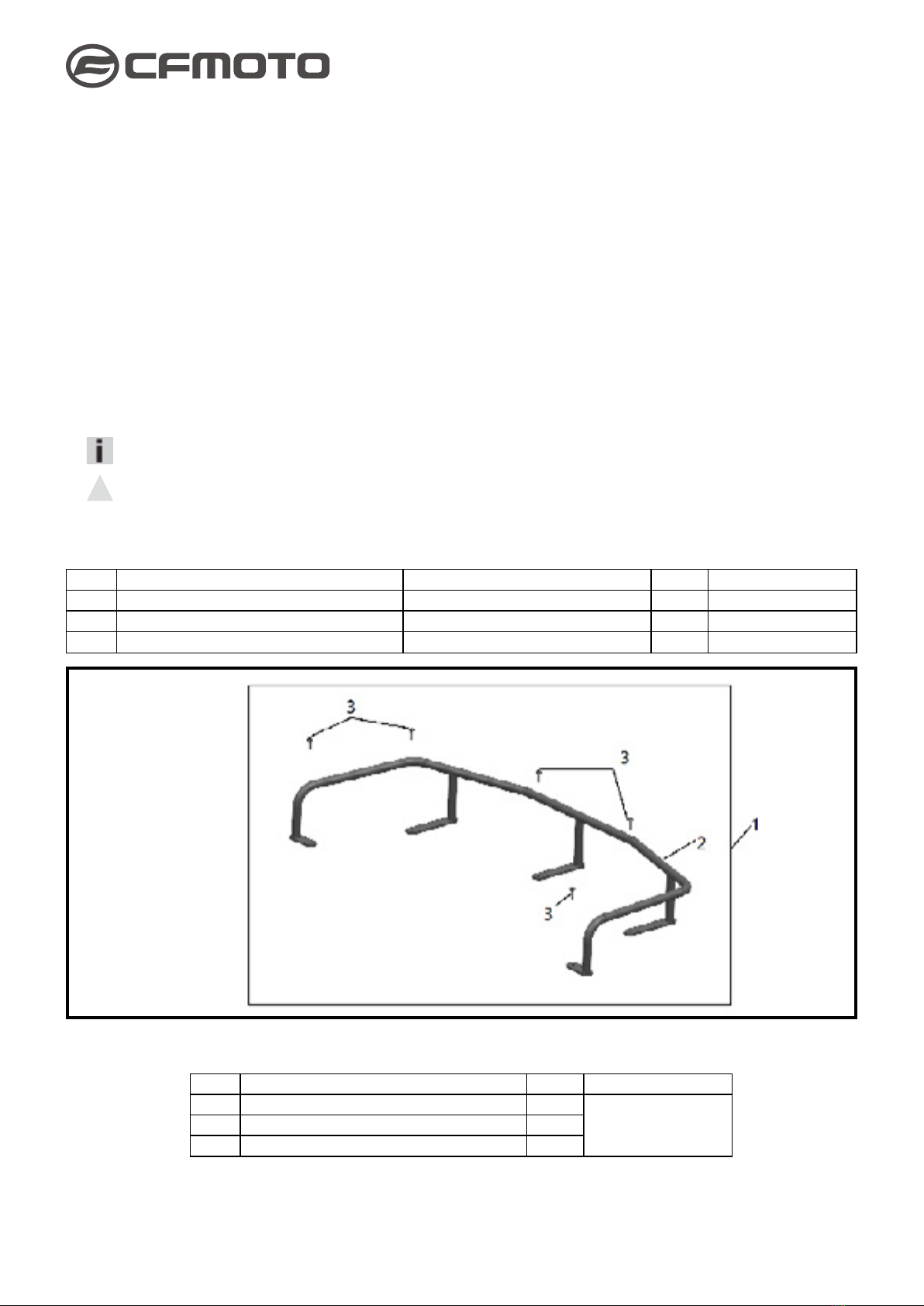

PARTS LIST:
REAR RACK EXTENDER ASSEMBLY G -- PN 9AW#-802400-2000
VALID FOR: MY2020 CF800AU-2A

2
A
3
2
ASSEMBLY and INSTALLATION
∥Remove inner hex screws (A).
INNER HEX SCREW M6×16 6NQ#-000206-6001 /
∥Place the rear rack extender (2) over the mounting
holes, then insert the screws (3).
∥Torque the screws to specication.
SCREW M6×25 9AW#-802300-2000-20 8-12N.m
