CH Hanson Palmgren 9661615 Instructions for use

Operating Instructions & Parts Manual EN
75 Ton Manual
Hydraulic Press
Models 9661615
9643572.01

PLEASE READ AND SAVE
THESE INSTRUCTIONS.
READ CAREFULLY
BEFORE ATTEMPTING
TO ASSEMBLE, INSTALL,
OPERATE OR MAINTAIN THE
PRODUCT DESCRIBED.
PROTECT YOURSELF AND
OTHERS BY OBSERVING ALL
SAFETY INFORMATION. FAILURE
TO COMPLY WITH INSTRUCTIONS
COULD RESULT IN PERSONAL
INJURY AND/OR PROPERTY
DAMAGE! RETAIN INSTRUCTIONS
FOR FUTURE REFERENCE.
PLEASE REFER TO BACK COVER
FOR INFORMATION REGARDING
PALMGREN’S WARRANTY
AND OTHER IMPORTANT
INFORMATION.
Model #: ___________________
Serial #: ___________________
Purch. Date: _______________
© 2019 Palmgren / a C.H. Hanson Brand
All Rights Reserved

3
GETTING STARTED SAFETY / SPECIFICATIONS ASSEMBLY / INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE / REPAIR
GETTING STARTED
Save this manual
You will need this manual for the safety warnings and
precautions, assembly instructions, operating and maintenance
procedures, parts lists and diagrams. Keep your invoice with this
manual. Write the invoice number on the inside of the front cover.
Keep this manual and invoice in a safe and dry place for future
reference.
Structural requirements
Make sure all supporting structures and load attaching
devices are strong enough to hold your intended loads.
If in doubt, consult a qualified structural engineer.
Electrical requirements
Not applicable for manual presses.
Tools needed
Standard professional mechanic’s hand tool set (i.e. hammer,
screwdrivers, wrenches, socket wrenches, pliers, etc.).
UNPACKING
When unpacking, check to make sure all parts listed below are
included. If any parts are missing or broken, please contact your
local retailer.
IMPORTANT: Many unpainted steel surfaces have been
coated with a protectant. To ensure proper fit and operation,
remove the coating. Coating can be easily removed with mild
solvents, such as mineral spirits, and a soft cloth. Avoid getting
solution on paint or any of the rubber/plastic parts. Solvents may
deteriorate these finishes. Use soap and water on paint, plastic
or rubber components. After cleaning, cover all exposed surfaces
with a light coating of oil.
Never use highly volatile solvents. Avoid
getting cleaning solution on paint as it
may tend to deteriorate these finishes. Use soap and water
on painted components.
Package Contents:
Pipe holder 2
Hydraulic pump assembly 1
Frame with cylinder 1
Bag of replacement rubber
O-rings and hardware
1
Manual 1
Unpack
Remove all the over packing materials, but leave unit
attached to its pallet. Do not discard packing materials
until after the machine has been inspected for damage and
completeness. Locate loose parts and set aside.
Inspect
After unpacking the unit, carefully inspect for any
damage that may have occurred during transit. Check
for loose, missing or damaged parts. Shipping damage
claims must be filed with the carrier.
All tools should be visually inspected before use, in addition to
regular periodic maintenance inspections.

MAINTENANCE / REPAIR TROUBLESHOOTING OPERATION ASSEMBLY / INSTALLATION SAFETY / SPECIFICATIONS GETTING STARTED
4
SAFETY RULES
Completely read and understand this
owner’s manual before assembly or tool
operation. Read and understand the warnings shown on the
machine and in this manual. Failure to comply with all of
these warnings may cause serious injury or death.
PROPOSITION 65 WARNING: Some dust created by
using power tools contain chemicals known to the state
of California to cause cancer, birth defects or other
reproductive harm.
Some Examples of these chemicals are:
• Lead from lead-based paints
• Crystalline silica from bricks and cement and other masonry
products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often
you do this type of work. To reduce your exposure to these
chemicals: work in a well ventilated area and work with approved
safety equipment. Always wear an OSHA/NIOSH approved,
properly fitting face mask or respirator when using such tools.
Always follow proper operating
procedures as defined in this manual
even if you are familiar with the use of this or similar tools.
Remember that being careless for even a fraction of a
second can result in severe personal injury.
PREPARING FOR YOUR JOB
• Wear proper apparel. Do not wear loose clothing, neckties,
rings, bracelets or other jewelry which may get caught up in
moving parts of machine. Do NOT wear gloves.
• Wear protective hair covering to contain long hair.
• Wear safety shoes with non-slip soles.
• Wear safety glasses complying with United States ANSI
Z87.1. Everyday glasses have only impact resistant lenses.
They are not safety glasses. Use guards and eye shields.
• Wear face mask or dust mask if operation is dusty.
• Wear ANSI approved ear protection for extended operation.
• Be alert and think clearly. Never operate power tools when
tired, intoxicated or when taking medications that cause
drowsiness.
• Focus your attention completely on your work. Looking
around, careless actions and other distractions can result in
serious injury.
Preparing the work area for your job
• Do not use this machine in dangerous environments. Do not
use it in damp or wet locations. Do not expose it to rain.
• Keep the work area clean. Cluttered work areas and work
benches invite accidents. Keep the area around the machine
clean of scrap metal, oil and grease.
• Keep visitors at a safe distance from work area.
• Keep children out of workplace. Make workshop childproof.
Use padlocks, master switches or remove switch keys to
prevent any unintentional use of power tools.
• Provide adequate space around the hydraulic press and light
the area properly with non-glare, overhead lighting.
• Make certain the hydraulic press is securely anchored before
use.
Maintaining your tool
• Failure to follow the guidelines in this manual can result in
serious injury.
• Disconnect the tool completely from its power supply before
performing any service, maintenance, repair or adjustments.
• Follow OSHA lock-out, tag-out procedures to prevent
accidental machine starts.
• Consult this manual for the proper use, specific maintenance,
and adjustment procedures.
• Keep tool lubricated and clean for safest operation.
• Read and understand warnings posted on the machine and
in this manual. Replace the warning labels if they become
obscured or removed. Failure to comply with all of these
warnings can result in serious injury.
• Before using the machine, check for damaged parts. Check
for alignment of moving parts, binding, breakage, mounting
issues and any other conditions that may affect operation.
Replace any guard or damaged part that does not function
properly before using the tool.
• Use compressed air or a suitable brush to clear chips or
debris — do not use your hands.

5
GETTING STARTED SAFETY / SPECIFICATIONS ASSEMBLY / INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE / REPAIR
Know how to use your tool
The operation of any tool can result in
foreign objects being thrown into the
eyes, which can result in severe eye damage. Always wear
safety goggles complying with United States ANSI Z87.1
before commencing power tool operation.
Think safety! Safety is a combination of operator
common sense and alertness at all times when tool
is being used.
• The Model 9661615 Hydraulic Press is designed and
intended for use by properly trained operators. You must
be familiar with the proper and safe operation of a manual
hydraulic press. Obtain proper training and knowledge before
operating this machine.
• Do not use the Model 9661615 Hydraulic Press for any use
other than its intended application. Improper use of this
tool revokes and voids any real or implied warranty. The
manufacturer is not responsible for any injury that may result
from improper use of the machine.
• Do not force an attachment to do a job it was not intended or
designed for.
• Never stand on the machine or work in an awkward position.
Maintain your balance. Never lean against the machine, over
reach or use excessive force when working. You could tip or
fall into the machine causing serious injury.
• Know your tool. Learn the tool’s operation, application and
specific limitations. Never force the machine to do a task it
was designed for.
• Use recommended accessories. Understand and obey all
safety instructions supplied with accessories. The use of
improper accessories may cause risk of injury to persons.
• Always use guards and eye shields.
SPECIFICATIONS
Model 9661615 75 Ton Manual Hydraulic Presses
Parameter Value
Capacity (tons) 75
Stroke travel (inch) 8.7
Ram diameter (inch) 3
Table Size (inch) 26.5x16.5
3” hole
Max distance ram to
table (inch)
27
Head movement No
Dimension (inch) 44x20x68
Weight (lbs) 1984
Operating temperature
°F (°C)
50-122 (10-50)

TROUBLESHOOTING OPERATION ASSEMBLY / INSTALLATION SAFETY / SPECIFICATIONS GETTING STARTED
6
MAINTENANCE / REPAIR

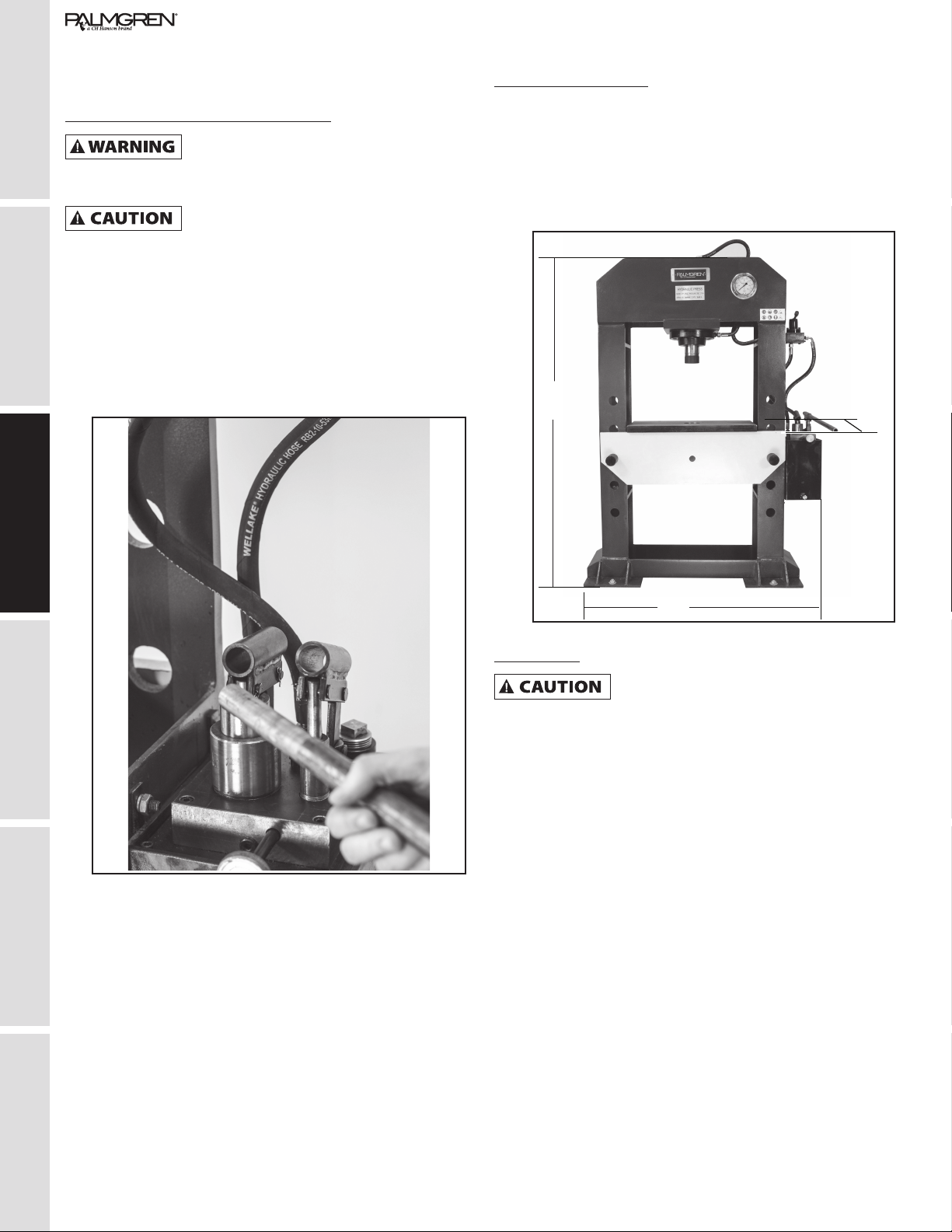

ASSEMBLY/INSTALLATION
Lifting and setting up your machine
Make certain that slings, cables, chains,
forklifts or other load suspending gear or
machines used to move this unit are properly rated to
handle the weight. The machine is extremely heavy.
The machine must be properly secured
and anchored before use. Make sure that
it is supported equally on all four corners. Failure to comply
may result in the machine twisting and causing binds in the
working table.
1. Unwrap the hydraulic station from packaging. The hose
should already be attached to the hydraulic cylinder. If not,
reattach it.
2. Insert the handle into either of receivers as shown below.
This can be changed at any time, since the bar is not
secured.
Machine dimensions
The following figure shows the approximate dimensions of the
hydraulic press and its parts. When determining a final location
for your machine, ensure there is enough clearance for both
the operator and for technicians who will service the machine.
Also,consider any larger work pieces that would extend beyond
the machine’s table and require extra space.
68”
44”
20”
Lubrication
Do not operate this machine before
lubrication and ensuring proper oil level.
Failure to comply may damage the machine.
Fill the pump with 32# or 46# hydraulic oil as shown by the fill
indications.

7
GETTING STARTED SAFETY / SPECIFICATIONS ASSEMBLY / INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE / REPAIR
OPERATION
Always wear safety glasses complying
with U.S. ANSI Z87.1 before beginning any
power tool operation.
Do not operate this machine before
properly lubricating the machine. Failure
to lubricate the machine before using can cause damage to
the machine.

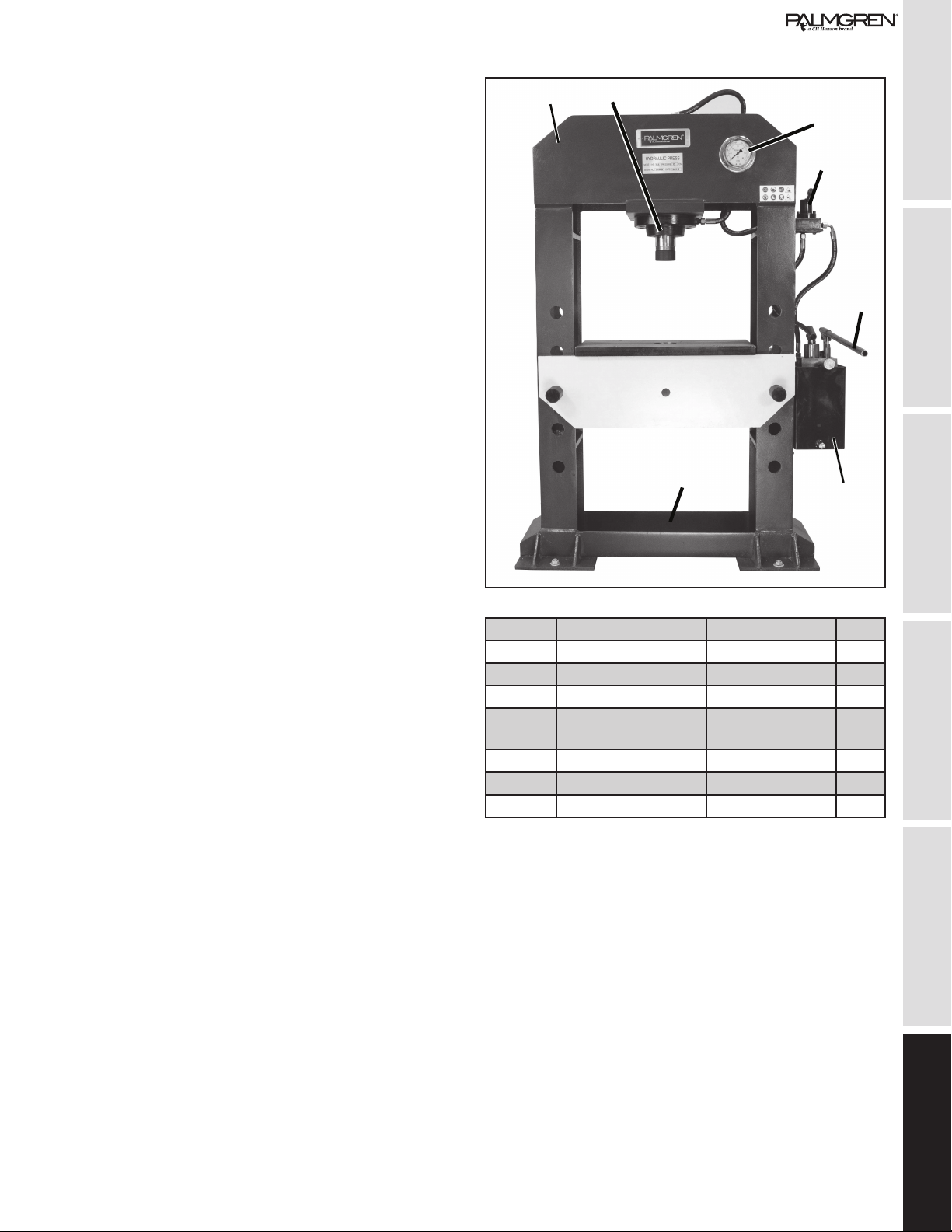

The machine’s functional parts
To properly operate the hydraulic press , you must familiarize
yourself with all of the machine’s controls.
Pressure Switch
Handle
Release Valve
Regular
Pump Cylinder
10X Pump
Cylinder
Using the press
Pieces to be pressed must have a
compact, solid structure and must not be
subject to crumbling or other structural damage potential.
Do not use the press with no load or allow
the piston to extend beyond its
operational travel limit.
If the temperature exceeds the maximum
operating temperature (see
“SPECIFICATIONS”) wait until cool.
When setting up the piece to be pressed,
ensure that it is centered with respect to
the piston.
1. Close the release valve by rotating it clockwise, as shown in
the following figure.
Release Valve
NOTE: The machine is adjusted to produce proper pressure at
the factory.
2. Place the handle in the appropriate pump cylinder.
3. Pump the hydraulic station, using the handle shown above.
4. Check the pressure using the gauge on top of the unit,
shown below.
5. To release pressure, loosen the release valve. This will also
return the plunger to its initial position.
Adjusting the table height
1. Unload the table of all extra items.
2. Lift the table support beam on one side. We recommend
asking for assistance in holding the beam, although it is
possible to do so only by oneself.
3. Extract the support pins shown below.
Support Pins
4. Insert the pin into the next adjacent hole, either above or
below the original hole. Make sure to insert the pin all the
way through both the front and back of the hydraulic press
frame.
5. Then ease the support beam back onto the pin. When done
this way, only one person is required.
6. Repeat all previous steps for the opposite side.
7. Repeat until the desired height achieved.

MAINTENANCE / REPAIR TROUBLESHOOTING OPERATION ASSEMBLY / INSTALLATION SAFETY / SPECIFICATIONS GETTING STARTED
8
TROUBLESHOOTING GUIDE
Symptom Possible Cause(s) Corrective Action
Ram does not move Low oil condition Fill oil
Ram does not press Release valve not closed Close cylinder valve

GETTING STARTED SAFETY / SPECIFICATIONS ASSEMBLY / INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE / REPAIR
9
MAINTENANCE/REPAIR
Before any maintenance is performed, ensure all pressure has
been released.
Daily:
• General visual inspection-check for any visible damage or
missing parts
• Check that all labels are clearly visible and legible
• Check for leaking hydraulic fluid
Weekly:
• Check oil level
• Perform general cleaning
Monthly:
• Check wear on the hydraulic piston and station
• Check tightness of the bolts
At first 6 Months
• Change the oil for initial operation with new oil.
Annually
• Change the oil with new oil.
1
2
3
4
5
7
6
Item No. Description Part No. Qty
1 Cylinder 9643624.01 1
2 Framework NA 1
3 Hydraulic Station 9643625.01 1
4 Hydraulic Station
Handle
9643626.01 1
5 Hydraulic Gauge 9643627.01 1
6 Pressure Switch 9643628.01 1
7 Table Frame NA 1

MAINTENANCE / REPAIR TROUBLESHOOTING OPERATION ASSEMBLY / INSTALLATION SAFETY / SPECIFICATIONS GETTING STARTED
10
MAINTENANCE/REPAIR

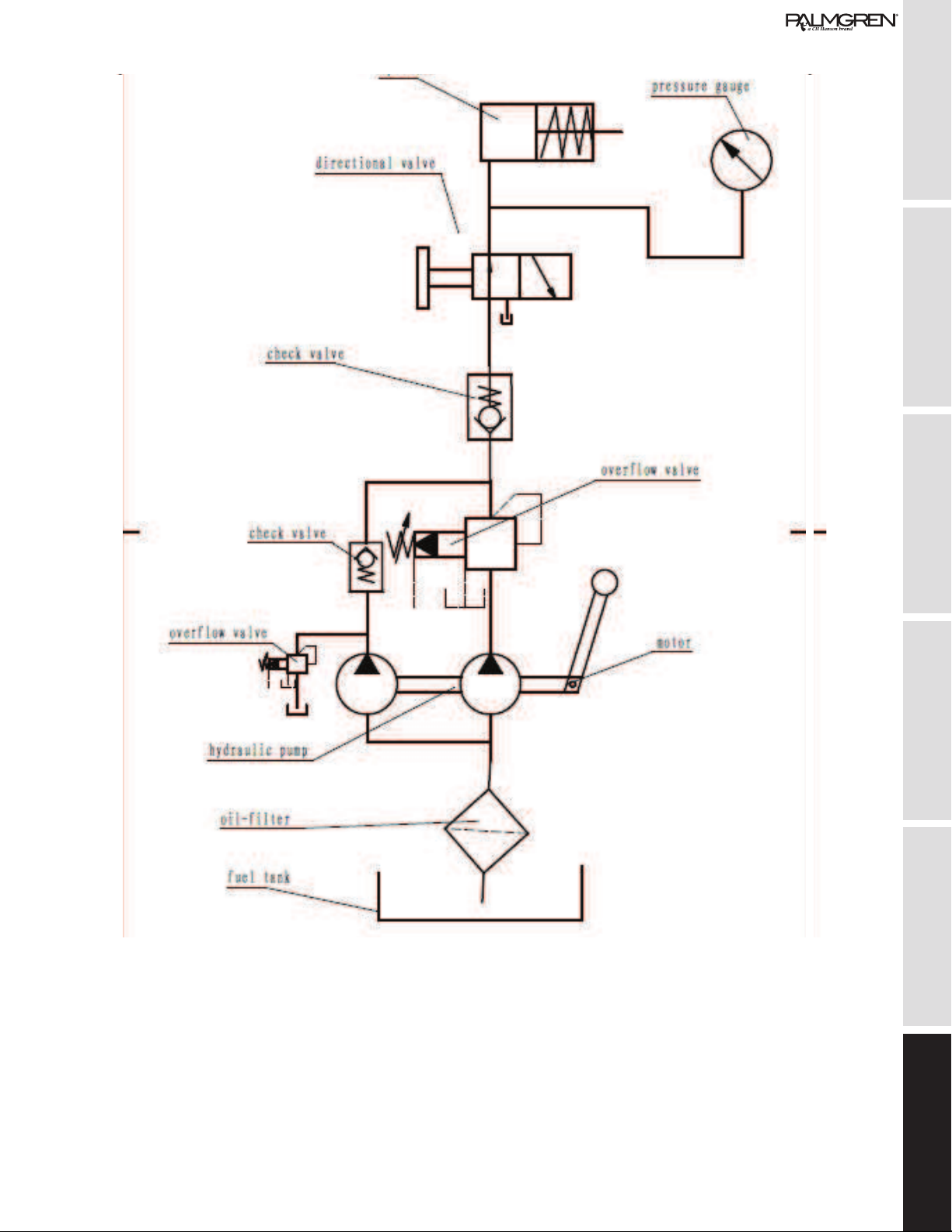

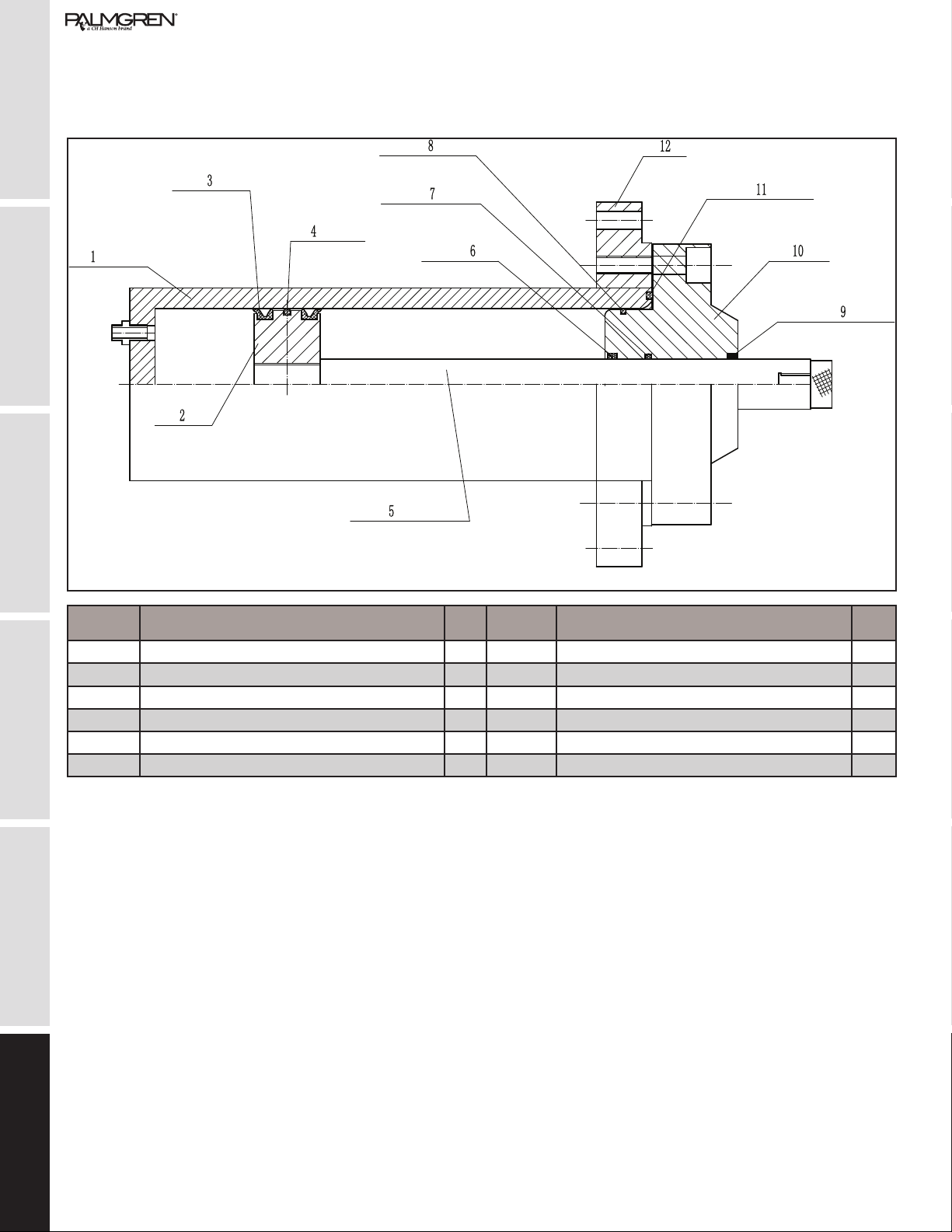

CROSS SECTION OF PISTON
Item
No.
Description Qty Item
No.
Description Qty
1 Oil Vat 1 7 Pressurize Ring 1
2 Stopcock 1 8 Pressurize Ring 1
3 Piston ring 1 9 Pressurize Ring 1
4 Pressurize Ring 1 10 Vat Cover 1
5 Piston Shaft 1 11 Pressurize Ring 1
6 Pressurize Ring 1 12 Flange 1

GETTING STARTED SAFETY / SPECIFICATIONS ASSEMBLY / INSTALLATION OPERATION TROUBLESHOOTING MAINTENANCE / REPAIR
11

PALMGREN WARRANTY
C.H. Hanson / Palmgren warrants their products to be free of defects in material or
workmanship. This warranty does not cover defects due directly or indirectly to misuse,
abuse, normal wear and tear, failure to properly maintain the product, heated, ground or
otherwise altered, or used for a purpose other than that for which is was intended.
The warranty does not cover expendable and/or wear part (i.e. v-belts, screws, abrasives,
jaws), damage to tools arising from alteration, abuse or use other than their intended
purpose, packing and freight. The duration of this warranty is expressly limited to the terms
noted below beginning from the date of delivery to the original user.
The Palmgren branded items carry the following warranties on parts:
All vises, clamps, positioning tables, tombstones, jack screws and vise
accessories - LIFETIME.
All bench grinders, drill presses, tapping machines, band saws, lathes, milling
machines, arbor presses, abrasive finishing machines and work stands - 3
YEARS.
The obligation of C.H. Hanson / Palmgren is limited solely to the repair or replacement, at
our option, at its factory or authorized repair agent of any part that should prove inoperable.
Purchaser must lubricate and maintain the product under normal operating conditions at
all times. Prior to operation become familiar with product and the included materials, i.e.
warnings, cautions and manuals.
Failure to follow these instructions will void the warranty.
This warranty is the purchaser’s exclusive remedy against C.H. Hanson for any inoperable
parts in its product. Under no circumstances is C.H. Hanson liable for any direct, indirect,
incidental , special or consequential damages including loss of profits in any way elated to
the use or inability to use our products. This warranty gives you specific legal rights which
may vary from state to state.
Palmgren - a C.H. Hanson Company
2000 N. Aurora Rd., Naperville, IL
60563 U.S.A.
or call 1-800-827-3398
