Chad Valley 367/3544 Owner's manual

([phone]
Age: 3-8 years
Maximum user weight:
45kg(Single swing)
Age: 12 - 36 months
Maximum user weight:
25kg(Baby swing)
Tips: It will take 2 adults
around 30 minutes to
assemble.

WARNING. FOR DOMESTIC USE ONLY.
Please check to ensure all parts are present before you
start the assembly of this unit. If any missing parts,
please properly store the product away and contact our
customer service representtives for assistance.
Assembly by adult(s) required. Do not allow children
nearby during assembly to avoid choking hazard from
small parts.
Constant adult supervision is required during use of this
product.
At the start of assembly, do not tighten bolts/nuts
completely so as to allow some possible adjustment.
After all major components are assembled, go back over
all bolts and nuts and properly tighten all of them before
using this product.
The single swing is suitable for age 3-8 with maximum
user weight of 45kg.
The nursery swing is suitable for ages 12-36 months
with maximum user weight of 25kg.
The equipment is designed for outdoor domestic use
only and is not permitted for hiring or commercial use.
Adult supervision is required at all times while the swing
is in use. Never leave children unattended during play.
Do not use the equipment in any manner other than
intended.
Please retain these instructions for future reference
The product should not be installed over concrete,
asphalt or any other hard surfaces. The equipment
should be placed on a level surfaces at least 2 m from
any structure or obstruction such as a fence, garage,
house, overhanging branches, laundry lines or
electrical wires.
Do not use the equipment until it has been fully
assembled and anchored, and all the components are
properly secured. All the chains/ropes/cables cannot be
looped back on themselves.
Never allow children to disembark from the play
equipment whilst it is still in motion.
Ensure that children are not facing the sun whilst using
the equipment.
Do note attach items to the equipment that are not
specially designed for use with this product, including
but not limited to cables, shipping ropes and chains as
they may cause strangulation hazards.
Never allow children to walk too close to, in front of,
behind or in between the equipment whilst in use,
always keep children a safe distance from the product
whilst in use.
Do not allow reckless playing, such as jumping off,
standing on seats or climbing ropes.
Do not allow children to use when the swing seat is
wet.
Instruct children to avoid swinging the empty swing and
not twist the swing chain or loop them over the top
support bar since this may reduce the strength of the
chain or rope.
Do not allow children to climb on the structure of the
swing (eg legs, top bar, cross bars and other parts).
Instruct child to sit in the centre of the swing with their full
weight in the center of the seat.
Ensure that children wear suitable clothing whilst using
this equipment. Never allow children to wear loose
clothing, neck ties, scarves, drawstrings or loose
jewellery.
Please remove all packaging and packing tags/ wires
before giving this toy to your child. Please take note: As
an extra precaution, check this toy regularly for signs of
wear or damage.Protective surfacing: One of the most
important things you can do to reduce the likelihood of
serious head injuries is to install .Shock-Absorbing
Protective Surfacing (over the ground) under
and around your play equipment. If you use loose-fill
materials such as wood mulch/chips, engineered wood
fibre, or shredded/recycled rubber mulch for equipment
up to 8 feet high, and 9 inches of sand or pea gravel for
equipment up to 5 feet high. NOTE: an initial fill level of
12 inches will compress to about 9 inch depth of
surfacing, and settle. The surfacing will also compact,
displace, and settle, and should be periodically refilled to
maintain at least a 9-inch depth. Carpeting and thin mats
are generally not adequate protective surfacing, check
and maintain the depth of the loose-fill surfacing material,
Maintain the right amount of loose-fill material. Do not
install loose fill surfacing over hard surfaces such as
concrete or asphalt.
Please carry out and checks and maintenance of the
main parts (Crossbeams, suspensions, anchors nuts and
bolts) before each use. If these checks are not carried out
the toy could overture or otherwise become a hazard. It is
of particular importance that they be followed at the
beginning of each season as well as at regular intervals
during the usage season.
Check all nuts and bolts for tightness and tighten when
required; Oil all metallic moving parts; Check all coverings
for bolt and sharp edges and replace when required;
Check swing seats, chain, ropes and other means of
attachments for evidence of deterioration. Replace when
required in accordance with the manufacture’s
instructions.
Do not use when temperature drop below 32 degree F.(0
degree C).

(Ø19×Ø8.5mm)
×8
×2(M8) ×8(M6×38mm) ×4(M6× 42
mm) ×4(M6×
53 mm)
ABCD
E
(Ø14×Ø6.5mm)×32
F
(Ø13.5×Ø8.5mm)×4
H
(M8)
×4
J
(M6)×16
KML
(Ø10×Ø6.5 )×16
I
10 Plastic cap
9
8
7
1
2
3
4
5
6
mm
([phone]
SW-BEAM
NS-TPLEG-LHS
NS-TPLEG-RHS
SW-LEG-MIDDLE
SW-RAIL
SW-LOWLEG
SW-ANCHOR
NS-SEAT
SW-SEAT1
SW-CAP
GEN-CAPNUT-M8
GEN-FLATWASH-M6
SW-WRENCH GEN-ALWR4MM
GEN-BOLTM6X38 GEN-BOLTM6X53 GEN-BOLTM6X42
GEN-ARCWASH-19X8.5 GEN-SPRWASH-M8 GEN-SPRWASH-10x6.5
GEN-CAPNUT-M6
GEN-UBOLTM8X102
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT
VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT VIEW PRODUCT

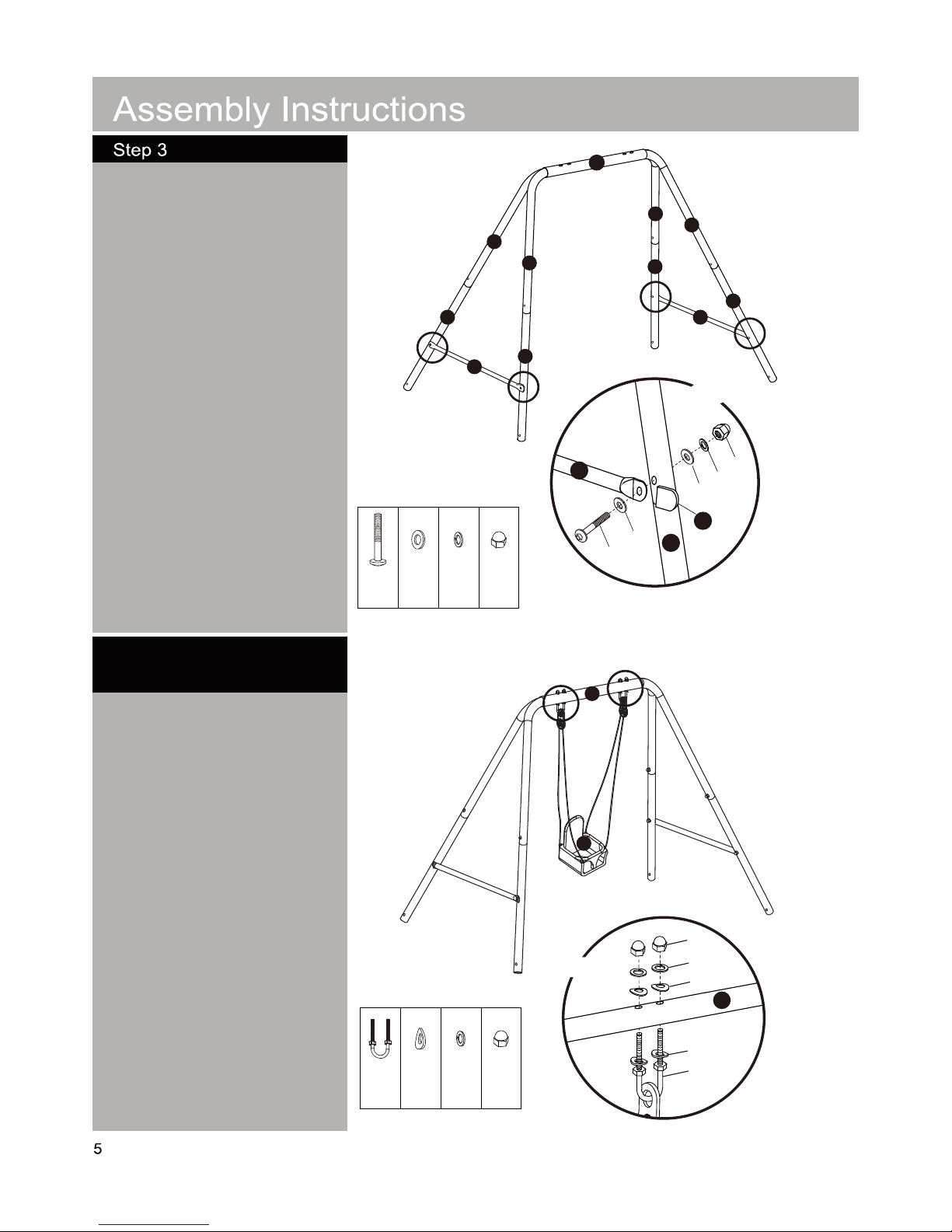

● Insert Legs (2) and (3) into
Beam (1) as shown in
FIGURE1.
● Please note the order of
Legs (2) and (3) need to be
inverse on the two sides of
the beam.
● Insert Legs (4) into (2) and
(3).
● Secure with B,F,I and K in
the sequence shown in
FIGURE 2.
FIGURE 1
1
2
3
X 2
3
2
3
2
1
3
2
3
4
4
4
4
2
1
4
K
F
BFI
X 4
I
B F K
x4x4 x8 x4
FIGURE 2

● Attach Plastic Cap (10) to
each side of Rail (5) Secure
Rail to Legs (4) on both
sides of the swing using
D,F,I and K in the sequence
shown in FIGURE 3.
● Loop U-bolt (A) through the
plate at the top of the swing
and secure it to Beam (1)
using E, H, and J in the
sequence shown in
FIGURE 4.
3
2
3
4
4
4
4
5
5
2
1
4
10
5IK
F
D
F
X 4
9
1
A
E
E
H
J
1
X 4
For Nursery Swing Seat
Step 4
(See steps 6 and 7 for Single Swing Seat)
FIGURE 3
I
D F K
x4x4 x8 x4
H
A E J
x4x4 x8 x2
FIGURE 4

For Nursery Swing Seat
Step 5
(See steps 6 and 7 for Single Swing Seat)
For Single Swing Seat
Step 6
Note: Lock the seat belt tightly
over the child shown in
FIGURE 5.
CONSTANT ADULT SUPER-
VISION REQUIRED AT ALL
TIMES DURING USE. FIGURE 5
● Attach Legs (6) to (4) using
B,F,I and K in the sequence
shown in FIGURE 6.
4
4
4
4
6
6
6
6
4
K
F
BFI
X 4
I
B F K
x4x4 x8 x4
FIGURE 6

E
H
J
A
E
1
FIGURE 7
Step 7 For Single Swing Seat
Step 8 For Nursery and
Single Swing Seat
K
F
C
FI
6
7
X 4
7
6
7
7
6
6
7
6
I
C F K
x4x4 x8 x4
FIGURE 8
● Attach Anchor (7) to the
base of all four Legs (6)
using C,F,I and K in the
sequence shown in
FIGURE 7.
IMPORTANT: AFTER COM-
PLETING ALL THE STEPS,
GO OVER THE ENTIRE
UNIT AND TIGHTEN ALL
BOLTS BEFORE ALLOWING
CHILDREN TO USE.
● Loop U-bolt (A) through the
plate at the top of the swing
and secure it to Beam (1)
using E,H and J in the
sequence shown in FIGURE 7.
H
A E J
x4x4 x8 x2

7
6
X 4
Step 9
Step 10

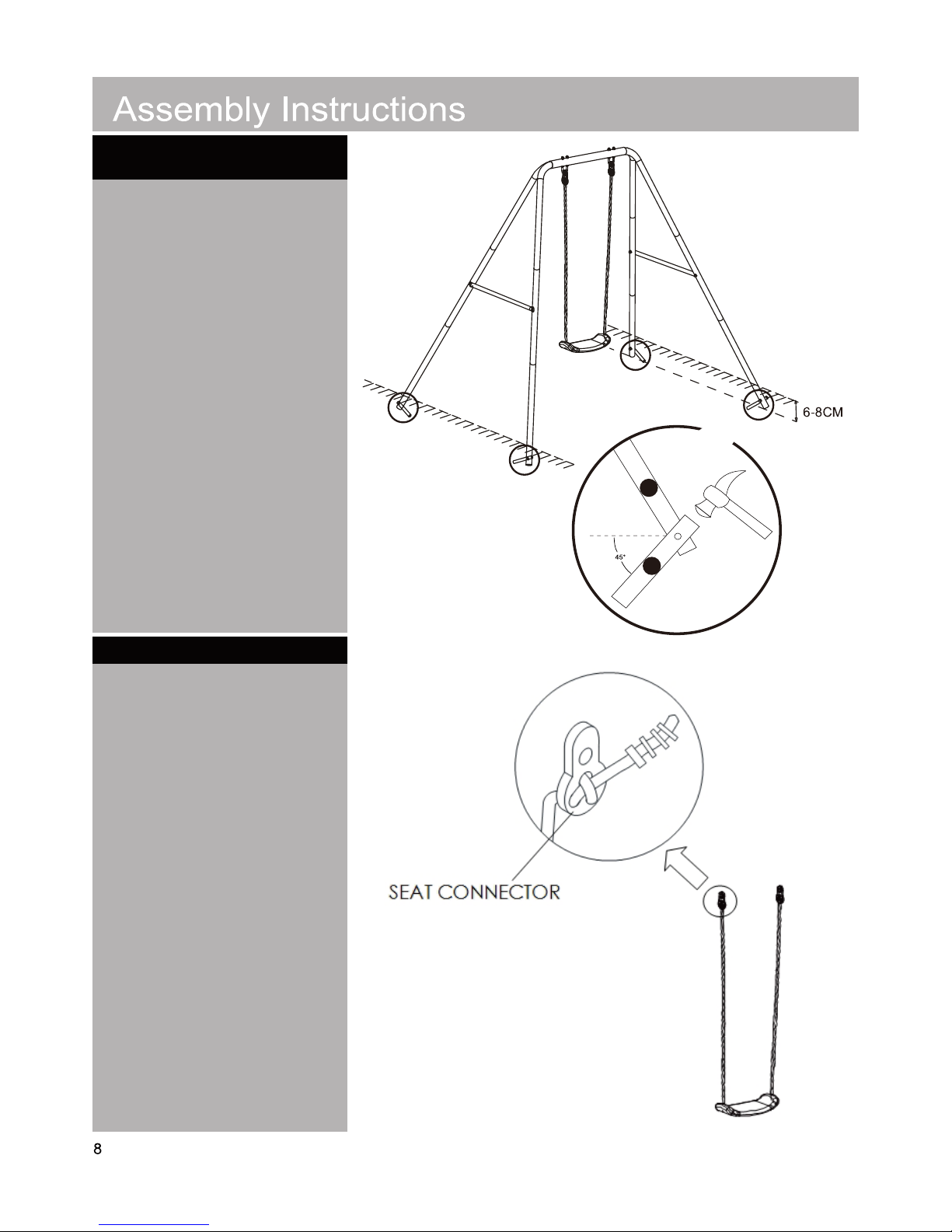

SEAT ADJUSTABLE GUIDE
THE LENGTH OF THE ROPE
IS ADJUSTABLE FOR THE
HEIGHT OF THE CHILD
THROUGH THE SEAT
CONNECTOR.
TO ADJUST, LOOSEN THE
KNOT ON THE SEAT
CONNECTOR, PULL ROPE
THROUGH THE HOLES AND
TIGHTEN AGAIN.
MAKE SURE THAT THE
KNOTS ARE TIGHT AND
THAT BOTH ROPES ARE
ADJUSTED SO THAT THE
SEAT IS HORIZONTAL.
IMPORTANT: MINIMUM
CLEARANCE BETWEEN
THE FOOTREST/SEAT
AND THE GROUND
SHOULD BE 35 CM.
● Position the anchors at 45
degree angle and secure
them fully into the ground
until the leg of the swing is
standing flat and stable
on the ground.
For Nursery and
Single Swing Seat

([phone]
