Chad Valley Pink 366/6881 Owner's manual

Pink Single Swing
Assembly & User Instructions - Please keep for future reference 366/6881
Important- Please read these instructions fully before assembly or use.
These instructions contain important information which will help you get the best from your
product and ensure safe and correct assembly, use and maintenance.
Important
Maximum user
weight: 45kg
Age: 3 - 8 years
If you need help or have damaged or missing parts, call the
Customer Helpline: ([phone]
Tips: It will take 2 adults
around 30 minutes to
assemble.

Contents
Warnings
Parts
Assembly Instructions
Care and Maintenance
2
3
4-7
8
1

Warnings
Important –Please read these instructions fully before assembly or use.
WARNING
WARNING! Not suitable for children under the age of
36 months because of small part(s) and long cord(s)
– choking and entanglement/ strangulation hazards.
Suitable for children aged 3-8 years.
Only one child per seat at any one time.
For outdoor use.
Check all nuts, bolts and fittings for tightness and tighten if
required.
Check all coverings for bolts and sharp edges and replace
when required.
Oil all metallic moving parts.
Check swing seats, ropes and other means of attachments
for evidence of deterioration. Replace when required in
accordance with the manufacture’s instructions.
Please take note: As an extra precaution, check this toy
regularly for signs of wear and damage.
Place the product on a level surface at least 2 meters from
any structures or obstructions such as a fence, garage,
house, overhanging branches, laundry line or electrical
wires.
For safety reasons, this swing MUST be anchored into the
ground.
Anchors shall be placed level with or under the ground in
order to reduce the risk of tripping. Ensure the child is not
facing the sun when on the swing.
Leave all fittings finger-tight until assembly is complete, for
ease of construction. Then tighten firmly.
This item is not for adults or children weighing more than
45kg.
DO NOT install the product on concrete, asphalt or hard
surfaces.
DO NOT allow children to stand on the swing seats.
DO NOT allow children to get off the swings while they are
still moving.
DO NOT twist swing ropes or wrap them over the top bar.
DO NOT allow loose, hooded or baggy clothes to be worn
since children can get trapped and may be unable to free
themselves.
DO NOT allow children to climb on this equipment.
DO NOT allow children to wander into the play area when
the equipment is in use.
Swings must not exceed an angle of 60 degrees from the
ground.
Failure to assemble and maintain this item as per these
instructions may cause injury to the user.
Packaging materials are not toys. Please remove all
packaging and packing tags / wires before giving this
toy to your child.
Adult assembly required.
For use under adult supervision.
Check and maintenance of the main parts(crossbeams,
suspensions,anchors, ELC.)at regular intervals. If these
checks are not carried out, the toy could overturn or
otherwise become a hazard.
Changes to the original toy (for example the adding
of an accessory) shall be carried out according to the
instructions of the original toy manufacturer.
Maintenance to be carried out under the direct
supervision of responsible adult.
For family domestic use only.
Once assembly is complete, carefully check the
equipment before use. If you find any problems, do not
allow children to use the equipment until it is fit for use.
Do not adjust the length of the swing rope.
Please retain these instructions for future reference.
2
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Warning! Only for domestic use.
●

K
ABCD
EG H I
JL
Plastic Cap x 4pcs
8
7Anchorx4pcs
6Seatx1pc
5Railx2pcs
1Beamx1pc
2Legx2pcs
3Legx2pcs
4Legx4pcs
Important - Please read these instructions fully before assembly or use.
3
(M8)
×2x4(M6x42mm) x4(M6x53mm) ( Ø19×Ø8.5mm )
×8
( Ø14×Ø6.5mm)
×16 (Ø13.5×Ø8.5mm)
×4(Ø1
0×Ø6.5mm)
×8(M8)
×4
(M6)
×8×1 (4 mm) ×1(10 & 13 mm)
Parts
Please Check you have all the parts fittings listed below
If you have damaged or missing parts,
call the Customer Helpline:
([phone]

Assembly Instructions
Step 1
Figure 1
A
x 2pcs
D
x 8pcs
G
x 4pcs
I
x 4pcs
4

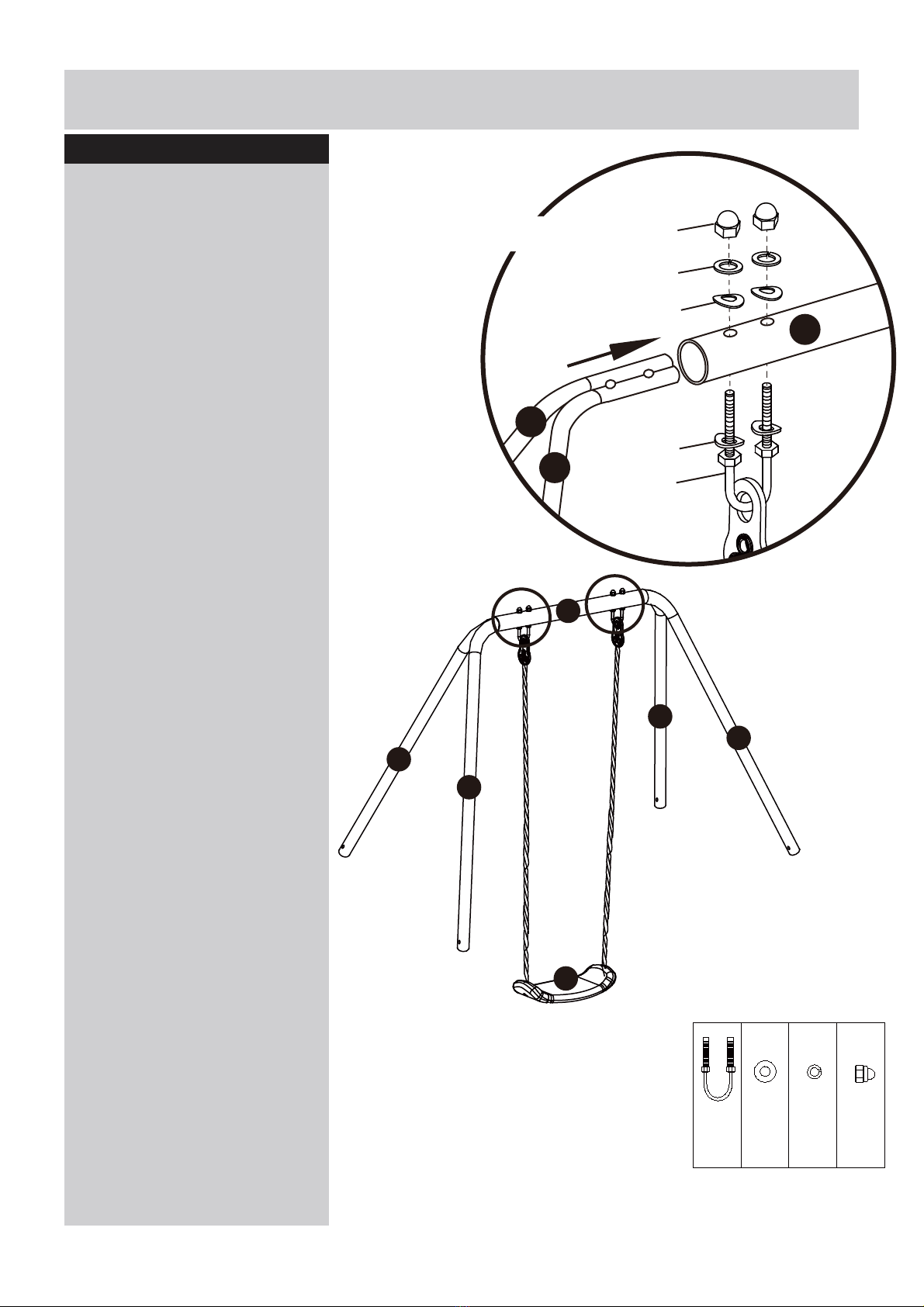

Attach the swing seat (6) to beam
(1) using U bolt(A).
Insert Leg(2) and Leg (3) into
beam(1) as shown in Figure 1.
Note the position of the
Legs need to be inversed
on the two sides of the
swing frame.
1
2
3
D
G
I
A
D
X 2
1
2
6
2
3
3

Assembly Instructions
Step 2
5
Figure 2
B
x 4pcs
E
x 8pc s
H
x 4pcs
J
x 4pcs
Insert Legs (4) into legs (2) and (3)
and secure together with Rail (5) as
shown in figure 2.
Note:
-Plastic cap (8) needs to
be inserted into rail (5)
before securing the bolt.
-Rail (5) needs to be
attached to the outer
sides of the swing frame.
1
2
4
4
4
4
5
5
6
2
3
3
4
8
5HJ
E
B
E
X 4

Assembly Instructions
Step 3
6
Figure 3
C
x 4pcs
E
x 8pcs
H
x 4pcs
J
x 4pcs

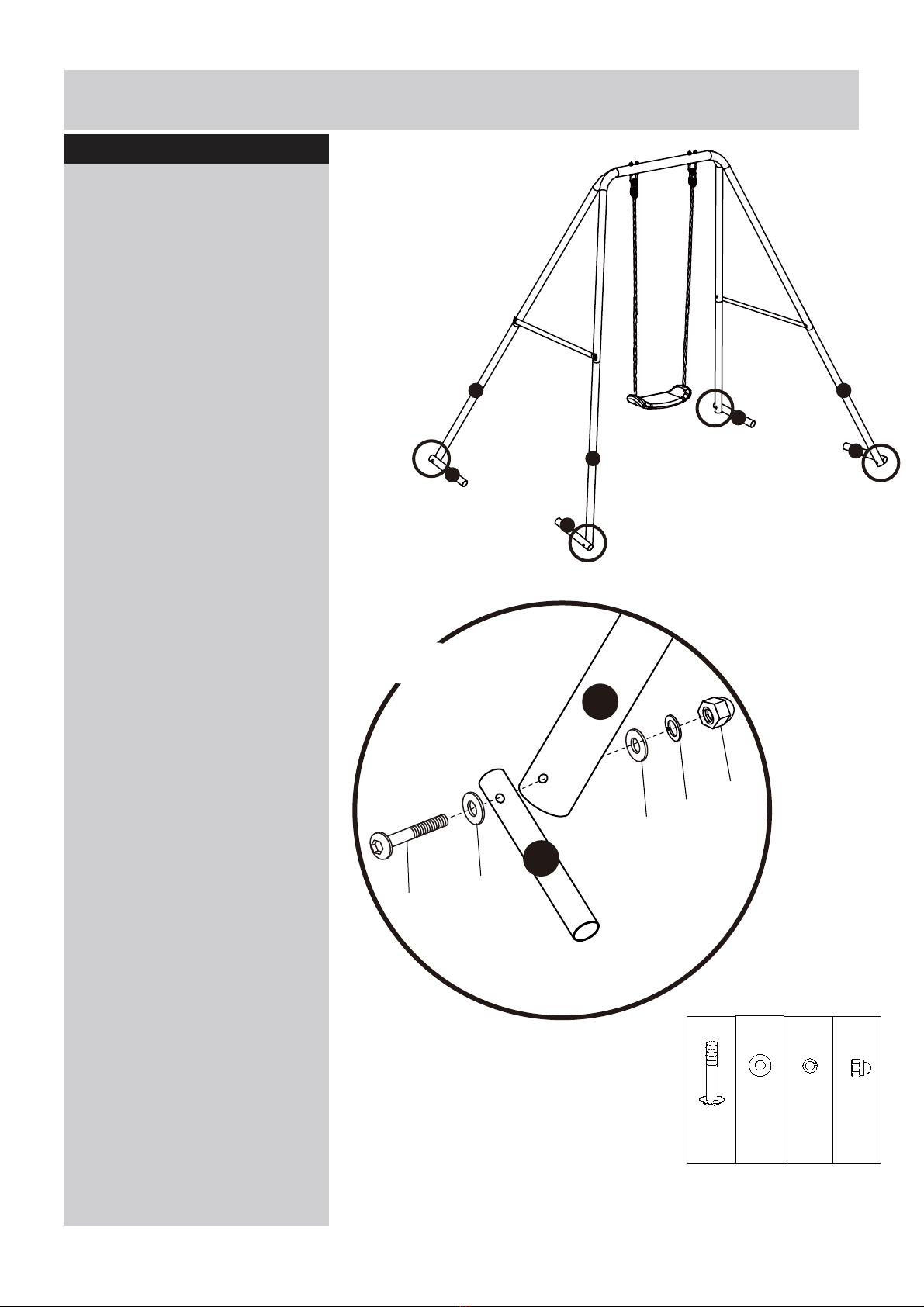

Attach anchors (7) to the base of
Legs (4). Repeat this step for the
other remainder anchors.
TIP: AFTER FINISHING
ALL STEPS ABOVE,
GO OVER THE ENTIRE
UNIT AND TIGHTEN ALL
BOLTS.
4
7
7
7
7
4 4
J
E
C
EH
4
7
X 4

Assembly Instructions
Step 4
7

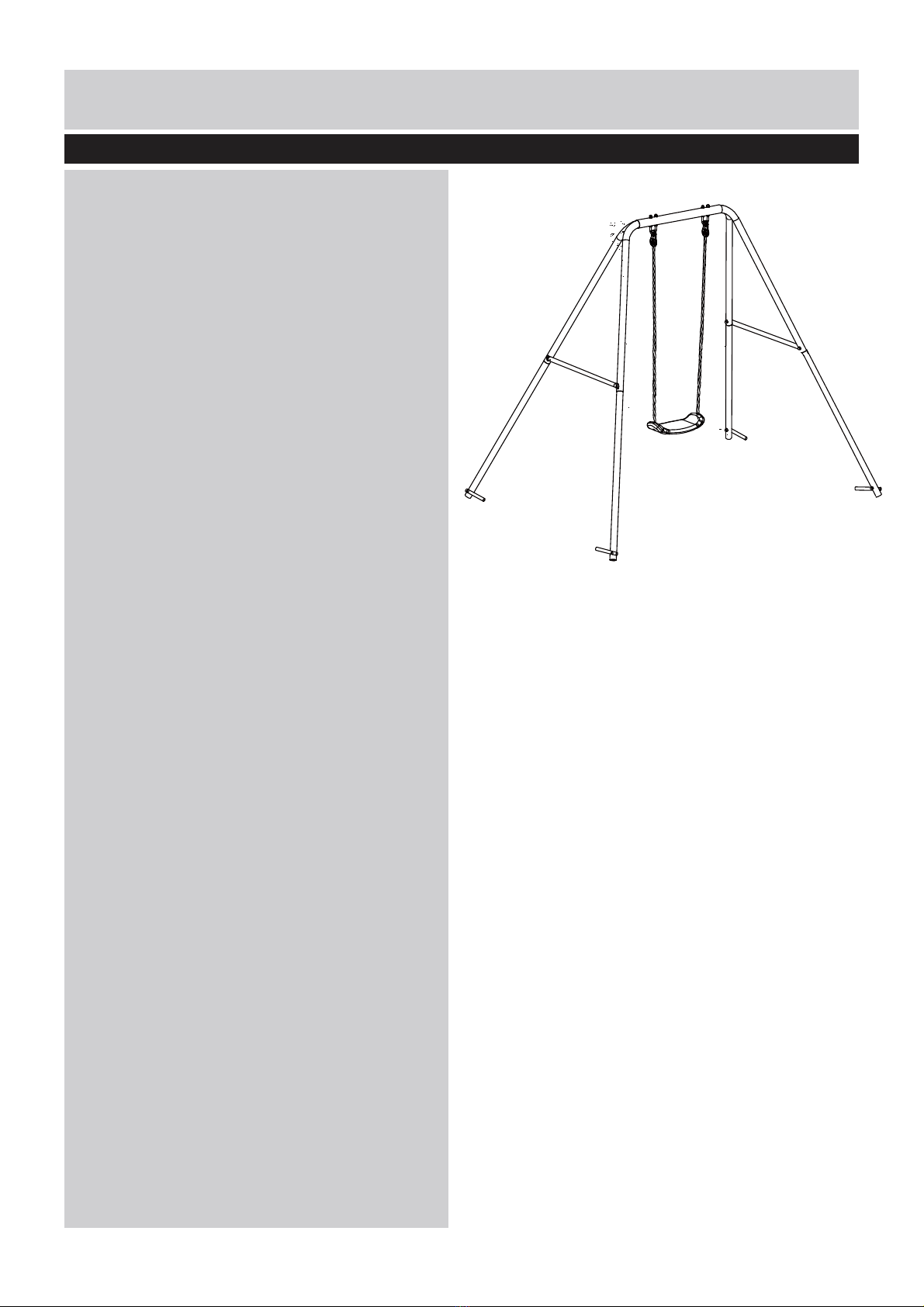

By following the previous steps,
your single swing should look as
shown in the figure 4.
Figure 4
Anchor the swing in the ground.
6-8CM
x4
7

8
SEAT ADJUSTABLE GUIDE
THE LENGTH OF THE ROPE IS ADJUSTABLE FOR THE HEIGHT OF THE CHILD
THROUGH THE SEAT CONNECTOR.
TO ADJUST, LOOSEN THE KNOT ON THE SEAT CONNECTOR, PULL ROPE
THROUGH THE HOLES AND TIGHTEN AGAIN.
MAKE SURE THAT THE KNOTS ARE TIGHT AND THAT BOTH ROPES ARE
ADJUSTED SO THAT THE SEAT IS HORIZONTAL.
IMPORTANT: MINIMUM CLEARANCE BETWEEN THE FOOTREST/SEAT
AND THE GROUND SHOULD BE 35 CM.
Assembly Instructions

Care and Maintenance
General
8
This Single Swing was designed and
manufactured with quality materials and
craftsmanship.
Inspect regularly for:
C H E C K A L L N U T S A N D B O LT S T W I C E
MONTHLY DURING THE USAGE SEASON FOR
TIGHTNESS AND TIGHTEN AS REQUIRED.
IT IS PARTICULARLY IMPORTANT THAT THIS
PROCEDURE BE FOLLOWED AT THE BEGINNING
OF EACH SEASON.
Never use pliers or power tools to tighten up screws
- these can cause damage to both the paintwork and
the special anti - corrosion plating.
Tighten all nuts and bolts securely. Replace as
Check the unit at the beginning of the usage season
and monthly thereafter for evidence of deterioration.
Immediately remove and replace any items that
appear to be weak or broken. Contact Customer
Check all covers designed for bolts and sharp edges
regularly to be certain they are present and in good
condition. Replace as needed. It is particularly
important that all covers are checked prior to the first
use each season.
Inspect handle bar, hardware, and etc., for proper
closure and for signs of wear, deterioration, rust and/
or damage. Replace as needed.
Lubricate all metallic moving parts monthly
during the usage season. Applying a light coat of
automobile wax to all metal tubing surfaces will help
protect your unit and add to its longevity. Sand any
rusted areas of the metal tubing and repaint using a
non-lead based paint.
use when the temperature drops below 32°F/0°C.
Check unit for scuffs, burrs, sharp edges and any
other defects that may occur from assembly, abuse,
shipping or everyday use. Burrs and sharp edges
may be filed down until smooth and covered with
duct tape if necessary.
•
•
•
•
•
•
•
•
•
•
•
•
•
WARNING! Not suitable for
children under 3 years due to
small parts, chocking hazard.
To help maintain the product’s appearance,
occasionally clean the seats and metal framework
with a damp cloth lightly – but DO NOT use
abrasive chemical cleaners.
When the time comes to disassemble and dispose
of this product, please completely disassemble the
unit and discard of it in a safe place and manner
so as not to present any hazard to any individual. It
is important to check and maintain the main parts
at regular intervals.If these checks are not carried
out,the toy could overturn or otherwise become a
hazard.Whenever practical,the instructions shall
also be affixed to the toy.
IMPORTANT!KEEP FOR FUTURE REFERENCE.
WARNING!
([phone]:enilpleHremotsuCehtllac,strapgnissimrodegamadevahroplehdeenuoyfI
Produced for Chad Valley Toys. Argos Ltd. Country of origin: China
Address: 489 - 499 Avebury Boulevard, Central Milton Keynes, MK9 2NW. www.argos.co.uk
Not suitable for children under the age of
36 months because of small part(s) and
long cord (s) - choking and entanglement/
strangulation hazards. Suitable for children
aged 3-8 years. Only one child per seat at
any one time.For family domestic use only.
adults or children weighting more than 45kg.
Adult assembly required. It is important that
children be supervised at all times. Do not
leave children unattended. Packaging
materials are not toys. Please remove all
packaging and packing tags/wires before
giving this toy to your child.
If correct care and maintenance is taken, it will
provide users with longer usage for exercise,
fun and enjoyment.
needed. If not checked regularly, bolts can be loose
or missed and components can become detached and
cause injuries.
SP-19-SW001P-ARGOS-17001
Remove plastic seats and store indoors, and do not
Suitable for outdoor use. This item is not for
