Fisher-Price H5988 User manual

1
Product features and decorations may vary from picture above.
Instructions
Model Number: H5988
Please read these instructions before assembly and use of this product.
Adult assembly is required. Tool needed for assembly: Phillips Screwdriver (not included).
Requires four LR20 (“D”) alkaline batteries (not included) for swing operation.
Requires four LR6 (“AA”) alkaline batteries (not included ) for toybar operation.
Only to be used by children that cannot climb out of seat.
WARNING
IMPORTANT! PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.
www.fisher-price.com

2
2

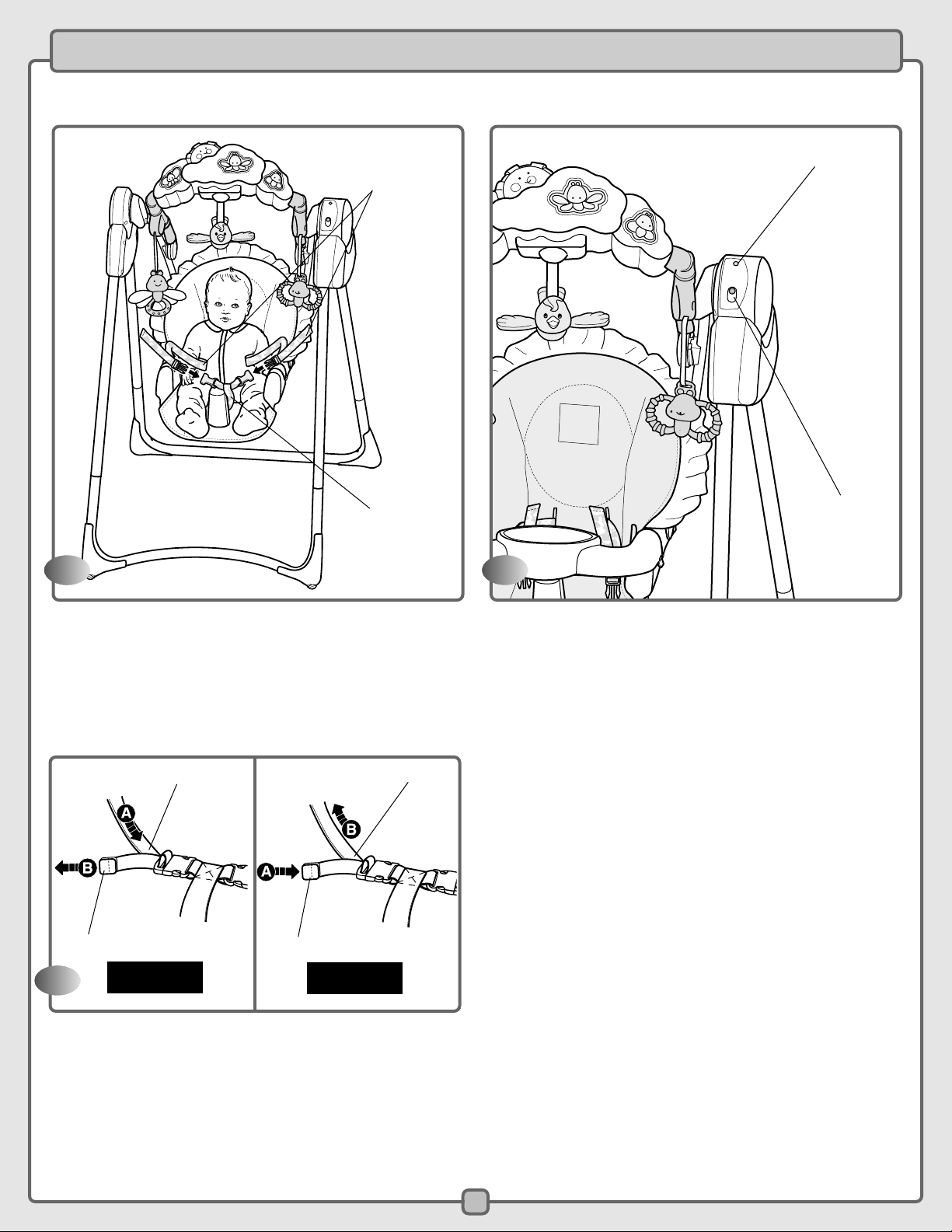

WARNING
To prevent serious injury or death
from falls and being strangled in
the restraint system:
• Always use the restraint system.
Never rely on the tray to restrain child.
• Never use with an active child who may
be able to climb out of the seat.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg (20 lbs).
• Never leave the child unattended.
• It is dangerous to use this product
on an elevated surface.
#8 x 1.9 cm Screw – 3
All Shown Actual Size
Note: Tighten or loosen all screws with a
Phillips screwdriver. Do not over-tighten.
Parts
Oval End Seat Tube
Pad Toy Bar
Round End
Seat Tube
Seat Back Wire
Motor
Housing
Housing
Tray
Rod
Seat Back
2 Legs
Front
Curved
Base
Seat Bottom
Assembly Tool (This tool is not a toy. Please
throw away after assembly is complete.)
Back Base
IMPORTANT! Please remove all parts from the package and
identify them before assembly. Some parts may be packed
in the pad.
Lock Nut – 2
3.8 cm Pin Screw – 2
#6 x 3.18 cm Screw – 2
CAUTION
This package contains small parts
in its unassembled state.
Adult assembly is required.

IMPORTANT! Before assembly, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. DO NOT use if
any parts are missing or broken. Contact Mattel for replacement parts and instructions if needed. Never substitute parts.
3
3
1
Button
Leg Housing
• Place a housing on a flat surface.
• Insert the button end of a leg into the hole in the housing.
• Push the leg in until it “snaps” into the housing.
• Repeat this procedure to assemble the other leg to the
other housing.
• Pull the legs to be sure they are secure in the housings.
If you can remove them, you have not assembled them
correctly. Please re-read and repeat this assembly step.
• Pull the other leg back until it “snaps” into place in the housing.
• Repeat this procedure to “snap” the leg in the other housing
into place.
• Place the front curved base on a flat surface so that it curves
away from you.
• Place the back base on a flat surface, behind the front
curved base.
• Position the leg assemblies so that the hubs are facing
each other.
• Fit the ends of the legs over the ends of the front and back
bases, as shown.
Hint: You may need the help of another adult to help you balance
the assembly.
3Front Curved Base
Hubs
2
Back Base
Assembly
Leg

4
4
HUBS FACING OUT
FRONT
BASE
CURVES
INWARD
HUBS FACING IN

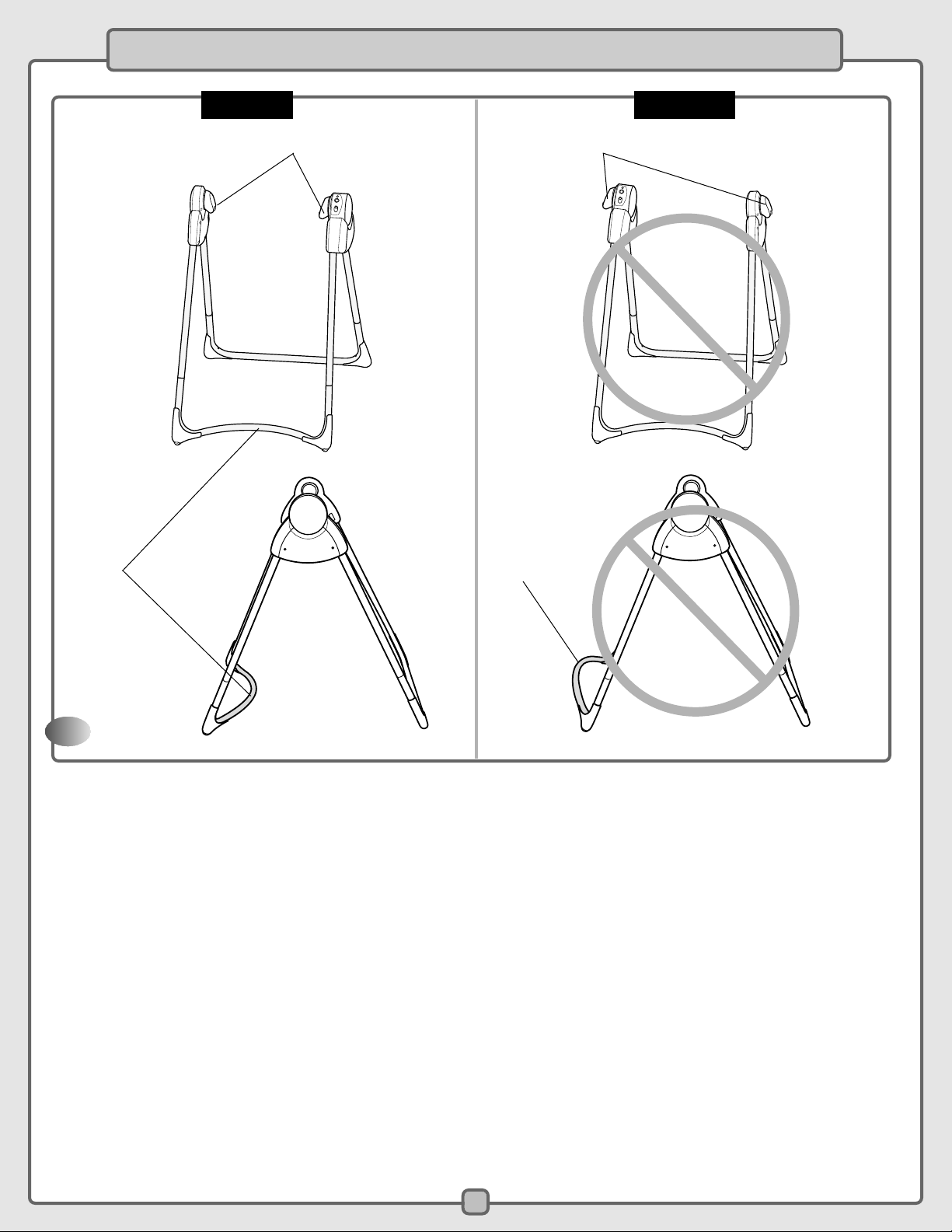

• Check to be sure you have assembled the leg assemblies to the bases correctly. Please refer to the illustrations above.
• If the leg assemblies are assembled incorrectly to the bases, simply pull the legs from the bases. Please re-read and repeat
assembly step 3.
• Set the frame assembly aside.
CORRECT INCORRECT
FRONT
BASE
CURVES
OUT
Assembly

5
5
5

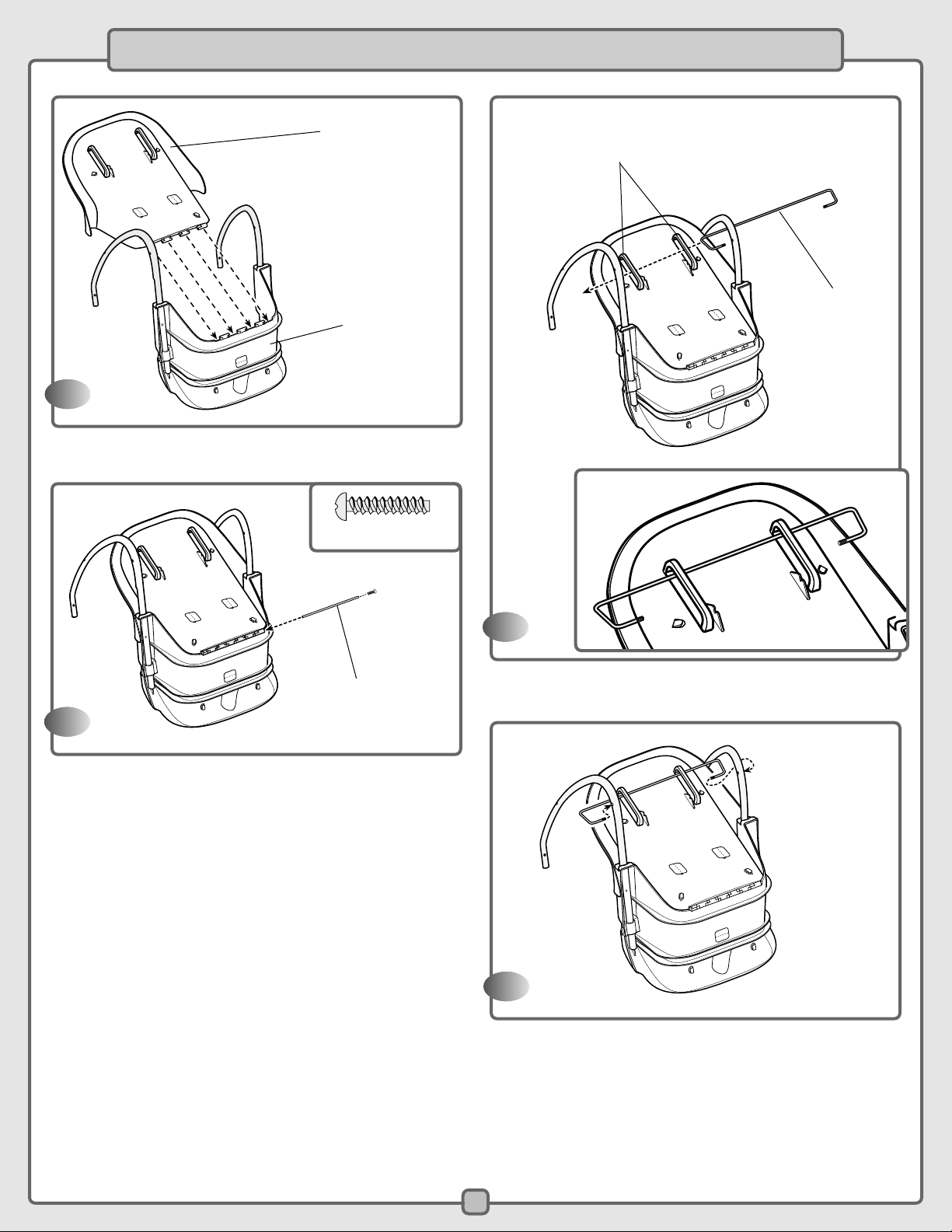

• Align the hole in the seat tube with the hole in the armrest.
• Insert a 3.8 cm pin screw through the armrest and into the
seat tube. Tighten the screw.
6
Seat Bottom
Round End
Seat Tube
Armrest Holes
• Position the seat bottom so that the back faces you and the
armrest holes are facing up.
• Locate the round end seat tube.
Hint: Look at opening in the straight end of the tube. It should be round.
• Fit the round end seat tube into the round hole in the
seat bottom.
Round
SIDE VIEW
3.8 cm Pin Screw 3.8 cm Pin Screw
Assembly
7
Oval End
Seat Tube
Seat Bottom
8
• Locate the oval end seat tube.
Hint: Look at opening in the straight end of the tube. It should be oval.
• Fit the oval end seat tube into the oval opening in the
seat bottom.
• Align the hole in the seat tube with the hole in the armrest.
• Insert a 3.8 cm pin screw through the armrest and into the
seat tube. Tighten the screw.
Oval
SIDE VIEW

6
9
Seat Back
• Fit the seat back to the seat bottom.
Seat Bottom
10
Rod
• Insert the rod into the side opening between the seat back
and seat bottom.
• Insert a #8 x 1.9 cm screw into the opening in the rod
and tighten.
#8 x 1.9 cm Screw
Assembly
11
• Fit the seat back wire through the raised slots on the seat back.
Raised Slots
Seat Back Wire
• Fit the ends of the seat back wire into the outside holes in
the seat tubes.
12

7
14
Seat Tubes
• Insert the ends of the seat tubes into the holes in the hubs.
• Push the seat tubes in until you hear a “snap” (for each).
• Push down on the seat to be sure the seat is secured in both
frame hubs.
Hubs
13
• Attach a lock nut, rounded side facing out, onto one end of a
seat back wire.
• Tighten the lock nut by using the assembly tool. Turn the tool
clockwise to tighten the lock nut.
• Repeat this procedure to attach the other lock nut to the other
end of the seat back wire.
• Please throw the assembly tool away after completing this
assembly step.
Lock Nut – 2
Rounded Side
Assembly
Assembly
Tool
15
• Insert a #6 x 3.18 cm screw into each frame hub and tighten.
• Again, push down on the seat to be sure the seat is secured to
both frame hubs.
#6 x 3.18 cm Screw – 2

8
16

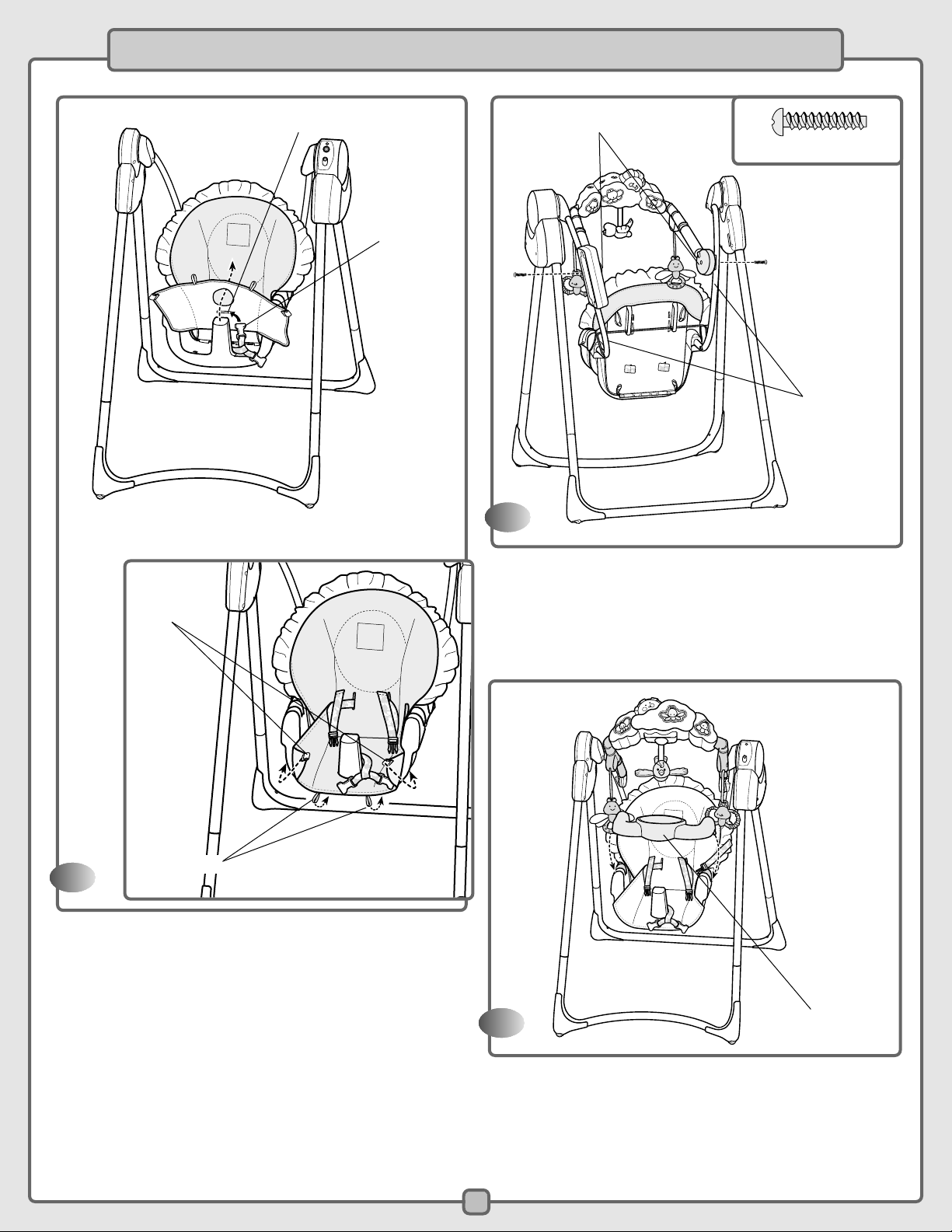

• Place the pad onto the seat.
• Insert the pad elastic loops through the holes in the
seat bottom.
• From under the seat, fit the elastic loops onto the tabs
on the seat back.
Elastic Loops
Tabs
Holes
Assembly
17 Waist Belts
• Insert the waist belts through the slots in the pad.
• Fit the top of the pad over the seat back edge.
• From behind the seat, fit the pad elastic loops to the tabs on
the seat back.
18
Elastic Loops
Tabs

9
Assembly
19
• Fit the crotch belt through the slot in the pad.
• Fit the pad side clips around the edge of the seat bottom.
• Fit the pad elastic loops around the front edge of the
seat bottom. Attach the pad elastic loops to the tabs
underneath the seat bottom.
Crotch Belt
Slot
Clips
Elastic Loops
Toy Bar Hubs
• Fit the toybar hubs to the seat tubes.
Hint: The toybar hubs are designed to fit to the seat tubes one way. If the
toybar hubs do not fit correctly, turn the toybar around and try again.
• Insert a #8 x 1.9 cm screw through the seat tubes and into the
toybar hubs. Tighten the screws.
#8 x 1.9 cm Screw – 2
Seat Tubes
20
Assembly is now complete.
21 Tray
• Fit and “snap” the tray onto the seat armrests.

1,5V x 4
“D” (LR20)
• Loosen the screws in the battery compartment door and
remove the battery compartment door.
• Insert four “D” (LR20) alkaline batteries into the
battery compartment.
• Replace the battery compartment door and tighten the screws.
Swing Toybar
• Loosen the screws in the battery compartment door and remove
the battery compartment door.
• Insert four “AA” (LR6) alkaline batteries into the
battery compartment.
• Replace the battery compartment door and tighten the screws.
Hint: We recommend using alkaline batteries for longer battery life. Hint: We recommend using alkaline batteries for longer battery life.
Shown Actual Size Shown Actual Size
Battery Compartment Battery Compartment
Battery Installation
1,5V x 4
“AA” (LR6)
10
