Challenger Lifts 44018 Instruction manual

Rev. 05/22/2017
Installation, Operation & Maintenance Manual
MEDIUM DUTY
FOUR POST LIFT
18,000 lbs Capacity
Model 44018
Model 44018E
2311 South Park Rd Louisville, Kentucky 40219
Email: [email protected] Web site: www.challengerlifts.com
Office 800-648-5438 / 502-625-0700 Fax [phone]
IMPORTANT:
READ THIS MANUAL COMPLETELY
BEFORE INSTALLING or OPERATING LIFT

Rev. 05/22/2017

Rev. 5/22/2017
44018-IOM-A.doc
IMPORTANT INFORMATION
1. The floor where the lift is to be insta lled must be a minimum of 4” thickness of
concrete. Concrete must be reinfo rced with steel rebar with a minimum
compressive strength of 3, 000 psi. Failure by the pu rchaser to provide the
recommended mounting surfaces could result in personal inj ury, property
damage and/or unsatisfactory lift performance.
2. Read the installation manual before installing the lift.
3. This lift is a four post lift which requires a minimum (44018) 14’ x 25’-6” /
(44018E.) 14’ x 28’-6” bay area.
4. Read anchoring tips information before drilling and installing the anchor bolts.
5. Do not raise a vehicle with the lif t until the lift has been correctly installed and
adjusted as described in this manual.
6. Maximum floor variation between any two posts is 2 inches.
7. Use of Optional RJ9A or RJ9S 9,000lb rolling jack requires a runway
spacing of 33-15/16 to 41-11/16”
CAUTIONS AND WARNINGS
M OTORS AND E LECTRIC CONTROLS ARE NOT S EALED
against weather or moisture. Damage or Electrical
shock may occur if installed unprotected outdoors.
F
ACTORY M UST B E N OTIFIED WITHIN 30 D AYS OF D ELIVERY
If there are any parts missing from shipment.
A
LL B OLTS P LACED I N C OLUMNS M UST B E P LACED F ROM
O UTSIDE FACING I NWARD . U NLESS N OTED I N THE
I NSTALLATION I NSTRUCTIONS

Rev. 5/22/2017
44018-IOM-A.doc
TOOLS REQUIRED
Concrete rotary hammer drill with ¾” carbide bit
Open End Wrenches: 1/2”, 9/16”, 11/16”, 3/4”
Ratchet Driver
Sockets: 1/2”, 3/4” X 1/2” deep
12” Crescent Wrench
Hammer
Needle Nose Pliers
Retainer Ring Pliers
Electrical Pliers
Level
Fish Tape
25’ Tape Measure
Chalk Line
Small Drift Punch
Step Ladder
3 gallons of hydraulic medium oil SAE-10 or equivalent
4 x 4 Wood Blocks
ANCHORING TIPS
1. Anchor must be at least 7 1/2” from the edge of the slab or any seam.
2. Use a concrete hammer drill with a 3/4” carbide bit.
3. Do not use a worn bit.
4. Drill in a perpendicular line with the hole.
5. Do not apply excessive pressure to the drill. Let the drill do the work.
6. Lift the drill up and down occasionally to remove residue and to reduce binding.
7. Drill the hole depth equal to the length of the anchor, or completely through the slab.
8. Blow all dust / residue from the hole before driving anchor into hole.
Place a flat washer over threaded end of anchor. Spin nut 1 /2” down past end of anchor.
Carefully tap anchor into the concrete until nut and flat washer are against base plate.
Do not use an impact wrench to tighten.

Rev. 5/22/2017
44018-IOM-A.doc
INSTALLATION INSTRUCTIONS
1. Determine the location for the lift. Keep in mind overhead clearances. Ten feet is
the minimum recommended ceiling height. Allow 2 ft. for approach ramp.
2. Determine which side of the lift th e top rail a nd power u nit are to be on. This is
called the MAIN SIDE. The other side is referred to as the OFFSIDE.
3. Ease of en try and exit from vehicles, type of work bein g done, an d required
placement of the power unit on the top rail side are all considerations.

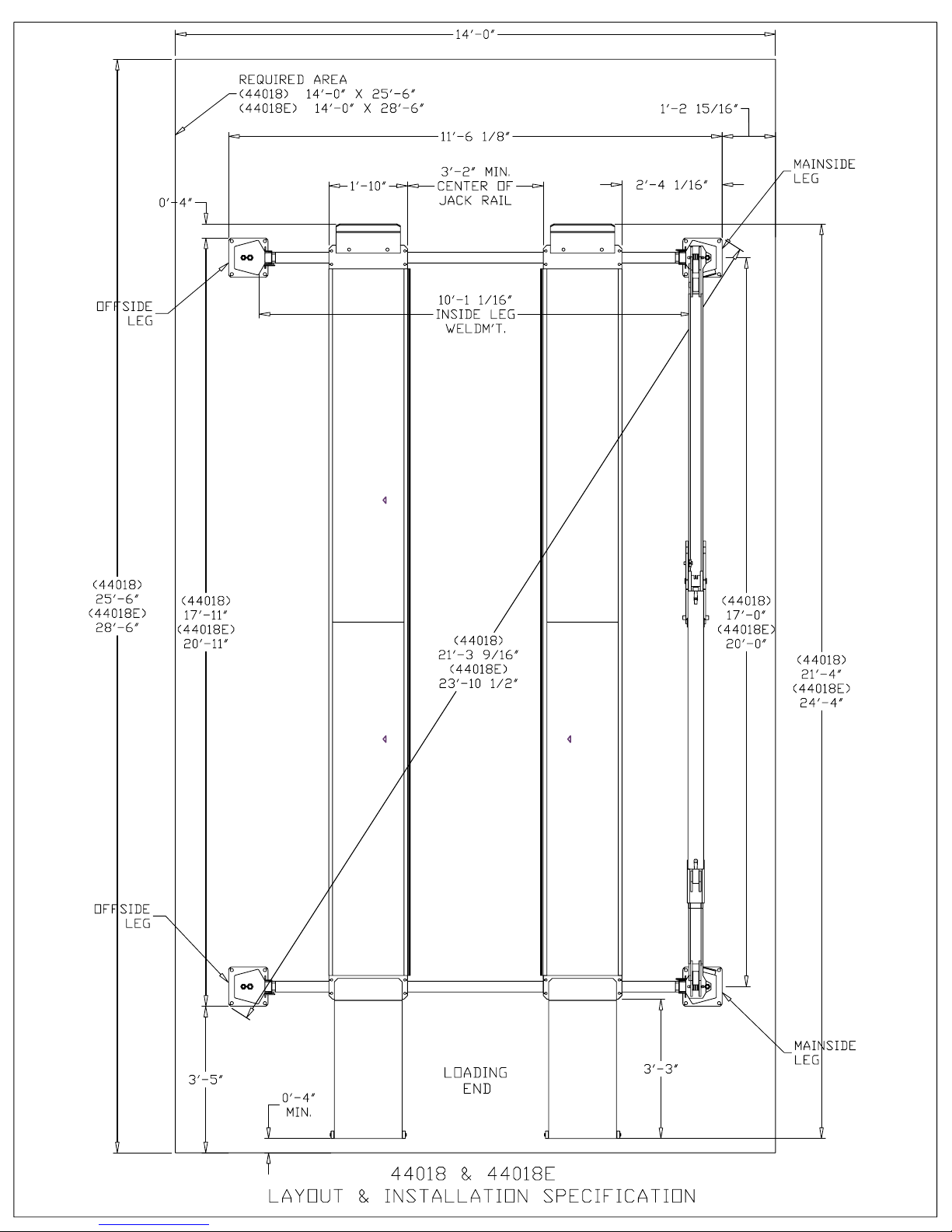

4. After determining the location, and remembering to allow for the approach ramp,
chalk a rectangular square using the appro priate dimensions given in Fig.1.
Measure diagonally to check for squareness. The four chalked corners represent
the outside leg base corners of each post.
5. After determining the main side (the side the top rail is to be placed on), stand the
two main side legs upr ight inside the chalk lines, with each leg facing inside. One
of the two legs comes with a factory installed power unit mount. This leg is to be
placed as follows:
If top rail/main side is to be on the left as you approach, this
post must be at the left front corner. See Fig 2.
If top rail/main side is to be on the right as you approach, this
post must be at the right rear corner. See Fig 2a.
6. This manual will show the top rail/main side being on the left side. See Fig 3.
7. With both main side leg s on the ch alk lines, lay both legs down toward the inside
as shown in Fig. 4.
8. Lay top rail on 2 x 4 blocks in fron t of main side legs as shown in Fig. 5. Align
holes on top rail plate with holes on top of main side leg as shown in Fig. 6.
9. Bolt the top rail to the main side le gs using th e 1/2 x 2” NC bolts, washers, lock
washers, and nuts as shown in Fig. 7. These were used in shipping. NOTE: The
set of holes nearest the safety rod hole will not take a flat washer.
10. Raise top rail/leg asse mbly by pressing and walking the unit into the upright
position. Make sure th e safety rod holes referred to in Fig. 7 are still aligned.
Make sure both legs are still on the chalk lines.
11. Read the anchoring tip sheet before anchorin g. Using the 3/4 carbide bit, drill
through the 4 holes in the base plate to a minimum depth of 4-1/2”. As soon as
you complete drilling a hole, set and drive an anchor bolt into the drilled hole.
12. DO NOT TIGHTEN ANCHOR BOLTS YET !!
13. After drilling and setting all 4 anchors in the first post only, plumb the post so that it
is perpendicular. Use t he level to check the post from sid e to side, a nd front to
back. You should also check distance measurements from top of one leg to the
top of the o ther leg, and from bottom to bottom. Adjust leg s to within 1/8”. Use
1/2” flat washers left fro m packing for shims. Keep shims as close to a nchors as
possible. Now you may tighten the anchor bolts on first leg only. Do not use an
impact wrench. Re-check for plumb and adjust if necessary.

Rev. 5/22/2017
44018-IOM-A.doc
14. After anchoring the first main side leg, align the other main side leg in t he chalk
line. The leg may vary from the chalk line slightly. It is most important that the legs
be perpendicular and parallel with the other leg. Check measurements at leg tops
and bottoms again. D rill, set, and anchor the other main side leg. Level and
plumb leg as before, then tighten anchors on 2nd leg.
DO NOT DRILL OR ANCHOR OFFSIDE LEGS YET.
15. Set cross rails on 2 x 4 blocks in front of main side legs, wit h the machined cross
rail connector towards the main side leg as shown in Fig. 8.
16. Use a fish t ape to pull t he cross rail c hain through the cross rail tube. The chain
runs under the roller on the offside and over the roller on the main side. Repeat
with the other cross rail. Feed the fish tape through the cross rail starting from the
main side by going ove r the main side roller an d through the cross rail tube, then
under the offside roller and straight up. See Fig. 8.
17. Position both cross rails in front of a main side leg, with th e machined connector
towards the main side leg. Using the shoulder bolt provided, connect the cross rail
chain to the chain anchor welded to the base plate of the main side leg. See Fig. 9
***** IMPORTANT *****
THE MASTER LINK MUST HAVE THE CE NTER LINK, AND IT
MUST BE IN A VERTICAL POSITION. IT CANNOT BE COCKED
TOWARDS THE FRONT OF THE CHAIN ANCHOR. See Fig. 10.
18. Starting with the safety latch ear towards the main side legs, place a 2 x 4 block
under the latch as shown in Fig. 11.
19. Take a safety rod and remove one of the two n uts. Turn down the re maining nut
to the bottom of the threads. Remove packing dowel pin from the cross rail safety
latch. Insert safety rod (where packing dowel was removed ) into top of cross rail
safety latch.
20. Each safety rod corner s with 2 nu ts on one end. Remove the top n ut, turn the
other nut down to bottom of thread s. Guide the free threaded end of safety ro d
into the rear hole at the top of the main side leg. Tighten the nut just removed until
the safety rod is flush with the top of the nut. Tighten the bottom nut against the
leg top. Re move the 2 x 4 block. Repeat steps 15, 16 an d 17 on the other main
side leg and cross rail.
21. Position each offside l eg 6” from the end of each cross rail, but do not drill or
anchor. Place 2 x 4 blo cks under each safety latch. Repeat steps 16 and 17 for
the offside legs. DO NOT ANCHOR OFFSIDE LEGS YET.
22. Assemble threaded ch ain connector to free end of chain. Run threaded chain
connector into the inside hole at to p of offside leg. Run 1” nut all the way down
until connector is into the nylon. Repeat on other cross rail. See Fig. 11.
23. Stand up cylinder rese t on top ra il. Remove the fitting or plug from r ear of the
cylinder as shown in Fig. 12. Extend cylinder rod by either pulling on rod or by
applying air to cylinder port where f itting or plug was removed. Make sure long
chain is not twisted inside top rail tube. Attach loose end of chain to each cross
rail connector using 5/16 x 3 1/2” Grade 8 bolt and nuts. Do not substitute this
bolt!!!! Repeat on other cross rail. Replace fitting on cylinder.

Rev. 5/22/2017
44018-IOM-A.doc
24. Install power unit on right rear column. Remove steel pressure port plug, #6 O-ring
port on left side when facing controls. Use it to replace plastic shipping plug on the
right side. Install 90 degree #6 O-ring x #6 JIC elbow (16167). On left sid e remove
3/8MNPT plug and replace with 90 degree 3/8 MNPT x #6 JIC elbow (68032).
25. Remove shipping plugs from hydra ulic cylinder and manually extend cylinder ro d
end.
26. Install (2) 90 degree 3/8 MNPT x #6 JIC elbow (68032).
27. Install 140” hydraulic hose (pressure hose) from hydraulic cylinder, port closest to
rod end of hydraulic cylinder to po rt (recessed on manifold) close st to lowering
valve handle on power unit.
28. Install 68” plastic hose (return hose) from hydraulic cylinder, port closest to fixed
end to port (flush to manifold) farthest from lowering valve handle.
29. Have a certified ele ctrician connect the power unit to a suitable electrical power
source. The standard power unit is 1 p hase, 208/230 volt, 60Hz r equiring a
dedicated 25 amp double poll, double throw circuit breaker to operat e lift to full
capacity. See wiring diagram page 12.
30. Fill power unit with 5 ½ Gallons of clean 10wt anti-foam, anti-rust hydraulic oi l or
Dexron III ATF. Do Not use Oils with Detergents.
OFFSIDE LEGS ARE NOT ANCHORED YET.
31. Position tracks on the cross rails. Cycle the lift up about 12”. Place a level on the
cross rail and level the cross rail by adjusting the nut on the cross rail connector.
32. After leveling cross rails, adjust and plumb the offside legs so that the cross rail
chains in the offside legs hang straight. Use a level. Cycle the lift all t he way up
and down making sure that each corner is run ning freely. The offside legs ma y
vary from the chalk line slightly. It is more i mportant that the legs are square and
plumb, and that the lift moves up and down freely.
33. Raise the lift to the top of its travel. Check the positioning of the cross rails in the
legs as the lift is raised. The single point top rail safety latch will move across the
rack at the bottom of the top rail. At the top of the lift’s travel, pull down the top rail
safety latch banjo until t he Reset locks it open. Adjust and plumb cross rails and
legs as necessary. When you are positive the lift is moving freely, you may finally
drill and install the anchor bolts in the offside legs.
34. Position and install stops on opposite end of vehicle approach end. Drop ramps
on slotted hole of the approach end.
35. Cycle the lift it it’s maximum height and back to the ground at least 3 full cycles
without any load to remove air from the hydraulic system.

Rev. 5/22/2017
44018-IOM-A.doc
Owner/Operator Checklist
SAVE THESE INSTRUCTIONS deliver them to owner/user/employee along with other materials
furnished with this lift.
Demonstrate the operation of the lift to the owner/operator and review correct and safe lifting
procedures using the Lifting It Right booklet as a guide.
Complete the Installation Checklist/Warranty Validation que stionnaire with th e owner. Review
the terms of the warranty registration card, and return the card and a copy of the questionnaires
to:
Challenger Lifts, Inc.
200 Cabel Street
Louisville, KY. 40206
Safety Notices and Decals
This product is furnished with graphic safety warning labels, which are reproduced on page 3 of
these instructions. Do not remove or deface these warning labels, or allow them to be removed
or defaced. For your safety, and the safety of others, read and understand all of the safety
notices and decals included.
Owner/Employer Responsibilities
The owner/employer’s responsibilities as prescribed by ANSI/ALI ALOIM-2000, are summarized
below. For exact wording refer to the actual standard provided with this manual in the literature
pack.
The Owner/Employer shall insure that lift operators are qualified and that they are trained in
the safe use and operation of the lift using the manufacturer’s operating instructions; ALI/SM
93 -1, ALI Lifting it Right safety manual; ALI/ST-90 ALI Safety Tips card; ANSI/ALI ALOIM-2000,
American National Standard for Automotive Lifts-Safety Requirements for Operation, Inspection
and Maintenance; ALI/WL Series, ALI Uniform Wa rning Label Decals/Placards; and in ca se of
frame engaging lifts, ALI/L P-GUIDE, Vehicle Lifting Points/Quick Reference Guide for Frame
Engaging Lifts.
The Owner/Employer shall establish procedures to periodically inspect the lift in accorda nce
with the lift manufa cturer’s instructions or ANSI/ALI ALOIM-2000, American National Standard
for Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance; and the
employer shall insure that the lift inspectors are qualified and that they are adequately trained in
the inspection of the lift.
The Owner/Employer shall establish procedures to periodically maintain the lift in accordance
with the lift manufa cturer’s instructions or ANSI/ALIOIM-2000, American National Standard for
Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance; and th e
employer shall insure that the lift maintena nce personnel are qualified and that they are
adequately trained in the maintenance of the lift.
The Owner/Employer shall maintain the periodic inspection and maintenance records
recommended by the manufacturer o r ANSI/ALI ALOIM-2000, American National Standard for
Automotive Lifts-Safety Requirements for Operation, Inspection and Maintenance.
The Owner/Employer shall display the lift manufacturer’s operating instructions; ALI/SM 93 -1,
ALI Lifting it Right safety manual; ALI /ST-90 ALI Safety Tips card; ANSI/ALI ALOIM-2000,
American National Standard for Automotive Lifts-Safety Requirements for Operation, Inspection
and Maintenance; and in the ca se of frame engaging lift, ALI/LP-GUI DE, Vehicle Lifting
Points/Quick Reference Guide for Frame Engaging Lifts; in a conspicuous location in th e lift
area convenient to the op erator. Demonstrate the operation of the lift to the owner and review
correct and safe lifting procedure, using the “Lifting It Right “ booklet as a guide.

Rev. 5/22/2017
44018-IOM-A.doc
Important Safety Instructions
When using your garage equipment, basic safety precautions should always be followed, including the
following:
a) Read all instructions.
b) Care must be taken as burns can occur from touching hot parts.
c) To reduce the risk of fire, do not operate equipment in the vicinity of open containers of flammable liquids
(gasoline).
d) Adequate ventilation should be provided when working on operating internal combustion engines.
e) Keep hair, loose clothing, fingers, and all parts of body away from moving parts.
f) To reduce the risk of electric shock, do not use on wet surfaces or expose to rain.
g) Use only as described in this manual. Use only manufacturer’s recommended attachments.
Save These Instructions
LIFTING A VEHICLE
Drive vehicle onto lift and set parking brake.
When the ve hicle has re ached the d esired working height, release the power pack b utton, and l ower the
vehicle until the safet y locks are engaged. T he vehicle should remain level when all locks are engaged. If
one side engages and the other continues to descend, stop lowering the vehicle, raise it several inches, and
try again to engage locks.
IMPORTANT, Before walking under the lift insure that all locks are properly engaged.
It is not safe to work under the vehicle unless all locks are engaged, and the vehicle is level.
LOWERING A VEHICLE
Insure that the area under the vehicle is clear of personnel and tools.
Raise the vehicle until locks are free.
Disengage the locks by depressing the palm button and holding it.
Lower the vehicle by depressing the lowering valve handle. Watch lift to insure that the lift is lowering evenly.
If not, raise lift and check all locks to insure they are disengaged before trying to lower lift again.
Continue to lower the vehicle until the crossbeams stop against the base plate. It is important to fully lower the
lift to release hydraulic pressure on the system.
MAINTENANCE
To avoid personal injury, permit only qualified personnel to p erform maintenance on this equipment. The
following maintenance points are su ggested as the basis of a routi ne maintenance program. T he actual
maintenance program should be ta ilored to the insta llation. See A NSI/ALI ALOIM book let for p eriodic
inspection checklist and maintenance log sheet.
 If lift stops short of full rise or chatters, check fluid level and bleed cylinder per Installation Instructions.
 Replace all Safety, Warning or Caution Labels if missing or damaged.
Daily
 Keep lift components clean. To keep alignment lifts with rear slip plates working properly use
compressed air to blow out any debris from the bearing area.
 Check for loose or broken parts.
 Check hydraulic system for fluid leaks.
 Check lock release activation.
Weekly
 Check chains and sheaves for wear or damage. Replace as required with genuine Challenger Lifts parts.
 Inspect lock mechanism for proper function.
Monthly
 Torque concrete anchor bolts to 80 ft-lbs.
 Clean and inspect chains and sheaves for wear or damage. Lubricate chain and sheaves with light oil.
 Visually inspect concrete floor for cracks and/or spalls within 12” of base plate
IMPORTANT ! Failure to keep lift free of corrosive agents and solvents will
lead to reduced service life, which could result in property damage and/or
personal injury. If any problems are encountered, contact your local service
representative.

Rev. 5/22/2017
44018-IOM-A.doc
PARTS & SHIPPING LIST
PART NUMBER DESCRIPTION QTY.
2501-06-06 3/8MNPT x 3/8MJIC 90 Deg. Adapter 2 HK
3225T6 ¾ Rubber Cushion Steel Loop 6 HK
5304ZZ DS Bearings 4 HK
6801-LL-06-06 3/8MNPT x 3/8MJIC 90 Deg. Adapter w/O-ring 2 HK
7130K55 1” Black Ties 12 HK
90108A036 ¾ USS Flat Washer 8
90126A033 ½ SAE Flat Washer 4 HK
90473A033 5/16-18UNC HEX NUT GRD. 2 4 HK
90473A223 ½-13UNC HEX NUT GRD. 2 20 HK
90640A129 ¼-20UNC Hex Nylon Lock Nut Grd. 2 4 HK
90640A130 5/16-18UNC Hex Nylon Lock Nut Grd. 2 6 HK
91102A033 ½ Lock Washer 20 HK
91102A036 ¾ LOCK WASHER 4 HK
91102A037 7/8 Lock Washer 4 HK
91247A583 5/16-18UNC x 1 HHCS Grd. 5 4 HK
91259A585 5/16 X 1 ¼ LG. SHOULDER BOLT 4 HK
91578A501 ¾-10UNC X 5 ½ WEDGE ANCHOR SET 16 HK
92865A720 ½-13UNC x 2 Lg. (Full Thrd) HHCS Grd. 5 4 HK
92865A843 ¾-10UNC x 2 Lg. (Full Thrd) HHCS Grd. 5 4 HK
95462A538 ¾-10UNC Hex Nut Grd. 5 4 HK
95462A542 7/8-9UNC Hex Nut Grd. 5 8 HK
95462A555 1-14UNF Hex Nut Grd. 5 4 HK
95473A030 5/16-18UNC Hex Nut Grd. 2 4 HK
98338A478 1/8 x 1 1/2 Lg. Cotter Pin 8
98410A128 ¾ “ Retainer Ring 6 HK
CUHC10500ZTAP727E #10-24 x ½ Lg Self Threading Screw 4 HK
12087-19 Power Unit 1 PKG
ALGF-412-034 Ramp Pivot Pin 2 PKG
ALIF-412-001-XX Front Stop 2 PKG
ALIF-418-016-XX RAMP Weldm’t. 2 PKG
ALIF-418-012-XX 44018 Track Weldm’t. 2 PKG
ALIF-418-212-XX 44018E Track Weldm’t. 2 PKG
ALIG-415-049 Offside Leg Chain Connector 2 PKG
ALIF-418-011 Sq. U-Bolts 8 PKG
ALIF-418-022L-XX Mainside Leg Weldm’t. 1 PKG
ALIF-418-022R-XX Mainside Leg Weldm’t. with P/U Mount 1 PKG
ALIF-418-023-XX Offside Leg Weldm’t. 2 PKG
ALIF-418-024 Safety Latch Rod 4 PKG
ALIF-418-120 0.375FJICS x 0.375FJICS Hose x 140” 1 PKG
ALIF-418-121 0.375FJICS x 0.375FJICS Hose x 68” 1 PKG
ALIF-418-062/262 Std/Ext Top Rail Assy. 1 PKG
AA4015001 4.00 Dia. 72” Stroke Hyd. Cylinder 1
90126A036 ¾ SAE Flat Washer 2
94945A235 ¾-16UNF Thin Nylon Lock Nut 1
94945A255GR2 1 1/8-12UNF Thin Nylon Lock Nut 2
98410A133 1.000 Dia. Retainer Ring 1
98410A139 1.50 Dia. Retainer Ring 2

Rev. 5/22/2017
44018-IOM-A.doc
98410A249 1.375 Dia. Retainer Ring 3
98381A634 0.375 Dia. x 2.5 Lg. Dowel Pin 2
PART NUMBER DESCRIPTION QTY.
ALIF-418-040-XX (44018) Top Rail Weldm’t. 1
ALIF-418-240-XX (44018E) Top Rail Weldm’t. 1
ALIF-418-041-XX Safety Latch Banjo 2
ALIF-418-042-XX Top Rail Reset 1
ALIF-418-043 Latch Pin 1
ALIF-418-046 Cylinder Chain Connector 1
ALIG-418-109 1 Dia. Cylinder Pin 1
ALIG-418-111 1 3/8 Dia. Pulley Pin 3
ALIG-418-113 BL844, 99 Pitch, Short Top Rail Chain 1
ALIG-418-114 (44018) BL844, 291 Pitch, Long Top Rail Chain 1
ALIG-418-214 (44018E) BL844, 327 Pitch, Long Top Rail Chain 1
GL-12-053-XX 5.5 Dia. Top Rail Wheel 2
GL-12-056 4.0 Dia. Pulley 3
ALIF-418-064 Cross Rail Assy. 2 PKG
728315 1.46 O.D. x 5” Safety Latch Spring 4
90126A031 3/8 SAE Flat Washer 8 HK
90126A038 1 SAE Flat Washer 4
91102A031 3/8 Lock Washer 8 HK
91251A623 3/8-16UNC x 7/8 Lg. SHCS 8 HK
91259A628 0.375 Dia. 1.50 Lg. Shoulder Bolt 2 HK
98410A128 0.750 Dia. Retainer Ring 6
98410A131 0.875 Dia. Retainer Ring 2 HK
ALIF-412-026 Sway Guide Rub Block 4 PKG
ALIF-418-030-XX Cross Rail Weldm’t. 2
ALIF-418-035 Safety Stop Plate 4
ALIF-418-036-XX Safety Latch 4
ALIF-418-044 Cross Rail Chain Connector 2
ALIF-418-048 Safety Latch / Bearing Pin 2
ALIF-418-050 Safety Latch Pin 4
ALIF-418-052 CR Chain Conn. Pin 2
ALIF-418-054 BL644, 271 Pitch Male Ends, Cross Rail Chain 2 PKG
ALIF-418-056-XX Sway Guide Bracket 4 PKG
ALIF-418-058 Packing Pin 4
GL-12-055 2.25 Dia. Pulley 4
*** Note: Al l hardware unless specified is grad e 2. All hardware is zinc coated unless
specified. Parts with PKG at the end are packe d on the lif t and parts with HK at the end
are packaged in a box and put on the lift

3 ' -3 "
1
0 ' - 1 1 / 1 6 "
I
NS I DE LEG
W ELDM ' T .
( 44 0 1 8 )
2 1 ' -3 9/ 1 6 "
(
44 0 1 8E )
23 ' - 1 0 1 /2 "
REQU I RED AREA
( 44 0 1 8 ) 1 4 ' - 0 " X 25 ' -6 "
(
44 0 1 8E ) 1 4 ' - 0 " X 28 ' -6 "
LOAD I NG
END
0 ' -4 "
M I N .
OFFS I DE
LEG
OFFS
I DE
LEG
MA
I NS I DE
LEG
MA
I NS I DE
LEG
( 44 0 1 8 )
2 1 ' -4 "
(
44 0 1 8E )
24 ' -4 "
(
44 0 1 8 )
1
7 ' - 0 "
(
44 0 1 8E )
2 0 ' - 0 "
3 ' -5 "
(
44 0 1 8 )
1
7 ' - 11"
(
44 0 1 8E )
2 0 ' - 11"
0 ' -4 "
1
' - 1 0 "
3 ' -2 " M I N .
CENTER OF
JACK RA
I L
2
' -4 1 / 1 6 "
1
' -2 1 5/ 1 6 "
11
' -6 1 /8 "
(
44 0 1 8 )
25 ' -6 "
(
44 0 1 8E )
28 ' -6 "
1
4 ' - 0 "
LAYOUT & I NSTALLAT I ON SPEC I F I CAT I ON
44
0 1 8 & 44 0 1 8E

OFFS
I
DE
MA
I
NS
I
DE
ENTRANCE
F
I
G
.
#2A
F
I
G
.
#2
ENTRANCE
MA
I
NS
I
DE
OFFS
I
DE

CHALK L
I
NE
MA
I
NS
I
DE
ENTRANCE
F
I
G
.
#3
FRONT
PO
W
ER UN
I
T
MOUNT
PO
W
ER UN
I
T
MOUNT
F
I
G
.
#4
ENTRANCE
MA
I
NS
I
DE
CHALK L
I
NE
REAR

2 X 4
BLOCKS
F
I G . #5

F
I
G
.
#7
92865A72
0
4X
1
/2-
1
3UNC X 2 HHCS
9
0
1
26A
0
33 4X
1
/2 SAE FLAT
W
ASHER
9
11
0
2A
0
33 4X
1
/2 LOCK
W
ASHER
9
0
473A223 4X
1
/2-
1
3UNC HEX NUT
SAFETY ROD
HOLE
F
I
G
.
#6

F I G . # 1 2
STAND
LATCH UP
25
0 1 - 0 6- 0 6 2X
3/8 MNPT X 3/8 MJ
I C 9 0 ° ADAPTER
