Challenger Lifts SRM10 Instruction manual

SRM10-IOM-A.doc - 1 - Rev. 02/21/19
Installation, Operation & Maintenance Manual
Multi-Purpose
Short-Rise Lift
Model SRM10
10,000 LBS.CAPACITY
2311 South Park Rd Louisville, Kentucky 40219
Email:[email protected] Web site:www.challengerlifts.com
Office 800-648-5438 / 502-625-0700 Fax [phone]
IMPORTANT: READ THIS MANUAL COMPLETELY
BEFORE INSTALLING or OPERATING
LIFT

SRM10-IOM-A.doc - 2 - Rev. 02/21/19
General Specifications
See Figure 1A & 1B SRM10 SRM10 (Flush Mount)
RiseHeight22" 17 3/4"
LoweredHeight4 1/4" -
LiftingCapacity
(HydraulicPressure@Cap.)10,000 lbs.
(1720 PSI)
LockHeights13 3/4", 18 3/8", 21 1/4" 9 1/2", 14 1/8", 17"
OverallWidth87 1/2" 73 1/4"
OverallLength92 7/8" 85 1/2"
RearwardMovement13 1/4"
Motor1HP, Single Phase, 60Hz, 115V (230V optional)
Fig. 1A General Surface Mount Layout

SRM10-IOM-A.doc - 3 - Rev. 02/21/19
Fig. 1B - General Flush Mount Layout
Fig. 2 - Flush Mount Pit Layout
(Provided By Others)
AA
AA
AA
AA
AA
AA
AA
AA
AA
VIEW A-A
AA
AA
AA
AA
AA
AA
AA
AA
AA
VIEW A-A
AA
AA
AA
AA
AA
AA
AA
AA
AA
VIEW A-A
AA
AA
AA
AA
AA
AA
AA
AA
AA
VIEW A-A

SRM10-IOM-A.doc - 4 - Rev. 02/21/19
BEFORE YOU BEGIN
Safety Notices and Decals
For you safety, and the safety of others, read and
understand all of the safety notices and decals
included here.
READ ENTIRE MANUAL BEFORE
ASSEMBLING,INSTALLING,OPERATING,
OR SERVICING THIS EQUIPMENT.
PROPER MAINTENANCE AND
INSPECTION IS NECESSARY FOR
SAFE OPERATION.
DO NOT operate a damaged lift.
Safety decals similar to those shown here are
found on a properly installed lift. Be sure that all
safety decals have been correctly installed on the
lift. Verify that all authorized operators know the
location of these decals and fully understand their
meaning. Replace worn, faded, or damaged
decals promptly.
Do not attempt to raise a
vehicle on the lift until the
lift has been correctly
installed and adjusted as described in this
manual.
LOCATION
This lift has been evaluated for indoor use only
with an operating ambient temp. range of 5 –
40°C (41–104°F)
WARNING

SRM10-IOM-A.doc - 5 - Rev. 02/21/19
RECEIVING
The shipment should be thoroughly inspected as
soon as it is received. The signed bill of lading is
acknowledgement by the carrier of receipt in
good condition of shipment covered by our
invoice. If any of the goods called for on this bill
of lading are shorted or damaged, do not accept
them until the carrier makes a notation on the
freight bill of the shorted or damaged goods. Do
this for your own protection.
NOTIFY Challenger Lifts AT ONCE if any
hidden loss or damage is discovered after receipt
IT IS DIFFICULT TO COLLECT FOR LOSS OR
DAMAGE AFTER YOU HAVE GIVEN THE
CARRIER A CLEAR RECEIPT.
File your claim with Challenger Lifts promptly.
Support your claim with copies of the bill of
lading, freight bill, and photographs, if available.
Flooring
Be certain you have the proper concrete floor to
properly handle the loaded lift. Floor should be in
generally good condition with no large cracks,
spalling or deterioration.
Minimum requirements for concrete are 4
inches minimum depth, with steel
reinforcement, 3500 psi, cured for 28 days per
local commercial practice. Floor should be
level within 3/8 inch over the installation area. No
anchors should be installed within 8 inches of any
crack, edge, or expansion joint.
If these conditions cannot be met, pads can be
poured to accommodate the lift. Pad must be a
minimum of 8 ft x 8 ft x 1 ft minimum thickness,
3500 psi steel reinforced mechanically attached
to existing floor.
Check with local building inspectors and/or
permits office for any special instructions or
approvals required for your installation.
A qualified person should be consulted to
address seismic loads and other local or state
requirements.
Failure by purchaser to
provide the recommended
mounting surface could
result in unsatisfactory lift performance, property
damage, or personal injury.
Vertical Clearance
Check the height of the area where the lift is to
be installed. Clearance should be calculated
based on the full raised height of the lift plus the
height of the tallest vehicle you intend to service.
Failure by purchaser to
provide adequate clearance
could result in unsatisfactory
lift performance, property damage, or personal
injury.
Electrical Requirements
For lift installation and operation, it is necessary
to have a dedicated 115V single-phase 60-cycle
circuit with a 20-amp circuit breaker or time delay
fuse.
Tools Required for Installation
1. Concrete hammer drill.
2. 3/4 inch & 1/2-inch solid drill bit with carbide
tip to ANSI Standard B94.12-1977.
3. Wrenches: 7/16, 1/2, 9/16, 5/8, 11/16, 15/16,
1 1/8 inch
4. Ratchet drive with the following sockets:
7/16, 1/2, 9/16, 1 1/8 inch
5. Hammer
6. Funnel
7. Torque wrench: 50 to 250 foot pounds
8. Adjustable wrenches: 8 and 12 inch
General Anchor Bolt Instructions
1. The anchor bolts must be installed at least 8
inches from any crack, edge, or expansion
joint.
2. Use a concrete hammer drill with a 3/4-inch
carbide tip. Tip diameter to ANSI Standard
B94.12-1977 (.775 to .787).
3. Do not use excessively worn bits or bits
which have been incorrectly sharpened.
4. Keep the drill in a perpendicular line while
drilling.
5. Let the drill do the work. Do not apply
excessive pressure.
6. Lift the drill up and down to remove dust and
reduce binding.
7. Drill the hole through the floor or to a depth of
5 inches minimum. Drill completely through
floor is possible.
8. Vacuum the dust from the hole. This
increases the holding power of the anchor
bolts.
9. Insert the assembled anchor bolt into the
hole.
10. Tighten the bolt securely, and torque to 150
foot-pounds after installation is complete.
NOTE: Anchor bolt holes are designed for a
tight fit. Using the lift frame, as a template will
slightly enlarge the holes, allowing for proper
tolerances once the anchor bolt is installed.
WARNING
WARNING

SRM10-IOM-A.doc - 6 - Rev. 02/21/19
Installation
SAFETY REQUIREMENTS FOR INSTALLATION
AND SERVICE
Refer to ANSI/ALI ALIS (current edition)
1. Locate the pad lift on a level concrete floor with
adequate space on all sides. Minimum floor
thickness is 4”. Minimum floor strength is 3500
psi.
WARNING DO NOT install on asphalt or other
similar unstable surface.
NOTE: The pad lift can be installed with the
cylinder end pointing towards the front or rear of
bay. Be aware of pad lift clearances according
to installation option chosen.

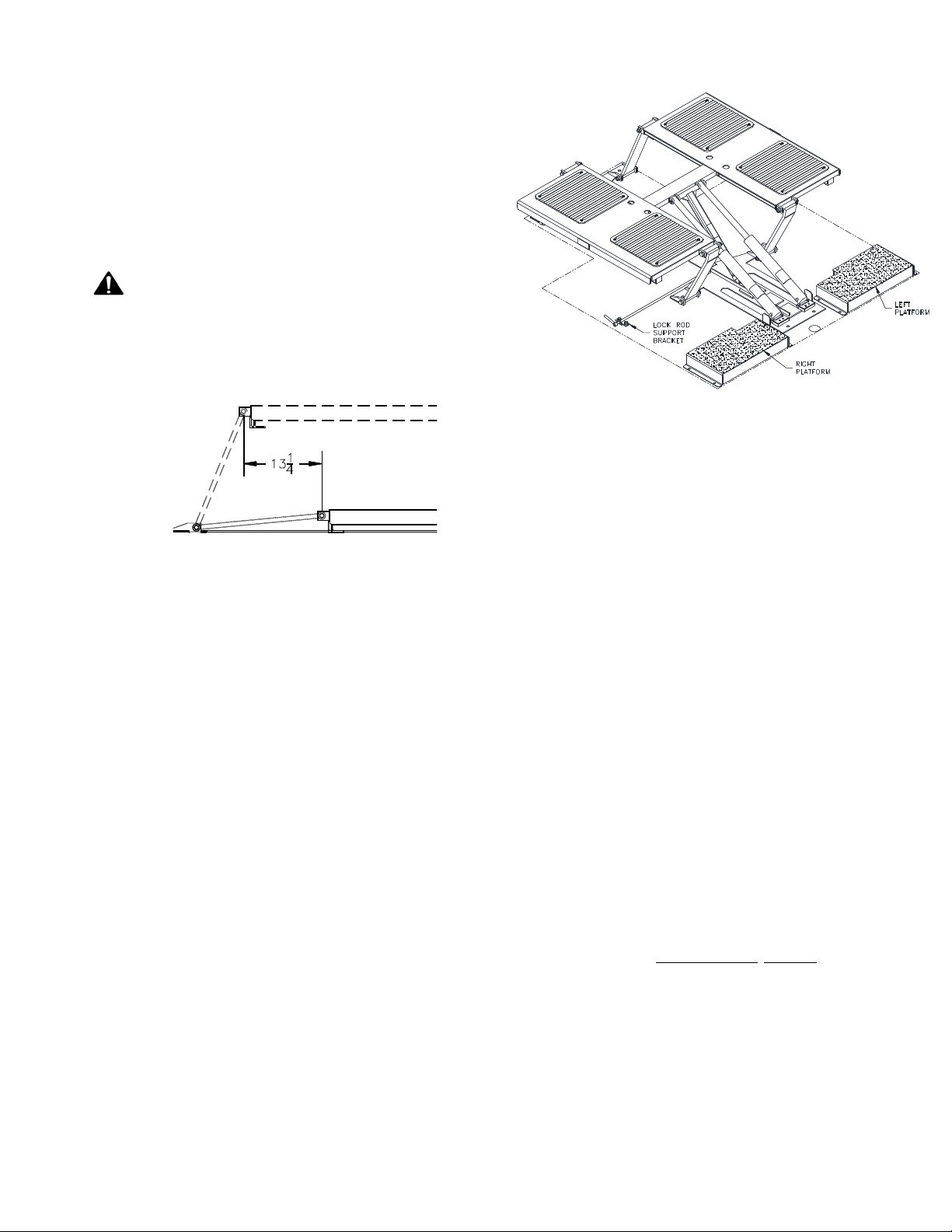

NOTE: At full rise, the lift will move the vehicle
rearward 13 1/4” as shown in Fig. 3.
Fig. 3 Rearward Movement
Installation (Surface Mount)
2. Place lift and ramps in desired location. The ramp
should be located to allow a minimum ½”
clearance around the lift platform, See Fig.1A.
Installation (Flush Mount)
3. Before placing lift in pit, insert the lock release
rod thru the pivot block welded to the base of the
lift. Once lift is in pit, this rod will not be able to
be installed due to its overall length.
4. Locate the pad lift in pit with adequate space on
all sides.
5. Place front platforms in the pit with adequate
space between the edge of the lift. Do not drill
anchor holes until lift can be fully raised and
lowered to ensure there are no interferences.
Fig. 4 Flush Mount Installation
Power Unit
CAUTION If lift is to be used in a paint booth, the
electrical power unit MUST be mounted
outside the booth.

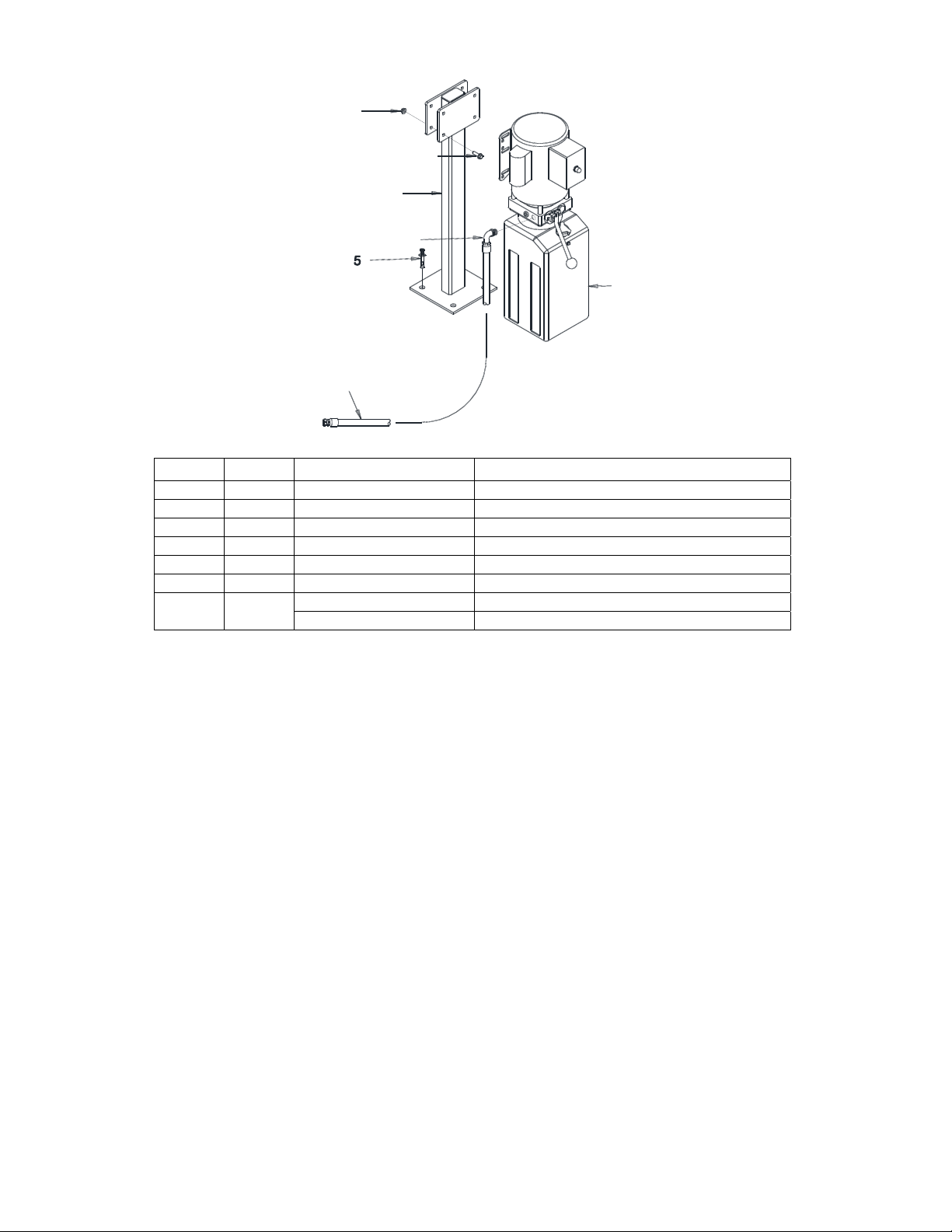

6. Locate the power unit stand using concrete
anchors provided. Mount the power unit to
the stand with 5/16” hardware provided. (The
power unit may also be mounted on a wall
with the motor at a minimum of 18” above the
floor. Purchase the appropriate mounting
hardware to match the wall construction.)
7. Connect the end of the hydraulic hose with
the 90-degree elbow to the pressure port on
the power unit. Tighten securely to prevent
leaking.
NOTE: To avoid damage to the hose, never run
the hose under the lift or in the path of the
automobile tires.
8. Fill the reservoir with 6 quarts clean 10wt
anti-foam, anti-rust hydraulic oil or Dexron III
ATF. DO NOT USE OILS WITH DETERGENTS.
9. Place the open end of the hose into a clean
bucket.
10. Electrical connection:
a. 115V (standard wiring) Plug power unit cord
into a dedicated 115V single phase 60 cycle
circuit with a 20 amp circuit breaker or time
delay fuse.
b. 230V (non-standard wiring) Connect Power
Unit to suitable electrical source as shown in
Fig 7.
11. Cycle the power unit (2 seconds on, 2
seconds off) until the hose expels a steady
stream of fluid.
12. Connect the hose to the tee fitting on the lift.

SRM10-IOM-A.doc - 7 - Rev. 02/21/19
13. Actuate the power unit to fully raise then fully
lower the lift. Repeat 3 to 4 times.
14. Drill the anchor holes and install the lift
anchor bolts.
CAUTION The power unit operates at high
pressure.
15. Raise and lower lift a few times and check
hose and fittings for leaks and tighten if
required. Check for binding, misalignment or
damage. Correct any unusual condition
before raising vehicle.

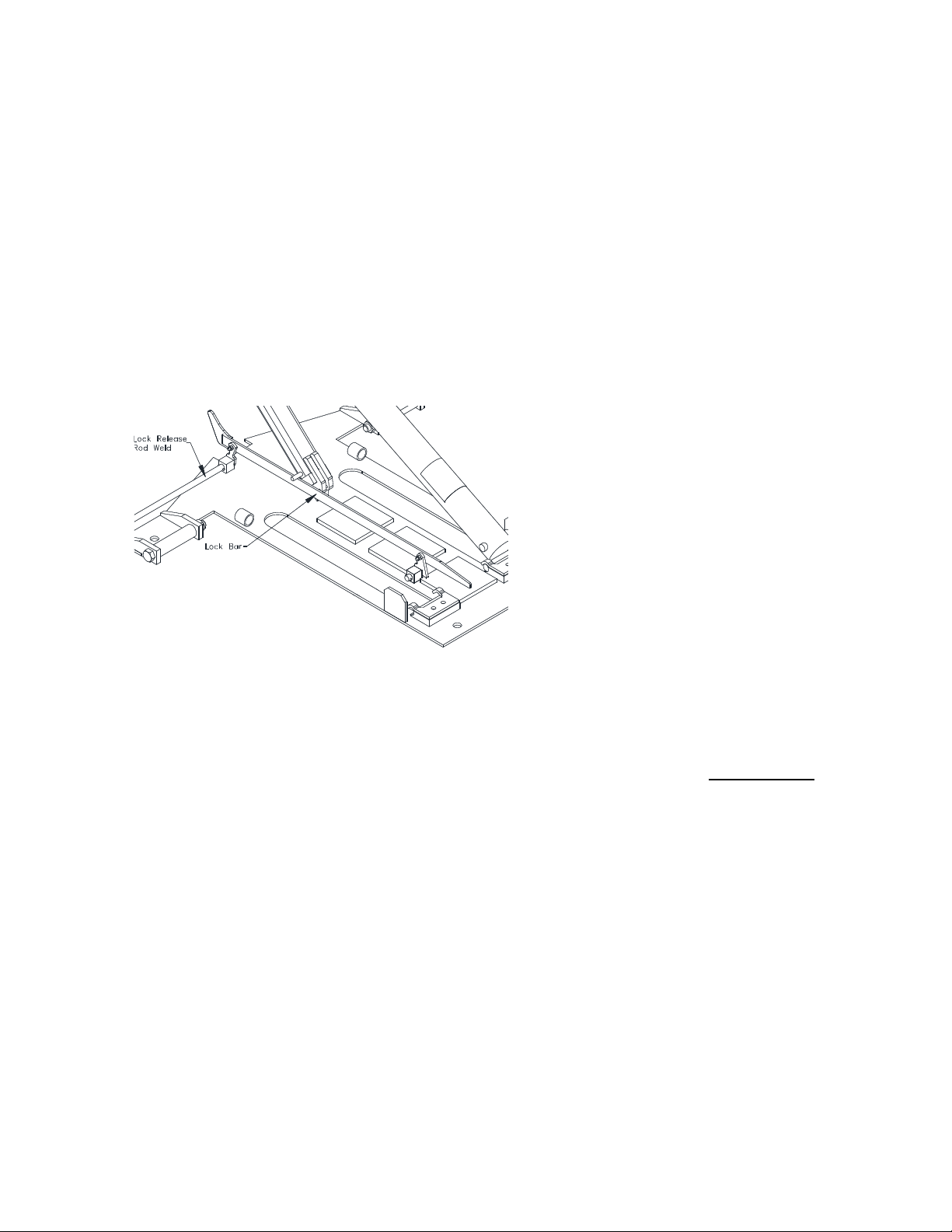

Lock Release
16. Assemble lock release mechanism using roll
pins and components provided as shown in
the figure below.
(Some parts removed for clarity)
17. For Flush Mount only, slide lock rod support
bracket over free end of lock rod before the
handle is attached to the end, See Fig. 4.
Also shown in Parts Breakdown at the end of
this manual.
18. Ensure lock release functions properly and
remains disengaged during complete
lowering of the lift once the lock handle is
rotated to the upright position. When lift is
close to fully lowered, the lock release should
reset automatically and the handle should be
in a horizontal position.
Anchoring
19. There are (6) 13/16” diameter holes provided
in the base frame for use with ¾” anchor
bolts. Once proper lift placement is
complete, drill holes using the base frame as
a template. Insert anchor bolts into holes but
do not tighten yet.
20. For Surface Mount only, there are (8) 5/8”
diameter holes in the ramp forms for use with
½” anchor bolts. Use the holes in the ramp
forms as a template and drill holes. Insert
anchor bolts into holes but do not tighten yet.
21. For Flush Mount only, there are (8) 5/8”
diameter holes in the front platforms and (2)
5/8” holes in the lock rod support bracket.
Use the platforms as a template and drill
holes and insert anchor bolts. Locate lock
rod support bracket near lock rod handle and
align with pivot block near center of lift base.
Ensure bracket does not interfere with
bottom of lift structure when lowered before
drilling holes. Drill holes and insert anchor
bolts using bracket as a template. Do not
tighten yet.
Shimming
22. The pad lift frame must not be twisted, bent
or otherwise misaligned by uneven floors
when anchoring. This will cause damage to
the lift. Maximum out-of-level is 1/4” between
all anchor points. If this is exceeded, it must
be shimmed at that anchor point. If
shimming exceeds 1/4" at any location, the
surrounding area under the base must be
grouted to eliminate improper loading of the
base.
23. For Flush Mount only, ensure lock rod
support bracket is shimmed as necessary for
proper function of the lock release. Lock rod
should pivot freely and be aligned with lock
block near the center of the lift.
24. Once all shims are in place, tighten all 3/4”
anchor bolts to 150 foot-pounds and all 1/2”
anchor bolts to 50 foot-pounds.
FINAL CHECKOUT PROCEDURE
25. Demonstrate the operation of the lift to the
owner/operator/employer using a typical
vehicle and review correct and safe lifting
procedures using the Lifting It Right booklet
as a guide.
26. Return all provided literature (including this
manual) to the literature pack envelope and
deliver the envelope to the
owner/operator/employer.
27. Complete the online warranty registration
(refer to the included warranty statement).

SRM10-IOM-A.doc - 8 - Rev. 02/21/19
OPERATION PROCEDURE
SAFETY NOTICES AND DECALS
This product is furnished with graphic safety
warning labels, which are reproduced on
page 3 of these instructions. Do not remove
or deface these warning labels, or allow them
to be removed or defaced. For your safety,
and the safety of others, read and understand
all of the safety notices and decals included.
OWNER/EMPLOYER RESPONSIBILITIES
This lift has been designed and constructed
according to ANSI/ALI ALCTV-2017 standard.
The standard applies to lift manufactures, as
well as to owners and employers. The
owner/employer’s responsibilities as
prescribed by ANSI/ALI ALOIM-2008, are
summarized below. For exact wording refer
to the actual standard provided with this
manual in the literature pack.
The Owner/Employer shall insure that the lift
operators are qualified and that they are trained
in the safe use and operation of the lift using the
manufacturer’s operating instructions; ALI/SM 93-
1, ALI Lifting It Right Safety Manual; ALI/ST-90
ALI Safety Tips Card; ANSI/ALI ALOIM-2008;
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; ALI/WL Series, ALI Uniform
Warning Label Decals/Placards; and in case of
frame engaging lifts, ALI/LP-GUIDE, Vehicle
Lifting Points/Quick Reference Guide for Frame
Engaging Lifts.
The Owner/Employer shall establish
procedures to periodically inspect the lift in
accordance with the lift manufacturer’s
instructions or ANSI/ALOIM-2008, American
National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and
Maintenance; and the employer shall insure that
the lift inspectors are qualified and they are
adequately trained in the inspection of the lift.
The Owner/Employer shall establish
procedures to periodically maintain the lift in
accordance with the lift manufacturer’s
instructions or ANSI/ALOIM-2008, American
National Standard for Automotive Lifts-Safety
Requirements for Operation, Inspection and
Maintenance; and the employer shall insure that
the lift maintenance personnel are qualified and
they are adequately trained in the inspection of
the lift.
The Owner/Employer shall maintain the
periodic inspection and maintenance records
recommended by the lift manufacturer or
ANSI/ALOIM-2008, American National Standard
for Automotive Lifts-Safety Requirements for
Operation, Inspection and Maintenance.
The Owner/Employer shall display the lift
manufacturer’s operating instructions; ALI/SM 93-
1, ALI Lifting It Right Safety Manual; ALI/ST-90
ALI Safety Tips Card; ANSI/ALI ALOIM-2008;
American National Standard for Automotive Lifts-
Safety Requirements for Operation, Inspection
and Maintenance; and in case of frame engaging
lift, ALI/LP-GUIDE, Vehicle Lifting Points/Quick
Reference Guide for Frame Engaging Lifts; in a
conspicuous location in the lift area convenient to
the operator.
IMPORTANT SAFETY INSTRUCTIONS
When using your garage equipment, basic safety
precautions should always be followed, including
the following:
1. Read all instructions.
2. Care must be taken as burns can occur
from touching hot parts.
3. To reduce the risk of fire, do not operate
equipment in the vicinity of open
containers of flammable liquids
(gasoline).
4. Keep hair, loose clothing, fingers, and all
parts of body away from moving parts.
5. Use only as described in this manual.
Use only manufacturer’s recommended
attachments.
6. ALWAYS WEAR SAFETY GLASSES.
Everyday eyeglasses only have impact
resistant lenses; they are not safety
glasses.
SAVE THESE INSTRUCTIONS

SRM10-IOM-A.doc - 9 - Rev. 02/21/19
Operating Instructions
NOTE: After reviewing these instructions and all
decals, get familiar with lift controls by running the
lift through a few cycles before loading vehicle on lift.
Loading Vehicle
1. Be sure lift is fully lowered and service bay is
clear of all personnel before the vehicle is
driven on to lift.
2. Position vehicle over lift having equal
distance from front tire to end of front ramps
and rear tire to end of rear ramps. Vehicle
must also be centered side to side.
WARNING Lift is designed to raise
complete vehicle. NEVER use to raise
just one end or side of vehicle.
NOTE: Some vehicles may have the
manufacturer’s recommended lift points identified
by triangle shape marks located on its
undercarriage. Also, there may be a label
located on the right front door lock face showing
specific vehicle lift points. If the vehicles lift
points are not identified, refer to the service
garage lift points shown in Fig. 5. ALWAYS
follow the operating instructions supplied with the
lift.

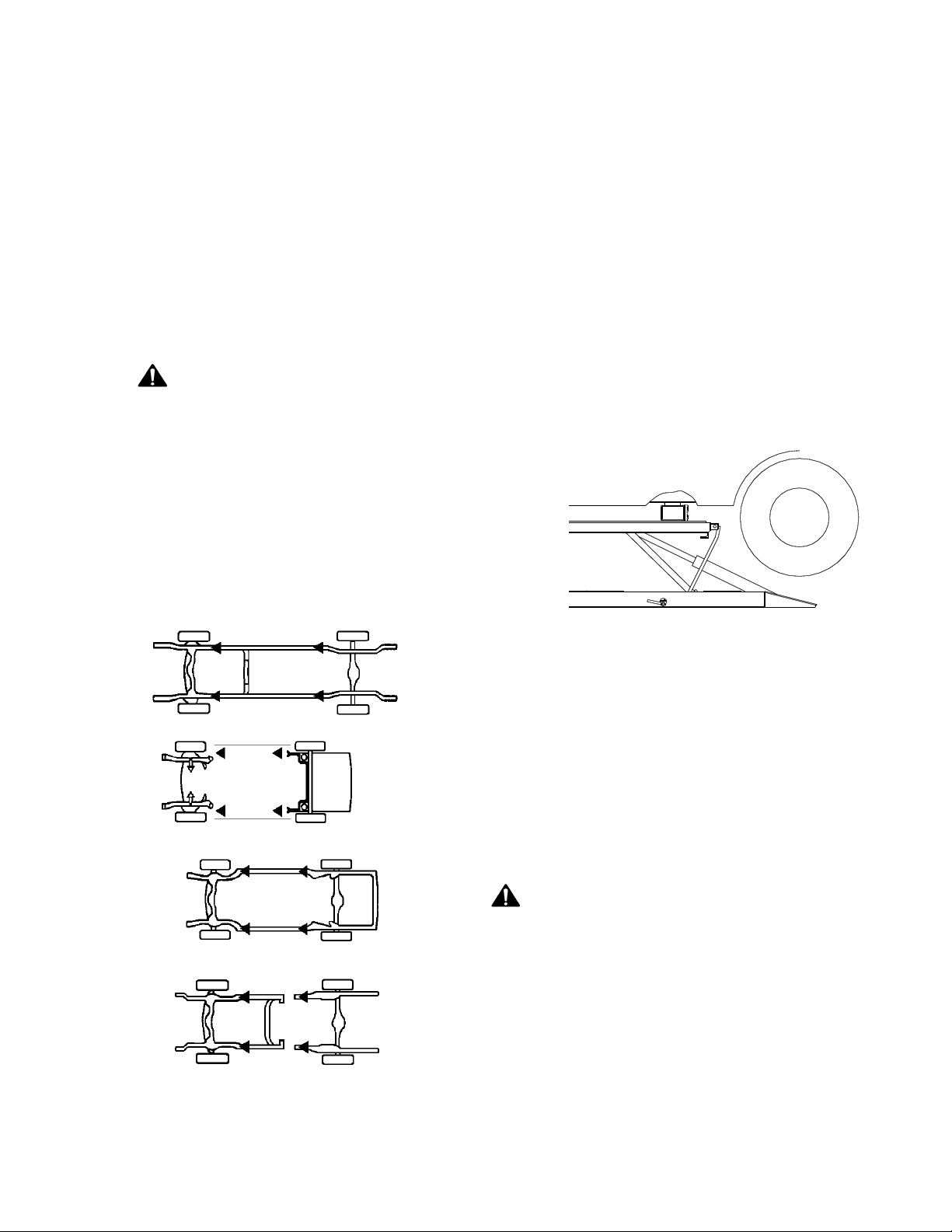

Ladder
Unitized
Perimeter
Stub Fig. 5 Service Garage Lift Points
CAUTION Most specialty or modified vehicles
cannot be raised on a frame engaging or pad lift.
Contact vehicle manufacturer for raising or
jacking details.
3. Before lifting the vehicle be sure that:
A. Individual axle weight of vehicle does not
exceed one-half lift capacity. See safety
instructions (capacity).
B. Spacer pads are in secure contact with
frame at vehicle manufacturer’s
recommended lift points.
C. Vehicle is stable on lift and neither front
nor rear heavy.
D. Use optional 4 3/4” and 6 3/4” spacer
pads if additional height between lift and
vehicle is required to clear underbody parts
as shown in Fig. 6.
Fig. 6 Optional Spacer Pads
CAUTION Always use minimum number of
spacer pads to clear obstruction. Spacer
pads should never be stacked more than (2)
pads high in any combination.
CAUTION With some vehicles, the removal
(or installation) of heavy components may
cause a critical shift in balance and result in
vehicle instability. Refer to the vehicle
manufacturer’s service manual for
recommended procedures when performing
these services.
Raising Vehicle
4. To raise lift:
A. Actuate RAISE switch on electric power unit.
B. Raise vehicle until tires clear floor.
C. Stop and check spacer pads for secure
contact at manufacturer’s recommended
lift points.
D. Continue to raise to desired height ONLY
if vehicle is secure on lift.
E. Once you have reached the required
height set into lock by depressing the
lowering handle.

SRM10-IOM-A.doc - 10 - Rev. 02/21/19
Lowering Vehicle
5. To lower lift:
Stand clear of lift and vehicle when
lowering. Observe pinch point warning decals.
A. Remove all tools or other objects from lift area.
B. Raise vehicle approximately 1”.
C. Disengage lock by rotating the lock
release handle clockwise until it stops.
D. Push LOWERING valve handle to lower lift.
CAUTION Lowering handle must be held down to
continue to lower lift. DO NOT override self-
closing lift controls.
6. Before moving vehicle, remove any spacer
pads and be sure lift is at the fully lowered
position.
LOSS OF POWER
If for any reason the lift will not raise off the locks
or the locks will not retract, consult factory
authorized personnel.
DO NOT OVERRIDE ANY SAFETY FEATURE
IN AN ATTEMPT TO LOWER THE LIFT.
NOTE: The lock bar will reset automatically when
the lift is fully lowered. If during the lowering
process the lock bar resets before it gets to the
fully lowered position, continue lowering by
repeating steps 5 or 6 from above.

SRM10-IOM-A.doc - 11 - Rev. 02/21/19
ELECTRICAL
(Normally Open) M
FIELD
CONECTIONS
FOR SINGLE PHASE
Fig. 5 Wiring for Non-Standard 230V
MAINTENANCE
To avoid personal injury, permit only qualified personnel to perform maintenance on this equipment.
Maintenance personnel should follow lockout/tag out instructions per ANSI Z244.1.
The following maintenance points are suggested as the basis of a routine maintenance program. The
actual maintenance program should be tailored to the installation. See ANSI/ALI ALOIM booklet for periodic
inspection checklist and maintenance log sheet.
If lift stops short of full rise or chatters, check fluid level and bleed both cylinders per Installation
Instructions.
Replace all Safety, Warning or Caution Labels if missing or damaged (See Installation
instructions page 3.)
See repair parts breakdown for replacement parts.
ALWAYS: Keep all anchor bolts tight. (1/2” Anchors 30 ft-lbs, 3/4” Anchors 80 ft-lbs).
ALWAYS: Keep all pivot bolts tight.
ALWAYS: Keep lift clean. Raise lift when cleaning floor area.
DAILY: Inspect spacer pads for damage or excessive wear.
DAILY: Check lock bar handle and release mechanism for damage or binding.
WEEKLY: Inspect all lift parts for signs of damage due to improper use.
MONTHLY: Lubricate lock bar pivot bolt and lock bar handle pivot points.
MONTHLY: Lubricate all hinge joints if there are signs of rusting.
MONTHLY: Visually inspect concrete floor for cracks and/or spalls within 12” of base plate
SEMI-ANNUALLY: Check fluid level of lift power unit and refill if required. Use only Dexron III ATF or 10wt
anti-foam, anti-rust hydraulic oil. If fluid is required, inspect hose and connections and cylinder seals.
Repair as required.

SRM10-IOM-A.doc - 12 - Rev. 02/21/19

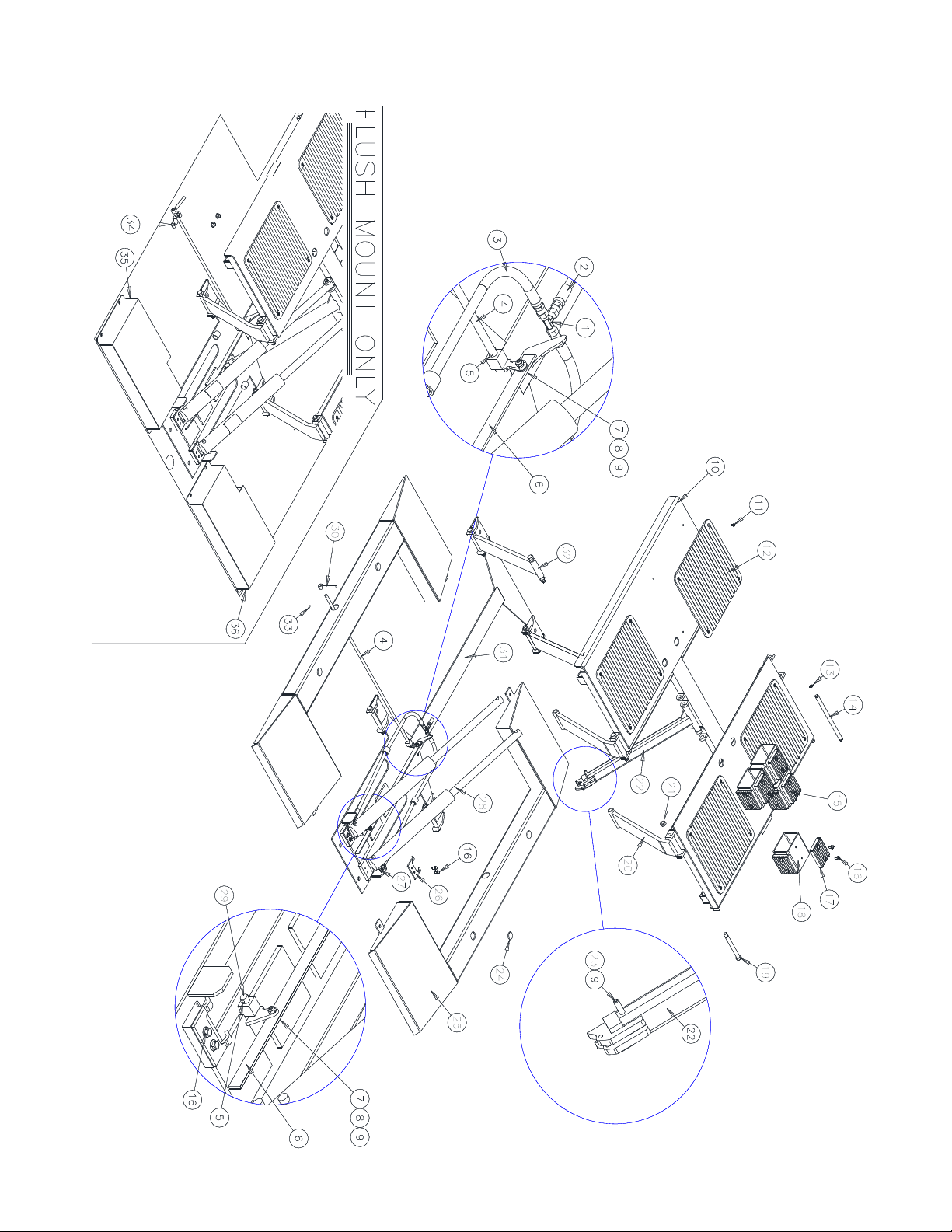

PARTS BREAKDOWN

SRM10-IOM-A.doc - 13 - Rev. 02/21/19
PARTS BREAKDOWN
ITEM # PART # QTY DECSRIPTION
1 60-0105 1 #6 JIC Male Branch Tee
2 62-0011-22 1 22 Foot x 3/8” Hydraulic Hose, #6 JIC Female Ends
62-0011-30 1 30 Foot x 3/8” Hydraulic Hose, #6 JIC Female Ends
3 62-0012 2 38” x 3/8” Hydraulic Hose, #6 JIC Female Ends (Surface Mount)
SR-0132 16” x 3/8” Hydraulic Hose, #6 JIC Female Ends (Flush Mount)
4 SR-0100 1 Lock Release Rod Weld (Surface Mount)
SR-0100S Lock Release Rod Weld (Flush Mount)
5 SR-0122 2 5mm x 19mm Roll Pin
6 SR-0103 1 Lock Release Bar
7 SR-0103-3 2 8mm x 8mm Countersunk Shoulder Bolt
8 SR-0112 2 8mm Flat Washer
9 SR-0113 3 M6 Nylon Locknut
10 03-0383 1 Platform Weld
11 VS10-31-08 16 M8 x 13mm Phillips Flat Head Screw
12 TPJ3-01-06 4 Rubber Pad
13 SR-0121 2 19mm External Snap Ring
14 73-0934 1 Main Pivot Pin
15 01-0235 4 Spacer Block Assembly
16 B1153 20 M10 x 19mm Hex Flange Head Screw
17 482365 8 Rubber Lift Pad
18 74-0239 4 Spacer Tube
19 SR-0124 8 Leg Pivot Bolt, 19mm x 155mm with M18 Thread
20 03-0382 2 Front Leg Weld
21 SR-0114 8 M18 Nylon Locknut
22 03-0384 1 Lock Leg Weld
23 SR-0115 1 Lock Release Pin
24 SR-0120 4 Hole Plug, 46mm, White
25 03-0392 2 Ramp Weldment (Surface Mount)
26 73-0769 2 Cylinder Retainer
27 SR-0116 2 Union Elbow 1/4 NPT x #6 JIC Male
28 63-0022 2 Hydraulic Cylinder, 2 ¼ x 18
29 SR-0101 1 Linkage Weld
30 SR-0102 1 Lock Release Handle
31 03-0385 1 Base Weld
32 03-0381 2 Rear Leg Weld
33 SR-0126 1 5mm x 24mm Roll Pin
34 SR-0131 1 Lock Rod Support Bracket, Not Shown (Flush Mount)
35 SR-0130R 1 Front Platform, Right, Not Shown (Flush Mount)
36 SR-0130L 1 Front Platform, Left, Not Shown (Flush Mount)
SR10-001 1 Height Adapter Kit (4 pieces item 17)
SR10-002 1 Hose and Fitting Kit (includes items 1, 3, and 27)
SR10-003 1 Hardware Box ( Surface Mount)
SRM10R-HW 1 Hardware Box (Flush Mount)
SR10-004 1 Literature Pack
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

SRM10-IOM-A.doc - 14 - Rev. 02/21/19
PARTS BREAKDOWN
Keep feet clear of lift while
lowering.
WARNING!CAUTION!
Engage lock bar before
working on raised vehicle.
Position vehicle with center of gravity
midway between lift pad spacers.
This lift is designed to raise complete
vehicles. NEVER use to raise just one end or
side of a vehicle.
Remain clear of the lift when raising or
lowering a vehicle.
Avoid excessive rocking of vehicle while on
lift.
Keep feet and hands clear of pinch points
when raising and lowering lift.
Before using this product, read and fully
understand the operating instructions and all
decals on the product.
Do not attempt to use this lift for anything
other than its intended purpose.
If vehicle begins to tilt as it is raised, STOP!
Lower the lift and reposition the vehicle.
Do not use this lift if it is visibly worn,
distorted or damaged.
CAUTION! ! WARNING
! CAUTION ! WARNING
Engage lock bar before
working on raised vehicle. Keep feet clear of lift while lowering.
Before using this product, read and fully
understand the operating instructions and all
decals on the product.
Do not attempt to use this lift for anything
other than its intended purpose.
If vehicle begins to tilt as it is raised, STOP!
Lower the lift and reposition the vehicle.
Do not use this lift if it is visibly worn,
distorted or damaged.
Position vehicle with center of gravity
midway between lift pad spacers.
This lift is designed to raise complete
vehicles. NEVER use to raise just one end or
side of a vehicle.
Remain clear of the lift when raising or
lowering a vehicle.
Avoid excessive rocking of vehicle while on
lift.
Keep feet and hands clear of pinch points
when raising and lowering lift.
CAUTION! WARNING!
! CAUTION ! WARNING
Engage lock bar before
working on raised vehicle. Keep feet clear of lift while lowering.
Before using this product, read and fully
understand the operating instructions and all
decals on the product.
Do not attempt to use this lift for anything
other than its intended purpose.
If vehicle begins to tilt as it is raised, STOP!
Lower the lift and reposition the vehicle.
Do not use this lift if it is visibly worn,
distorted or damaged.
Position vehicle with center of gravity
midway between lift pad spacers.
This lift is designed to raise complete
vehicles. NEVER use to raise just one end or
side of a vehicle.
Remain clear of the lift when raising or
lowering a vehicle.
Avoid excessive rocking of vehicle while on
lift.
Keep feet and hands clear of pinch points
when raising and lowering lift.
CAUTION! WARNING!
! CAUTION ! WARNING
Engage lock bar before
working on raised vehicle. Keep feet clear of lift while lowering.
Before using this product, read and fully
understand the operating instructions and all
decals on the product.
Do not attempt to use this lift for anything
other than its intended purpose.
If vehicle begins to tilt as it is raised, STOP!
Lower the lift and reposition the vehicle.
Do not use this lift if it is visibly worn,
distorted or damaged.
Position vehicle with center of gravity
midway between lift pad spacers.
This lift is designed to raise complete
vehicles. NEVER use to raise just one end or
side of a vehicle.
Remain clear of the lift when raising or
lowering a vehicle.
Avoid excessive rocking of vehicle while on
lift.
Keep feet and hands clear of pinch points
when raising and lowering lift.
CAUTION! WARNING!
80-0147 80-0148 80-0150 80-0151
ITEM QTY PART NO. DESCRIPTION
1 1 485412 ALI Warning Placard, Low Rise
2 1 80-0147 Caution Decal
3 2 80-0148 Warning Decal
4 1 80-0150 Caution Decal
5 1 80-0151 Warning Decal
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)

SRM10-IOM-A.doc - 15 - Rev. 02/21/19
PARTS BREAKDOWN
3
6
7
6
3
7
6
3
7
6
3
7
4
4
4
4
1
1
1
1
2
2
2
2
ITEM QTY PART NO. DESCRIPTION
1 4 4100237 5/16-18 Hex Flange Nut
2 4 A1069 5/16-18 x 1 Hex Flange Head Bolt
3 1 03-0196/03-0389 Power Unit Stand / 7 Foot Stand
4 1 16167 9/16 O Ring x 37 Deg. Elbow
5 4 68029 Anchor Bolt, 1/2 x 3 1/2" lg
6 2 62-0011 or 62-0011-30 3/8” Hydraulic Hose x 20’lg or 30’lg
7 1 AB-1563-A 115VAC., Power Unit, 60Hz
AB-1563-220 230VAC., Power Unit, 50/60Hz
Replace all worn, damaged, or broken parts with parts approved by Challenger Lifts Inc.
or with parts meeting Challenger Lifts Inc. specifications.
Contact your local Challenger Lifts Parts Distributor for pricing and availability.
(Call Challenger Lifts Inc. [phone] for the Parts Distributor in your area)
