Challenger Lifts 44060 Instruction manual

INSTALLATION, OPERATION &
MAINTENANCE MANUAL
Heavy Duty
Four Post Lift
MODEL 44060
Standard and Extended
60,000 lbs Capacity
200 Cabel Street, P.O. Box 3944 Louisville, Kentucky 40201-3944
Email:[e-mail] Web site:www.challengerlifts.com
Office 800-648-5438 / 502-625-0700
Fax [phone]
IMPORTANT: READ THIS MANUAL
COMPLETELY BEFORE INSTALLING or
OPERATING LIFT
Rev. 1/26/09

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
2
TABLE OF CONTENTS
Important Information 3
Cautions and Warnings 3
ToolsRequired 4
AnchoringTips 5
Installation Instructions 6
30 Day Maintenance 8
Trouble Shooting Guide 9
Parts&ShippingList 10
Parts Breakdown and Installation Drawings 14

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
3
IMPORTANT INFORMATION
1. The floor where the lift is to be installed must be a minimum of 5” thickness of
concrete. Concrete must be reinforced with steel rebar with a minimum compressive
strength of 3,000 psi . Failure by the purchaser to provide the recommended mounting
surfaces could result in personal injury, property damage and/or unsatisfactory lift
performance.
2. Read the installation manual before installing the lift.
3. The four different size lifts referenced in this manual are sized according to the Track
lengths inside the Cross Rails. The different lifts are as follows:
- MDL 44060 has a track length of 25’.
- MDL 44060E has a track length of 30’.
- MDL 44060X has a track length of 35’.
4. This lift is a four post lift which requires a minimum (44060) 26’-1” x 42’-4”
(44060E) 26’-1” x 47’-4” or (44060X) 26’-1” x 52’-4” bay area.
5. Read anchoring tips information before drilling and installing the anchor bolts.
6. Do not raise a vehicle with the lift until the lift has been correctly installed and
adjusted as described in this manual.
7. Maximum floor variation between any two posts is 2 inches.
CAUTIONS AND WARNINGS
MOTORS AND ELECTRIC CONTROLS ARE NOT – SEALED
AGAINST WEATHER OR MOISTURE. DAMAGE OR ELECTRICAL
SHOCK MAY OCCUR IF INSTALLED UNPROTECTED OUTDOORS.
FACTORY MUST BE NOTIFIED WITHIN 30 DAYS OF DELIVERY
IF THERE ARE ANY PARTS MISSING.
RECOMMENDED OIL: HYDRUALIC MEDIUM OIL AW-32 OR
EQUIVALENT.

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
4
TOOLS REQUIRED
Concrete rotary hammer drill with ¾” carbide bit
Open End Wrenches: 7/16”, 1/2”, 9/16”, 3/4”, 15/16”, 1 1/8”, 1 11/16” & 1 7/8”
Ratchet Driver
Sockets: ¼”, 1/2”, 3/4”, 15/16”, 1 1/8”, 1 11/16” Deep Socket X 1/2”
Allen Wrenches: 3/16”, 1/4” & 5/16”
8” and 15” Crescent Wrench
Phillip and Slotted Screw Driver
Hammer
Needle Nose Pliers
Retainer Ring Pliers
Electrical Pliers
Level
50’ Tape Measure
Chalk Line
Small Drift Punch
30” Pry Bar
Nylon Lifting Sling
Step Ladder
21 gallons of hydraulic medium oil AW-32 or equivalent
¼” Pneumatic Hose
4 x 4 Wood Blocks
#19 Steel Drill (0.166 Dia.)
Fork Lift

MDL 44060 Installation Operation Manual
ANCHORING TIPS
1. Anchor must be at least 5” from the edge of the slab or any seam.
2. Use a concrete hammer drill with a 3/4” carbide bit.
3. Do not use a worn bit.
4. Drill in a perpendicular line with the hole.
5. Do not apply excessive pressure to the drill. Let the drill do the work.
6. Lift the drill up and down occasionally to remove residue and to reduce binding.
7. Drill the hole depth equal to the length of the anchor, or completely through the slab.
8. For better holding power, blow all dust and residue from the hole before driving
anchor into hole.
Place a flat washer over threaded end of anchor. Spin nut 1/2” down past end of anchor.
Carefully tap anchor into the concrete until nut and flat washer are against base plate. Do
not use an impact wrench to tighten.
44060-IOM
Rev. 1/26/09
5

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
6
INSTALLATION INSTRUCTIONS
1. Determine the location for the lift. Keep in mind overhead clearances. Sixteen feet is
the minimum recommended ceiling height. A higher ceiling may be required
depending the height of the vehicles. Standard dimension required for four post lift is
a minimum (44060) 26’-1” x 42’-4”, (44060E) 26’-1” x 47’-4” or (44060X) 26’-1” x
52’-4” bay area.
2. Unpacking lift, inspect lift for any damages due to transportation and check shipping
list for missing parts.
3. Determine which side of the lift the Control Console is to be installed. This is called
the MAINSIDE. The other side is referred to as the OFFSIDE. Ease of entry and
exit from vehicles, type of work being done and required placement of the console to
the lift are all considerations.

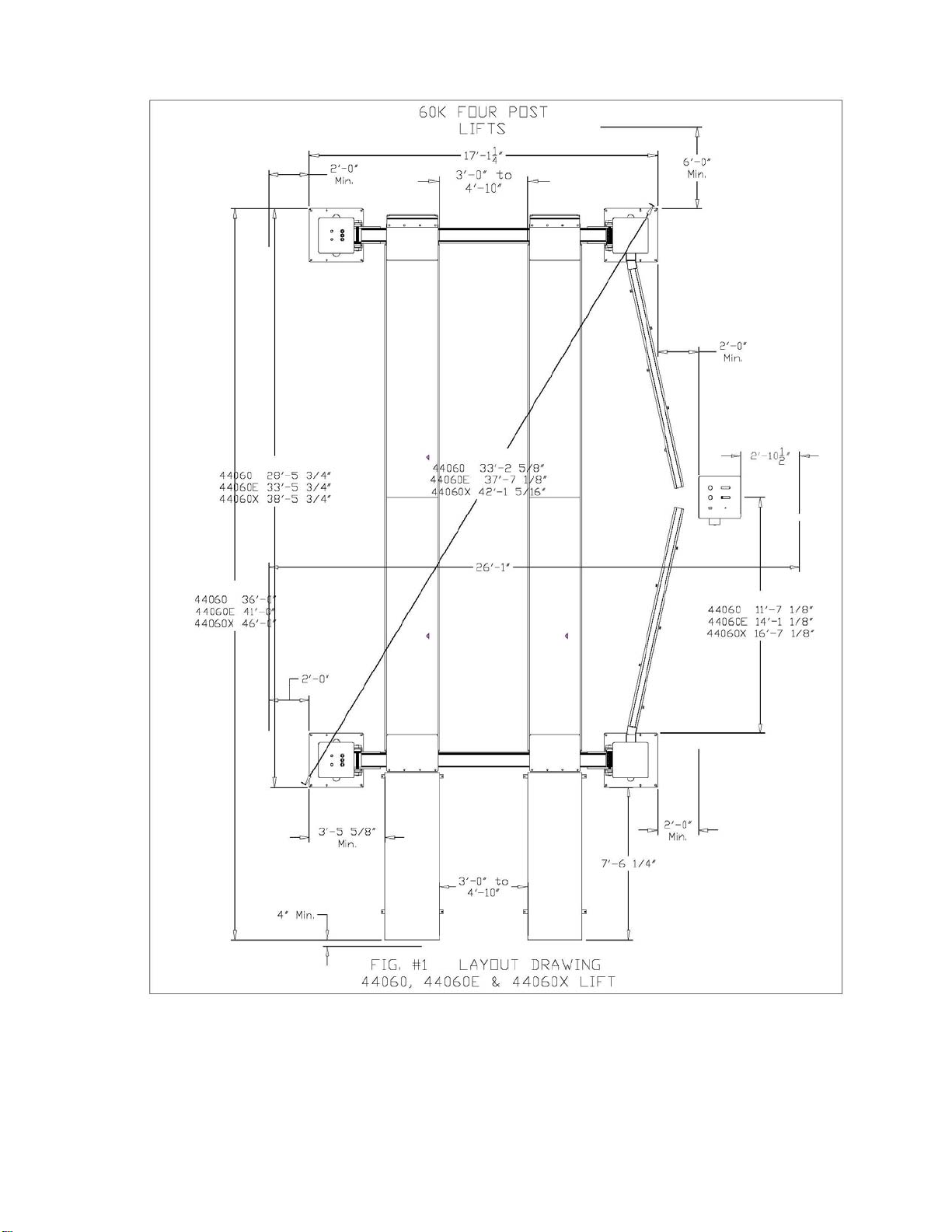

4. Step #1 Using the chalk line layout a rectangle were the leg assemblies will be
located (44060) 17’-1 1/4” x 28’-5 3/4”, (44060E) 17’-1 1/4” x 33’-5 3/4” or
(44060X) 17’-1 1/4” x 38’-5 3/4” bay area (see Layout & Installation Specification
sheet). This should give the lift 4” clearance in front of the ramps and 7’-6 1/4” from
the side of the any leg.
5. Step #2 After determining the Mainside, stand the two Mainside Legs upright inside
the chalk lines, with each leg facing inside. The two legs comes with two holes in the
bottom of the legs they should be facing the Control Console. (See Fig. #1 Layout
Drawing and Fig. #2.) Next level and anchor the Mainside Legs per the anchor tips
shown above.
6. Step #3 Unpack the inside of the leg by removing the wood blocks and chain straps.
Next run the hydraulic hose and ¼ airline tube thru the two holes with rubber
grommets in the legs. Do both legs the same way.
7. Step #4 Locate the LH and RH Cross Rails. Position the Cross Rail about 12” to 18”
from the Mainside Leg as shown in Fig. #2 and Fig. #10. Mainside end of the Cross
Rail in front of the Mainside Leg. Set each Cross Rail on two 4 x 4 blocks of wood.
Next connect the Cross Rail chains to the chain connector located at the base of the
Mainside Leg. There are two 2 ½” long dowel pins and one 3” long dowel pin inside
the chain connector held in place by dowel pin holders (See Fig. #2 & Fig. #13).
Remove the holders and slide the pins out. Connect the center chain first using the 3”
dowel pin then the outer chains using the 2 ½” dowel pins. Then bolt the RH/LH
dowel pin holders on the connector. Repeat procedure the other Mainside Leg.
8. Step #5 Slide the Cross Rail towards the Mainside Leg (See Fig. #3 & Fig. #10B).
The Cross Rail tube should be flush with the front part of the latch bar on the leg
weldment. Next connect the cylinder chain to the Cross Rail chain connector. There
should be two 4” long dowel pins in Cross Rail chain connector. Remove the holders

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
7
and slide the pins out. First connect the outside chain then the center chain. Then bolt
the RH/LH dowel pin holders on the connector to secure the dowel pins. Repeat
procedure the other Mainside Leg.
9. Step #6 Move the Offside Legs in front of the Offside end of the Cross Rail (See Fig.
#4, Fig. #10A). The end of the Cross Rail should be flush with the base plate of the
leg weldment. Next remove one at a time the safety latch pin keepers and replace it
with the safety rods. Next slide the Offside Leg into position. Look at your chalk line
layout. Once the leg is in position, pull the two safety rods thru the two holes. The
rods should stick out about 2” past the top plate (See Fig. #12). Screw and tighten the
1 ¼” Lock Washer and 1 ¼-7UNC Hex Nut. Repeat procedure the other Offside Leg.
Note the rectangular tube of the Cross Rail should be flush with the edge of the latch
bar welded on the Offside Leg.
10. Step #7 Locate the six round threaded chain connectors, 3/8” shoulder bolt and 5/16-
18UNC Nylon Hex Nut (See Fig. # 5 & Fig. #12). Attach the chain connector to the
chain and pull each thru the three holes on the top plate. Use vice grip pliers to hold
the bottom of the chain connector in place and a deep 1 11/16” deep socket to tighten
the jam nut. There should be about 1 ½” worth of threads past the first jam nut. May
have to adjust the chain connector depending on how level the lift is from side to side
with weight on the lift. Repeat procedure the other Offside Leg.
11. Step #8 Level and anchor the both Offside Leg. Anchor the Offside per the anchor
tips shown above.
12. Step #9 Locate and attach the rub block bracket as shown in Fig. #6. The rub block
brackets are also shown in Fig. #10, #10A & #10B. Raise Cross Rail about 24”, this
makes it easier to attach the brackets to Cross Rails. Mainside Leg uses the Single
Rub Block Bracket. The Offside Leg uses the Double Rub Block Bracket. Slide the
brackets in from the bottom and attach them using the 5/8 bolts, 5/8 lock washers and
the 5/8 flat washers.

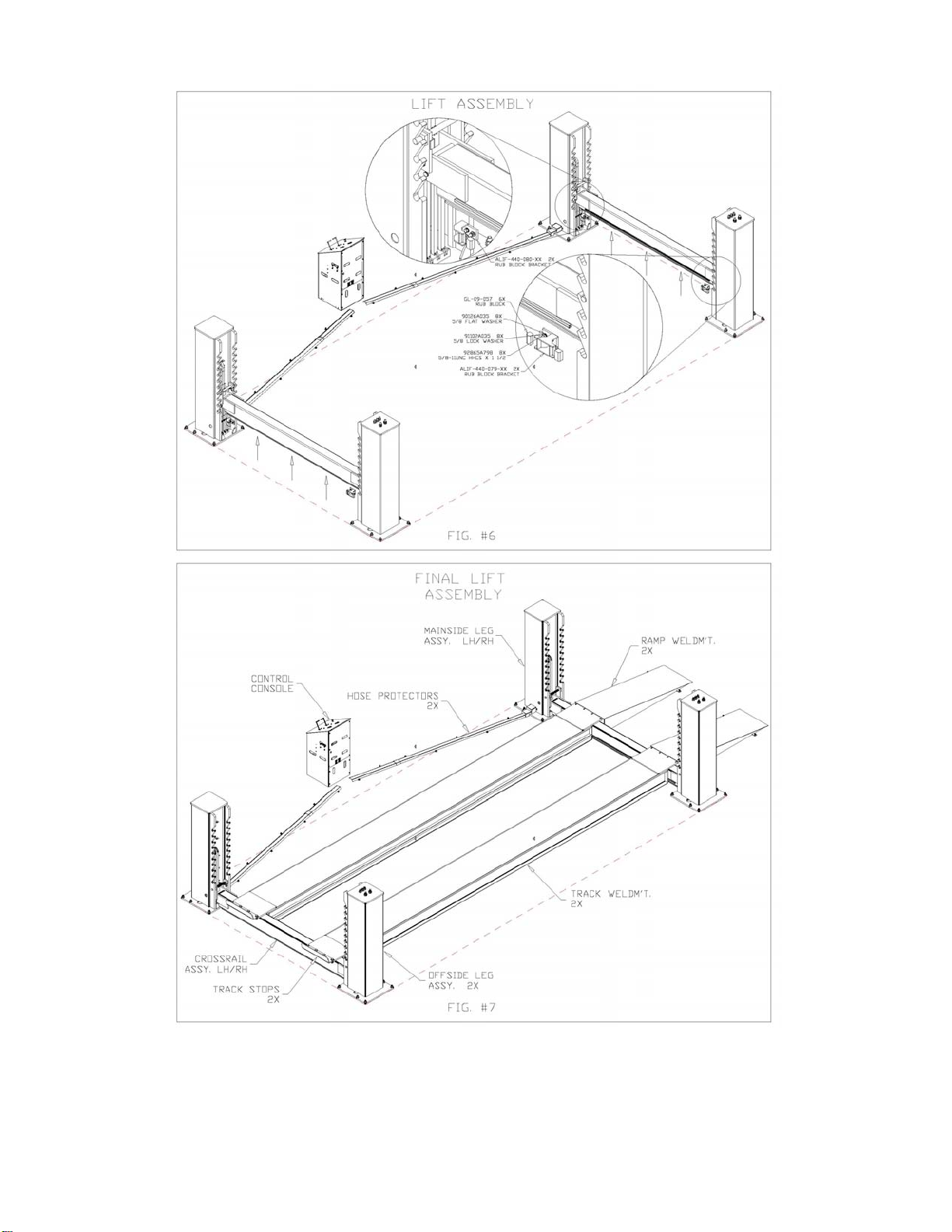

13. Step #10 Locate and position the two Tracks in between the Cross Rail (See Fig. #1,
Fig. #7 & Fig. #11). Both jack rails on each Track should be facing each other. The
Track should be centered on the Cross Rail and should have a spacing of 3’-0” to 4’-
10” depending on the customer’s preference.
14. Step #11 Locate and position the two Ramps at the end of the Tracks (See Fig. #1,
Fig. #7 & Fig. #11). The Ramps can be placed on either end. The spacing between the
end of the Track plate and the Ramp should be about 3/8”. Next anchor Ramps using
the ½ anchor bolts.
15. Step #12 Locate and position the two Stops at the end of the Tracks (See Fig. #1, Fig.
#7 & Fig. #11). The Stops can also be placed on either end of the Tracks unless
Ramps are already anchored. Use ¾ bolts, ¾ flat washers, ¾ lock washers and ¾ nuts
to bolts Stops to the end plates of the Tracks.

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
8
16. Step #13 Locate and position the Control Console at centered between the two
Mainside Legs and a minimum of 2’-0” from the outside of the base plate (See Fig.
#1). Remove Top Console cover and attach hydraulic hoses and pneumatic tube as
shown in Fig.# 9.
17. Step #14 Next attach the 5/32” diameter coiled tube on the top tube connector in each
Mainside Leg to the pneumatic cylinders on the Cross Rails.
18. Step #15 Locate and position the hydraulic hose protectors as shown in Fig. #6.
Anchor protectors per anchor tips. Use 3/8 anchor bolts to secure hose protectors.
19. Step #16 Fill the power unit tank with AW-32 or equivalent hydraulic oil. Reservoir
has a 20-gallon capacity.
20. Step #17 Wire motor starter and motor (See power unit manual for installation).
21. Step #18 Raise lift and level Cross Rails side to side by adjusting the Threaded Chain
Connector on the Offside Legs. Cross Rails may have to re-adjust chain when load is
on the lift.
22. Step #19 Purge trapped air in hydraulic lines by raising and lowering lift repeatedly.
Refill tank with hydraulic oil and lift is ready to operate.
30 DAY MAINTENANCE
1) Check all bolts and nuts to make sure they are tight.
2) Check equalizer chains regularly for proper tension and adjustment.
3) Inspect adapters and pads for damage or wear. Replace if necessary.
4) Inspect all hydraulic lines and fittings for leaks and tighten if necessary.
5) Check locking latches and releases for proper operation.
6) During first week check and tighten anchor bolts daily and check concrete for stress
cracks

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
9
TROUBLE SHOOTING GUIDE
POSSIBLE PROBLEM POSSIBLE CAUSE & SOLUTIONS
1. MOTOR DOES NOT RUN A) Breaker tripped or fuse blown
B) Motor thermal overload tripped.
Wait for overload to cool.
C) Check thermal overload in starter
box (three phase only). Push to
reset.
D) Defective control switch, replace
E) Faulty wiring connections. Call
electrician.
2. MOTOR RUNS BUT THE LIFT A) A foreign object under check
WILL NOT RAISE OR HOLD A LOAD valve. Turn P/U on and push
lowering handle down.
Foreign matter should release
under pressure.
B) Remove check valve. Clean and
replace.
C) Oil level low: check oil
reservoir. With tracks in the
down position, pump reservoir
should be full.
3. MOTOR RUNS BUT THE LIFT PICKS A) Relief valve setting is too low.
UP PARTIAL LOAD ONLY. Loosen hex nut on pump and
adjust valve clockwise.
B) Hydraulic seals damaged (call
factory for instructions)
4. OIL BLOWS OUT BREATHER A) Oil reservoir overfilled
B) Lift lowered too quickly while
under heavy load.
5. LIFT MAKES A GROANING A) Bleed cylinder manually.
SOUNDING WHEN RAISING OR
LOWERING.
6. LIFT RAISES UNEVENLY A) Chain are not properly adjusted
or tighten.
B) Use lighter weight oil in the
pump.
For other possible problems reference Power Unit Owners Manual

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
10
PARTS & SHIPPING LIST
PART NUMBER DESCRIPTION QTY.
Control Console 1
2772-BLK Rubber Grommet 4
2404-06-06 3/8MJIC x 3/8MNPT Straight Adapter 2
2404-08-08 1/2MJIC x 1/2MNPT Straight Adapter 2
2404-08-12 1/2MJIC x 3/4MNPT Straight Adapter 1
2405-06-04 3/8MJIC x 1/4FNPT Straight Adapter 2
2406-12-08 3/4FJIC x 1/2MNPT Straight Adapter 1
4272731 Hydraulic Pressure Gage 2
47865K21 1/4NPT Brass Ball Valve 1
5406-04P 1/4NPT Plug 1
5485K22 1/4NPT Brass Nipple 1
60115K39 F/L/R Air System 1
6410-10-06 5/8MORB x 3/8FORB Straight Reducer 2
6801-08-12 1/2MJIC x 3/4MORB 90 Deg. Adapter 4
6803-08-08-12 1/2MJIC x 1/2MJIC x 3/4MORB Tee 1
6804-06-06-06 3/8MJIC x 3/8MORB x 3/8MJIC Run Tee 2
6804-06-08-06 3/8MJIC x 1/2MORB x 3/8MJIC Run Tee 1
90126A030 5/16 SAE Flat Washer 10
90272A148 #6-32 x ½ Pan Head Phillip Screw 6
90272A247 #10-24UNC x 1 Pan Head Phillip Screw 9
90272A546 ¼-20UNC x 1 ½ Pan Head Phillip Screw 6
90480A007 #6-32 Mach. Screw Nut 6
90480A011 #10-24 Mach. Screw Nut 9
91102A007 #6 Lock Washer 6
91102A011 #10 Lock Washer 9
91102A030 5/16 Lock Washer 10
91102A031 3/8 Lock Washer 8
91251A623 3/8-16UNC SHCS x 7/8 Lg. 4
91309A624 3/8-16UNC HHCS x 1 Lg. 10
91578A304 ½-13UNC x 4 ½ Wedge Anchor w/nut & washer 2 HK
92865A581 5/16-18UNC HHCS x ¾ Lg. 10
ALIF-440-106-XX Top Panel Cover 1
ALIF-440-112-XX Bottom Panel Cover 1
ALIF-440-113-XX Control Panel 1
ALIF-440-119 #10MORB x #6FORB w/0.188 Orifice 2
A0-120-T3-J-S Tandem Center Spool Valve 2
DA15371-H 15 Hp Power Unit, 20 Gal Capacity 1
K02 Pneumatic Control Valve 1
PT24006BK 3/8 O.D. Black Tube 3 Ft.
P23 50/50 Flow Divider 1
SPB-4002-B ¼ ID x 1/4MNPT Push-On Branch Tee 1
SPC-6002 3/8 ID x 1/4MNPT Push-On Straight 2

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
11
Cross Rail Assy. 1/1
6498K43 1 1/16 Cyl. Clevis 4
6498K72 ¾” Pivot Bracket 4
6498K337-3.00 1 1/16 Air Cylinder x 3.0 Stroke 4
90126A035 5/8 Flat Washer 16 HK
90126A040 1 ¼ SAE Flat Washer 8
90126A041 1 3/8 SAE Flat Washer 12
91102A029 ¼ Lock Washer 4
91102A035 5/8 Lock Washer 16 HK
92865A537 ¼-20UNC HHCS x ½” Lg. 4
92865A798 5/8-11UNC HHCS x 1 ½ Lg. 16 HK
98381A683 7/16 Dowel Pin x 4” Lg. 4
98410A139 1 ½ Ext. Retainer Ring 12
98410A249 1 3/8 Ext. Retainer Ring 4
ALIF-440-036L/R-X MS Safety Latch Bar 1/1
ALIF-440-037L/R-X OS Safety Latch Bar 1/1
ALIF-440-038-XX Safety Latch Bracket 2
ALIF-440-054-XX Safety Latch Weldm’t. 4
ALIF-440-061 MS Cross Rail Pin 2
ALIF-440-063 Safety Latch Pin 2
ALIF-440-066 Safety Latch Pin 4
ALIF-440-067 Chain Anchor Stud 6 PKG
ALIF-440-068 3-Chain Sheave 4
ALIF-440-069 Safety Latch Plate 2
ALIF-440-079-XX Double Rub Block Bracket 4 PKG
ALIF-440-080-XX Single Rub Block Bracket 4 PKG
ALIF-440-100 Safety Latch Spring, 1.968 OD x 0.225W x 8.00 Comp. 4
ALIF-440-101 Safety Latch Spring, 0.687 OD x 0.105W x 7.25 Ext. 4
ALIF-440-102 Cross Rail Chain 6
ALIF-440-064 MS Chain Connector Pin 2
ALIF-440-104L/R-X LH/RH Dowel Pin Holder 4/4
ALIF-460-026L-XX LH Cross Rail Weldm’t. 1
ALIF-460-026R-XX RH Cross Rail Weldm’t. 1
ALIF-460-055 CR Chain Connector 2
CUHC10500ZTAP727E #10-24 STS x ½” Lg. 16
GL-09-057 Rub Block 12
PT23003BK 5/32 O.D. Black Tube 31 Ft.
SPE-25 5/32 ID Push-On Union Tee 2
SPL-2501-B 5/32 ID x 1/8MNPT Push-On 90 Deg. Conn. 4

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
12
LH/RH Mainside Leg Assy. 1/1
1U571 3/8NPT Breather Plug 2
2404-06-08 3/8MJIC x 1/2MNPT Straight Adapter 2
2772-BLK Rubber Grommet 10
28900-504-25 25 GPM Velocity Fuse 2
5040K34 5/32 OD x 12”/96” Extendable Tube 2
5406-08P 1/2NPT Plug 2
91102A029 ¼ Lock Washer 8
91578A502 ¾-10UNC x 7 Wedge Anchor w/nut & washer 12 HK
92865A537 ¼-20UNC HHCS x ½” Lg. 8
98381A683 7/16 Dowel Pin x 4” Lg. 4
98381A634 3/8 Dowel Pin x 2 ½” Lg. 4
98381A636 3/8 Dowel Pin x 3” Lg. 2
98410A249 1 3/8 Ext. Retainer Ring 4
AA8040001 8” Dia. Bore Cylinder 2
ALIF-440-059 Cylinder Clevis Pin 4
ALIF-440-075-XX Cylinder Clevis 2
ALIF-440-082-XX Hose Protector Bracket 2
ALIF-440-104L/R-X LH/RH Dowel Pin Holder 4/4
ALIF-460-015L/R-X LH/RH Main Side Leg Weldm’t. 1/1
ALIF-460-081 4 3/4” Chain Sheave 12
ALIF-460-103 Cylinder Chain 6
CUHC10500ZTAP727E #10-24 STS x ½” Lg. 4
PT24004BK 1/4 O.D. Black Tube 56 Ft.
SPL-2502-B 5/32 ID x 1/4MNPT Push-On 90 Deg. Conn. 2
SPL-4002-B 1/4 ID x 1/4MNPT Push-On 90 Deg. Conn. 2
OffsideLegAssy. 2
91102A040 1 ¼ Lock Washer 8
91259A626 3/8 Shoulder Bolt x 1 1/4 Lg. 6 HK
91578A502 ¾-10UNC x 7 Wedge Anchor w/nut & washer 12 HK
94846A558 1 1/8-12UNF Jam Nut Grd. 5 12 HK
95462A559 1 ¼-7UNC Hex Nut Grd. 5 8
95615A160 5/16-18UNC Nylon Hex Nut Grd. 5 6 HK
ALIF-440-016-XX Offside Leg Weldm’t. 2
ALIF-440-067 OS Threaded Chain Connector 6 PKG
ALIF-440-071 Safety Rod 4

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
13
Track, Ramp & Stop Assy. 2/2/2
90126A036 ¾ Flat Washer 16
90473A237 ¾-10UNC Hex Nut 8
91102A036 ¾ Lock Washer 8
91247A847 ¾-10UNC x 3 Lg. HHCS Grd. 5 8
91578A304 ½-13UNC x 4 ½ Wedge Anchor w/nut & washer 8 HK
ALIF-440-053-XX Ramp Weldm’t. 2
ALIF-440-054-XX Track Stop 2 PKG
ALIF-460-346-XX S-SHORT-20’ Track Weldm’t. 2
ALIF-460-046-XX SHORT-25’ Track Weldm’t. 2
ALIF-460-146-XX STD.-30’ Track Weldm’t. 2
ALIF-460-246-XX EXT.-35’ Track Weldm’t. 2
Misc. Parts
ALIF-440-096-XX 30’ Hose Protector Ext. Weldm’t. 2
ALIF-440-097-XX 30’ & 35’ Hose Protector Weldm’t. 2
ALIF-440-098-XX 25’ Hose Protector Weldm’t. 2
ALIF-440-398-XX 20’ Hose Protector Weldm’t. 2
91578A202 3/8-16UNC x 3 ½ Wedge Anchor w/nut & washer 14 HK
GL-09-056 1/16” Steel Shims 32 HK
GL-09-112 ¼” Steel Shims 16 HK
Optional Parts
WAJ20 20KAirRollerJack 1PKG
WAJ25 25KAirRollerJack 1PKG
*** Note: All hardware unless specified is grade 2. All hardware is zinc
coated unless specified. Parts with PKG at the end are packed on the lift
and parts with HK at the end are packaged in a box and put on the lift.

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
14

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
15

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
16

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
17

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
18

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
19

MDL 44060 Installation Operation Manual
44060-IOM
Rev. 1/26/09
20
