USER MANUAL
by PCT
HIGH- DEFINITION TELEVISION
COMPATIBLE

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
PLEASE READ THIS OWNER’S GUIDE
Please take the time to follow this owner’s guide carefully. It will help you set up and operate
your system properly, and enjoy all of its advanced features. Save your owner’s guide for future
reference.
WARNING: To reduce the risk of fire or electric shock, do not expose the system to rain or
moisture.
WARNING: This apparatus shall not be exposed to dripping or splashing, and objects filled with
liquids, such as vases, shall not be placed on the apparatus. As with any electronic products, use care
not to spill liquids in any part of the system. Liquids can cause a failure and/or a fire hazard.
The CAUTION marks shown here are located on the back of your CM-7000 D2A Digital to Analog
Converter.
The lightning flash with arrowhead symbol, within an equilateral triangle, alerts the user to the
presence of uninsulated dangerous voltage within the system enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.
The exclamation point within an equilateral triangle alerts the user to the presence of important
operating and maintenance instructions in this owner’s guide.
CAUTION To prevent electric shock, match wide blade of plug to wide slot, insert
fully.
CAUTION No open flame sources, such as lighted candles, should be placed on the
apparatus.
BATTERIES
Please dispose of used batteries properly, following any local regulations. Do not incinerate.
WARRANTY
This Channel Master product is warranted to be free from defects in material and workmanship under normal use
and service for a period of 90 days after purchase by the original purchaser. If the product does not conform to this
warranty, Channel Master shall replace it if it is returned to the dealer within the 90-day warranty period, and if
examination reveals to Channel Master’s satisfaction, that the product is defective. Claimants under this warranty should
present their claim along with the defective product, proof-of-purchase and the Warranty Certificate originally supplied
with it, to their dealer immediately upon failure. Noncompliance with any part of this claim procedure may invalidate
this warranty in whole or in part. Contact Channel Master for details.
© 2008 Channel Master by PCT, a division of PCT International, Inc. No part of this document may be reproduced, modified,
distributed or otherwise used without written permission. The distinctive design of the D2A Digital Converter is a trademark of
Channel Master by PCT, a division of PCT International, Inc.
The Channel Master logo is used under licensed agreement.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential Unpublished Works. © 1992-1997 Dolby Laboratories. All rights reserved.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
1
QUICK SET-UP GUIDE

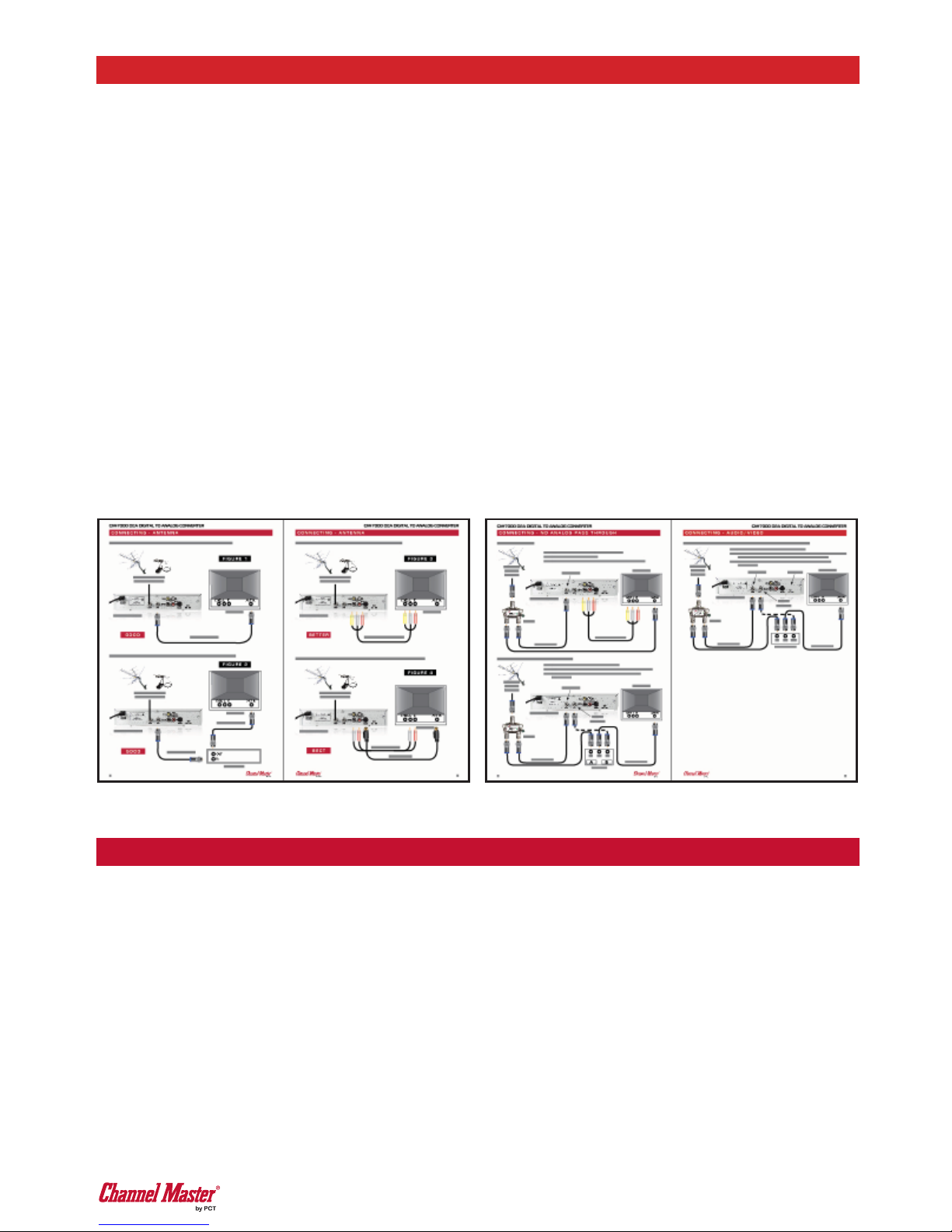

Connect the CM-7000 using one of the methods that best matches the
connections on your TV (see pages 4 to 7).
Select either Channel 3 or 4 with the CH3/CH4 switch on the back of1.
the CM-7000.
a. Set your TV to the corresponding Channel 3 or 4 if connecting via RF
COAXIAL CABLE (page 4).
b. Set your TV to VIDEO or AUXILIARY if connecting via RCA or RCA &
S-VIDEO CABLE (page 5).
Press MENU on the CM-7000 remote. The main menu should appear on2.
the TV screen.
Press the3. button and “TERRESTRIAL” should appear on the menu.

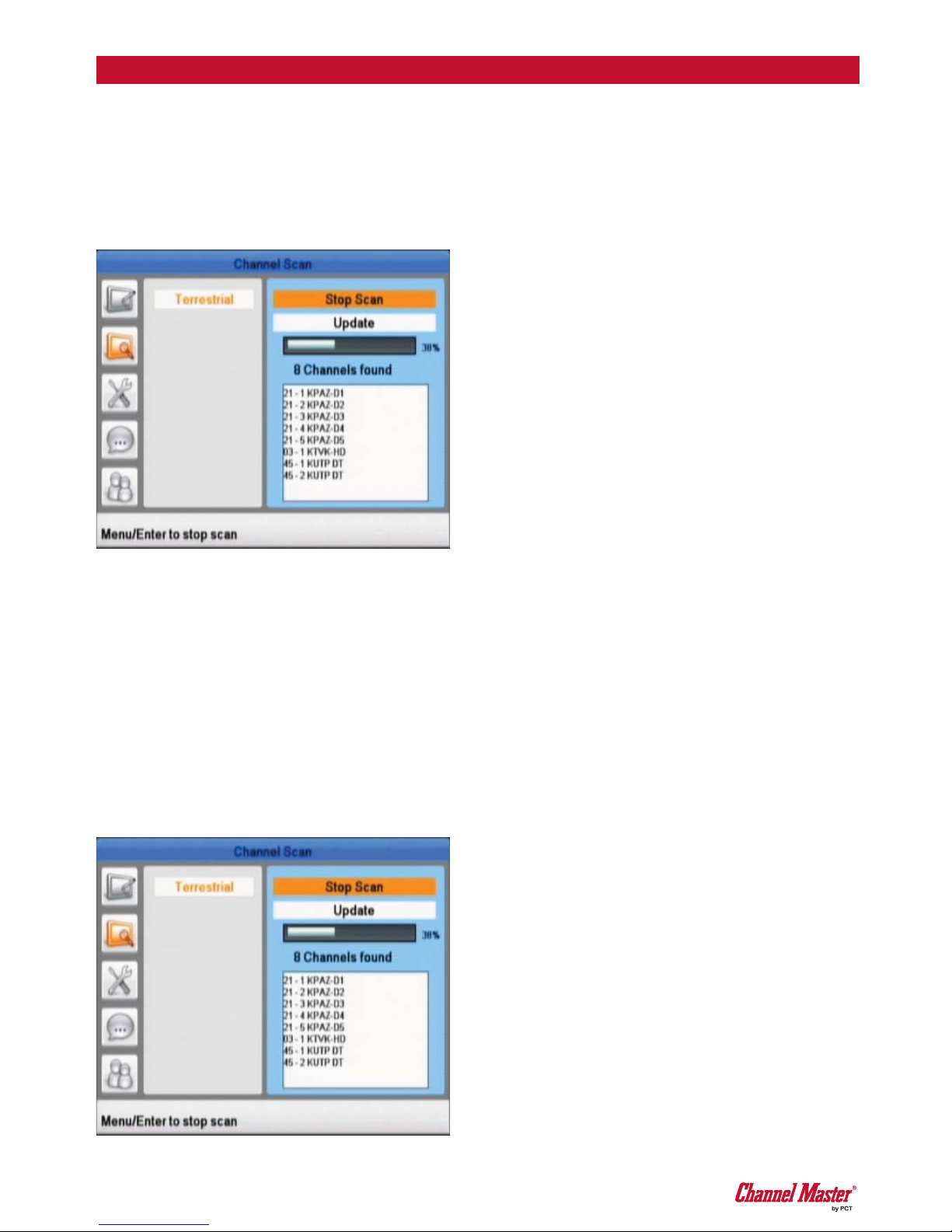

Press OK button 3 times to start the AUTO CHANNEL SCAN.4.
When the AUTO SCAN is complete, press EXIT. Use the5.  buttons to
begin watching digital TV.
INFORMATION REGARDING THE DIGITAL TV TRANSITION
Aftr February 17, 2009, a television receiver
with only an analog broadcast tuner will
require a converter box to receive full power,
over the air broadcasts with an antenna due
to the USA’s nationwide transiton to digital
broadcasting. Analog only TVs should continue
to work as before to receive low power, Class
A or translator TV stations, cable/satellite
services, gaming consoles, VCRs, DVD players,
and similar products.
Information about the DTV transition is
available at:
www.DTV.gov or 1.888.CALL.FCC
Information about subsidized coupons for
digital to analog converter boxes (like the
CM-7000) is available at:
www.dtv2009.gov or 1.888.DTV.2009
The CM-7000 digital to analog convert box is
capable of receiving digital broadcasts via a
TV antenna and displays them on an analog
TV set. This converter box does not include
analog pass through, so the use of an A/B
switch or splitter is required to receive both
digital and analag signals from one antenna
(see pages 6 and 7).
See pages 4 to 7 to view image details.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
INTRODUCTION
2
The Channel Master by PCT CM-7000 is a high quality
HD/SD (high definition/standard definition) digital ATSC
to analog NTSC television converter box. Using the CM-
7000 for direct terrestrial FTA HD reception allows users
to view HD programs on SD TV sets.
The combination of a CM-7000 Digital Analog Converter
with a Channel Master digital antenna is a perfect
solution for terrestrial reception in a very wide range of
reception conditions and landscape relief.
For energy saving, which is in compliance with NTIA
recommendations, the Auto-Sleep Function activates
Standby mode four (4) hours after last user entry from
the remote control, but not before the end of a currently
viewed event.
FEATURES
Converts all digital video formats,•
including HD (High Definition) into
SD (standard definition)
analog format
Easy installation and operation•
Automatic and manual programming•
Electronic Program Guide (EPG) support•
On Screen Display (OSD)•
Closed Caption (CC)•
Full function remote control•
Low power consumption•
Auto-Sleep function•
SAFETY!
POWER Power this box only from a power source within the specified voltage range
To prevent electrical shock, be sure the electrical plug used on the box’s power cord matches
the electrical outlet in use.
Do not open the top cover when the box is plugged into an electrical outlet.
CONNECTION Connect all peripheral devices before plugging the power cord into the electrical outlet.
Unplug power cord from the electrical outlet before disconnecting any peripheral devices.
GROUNDING Terrestrial antenna must be grounded to provide protection from lightning and build-up of
static electricity.
LIGHTNING For protection from lightning or when the box is left unattended for a long period, disconnect
it from the power source.
VENTILATION
The slots on the top of the CM-7000 must be left uncovered to allow proper airflow to the unit.
Do not cover the top with fabric, paper, or other materials.
Do not stack electronic equipment on top of the CM-7000.
OVERHEATING Do not install this box on soft furnishings or carpet.
Do not expose this box to direct sunlight or place it near a heater.
Do not install this box in small or non-ventilated openings between furniture.
LIQUIDS This box should not be exposed to liquids nor should objects filled with liquid be placed on
top of the box.
ENVIRONMENT CM-7000 is for indoor use only under specified conditions.
CLEANING Disconnect the box from the electrical outlet before cleaning.
Use a light damp cloth (no solvents) to clean the box.

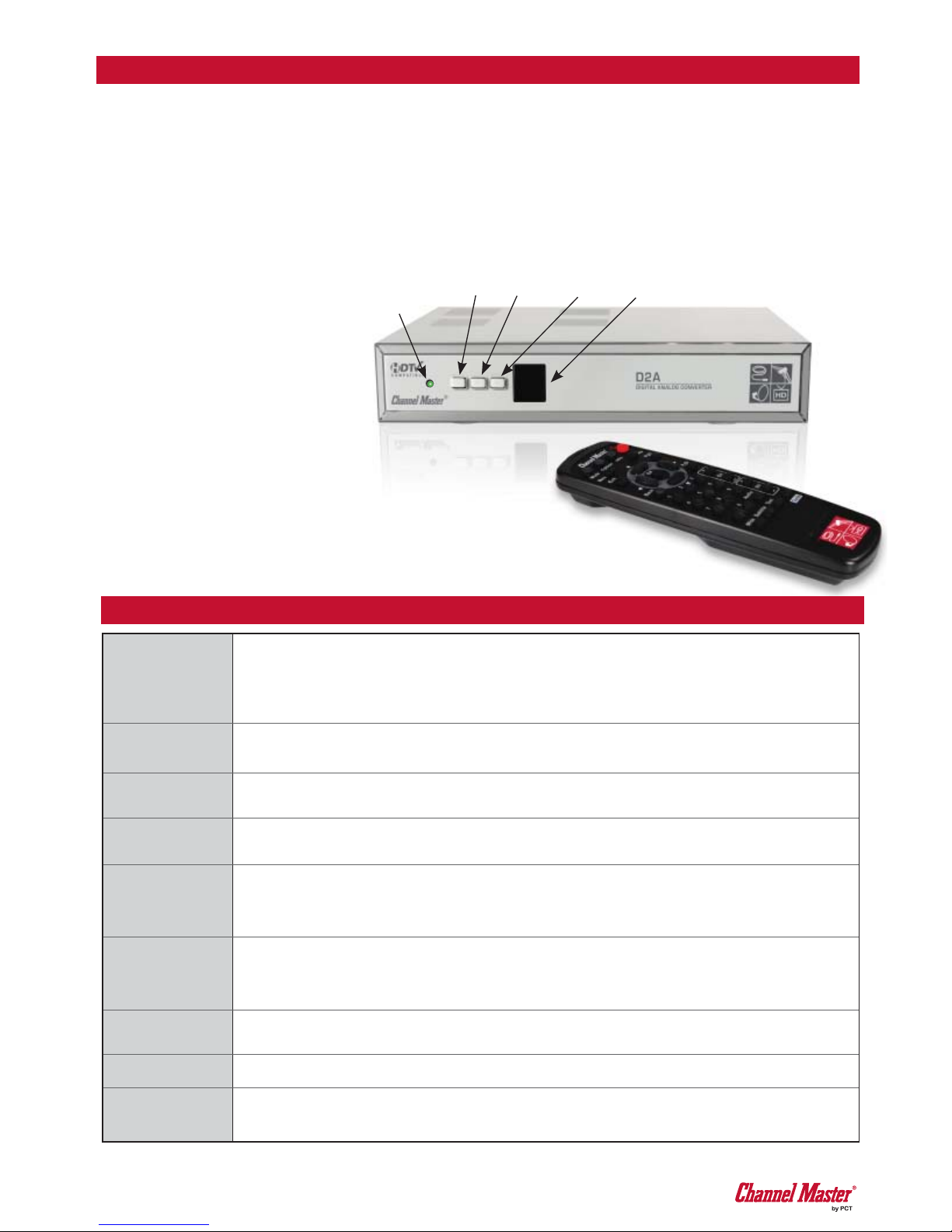

On/Off Channel
Down Channel Up IR Remote Window
Not a display window
Power LED
Light*
* Green = ON, Orange = Stand-By, Red = Booting Up
Note: Initial boot up process occurs when the unit is
first plugged in. Boot up may take up to 45 seconds
to complete and is followed by a green LED.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
TUNER
Frequency Range 54 to 864 MHz
Input Impedance 75 Ohm
Input Connector F-Type, Female
Channel Bandwith 6 MHz
Input Dynamic Range -83 to -5 dBM / SNR - 15 dB
DEMODULATOR
Type 8VSB / ATSC A/53 compliant
Performance ATSC A/74 compliant
Input Video Formats 1080i, 720p, 480i, 480;
VIDEO
Output Format 480i
Aspect Ratio 4:3 / 16:9 with letter box pan and scan
CONNECTORS
Video
Composite Video RCA
Component Video S-Video
Audio
Left / Right RCA, Stereo
RF MODULATOR
Output RF Connector F-Type, Female
Channel 3 / 4, Selectable, Mono Audio
POWER
Supply 120 VAC / 60 Hz
Consumption “ON” 8 W
Consumption “STANDBY” 2 W
Auto-Sleep Mode 4 hours after last remote control entry
GENERAL
Dimensions (W x L x H) 22 x 16 x 4 cm / 8.7 x 6.3 x 1.6 in
Weight 0.9 kg / 2.0 lbs
ENVIRONMENT
Operating Temperature 0 to 60° C / 32 to 140° F
Relative Humidity 10 to 90% noncondensing
SPECIFICATIONS
3

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
4
CONNECTING - ANTENNA
CONNECTING CM-7000 TO A TV USING RF COAXIAL CABLE
CONNECTING CM-7000 TO A VCR USING RF COAXIAL CABLE
GOOD RF Coaxial Cable
Back of CM-7000
ANT INCVBS L R
Back of TV
Terrestrial Antenna
(outdoor or indoor)
Back of CM-7000
GOOD
Terrestrial Antenna
(outdoor or indoor)
RF Coaxial Cable
RF Coaxial Cable
ANT INCVBS L R
Back of TV
OUT
IN
Back of VCR
FIGURE 1
FIGURE 2

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
Back of CM-7000
CONNECTING CM-7000 TO A TV USING RCA CABLE
CONNECTING - ANTENNA
5
CONNECTING CM-7000 TO A TV USING RCA & S-VIDEO CABLE
BETTER RCA Audio/Video Cable
Back of CM-7000
ANT INCVBS L R
Back of TV
Terrestrial Antenna
(outdoor or indoor)
BEST
ANT INCVBS L R
Back of TV
Terrestrial Antenna
(outdoor or indoor)
S-Video Cable
Audio RCA Cable
FIGURE 3
FIGURE 4

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
CONNECTING - NO ANALOG PASS THROUGH
6
VIA AUDIO/VIDEO
VIA SPLITTER A/B SWITCH HOOKUP
Terrestrial
Antenna
(outdoor)
CM-7000 is connected to TV set via audio / video.1.
Antenna is connected to TV tuner.2.
Tune to analog channels with TV and select AV input for CM-7000.3.
ANT INCVBS L R
Splitter
Back of CM-7000
RCA Audio/Video Cable
RF Coaxial Cable
Antenna In Back of TV
A/B SWITCH
IN IN
AB
TV
Terrestrial
Antenna
(outdoor)
Antenna is connected to TV tuner and CM-7000.1.
Converter box modulator is combined with antenna using an A/B switch.2.
Select A to watch analog signals and B to watch digital signals3.
via CM-7000.
ANT INCVBS L R
Splitter
Back of CM-7000
RF Coaxial Cable
Antenna In Back of TV
RF Coaxial Cable
RF Out
Ch 3 or 4

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
CONNECTING - AUDIO/VIDEO
7
VIA SPLITTER COMBINER USING FILTERING DEVICE HOOKUP
Ch 3/4 Combiner
IN 3/4
TV
Terrestrial
Antenna
(outdoor)
Antenna is connected to TV tuner and CM-7000.1.
Converter box modulator is combined with antenna using a Ch 3/4 combiner2.
that filters 3 and 4 from the antenna side to reduce interference.
Select ??? to watch analog signals and ??? to watch digital signals3.
via CM-7000.
ANT INCVBS L R
Splitter
Back of CM-7000
RF Coaxial Cable
Antenna In Back of TV
RF Coaxial Cable
RF Out
Ch 3 or 4
Ch 3 or 4

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
MENU TREE
8
DETAIL OF THE SET-UP FUNCTIONS.
MENU
CHANNEL EDIT SET UPCHANNEL SCAN PARENTAL
CONTROL
CLOSED
CAPTIONED
ALL CLOCKTERRESTRIAL PASSWORDSERVICE
FAVORITES LANGUAGE MOVIE
RATING
PREFERENCES
DELETED UNIVERSAL RC TV
RATING
LOCKED DEFAULTS ADDITIONAL
RATING
VERSION LOCK
AUTO
POWER DOWN

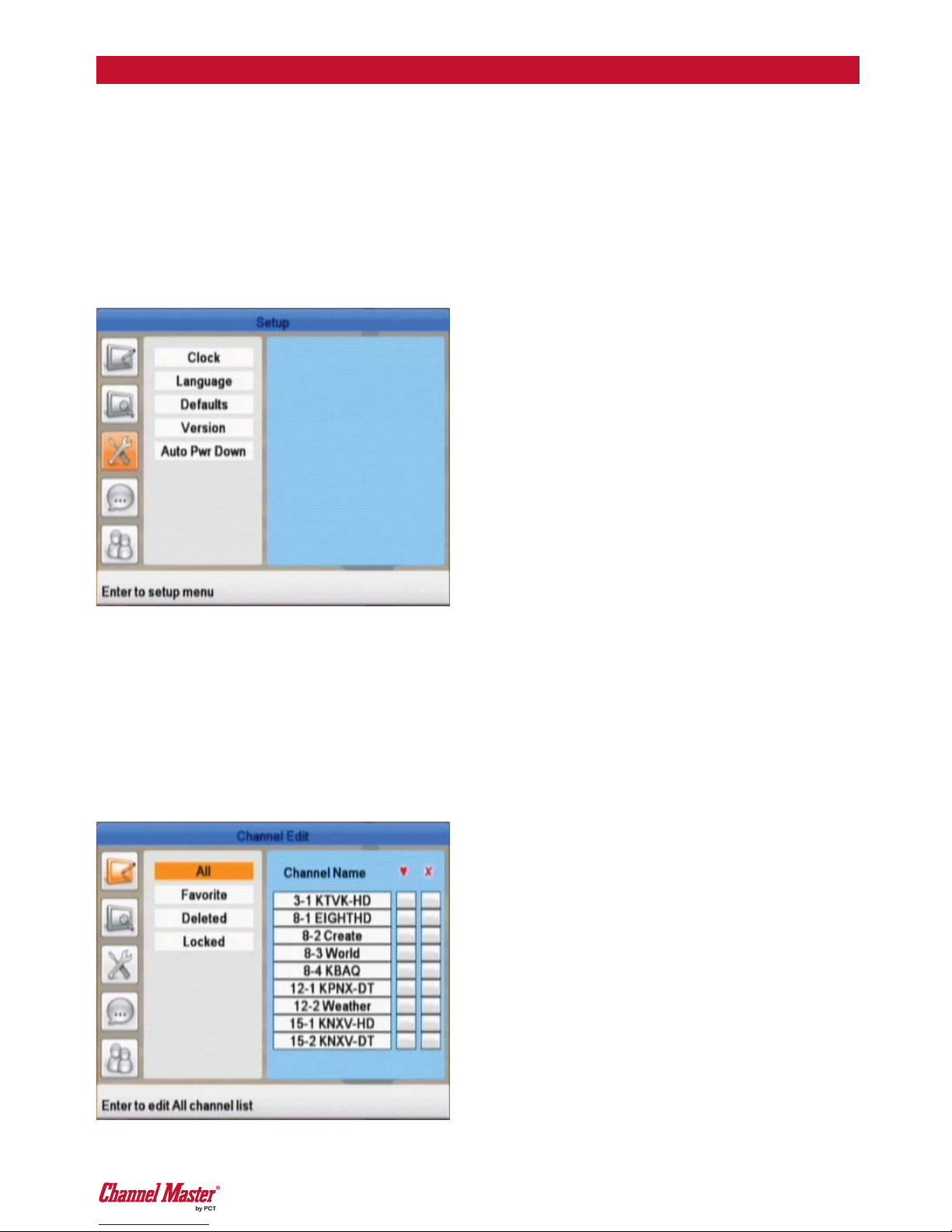

SET UP MENU FUNCTIONS
CLOCK
Sets date and time. Has auto or manual setting. Auto
setting is recommended. To set:
Press Menu1.
Use2.  menu buttons to select SET UP screen
Press3. OK to select CLOCK
Press4. OK to select DATE and TIME
Use5.  buttons to select AUTO DATE and
TIME
Press6. right button to select TIME ZONE
Use7.  buttons to change TIME ZONE
Press8. button to select DST
Use9.  buttons to change DST
Press10. Exit to store
LANGUAGE
Used to select between three (3) different onscreen
display languages. To change:
Press1. Menu
Use2.  buttons to select SET UP screen
Press3. OK to select LANGUAGE
Use4.  buttons to change LANGUAGE choice
Press5. OK to select
Press6. Exit to store
UNIVERSAL RC
Universal remote control function. Used to turn on or off
the universal remote control function. Factory setting is
set to ON. Use the Pioneer Cable Box code if using
a universal remote. If using a Channel Master remote
controlled rotator, you may turn the universal remote
control feature OFF to avoid conflicts between the rotator
remote control and the converter box. To turn OFF:
Press1. Menu
Use2.  buttons to select SETUP screen
Press3. OK to select Universal RC
Press4. OK to select ON
Press5.  buttons to change to OFF
Press6. OK
Press7. Exit to store
DEFAULTS
Restores setting to factory default settings. The default
password is 0000. To reset password:
Press1. Menu
Use2.  buttons to select PARENTAL CONTROL
screen
Press3. OK to select PASSWORD
Press4. OK then button to select NEW
PASSWORD
Enter5. 0000 in new password field
Press6. button to select RESET PASSWORD
Press7. OK
Password is now set to 00008.
AUTO POWER DOWN
Turns unit off after four (4) hours without user input.
This is a required, energy saving feature. Factory default
is ON and the unit will shut OFF after four (4) hours
without user input (ex: pressing CH+, CH-, or Info).
To turn off this feature:
Press1. Menu
Use2.  buttons to select SET UP screen
Press3. OK and a warning screen appears
Press4. button to select YES
Press5. OK
Press6. OK to uncheck the AUTO POWER DOWN box
Press7. Exit to store
The length of time to power down, and the option
to turn off the warning screen are also accessed from
this menu.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
REMOTE CONTROL
9
Mute Set volume to mute
Toggles mute on / off
Option Not used
Info Invokes the information banner
Standby Enters and exits standby mode
Menu Invokes Menu screen
Exit to previous Menu item
FAV Invokes Channel List menu
Switches between Channel List and Favorites List
Exit Exit from Menu
Arrow Up
Move focused item in menu or channel list
Arrow Down
Move focused item in menu or channel map
Arrow Left

Switch to Favorite Channel List in Channel List Menu
Change selection in menu
Switch to the next channel in EPG screen
Arrow Right

Switch to Favorite Channel List in Channel List Menu
Change selection in menu
Switch to the previous channel in EPG screen
OK Select a channel or menu option
Back Switch to previously viewed channel
PgU Unused
PgD Unused
0 - 9 Numeric key to change channel number or numeric value
CH + Channel up
CH - Channel down
Vol + Increase volume
Vol - Decrease volume
Audio Select audio
Wide Select picture shape
Subtitle Select Closed Caption (CC)
Text Unused
Guide Invokes the EPG screen
Universal
Remote
Code For universal remote, use Pioneer Cable Box code
Entering
Channel
Numbers
When entering channel numbers using the numeric
keypad, no “.” or “-” is necessary to tune directly to
a desired channel. For example: to tune to channel
8.3, press 83 and ENTER; to tune to channel 15.2,
press 152 and ENTER.
NOTE: To program a universal remote
to operate the CM-7000 digital to
analog converter box, use Pioneer cable
box codes.
REMOTE CONTROL

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
10

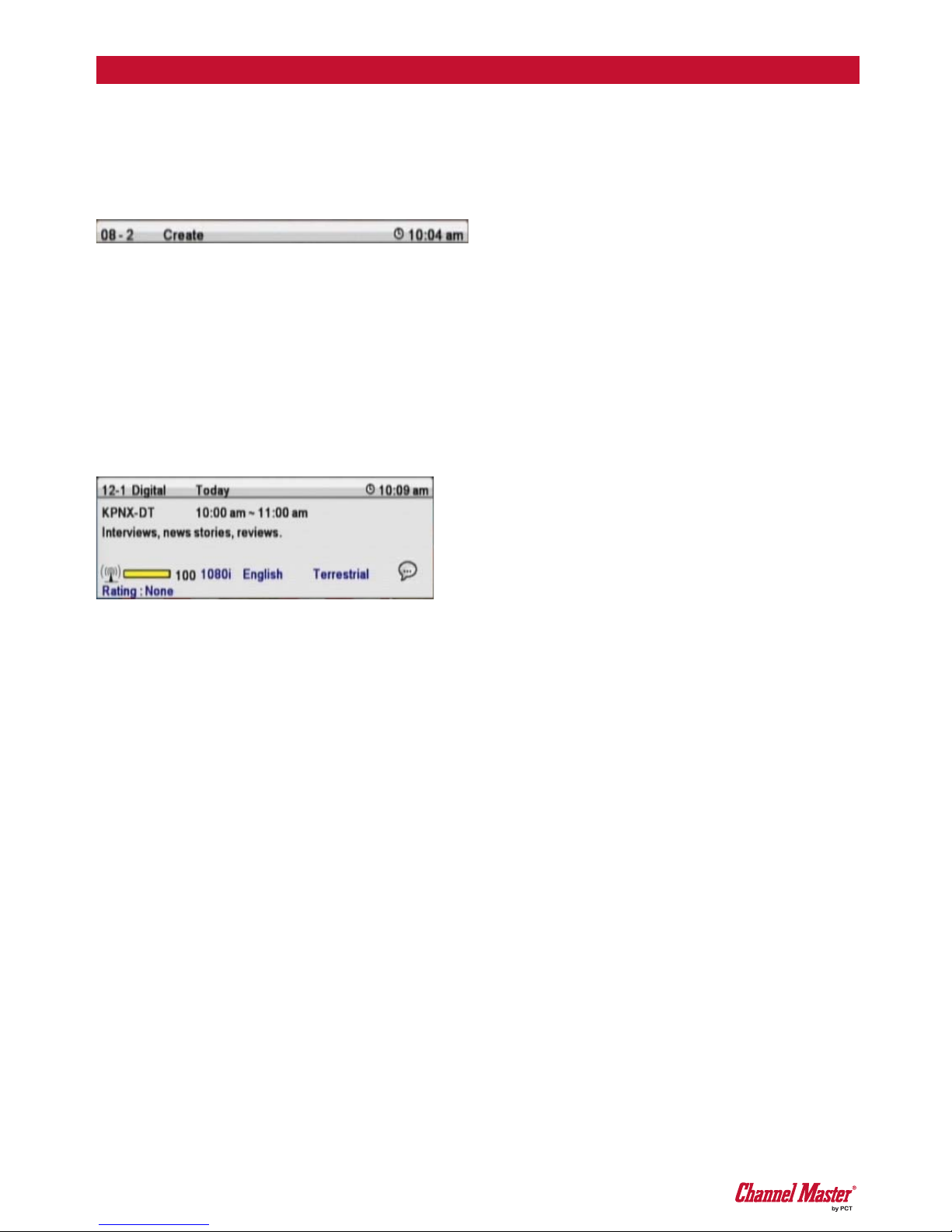

CHANNEL BANNER
Provides• channel major & minor numbers, station name and current time.
Gets invoked during channel number entry, channel up/down.•
Automatically times out.•
INFORMATION BANNER
Provides channel major & minor numbers, station name and current time,•
program name/description/duration, video resolution, audio language,
rating, cc information and signal strength.
Allows user to browse thru the program description.•
Info• button on remote invoke information banner.
Allows user to fine tune antenna using signal strength meter.•
Banner does not timeout. Press• Info to clear.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
11
MENU
Allows user to configure the system with easy to use graphical interface.•
Channel Edit•
Channel Scan
System Setup
Closed Captions
Parental Control
Menu• button on remote allows access to access the menu.
Use• , Menu/OK buttons to navigate the menu.
MENU - CHANNEL EDIT
Allows user to set channel as favorite.•
Allows user to delete channel.•
Allows user to browse locked channel.•
Invoke menu using• Menu key.
Navigate to channel edit options using•  keys, click OK key to access
channel edit options that allows you to set channel as a favorite or delete a
channel.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
12
CHANNEL SCAN
Automatically searches all terrestrial channels.•
Automatically updates the channel list with only newly found channels.•
Previously set channel properties such as favorite, delete and lock remains the same.•
List the channels that are added to the channel list.•
Monitor the progress of the channel scan.•
Access channel scan OSD:
Invokes menu using• Menu key.
Use•  and OK keys to access channel scan.
Select either terrestrial or cable to search respective channels.•
Select either scan all or update and click• OK to start channel scan.
Scan/update operation shows progress and lists channels as they are found.•
Update is used to add channels without loosing previously found channels.•
If using an antenna rotator, the update feature allows you to turn the antenna
to a different direction and add channels without loosing the previously scanned
channels.
Use• Menu key return back to the previous option, Exit key to quit the menu any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
13
SET UP
Provides easy user interface to set the system properties like date & time, OSD
language, etc.
Set date and time either automatically or manually.•
Choose English, Spanish, or French as OSD language.•
Set audio options:•
- Internal speakers ON/OFF
Returns all settings to factory defaults.•
To access Setup OSD:
Invokes menu using• Menu key.
Use•  and OK keys to access Setup.
Select Clock, Language, Defaults, and Version. Click• OK to access respective
option.
Clock allows user to set the system time, time zone, daylight saving time.•
Language option allows user to select OSD languages.•
Use• Menu key return back to the previous option, Exit key to quit the menu
any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
14

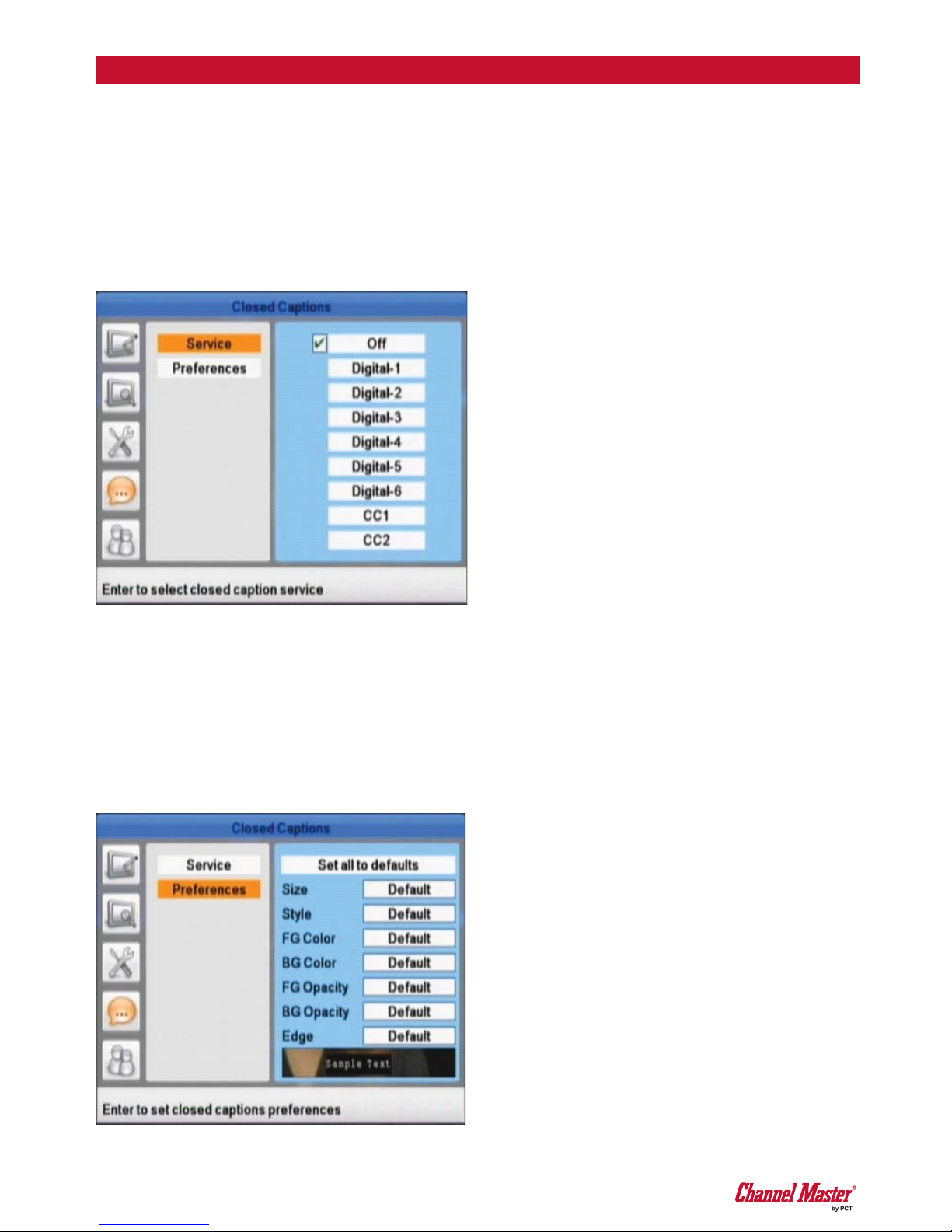

SET UP - CLOSED CAPTION
Provides easy to use interface to select one of the caption services and caption
font properties
Allows user to select one of the available closed caption services (analog•
and digital).
Allows font set up of the caption like size, style, edge effects, foreground•
and background color/transparency.
Sample caption window displayed reflects caption preferences.•
To access Setup OSD:
Invokes menu using• Menu key.
Use•  and OK keys to access Closed Captions.
Select Services or Preferences. Click• OK to access respective options.
Services allows access to select a service.•
Preferences allows access to set captioning font preferences.•
Use• Menu key return back to the previous option, Exit key to quit the menu at
any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
15

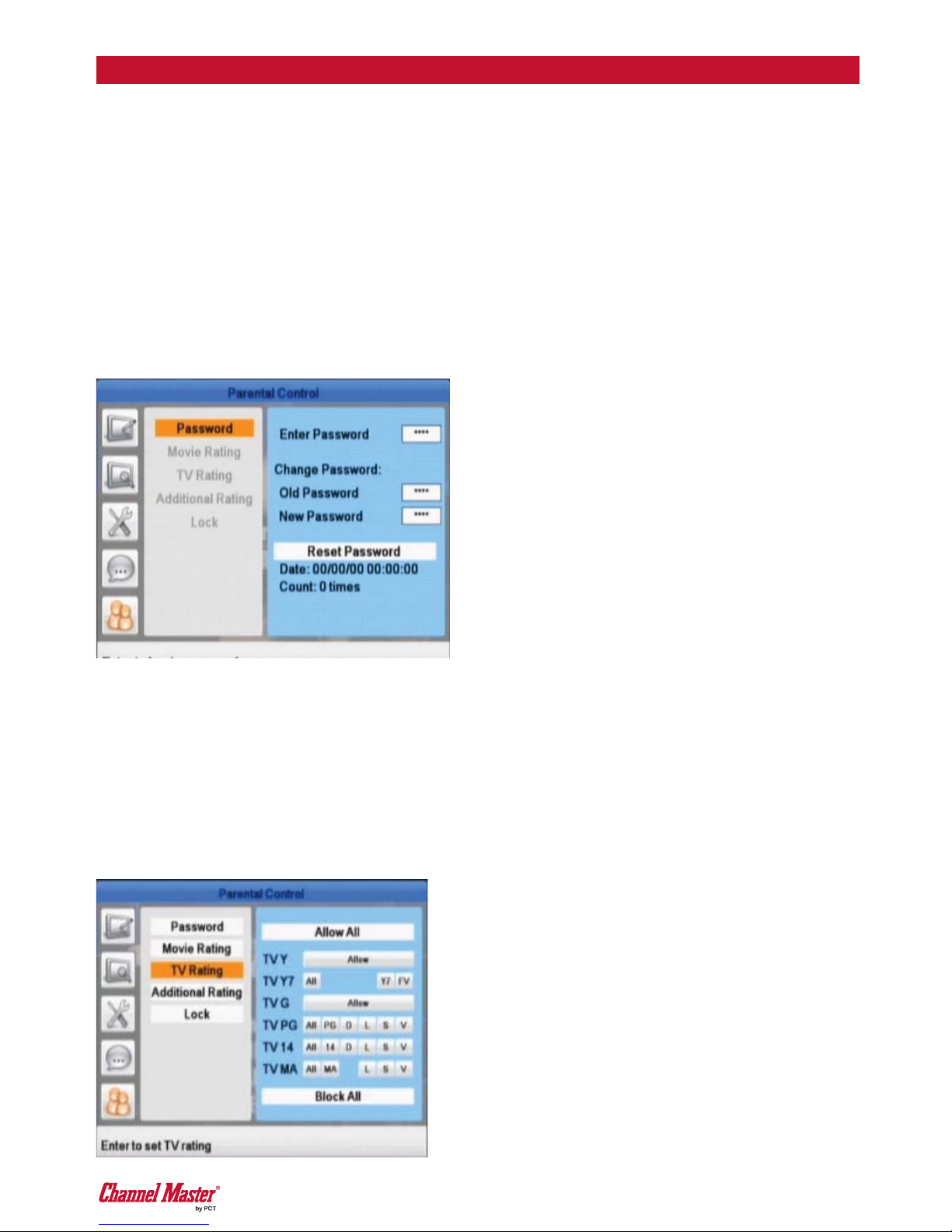

SET UP - PARENTAL CONTROL
Provides easy to use interface to set movie and TV limits to block a program based on
its rating
Allows access to set, reset, and change password.•
Resetting password update Date and Count that will indicate when the password•
was last reset and how many times it was reset.
Allows access to set movie rating limits to block the programs exceeding the set•
rating limits.
Allows access to set TV rating limits to block the programs exceeding the set rating limits.•
Additional rating menu displays program DRRT and allows the user to block those ratings.•
Allows access to block the channel completely irrespective of•
program ratings.
To access Setup OSD:
Invoke menu using• Menu key.
Use•  and OK keys to access Parental Controls.
Provide password and navigate•  and click OK to access the Movie / TV / Lock
screens.
Access Movie, TV or Additional rating screen to set each limits.•
Access Lock to block channel completely irrespective of rating.•
Use• Menu key return back to the previous option, Exit key to quit the menu at any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
ONLINE GUIDE
16

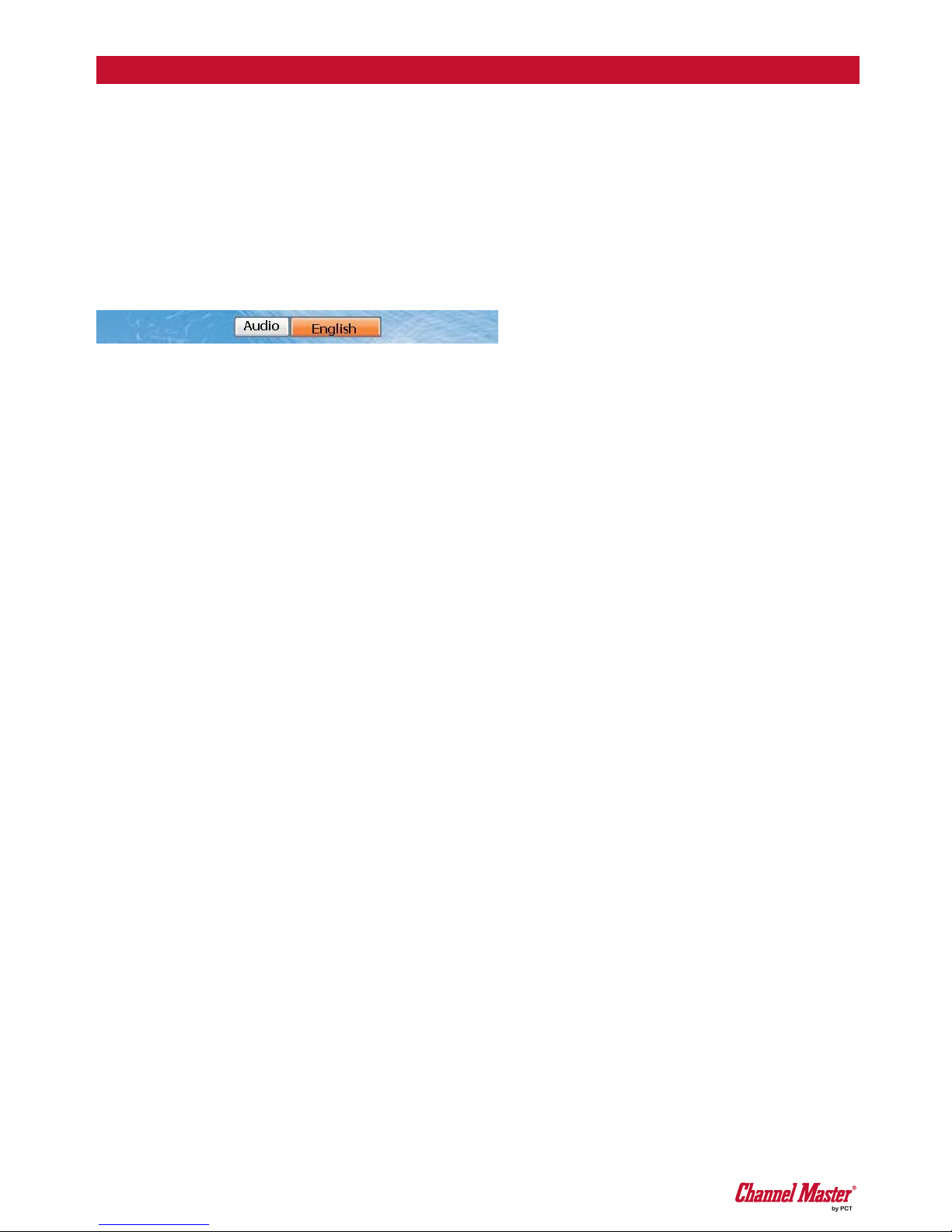

QUICK MENU - AUDIO
Quick menu that get invoked with single key on remote to select one of the
multiple available audio.
Provides the user with quick access to the list of audio available for that•
particular program.
Audio key on remote shall invoke this menu, same key shall be used to•
browse thru the audio list.
Exit• key shall be used to quit this menu, or this gets timed after a few
seconds.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER
17
Channel Master
a division of PCT International, Inc.
2151 East Broadway Road, Suite 211
Tempe, AZ 85282-1894
USA
Engineering and Product Management
1715 West Sunrise Boulevard
Gilbert,AZ 85233-5032
USA
Customer Service
Tel [phone]
+1.480.813.0925
Fax [phone]
email [email protected]
web www.channelmasterintl.com
Technical Support
tel [phone]
fax [phone]
email [email protected]
CONTACT

www.channelmasterintl.com
©2008ChannelMasterbyPCT, a division of PCT International, Inc. Pub PCTCM 200809a.CM7000.UM
